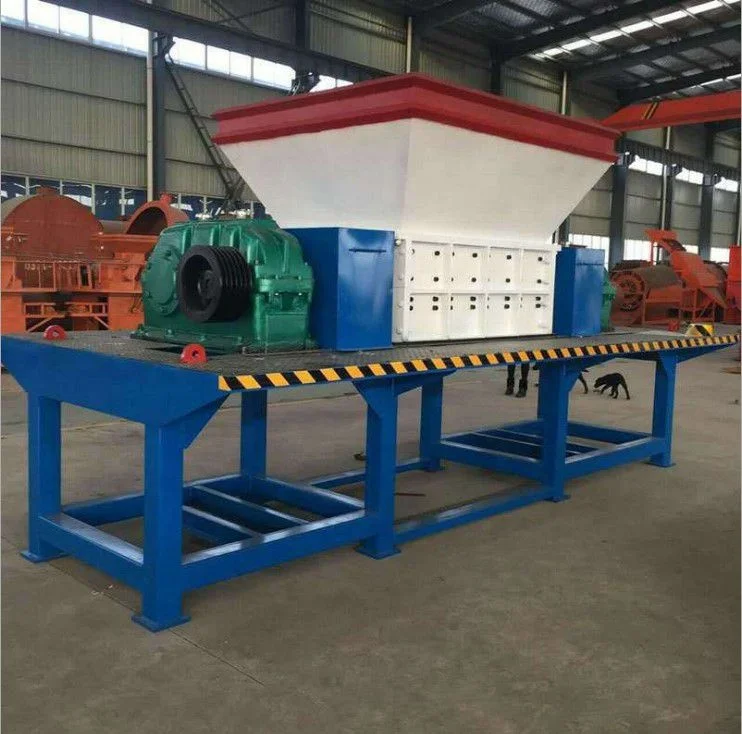

Plastic Pp Pe Film Recycled Pet Bottle Recycling Machine Plastic Shredder Blade For price
- Category: >>>
- Supplier: Shenyang Beiteng Chemical Machinery Co. Ltd.
Share on (1600288453052):
Product Overview
Description
Product Description
Product introduction:

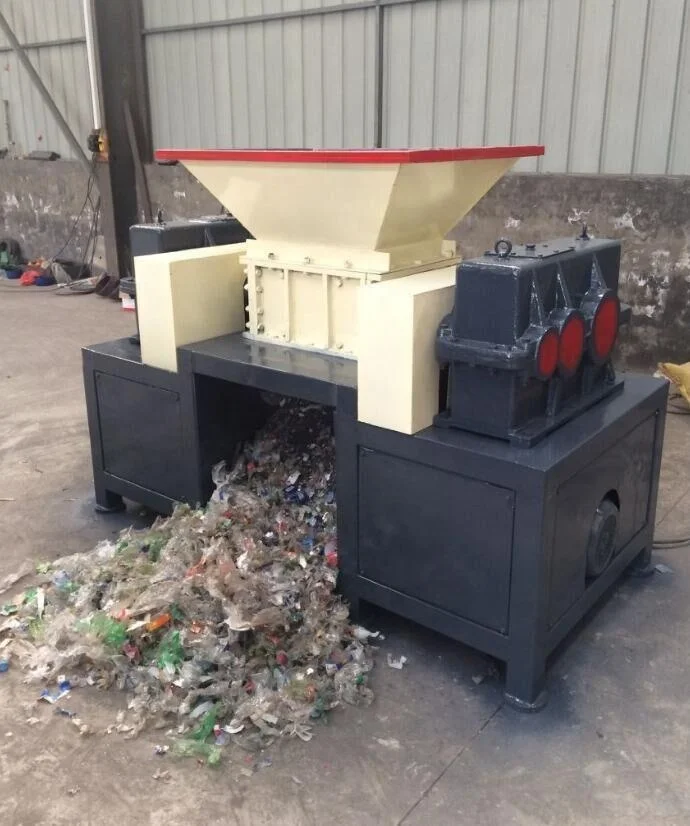

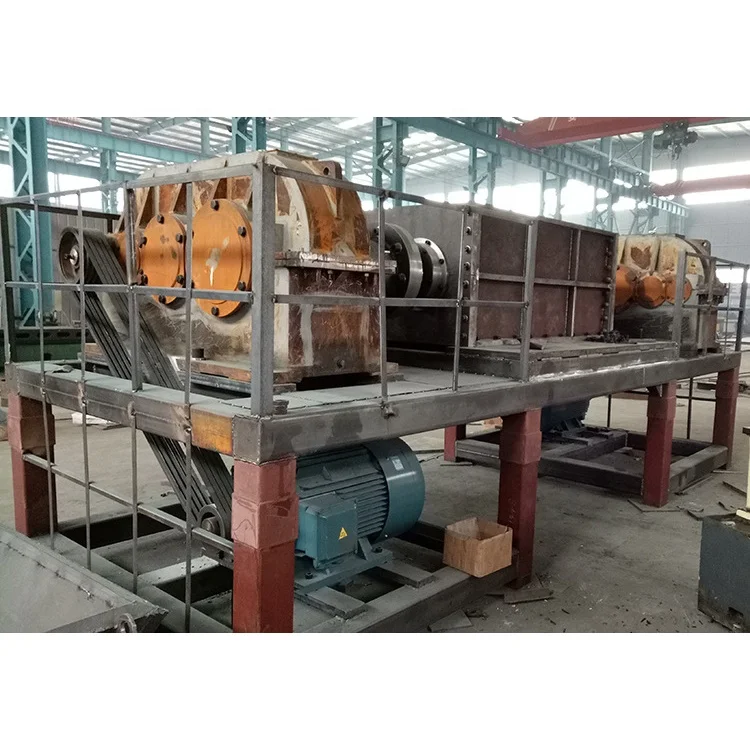

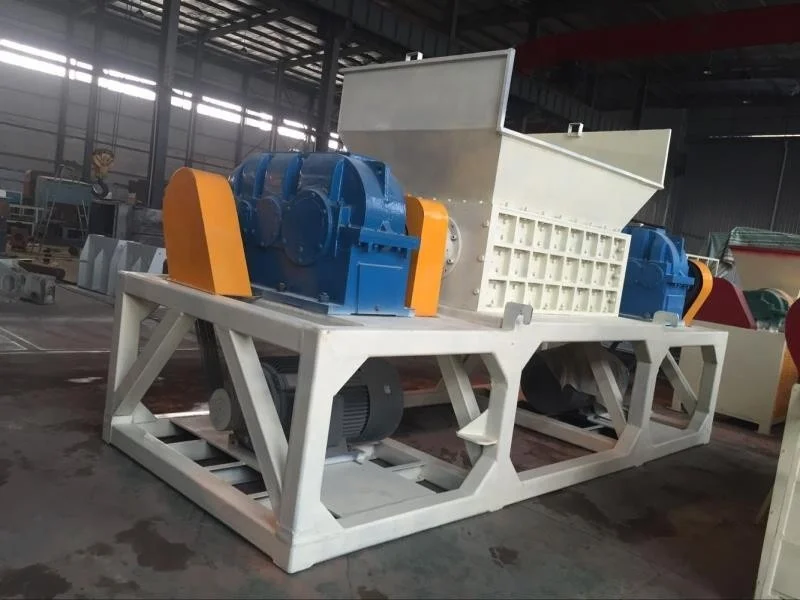

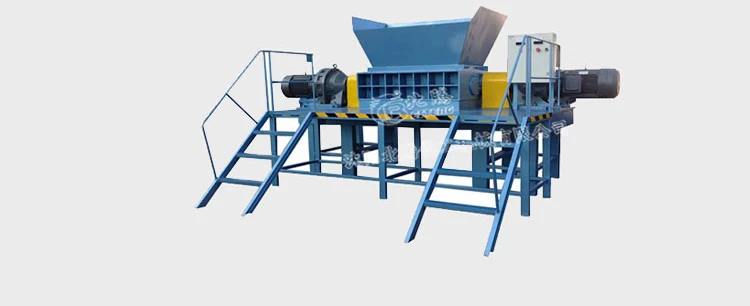

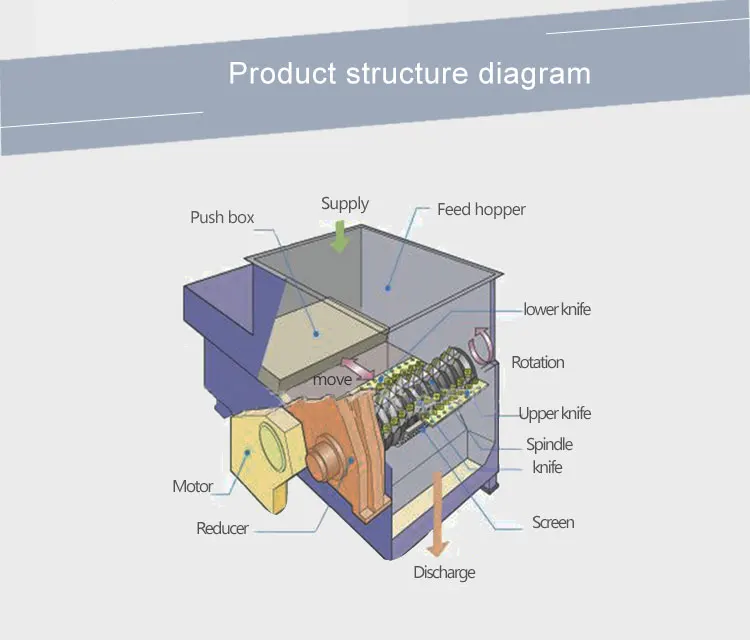

Plastic shredder is composed of shredding blade group, bearing box, box bracket, feeding system, power system and electrical control system.
Plastic shredder can also be called plastic shredder, plastic crusher, is a kind of plastic machinery for rough crushing of plastics, is one of the front-end equipment for recycling waste plastics. It can be cut, extruded, shredded and other series of processing for all kinds of plastics, and then produce small pieces of plastic for later processing, so it is also called shear plastic shredder.
Model | Tool specification mm | Tool number | Reducer | Power kW | External dimension m |
500 | Φ220*10 | 32 | 350*2 | 7.5*2 | 2*1*1.8 |
Φ220*20 | 16 | 350*2 | 7.5*2 | 2*1*1.8 | |
600 | Φ220*10 | 48 | 400*2 | 11*2 | 2.45*1*1.9 |
Φ220*20 | 24 | 400*2 | 11*2 | 2.45*1*1.9 | |
800 | Φ220*10 | 64 | 400*2 | 15*2 | 2.8*1*2.2 |
Φ220*20 | 32 | 400*2 | 15*2 | 2.8*1*2.2 | |
Enlarge800 | Φ300*30 | 18 | 650*2 | 30*2 | 3.4*1.4*2.2 |
900 | Φ400*20 | 28 | 750*2 | 37*2 | 3.5*1.6*2.2 |
Φ400*40 | 14 | 750*2 | 37*2 | 3.5*1.6*2.2 | |
1000 | Φ400*20 | 40 | 650*2 | 37*2 | 3.7*1.6*2.2 |
Φ400*40 | 20 | 750*2 | 37*2 | 3.7*1.6*2.2 | |
Φ500*50 | 20 | ZSSH350*2 | 55*2 | 4.7*1.8*2.5 | |
Φ600*50 | 20 | ZSSH450*2 | 75*2 | 4.7*1.8*2.5 | |
1200 type | Φ400*40 | 40 | 750*2 | 45*2 | 4.2*1.6*2.2 |
Φ500*50 | 24 | ZSSH315*2 | 55*2 | 4.7*1.8*2.5 | |
Φ600*50 | 24 | ZSSH355*2 | 110*2 | 5.05*1.8*2.5 | |
1500 | Φ400*40 | 36 | 750*2 | 45*2 | 4.4*1.6*2.3 |
2000 | Φ500*50 | 38 | ZSSH350*2 | 110*2 | 5.2*1.8*2.5 |
Φ600*50 | 38 | ZSSH450*2 | 132*2 | 5.2*1.8*2.5 |
Working principle:

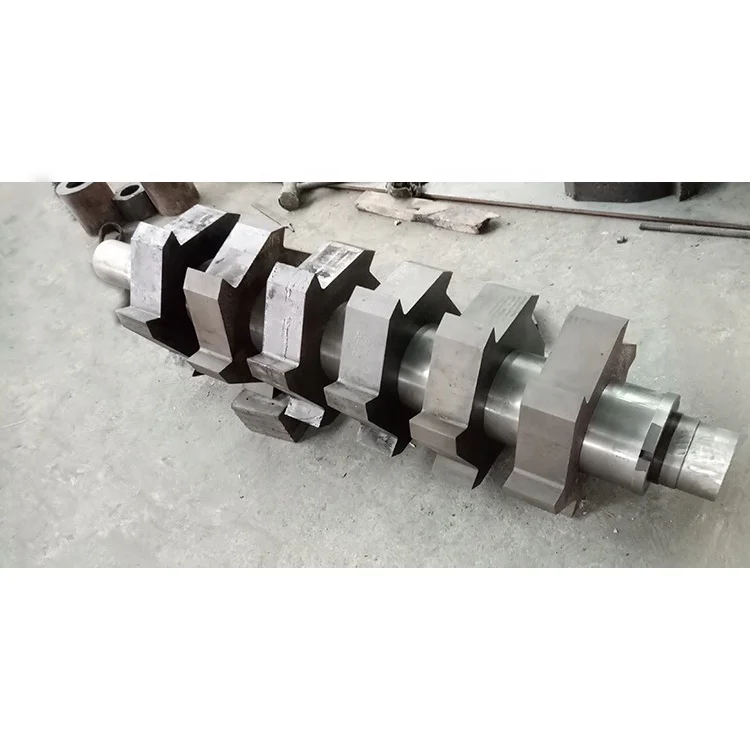

The plastic shredder independently drives the two spindles to rotate forward and backward, the moving knives on the spindle bite each other to form shear, the knife tip and the cylindrical surface of the tool sleeve form shear, and the torsion formed by the torque and speed difference of the spindle can achieve the crushing effect.
Due to the mutual bite of the moving knife, the automatic feeding function can be achieved, and the unique tool shaft structure can avoid entangling the shaft or jamming the equipment in the production process of low speed and high torque, so as to improve the production efficiency.
Due to the mutual bite of the moving knife, the automatic feeding function can be achieved, and the unique tool shaft structure can avoid entangling the shaft or jamming the equipment in the production process of low speed and high torque, so as to improve the production efficiency.
Product application:
Plastic crusher is suitable for mineral water bottles, PET bottles, machine oil bottles, gasoline bottles, plastic buckets and other plastics.
Company Profile
Shenyang Beiteng Chemical Machinery Co., Ltd. is an enterprise integrating scientific research, development, production and sales, and a technology backbone enterprise in the domestic machinery and equipment industry.
Location and technology development：

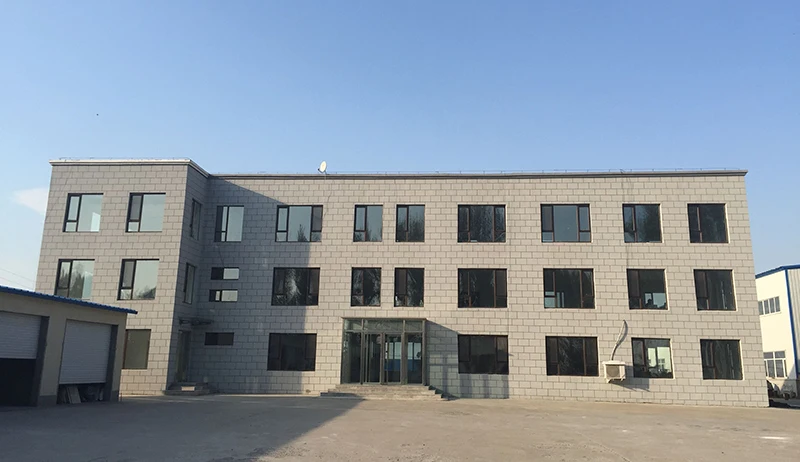

The company is located in China's heavy industrial base-Aiguo Village, Daxing Street, Yuhong District, Shenyang, and the production base is located in Shaling Industrial Park, Yuhong District, Shenyang enjoying superior geographical position and convenient traffic. Beiteng is mainly engaged in the R&D, production and sales of chemical machinery, plastic machinery, reaction kneading industry and thermal insulation dry powder mortar production line. We have strong technical force, the advanced level of technology and rational process. Also we are equipped with a complete product production and quality assurance system and perfect after-sales service. Our products are under the guidance of professional engineers, we strictly control the process and production steps to ensure the quality of the products. Our company passed the IS09001 international quality system certification in 2004. We have persisted in developing with high quality for many years, and regard the quality control of the production management process as important as the advanced design. In the meanwhile, we strictly implement all the steps in accordance with the technical requirements of national standards and trade standards. All along, our products are aimed to achieve best interest for users with our excellent quality and perfect after-sales service system.
Why Choose Us
Our company provides technical raw materials and product formulations.In the new situation of economic globalization and world integration, our price has enough advantages, and our after-sales service is very perfect.
Certifications
After sales
Perfect service system Beiteng Machinery 13940259778 15802483669
Five quality services before sale /in sale /continuous service after sale
1.Freely design suitable equipment collocation scheme.
2.Freely high-quality modeling scheme design,recommend equipment and design CAD drawings according to user needs.
3.Provide material processing experiments and formulations.
4.Free technical guidance, inform users of product operation and maintenance , and fully cooperate with users to complete the installation of the equipment until normal operation.
5.Free technical personnel troubleshooting, if the user due to equipment damage,only need to pay the cost of accessories.

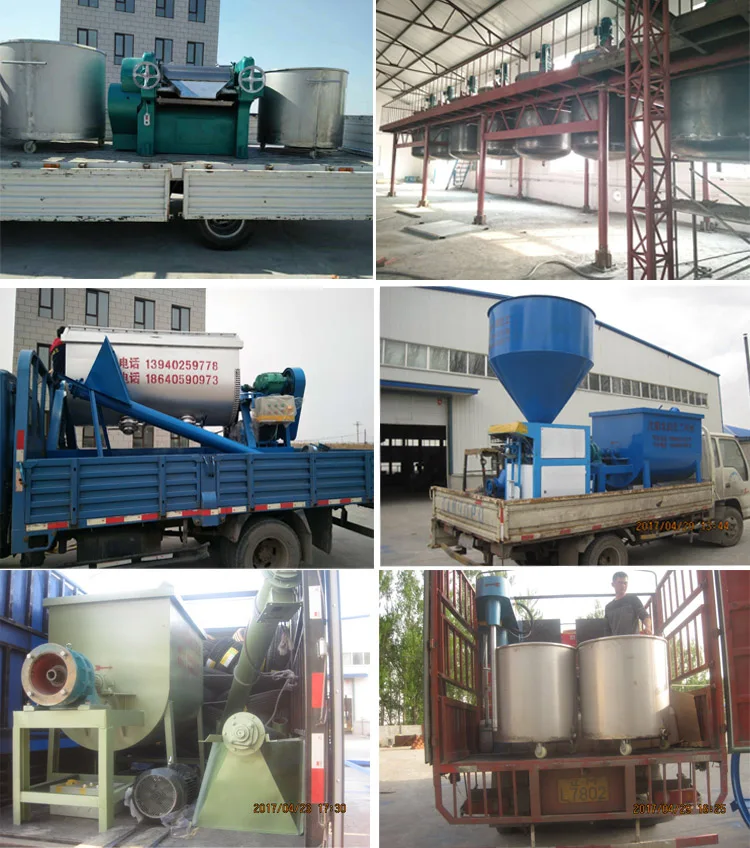

Packing And Shipping
FAQ
Q: Are you a machinery factory or a trading company?
A: We are a machinery factory with 13 years of experience in Shenyang. Annual export sales account for 30% of the total sales.
Q: What kind of machine do you make?
A: We mainly produce plastic machinery and chemical machinery.
Q: How to ensure the quality?
A: We are specialized in the design, sales, installation and maintenance of mechanical equipment for 13 years, with a strong technical team to escort you.
Q: How about the delivery time?
A:We have it in stock, but it takes about 3-7 working days for a new ordinary machine to be produced, and the goods are usually shipped within 15 working days.
Q: How long is the warranty?
A: Within one year from the customer's confirmation of receipt, if there is any non-human failure or damage (except for vulnerable parts), we will provide new parts free of charge.
Q: What are your payment terms?
A: 100% telegraphic transfer before shipment. L / C Western Union remittance or trade guarantee order is recommended before shipment.
