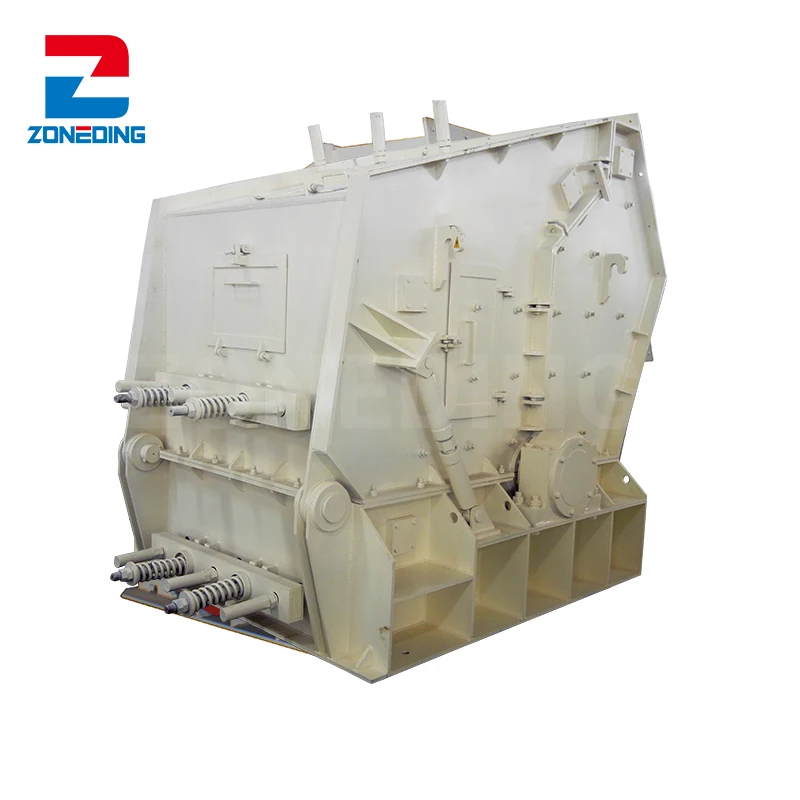

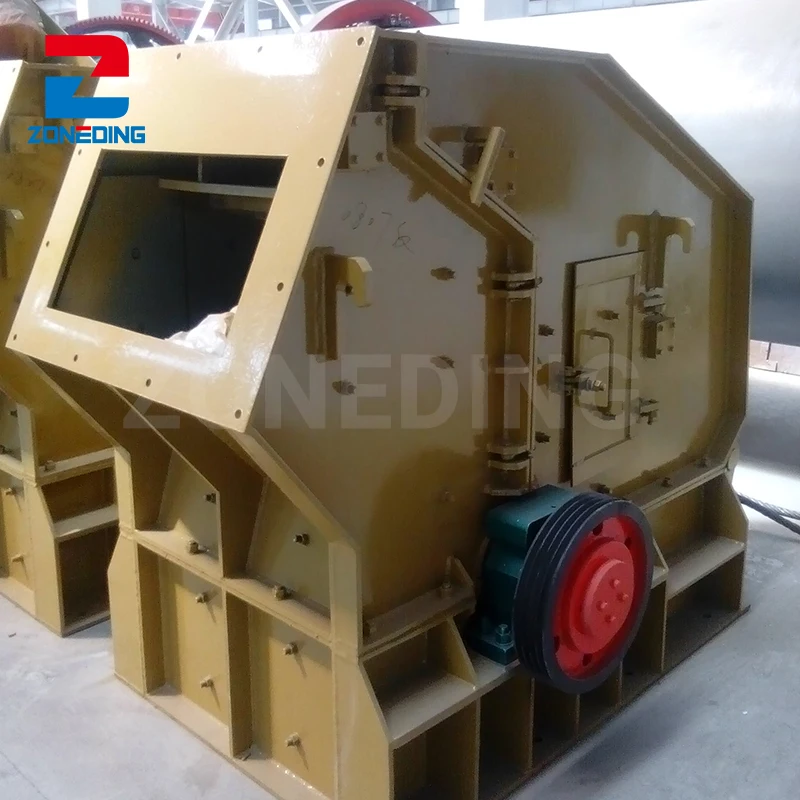

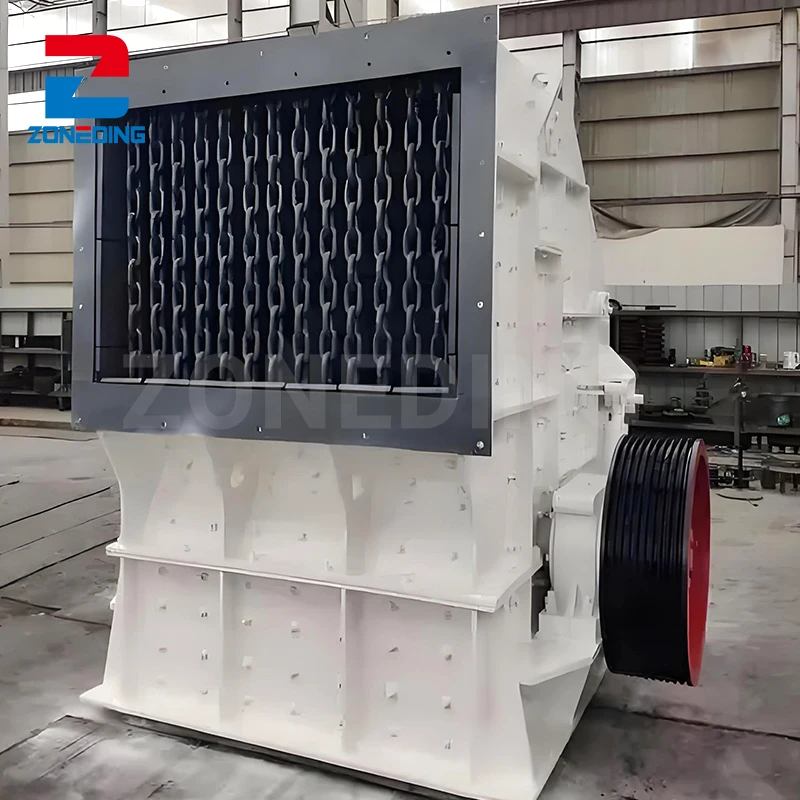

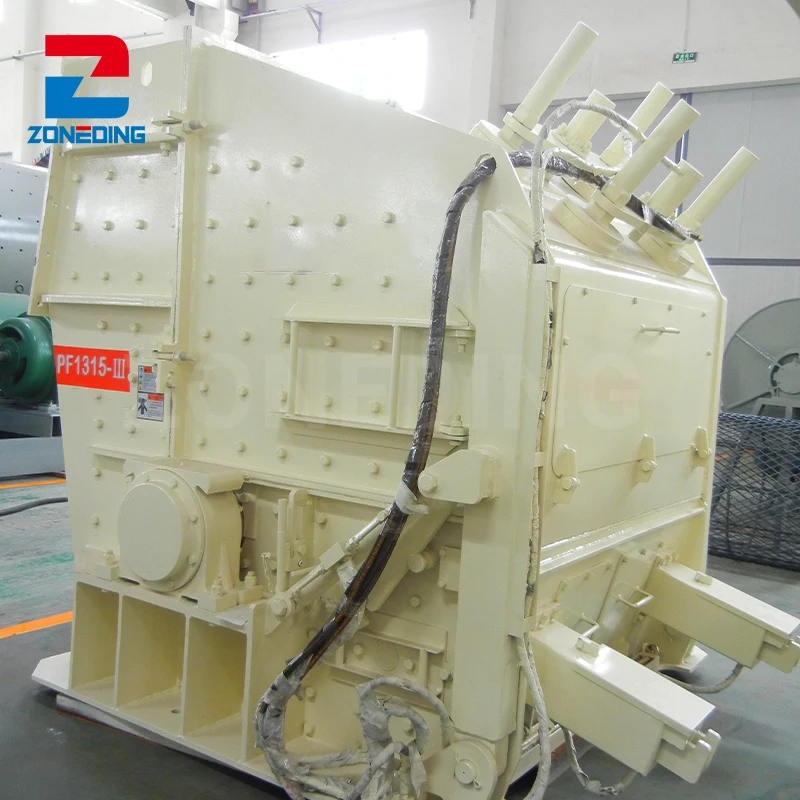

Hight Quality PF1315 Limestone Quarry Quartz Fine Impact Stone Crusher Price
- Category: >>>
- Supplier: Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co. Ltd.
Share on (1600288554193):
Product Overview
Description
Product Description
Impact Crusher can crush the large, medium and small size materials (granite, limestone, concrete ,etc.) With max feed size less than 500 mm and compression strength less than 350 Mpa. Presently, by practices, its comprehensive function is superior to the cone crusher and the hammer crusher.
European Type Impact Crusher takes advantages of safety operation and large carrying capacity, particularly, the semi automatic adjusting device highlights intelligence and advancement.

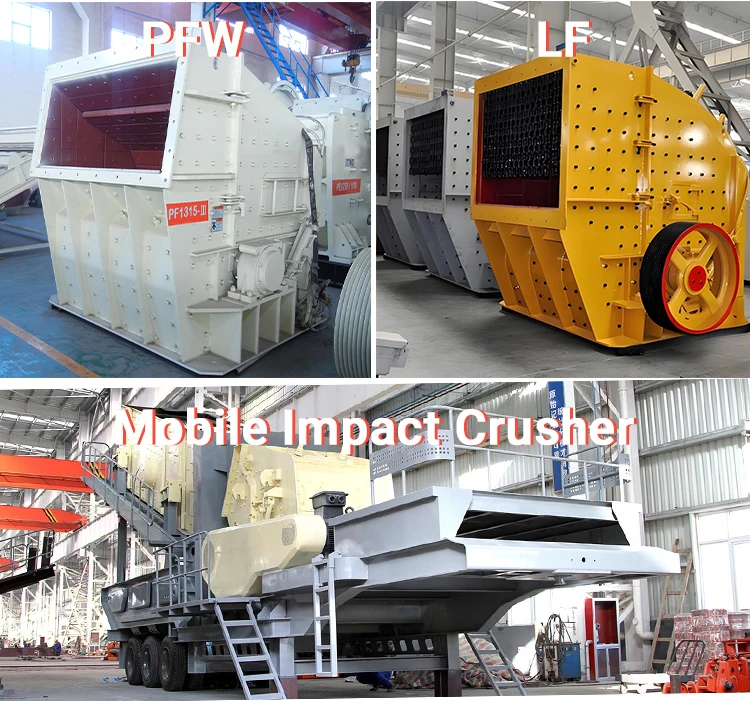

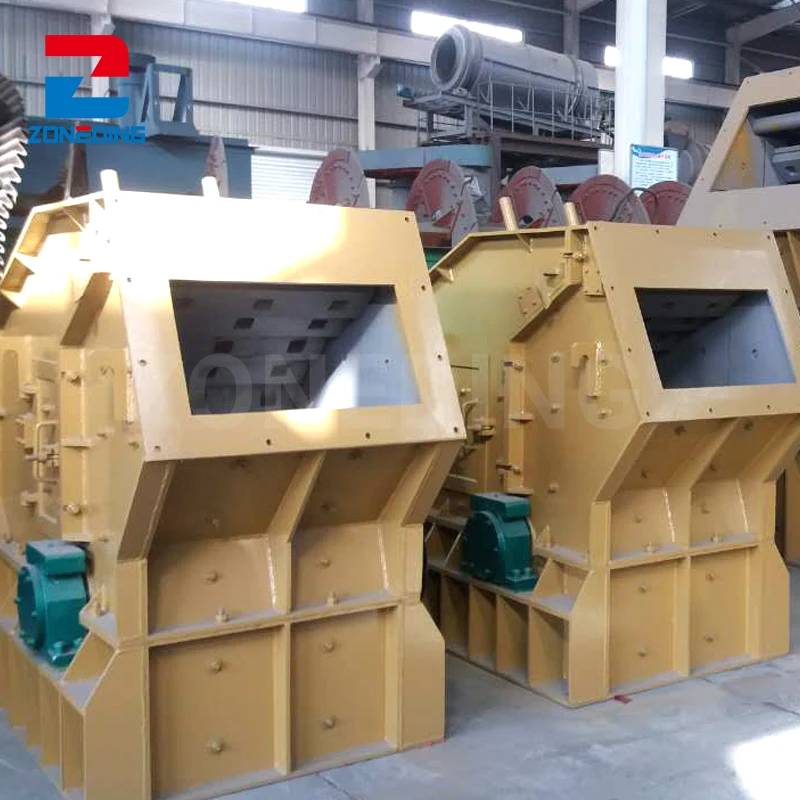

All Types Of Impact Crushers
Zoneding mainly provides 3 types of impact crushers: impact crusher, LF type large feed inlet impact crusher, mobile impact crusher, etc. Here are details of these 3 types of impact crushers.
Zoneding mainly provides 3 types of impact crushers: impact crusher, LF type large feed inlet impact crusher, mobile impact crusher, etc. Here are details of these 3 types of impact crushers.

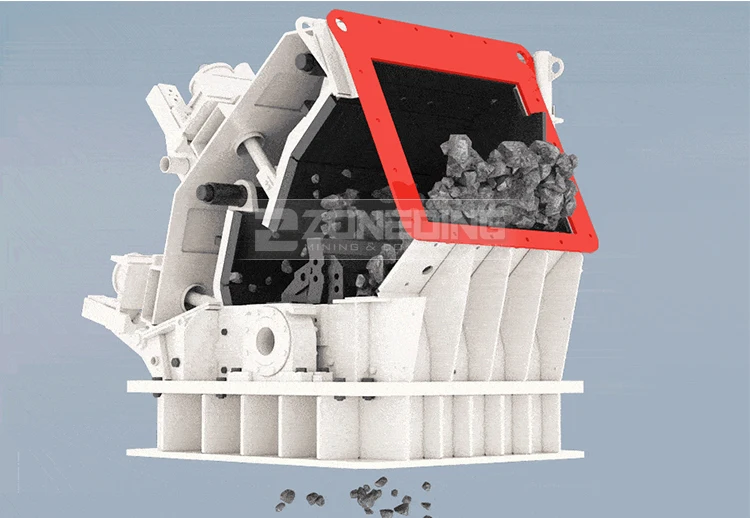

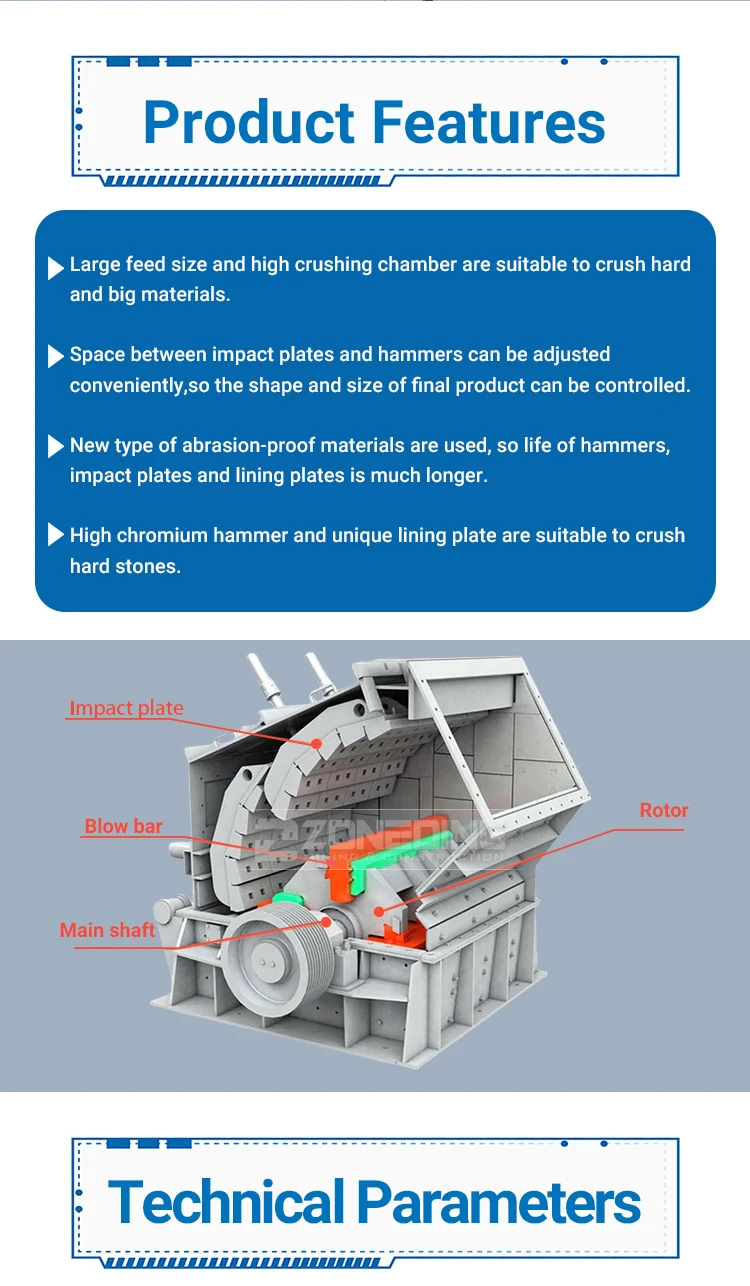

When the impact crusher is working, the motor drives the rotor through the V-belt, and the material is crushed by the high-speed impact of the hammer on the rotor, and is thrown to the impact bracket to break again, and then bounce from the impact surface to the impact area of the hammer again. Crushing, this process is repeated until the material is crushed to the required size. The material flows from the first feed port to the first crushing chamber, and then into the second crushing chamber. When the crushed ore particle size is smaller than the gap between the hammer head and the impact plate, it will be discharged from the lower part of the machine, which is the crushed ore. product. This machine adopts a self-weight safety device on the rear rack. When the non-broken objects enter the crushing chamber, the front and rear counter-attack frames will retreat, and the non-broken objects will be discharged from the machine body.
Main Parameters of PFW Impact Crusher
Type | Feeder opening size(mm) | Max feeding size(mm) | Rotor size D*L(mm) | Capacity (t/h) | Power (kw) | Overall Dimension (mm*mm*mm) |
PF-1007 | 450X750 | 250 | Φ1000X700 | 10-60 | 45 | 2330*1700*2560 |
PF-1010 | 450X1100 | 300 | Φ1000X1050 | 50-90 | 55 | 2330*2010*2560 |
PF-1210 | 450X1100 | 300 | Φ1250X1050 | 70-130 | 90 | 2640*2010*2850 |
PF-1214 | 450X1450 | 350 | Φ1250X1400 | 90-180 | 132 | 2640*2400*2850 |
PF-1315 | 650X1500 | 350 | Φ1320X1500 | 120-250 | 160-200 | 2930*2670*3150 |
Main Parameters of LF Impact Crusher
Type | Feeder opening size(mm) | Feed side length(mm) | Processing capability(mm) | Power (kw) | Weights (kg) |
LF-150 | 820X980 | 100-200 | 100-200 | 90-200 | 12000 |
LF-250 | 960X1360 | 200-400 | 200-400 | 180-250 | 17000 |
LF-350 | 1050X1700 | 300-500 | 300-500 | 200-400 | 24000 |

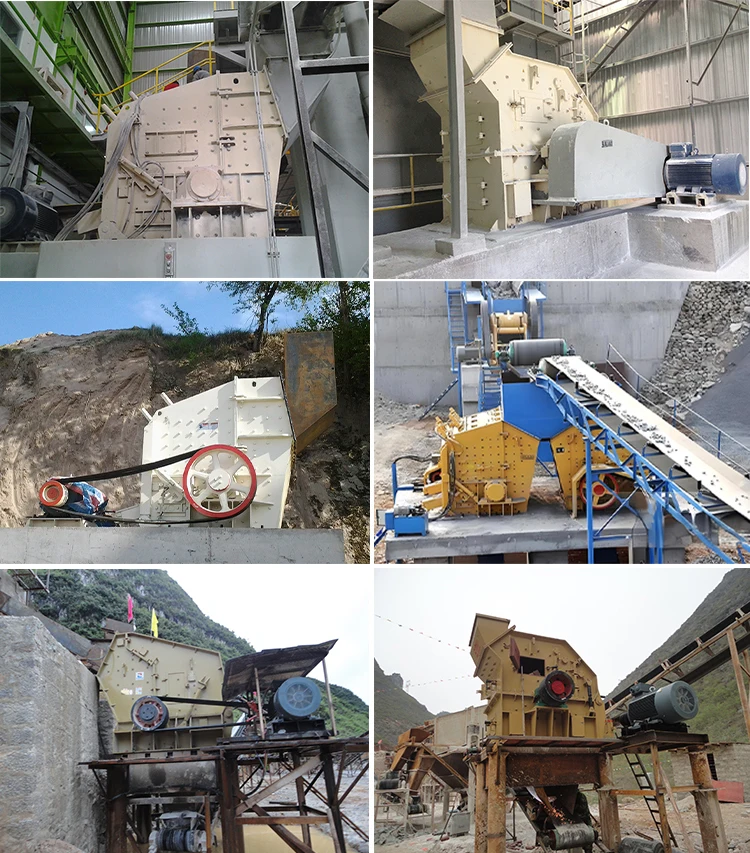

Customer Site

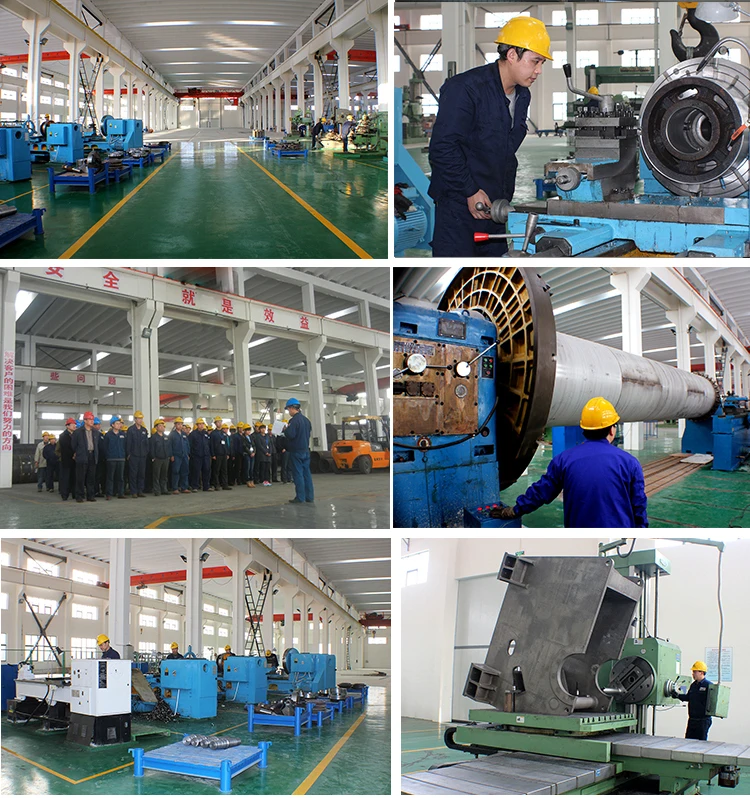

Company Information
Zhengzhou Zhongding Heavy Machinery Manufacturing Co., Ltd. is a professional solution provider of mineral processing, crushing, screening and drying equipment. We have long been committed to providing crushing equipment, vibrating screening equipment, washing equipment, belt conveyor equipment and other production line processes for the grinding, beneficiation, sand and aggregate industries.
Customer Visits
Why Choose Us
Technical Advantages
1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.
2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.
2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.
Price Advantages
1. We are the direct manufacturer, so we can offer you the lowest price than the market price.
2. The price of the machine can be given the largest discount based on quantity.
2. The price of the machine can be given the largest discount based on quantity.
Transportation Advantages
1.Standard container or bulk cargo transportation.
2.Sea transportation, air transportation, land transportation, according to customer requirements.
3.Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.
4.Seaports in normal use: Qingdao, Tianjin, Shanghai.
5.We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.
2.Sea transportation, air transportation, land transportation, according to customer requirements.
3.Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.
4.Seaports in normal use: Qingdao, Tianjin, Shanghai.
5.We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.
Packing & Delivery
FAQ
1.Are you a manufacturing or trading company?
We are manufacturer. Our factory established in 2004.
2.What is the after-service of your company?
We can provide the foundation drawing, installation service, training, spare parts and other service according to the customer's requirements.
3. Which mineral processing method should I choose?
According to the properties of minerals, we will choose the treatment method that most suitable for you.
4. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.
5. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
We are manufacturer. Our factory established in 2004.
2.What is the after-service of your company?
We can provide the foundation drawing, installation service, training, spare parts and other service according to the customer's requirements.
3. Which mineral processing method should I choose?
According to the properties of minerals, we will choose the treatment method that most suitable for you.
4. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.
5. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
