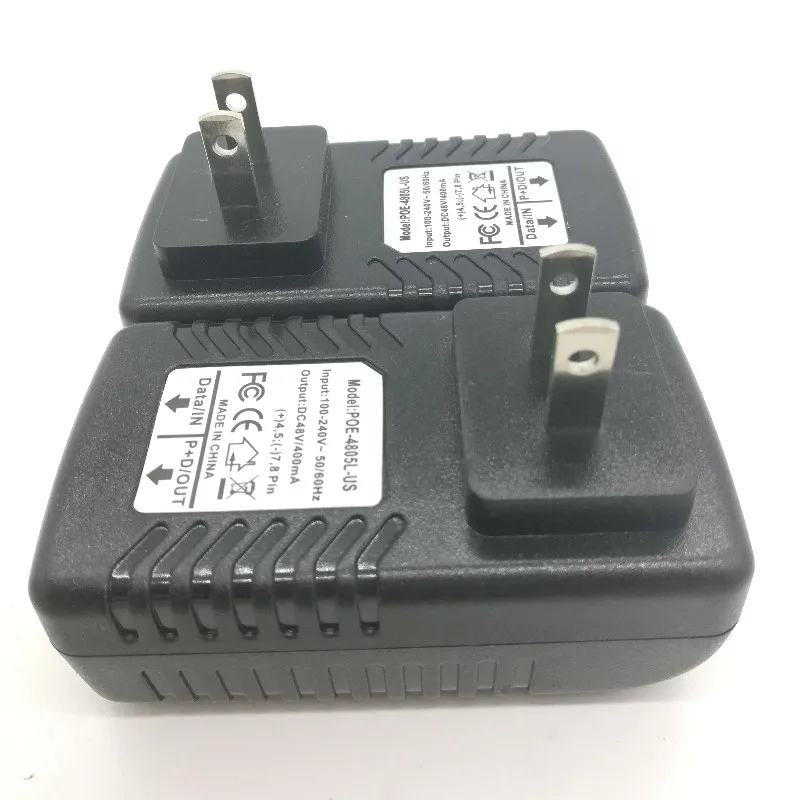

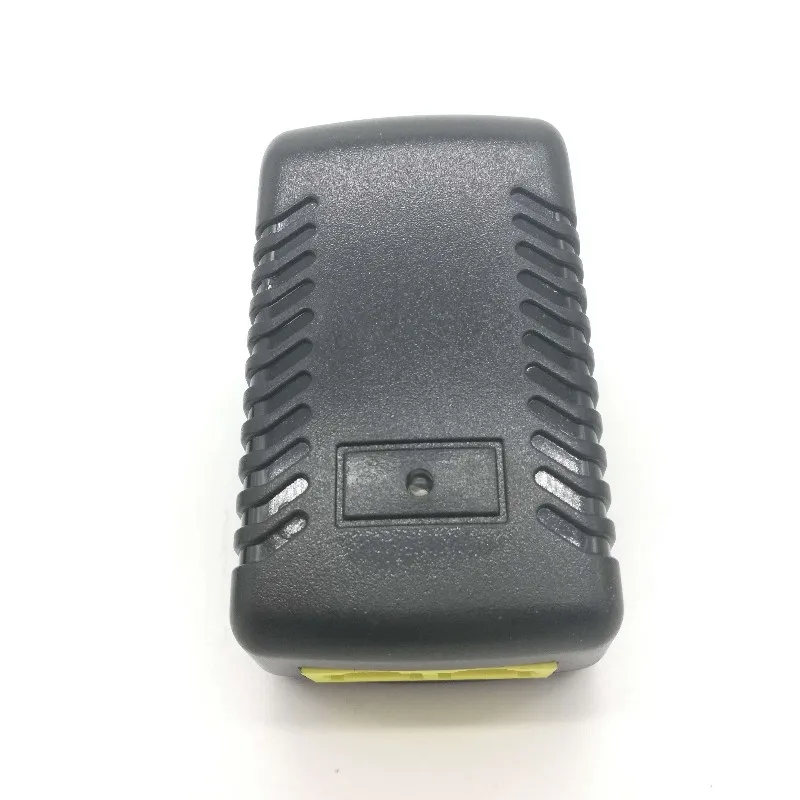

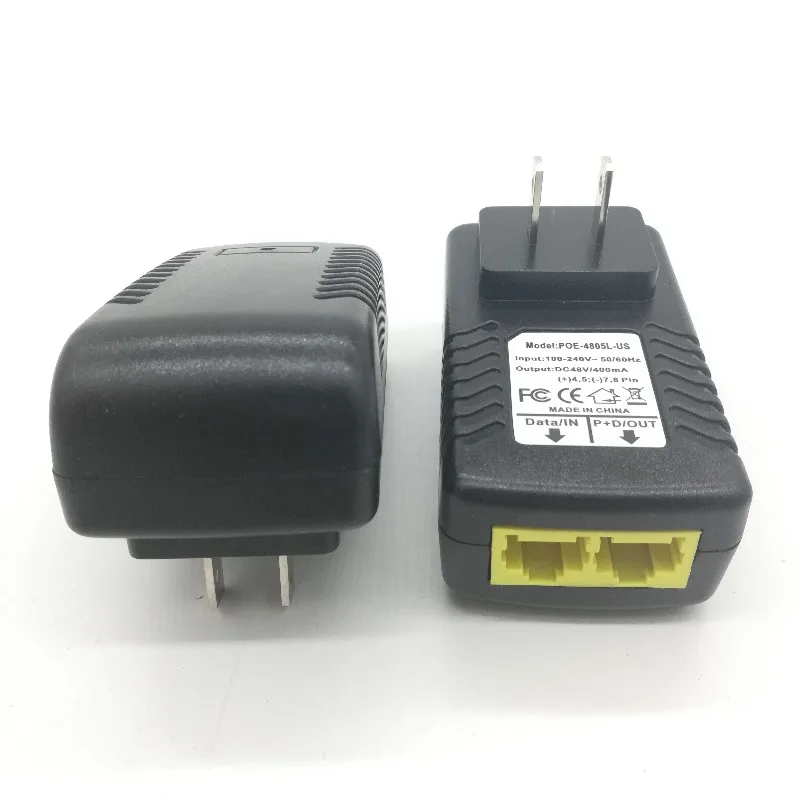

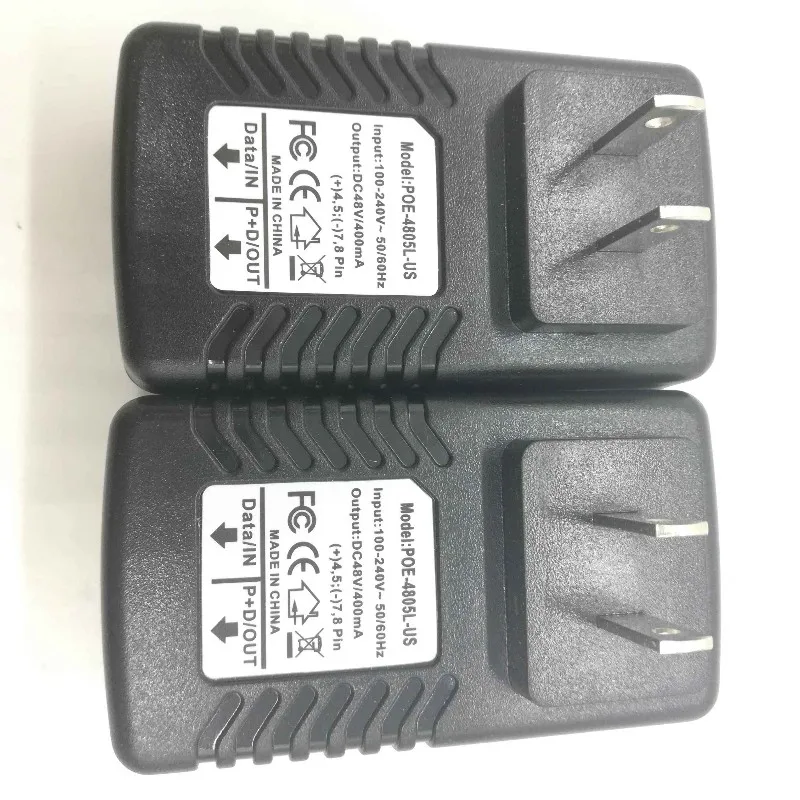

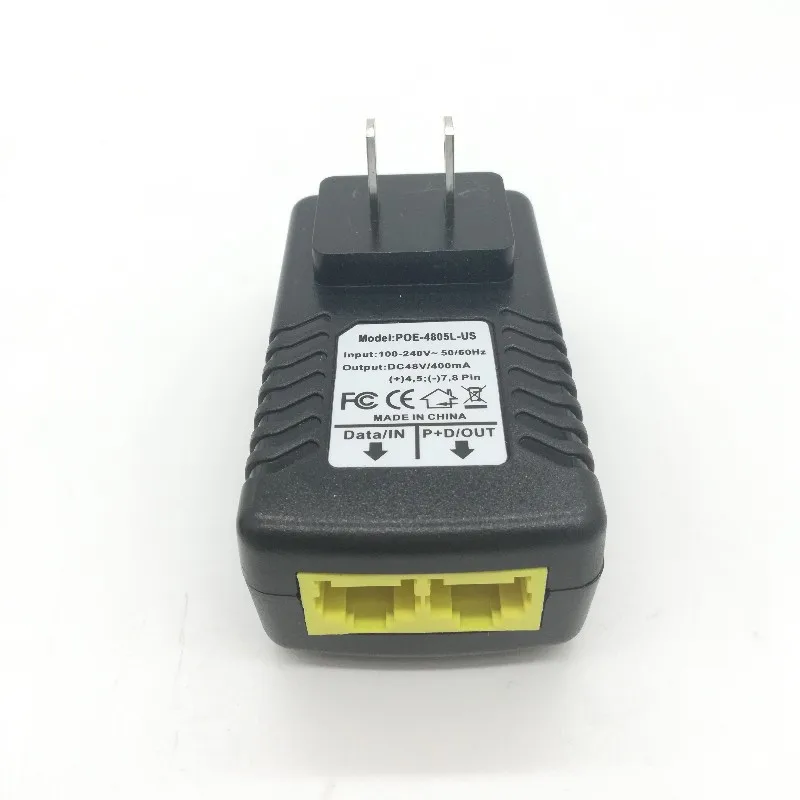

BlueRaven POE4805 US Passive 48V 0.5A High Working Efficiency Of 100 240VAC Rated Voltage Input PoE Injector With High Quality

Product Overview

Description

POE4805 Passive 48V 0.5A high working efficiency of 100-240VAC rated voltage input PoE Injector with high quality





This product is a special injector designed for network communication equipment; small output ripple, high working efficiency of 90-264VAC wide voltage input; small size, stable operation, high reliability, etc .; with output overcurrent, overpower, short circuit protection, etc Features.



1.1	Input characteristics
Serial number	Item				skills requirement		Unit			Remark
1.1.1	Rated input voltage				100-240		Vac
1.1.2	PF value				/					Full load
1.1.3	Input voltage range				90-264		Vac			frequency:47-63Hz
1.1.4	Starting inrush current				≤5		A			Vin=115/230Vac,Cold state
1.1.5	Input current				≤0.4		A			Vin=115/230Vac
1.1.6	Efficiency (typical)				90%					Vin=230vac,Full load
1.1.7	Standby power consumption				≤0.5		W			No-load power consumption
