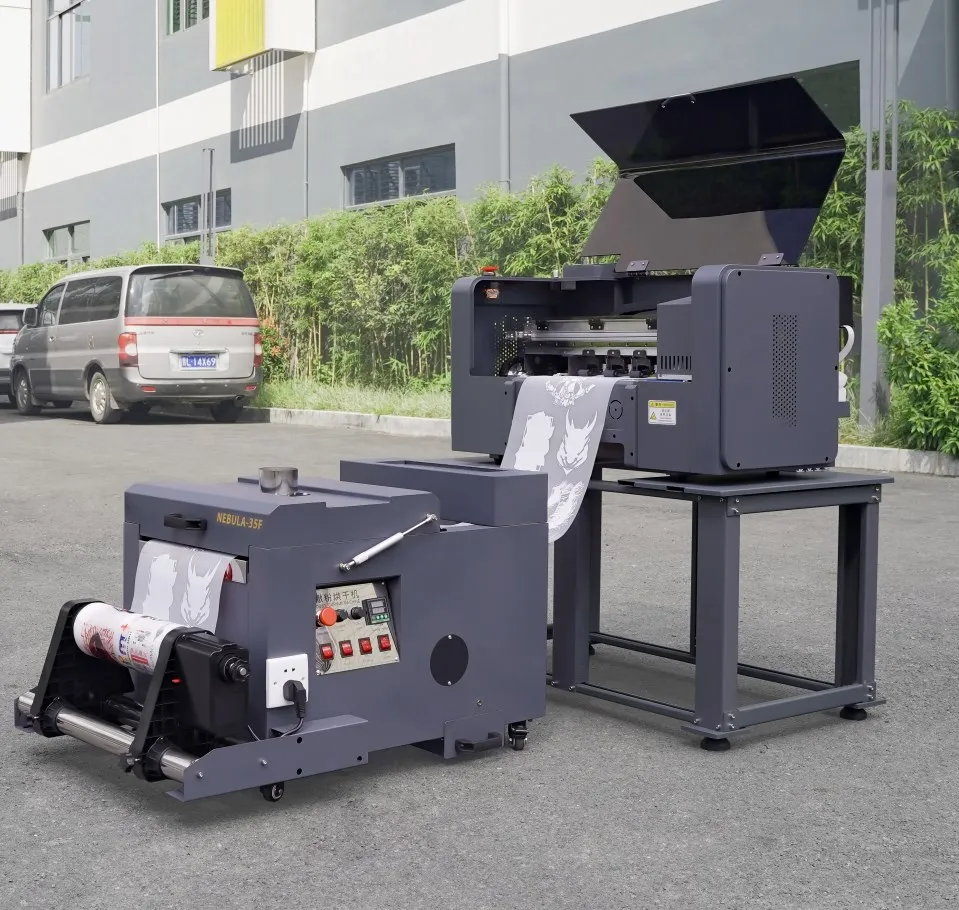

Thermal transfer pet film dtf printer a3 desktop dtf printer for any materials
- Category: Digital Printers >>>
- Supplier: Shanghai Focus Industrial Co. Ltd.
Share on (1600288620214):
Product Overview
Description
Think different!
Print different!
What's the most popular machine now in 2021?
It must be Our DTF printer!!! Thermal transfer pet film dtf printer a3 desktop dtf printer for any materials can print one any material like
Cotton/Linen/polyester/Nylon/Wool/Spandex/Yarn......
Widely used in any fabric, Tshirt, hoddies, Hats, sports dress, Leather,bag, shoes,Canvas,Mask,Socks,Glove,Acraf,Toys,Underwear, Swimsuit,Craft,Lable marking......
Specifications
| Specifications | ||
| Printing method | Piezo ink-jet technology | |

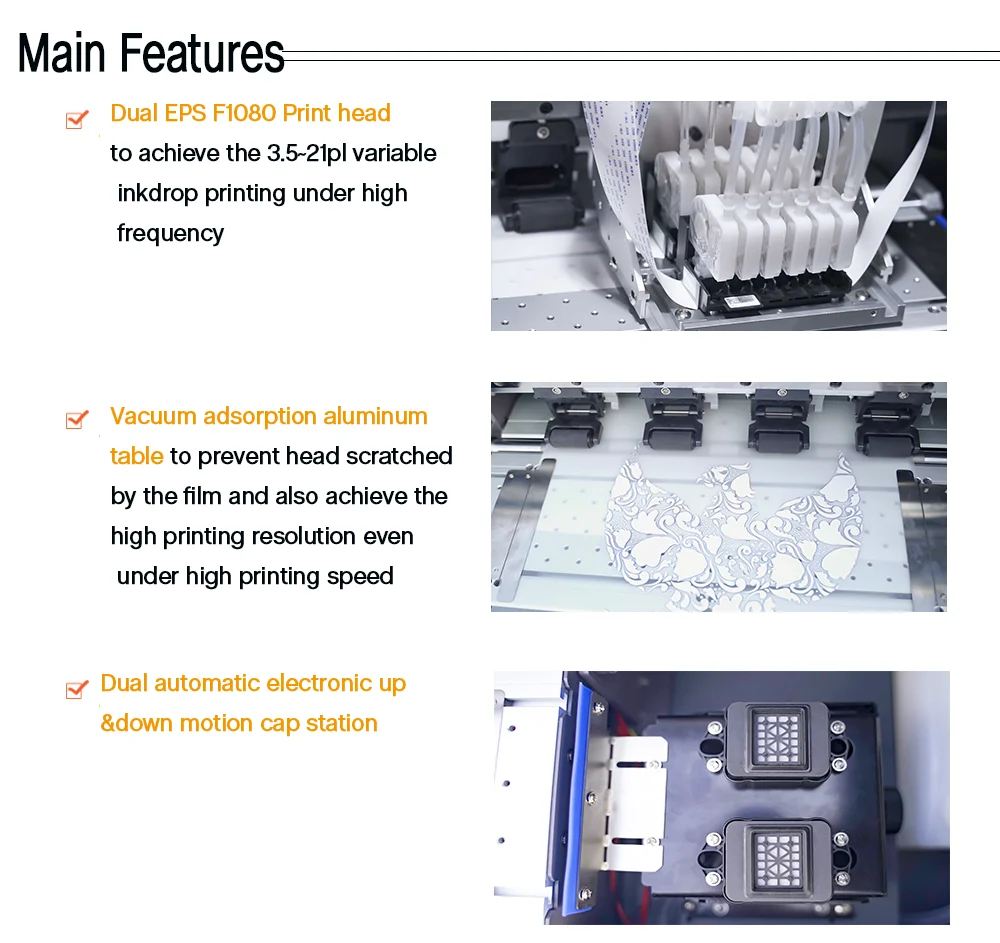

| Print head | Standard cofiguration | 2pcs*EPS F1080 Piezo print head |
| Number of nozzles | 2160 staggered, 180 x 12 rows (180 x 6 rows per each head) | |
| Jetting frequency | 16kHz max. | |
| Drop volume | 3.5~15pl (Variable data single drop & multi drop) | |
| Print resolution (dots per inch) | 360*1080dpi, 360*2160dpi,720*2160dpi; Uni-direction/Bi-dirction | |
| Print Head mainten technology | Auto keep wet cap station system & Clean flashing during printing and idle | |
| Media type | Roll feed media | Film, paper, leather etc with thickness less than 3mm |
| Media | Maximum printing width | 310mm Width X, Roll feed Y |
| Film type | DTF film | Professional Release liner DTF film |
| Transfer media | Garment transfer | Cotton, Nylon, Linen, Polyester, Chemical fiber, Leather etc. |
| Film Feeding | Automatic Release | Automatic tenssion release roller |
| Film Take up | Automatic Take up | Automatic detect electronic take up Roller |
| Film vacuum system | Automatic adsorption | Automatic adsorption aluminum vacuum table |
| Film size | Roll type | 310mm*100meter/Roll |
| Ink | Type | Aqueous DTF pigment ink |
| Color | KYCMCM+W | |
| Ink tank capacity | 220ml per each color | |
| Ink process unit | White ink Stirring | Automatic white ink stirring system |
| White ink circulation | Automatic white ink circulation system | |
| Powder type | Hot melt powder | Grossus, Medium, Fines |
| Powder dusting | Automatic detect | Automatic detect & Speed adjustable |
| Powder melt baking | Hot melt | Far infrared rays baking @ Speed adjustable |
| Dimensions | Machine size | Printer: 35.4(W) × 19.7(D) × 18.9(H) in. (900 × 500 × 480mm) Powder process system: 28.4(W) × 21.7(D) ×25.6(H) in. (720 × 550 × 650mm) |
| Packing size | Printer packing: 38.2(W) × 24.0(D) ×25.2(H) in. (970 × 610 × 640mm) Powder process system packing: 31.5(W) × 24.0(D) ×28.4(H) in. (800 × 610 ×720mm) | |
| Weight | Net weight | 429 lb (195 kg) for All |
| Gross weight | 627 lb (285 kg) for All | |
| Environment | Temperature | 59 to 86 °F (15 to 30 °C) |
| Humidity | 40 to 80 % | |
| Working Power | Printer 200W, Powder process system 1100W | |
| Included items | Enthernet cable, cleaning kit, USB Flash of software etc. | |
| Connectivity | Enthernet cable | |
| Power requirements | 8A Single-phase 220 V, 50HZ | |
| Acoustic noise level | 75 dB (A) or less | |
| Software System Requirements | ||
| Print control | System | Windows® 7/10 (64 bit) Recommend |
| (Bundled) | CPU | Intel® Core™ i5, 2.5 GHz or more |
| RAM | 8 GB or more | |
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
| HDD | Install space 1 GB or more | |
| Working space 100 GB | ||
Product Description
Focus Inc thermal transfer pet film dtf printer a3 desktop dtf printer print anything
1.White-ink-stirring-and-circulation

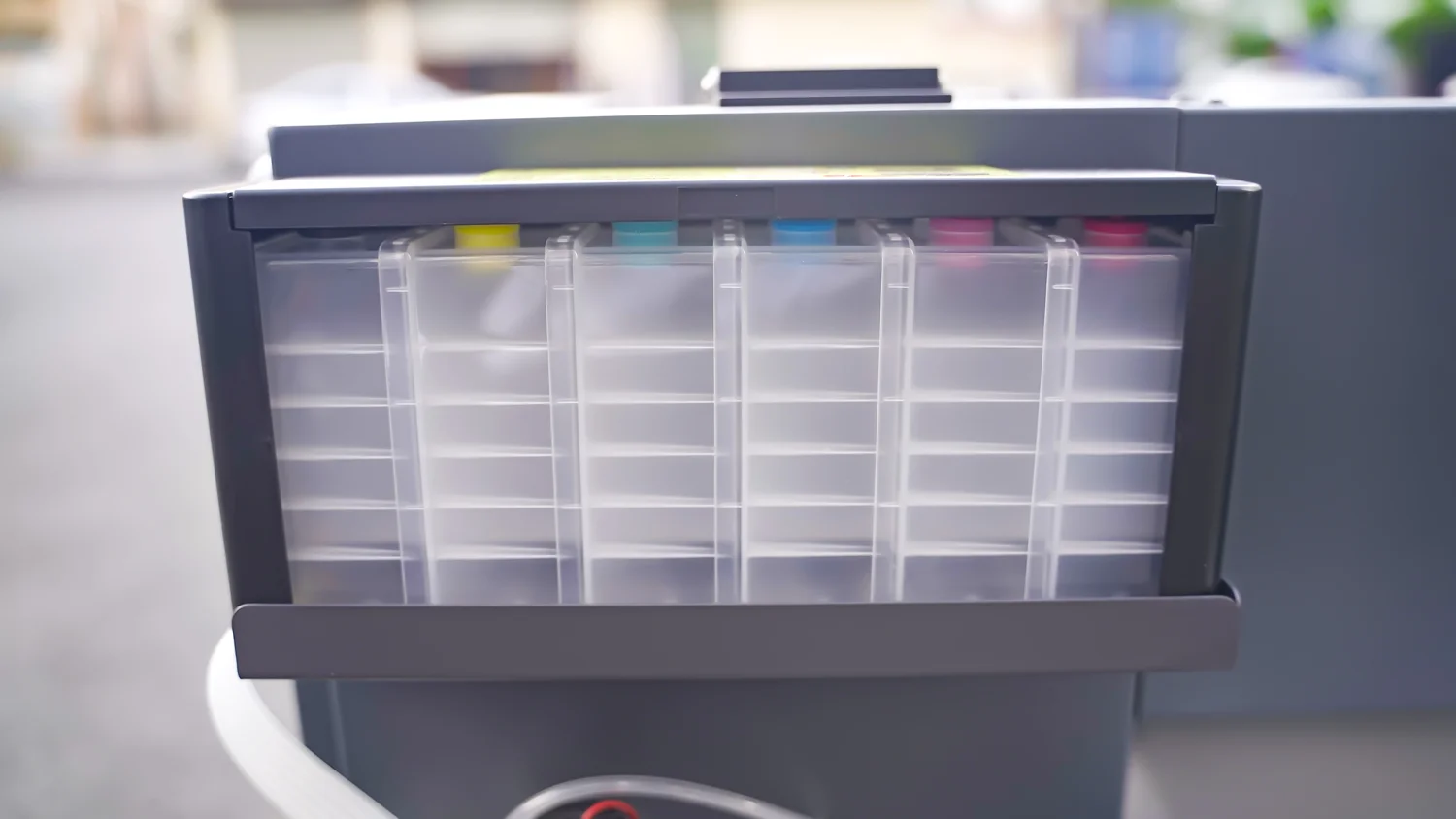

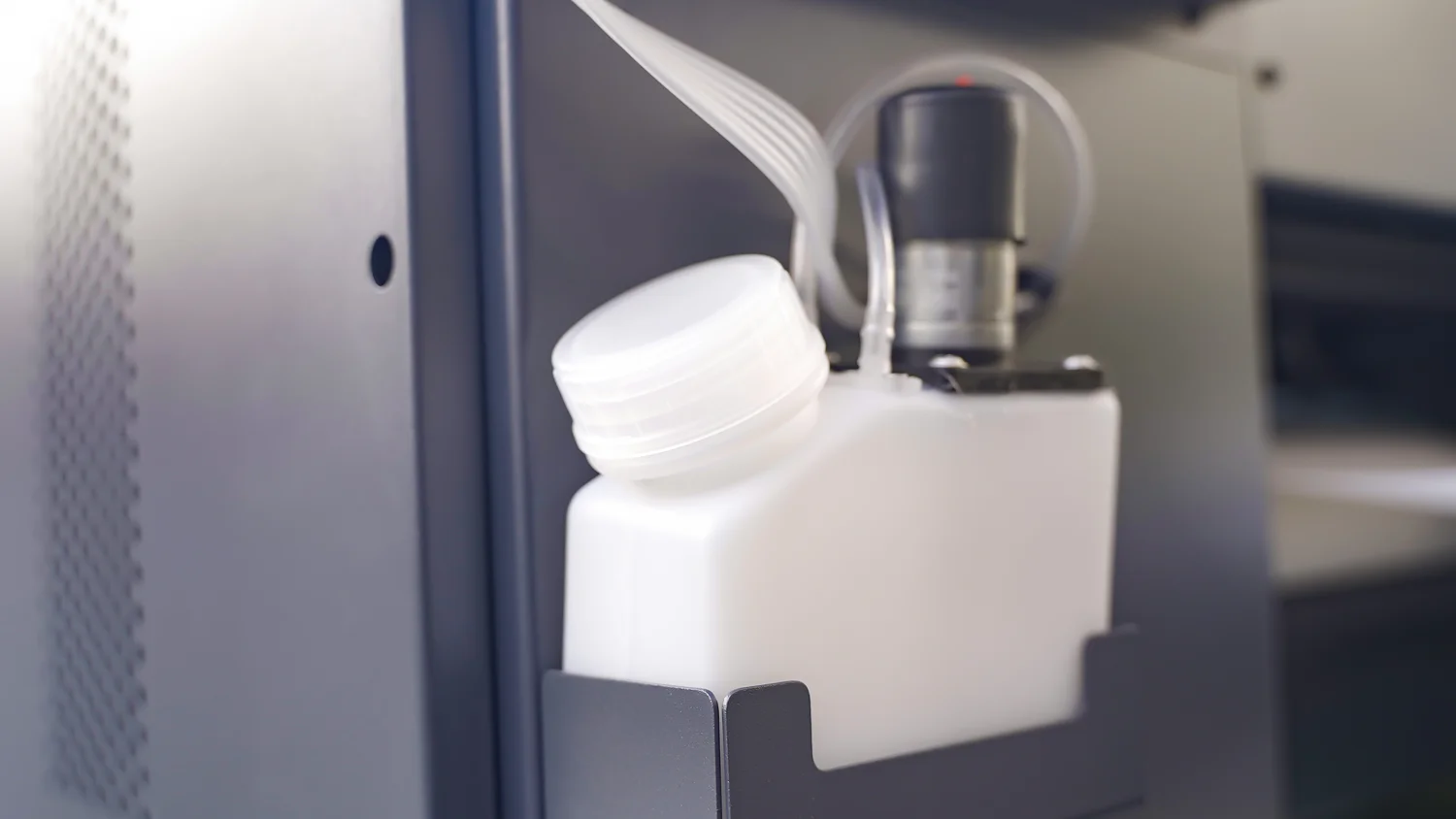

2. 220ml refill ink tank for customers to refill ink and maintain easily.

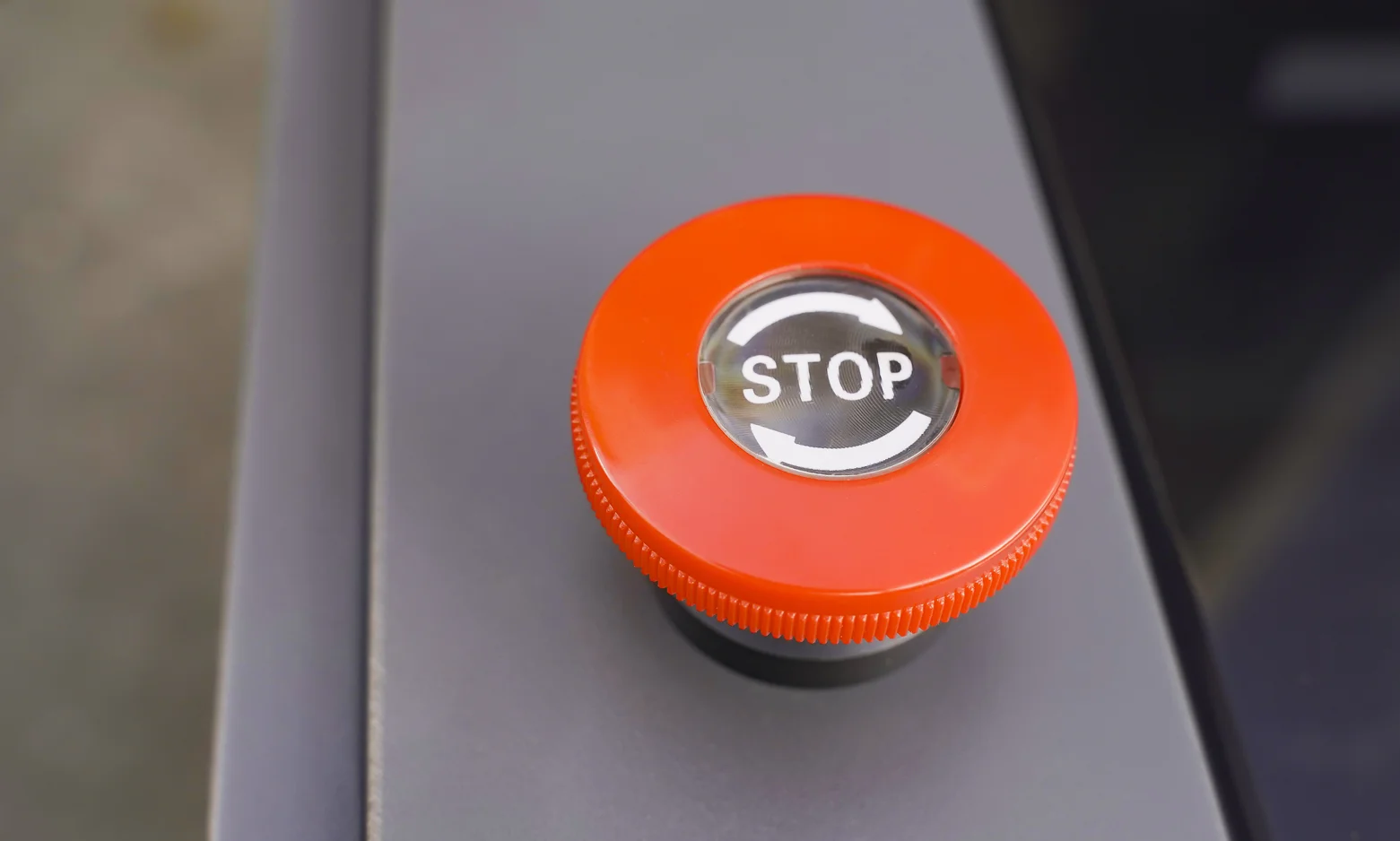

3.Emergency stop button to protect the printer working safety and safety operation

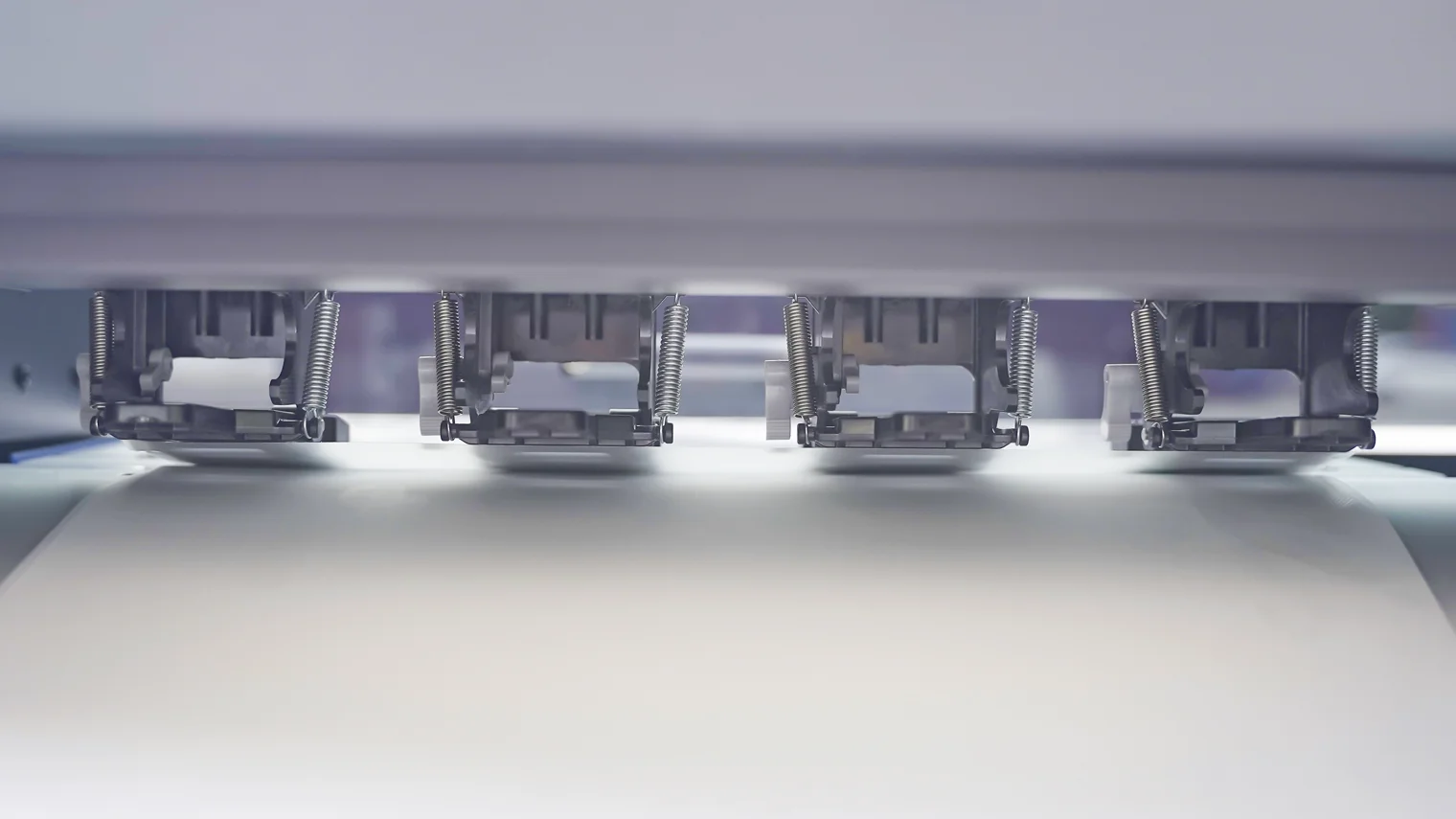

4. Focus Inc thermal transfer pet film dtf printer a3 desktop dtf printer print anything with High quality impression and electrostatic prevention pinch roller

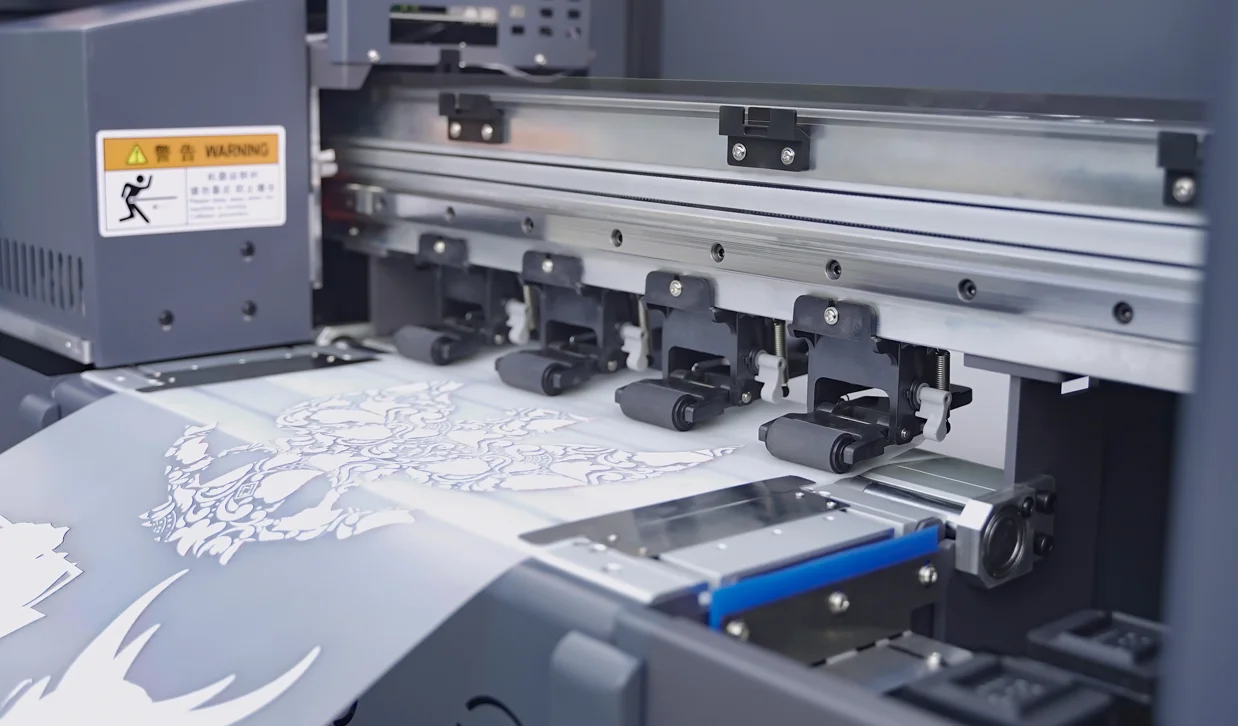

5. Focus Inc thermal transfer pet film dtf printer a3 desktop dtf printer print anything with Adjustable stainless steel paper pressing plate can effectively prevent the material from curling up, thus greatly improving the service life of the printhead

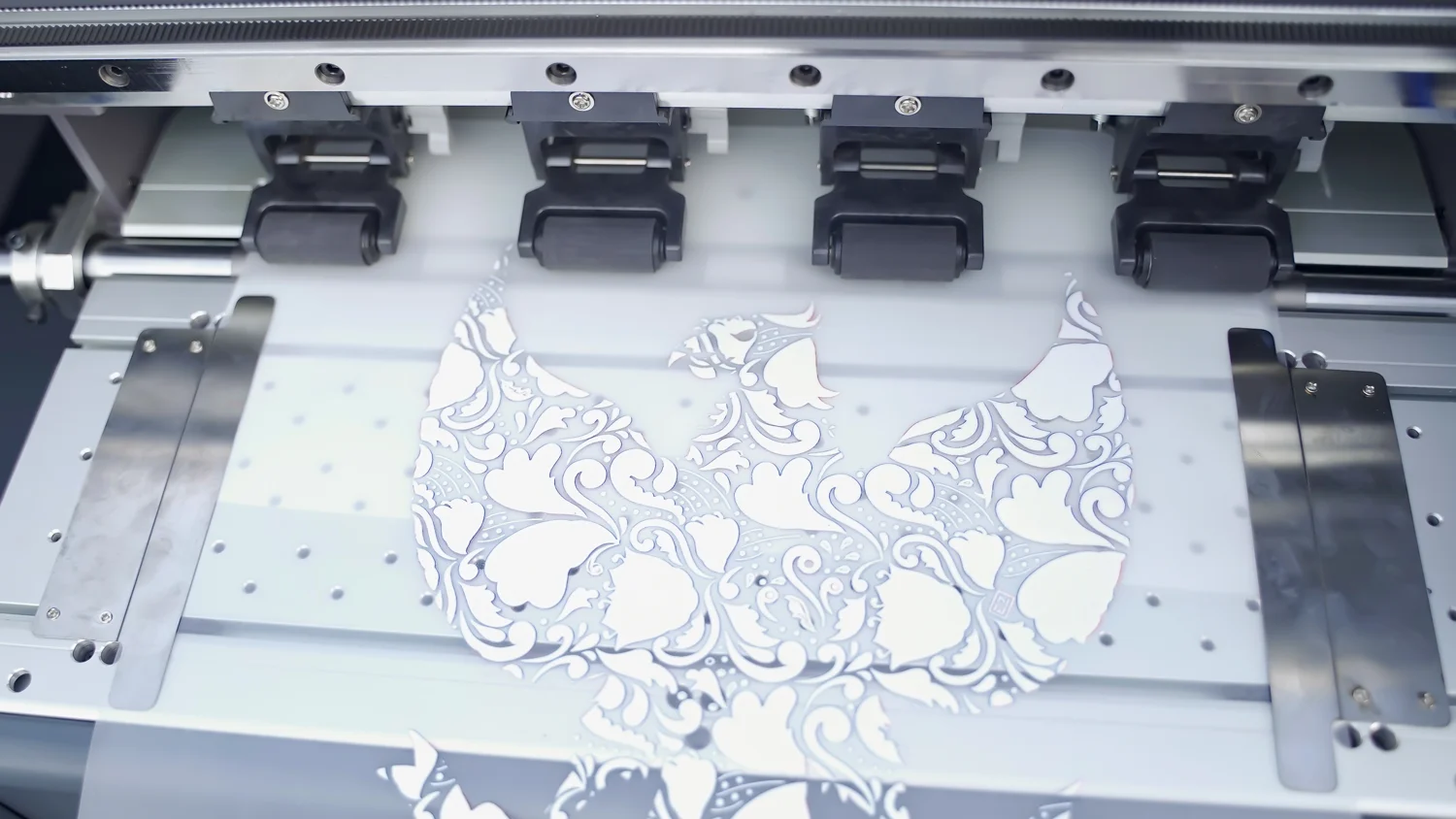

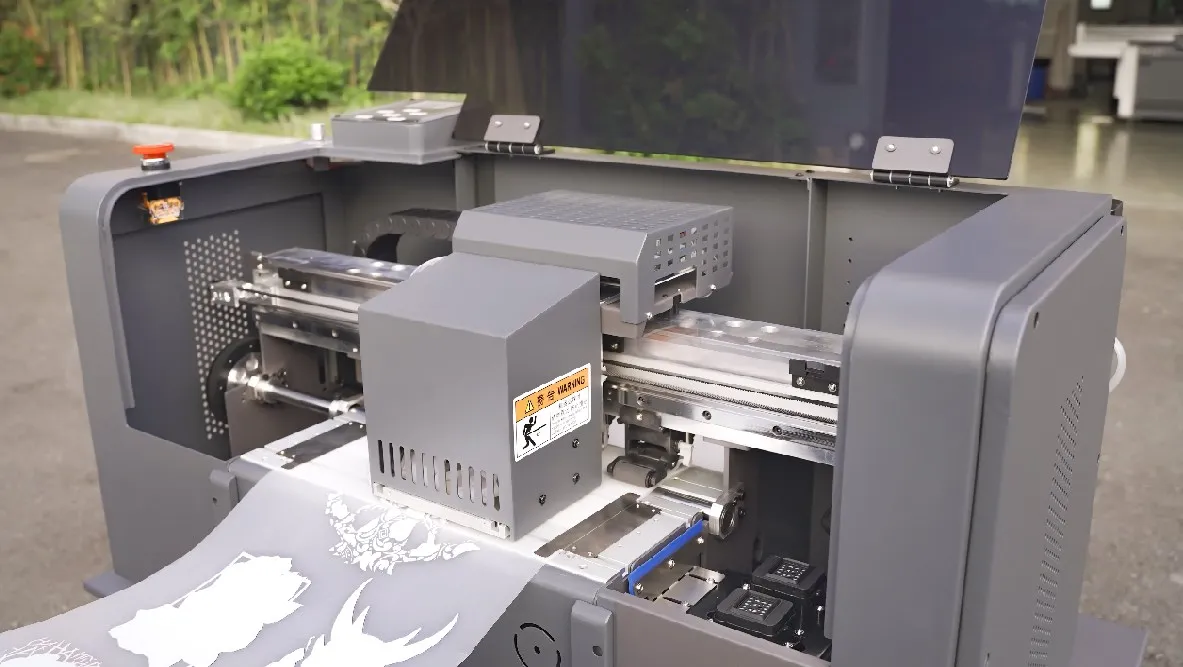

8. FocusInc 30cm XP600 DTF printer with A3 shaker white color ink circulation. Vacuum adsorption aluminum table to prevent head scratched by the film and also achieve the high printing resolution even under high printing speed

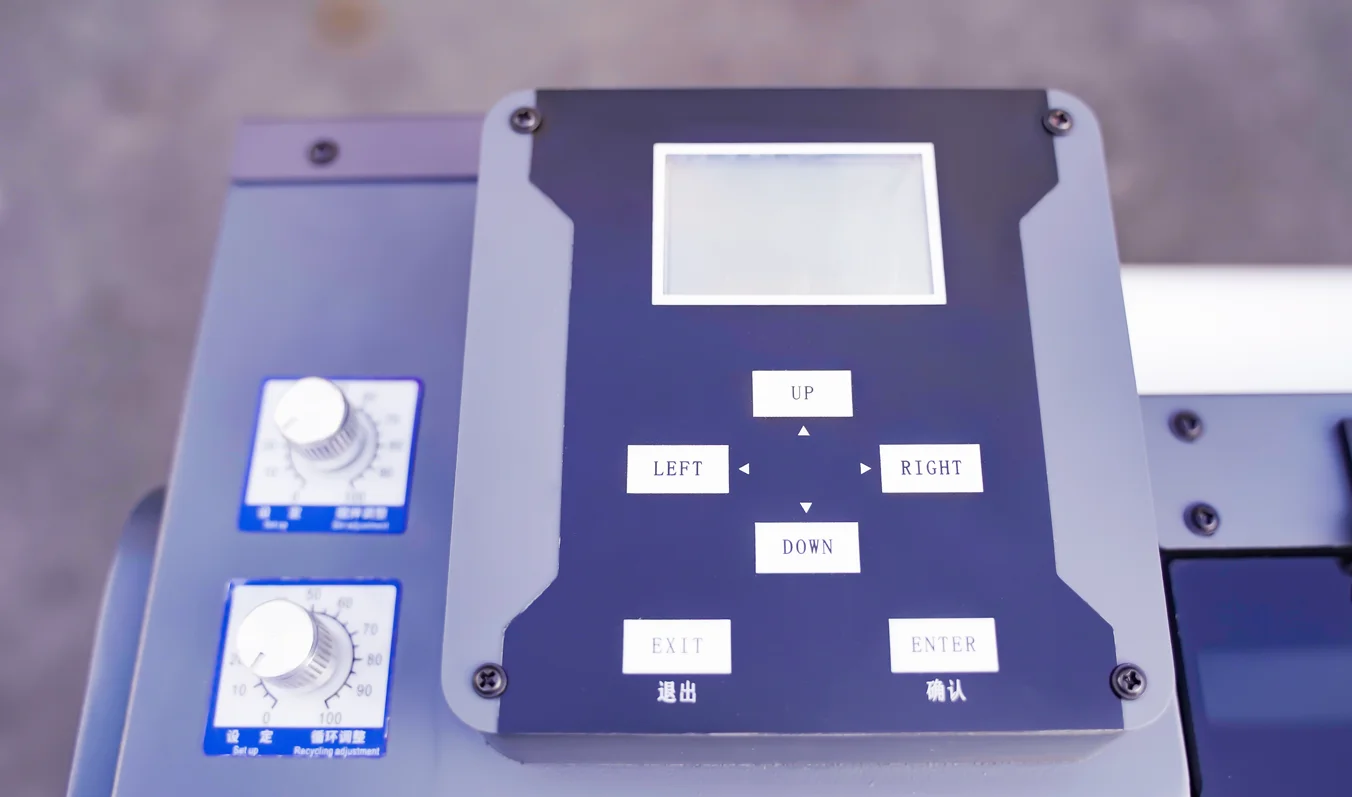

9. Focus Inc thermal transfer pet film dtf printer a3 desktop dtf printer print anything. Humanized control panel

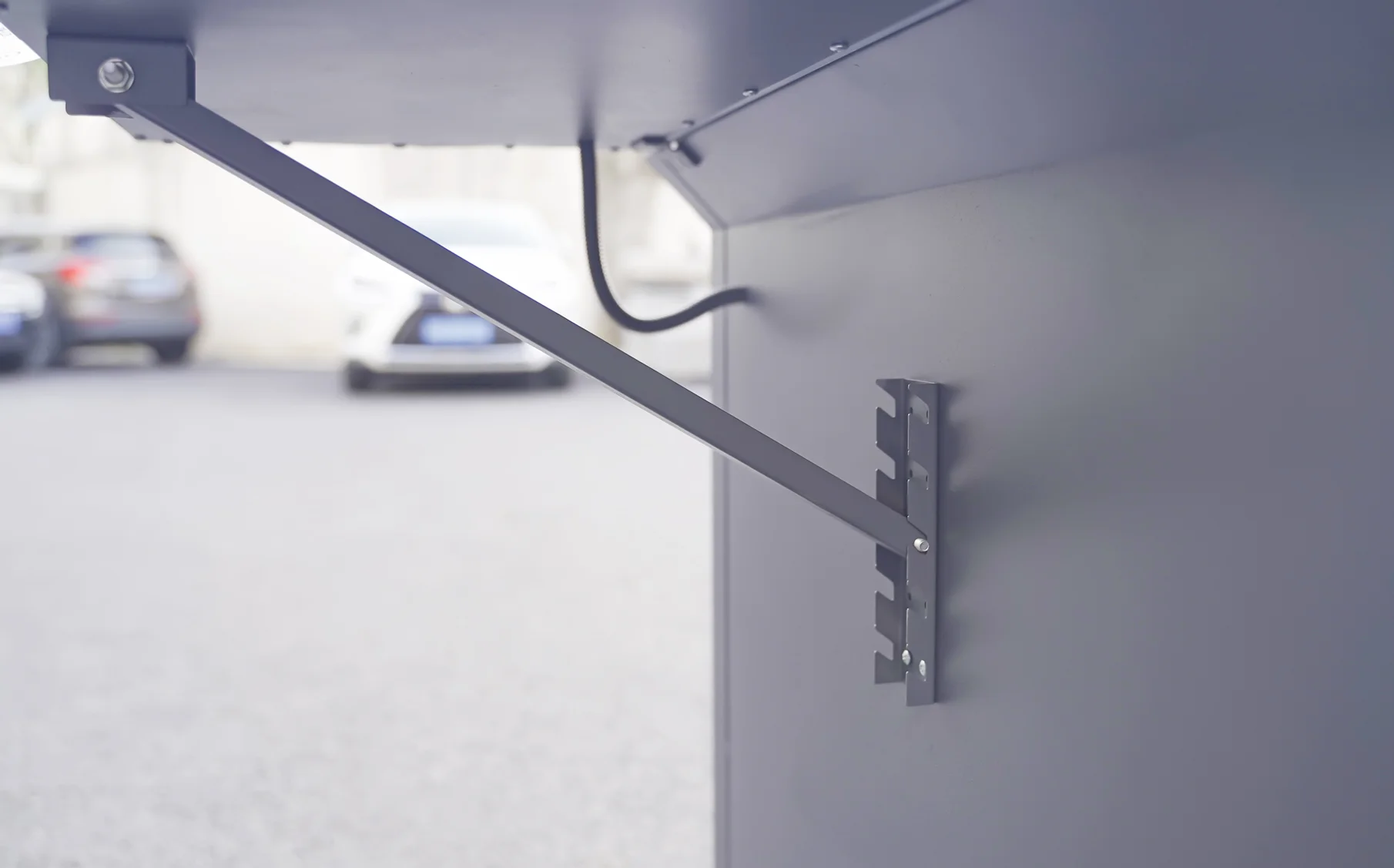

10.Folding design of the Film feeding to save the working room and easy to install

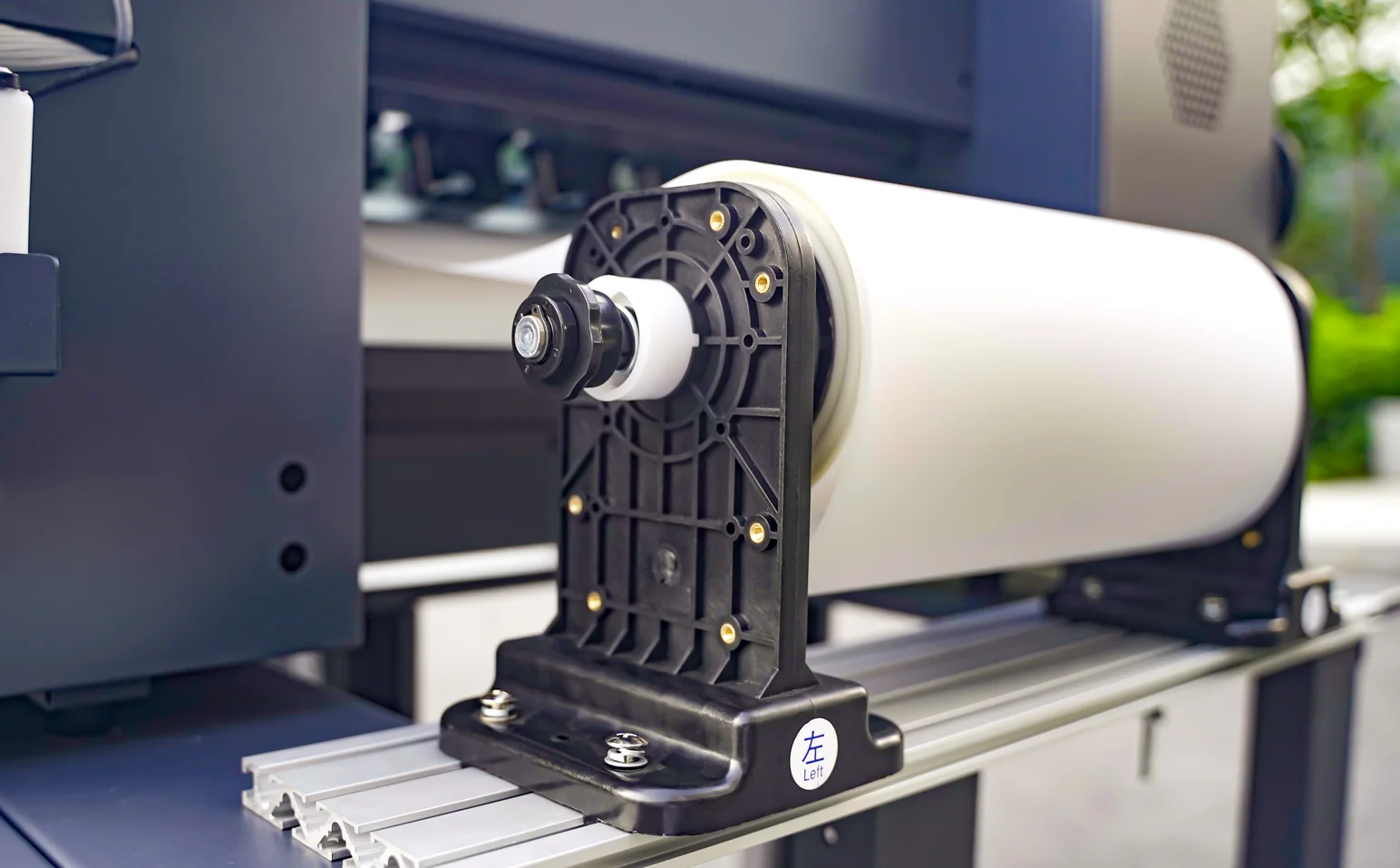

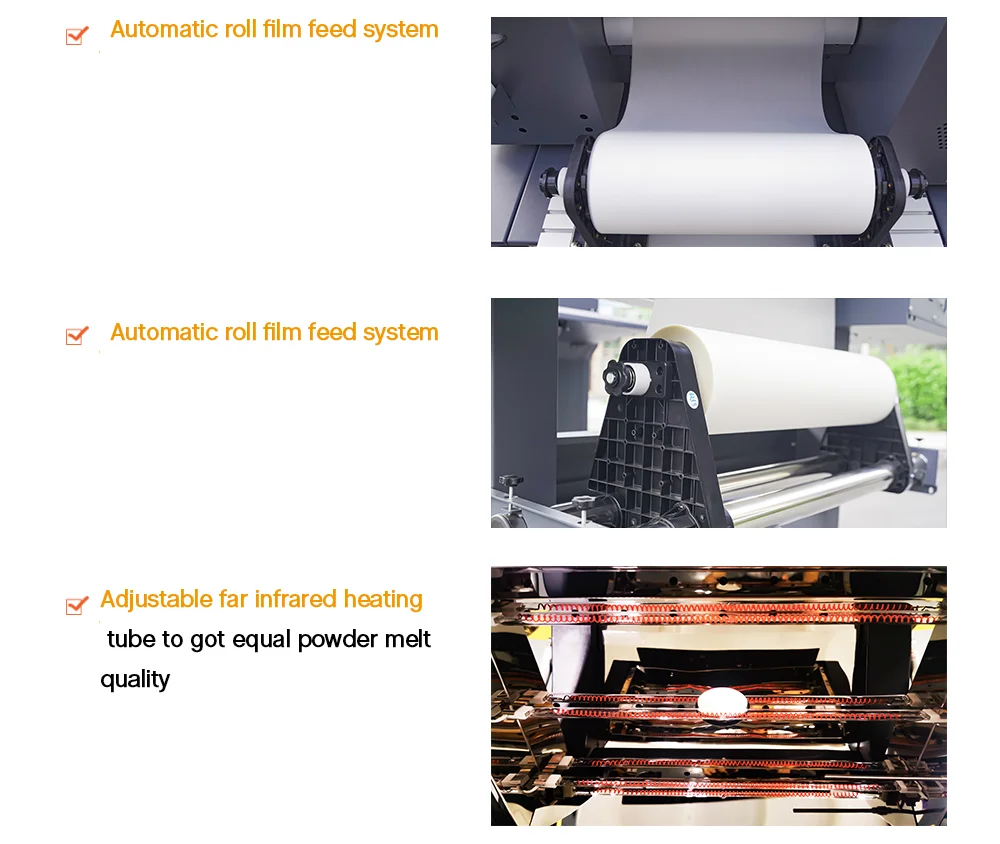

11.Focus Inc thermal transfer pet film dtf printer a3 desktop dtf printer print anything Automatic roll film feed system

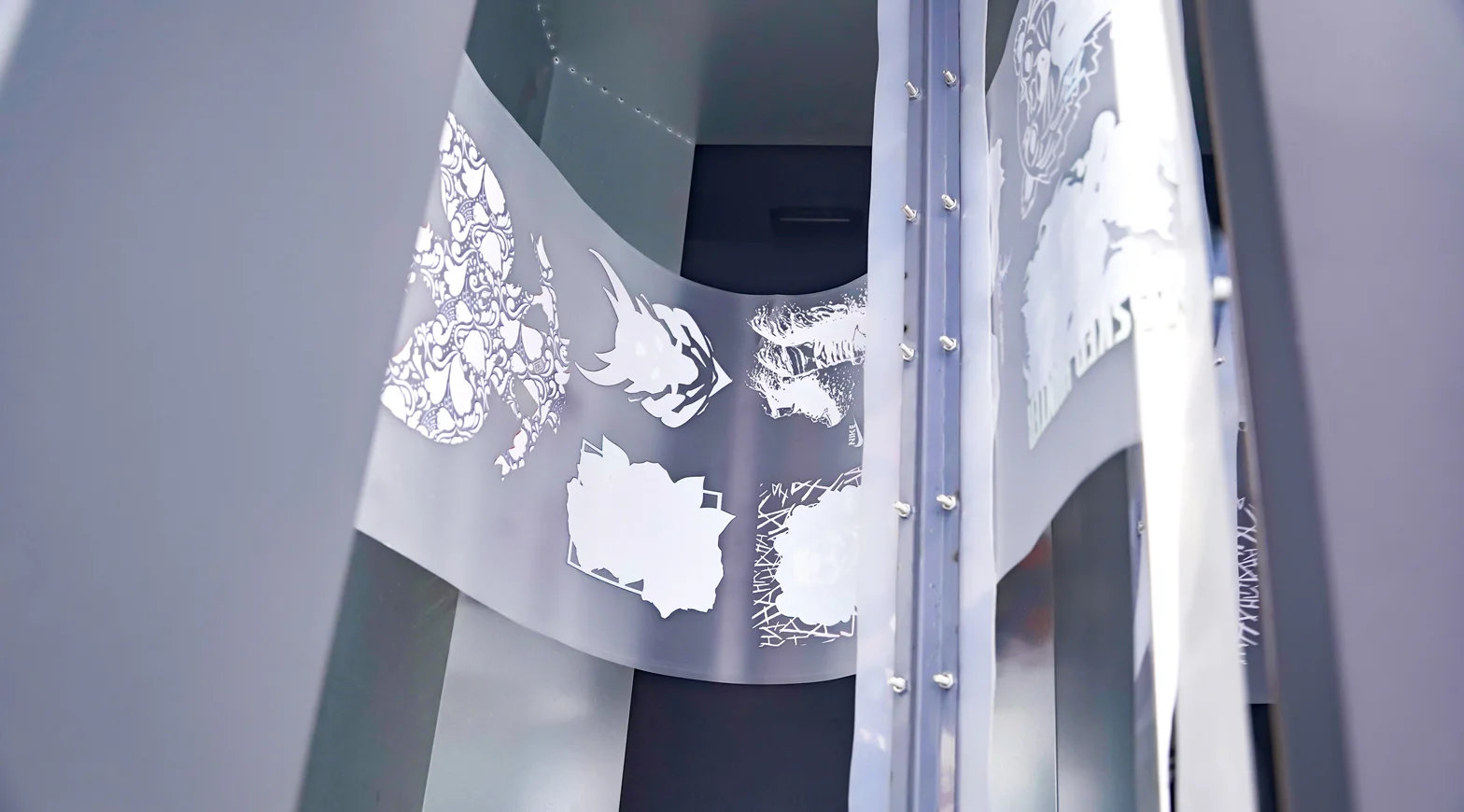

12. Auto detect powder dusting system to got the equal dusting effect
Printing samples:
