Proof Multi Point Poe Electric Parts Of Door Lock Smart 2022 Ip Indoor Video Intercom

Product Overview

Description

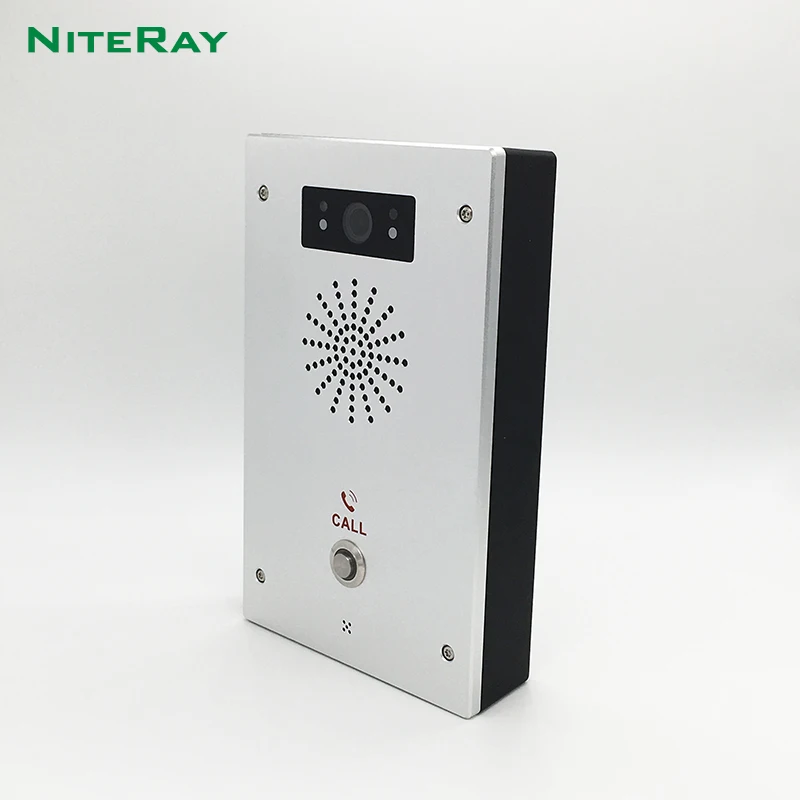

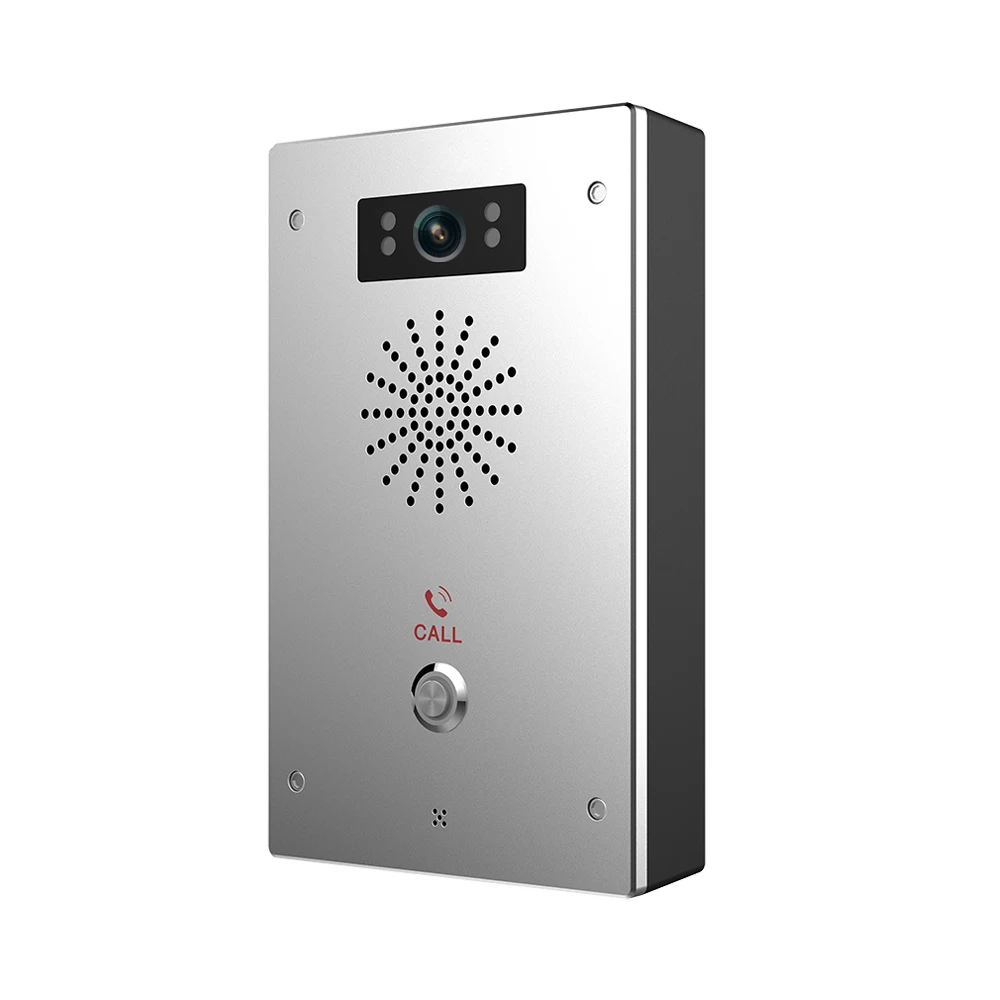

Proof Multi Point Poe Electric Parts Of Door Lock Smart 2022 Ip Indoor Video Intercom

Proof Multi Poin Poe Electric Parts Of Door Lock Smart 2021 Ip Indoor 10.1 Inch Video Intercom

NiteRay's Q514 professional solution for SIP video intercom, Broadcast, Paging, Door Phone

Highlights

• Video SIP door phone(Q514).


• HD video/audio,



• Infrared night vision with IR LED


• Relay to Connect to Door Lock , NO/NC Relay mode.


• Able to create Intercom with or without server/PBX.


• SIP Protocol, Easy to Deploy.


• Directly Call to Preset Telephone.f


• Waterproof design(IP65).


• aluminum alloy metal box, anti-strike.


• Full Duplex Intercom.


• Auto Answer , Auto Hand Down

Datasheet:

Generic		Audio
2 SIP Lines		Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
Full-duplex handsfree(HF)		Wideband Codec: G.722
Intelligent DSS Keys (Speed Dial/intercom etc)		Full-duplex Acoustic Echo Canceller (AEC, 96ms tail-length
Auto answer		Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/
Intercom function		Background Noise Estimation (BNE)
Industrial Standard: IP65&IK10, CE/FCC		Packet Loss Concealment (PLC)
		Dynamic Adaptive litter Buffer up to 300ms
Intercom Function		DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO
Dynamic multicast function
Support ONVIF		Deployment & Maintenance
Support customized DSS Keys		Auto-Provisioning
Network Time Synchronization		Web Management Portal
Action URL / Active URI		Web-based Packet Dump
		Configuration Import and Export
Video		Firmware Upgrade
Sensor: 1/2.7” color CMOS		Syslog
2 Megapixels
Video codec: H.264		Physical Specifications
Resolution: main stream 1280×720@25fps		1 DSS button (speed dial button)
Substream 704×576(D1)@25fps		1 RJ45 port
Viewing angle: 112° (H), 84° (V)		1 audio output interface
Minimum illumination: 0.1Lux, support infrared illumination		1 recording output interface
		2 short circuit input interface
Networking		2 relays: MAX DC30V/2A, AC125V/0.5A
10/100Mbps		Active switching output: 12V/500mA DC(only 1 relay support)
IP Configuration: Static / DHCP / PPPoE		2 indoor magnetic switch
Network access authority authentication: 802.1x		1 tamper alarm switch
VPN: L2TP / OpenVPN		Power: DC12V/1A or PoE
		Housing material: aluminum alloy shell
Protocols		Protection level:IP65 and IK10
SIP2.0 over UDP/TCP/TLS		Installation: Wall-mounting
RTP/RTCP/SRTP		Working temperature: -40 ~ 70°C
STUN		Storage temperature: -40 ~ 70°C
DHCP/LLDP/PPPoE/802.1x		Relative humidity: 10% - 90%
L2TP /FTP/TFTP/HTTP/HTTPS/SNTP		Equipment Dimension: 195x120x34mm
OpenVPN		Packing Dimension: 260x165x62mm
TR-069		Outer CTN Dimension: 348x328x280mm(10 PCS)
		Equipment weight: 1015g
