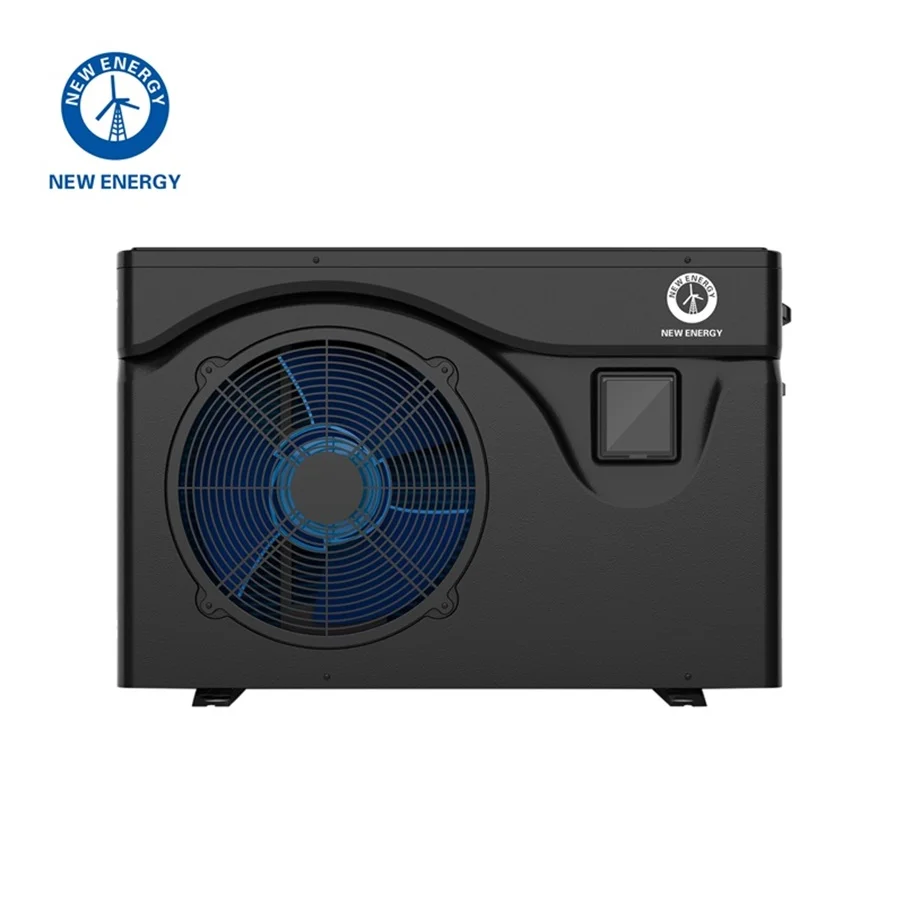

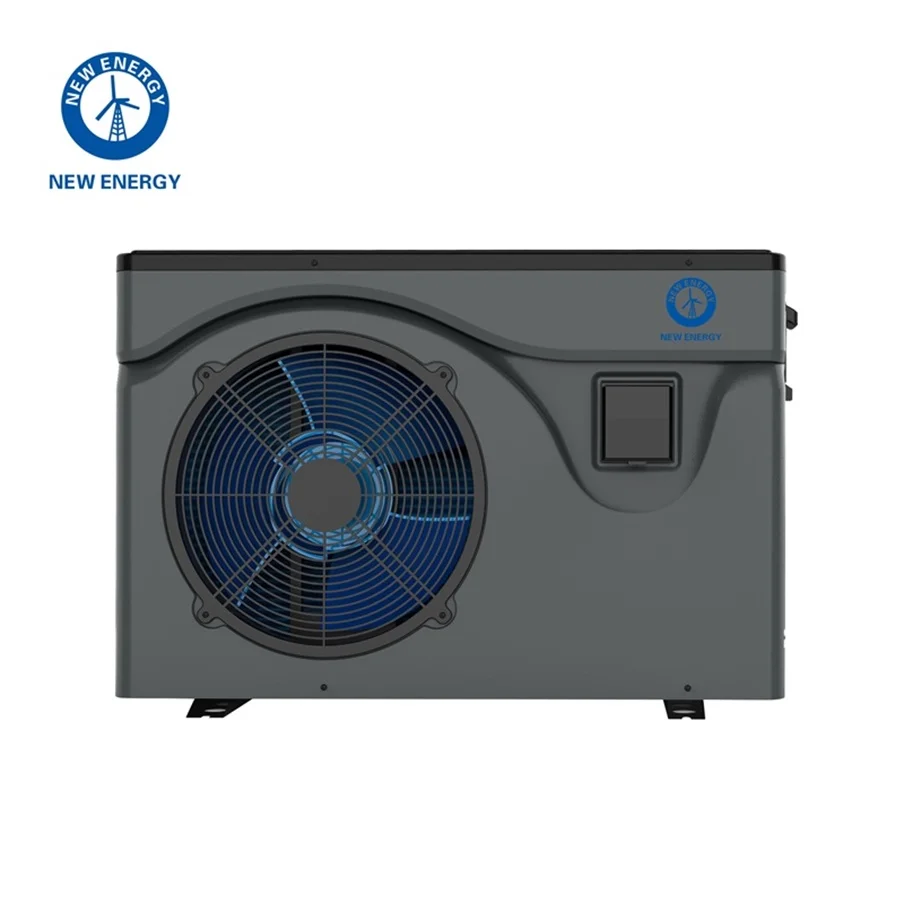

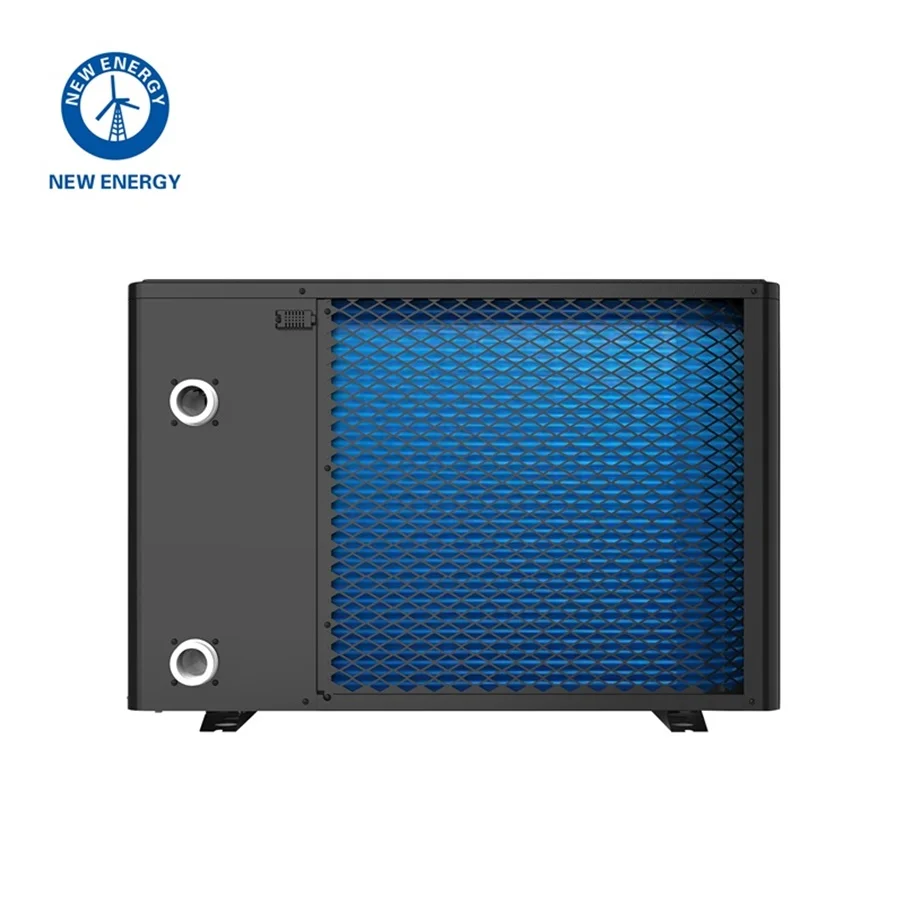

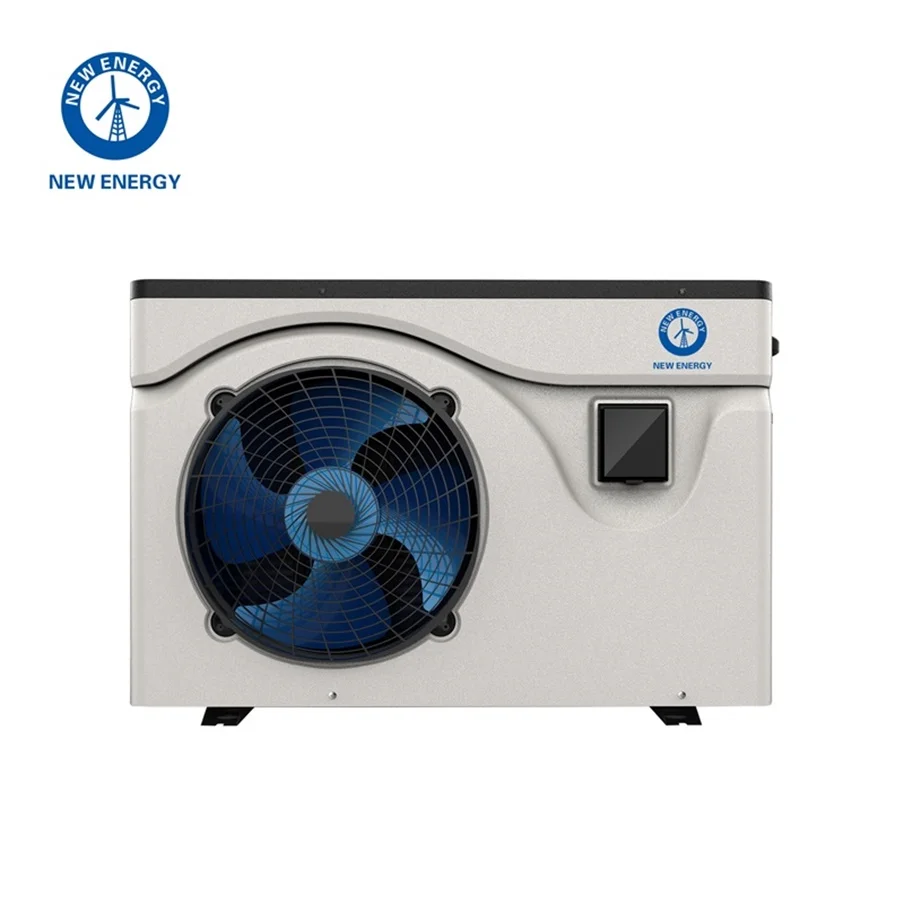

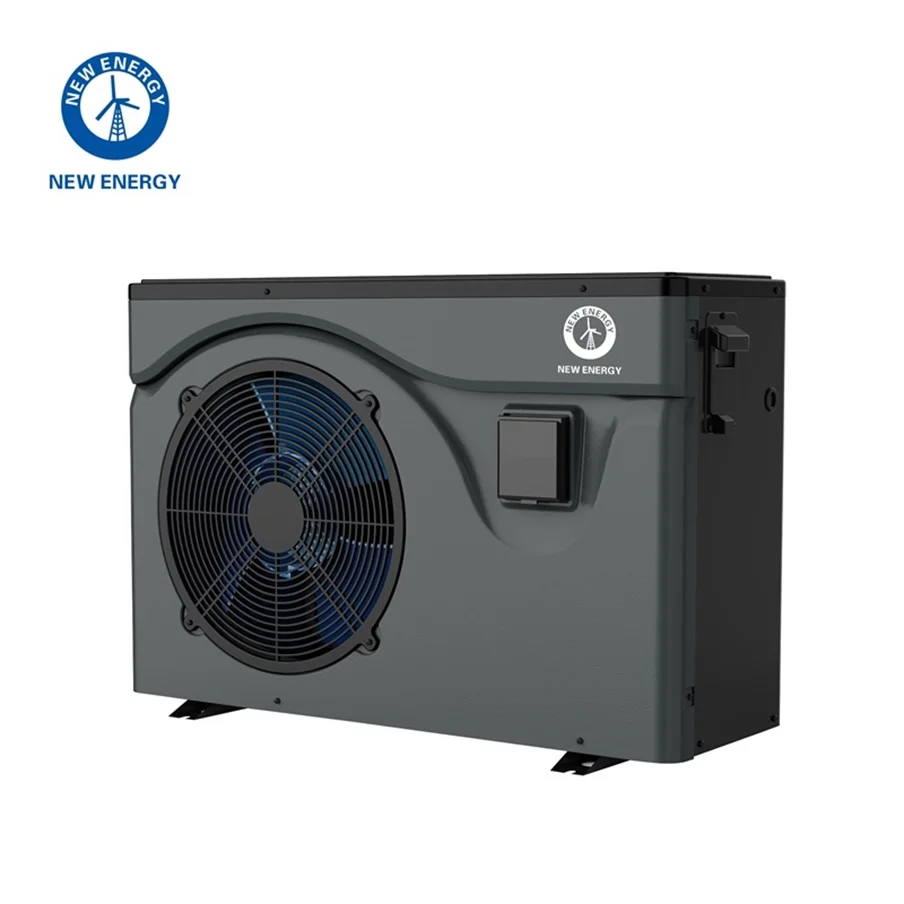

Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise
Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise
Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise
Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise
Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise
Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise
Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise

Air Sourse Energy Dolphin Series Household Inverter Swimming Pool Heat Pump With Low Noise

Share on (1600288694146):


Price:$1,400.00 - $1,500.00

Quantity:


Product Overview

Description



Company Profile




Established in 2003, New Energy has now become the largest heat pump manufacturer in China, with 1000 employees (including 150 R&D engineers), 16 international labs, 13 production lines with capacity of 2 million unites per year. The turn over keeps increasing and reached up to 220 million USD in 2019.

Our quality management system was certified in conformity with ISO9001, ISO14001Standards, heat pumps with CE, EMC, Erp, CB certificated. And also with customized OEM/ODM services for distributors all over the world. Now NEW ENERGY Heat Pump Water Heaters had been exported to more than 100 countries, even well installed and stable used at China North & South Pole Expedition Site Kunlun Station. And we are also the 18th Indonesia Jakarta Asian Games Official Partner,providing of central heating cooling & hot water solutions for the grand Asian sports competition fields.


Why Choose Us


Why Choose New Energy?
"New Energy", is the brand name and short for Guangdong New Energy Technology Development Co., Ltd. (广东纽恩泰新能源科技发展有限公司)
1.As one of the largest manufacturers of Swimming Pool Heat Pumps, House Heating Heat Pumps, Heating & Cooling Heat Pumps and Heat Pump Water Heater in China. New Energy's vision is "Air Energy for changing Life".
2. No.1 in volume of air source heat pump water heater supplying for domestic market and sharp growing for overseas markets.
3.Leading brand with over 1100 patents.
4.Two production bases with Annual capacity up to 2 million units.
5. ISO9001, CE, Erp Energy Label, ROHS, ETL, SAA, C- tick are certificated..
6. Long-term strategic partnership with Japnese Mitsubishi & Emerson.

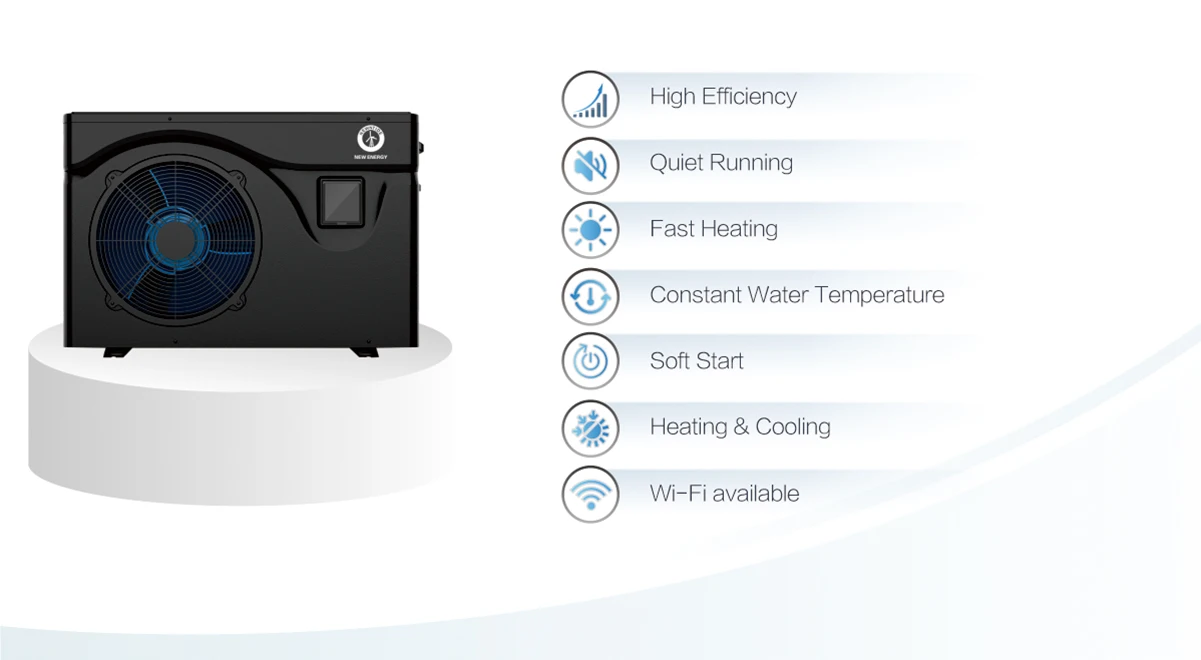

Product Features

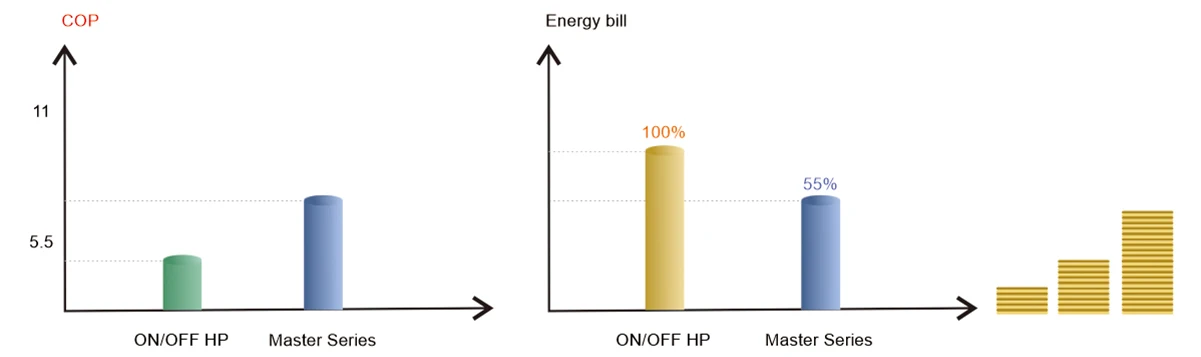

● High Efficiency
The hydrophilic coating decreased the frosting possibility. The high efficiency titanium tube in shell heat pump changer has internal thread to cause turbulence when the refrigerant is flowing through, which results in excellent high efficiency.

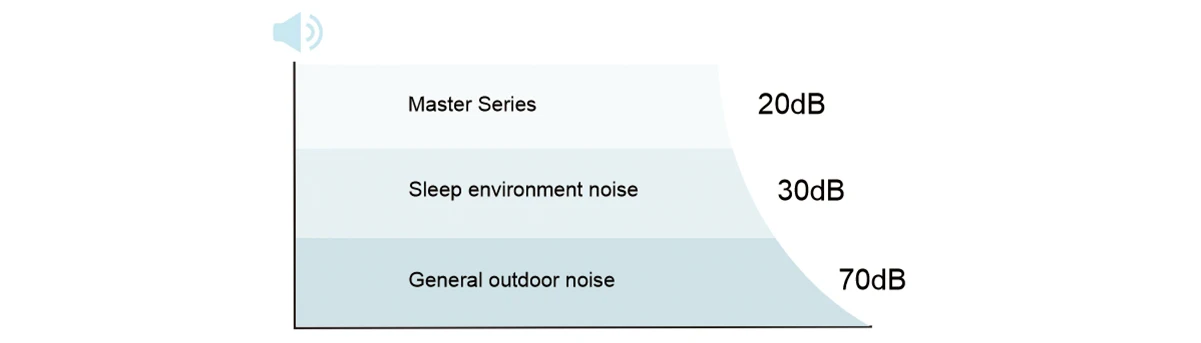

● Quiet Operation never annoy you
Thanks to New Energy engineers’ elaborate design and constant effort to reduce the noise, New Energy Dolphin series can run amazingly quietly of 20dB(A) in sleep mode.

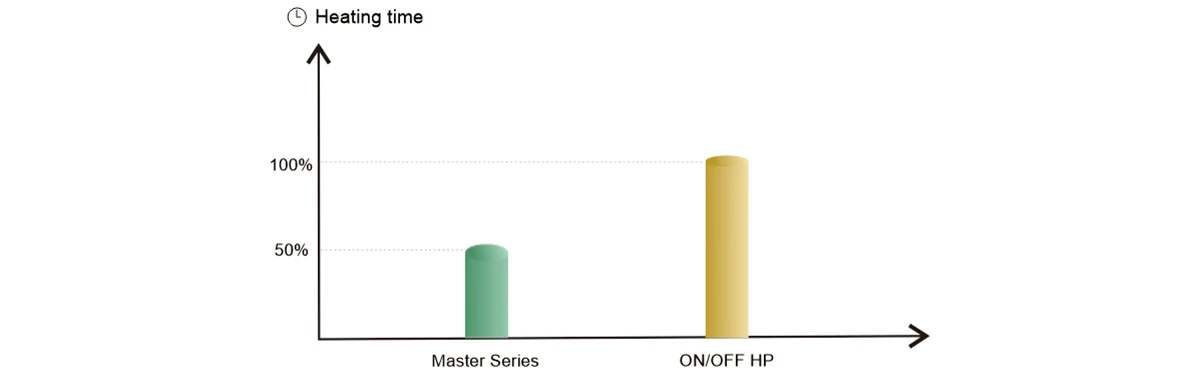

● Fast Heating
By adopting the brushless DC fan motor and inverter compressors, New Energy Dolphin series can smartly adjust the speed of compressors and fan motors according to the temperature of air and water temperatures, which enables the heat pumps to heat your pool fast.

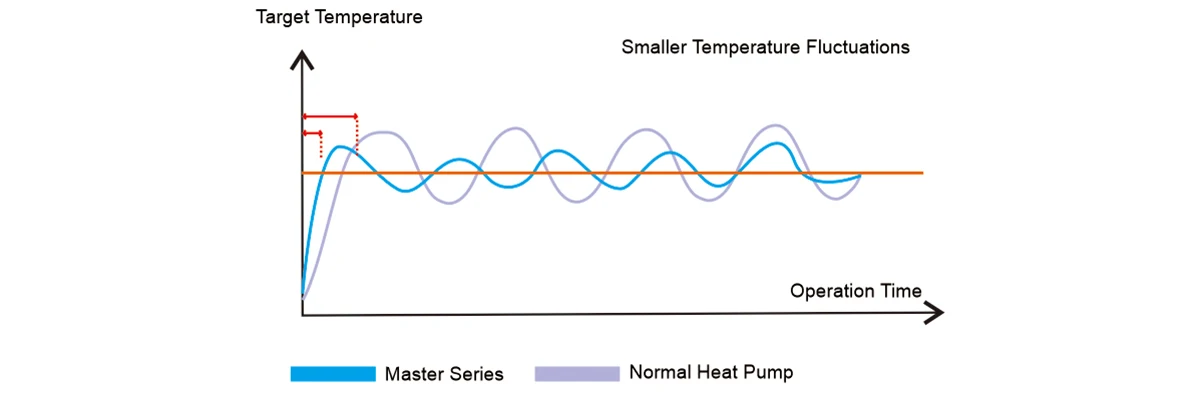

● Constant Water Temperature



● Soft Start
New Energy Dolphin series achieve completely soft switching at the start-up stage from an intensity of 0A to 28A(at maximum),while the normal ON/OFF heat pumps start in a current intensity over three times higher, which will greatly impact the family electricity system.


● Heating & Cooling
By utilizing 4 ways valve, New Energy Turtle series provide both heating and cooling mode to create more possibility for pool enjoyment.

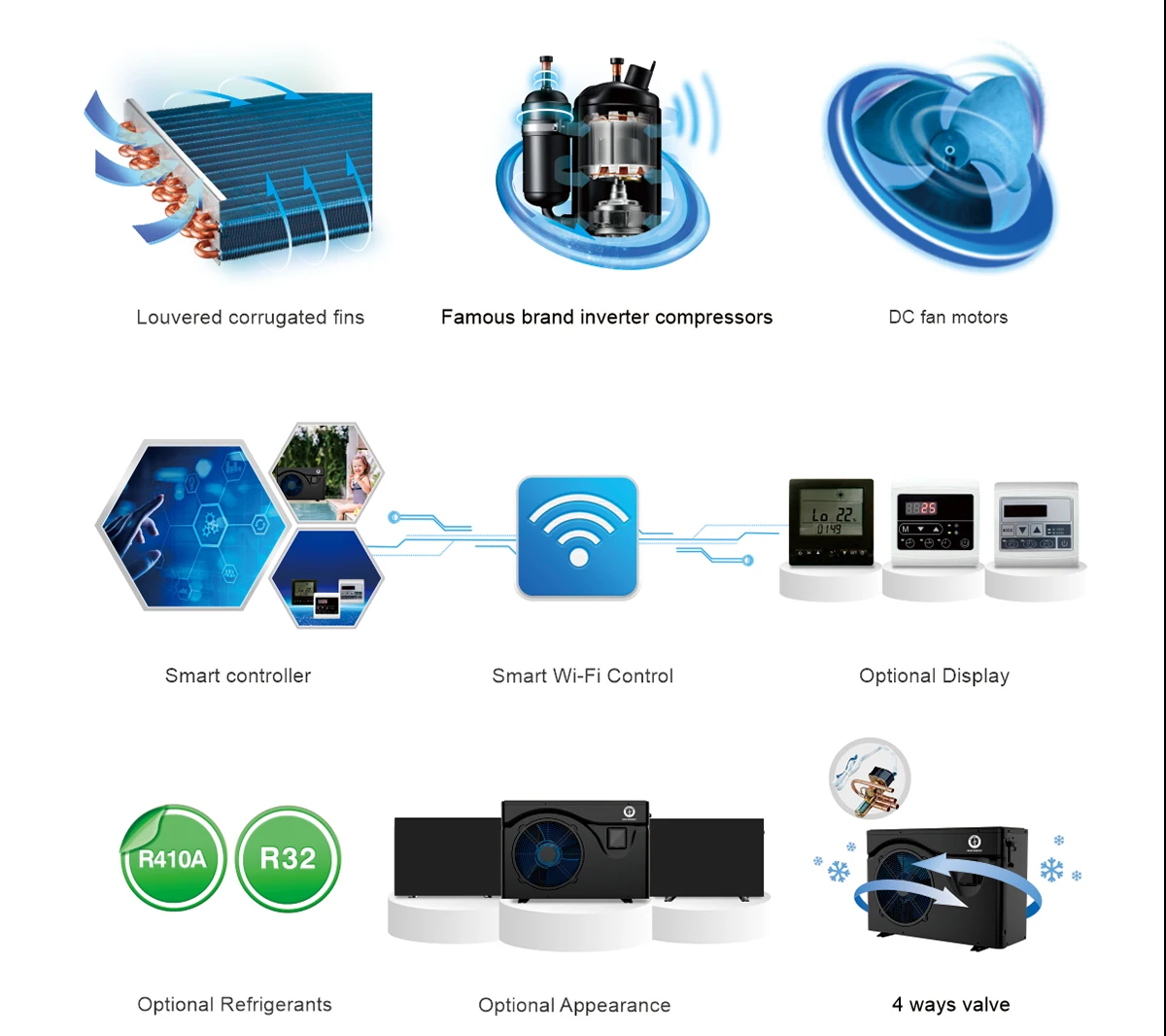

Key Components




Product parameters


Model: NE-F
50SPR4INV
70SPR4INV
90SPR4INV
110SPR4INV
150SPR4INV
180SPR4INV
Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C.
Heating Capacity (kW)
1.5~5.5
1.5~7.2
1.8~9.5
2.8~11.5
3.5~15.3
4.35~18.0
Power Input (kW)
0.104~0.84
0.106~1.12
0.124~1.46
0.193~1.79
0.243~2.41
0.306~2.83
COP
14.4~6.55
14.2~6.43
14.5~6.5
14.5~6.4
14.4~6.35
14.2~6.36
Boost Mode
Heating Capacity (kW)
5.5
7.2
9.5
11.5
15.3
18
COP
6.55
6.43
6.5
6.4
6.35
6.36
Smart Mode
Heating Capacity (kW)
4.5
5.8
7.8
9.1
11.55
14.01
COP
7.41
7.53
7.52
7.82
7.68
7.5
Silent Mode
Heating Capacity (kW)
2.1
2.8
3.5
5.5
7.35
8.7
COP
12.2
12.5
12.2
11.2
10.62
10
Ambient Temperature: (DB/WB) 15°C/12°C; Water Inlet Temperature: 26°C.
Heating Capacity (kW)
1.1~3.9
1.3~5.4
1.5~7.9
2.21~8.23
2.95~11.15
3.42~13.33
Power Input (kW)
0.138~0.75
0.168~1.102
0.194~1.491
0.283~1.614
0.386~2.226
0.453~2.693
COP
7.97~5.2
7.74~4.9
7.73~5.3
7.81~5.1
7.64~5.01
7.55~4.95
Boost Mode
Heating Capacity (kW)
3.9
5.4
7.9
8.23
10.86
13.33
COP
5.2
4.9
5.3
5.1
5.01
4.95
Smart Mode
Heating Capacity (kW)
3.1
4.3
6.1
6.58
8.65
10.55
COP
5.92
5.95
5.95
5.73
5.76
5.68
Silent Mode
Heating Capacity (kW)
2.2
2.4
2.5
4.37
5.55
6.72
COP
6.95
6.88
6.92
6.57
6.55
6.51
Power Supply (V/Ph/Hz)
220-240V / 1Ph / 50Hz
Max. Power Input (kW)
1.31
1.61
1.75
2.3
3.2
3.9
Max. Current (A)
5.95
7.32
7.95
10.5
14.5
17.7
Heating Temperature Range (℃)
15~40
Operating Temperature Range (℃)
 -10~43
Refrigerant Type
R32 / R410A
Compressor Brand
Mitsubishi
Sound Pressure at 1m dB(A)
20~45
20~46
21~46
22~47
24~48
24~48
Water Flow (m³/h)
2.4
3.1
4.1
4.9
6.6
7.7
Water Pressure Drop (kPa)
15
17
18
15
18
23
Net Dimensions (L*W*H) (mm)
910*360*620
1000*405*660
Net Weight (kg)
35
37
39
45
48.5
49
Water Pipe Connection (mm)
50
Notice
More plastic and galvanized steel appearances are available.
The above data is for reference only, the specific data is subject to actual product.


Model: NE-F
210SPR4INV
250SPR4INV
210SPR4TINV
250SPR4TINV
280SPR4TINV
Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C.
Heating Capacity (kW)
4.72~21.2
4.78~25.3
4.70~21.1
4.78~25.3
4.95~28.1
Power Input (kW)
0.33~3.59
0.34~4.3
0.33~3.59
0.33~4.36
0.35~5.1
COP
14.3~5.91
14.1~5.88
14.2~5.88
14.48~5.8
14~5.51
Boost Mode
Heating Capacity (kW)
21.2
25.3
21.1
25.3
28.1
COP
5.91
5.88
5.88
5.8
6.15
Smart Mode
Heating Capacity (kW)
17
20.4
17.1
20.36
22.61
COP
7.85
7.4
7.85
7.38
7.42
Silent Mode
Heating Capacity (kW)
10.2
12.3
10.3
12.53
13.91
COP
10.1
10.2
10.1
10.8
11.8
Ambient Temperature: (DB/WB) 15°C/12°C; Water Inlet Temperature: 26°C.
Heating Capacity (kW)
3.5~14.2
3.8~17.1
3.52~14.07
3.61~16.7
4.05~18.5
Power Input (kW)
0.47~2.88
0.49~3.47
0.460~2.865
0.476~3.394
0.537~3.737
COP
7.45~4.93
7.76~4.93
7.65~4.91
7.58~4.92
7.54~4.95
Boost Mode
Heating Capacity (kW)
14.2
17.1
14.07
16.7
18.5
COP
4.93
4.93
4.91
4.92
4.95
Smart Mode
Heating Capacity (kW)
11.2
13.5
11.13
13.21
14.63
COP
5.8
5.84
5.69
8.41
5.72
Silent Mode
Heating Capacity (kW)
7.5
8.3
7.09
6.57
9.31
COP
6.5
6.52
6.65
6.57
6.51
Power Supply (V/Ph/Hz)
220-240V / 1Ph / 50Hz
380-415V / 3Ph / 50Hz
Max. Power Input (kW)
4.1
4.5
4.1
4.5
5.4
Max. Current (A)
18.8
19.5
7.3
8.5
10.2
Heating Temperature Range (℃)
15~40
Operating Temperature Range (℃)
 -10~43
Refrigerant Type
R32 / R410A
Compressor Brand
Mitsubishi
Sound Pressure at 1m dB(A)
35~52
35~55
35~52
35~55
36~55
Water Flow (m³/h)
9.1
10.8
9.1
10.8
12
Water Pressure Drop (kPa)
32
35
32
35
38
Net Dimensions (L*W*H) (mm)
1130*445*775
Net Weight (kg)
75
85
75
85
90
Water Pipe Connection (mm)
50
Notice
More plastic and galvanized steel appearances are available.
The above data is for reference only, the specific data is subject to actual product.
