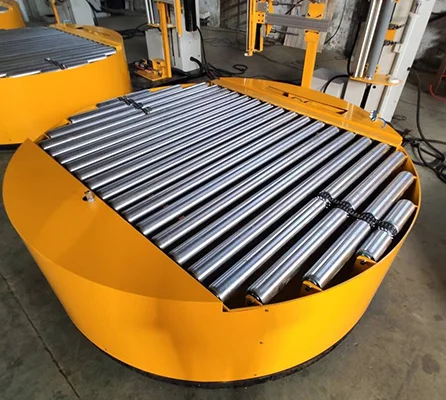

China Made Pallet Stretch Wrapping Machine with turntable and roller conveyor
- Category: >>>
- Supplier: Qingdao Ausense Packing Equipment Co. Ltd.
Share on (1600288745248):
Product Overview
Description
Product Description
Full Automatic Paller Wrapper , Online Pallet Wrapping Machine.

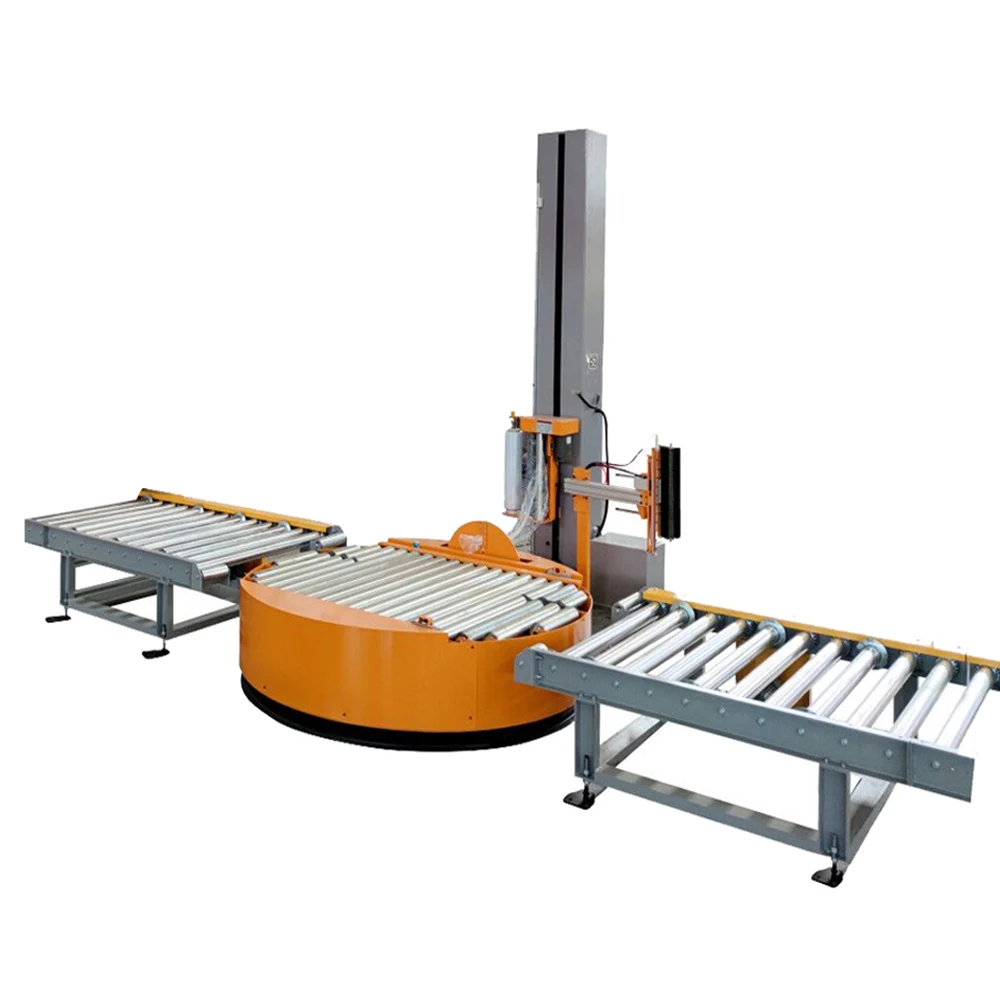

TP2000FZ fully automatic online pallet wrapping machine is a traditional turntable type machine that has been designed to be as automatic as possible. Once the film has been loaded into the film jaw clamps there is no need to attach the film to the pallet in the normal way. At the end of the cycle the machine cuts the film with a hot wire, secures the tail end on to the pallet and then grips the film ready for the next load. It even comes with a remote control so if loaded by a lift truck the driver does not have to get out of his vehicle.
Product Paramenters
Model | TP2000FZ |
Voltage | 380V 50HZ 3P |

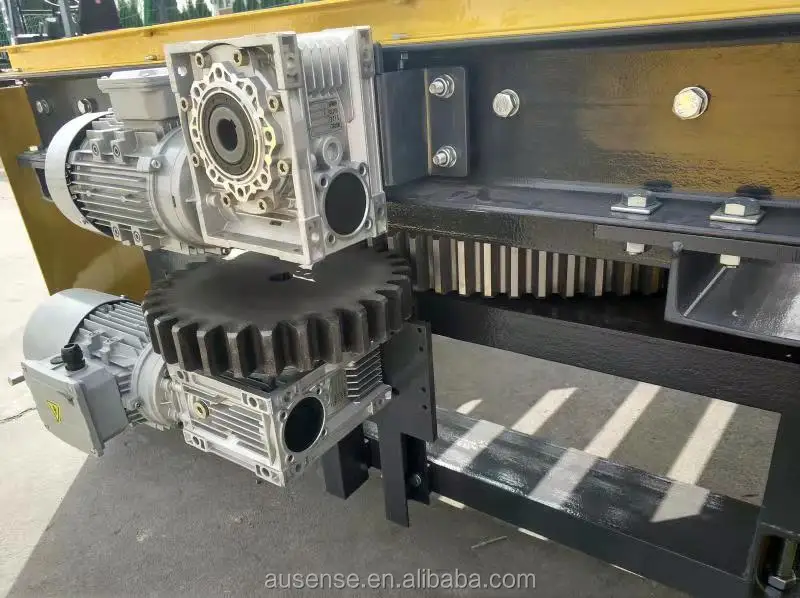

Power | Turntable Motor: 0.75kw, Film Motor: 0.4kw, Column Motor: 0.37kw |
Wrapping Size(L*W mm) | (500-1100)*(500-1200) |
Wrapping Height | 500-1800/2400 |
Capacity | 20-40 Pallet/Hour |
Turntable size | 2000mm |
Turntable Height | 400mm |
Max loading | 2000kg |
Speed | Adjustable |
Machine Size | 3200*2000*2100mm |
Product Advantages

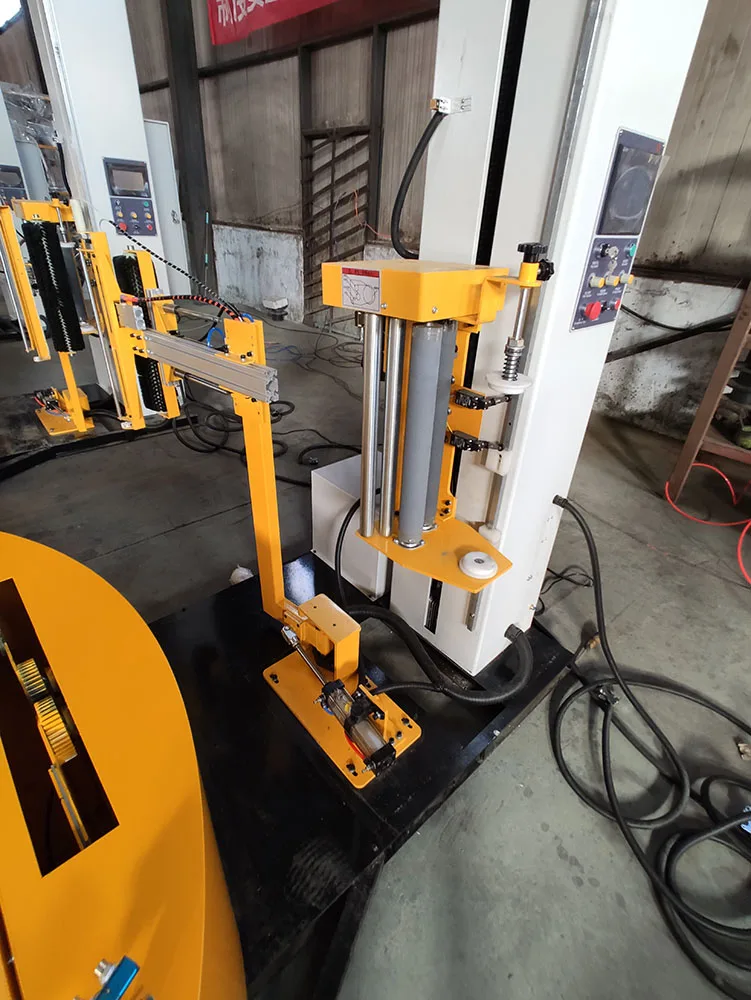

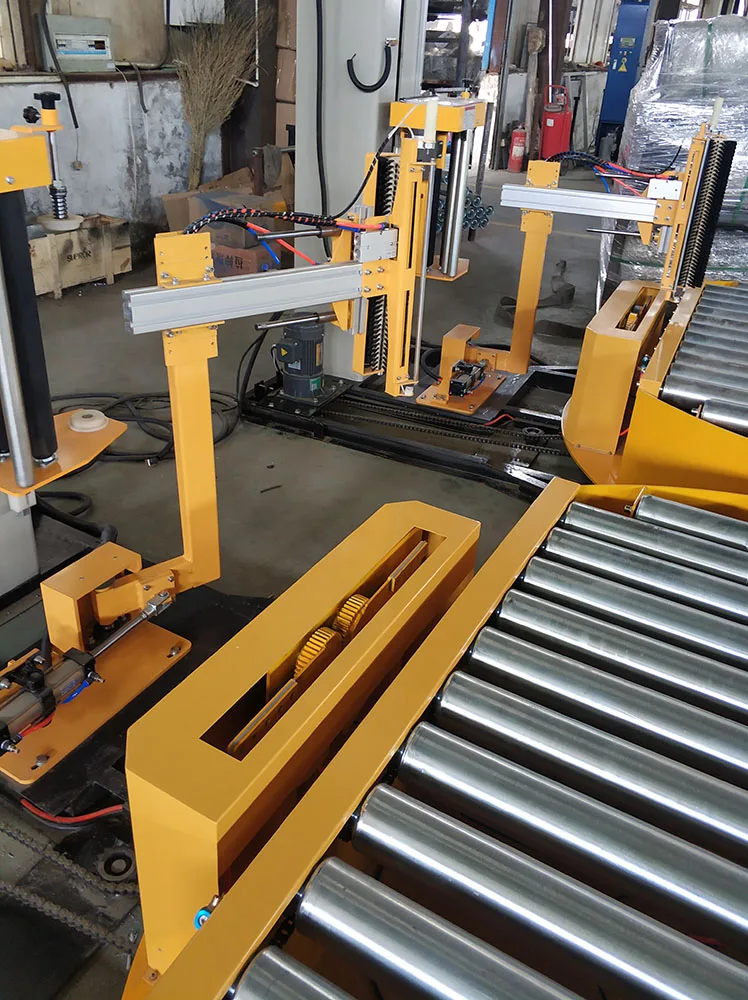

Automatic film feeding/automatic film breaking/automatic patching.
PLC control international famous brand technology, long service life, touch screen interface intuitive and simple.
The column section is 150mm*150mm, and the thickness is 4.0mm.

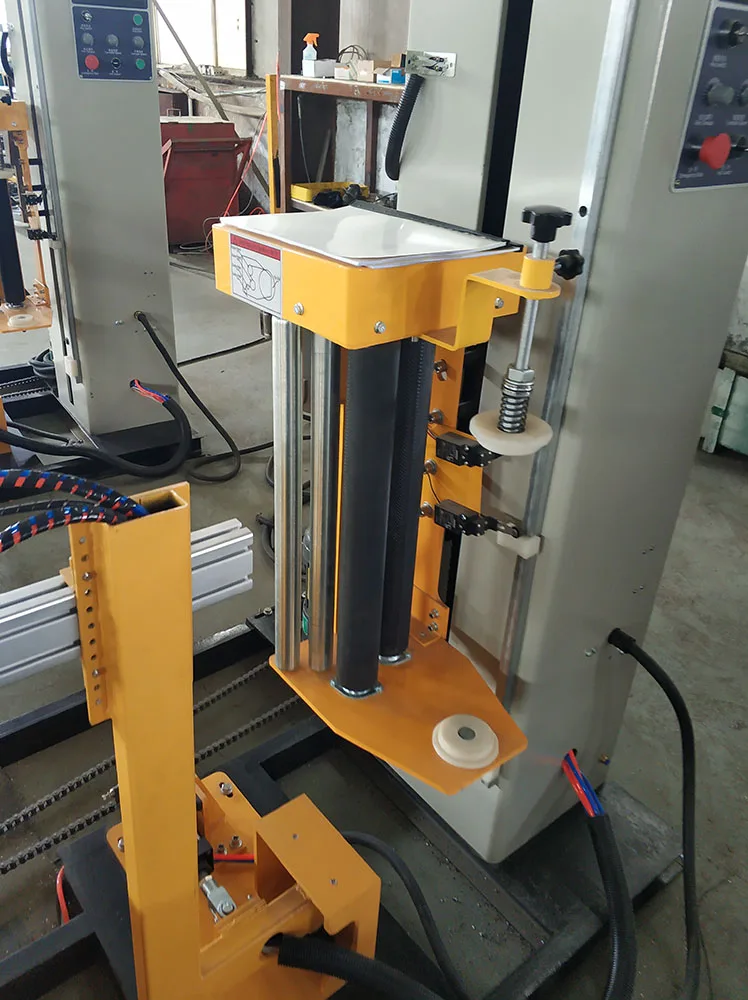

The prestretching can reach 300%, and the prestretching effect is better.
High efficiency and stable performance.
Custom Options
Custom products, serial number description.
(1) the body color can be customized.
(2) the packaging size can be customized.
(3) the covering film can be customized.
(4) delivery line configuration can be customized.
(5) the security fence can be customized.
(2) the packaging size can be customized.
(3) the covering film can be customized.
(4) delivery line configuration can be customized.
(5) the security fence can be customized.

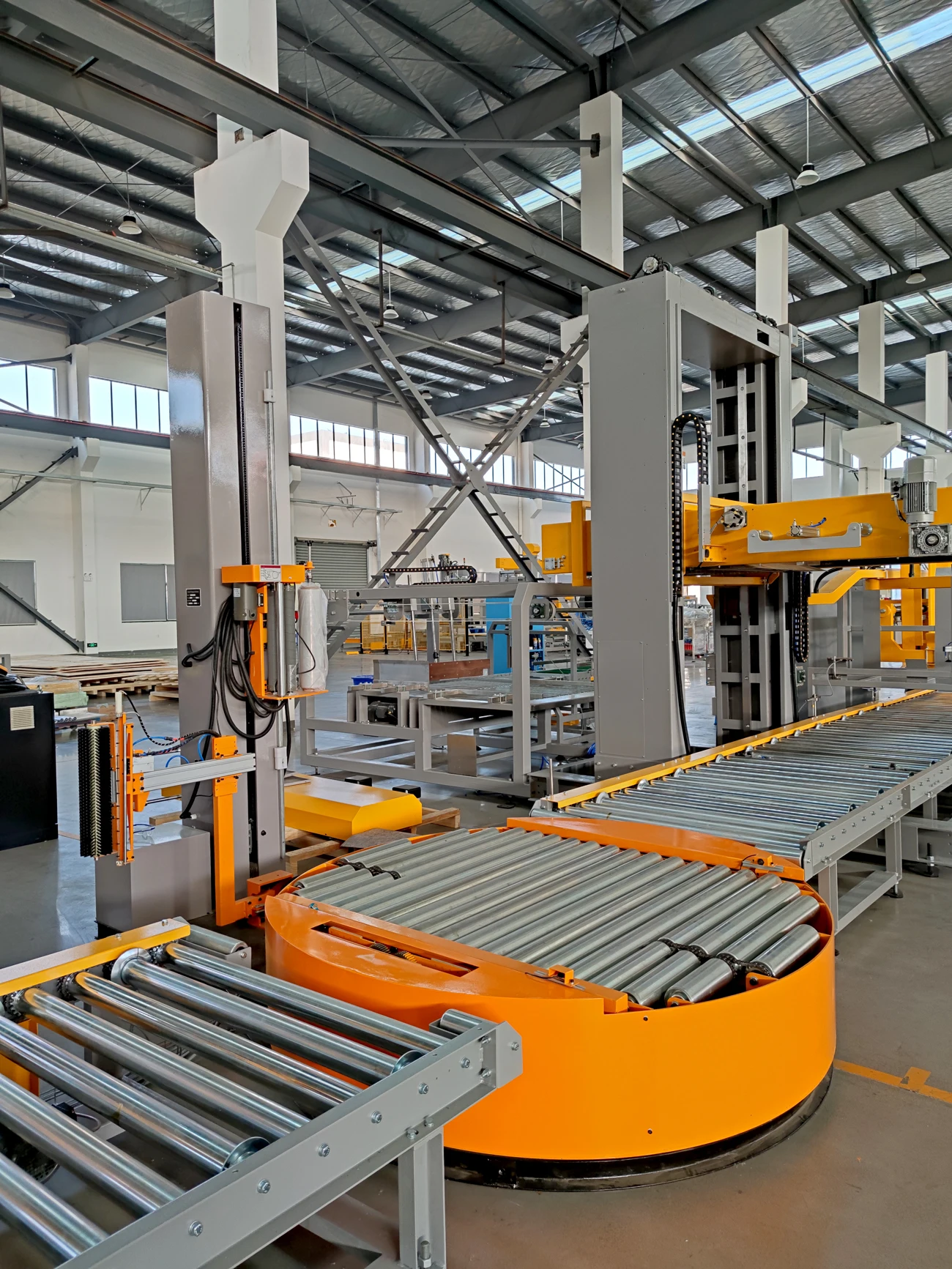

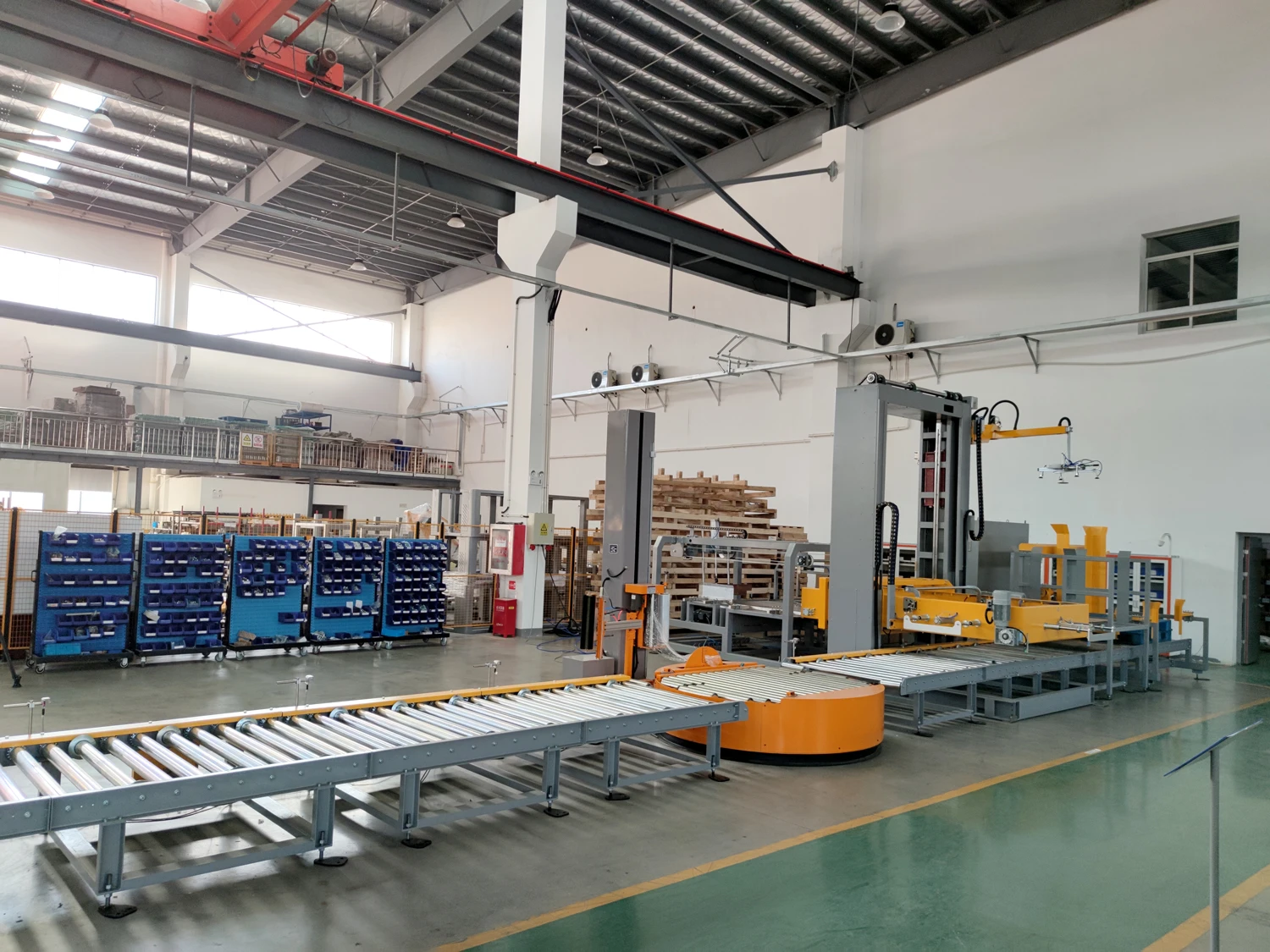

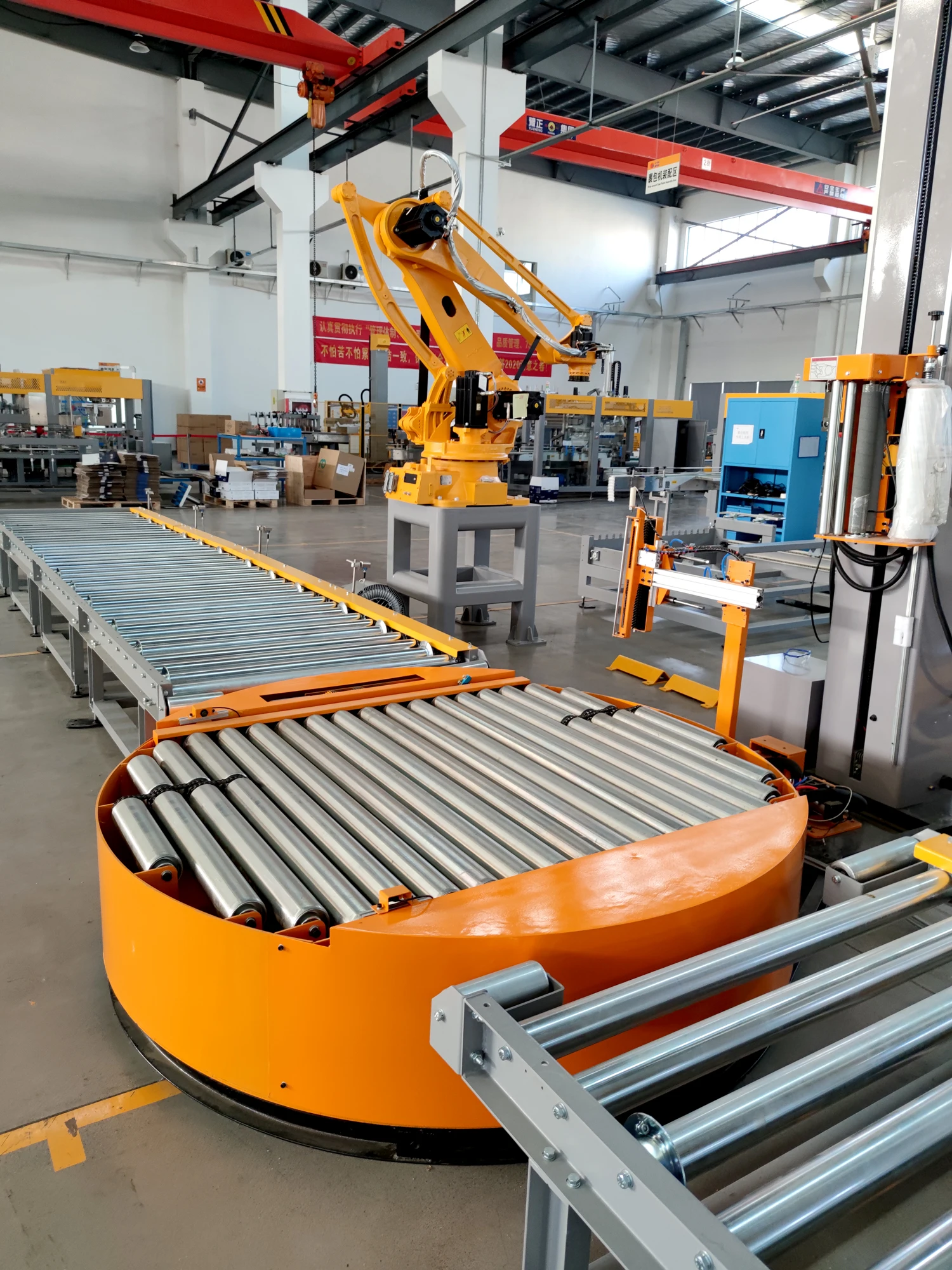

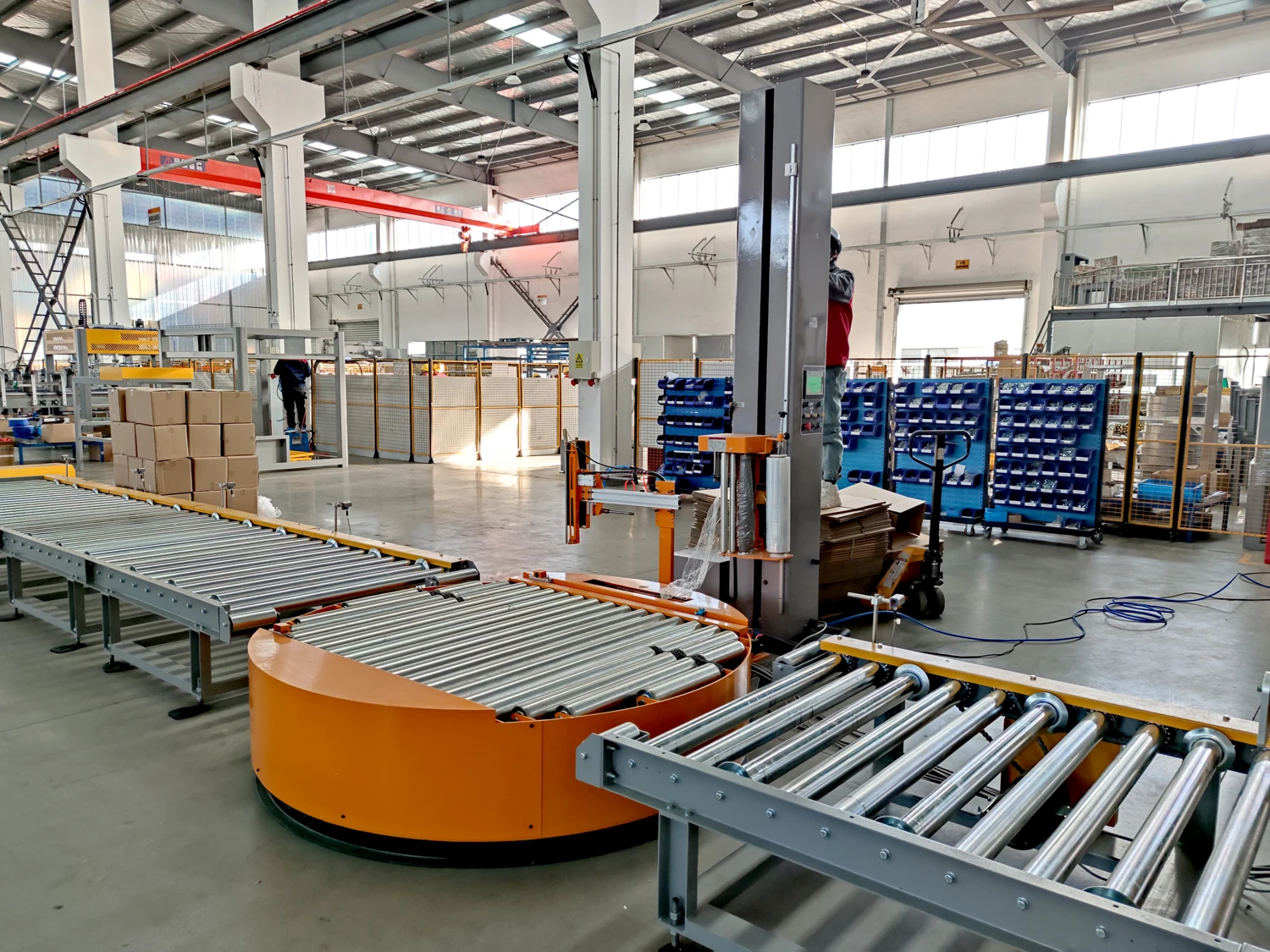

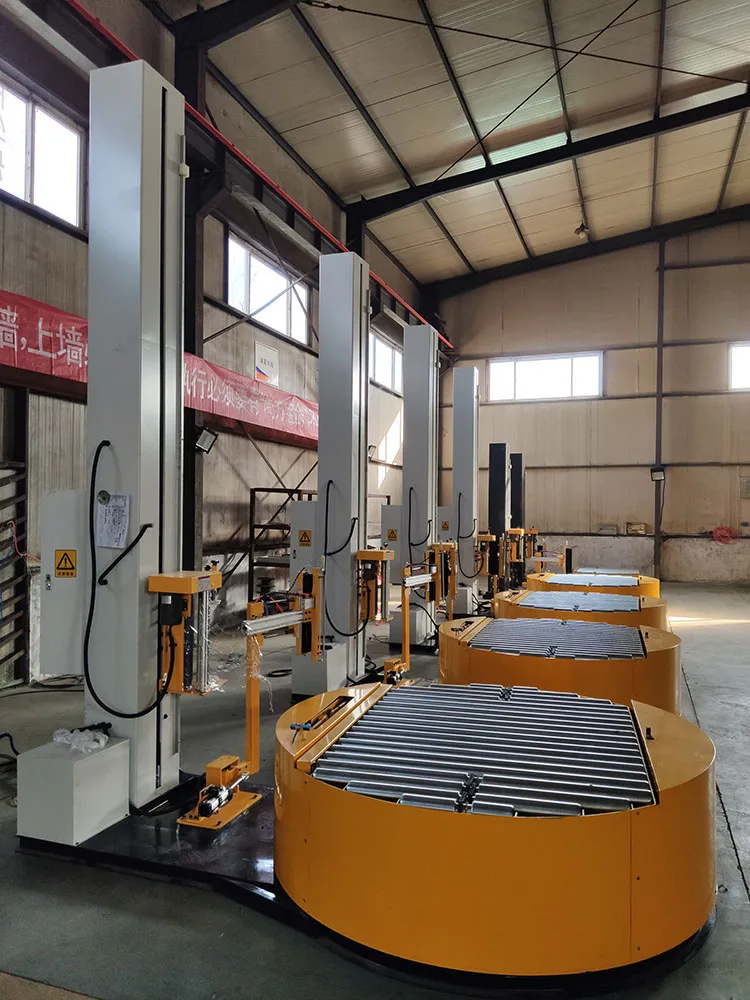

Our workshop
More Related Products
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. such as automatic carton packing line,shrinking wrapping line, fully automatic pallet strapping line,Conveyor system and soon......
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
