Hot sale stuffing carding opening Pillow Cushion Filling Machine Polyester Fiber/Foam Cushion Filling Machine
- Category: Home Textile Product Machinery >>>
- Supplier: Shenzhen Xinqunli Machinery Co. Ltd.
Share on (1600288945906):
Product Overview
Description
Product Overview
Sofa fiber filling system
This fiber opening machine suitable for different kinds of short fiber,wool,cotton,polyester carding.Suitable for the pillow and bedding production. ESF005 series is ideal equipment.
Carding the polyester first, then filling the fresh processed material into backrest, pillow, cushion, with even and fluffy effect. Fiber carding machine's opening rate is remarkable: 99%.
Concerning the fully automatic lines, our engineer can come to the customer's factory install the machines and teach the user.
Also we welcome the user come to use to learn how to use the machines.
When you buy our machines, we will offer you some spare parts for free. When you use the machine, if you face any problems, just
give us e-mail with pictures, we will give you feedback within 24 hours. And help you solve the problem. Also within 1 year, we will offer you spare parts for free.
Carding the polyester first, then filling the fresh processed material into backrest, pillow, cushion, with even and fluffy effect. Fiber carding machine's opening rate is remarkable: 99%.
Concerning the fully automatic lines, our engineer can come to the customer's factory install the machines and teach the user.
Also we welcome the user come to use to learn how to use the machines.
When you buy our machines, we will offer you some spare parts for free. When you use the machine, if you face any problems, just
give us e-mail with pictures, we will give you feedback within 24 hours. And help you solve the problem. Also within 1 year, we will offer you spare parts for free.
FEATURES AT A GLANCE
Output:300-350 kg/h.
7 carding rollers+1 big carding roller.
Global brand motor.
Independent electricity box make it safer.
Machine can prevent fiber twine.
Fiber exit
Independent electrical box
Appearance

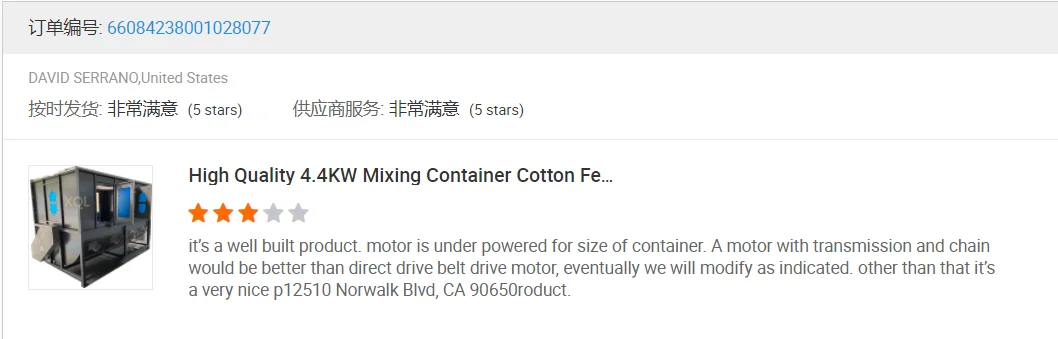

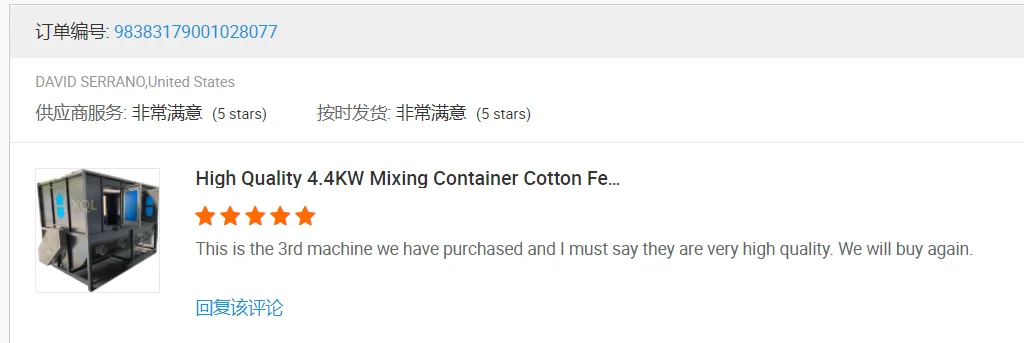

The customer high praise
Automatic feeding.
Power:3.3kw(3*1.1kw motor)
Size：3900*1500*1960mm.
With Automatic turning and feeding device with bale.Sectional control structure for feeding.
Power:3.3kw(3*1.1kw motor)
Size：3900*1500*1960mm.
With Automatic turning and feeding device with bale.Sectional control structure for feeding.
When the fiber reaches the height, the sensor will know,then the feed will be suspended.
Frequency converter control the conveyor belt speed.
Capacity:300-350/h.Power.8.25kw.
Size:2200*1300*1080mm
Size:2200*1300*1080mm

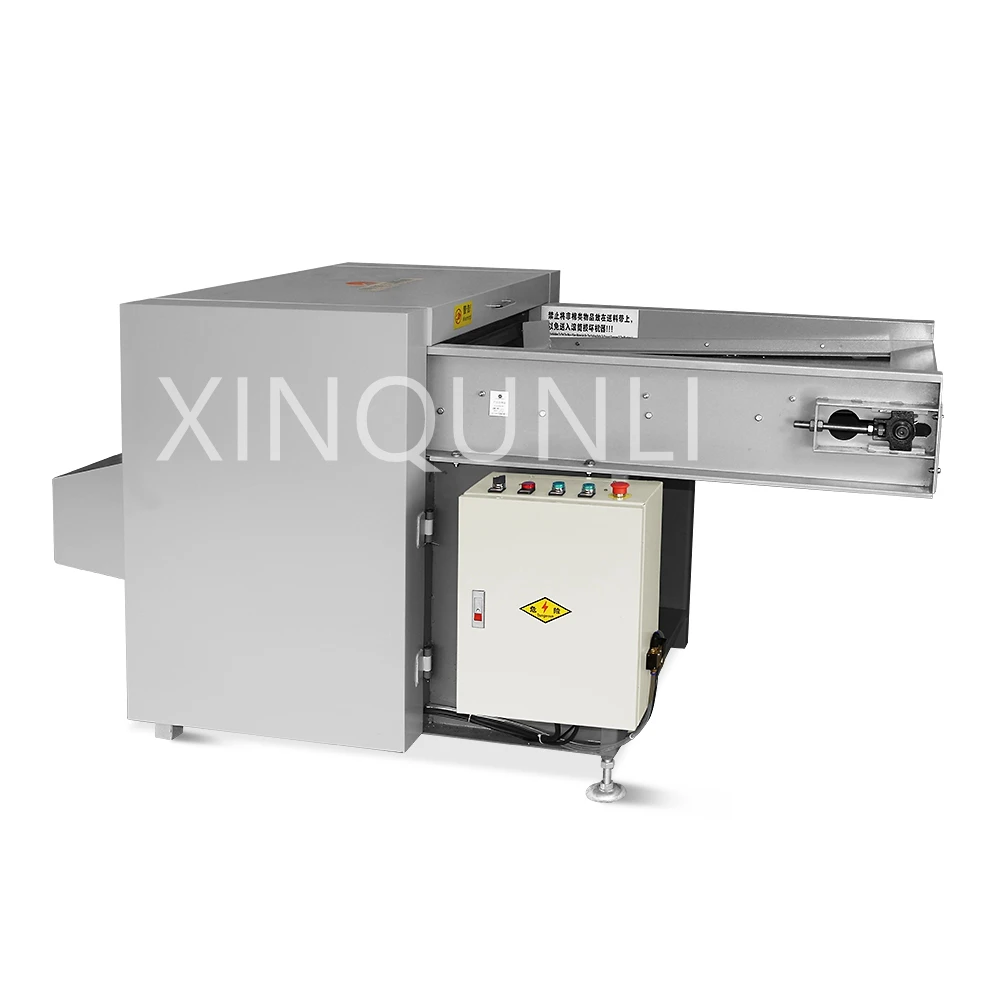

7 small carding rollers and 1 big carding roller
Power | 3kw |
Size | 70*56*72cm |
Wheel | Big inside |
1.A separate electrical box operates the feeding fan(convey sponge into mixer) and mixer.It also makes production safer.
2.High strength belt drive agitator, no noise, long service life.
3.Motor:2.2kw*1
2.High strength belt drive agitator, no noise, long service life.
3.Motor:2.2kw*1

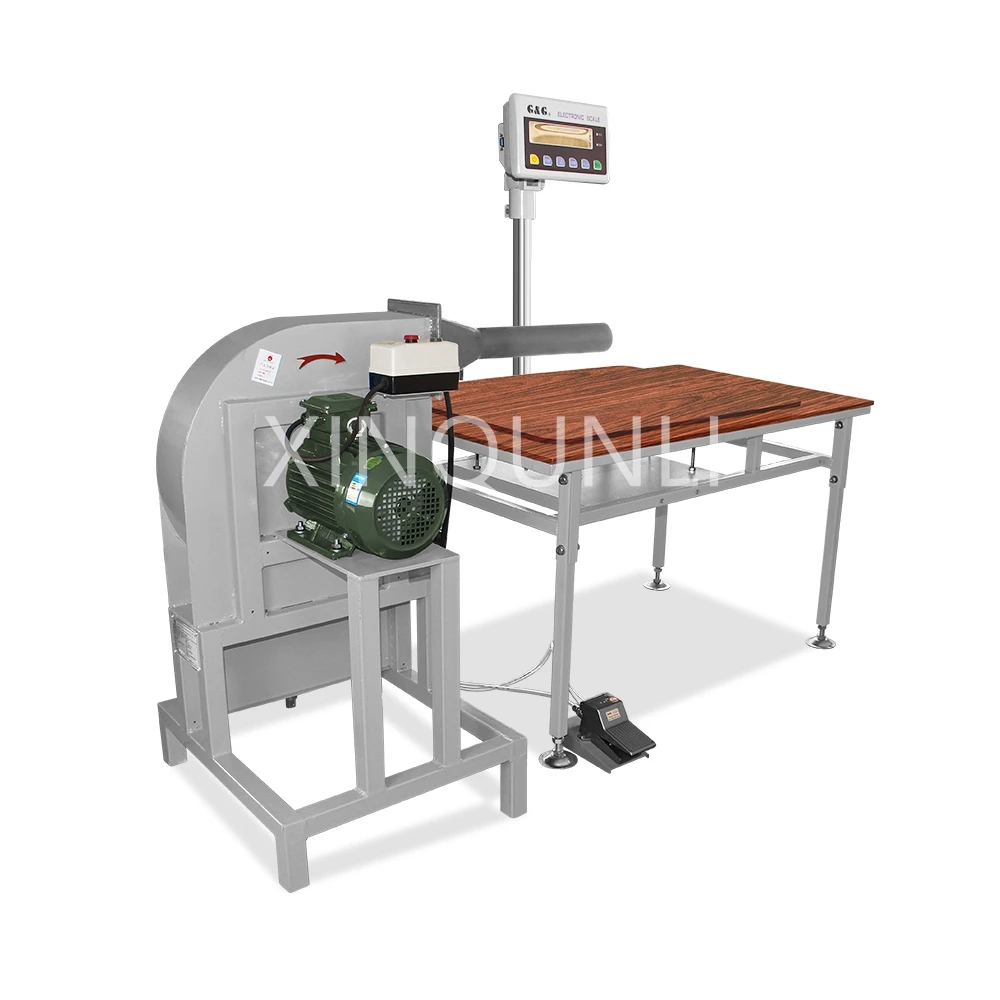

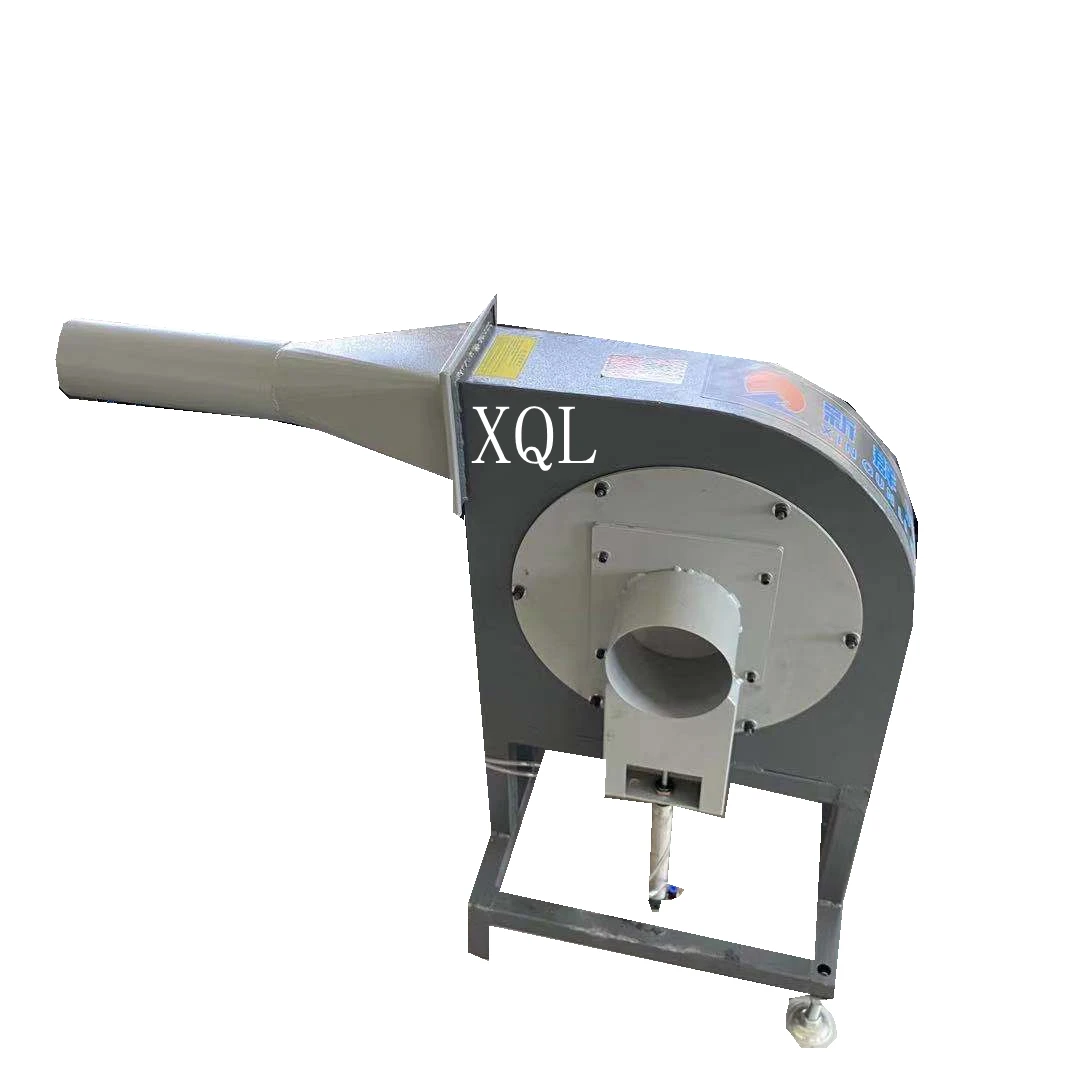

Pillow fiber filling machine+Working table with scale
The shell and impeller of the fiber filling machine are enlarged, the wind force is large, and the filling speed is fast.
Output:150kg/pc/h
Power:1.5kw
Electronic scales are anti-static and accurate in weighing.Precision:±5g
Output:150kg/pc/h
Power:1.5kw
Electronic scales are anti-static and accurate in weighing.Precision:±5g
PRODUCT SPECIFICATIONS
Fiber bale opener+Fiber opening machine+Feeding fan+Mixing container+Pillow fiber filling machine+Working table with scale | ||||
No | Item | Data | ||
Fiber bale opener | ||||
1 | Power | 3.3kw | ||
2 | Size | 390*150*196cm | ||
3 | Package | Corrugated paper | ||
Fiber opening machine | ||||
1 | Machine power | 8.25KW | ||
2 | Carding fiber output | 300-350kg/h | ||
3 | Dimensions | 230*115*115cm | ||
4 | Conveyor belt width | 72cm | ||
5 | Package | Plywood case | ||
6 | Big carding roller | 1pc | ||
7 | Small carding roller | 7pcs | ||
8 | Shipping | Sea | ||
Feeding fan | ||||
1 | Power | 3kw | ||
3 | Package | Plywood case | ||

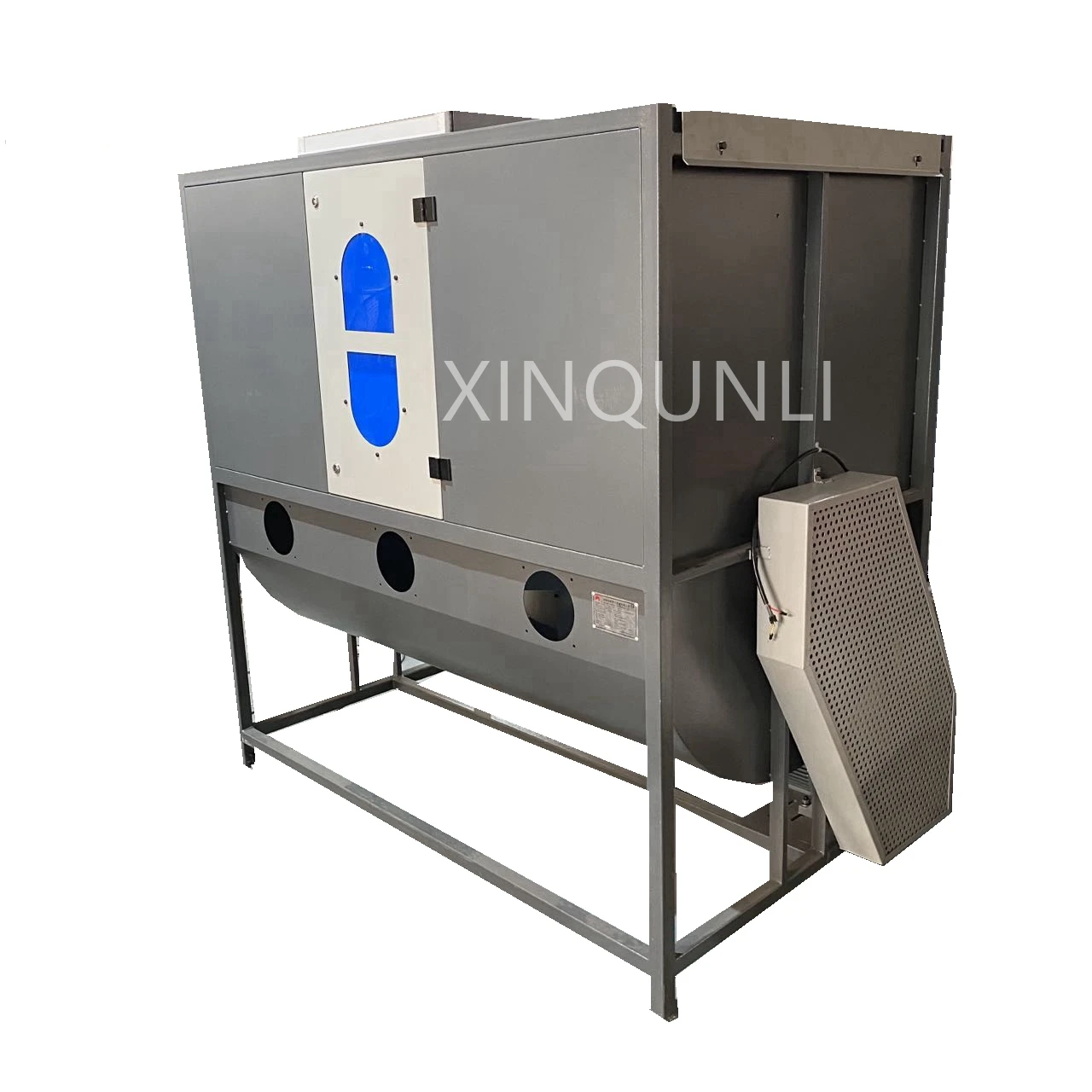

Mixing container | ||||
1 | Power | 2.2kw | ||
2 | Motor type | Gear motor | ||
3 | Package | Corrugated paper or plywood case | ||

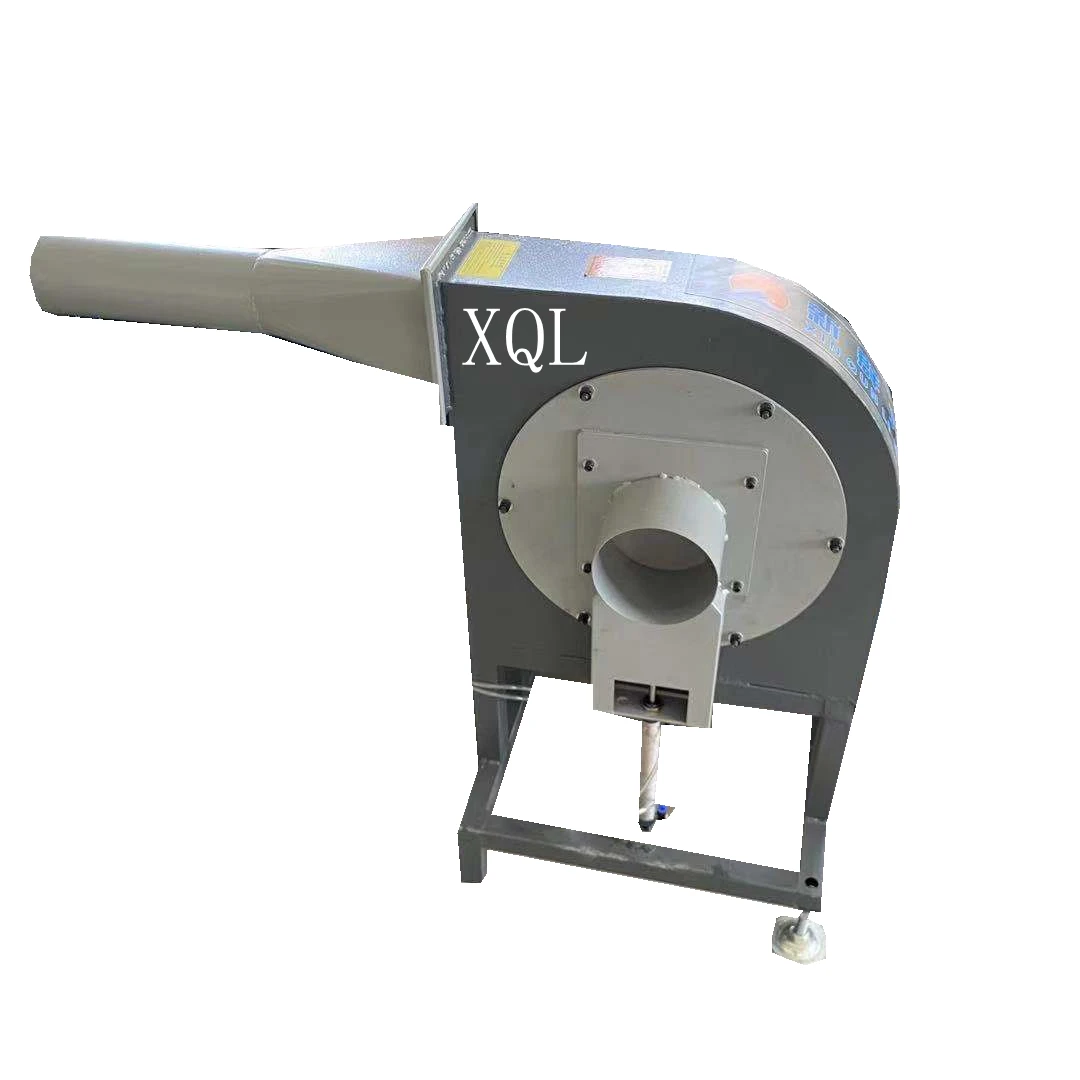

Pillow fiber filling machine | ||||
1 | Power | 1.5kw | ||
2 | Wind wheel inside | Bigger | ||
3 | Package | Plywood case | ||
Working table with scale | ||||
1 | Precision | ±5g | ||
2 | Table | Anti-static | ||
3 | Package | Plywood case | ||

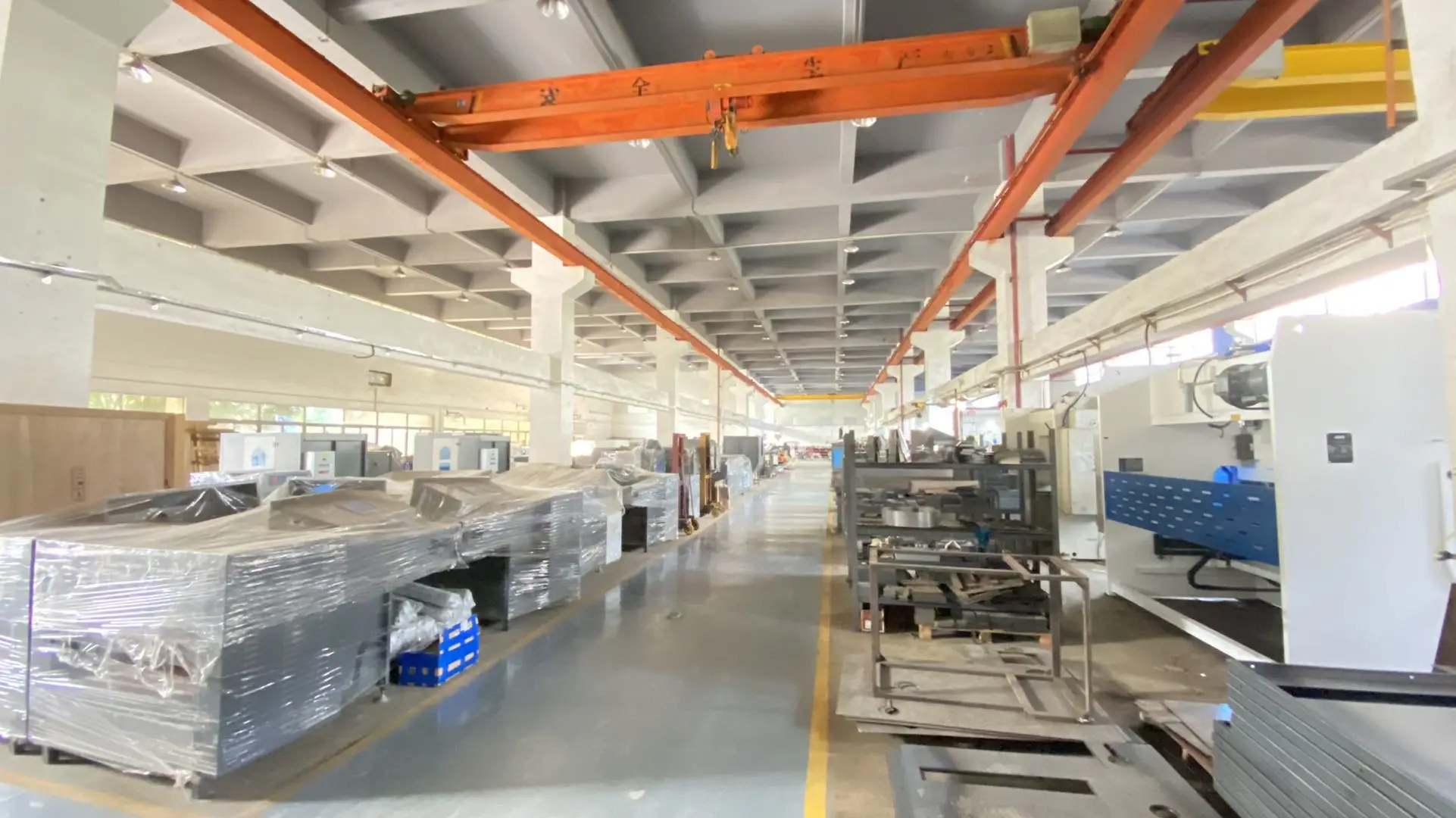

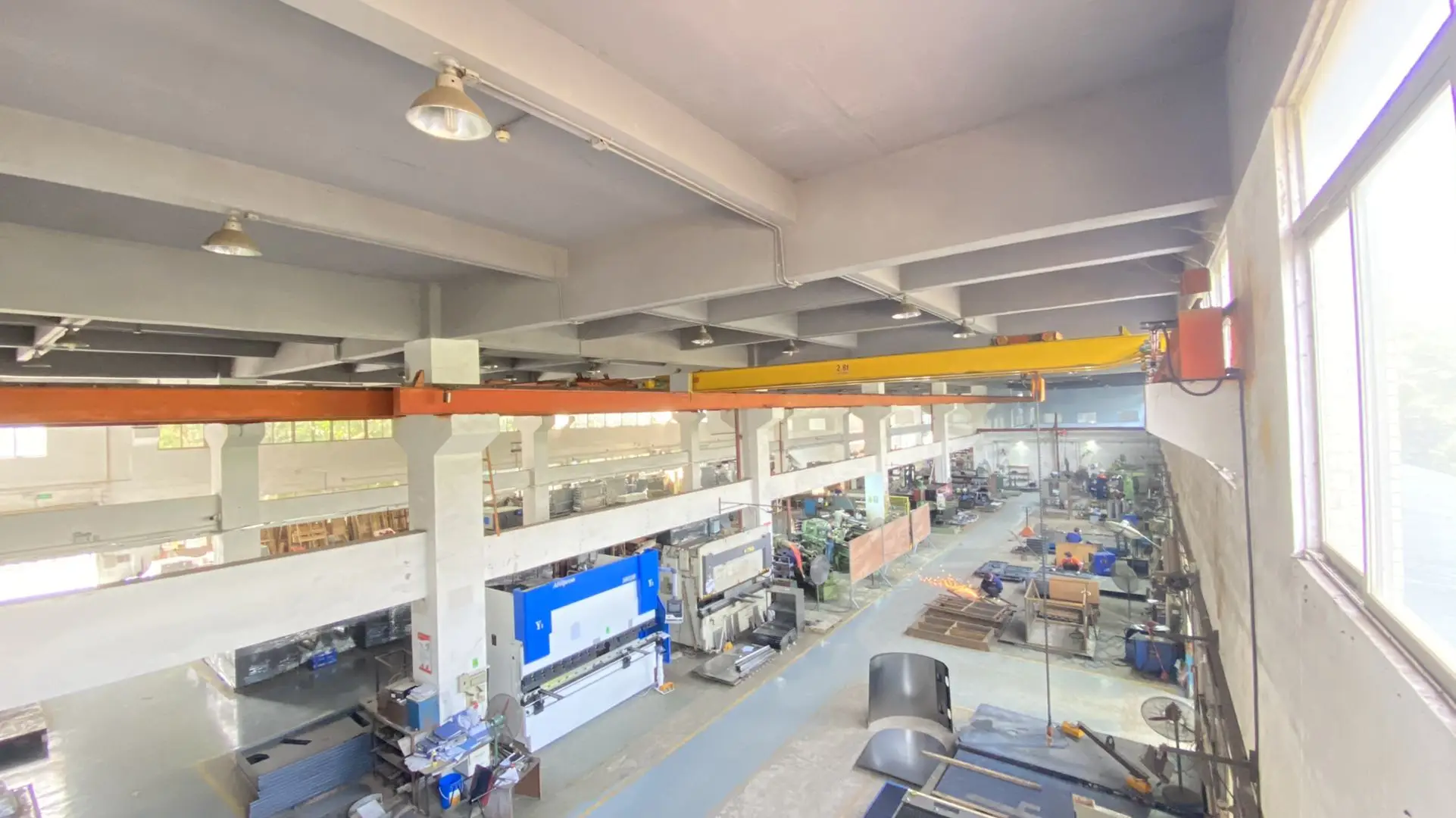

Factory workshop
Warehouse
Machine loading for export
