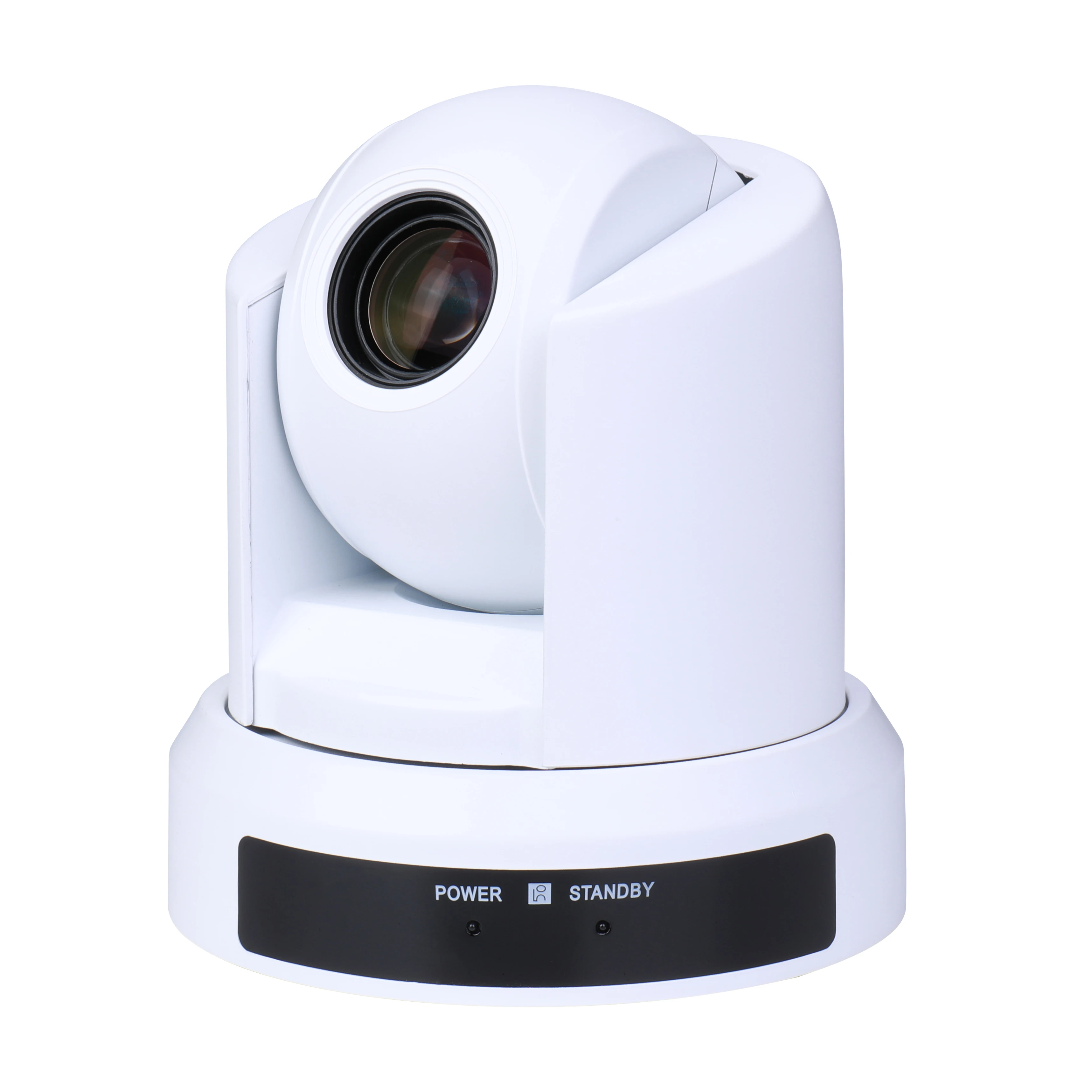

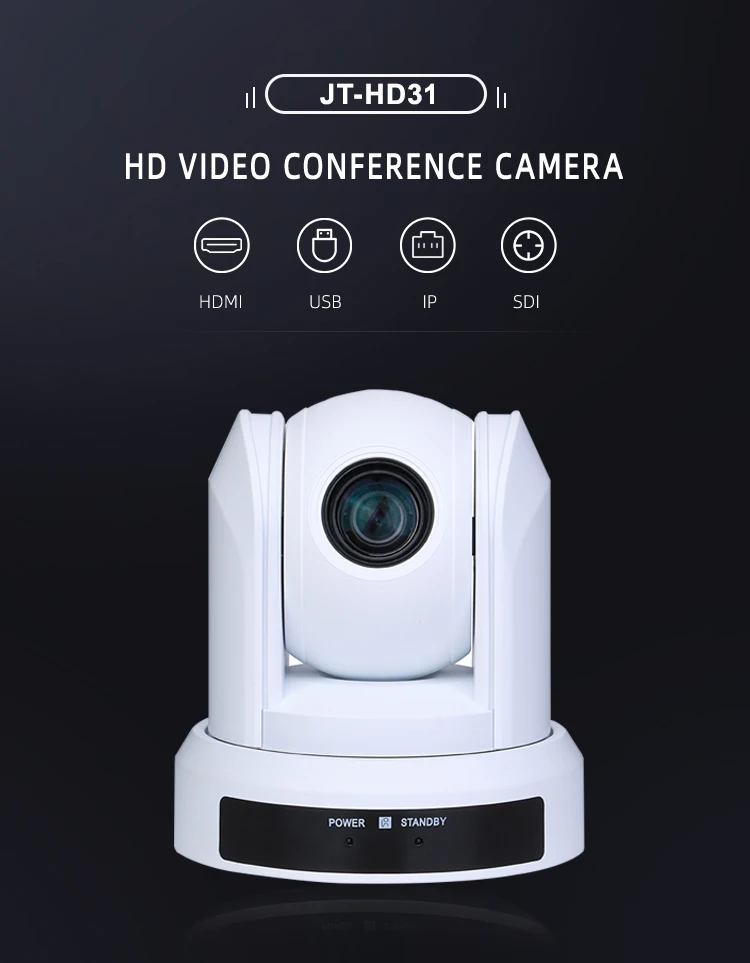

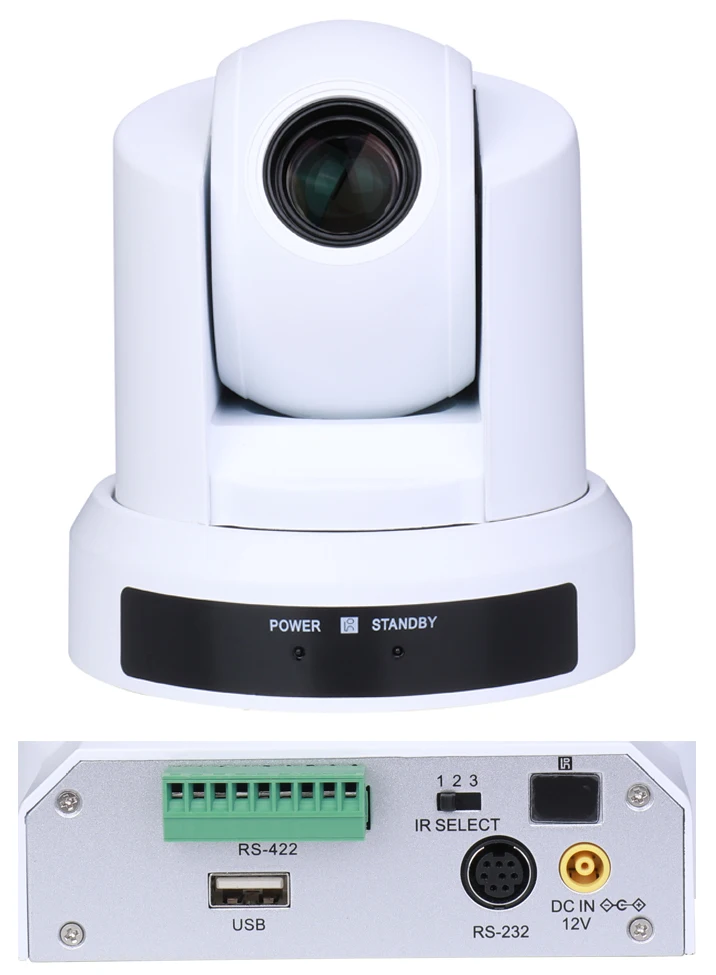

Optional Zoom Broadcast Conference Camera 2021 Hot Sale Full Hd Video 1080P Ptz Broadcasting System F=2.26mm 3X 10X 3 Years Kato
- Category: Video Conference System >>>
- Supplier: Shenzhen KATO Vision Co. Limited
Share on (1600288964142):
Product Overview
Description
Selling Points:
1. Integrated and delicate design;
2. 1/2.8" CMOS, 2.07 Megapixels;
3. Using precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °);
4. Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;
5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;
6. 9 preset positions by IR remote controller, 200 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. Enter and exit the menu via IR remote controller “M-OPEN” button directly;
9. 254 addresses can be set (can be controlled 7 cameras via VISCA);
10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
11. Multi-installation methods: wall mounting, desktop or ceiling mounting;
12. Information feedback automatically prompts;
13. Preset automatically correct;
1. Integrated and delicate design;
2. 1/2.8" CMOS, 2.07 Megapixels;
3. Using precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °);
4. Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;
5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;
6. 9 preset positions by IR remote controller, 200 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. Enter and exit the menu via IR remote controller “M-OPEN” button directly;
9. 254 addresses can be set (can be controlled 7 cameras via VISCA);
10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
11. Multi-installation methods: wall mounting, desktop or ceiling mounting;
12. Information feedback automatically prompts;
13. Preset automatically correct;
Item No. | KT-HD31M | KT-HD31W | KT-HD31S | ||
Image Sensor | 1/3" Progressive CMOS | 1/2.9" CMOS | 1/2.8" CMOS | ||
Effective Pixels | 2.0 Megapixels | 2.19 Megapixels | 2.07 Megapixels | ||

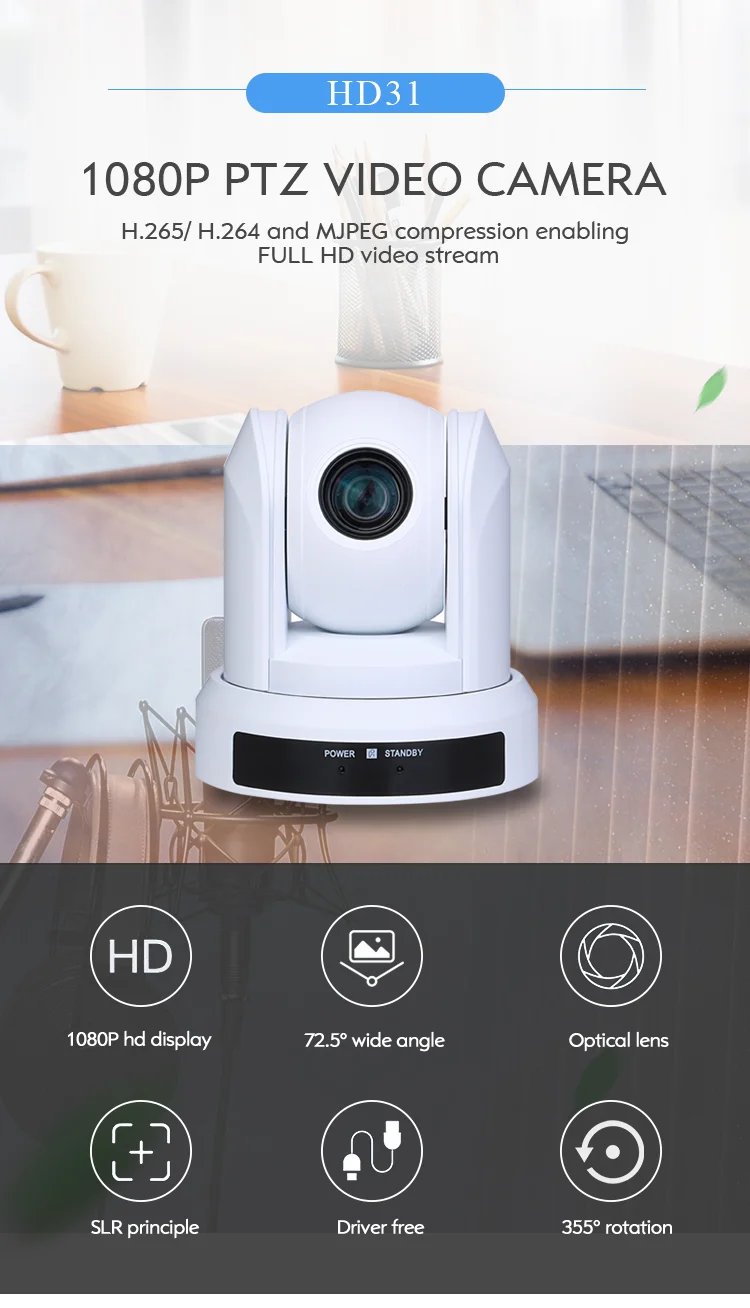

Resolution HD | MJPG/YUY2/H.264/H.265: 320×240,640×360,640×480, 800×600,1280×720,1920×1080 | ||||
Signal | PAL/NTSC | PAL/NTSC | PAL/NTSC | ||
Lens | f=2.26mm | 3X optical zoom | 10X optical zoom | ||
Horizontal View Angle | 108° | 99.6°(W)～30.6°(T) | 60.9°(W)～6.43°(T) | ||
Focus System | Manual | Auto/Manual | Auto/Manual | ||
Minimum Illumination | 1.5Lux | 1.5Lux | 0.1Lux | ||
Shutter | / | 1/1～1/10,000s | 1/30～1/10,000s | ||
Exposure Control | Auto | / | / | ||
White Balance | Auto | Auto/Indoor/Outdoor/Manual | Auto/Indoor/Outdoor/Manual | ||
Gain | / | Auto/Manual | Auto/Manual | ||
Image Effect | Full color/image flip | Full color/image flip | Full color/image flip | ||
S/N Ratio | ≥50db | ≥50db | ≥50db | ||
Foci | / | f=3.35mm(W)～10.05mm(T) | f=4.7mm(W)～47.0 mm(T) | ||
Pan | 355°(max.speed:80°/s) | 355°(max.speed:80°/s) | 355°(max.speed:80°/s) | ||
Tilt | -30°to +90°(max.speed:60°/s) | -30°to 90°(max.speed:60°/s) | -30°to 90°(max.speed:60°/s) | ||
Video Output HD | USB2.0 | USB 2.0 | USB 2.0 | ||
Protocol | SONY VISCA、PELCOD | SONY VISCA、PELCO P/D | SONY VISCA、PELCO P/D | ||

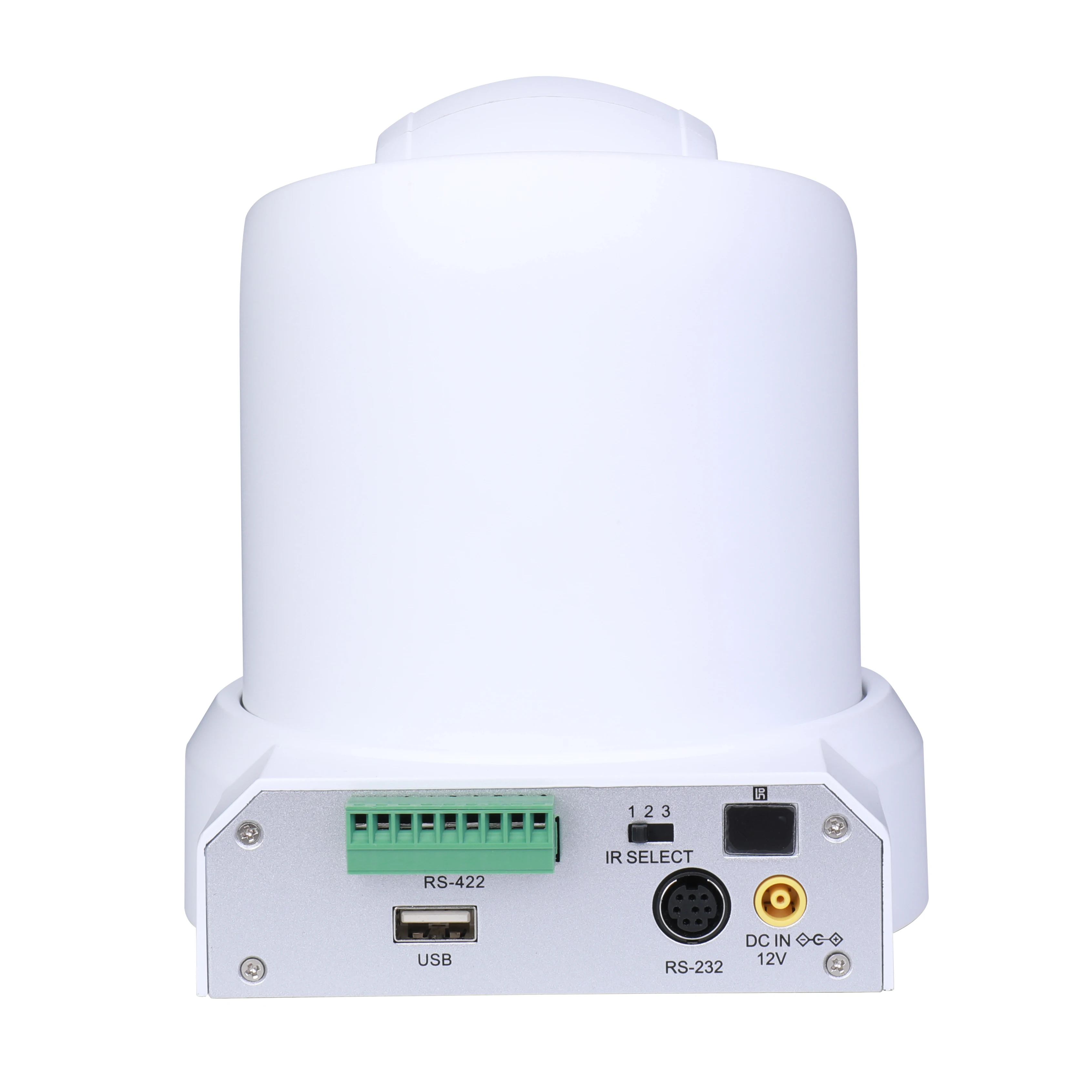

Control Mode | RS-232C、RS-422/485 | RS-232C、RS-422/485 | RS-232C、RS-422/485 | ||
Power | 12V DC(10.8～13.0V DC) | 12V DC(10.8～13.0V DC) | 12V DC(10.8～13.0V DC) | ||

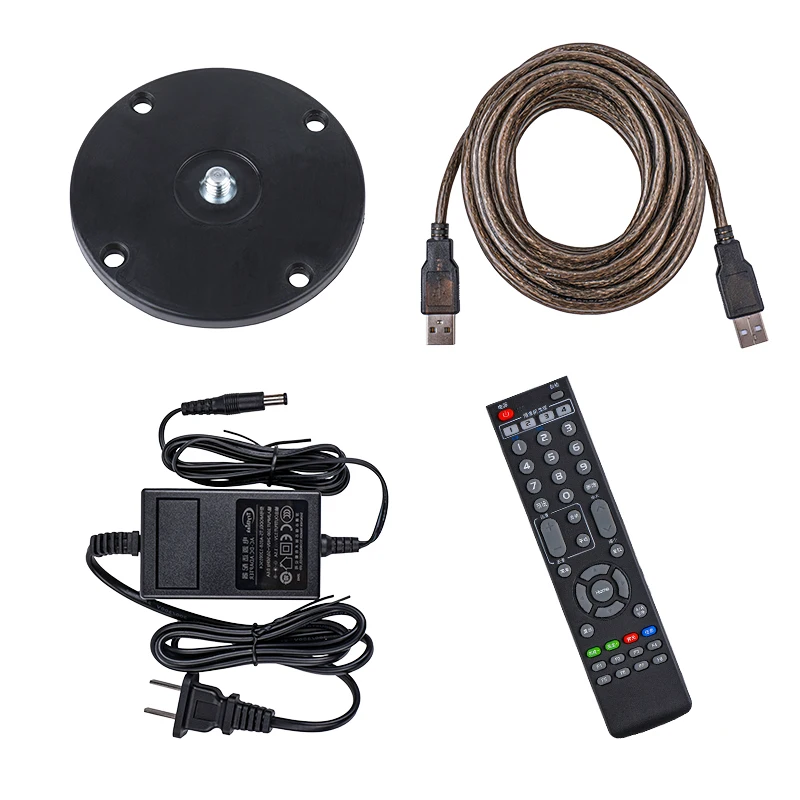

Accessories | DC 12V power adapter, IR Remote, Operation manual, USB cable, Ceiling bracket | DC 12V power adapter, IR Remote, Operation Manual, USB cable, Ceiling bracket | DC 12V power adapter, IR Remote, Operation Manual, USB cable, Ceiling bracket | ||
Product Description
Tip：
1.OEM/ODM Contact us；
2.Top quality and Best Price for you；
3.Contact us can get more discount；
About US

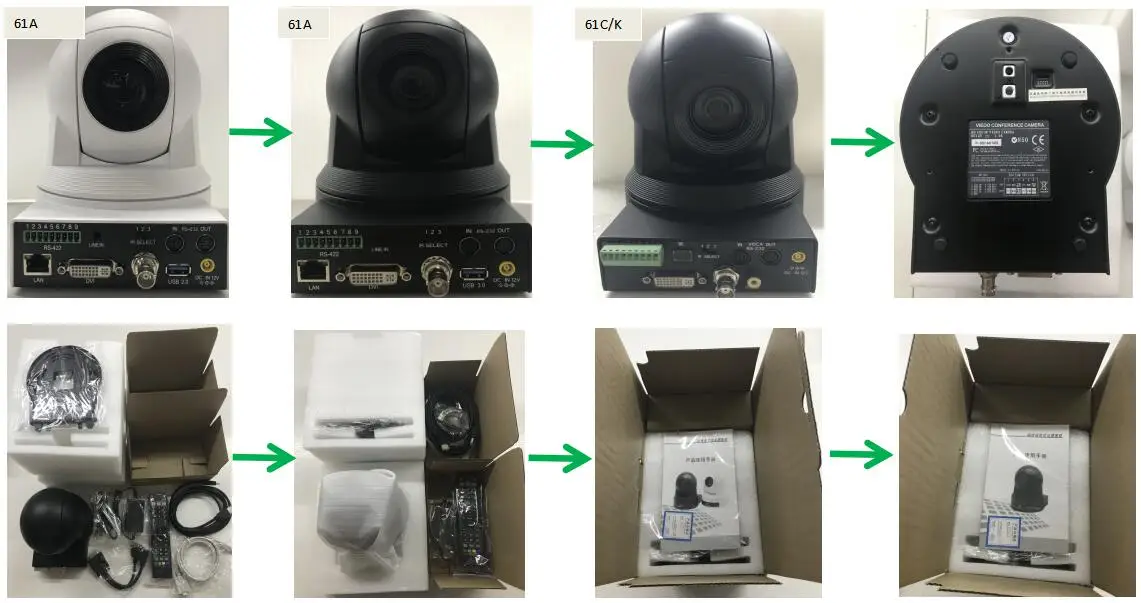

Packing & Delivery
