Прямая плазменная режущая горелка PTM80 80A CNC с воздушным охлаждением, факельная машина с ЧПУ, в комплекте 6 м с адаптером центрального разъема
- Category: Welding Torches >>>
- Supplier: Beijing,Aland,Welding,Co.,Ltd.
Share on:
Product Overview
Description

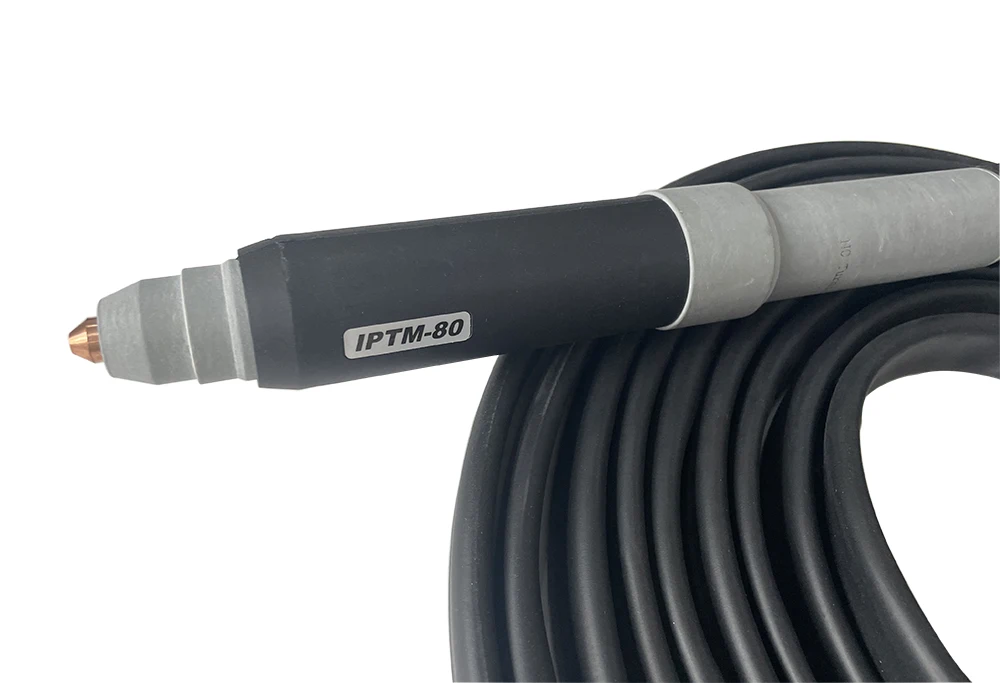

Air Cooled PTM80 80A CNC Straight Plasma Cutting Torch CNC Machine Torch Complete 6m with Central Connector Adaptor
Technical Data:
Rated Current: 80A
Duty Cycle: 60%
Gas: Air / N2
Gas Pressure: 4.4-5.0Bar
Gas Flow: 110LPM
Ignition: Without HF
Post Flow: 80S recommended
Standard Length: 6m
Complete torch
Order No. | Description |
AVT13051-00 | Plasma machine torch IPTM80/6M/ 1/4G integrated/2 wires/back striking |
AVT14051-00 | Plasma machine torch IPTM80/12M 1/4G /integrated/2 wires/back striking |
AVT13052-00 | Plasma machine torch IPTM80/6M/ 1/4G /separation/2 wires/back striking |
AVT14052-00 | Plasma machine torch IPTM80/12M/ 1/4G /separation/2 wires/back striking |
AVT13053-00 | Plasma machine torch IPTM80/6M/central adaptor/2 wires/back striking |
AVT14053-00 | Plasma machine torch IPTM80/12M/central adaptor/2 wires/back striking |
AVT13054-00 | Plasma machine torch IPTM80/6M/central adaptor/coaxial cable/back striking |
AVT14054-00 | Plasma machine torch IPTM80/12Mcentral adaptor/coaxil cableback stiking |
Position | Code | Ref. | Description |
1 | ASM1064 | 60508 | Shield cap/IPT80/gouging |
2 | AVS1667-05 | 60510 | Outside nozzle IPT80/gray glass fiber |
3 | AVS1672-05 | 60511 | Outside nozzle IPT80/gouging |
4 |
|
| Tip |
4.1 | AVU1670-10 | 51311.10 | Tip Dia.1.0mm 50A/IPT80/back striking |
4.2 | AVU1670-11 | 51311.11 | Tip Dia.1.1mm 60A/IPT80/back striking |
4.3 | AVU1670-12 | 51311.12 | Tip Dia.1.2mm 70A/IPT80/back striking |
4.4 | AVU1670-13 | 51311.13 | Tip Dia.1.3mm 80A/IPT80/back striking |
5 | AVU1675-16 | 51311G.16 | Tip Dia.1.6mm/80A/IPT80/gouging/back striking |
6 | AVF1665 | 60027 | Diffuser IPT80 |
7 | AVB1669 | 52558 | Electrode Plasma IPT80 |
8 | AVZ0621 |
| Torch head IPTM80/IPXM82 |
8a | AFT0709 | 51620.60 | "O" ring Dia.18x15mm IPT80 RED SIL. |
8b | AZN0773 | 09800.42 | Air tube/IPT80 |
9 | AHJ0110 |
| Plasma machine handle kit |
10 |
|
| Spring support |
10.1 | AHJ0899 |
| Spring support/PG21/Plasma/coaxial cable |
10.2 | AHJ0899-02 |
| Spring support/PG21/Plasma/EPDM |
11 |
|
| Cable assembly |
11.1 | AVN11210063-22 |
| Cable assembly/IPTM80/6M/ 1/4G 2 wires/integrated |
11.2 | AVN11210123-22 |
| Cable assembly/IPTM80/12M/ 1/4G 2 wires/integrated |
11.3 | AVN11210061-22 |
| Cable assembly/IPTM80/6M/ 1/4G 2 wires/separation |
11.4 | AVN11210121-22 |
| Cable assembly/IPTM80/12M/ 1/4G 2 wires/separation |
11.5 | AVN11210060-22 |
| Cable assembly/IPTM80/6M/2 wires/centre adaptor |
11.6 | AVN11210120-22 |
| Cable assembly/IPTM80/12M/2 wires/centre adaptor |
11.7 | AVN1121106C-22 | 185.0031 | Cable assembly/IPTM80/6M/central adaptor/coaxial cable |
11.8 | AVN1121112C-22 |
| Cable assembly/IPTM80/12M/central adaptor/coaxial cable |
12 | ACG6006 |
| Spanner For Plasma |
13 | AZX0078 |
| Central adaptor torch side Plasma 5 pins |
