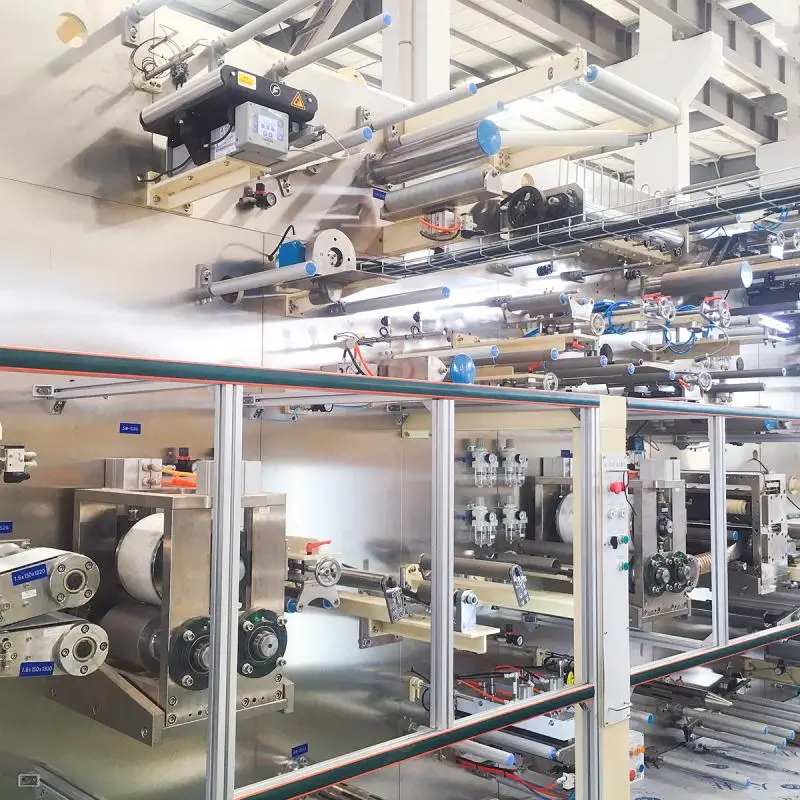

baby diaper making machine JWC NK350
- Category: >>>
- Supplier: Jiangsu JWC Machinery Co. Ltd.
Share on (1600289055166):
Product Overview
Description

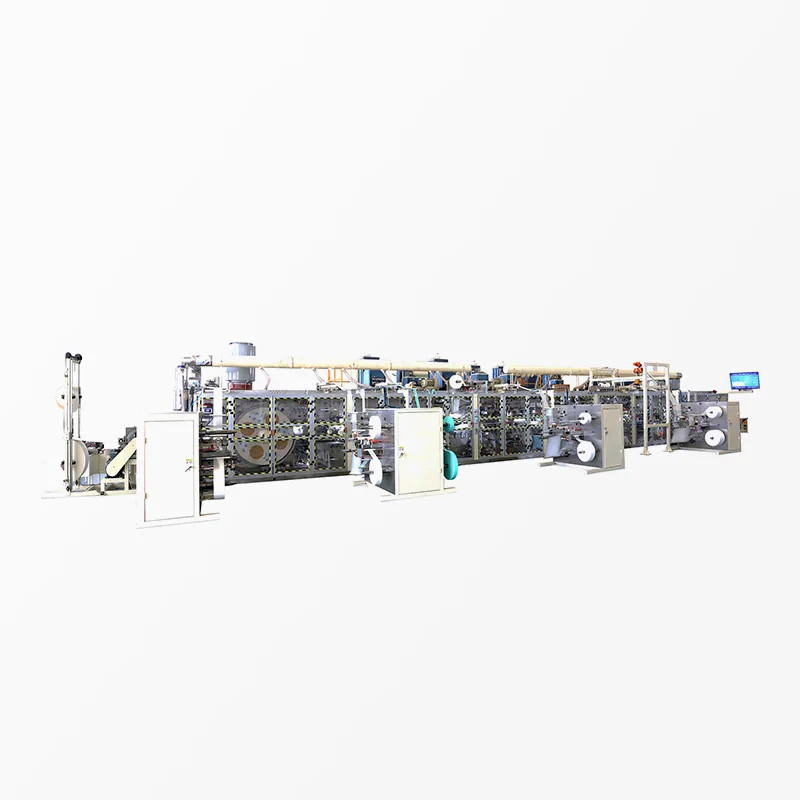

High speed Baby Diaper Making Machine
Model: JWC-NK350
This baby diapers production line equipment I shape full automatic baby nappy making machine adopts several servo motors+ frequency converter for transmission controlling, main raw materials unwinding driven by frequency control, to guarantee the precision and stability of the machine in high speed, and can realize not change any transmission parts to change the product’s size, can directly set on PLC, easy to operate and maintain
1 | Design speed | 400pcs/min |
2 | Stable working speed | 300-350pcs/min |
3 | Qualified rate | ≥ 97% （exclude the wastage due to the glue applicators and materials splicing joint） |
4 | Efficiency | ≥ 85% |
5 | installation capacity | 180KW |
6 | Electricity | 380V ±5%、50HZ |
7 | Wire | Three phases four wires 380V/50Hz (ground wire) |
8 | Air pressure | 0.6Mpa |
9 | Total weight | About 45tons |
10 | Machine size | 26.5*6*4.5 M(L×W×H) |
11 | Working space | 29×8×6 M (L×W×H) |
12 | Machine color | Rice white ,can be changed by order |
13 | Product size | 4 sizes |
14 | Containers | 4X40HQ |
PRODUCT CONFIGURATION
Habasit delivery belt

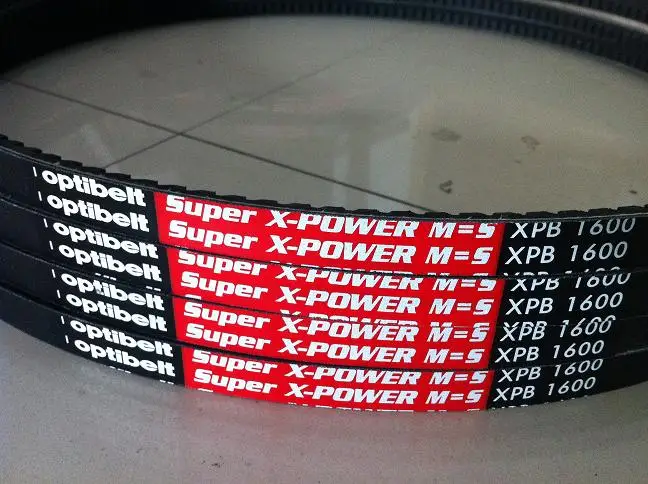

Optibelt timing belts
Japan Mitsubisi Servo system

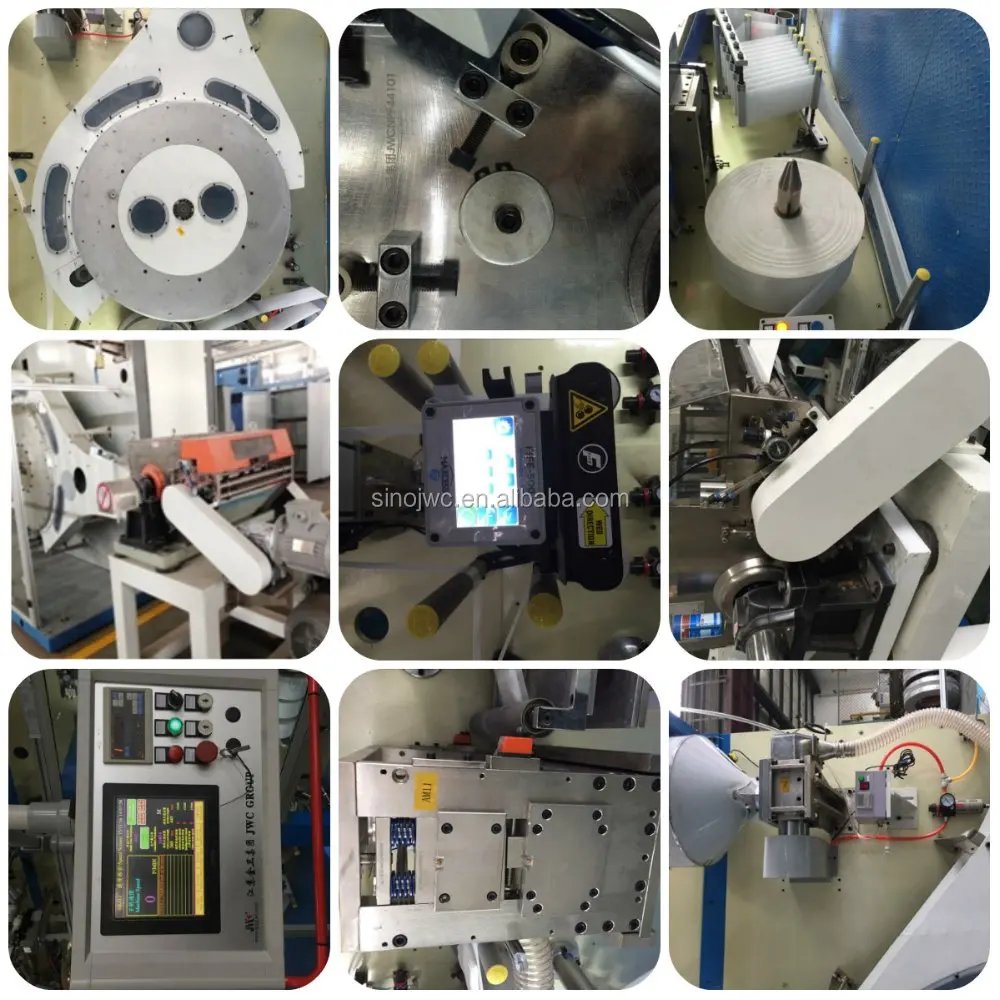

FEATURES AT A GLANCE

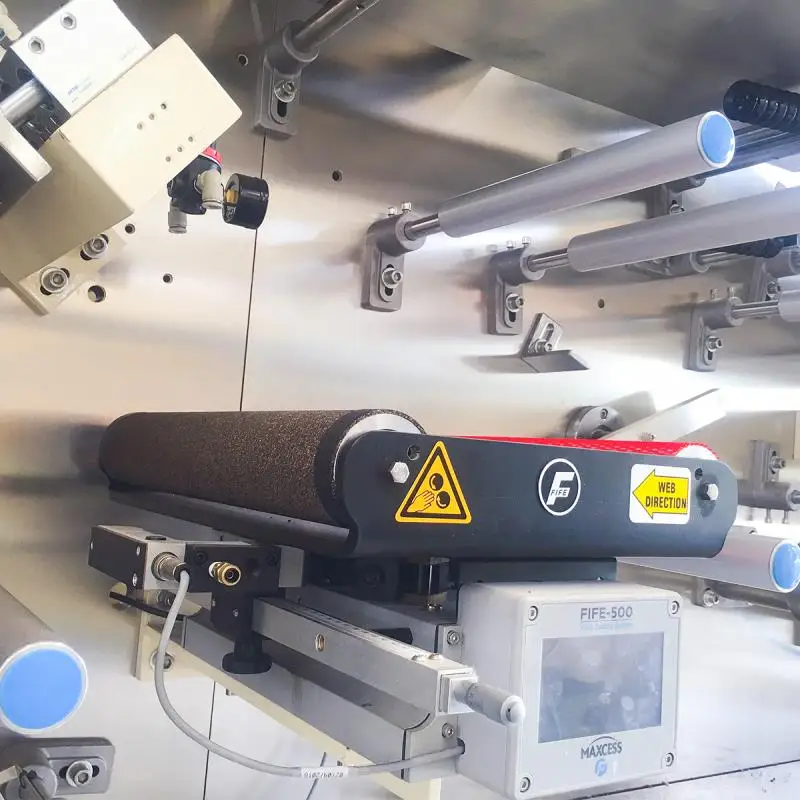

Web guide system
Glue application system
PLC control system
1.This baby diapers production line equipment I shape full automatic baby nappy making machine frame structure has reasonably solid square steel frame
2. Crusher system
3. Fluff forming system
4. SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
8. ADL feeding, roll diameter φ800mm

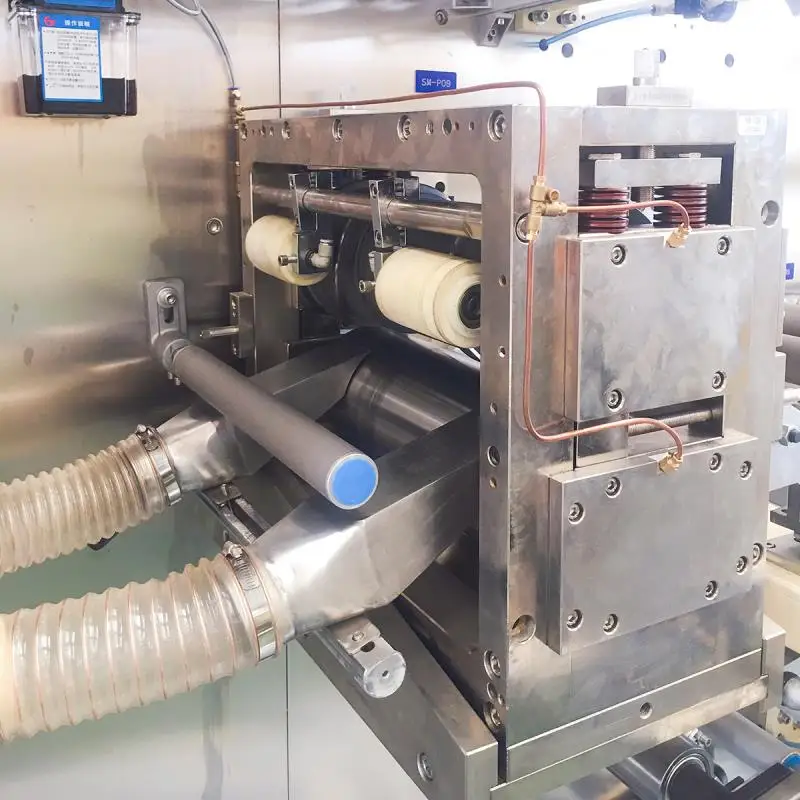

9. Fluff core inner cut device 1 set，adopt frame type structure, increase the cutter life
10. Leak cuff unit
11. Hydrophilic nonwoven supply, roll diameterφ800mm
12. 12. Side tape supply:
13. Three pieces complex, two sides fixing unit, adhesion pressing
14. Bottom film supply
15. Frontal tape supply:
16. Elastic waistband supply
17. surface layer, absorption core, bottom film pressing
18. product arc shape die cut
19. pressing unit(Y shape roller)
20. product vertical tri-fold
21. pressing unit(Y shape roller)
22. transmission unit
23 . final cut unit
23. horizontal fold transmission unit
24. horizontal fold unit
25. product transmission unit
26. auto rejection exit(pneumatic)
2. Crusher system
3. Fluff forming system
4. SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
8. ADL feeding, roll diameter φ800mm
9. Fluff core inner cut device 1 set，adopt frame type structure, increase the cutter life
10. Leak cuff unit
11. Hydrophilic nonwoven supply, roll diameterφ800mm
12. 12. Side tape supply:
13. Three pieces complex, two sides fixing unit, adhesion pressing
14. Bottom film supply
15. Frontal tape supply:
16. Elastic waistband supply
17. surface layer, absorption core, bottom film pressing
18. product arc shape die cut
19. pressing unit(Y shape roller)
20. product vertical tri-fold
21. pressing unit(Y shape roller)
22. transmission unit
23 . final cut unit
23. horizontal fold transmission unit
24. horizontal fold unit
25. product transmission unit
26. auto rejection exit(pneumatic)
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q: Delivery time of whole line
A: Soon delivery. Generally it is 120-150 days
Q: What is your order payment term?
A: 30% deposit in advance and 70% balance before shipment.
Q: Can you present your machine in running?
A: You are warmly welcome to visit our factory; we will show the machine in running on the site.
Q: What is the area needed to set this factory?
A: Considering the workshop and storage, we suggest you 1000-1500SM per production line
Q: Can you send us samples of the finally product?
A: Yes, free samples can be sent out, but the freight charge is paid by you.
But, usually, we design the machine according to the customers’ samples and requirements. We have a professional team with rich
experience in machine's appearance design and manufacturing.
Q: Could you also supply raw materials?
A: Yes, surely we can. We have long term cooperation with many raw materials suppliers. They can provide us good quality and good
price. This is in our service chain.
Q: How can I know the product cost?
A:
1) We can suggest which kind of product construction is suitable for your market, and analyze the cost of a sample from your local
market.
2) We will offer you the cost report in detail according to your sample, so you can now how to calculate the profit in for open
factory.
3) We also can give you normal finishing product cost for reference.
Q: what kind of training you can offer?
A:
1) You can send technical to our factory for training how to run the machine before the delivery the machine. You are offered full
accommodation by our company.
2) When the machine arrives to your factory, we will send engineer to your place to install and test the machine and also train
your workers
3) If you need an engineer work for you more long time, we can help you to hire an experienced staff.
Q: How about the machine guarantee?A: The Seller offers a 12-month quality guarantee period from the delivery date.
A: Soon delivery. Generally it is 120-150 days
Q: What is your order payment term?
A: 30% deposit in advance and 70% balance before shipment.
Q: Can you present your machine in running?
A: You are warmly welcome to visit our factory; we will show the machine in running on the site.
Q: What is the area needed to set this factory?
A: Considering the workshop and storage, we suggest you 1000-1500SM per production line
Q: Can you send us samples of the finally product?
A: Yes, free samples can be sent out, but the freight charge is paid by you.
But, usually, we design the machine according to the customers’ samples and requirements. We have a professional team with rich
experience in machine's appearance design and manufacturing.
Q: Could you also supply raw materials?
A: Yes, surely we can. We have long term cooperation with many raw materials suppliers. They can provide us good quality and good
price. This is in our service chain.
Q: How can I know the product cost?
A:
1) We can suggest which kind of product construction is suitable for your market, and analyze the cost of a sample from your local
market.
2) We will offer you the cost report in detail according to your sample, so you can now how to calculate the profit in for open
factory.
3) We also can give you normal finishing product cost for reference.
Q: what kind of training you can offer?
A:
1) You can send technical to our factory for training how to run the machine before the delivery the machine. You are offered full
accommodation by our company.
2) When the machine arrives to your factory, we will send engineer to your place to install and test the machine and also train
your workers
3) If you need an engineer work for you more long time, we can help you to hire an experienced staff.
Q: How about the machine guarantee?A: The Seller offers a 12-month quality guarantee period from the delivery date.
