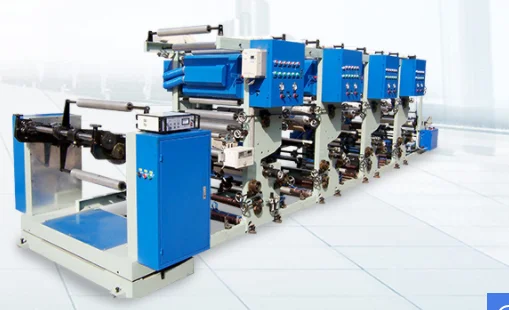

good quality eight Colors Gravure Printing Machine

Product Overview

Description

Factory direct sell 2 color  4 color 6 color 8 color offset film gravure printing machine

 DW-P High Speed Blow Film Printing Machine. The enhanced design combines 2 side laminating assembly in one station. Space occupier is small. An independent gear reducer for each color provided high precision transmission and precise printing. For high speed printing, we provide 2 heater drying blower.
User friendly operation for laminating one side in front and one side reverse or else print 2 side in front. Impress rubber roller using pneumatic control. Manual speed control or automatic speed control by auto tension synchronized with the extruder blow film machine.

DW-P2-600 (As reference, any technical depend on your request)

1. Designed by one set 1 color and one set 2 color printing,

2. Occupying small space

3. Each color printing with installation of an independent reducer box, which provides high transmission accuracy and printing precision.

4. Each color will be dried by 2 heaters. It's accessible to print one color in bag's front and one color in back or two colors both in front.

5.Printing color: 2color( front 2 colors, front 1 color and reverse 1 color)

6.Rubber roller width: 650mm

7.Printing width: 150mm-600mm

8.Printing roller diameter:Φ318mm

9.Printing Speed: 50m/min

10.Drying type: Quickly drying by blower(double)

11.Tension control: Constant tension control by cylinder.

12.Driving Motor: 1.5kw

13.Inverter: Yaskawa inverter control









II. Features



1.Improve the lithographic process, shortening the plate making time, the use of non-polluting inks, reducing energy consumption, lower costs.



2. The Gravure products with solid ink, rich layers of three-dimensional sense of

strong, good print quality.



3. Printed multi-color overprint method or indirect local inking method, various colors of ink needed, the distribution of the relevant part of the plate surface, printed multi-color printing principle is the same as the printed monochrome.



III. Main Parameters

Model	Color	Printing width(mm)	Printing Length(mm)	Speed of printing	Precision	Power main motor	Fan Power	Heating Power
DW-P1	1colors	600/800/1000	250-1000	50m/min	±0.3	1.5kw	0.5kw	4.5kw
DW-P2	2 colors	600/800/1000	250-1000	50m/min	±0.3	1.5kw	0.5kw	4.5kw
DW-P4	4 colors	600/800/1000	250-1000	50m/min	±0.3	2.2kw	0.5kw	4.5kw
DW-P6	6 colors	600/800/1000	250-1000	50m/min	±0.3	4kw	0.5kw	4.5kw
DW-P8	8 colors	600/800/1000	250-1000	50m/min	±0.3	5.5kw	0.5kw	4.5kw

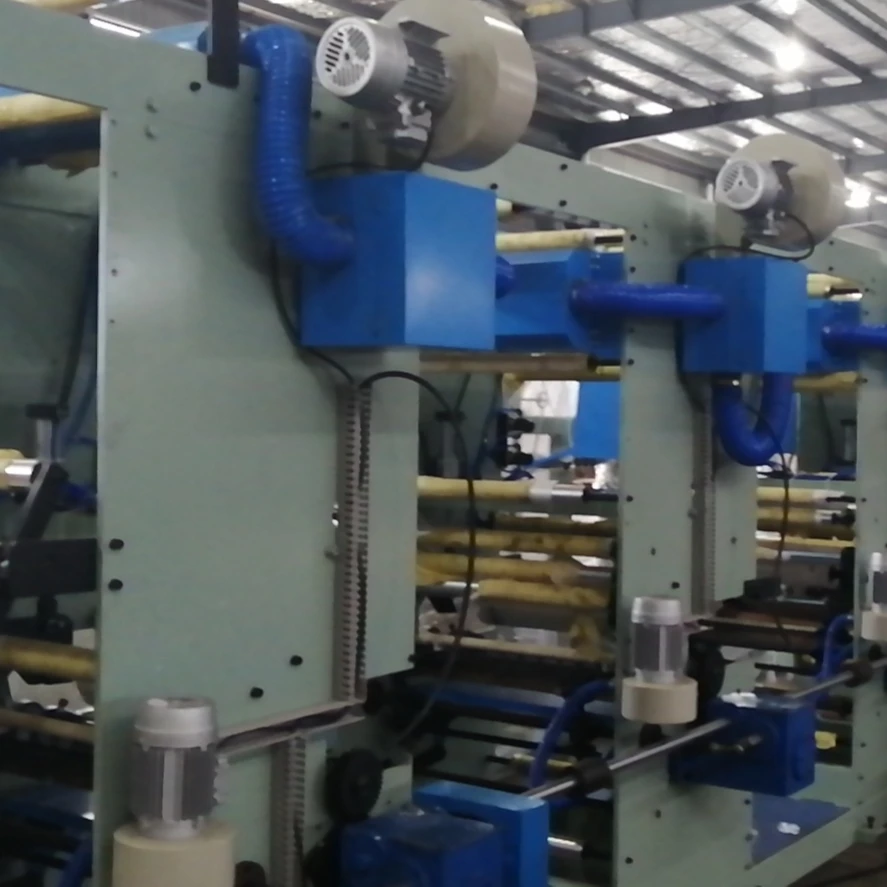

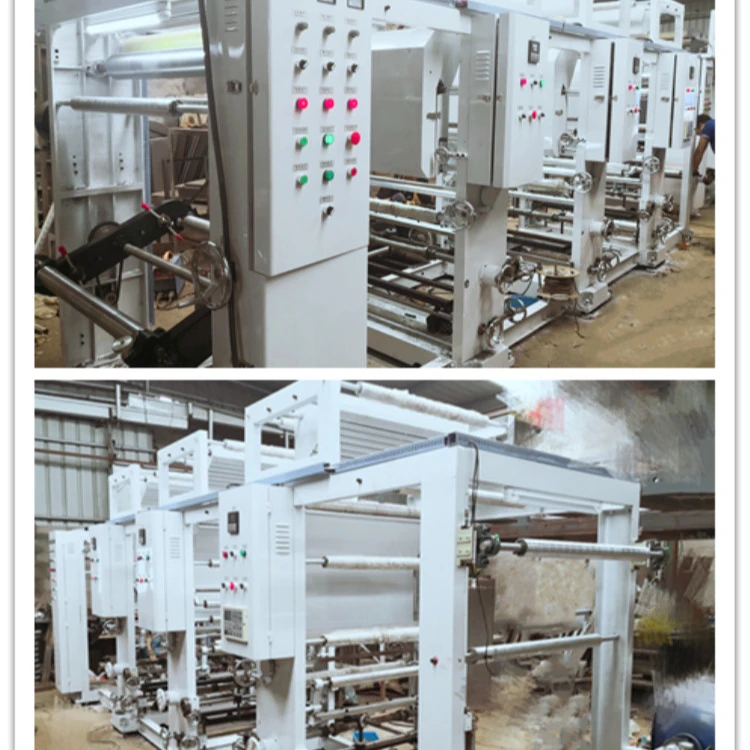

Machine Details:
