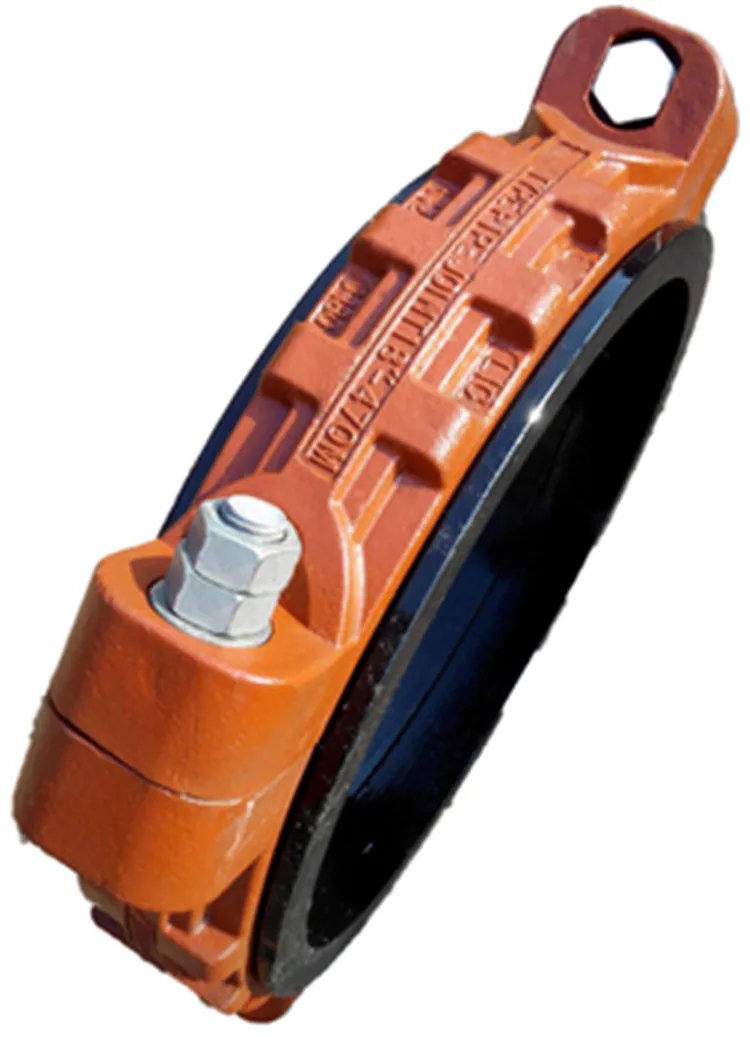

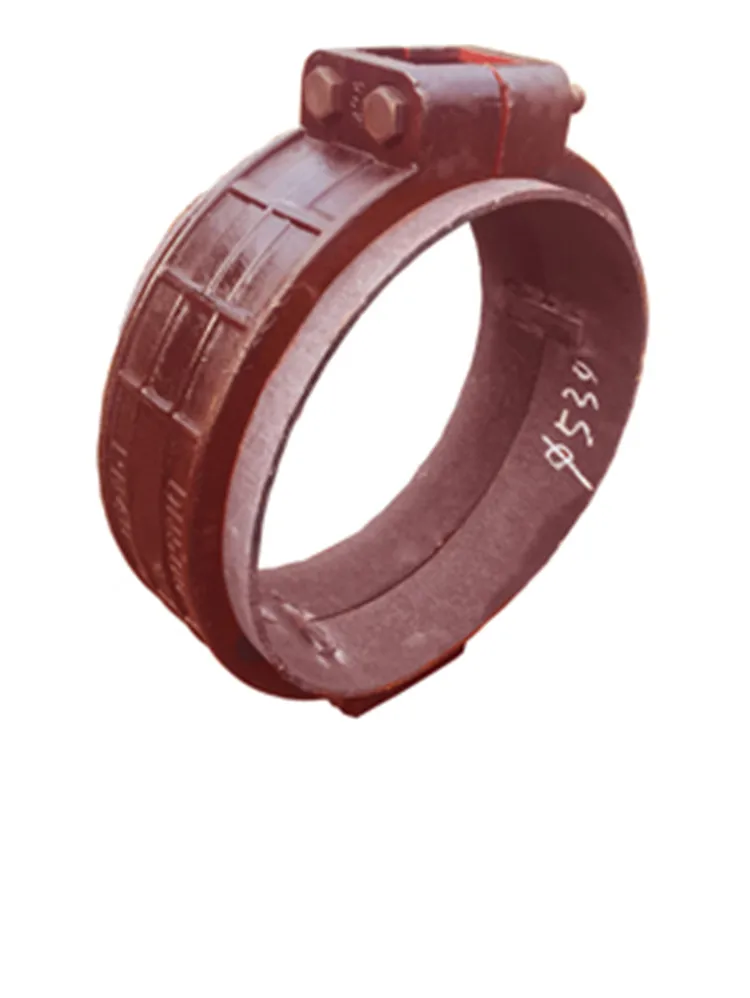

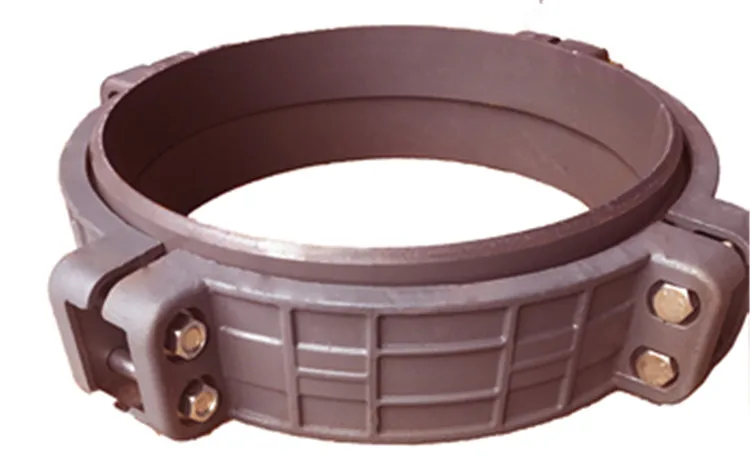

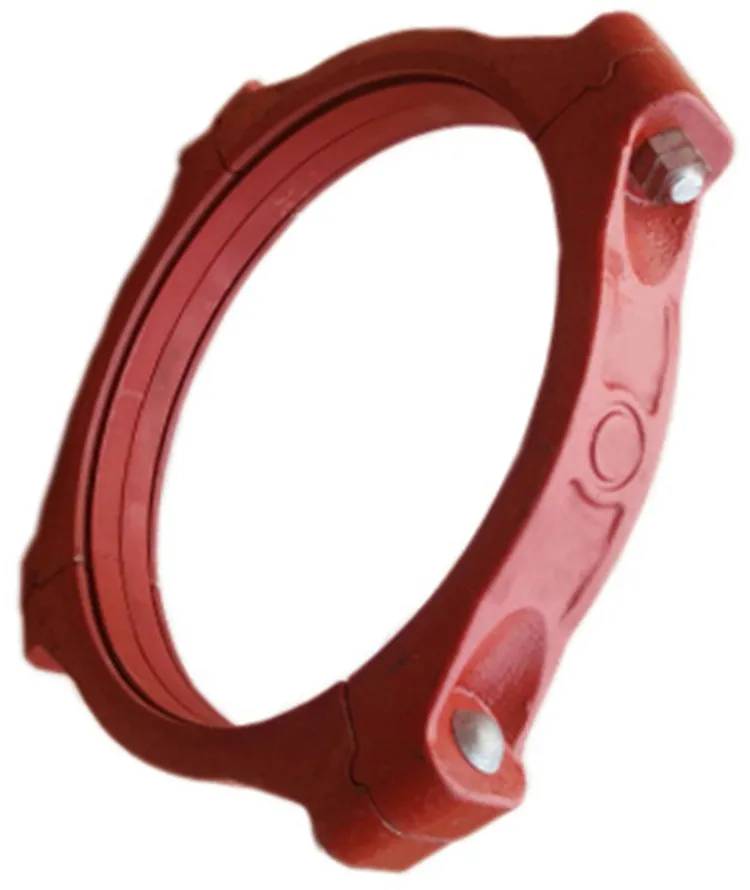

Cheap high quality groove clamp fire pipe fittings cast iron connection clamp
Cheap high quality groove clamp fire pipe fittings cast iron connection clamp
Cheap high quality groove clamp fire pipe fittings cast iron connection clamp
Cheap high quality groove clamp fire pipe fittings cast iron connection clamp
Cheap high quality groove clamp fire pipe fittings cast iron connection clamp
Cheap high quality groove clamp fire pipe fittings cast iron connection clamp
Cheap high quality groove clamp fire pipe fittings cast iron connection clamp

Cheap high quality groove clamp fire pipe fittings cast iron connection clamp

Share on (1600289244643):


Price:$18.88 - $19.88

Quantity:


Product Overview

Description



Product Description






Specification


item
value
Warranty
1 year
Customized support
ODM, OBM
Place of Origin
China
Brand Name
JOHO
Model Number
KRHD,CDU,KRHK,KRH,GJH,GJJ,RX-GH,DSSLA,DSSB
Technics
Forged/Casting
Connection
Welding
Shape
circular
Head Code
circular
Material
Q235 #35 carbon steel stainless steel ductile iron
Product name
Flexible clamp coupling
Application
Power plant, mine, water plant, sewage treatment plant
Color
Customizable
Size
DN40-DN2000
Standard
D-LD2000 KRHD CDU KRHK KRH GJH GJJ RX-GH DSSLA DSSB
Type
D-LD2000 KRHD CDU KRHK KRH GJH GJJ RX-GH DSSLA DSSB
Usage
Joining Pipe Lines
Name
Flexible clamp coupling
Body material
Q235 #35 carbon steel SS304/SS316L ductile iron

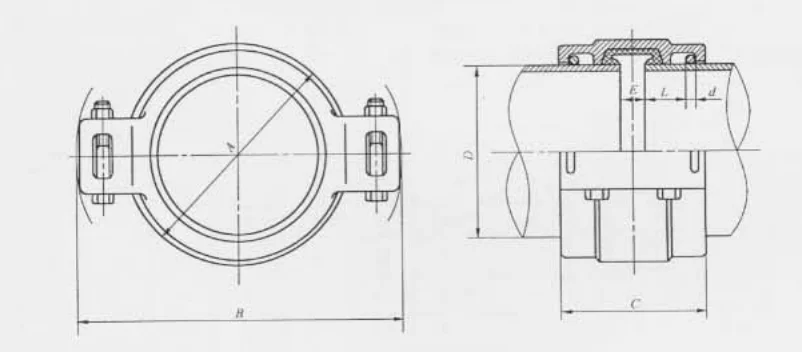

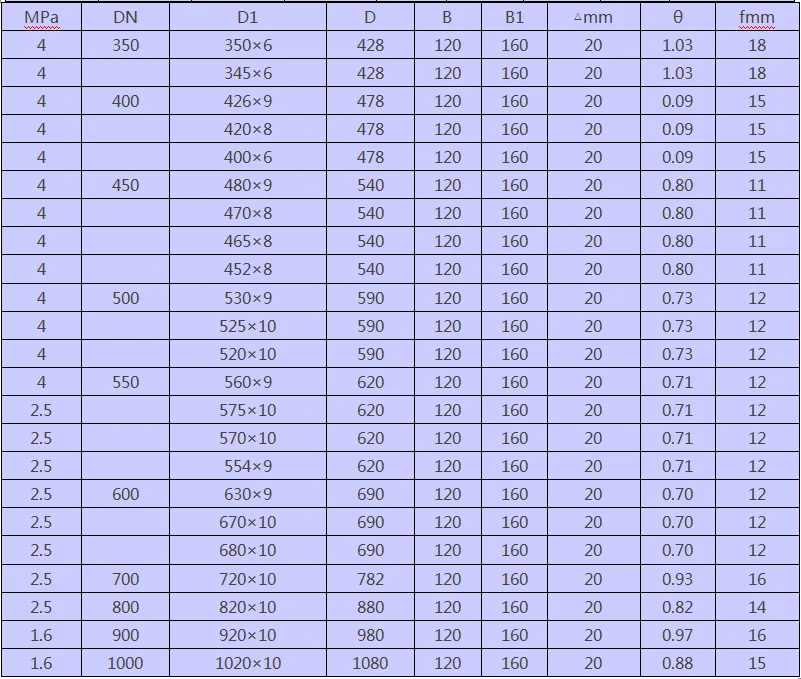

Theoretical quality includes the quality of clamp, end pipe, sealing rubber ring, bolt and nut.
- theoretical weight will be considered of the weight of the clams, end rings, sealing rubber rings, bolts and nuts.
11. The clamp with nominal diameter of 150-700mm is composed of two pieces, and the clamp with nominal diameter of 700-1000mm is composed of four pieces.

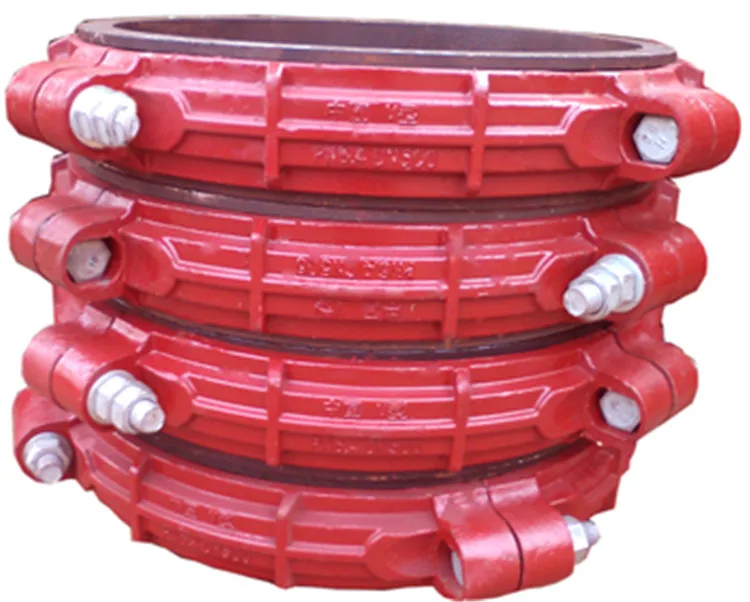

Clamp with normal dia.150-700mm is composed by 2 sectors, normal dia.700-2000mm is composed by 4 sectors
Brief description:
1. Design and manufacture: krh (ring type) pipe joint shall comply with gb8260-87 standard, krj (shoulder type) pipe joint shall comply with gb8261-87 standard.
2. The technical requirements shall be in accordance with gb8259-87 specification for clamp type flexible pipe joint.
3. Connection mode: clamp head end pipe and pipe welding.
4. The outer clamp of pipe joint is made of ZG35 "casting material, the left and right end pipes are made of A3 or 20", cast steel or steel plate, and the port is left with 30 ℃ welding bevel.
5. The material of the middle sealing ring of the pipe joint is synthetic rubber, and the general working temperature is - 40 ℃ - + 230 ℃. If there are special requirements in the project, the special sealing ring can be prepared according to the requirements.
6. This series of clamp type flexible pipe joint is designed according to the national standard pipe diameter or the steel lined composite pipe diameter. Each diameter is divided into several specifications. If other specifications of non-standard pipe diameter are needed in the project, it is indicated in the order that our company can design and produce matching clamps according to the non-standard pipe diameter.
*If you need larger specifications, please contact our company for customization. Our company has reached the specification of dn5000mm at present.

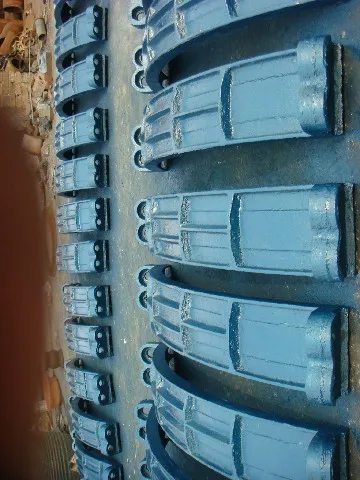

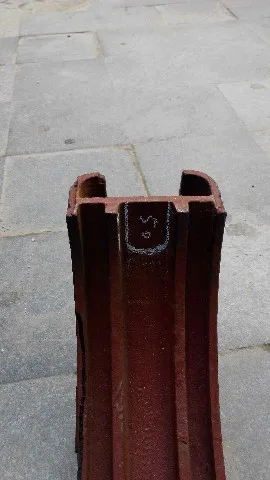

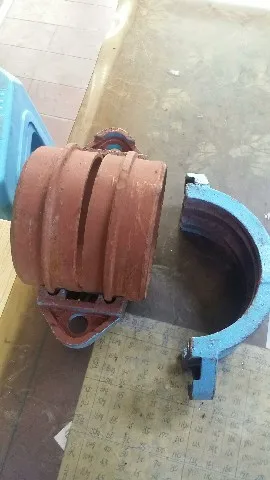

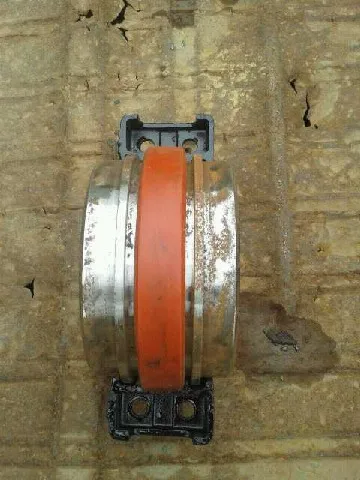

Details Images

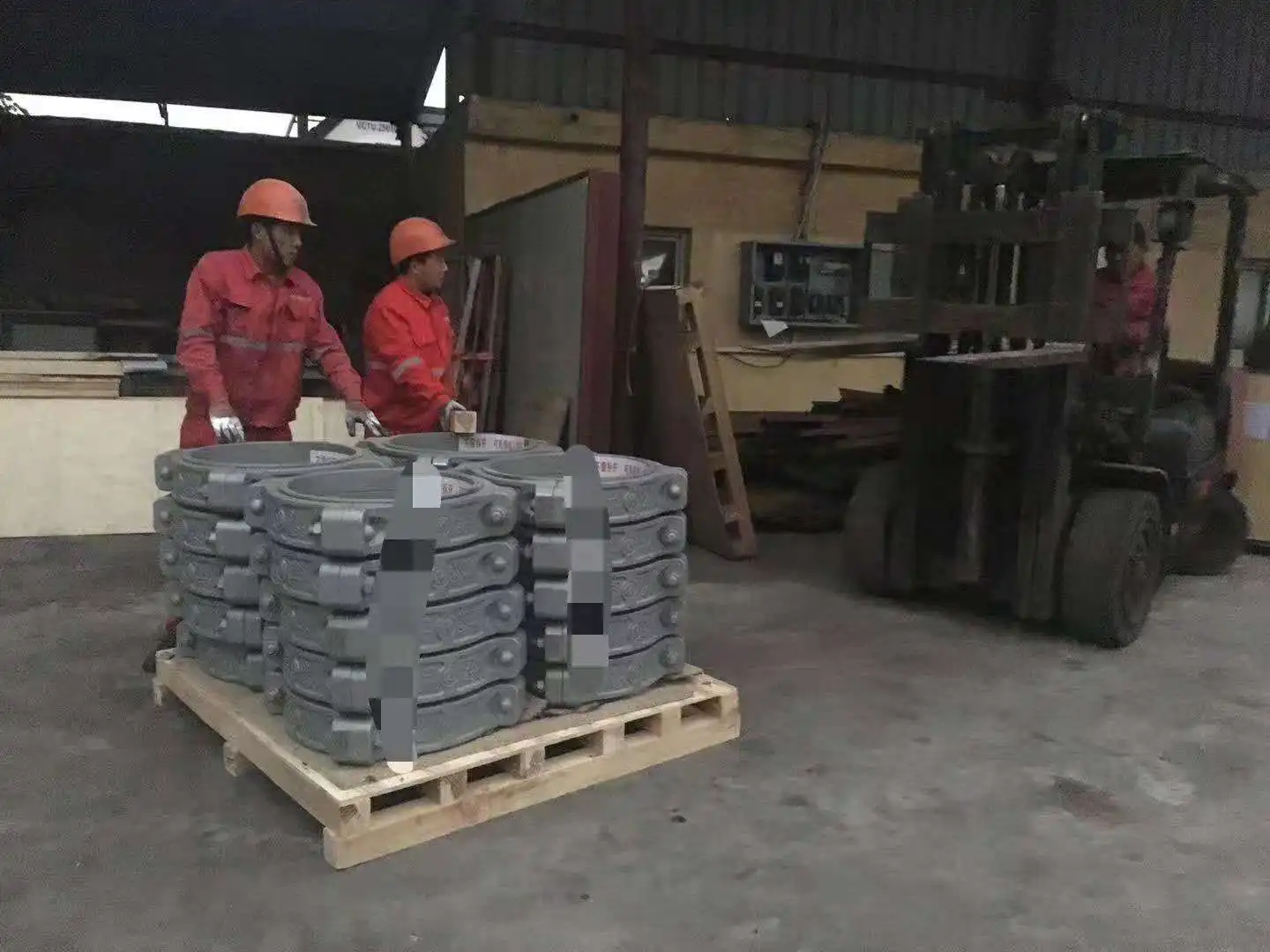

Product packaging

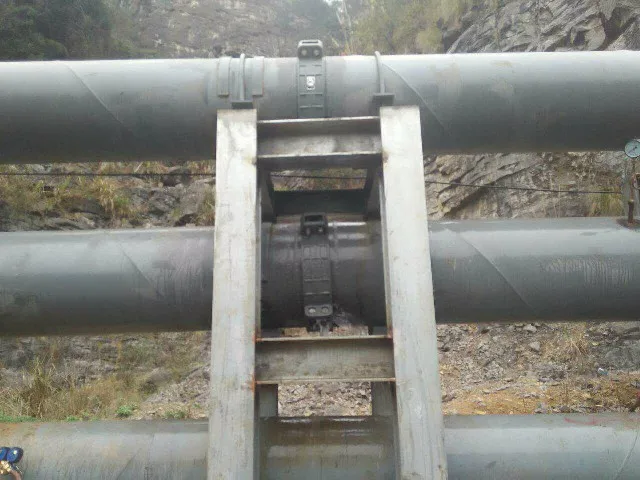

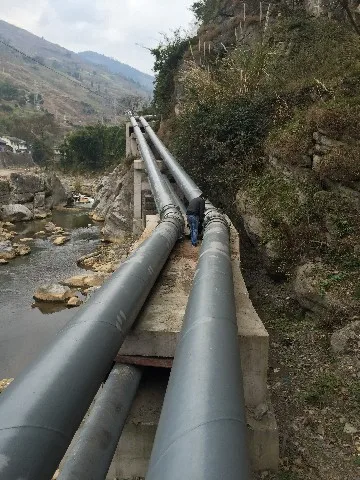

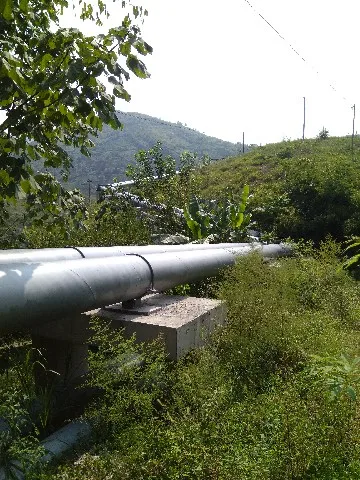

Application scenarios
