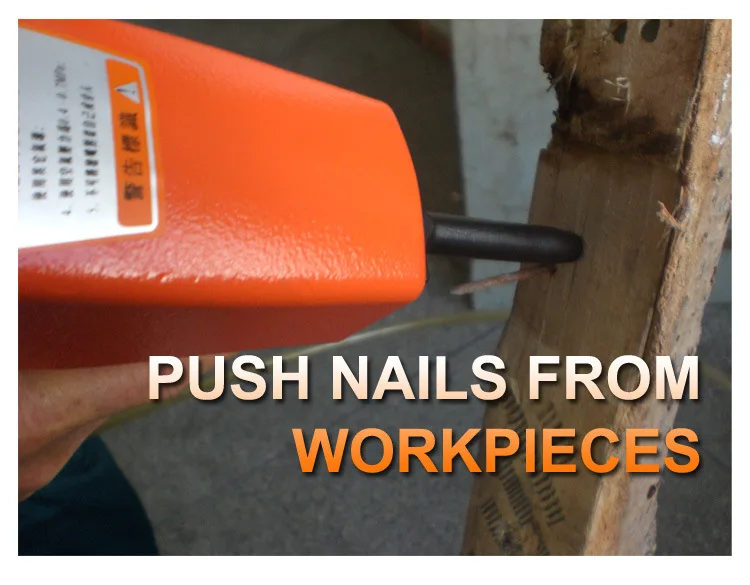

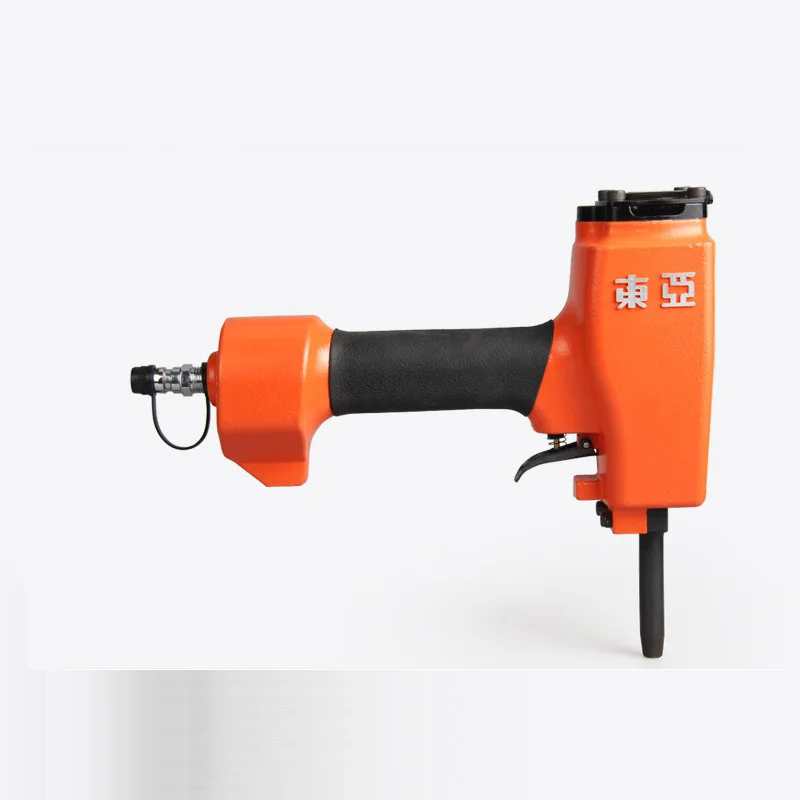

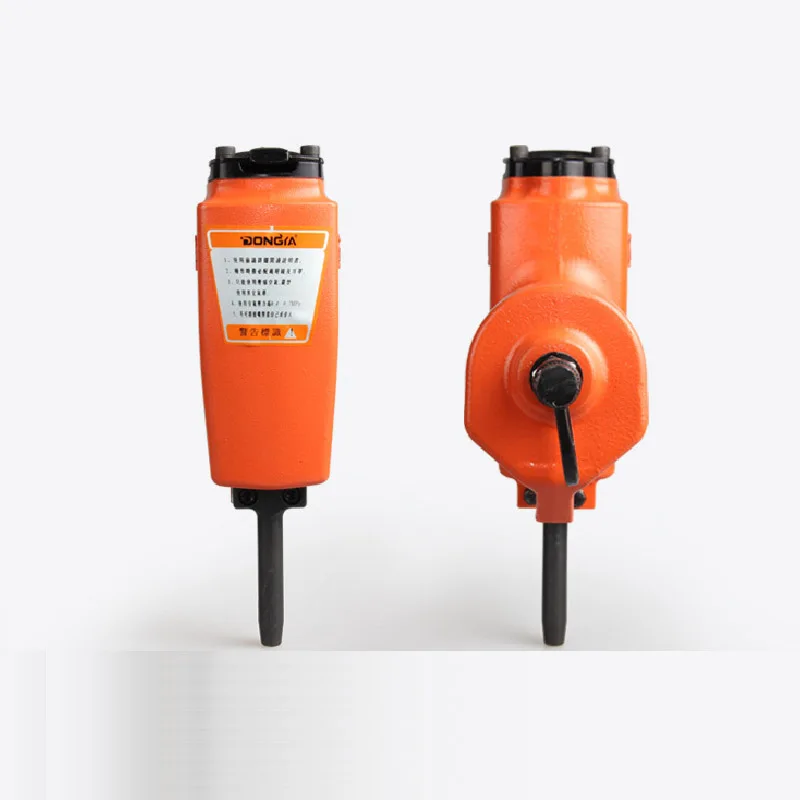

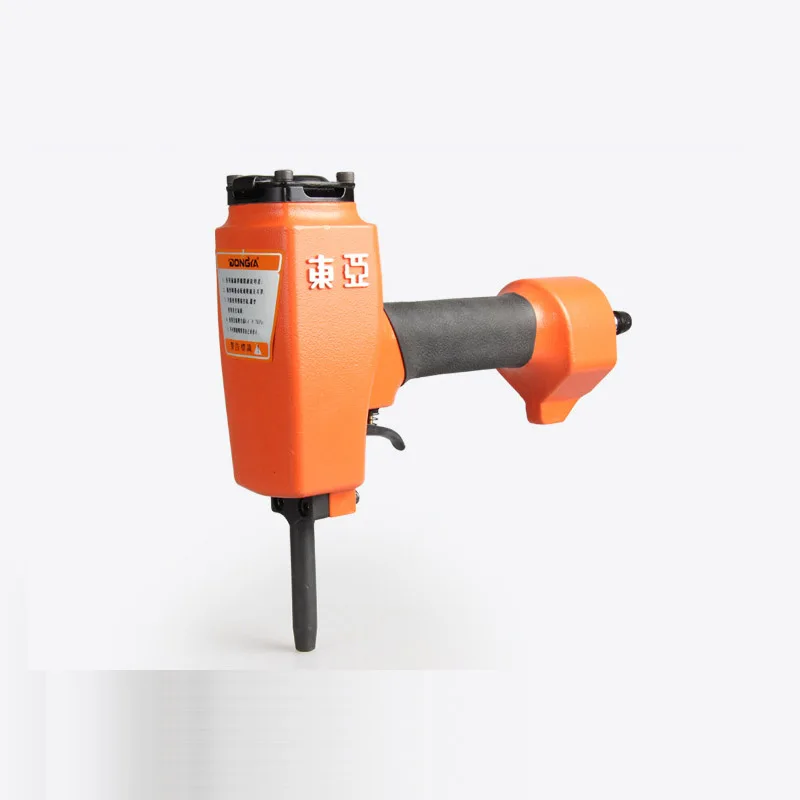

NP50B Nail puller Pneumatic remover nail puller nail gun
- Category: Pneumatic Nailers >>>
- Supplier: Xiamen Yongshengjin Trading Co. Ltd.
Share on (1600289261069):
Product Overview
Description
Product Description
Specification
item | value |
Model Number | NP50B |
Warranty | 3 years |
Certification | CE, ISO9001 |
Customized support | OEM |
Place of Origin | Zhejiang |
Material | Aluminum |
Tool Dimension | 75x228x310(mm) |
Weight | 1.06Kg |
Operating Pressure: | 3.5~6Kg/cm (50-85Psi) |

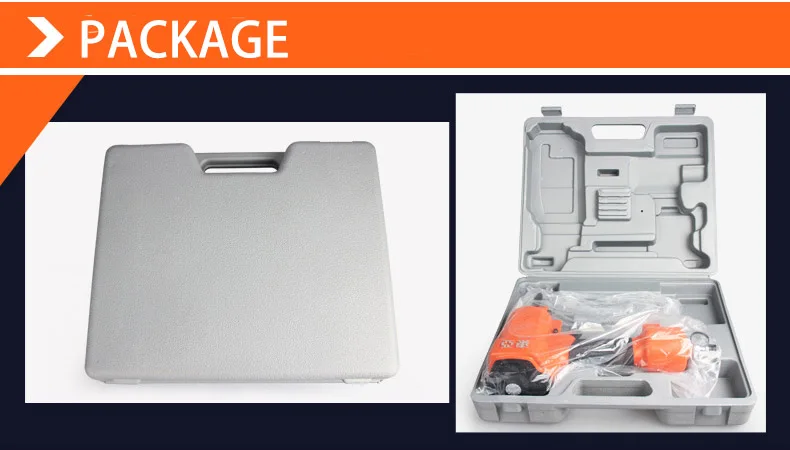

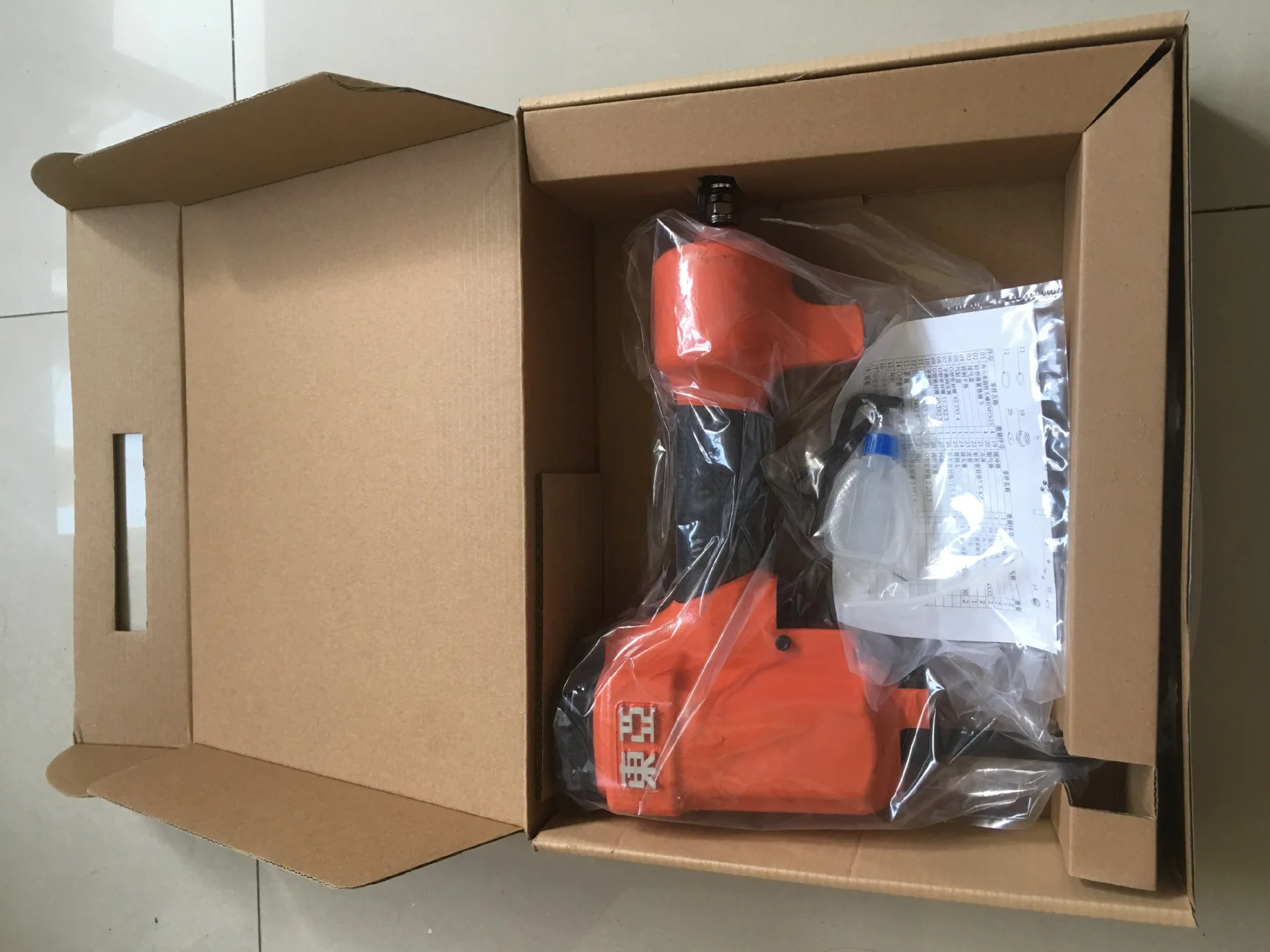

Packing & Delivery
Service and Repars
No. | Symptom | Problems | Solutions | ||
1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set | |
2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | ||||
1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | ||
2.Damaged o-ring in trigger valve stem | Check and replace o-ring | ||||
3.Dirt in the trigger valve | Check and clean the trigger valve | ||||
1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | ||
2.Damaged seal under cylinder cap | Check and replace seal | ||||
1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | ||
2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | ||||
1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | ||
2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | ||||
2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | ||
2.Worn or damaged nozzle | Check and replace nozzle | ||||
3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | ||||
3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | ||
2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | ||||
3.Dirt in the nozzle | Check and clean the nozzle | ||||
4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | ||
2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | ||||
3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | ||||
5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom | ||
2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | ||||
3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | ||||
Company Profile

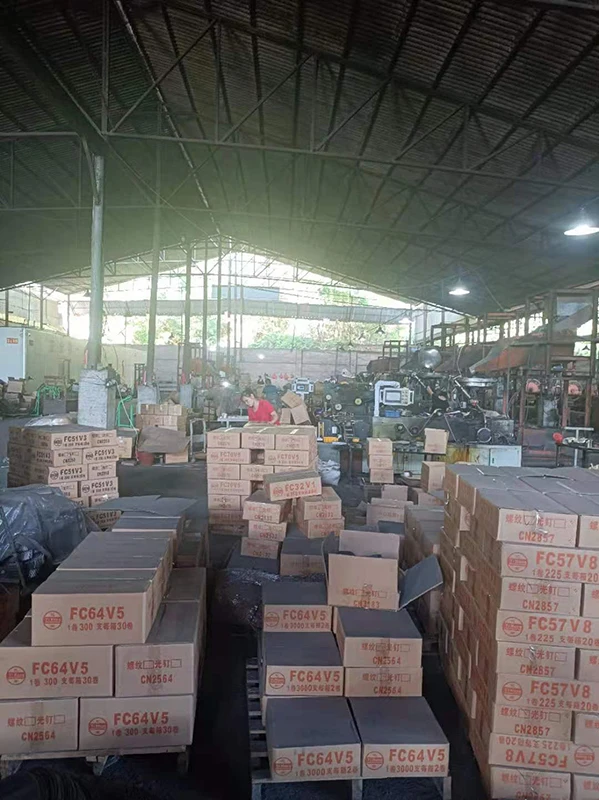

We have a 30-year old nail factory and experienced workers, with high product quality, rich experience in maintenance and after-sales, we are one of the largest wholesalers of many hardware brands. With a professional overseas sales team, whether it is a small batch order or a customized order can be completed well
