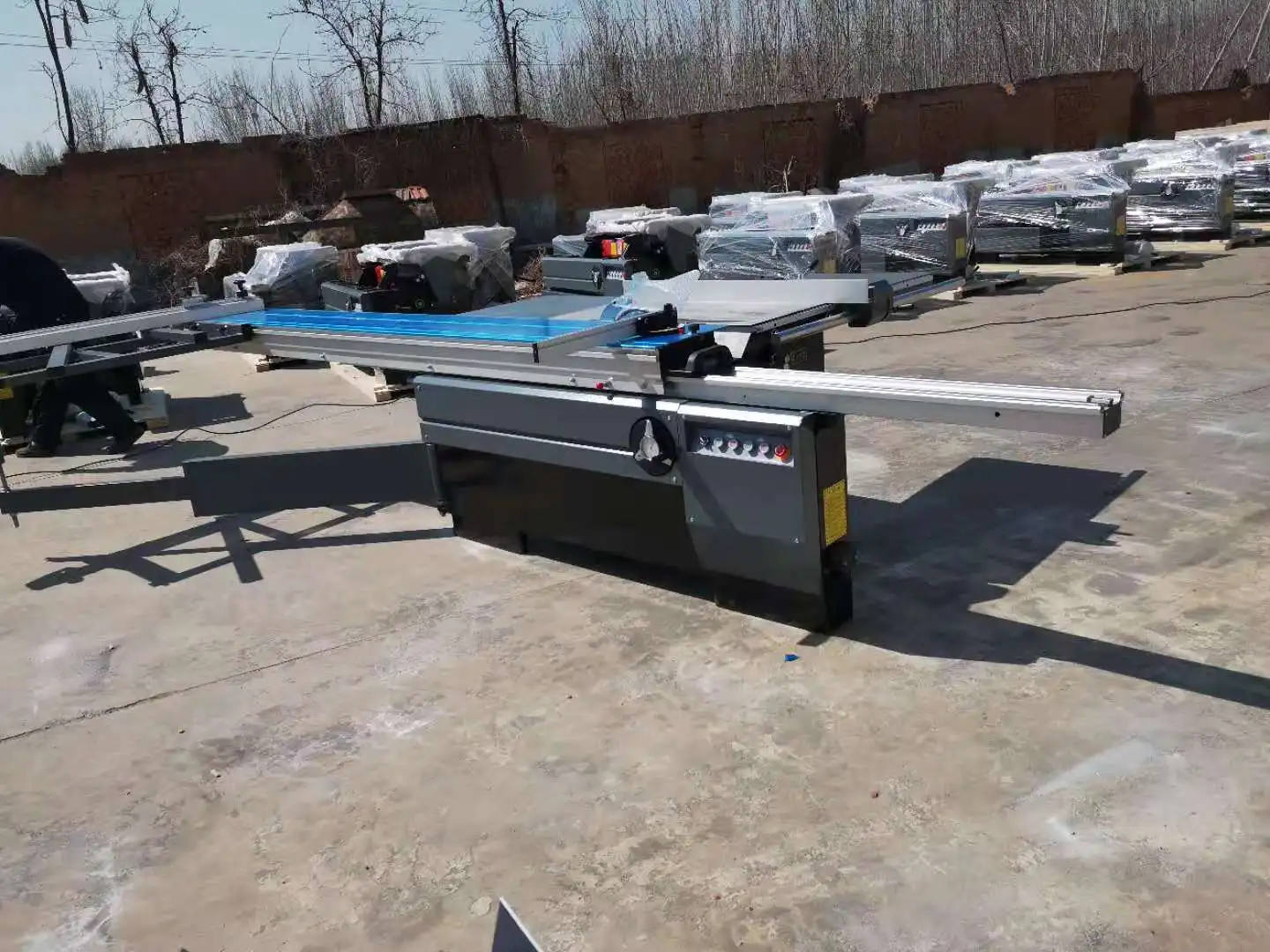

Конкурентоспособная цена, деревообрабатывающее оборудование, горизонтальный станок, скользящая панельная пила
- Category: Wood Saw Machines >>>
- Supplier: Qingdao Jinyunxi International Trade Co. Ltd.
Share on (1600289518992):
Product Overview
Description
Product Description

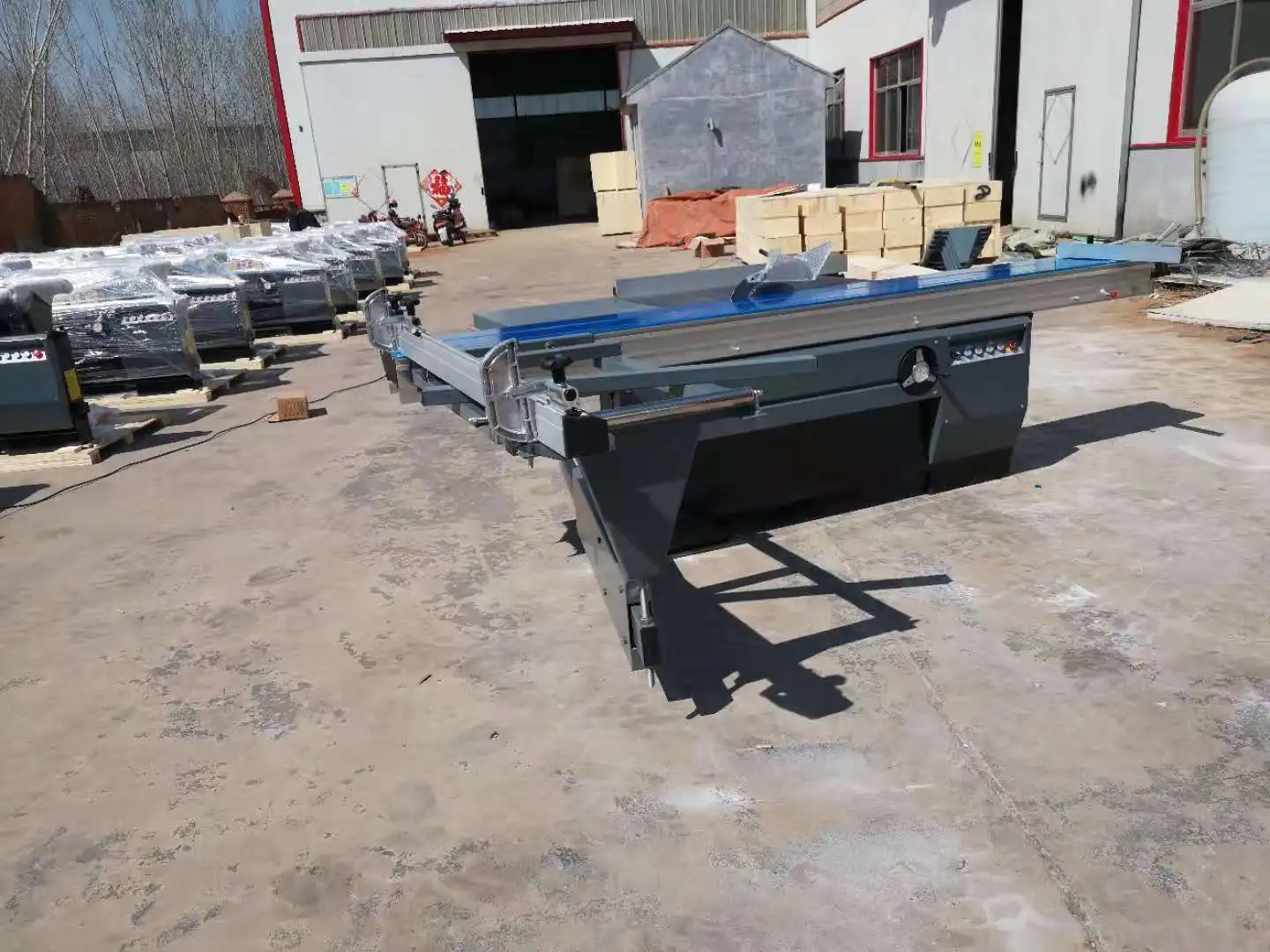

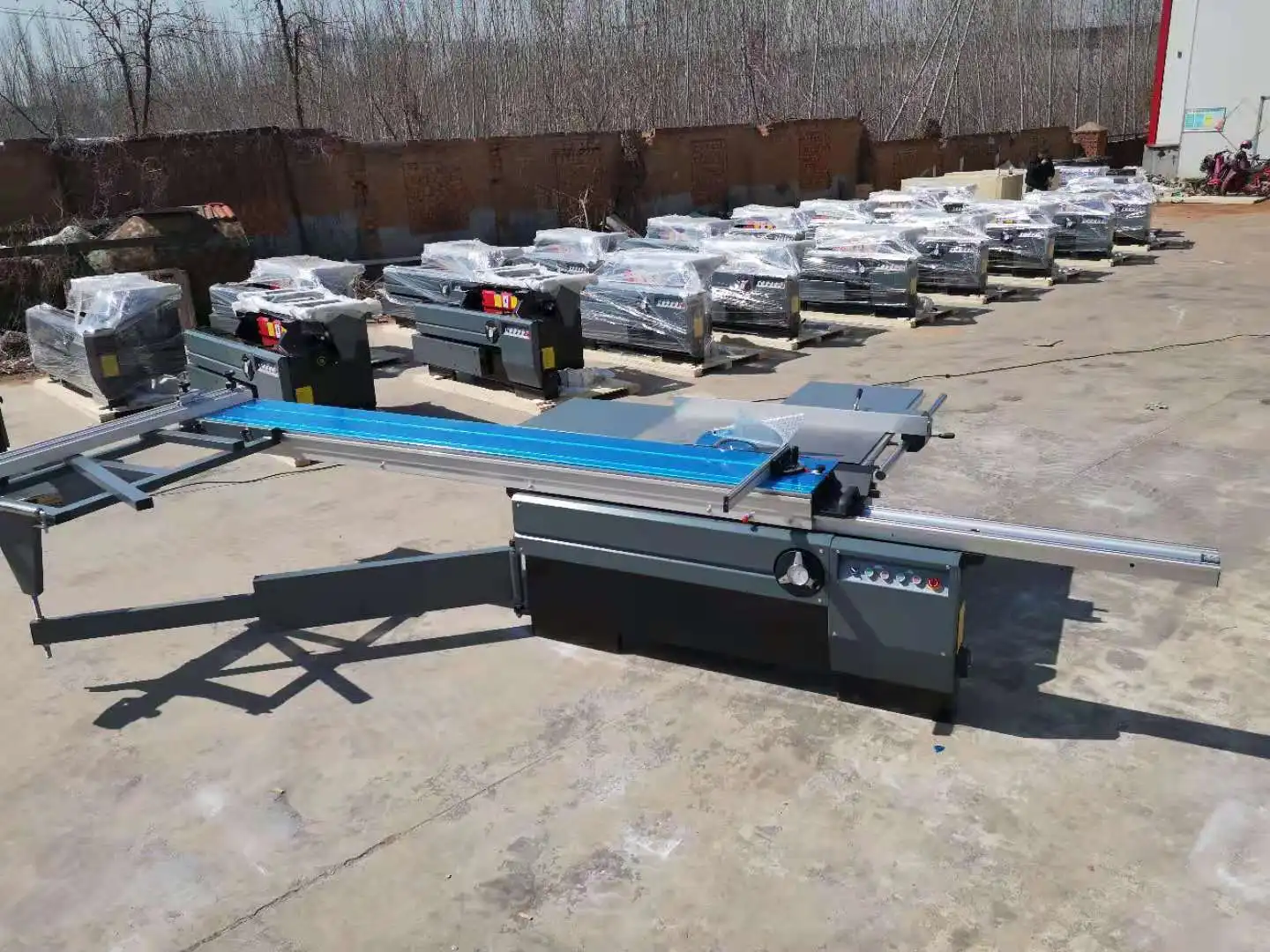

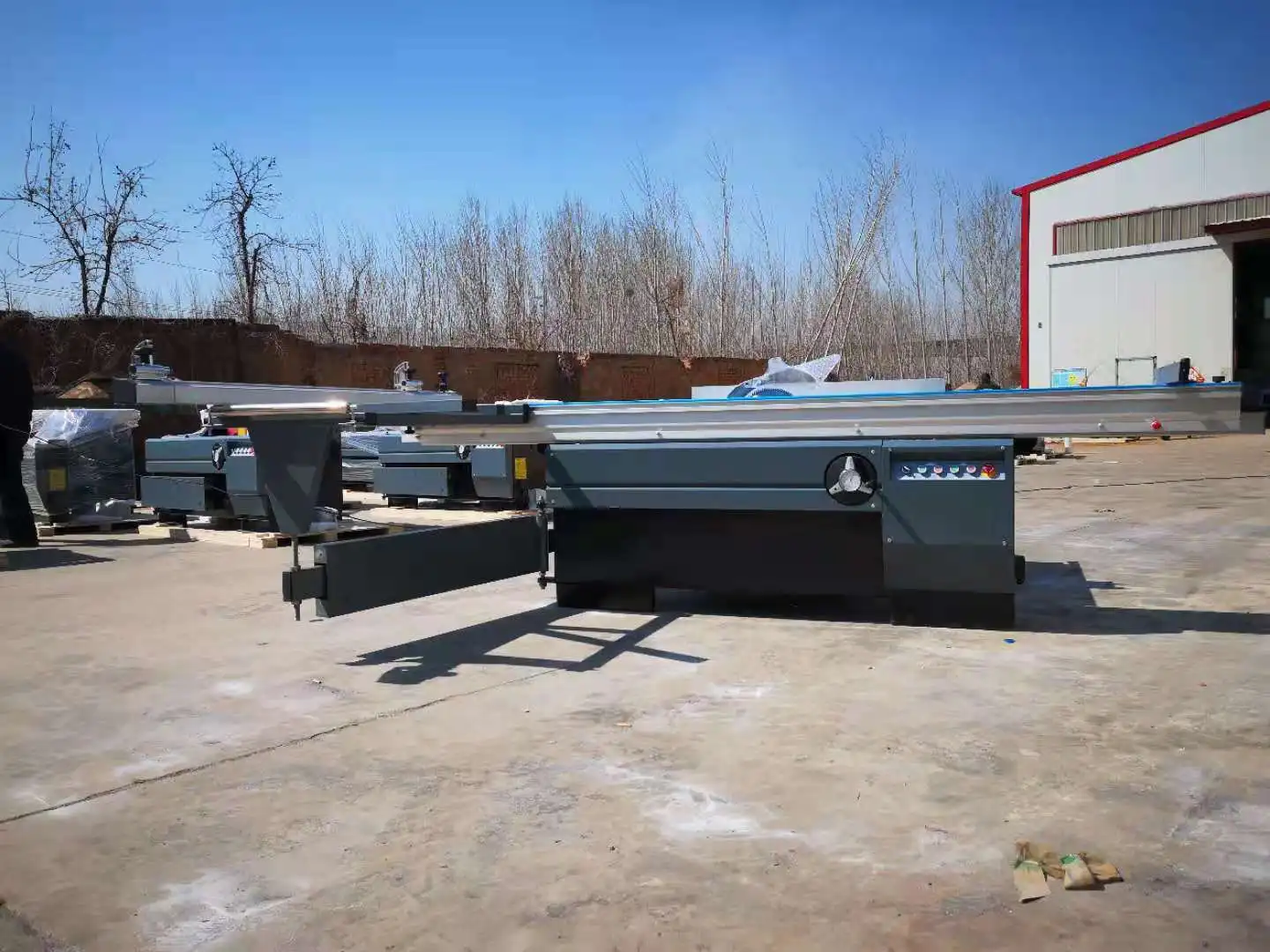

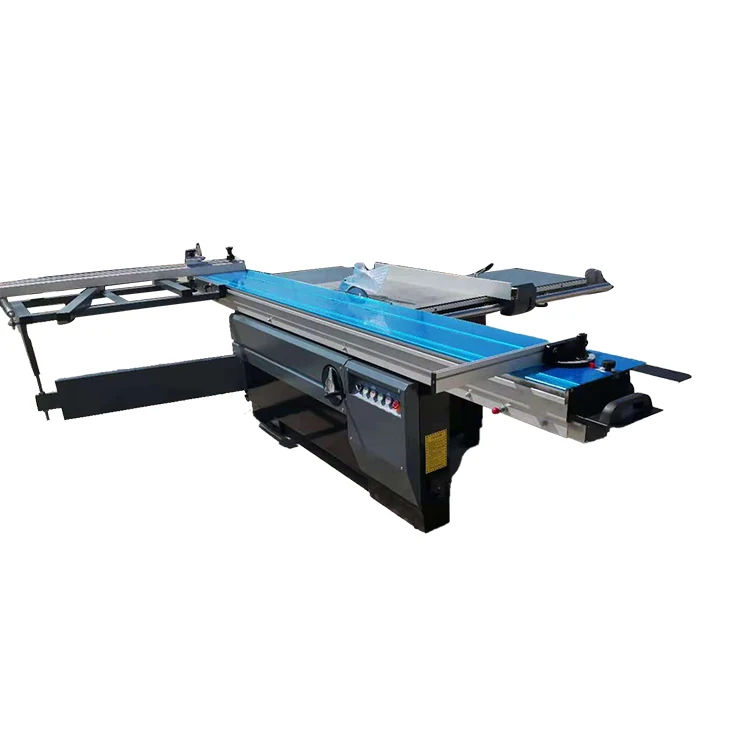

Precision slide table saw is suitable for processing all kinds of density board, particleboard, wood-based board, ABS board, PVC board, plexiglass board and other boards with similar hardness with wood structure.
1.8m long guiding rule
Guiding rule positioning baffle
Ruler magnifying glass
Side guiding rule and profiling seat
Round bar guide
Double saw blade cutting
Large motor 5.5kw, small motor 1.1kw
Specification
Model | MJ6116 | MJ6128 | MJ6130 | MJ6132 | MJ6138 | ||||
Saw blade angle | 0~45°/90° | ||||||||
Max. Saw length | 1600mm | 2800mm | 3000mm | 3200mm | 3800mm | ||||
Max. Saw width | 1250mm | ||||||||
Main saw blade diameter | 250~300mm | ||||||||
Slotted saw diameter | 120mm | ||||||||
main saw blade speed | 4000~6000r/min | ||||||||
Slotted saw blade speed | 7000~8000r/min | ||||||||
Main saw motor power | 4kw/5.5kw | ||||||||
Slotted saw motor power | 0.75kw/1.1kw | ||||||||
Saw blade lifting | Manual | ||||||||
Weight(kg) | 450 | 650 | 750 | 800 | 950 | ||||
Dimension(cm) | 165*315*90 | 285*315*90 | 305*315*90 | 325*315*90 | 385*315*90 | ||||
The difference between 0~45° and 90° panel saw | 90° panel saw can only be cut at right angles for the production of panel furniture, cabinets, wardrobes and the construction industry; 0~45° panel saw can be cut obliquely, not only can cut the right angle, but also can effectively cut the 0~45 degree plate for solid wood, soft bag and other. | ||||||||

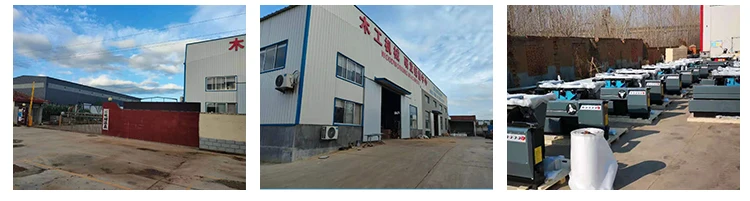

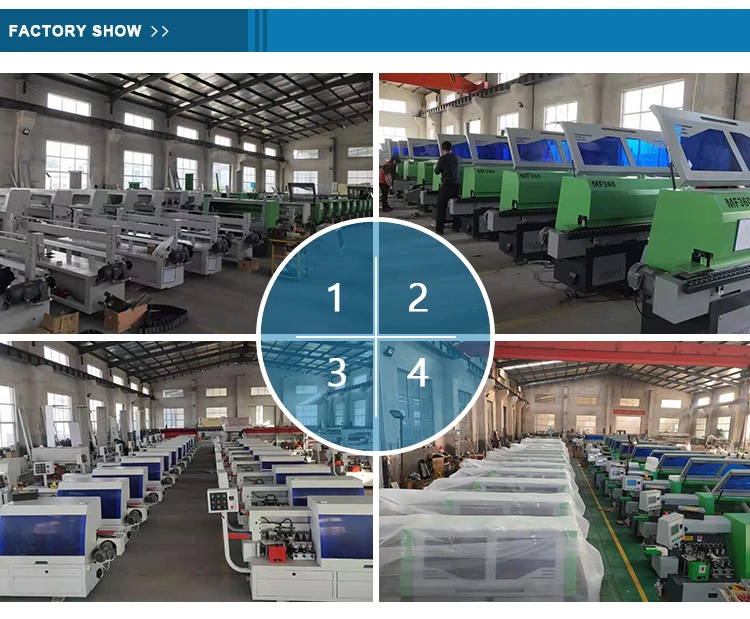

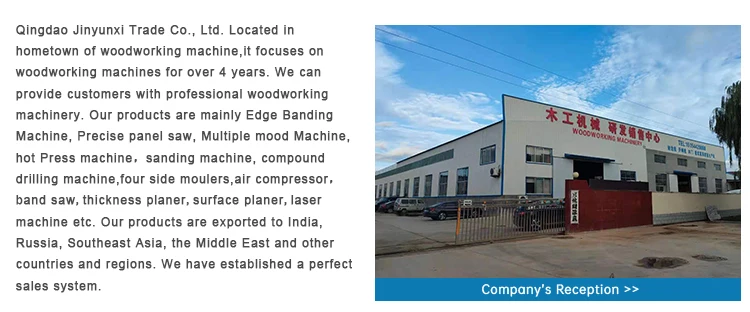

Company Profile
