5.5KG geosynthetic clay liner price GCL for Landfill anti seepage geosynthetic clay liner composite

  --- PRODUCT DESCRIPTION ---

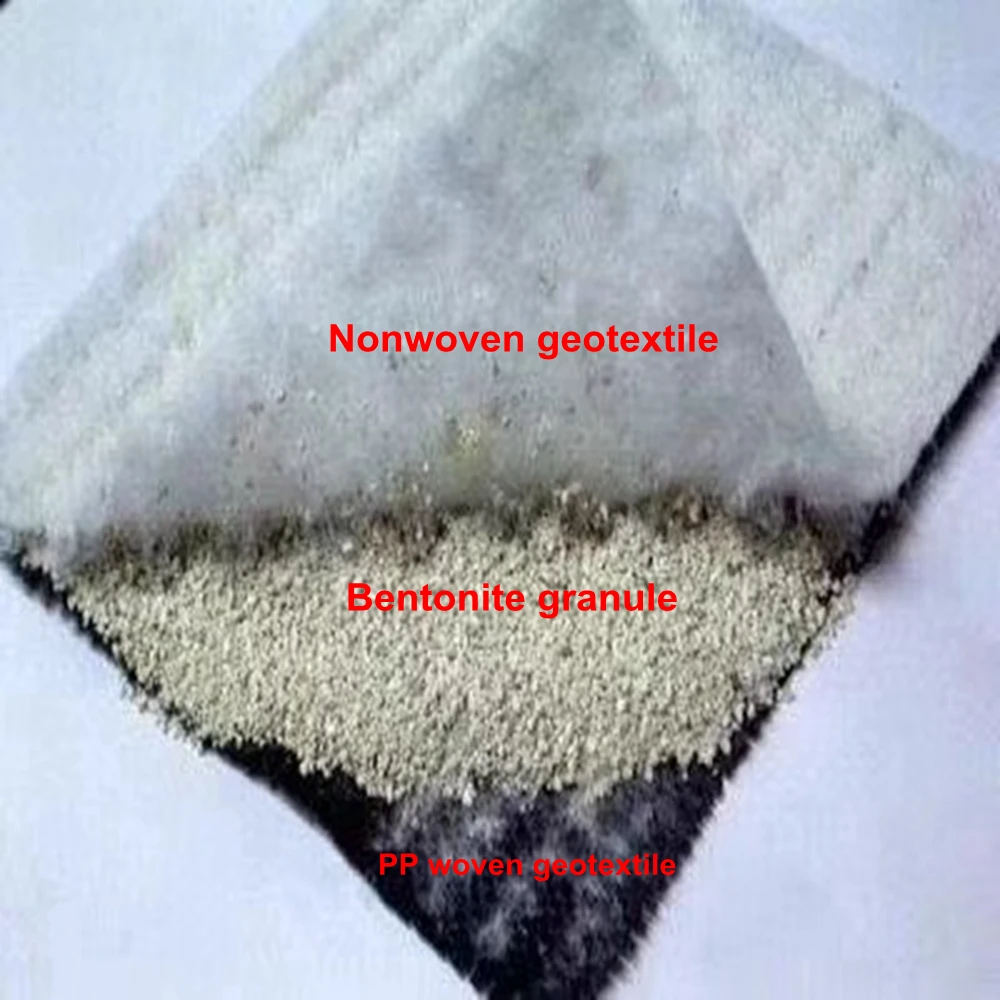

Geosynthetic clay liner is composed of high dilatability of sodium base bentonite filling between the special composite geotextile and nonwoven fabric, made by the method of acupuncture or suture composite impervious material. Use acupuncture into geosynthetic clay liner can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water. For different projects,it can combine HDPE liner for better waterproof.

Bentonite has the expansion of the water characteristics. General calcium base bentonite expands, its expansion is only about 3 times their own size; And sodium base bentonite adsorption 5 times its own weight of water in case of water, Volume expansion to the original 15 to 17 times above; Lock sodium base bentonite in the middle of the two layers of geosynthetic materials, protecting and strengthening the role of, Make the GCL has a certain overall shear strength.

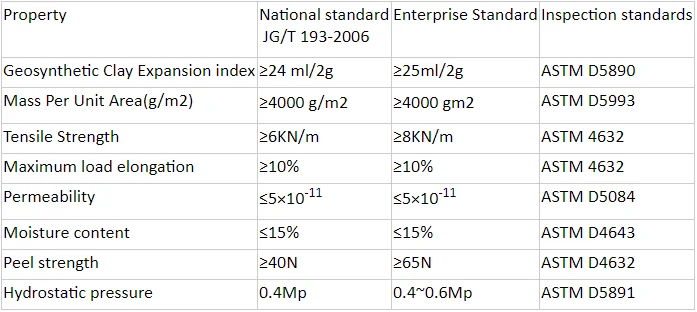

  --- SPECIFICATIONS---

•


  1.The permanent waterproof




  Because sodium base bentonite is a natural inorganic material, even after a long time or the surrounding environment changes, also won't happen aging or corrosion phenomena, so the waterproof performance persistence.










•


  2. Compactibility




  Sodium base bentonite under water pressure condition to form diaphragm with high density, thickness of about 3 mm, its permeability is 5 x 10^-11m/SEC below, equivalent to 100 times the compactness of 30 cm thickness of clay, have very strong since the water retention performance.










•


  3.Not affected by temperature




  In cold climates will not brittle fracture.





• 4.Environmental protection


  Bentonite as natural inorganic material, non-toxic harmless to human body, no special effects to the environment, have good environmental performance.





•


  5.Simple and short time of construction




  Compared to other waterproofing materials, construction is relatively simple, don't need to be heated and paste. With bentonite powder and nails, washers, etc are connected and fixed. After construction does not need specialinspection, if it is found that the waterproof defects and easy to maintenance.GCL is existing waterproof material in construction period of the shortest.

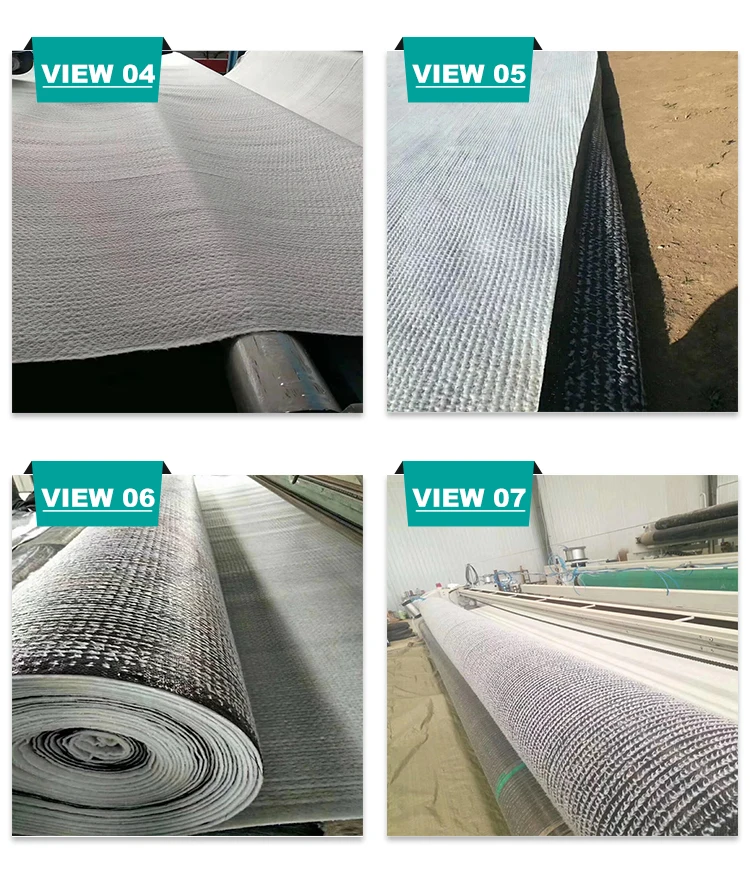

--- PRODUCT DISPLAY ---

 --- APPLICATIONS ---

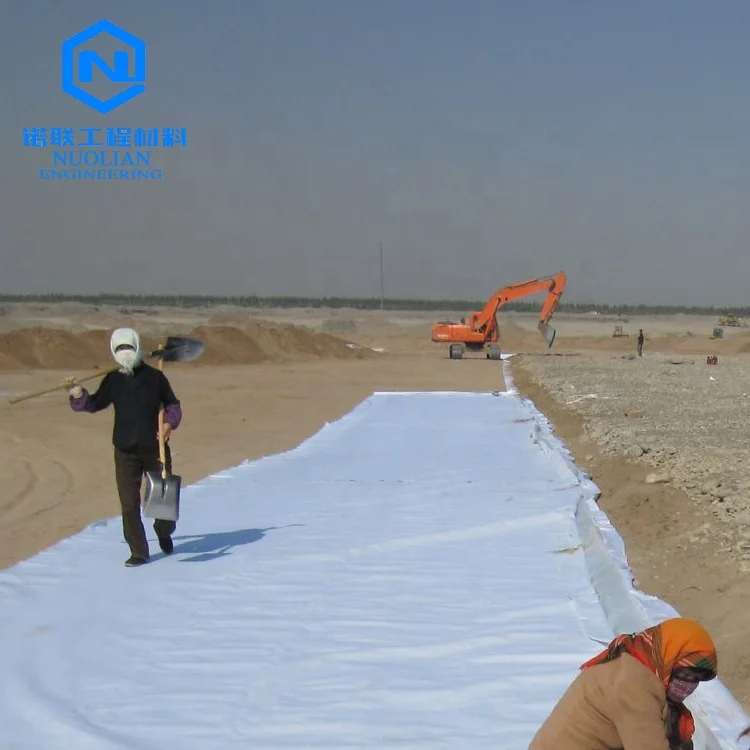

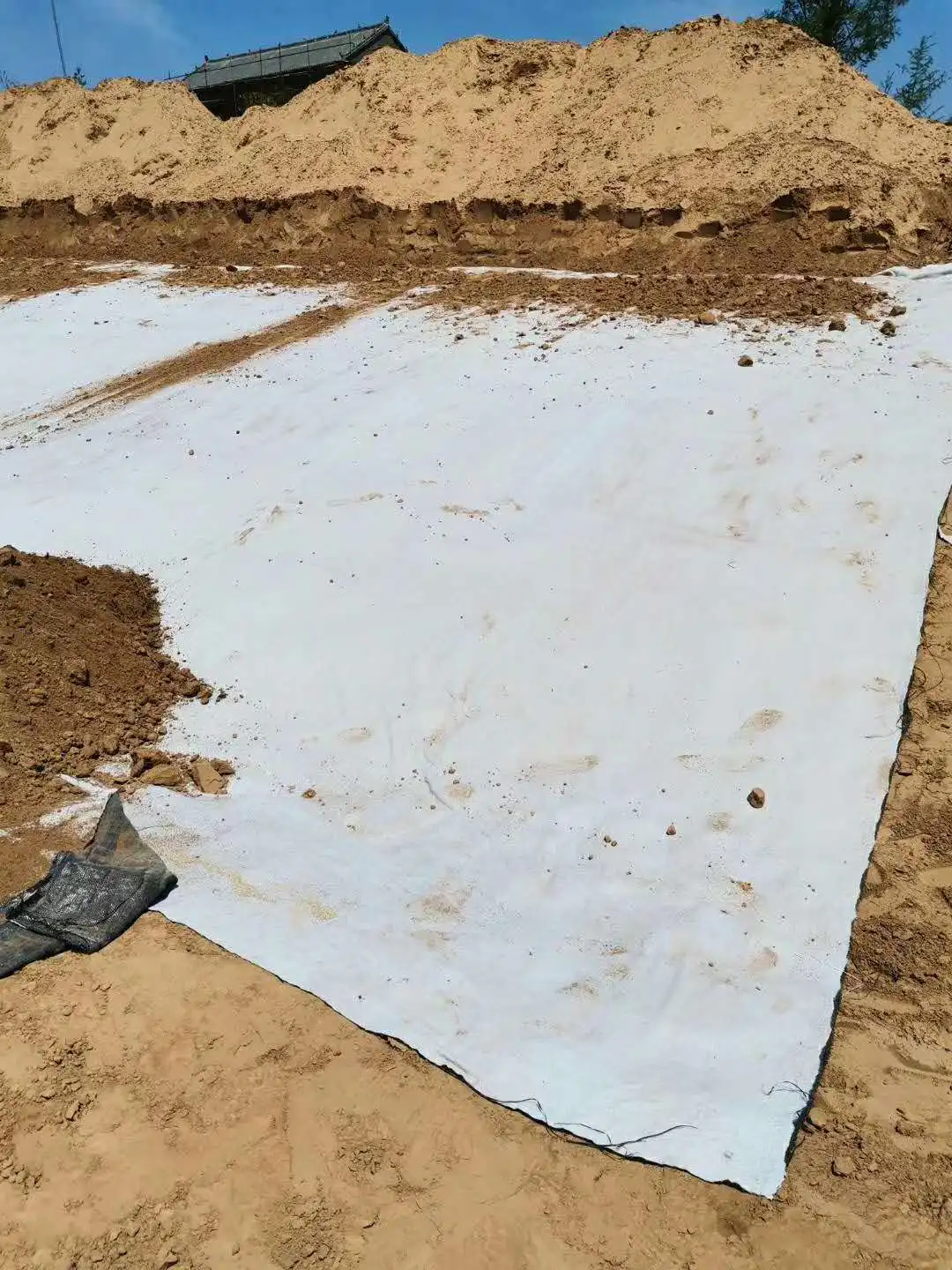

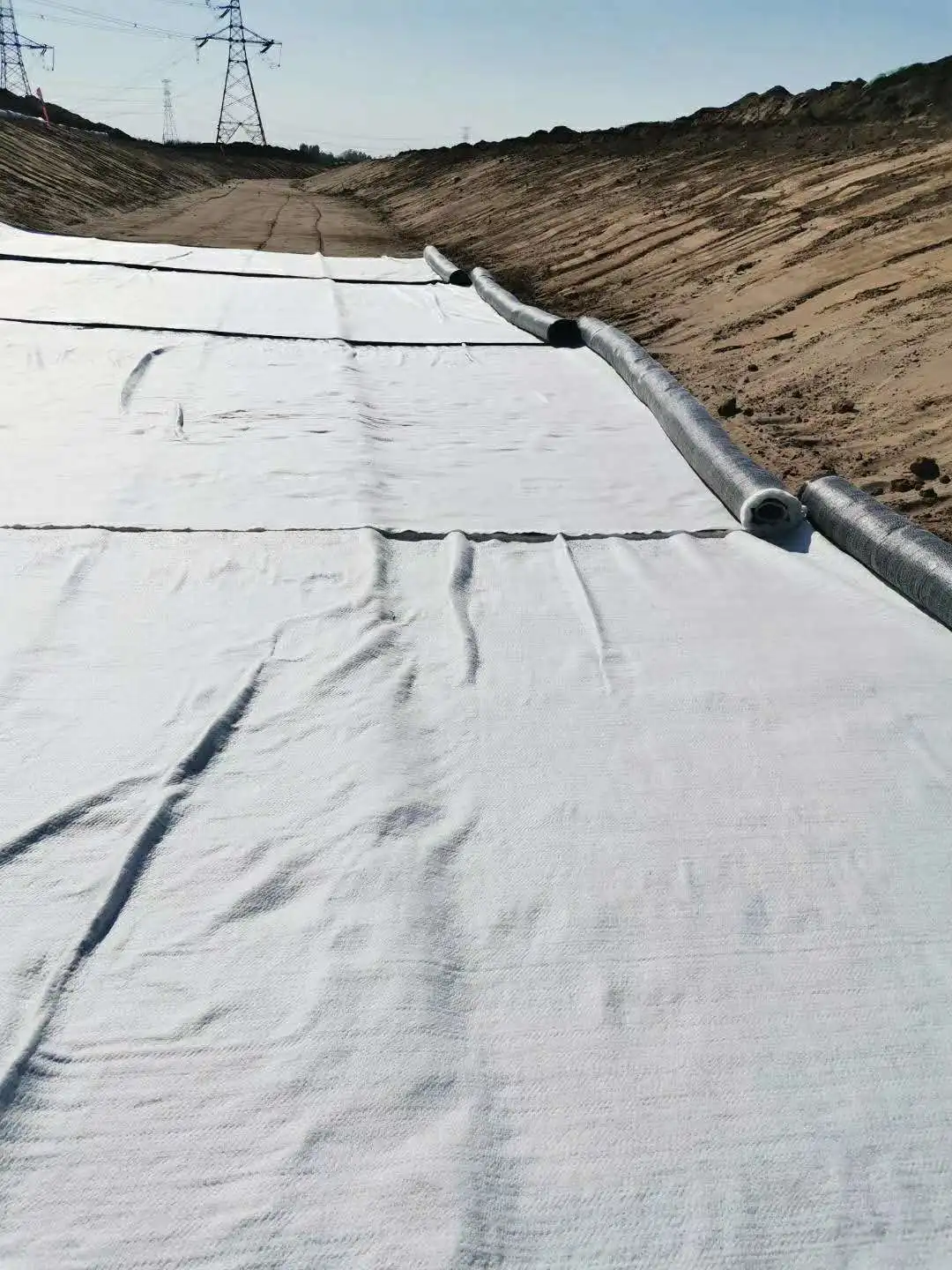

Geosythetic clay liner offers an array of different features for applications requiring a wide range of loads and slope conditions in:

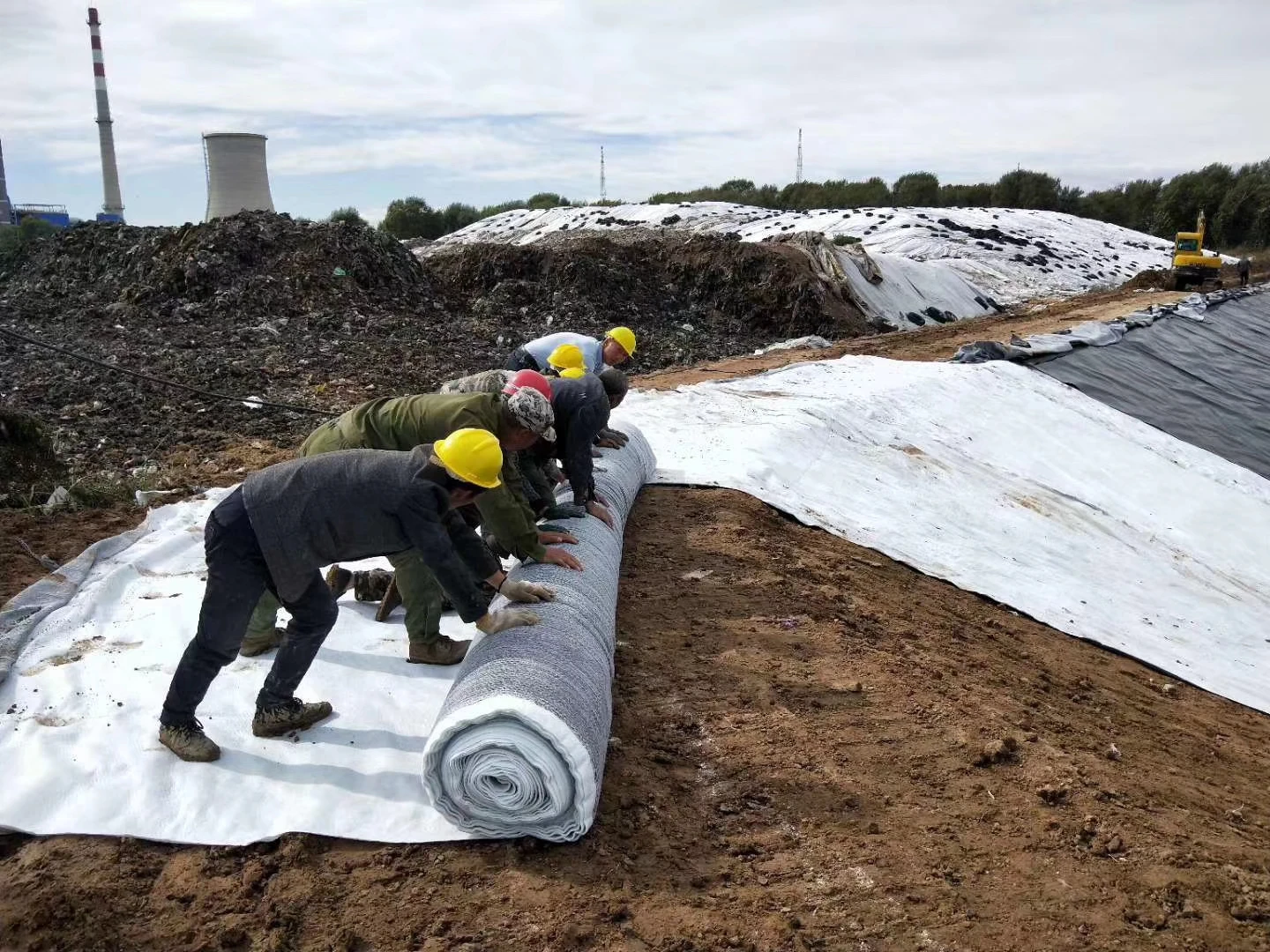

• Solid Waste Landfills, Hazardous Waste Landfills and C & D Landfills


• Mining


• Storage Reservoirs


• Golf Course Ponds and Decorative Ponds

--- ABOUT NUOLIAN ---

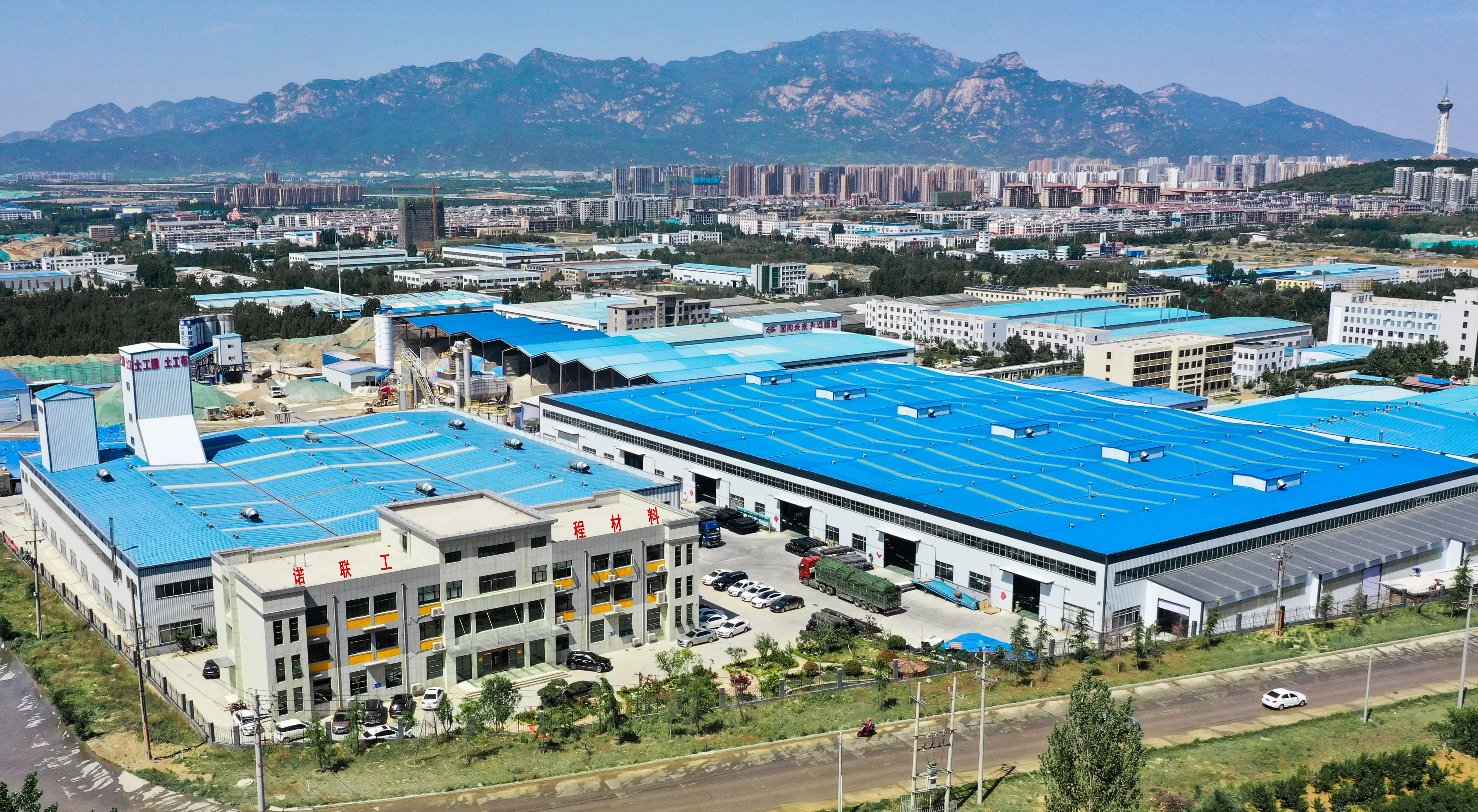

   Taian Nuolian Engineering Materials Co.,Ltd, located in Shandong Province, a large coastal province in eastern China, It is connected to numerous ports and has convenient transportation and advanced communications.

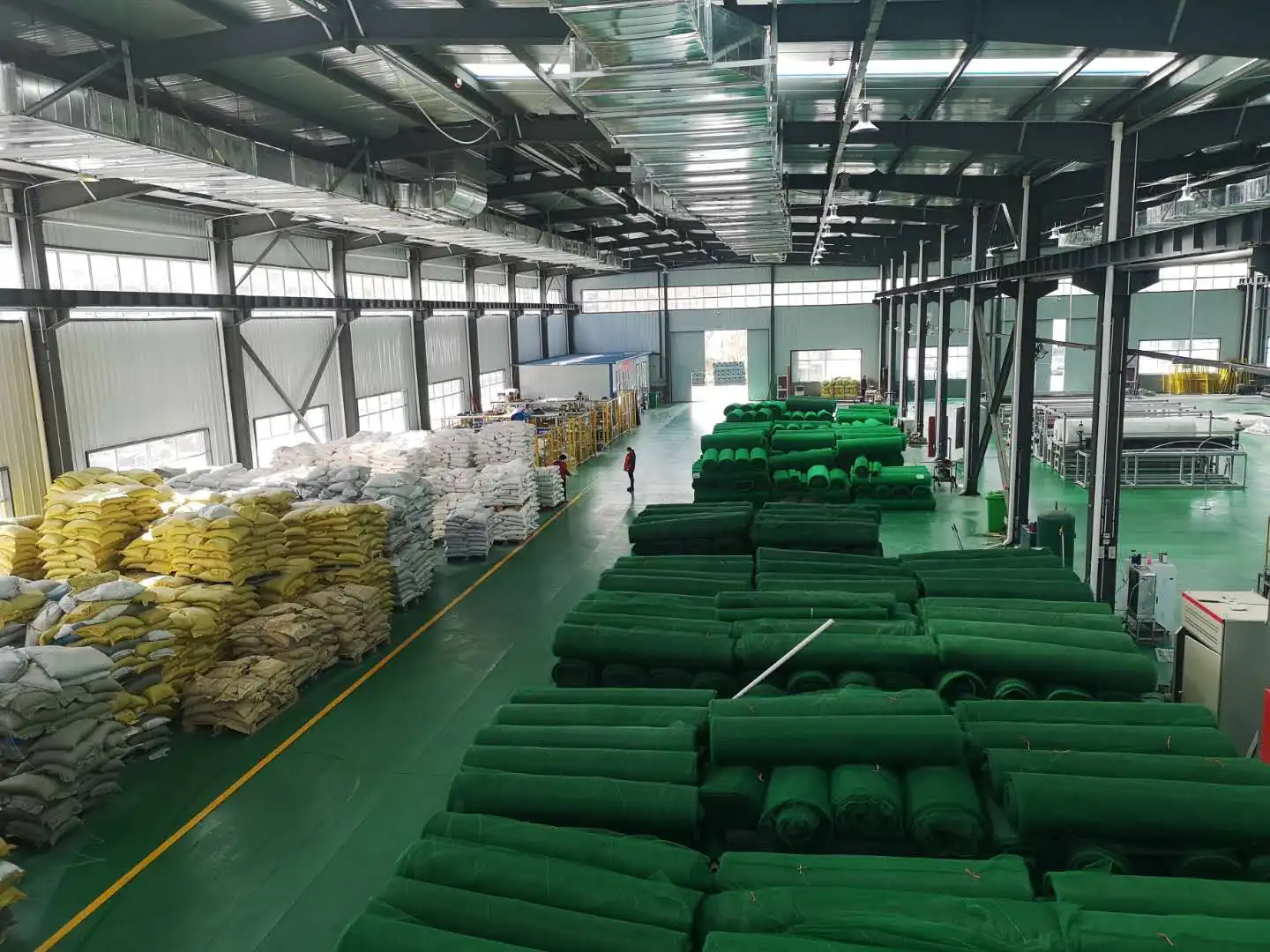

    The company has 86 middle and high-level professional and technical personnel. With Karl Mayer's high-speed "Raschel" warp knitting machine, Marimo multi-axial looms, Dorialooms, and two bi-directional grid production lines, two unidirectional grid production lines and master Menzel's coating technology.

--- FAQ ---

Q:Are you trading company or factory?

A:We are factory for some main product, for other product we are trading company.

Q: How long is the delivery time?

A:Generally it is 2-3 days if the goods are in stock. Or 10-15if not in stock, according to the quantity.

Q:Do you provide samples?

A:Yes,samples are free.

Q:What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
