Hot New Products Cheap Security Access Control Micro Uhf Rfid Tags Laundry Tag
- Category: >>>
- Supplier: Cirfid Technology Co. Ltd.
Share on (1600289582045):
Product Overview
Description
Product Description

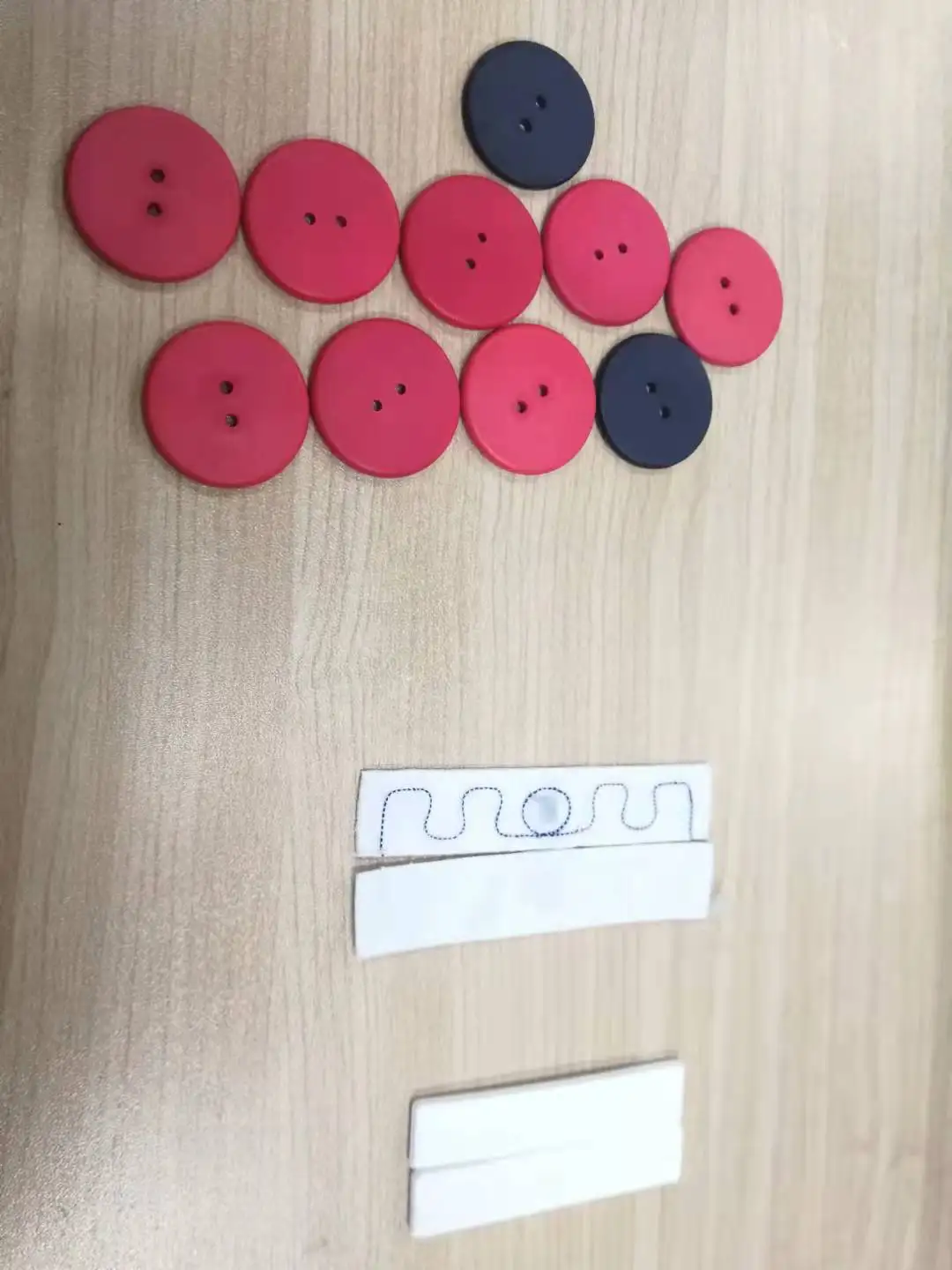

Washable Laundry Tag.
* Material: Fabric default, Silicone, PPS material optional
* Chip: U8, H4, H3 etc
* Band/Frequency: 866-868Mhz or 902-928Mh,z, etc
* Reading Range: 0-6M
* Estimated Lifetime: 200 washing cycles or 3 years, whichever comes first(fabric material)
* Operating Temperature: -20 to 50°C, 10 to 95%RH
* Storage Temperature: -40 to 55°C, 8 to 95%RH
* More details information getting to inform from cirfid team.
T9013 Fabric RFID Tag Features | ||||
Operating Frequency | 866-868Mhz or 902-928Mhz | |||
Communication Protocol | ISO18000-6C(EPC Class 1 Gen 2) | |||
Chip type | NXP U-CODE 8 | |||
User Memory | 512bit | |||
Reading Range | 902-928 MHz 6-8m | |||
865-868 MHz 6-8m | ||||
Other features | ||||
Estimated Lifetime | 200 washing cycles or 3 years, whichever comes first | |||
Tagging | Sewing,Insert,Hot-press | |||
Encapsulation Material | Fabric | |||
Dimension | 70x15x1.70mm | |||
Working environment | Water Extraction Pressure | 60 bar | ||
Chemical Resistance | Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali | |||
Drying | 85°C (Up to 60min.) | |||
120°C (Up to 30 min.) | ||||
Ironing | 200°C (Up to 60 sec. with press cloth) | |||
Operating Temperature | -20 to 50°C, 10 to 95%RH | |||
Storage Temperature | -40 to 55°C, 8 to 95%RH | |||
RFID Reader Application Scene
1. RFID Laundry Management

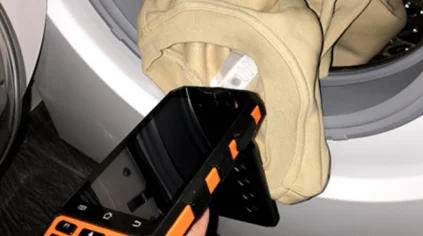

CIRFID can provide a complete laundry solutions, consists of RFID laundry tags(Fabric, Silicone, PPS material optional), readers installed at the laundry facility, portable clothing checking handheld terminal, and our RFID software to manage data regarding tag reads, store information and display alerts. The RFID systems automatically track and record laundry activity, and manage inventory, repairs and billing.
Other Scene Application
Company Profile
Factory
Certificate
Package & Shipment
FAQ
Who we are and what we can provide?
1. Foxcoon&HUAWEI industry 4.0 verified supplier
2. 15+ years experienced R&D team on RFID&IoT
3. FCC&CE&ISO certified
4. Products range cover HF&UHF&2.4Ghz RFID readers &modules&tags &antennas
How to assure the durability of our products?
1. All components base on original high performance chip
2. 72 hours full aging time, 100% testing
3. Personalized appearance design, IP55- IP67 protection grade
4. QC-QA-Factory test-Engineer test, 4 quality control process
What support we can give?
1. Free Pre-project consultance
2. Within 24hours quick response from sales engineers
3. Software provided in C++,C#, Java, android calling sample,source code available
4. Professional R&D team for OEM&ODM, average 20days lead time for customization
5. 1 year warranty, any repair/replace are free within guarantee
6. Centralized Procurement
1. Foxcoon&HUAWEI industry 4.0 verified supplier
2. 15+ years experienced R&D team on RFID&IoT
3. FCC&CE&ISO certified
4. Products range cover HF&UHF&2.4Ghz RFID readers &modules&tags &antennas
How to assure the durability of our products?
1. All components base on original high performance chip
2. 72 hours full aging time, 100% testing
3. Personalized appearance design, IP55- IP67 protection grade
4. QC-QA-Factory test-Engineer test, 4 quality control process
What support we can give?
1. Free Pre-project consultance
2. Within 24hours quick response from sales engineers
3. Software provided in C++,C#, Java, android calling sample,source code available
4. Professional R&D team for OEM&ODM, average 20days lead time for customization
5. 1 year warranty, any repair/replace are free within guarantee
6. Centralized Procurement
