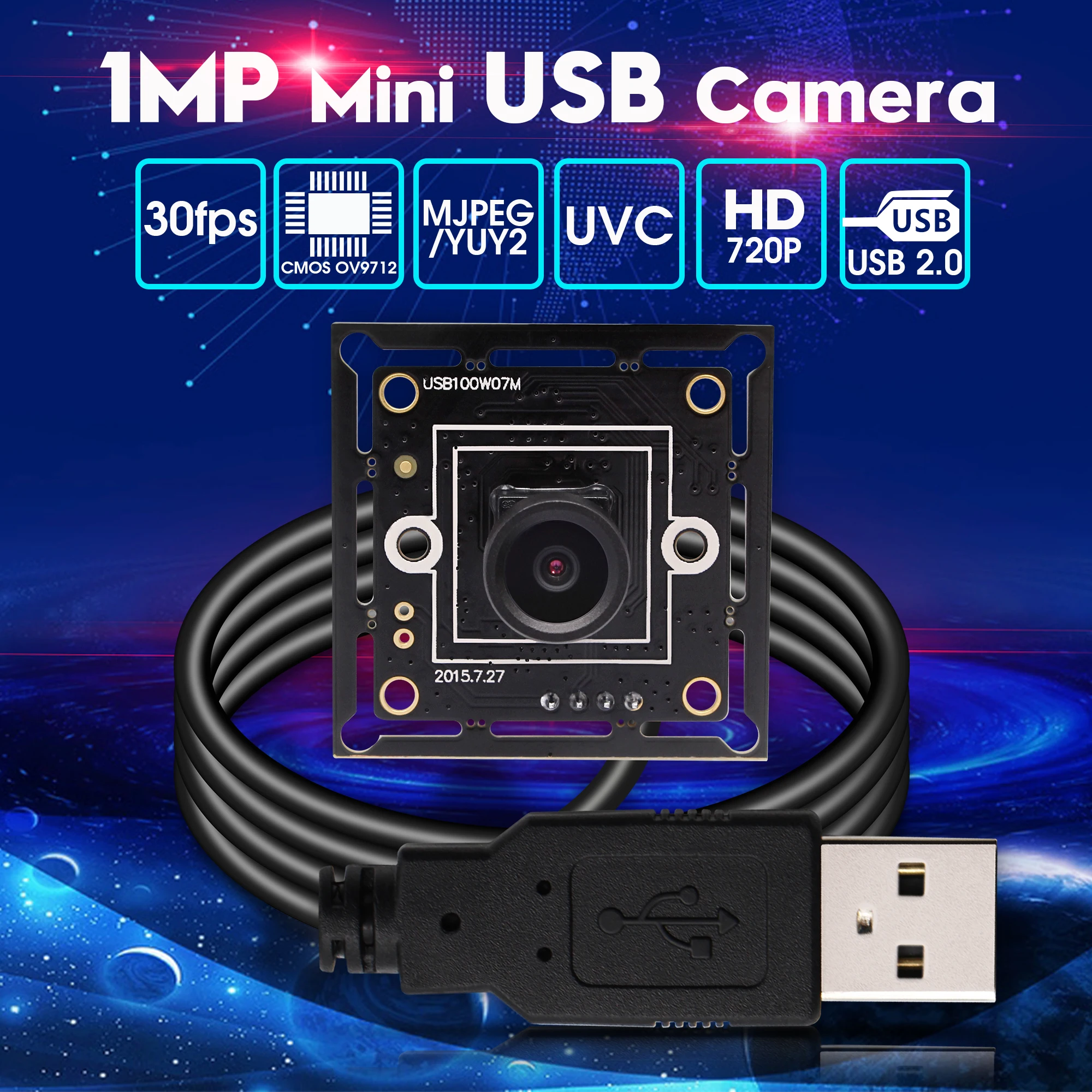

HD USB Webcam Module Super Mini 32*32mm Camera Board 720P USB Security Camera For Robot Project, Machine Vision Application
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600289604281):
Product Overview
Description
HD USB Webcam Module Super Mini 32*32mm Camera Board 720P USB Security Camera For Robot Project, Machine Vision Application
Features:
*CMOS OV9712 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 1280*720 resolution
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 1280*720 resolution
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows
Specification
Model | ELP-USB100W07M-MHV45 (45 degree M7 lens) ELP-USB100W07M-MHV100 (100 degree M7 lens) ELP-USB100W07M-MHV120 (120 degree M7 lens) |
Sensor | CMOS OV9712 |
Lens Size | 1/4 inch |
Pixel Size | 3.0um X 3.0um |
image area | 3888 µm x 2430 µm |
Max. Resolution | 1280(H)X720(V) |
Compression format | H264 /MJPEG / YUV2(YUYV) |
Resolution & frame | MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@60fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps YUV: 320X240@ 30fps /352X288@ 30fps /640X360@30fps /640X480@ 30fps /800X600@ 15fps /1280X720@ 5fps |
S/N Ratio | 40dB |
Dynamic Range | 69dB |
Sensitivity | 3.7V/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |

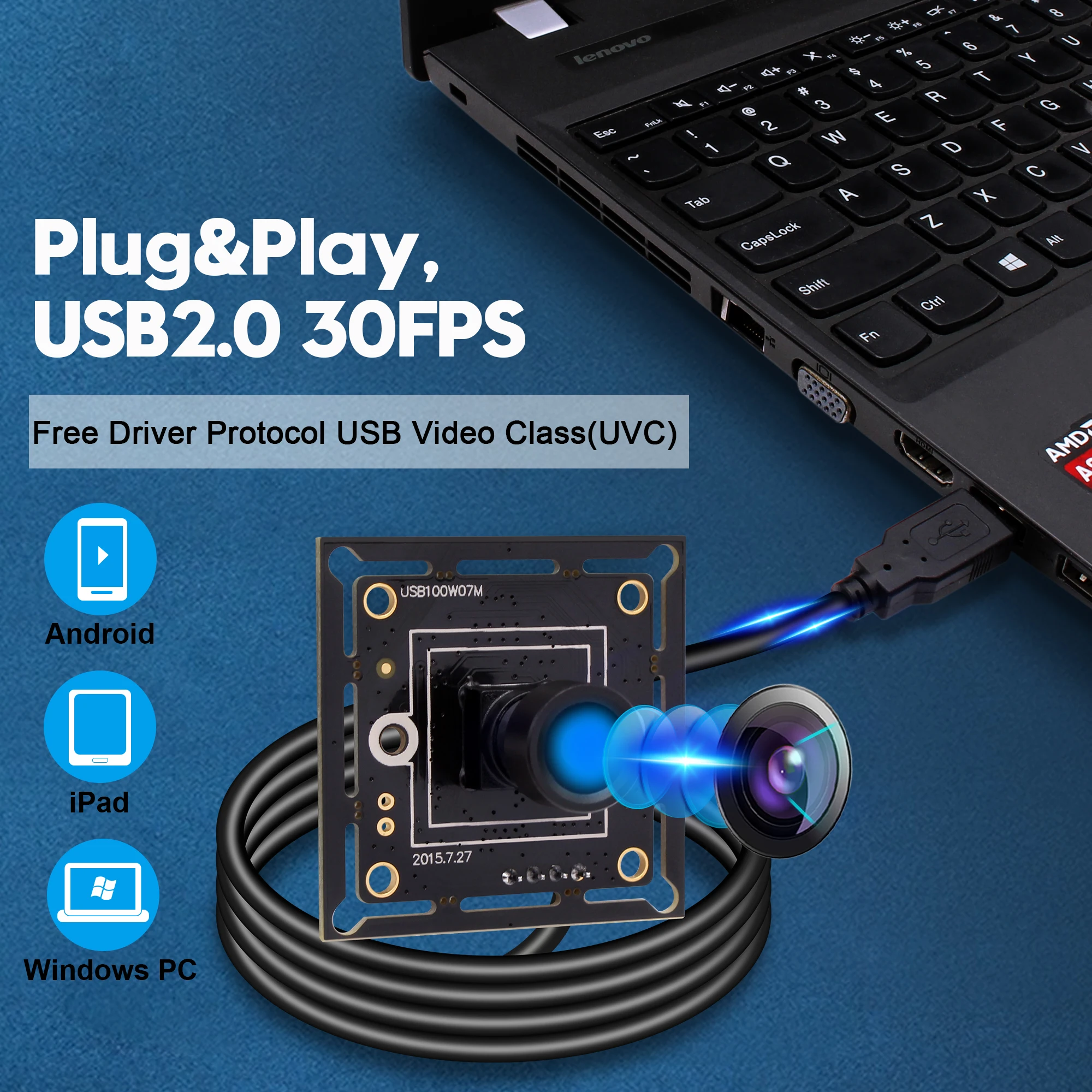

Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |

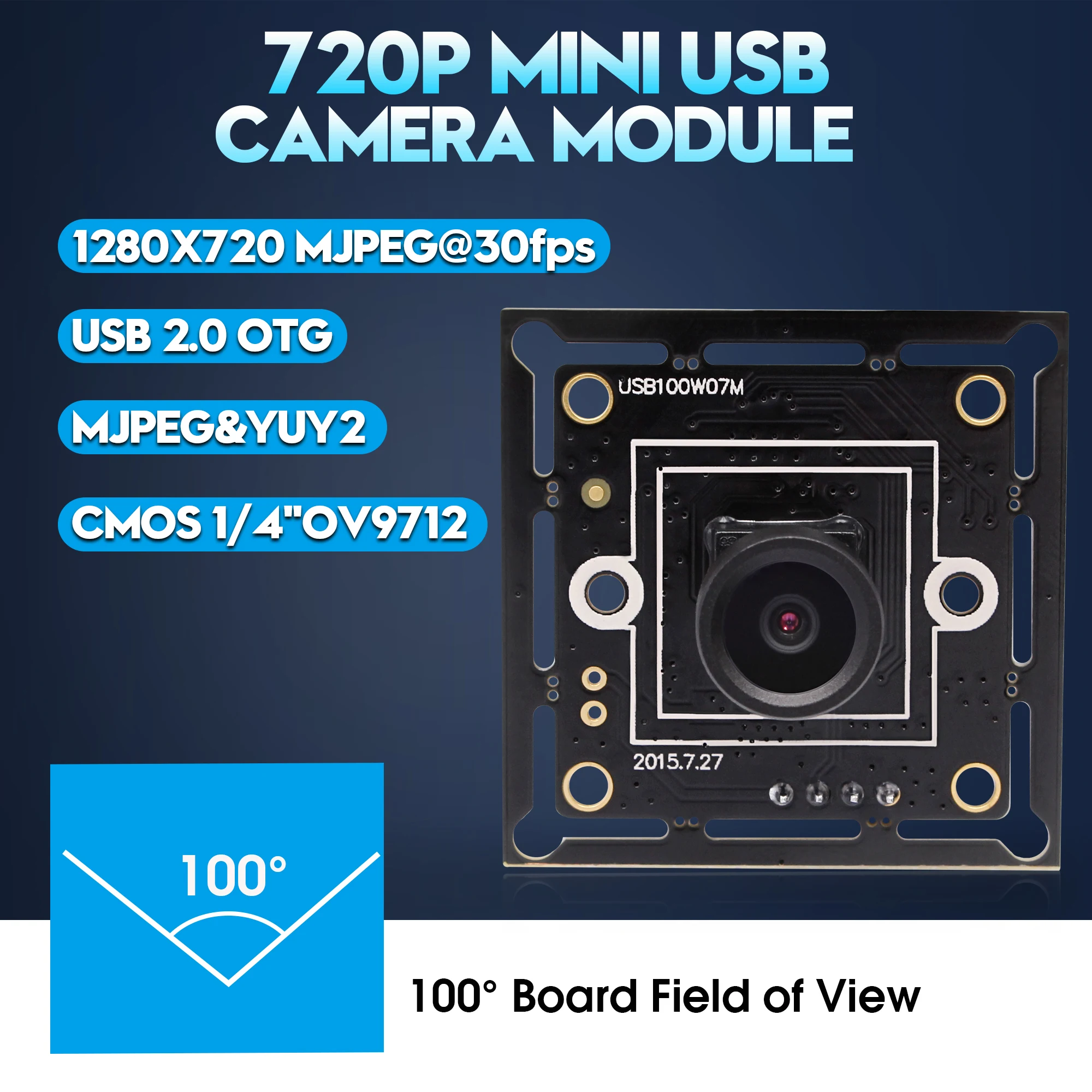

Lens Parameter | 100 degree M7 lens, (45 degree, 120 degree optional) |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Power supply | DC5V |
Operating Voltage | 120mA~180mA |
Working current | -10~70°C |
Working temperature | -20~85°C |

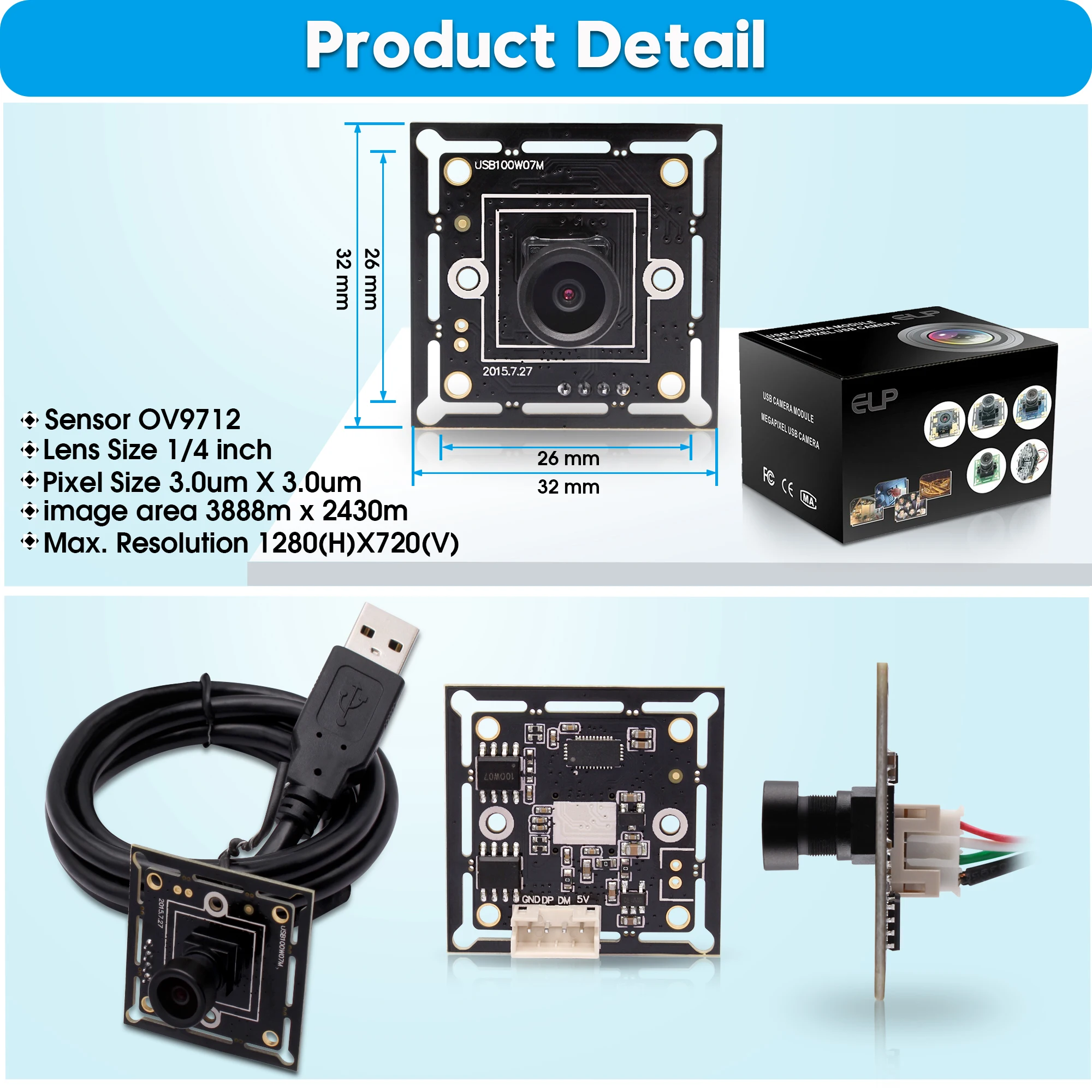

Board size /Weight | 32x32mm/26mmx26mm/ about 30g |
Cable | Standard 1M / optional 2M,3M,5M |
Operating system request | WinXP/Vista/WIN7/WIN8/Win10 Linux with UVC/Mac-OS X 10.4.8 or later/ Wince with UVC/ Android 4.0 or above |
Application
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring,environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,evaluator, Medical Equipment, on-the-spot law enforcement,door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc.itable for producing PET plastic containers and bottles in all shapes.
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,evaluator, Medical Equipment, on-the-spot law enforcement,door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc.itable for producing PET plastic containers and bottles in all shapes.
