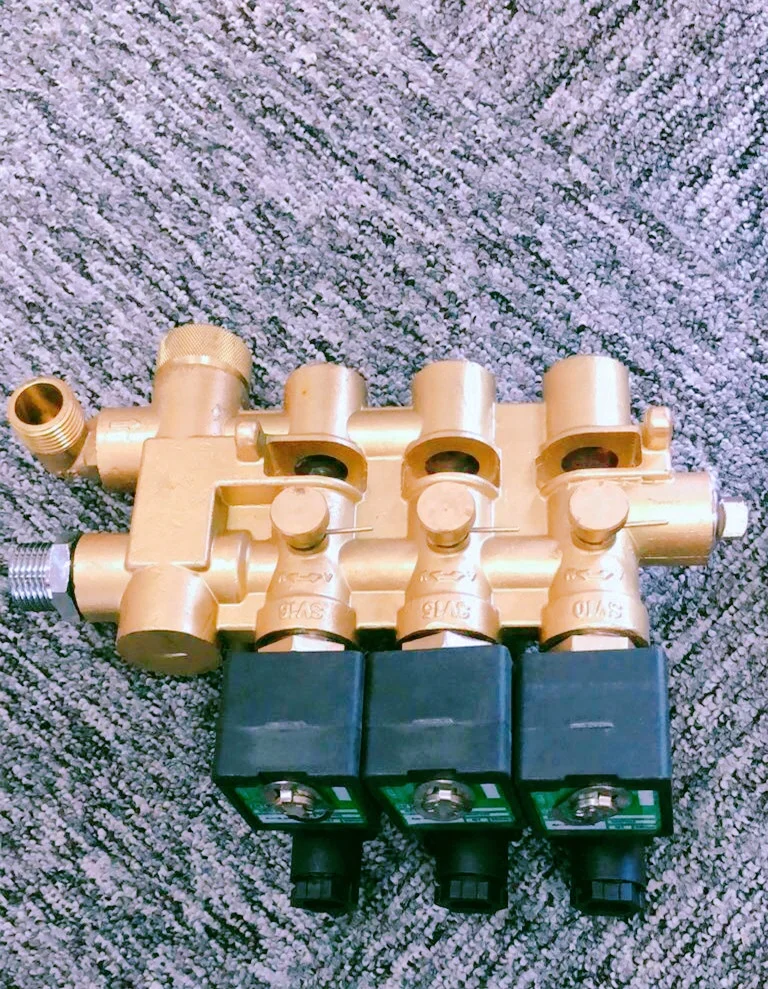

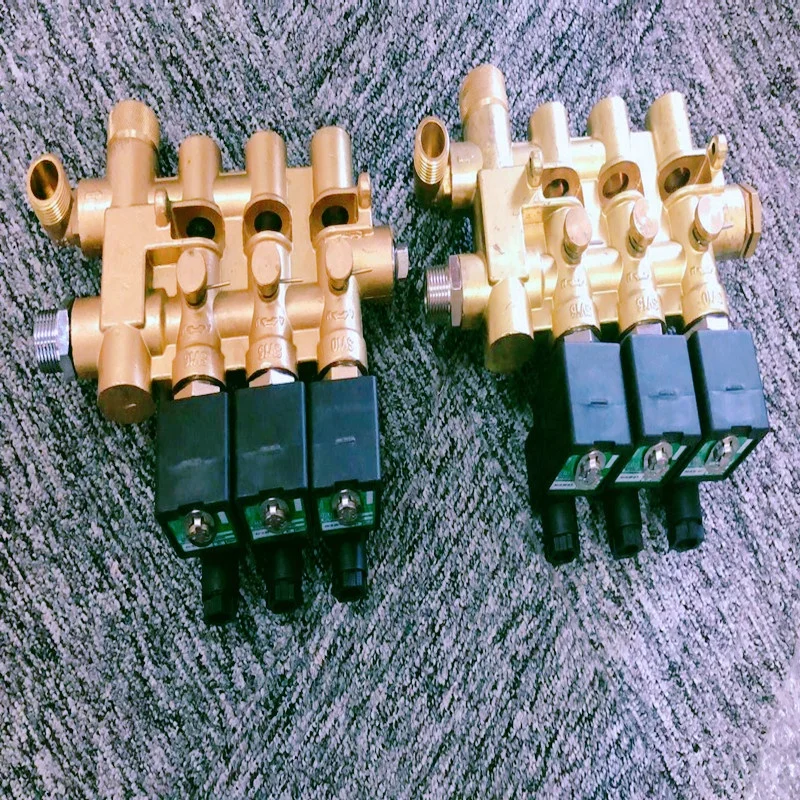

Высококачественные запчасти для очистителя масла типа PA615, клапан для морского лодочного двигателя
- Category: >>>
- Supplier: Kai Mao (Shanghai) Marine Equipment Co. Ltd.
Share on (1600289685359):
Product Overview
Description
Product Overview
high quality for type PA615 machine oil purifier parts to marine boat engine
The PA purifier system is operated automatically by the EPC50 control unit, except for starting the separator. The separator bowl can be arranged as a purifier or as a clarifier.
A purifier separates sludge and water from the oil. Water is continuously discharged from the bowl. The sludge accumulated in the sludge space in both a purifier and a clarifier is inter- mittently discharged.
In a clarifier, the water outlet is blocked, i.e. the water handling capability is limited. Water is accumulated like sludge.
In the purifier mode, the EPC50 unit automatically controls the water admitted to the separator for the water seal and displacement of oil prior to sludge discharge.
The separator is driven by an electric motor via a friction clutch and belt. The
separator bowl is fixed at the top of a spindle, which is supported by bearings and springs.
During normal operation vital process parameters are monitored. The EPC50 unit provides alarm functions for low oil pressure, high intermediate tank level
if optimal sludge removal kit included, and power failure. Alarm functions are also provided for errors involving the EPC50 unit. Special text messages indicate process parameters and alarms on the LED display. The EPC50 is type approved by many classification societies.
In addition, functions are available for vibration alarm when the optional vibration switch is fitted.
When operating in the purifier mode, a gravity disc must be fitted to obtain the correct interface position in the sepa- rator bowl, i.e. the boundary between the oil and the water seal.
A purifier separates sludge and water from the oil. Water is continuously discharged from the bowl. The sludge accumulated in the sludge space in both a purifier and a clarifier is inter- mittently discharged.
In a clarifier, the water outlet is blocked, i.e. the water handling capability is limited. Water is accumulated like sludge.
In the purifier mode, the EPC50 unit automatically controls the water admitted to the separator for the water seal and displacement of oil prior to sludge discharge.
The separator is driven by an electric motor via a friction clutch and belt. The
separator bowl is fixed at the top of a spindle, which is supported by bearings and springs.
During normal operation vital process parameters are monitored. The EPC50 unit provides alarm functions for low oil pressure, high intermediate tank level
if optimal sludge removal kit included, and power failure. Alarm functions are also provided for errors involving the EPC50 unit. Special text messages indicate process parameters and alarms on the LED display. The EPC50 is type approved by many classification societies.
In addition, functions are available for vibration alarm when the optional vibration switch is fitted.
When operating in the purifier mode, a gravity disc must be fitted to obtain the correct interface position in the sepa- rator bowl, i.e. the boundary between the oil and the water seal.
FEATURES AT A GLANCE
• Small footprint and compactness gives flexibility in positioning in the engine room and saves space.
• Simple installation. The system has very few components. No need for water discharge pipe.
• No water tank needed to supply operating water, saving materials and installation costs.
• Separate feed pump. Reduces pipe work to and from the preheater.
• Virtually no oil losses because of efficient displacement.
• Effective discharge of separated sludge and water.
• Heater control. Available as option built in to the EPC50 unit.
• Remote supervision. The PA purifier system can be supervised remotely from a control room using MODBUS or PROFIBUS communication and customer software.
• Simple installation. The system has very few components. No need for water discharge pipe.
• No water tank needed to supply operating water, saving materials and installation costs.
• Separate feed pump. Reduces pipe work to and from the preheater.
• Virtually no oil losses because of efficient displacement.
• Effective discharge of separated sludge and water.
• Heater control. Available as option built in to the EPC50 unit.
• Remote supervision. The PA purifier system can be supervised remotely from a control room using MODBUS or PROFIBUS communication and customer software.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | Data 1 | Data 2 |
1 | Control voltage ,operating | 24V AC | ||
2 | Ambient temperature | Max.55 ℃ | ||
3 | Control cabinet max.distance from unit | 50 m | ||
4 | Storage temp. | Min.+0 ℃,Max.+70 ℃ | ||
5 | Enclosure class | Min.IP 54 | ||
6 | Operating water denisty | Max.1000kg/m3 | ||
7 | Operating water temp. | Min.+5 ℃,Max.55℃(unheated water) | ||
8 | Viscosity,max. | 50 cST at 100℃ | 600 cST at 50 ℃ |
