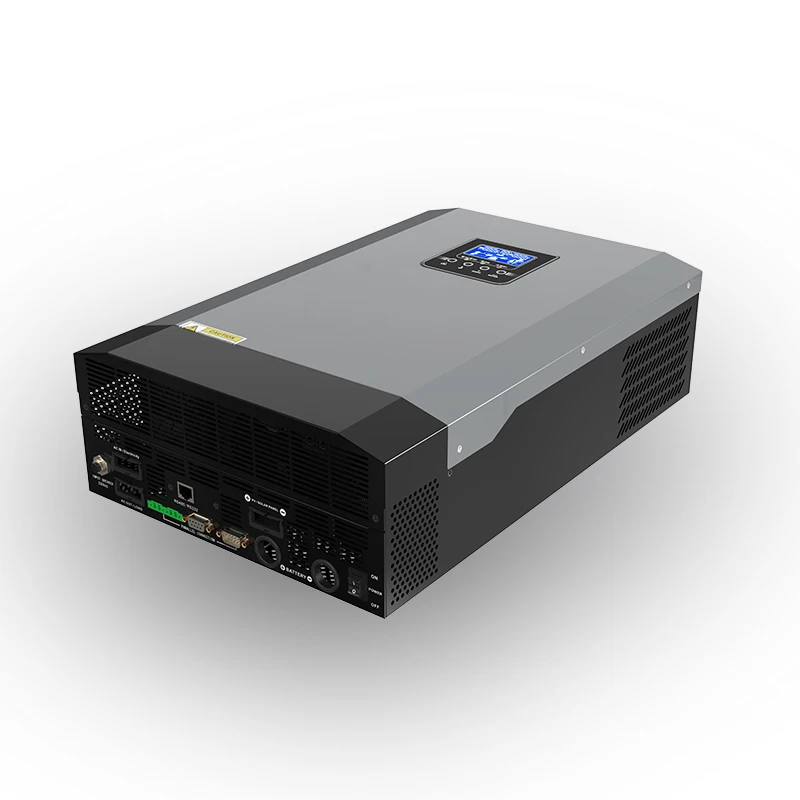

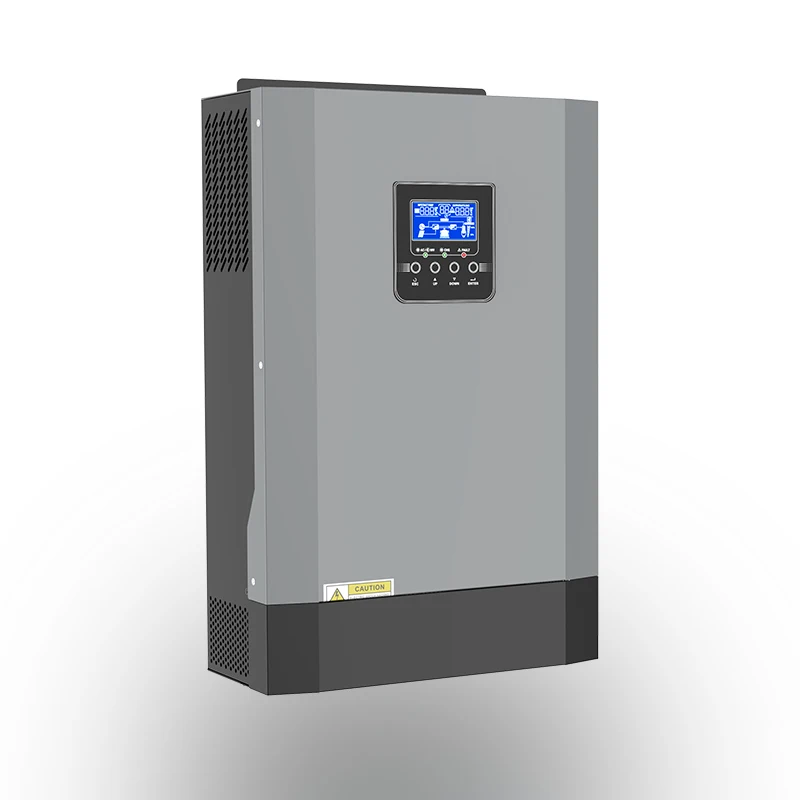

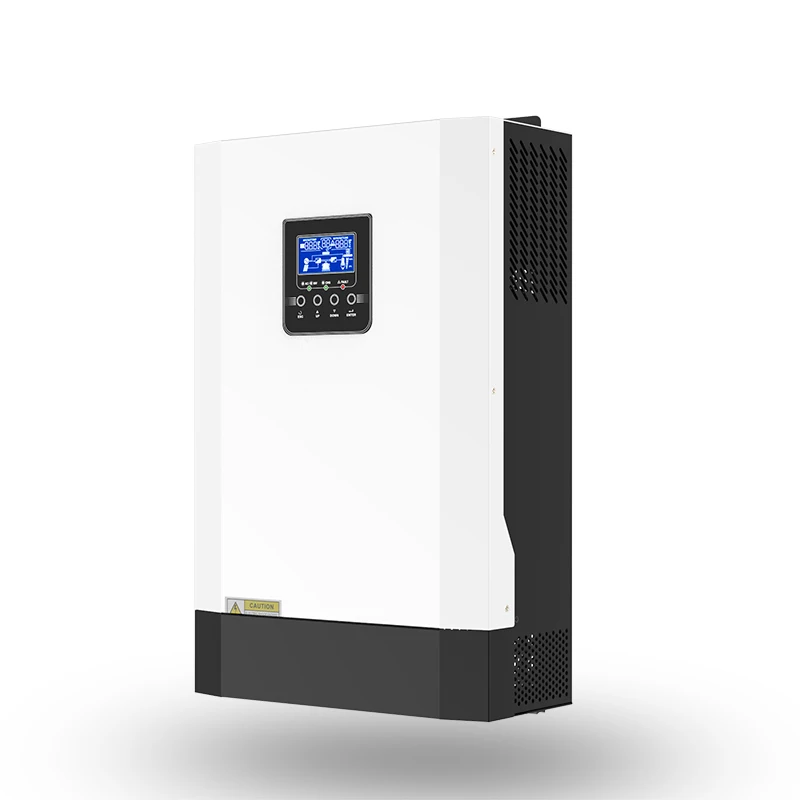

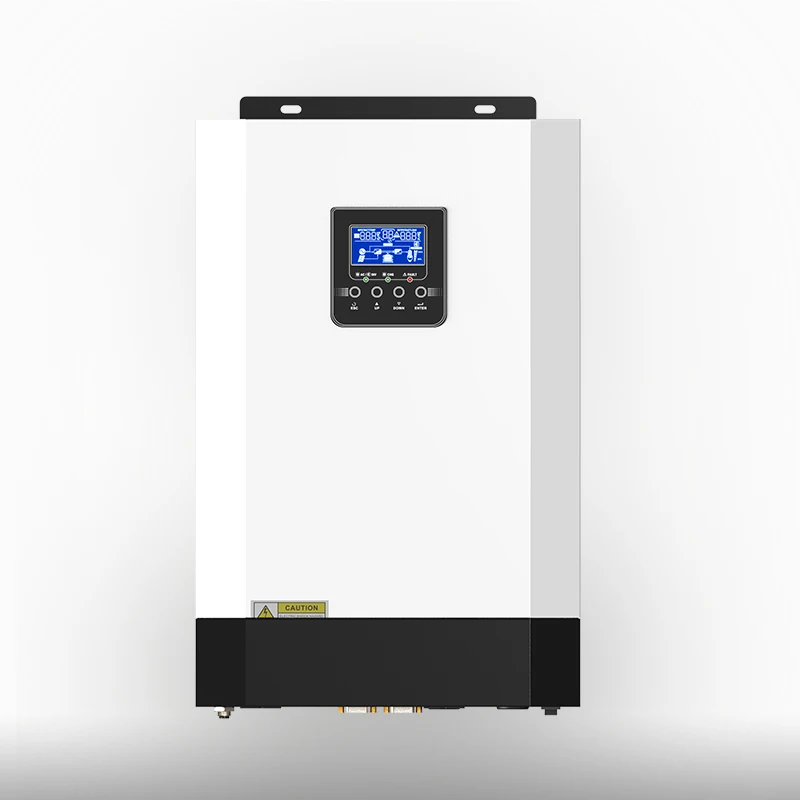

3500VA 24VDC Off Grid Pure Sine Wave Power Inverter with 110A 120 450VDC MPPT Solar Controller Working without Battery

Product Overview

Description

3500VA 24VDC Off Grid Pure Sine Wave Power Inverter with 110A 120-450VDC MPPT Solar Controller Working without Battery









Product Features:

1. High efficiency pure sine wave inverter(PF=1).

2. Wide PV input range(120Vdc--500Vdc)110A MPPT SCC.

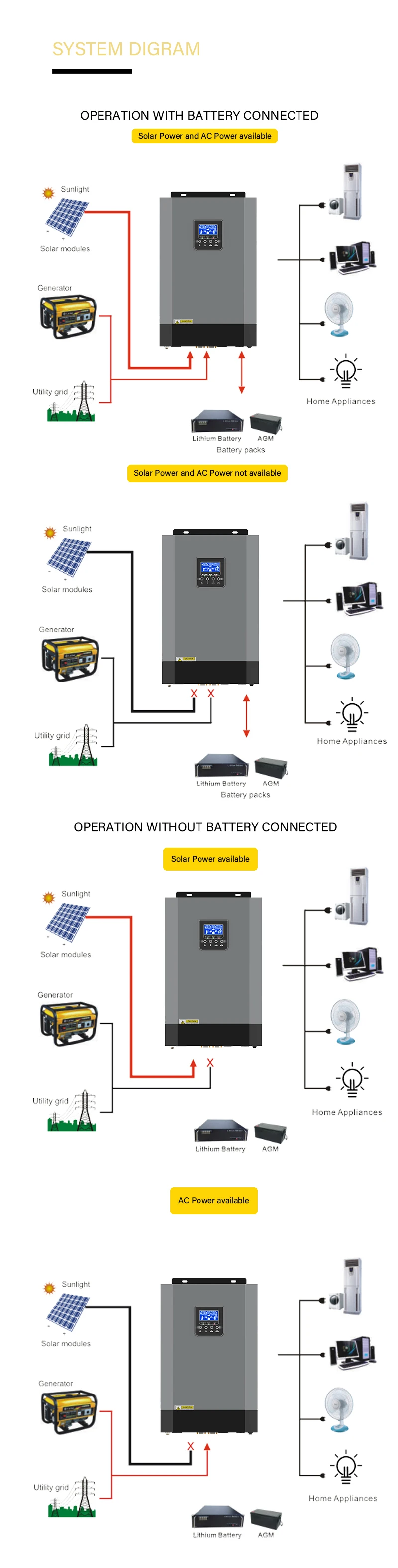

3. Programmable supply priority for PV, battery or grid.

4. PV and electricity complementary

5. Work wth lithum battery

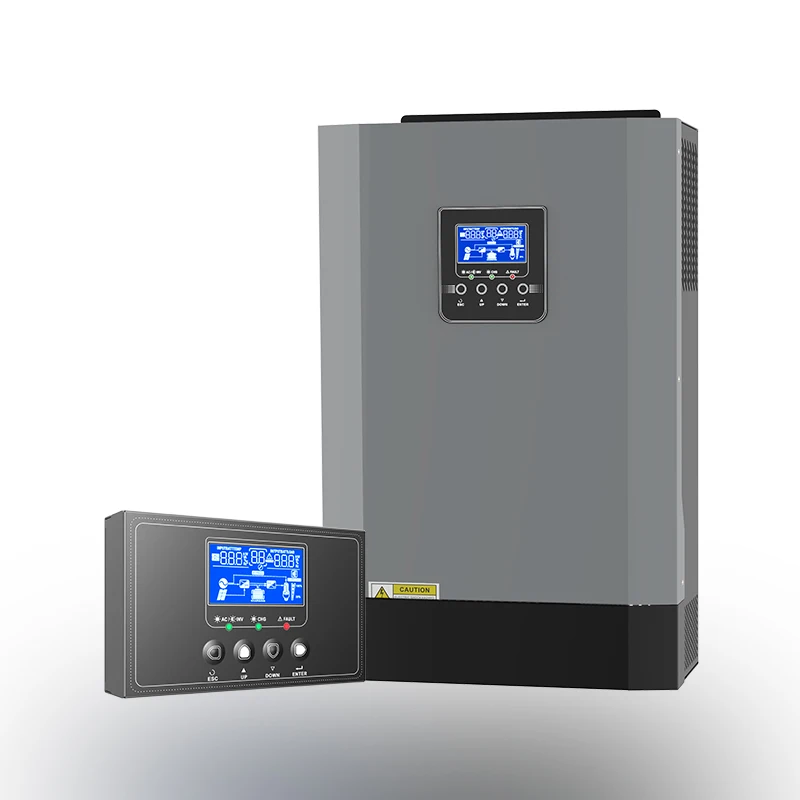

6. LCD remote control with 10 meters wire (optional).

7. Working without batteries in sun day.

8. Parallel Function for up to 6pcs

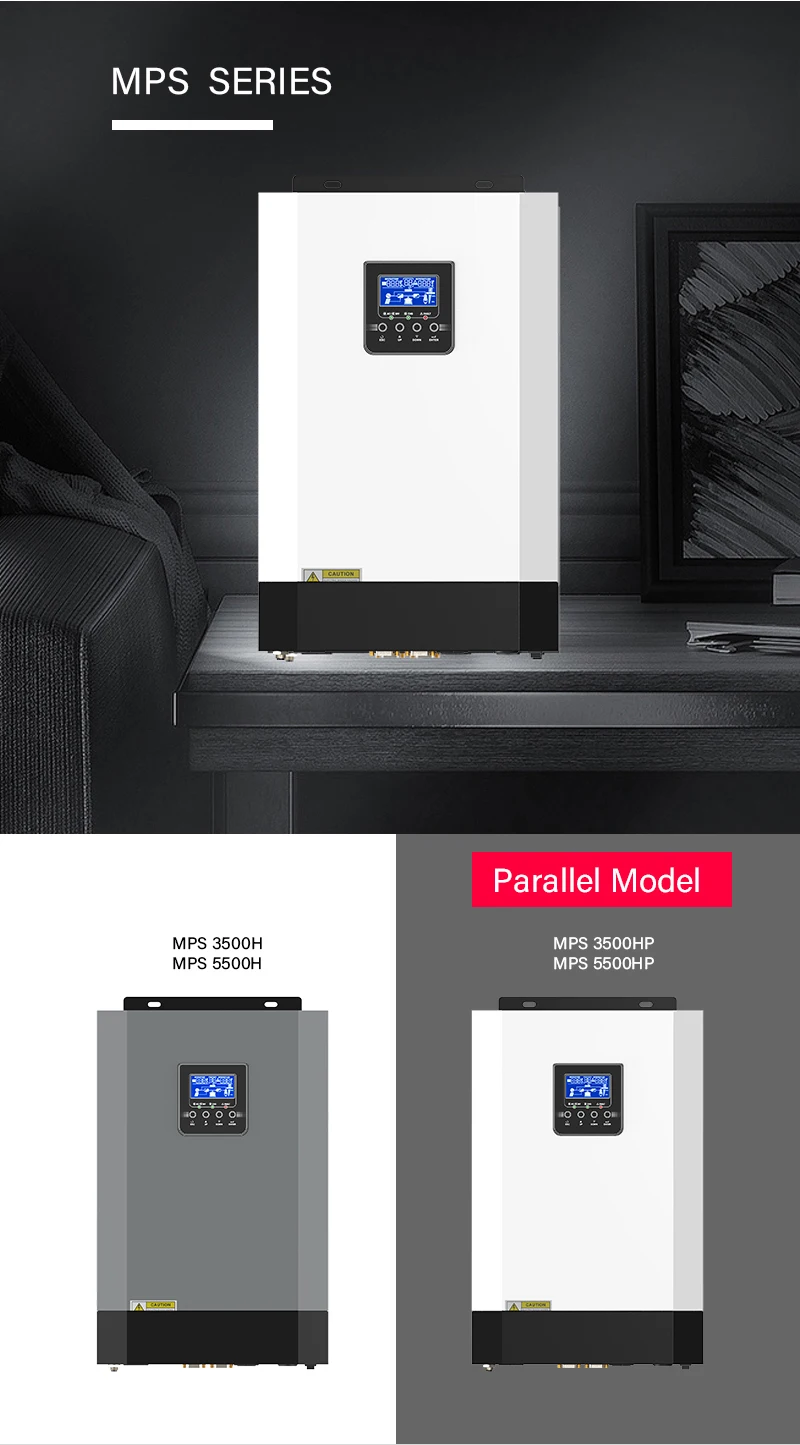

Model	MPS 3500H/MPS 3500HP	MPS 5500H/MPS 5500HP
RATED POWER	3500VA/3500W	5500VA/5500W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers)
	90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	7000VA	11000VA
Efficiency (Peak) PV to INV.	97%
Efficiency (Peak) Battery to INV.	94%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	33 VDC	63 VDC
Maximum Charge Current	80 A	80 A
SOLAR CHARGER
Maximum PV Array Power	5000W	6000W
MPPT Range @ Operating Voltage	120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum Charging Current	110A
Maximum Efficiency	98%
PHYSICAL
Dimension, D x W x H (mm)	472x297x129
Net Weight (kgs)	13	14

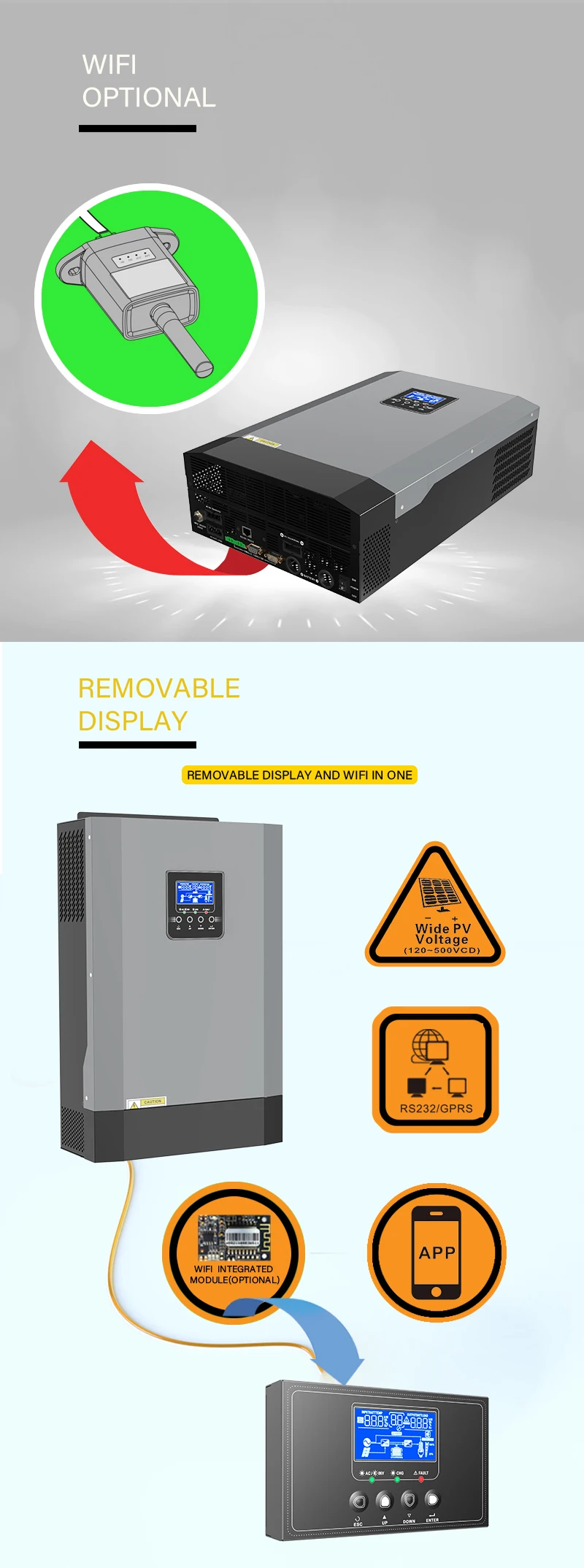

Communication interface	RS485/RS232 LCD remote/Wi-Fi (option)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

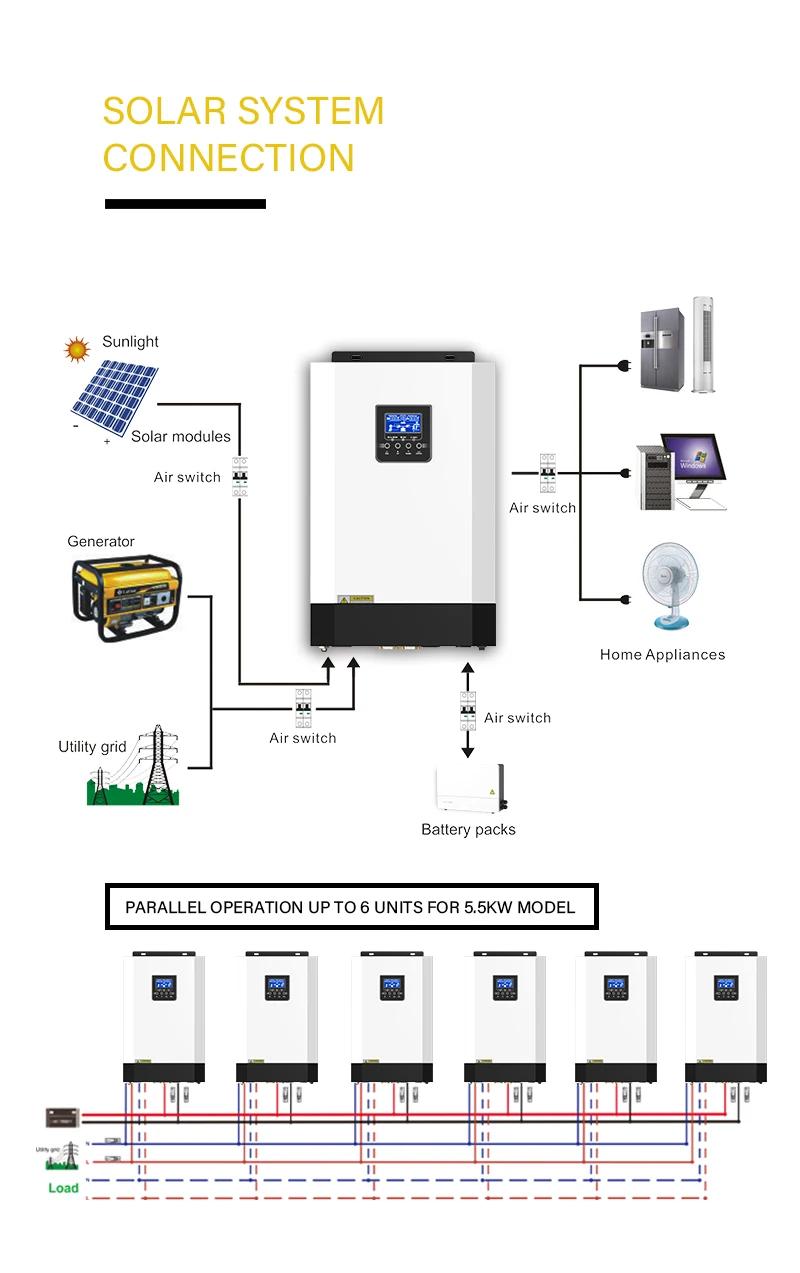

PRODUCT SHOW
