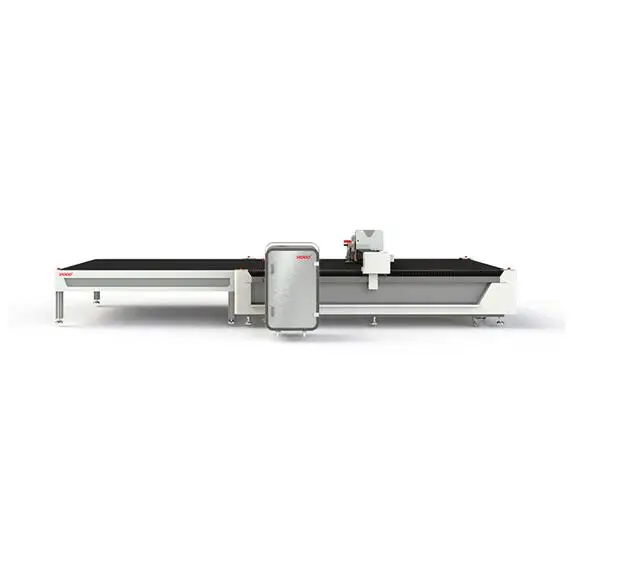

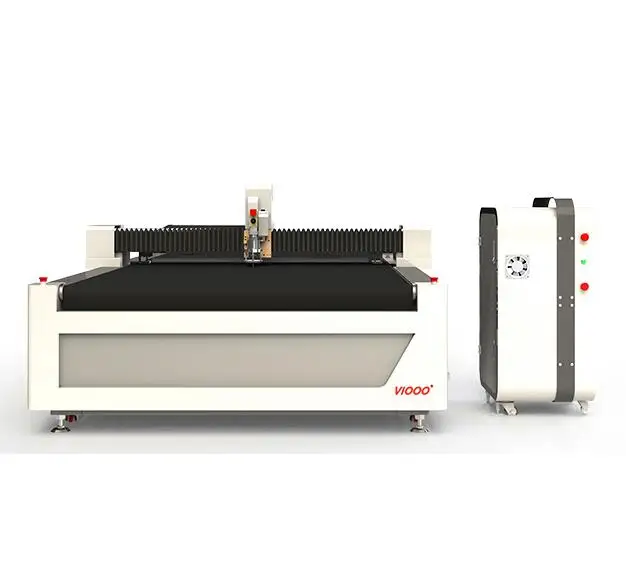

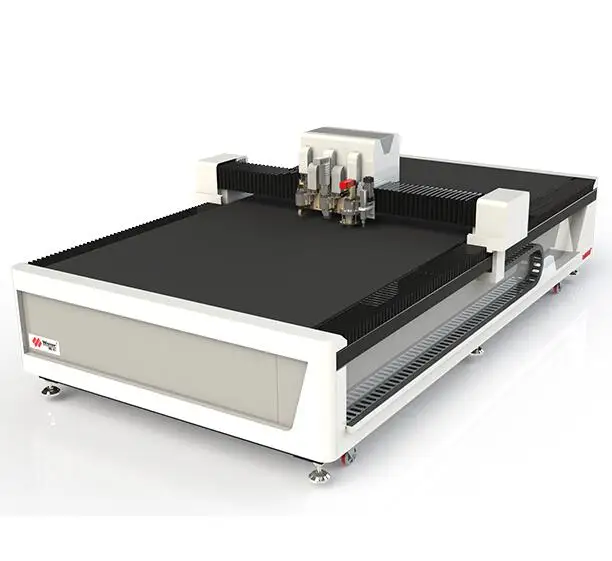

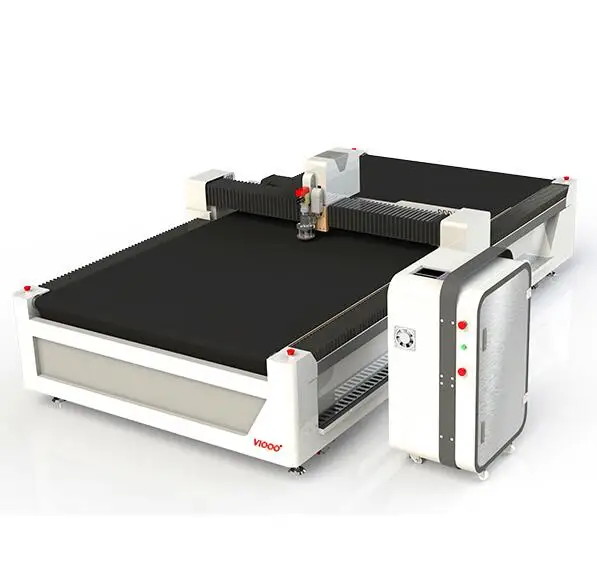

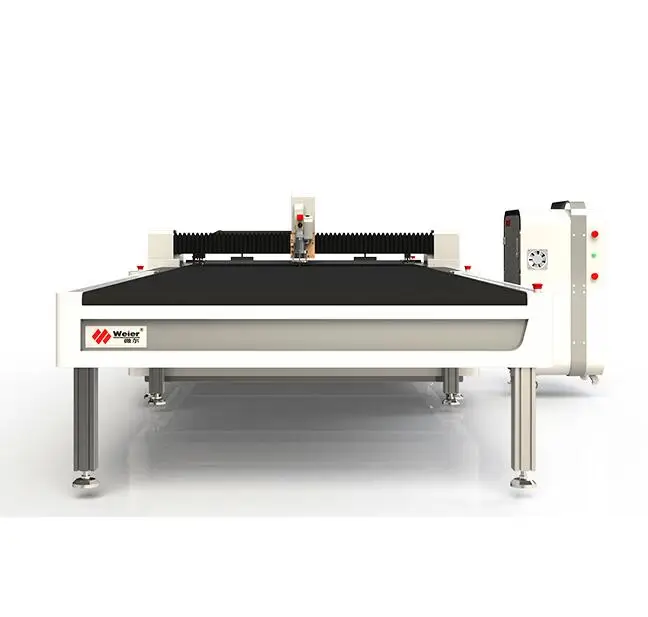

CNC Automatic Nonwoven Fur Fabric Rotary Knife Cutting Machine for Textile Industry
- Category: >>>
- Supplier: Jinan Weier Laser Equipment Co. Ltd.
Share on (1600289999264):
Product Overview
Description
Product Description
CNC Automatic Nonwoven Fur Fabric Rotary Knife Cutting Machine for Textile Industry
This cutting system supplies the best solution to make sampling and large volumn production for garments industries, and equipped with variety of knives and pens, and satisfies different kinds of material cutting. Such as real leather,denim,fabric, Cardboard containers, corrugated cardboard, solid fibre board, synthetics,kraft paper,white paperboard,M.G.wrapping paper,red hard leather paper,PVC board,Cellulose insole board,PU leather,Canvas,Artificial leather,sponge,blended fabric,cotton and hemp materials,Oxford cloth,Fur,Knit
Specifications | |||||
Model | 1625 | 1825 | 2035 | 2240 | Customizable (L*W) |
Cutting size | 1600mm*2500mm | 1800mm*2500mm | 2000mm*3500mm | 2200mm*4000mm | L: 800mm-15000mm W: 800mm-5000mm |
Feeding mode | manual/automatic | ||||
Max cutting speed | 1500mm/s | ||||
Cutting precision | ±0.1mm | ||||
Max cutting thickness | 30mm(special support custom) | ||||
Data format | DXF, PLT, AI, etc. | ||||
Transmission mode of data | networking cable, data line, USB disk | ||||
Materials fixation | vacuum adsorption | ||||
Power of vacuum pump | 7.5kw,9kw,11kw | ||||
Working voltage of main machine | AC220V/50HZ | ||||
Working voltage of vacuum pump | AC380V/50HZ | ||||
Rated power | 10KW-13.5KW | ||||
Cutting tool | high frequency vibration knife | ||||
Optional tools | oscillating knife full Cutting tool, high power active circular knife tool, punching tool, pneumatic oscillating knife tool, drag knife tool, half Cutting tool, V-cut tool, ball-point pen tool, creasing tool | ||||
Applicable materials | Non-metal materials including car mat, cloth, PE foam, fiber glass, corrugated cardboard, carton, soft PVC crystal mat, leather, sponge, advertising materials, composite materials, etc. | ||||
Graphic positioning way | CCD, Camare, Projector | ||||
Applicable industries | advertising, carpet, garment, fabrics, automotive interiors, suitcases and bags making, packaging, sound-proofing, etc. | ||||

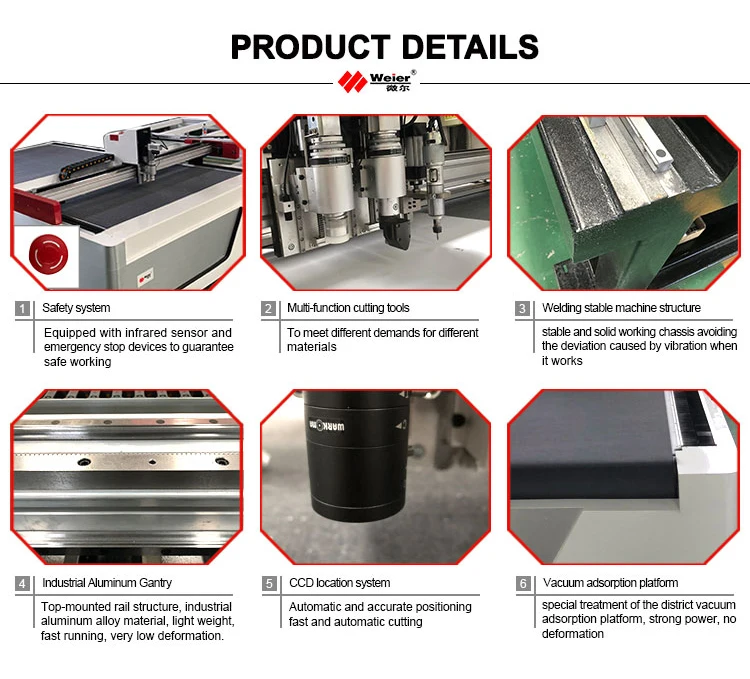

Parts Details
Materials Sample

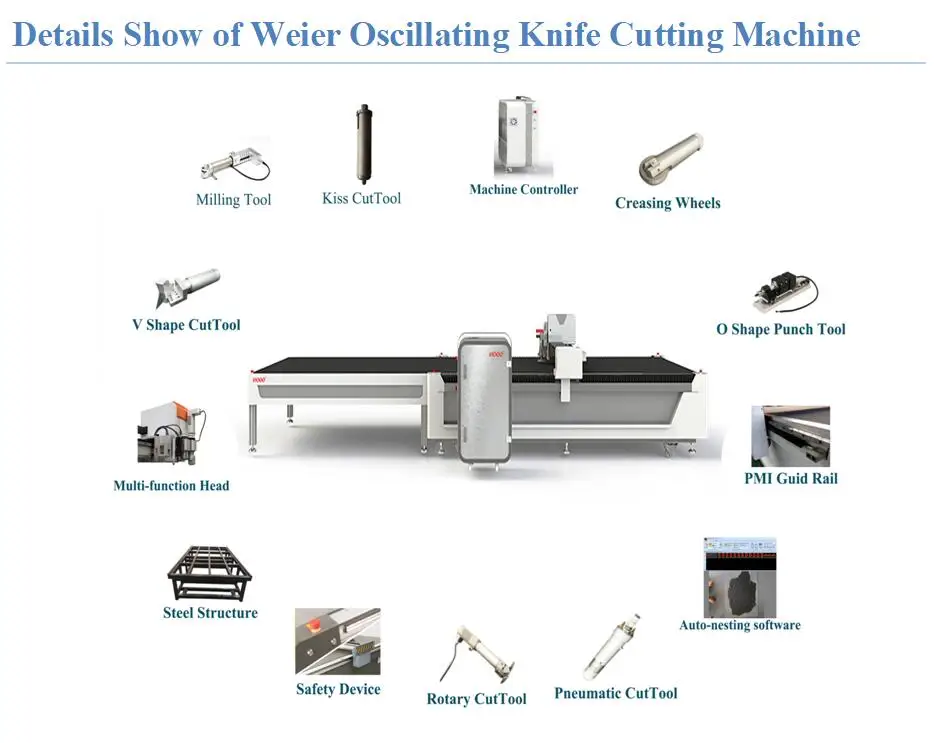

Optional cutter
Exhibition
Company Information

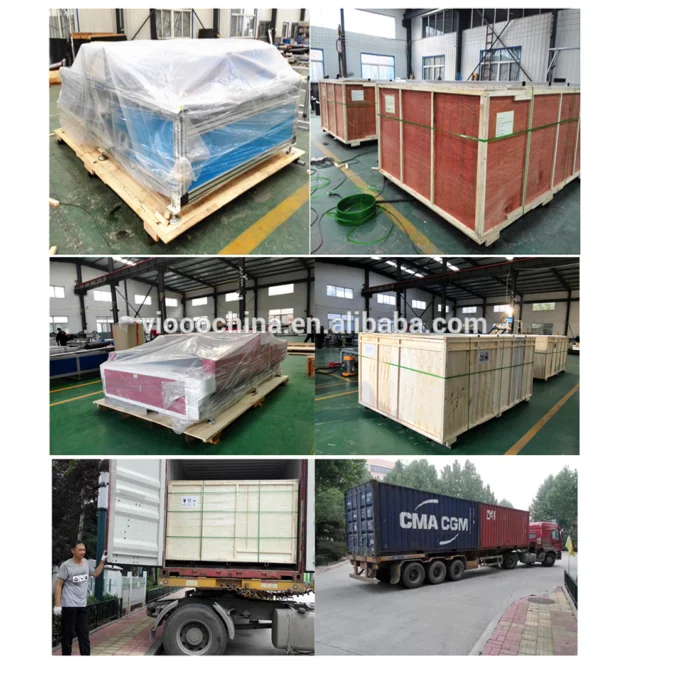

Packaging & Shipping
