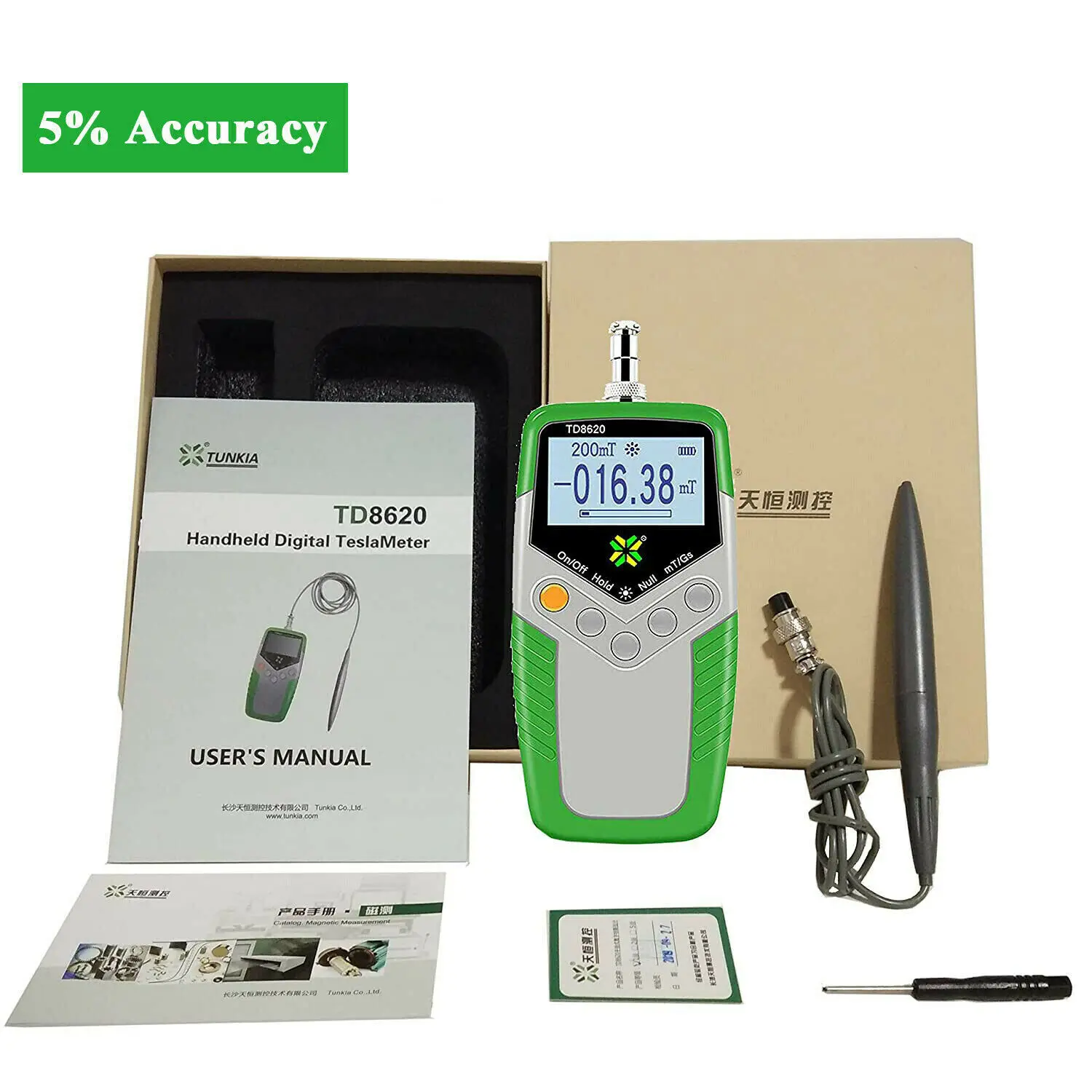

Digital Gauss Meter Tesla Meter Surface Magnetic Field Tester Gaussmeter with 5% Accuracy Ultra Large Range 0 to 2400mT
- Category: Gauges >>>
- Supplier: Hefei Vetus Electronic Technology Co. Ltd.
Share on (1600290010222):
Product Overview
Description
Digital Gauss Meter Tesla Meter Surface Magnetic Field Tester Gaussmeter with 5% Accuracy Ultra Large Range 0 to 2400mT
Features:
*The product consists of three measurement accuracies, +/-1%, +/-2%, +/-5%, with different grades for different prices.
(The product for this order 's accuracy is +/-5% )
*Dedicated to measuring the surface flux density of permanent magnet materials B, range: 0 to 2400 mT

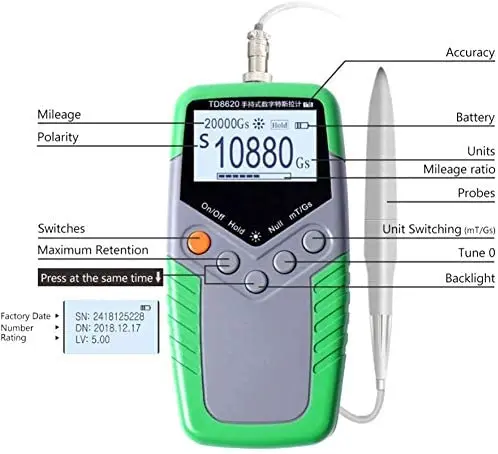

*The value can be switched by one button: mT (mite) or G (gauss).
*With automatic zero and auto range, and maximum hold function.
*With backlight adjustment, power display and automatic shutdown function.
*Light weight and low power consumption.
Introduction:
The design of TD8620 hand-held digital Tesla meter follows the IEC-61010-1 safety standard, and conforms to the national verification regulation of JJG242-1995 Tesla meter. TD8620 hand-held digital Tesla meter adopts not only the high-sensitivity Hall sensor and high-resolution A / D conversion chip, but also the popular single-chip computer technology and digital filtering technology . It has the advantages of high sensitivity, stable reading, low power consumption , and light weight. The measurement range is 0-2000 Mt, and the basic accuracy is ±1%. It has the characteristics of automatic zero, automatic measurement range, keeping of maximum / minimum values, etc.
Specification:
Level 5 technical specifications
Range :200 mT 2000 mT
Range of measurements:0 ~ 120%
Minimum resolution :10uT
Basic accuracy :0~1000mT:±2% ,1000mT~2400mT:±5%
Number of digits displayed :4 bits (Decimal)

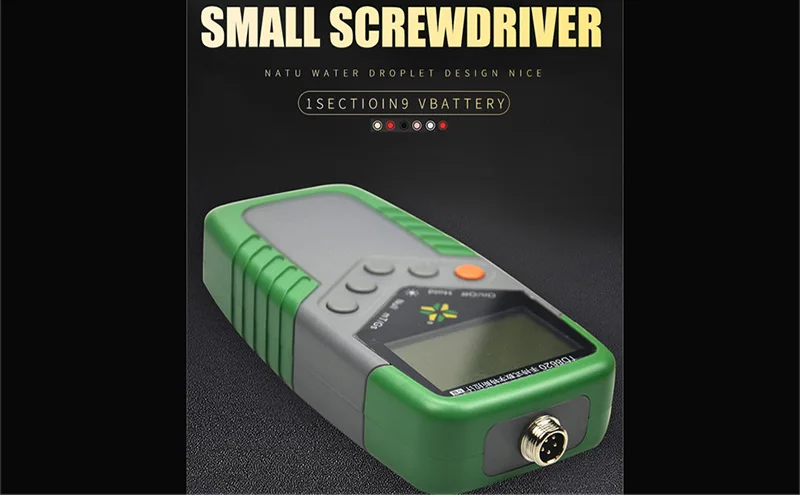

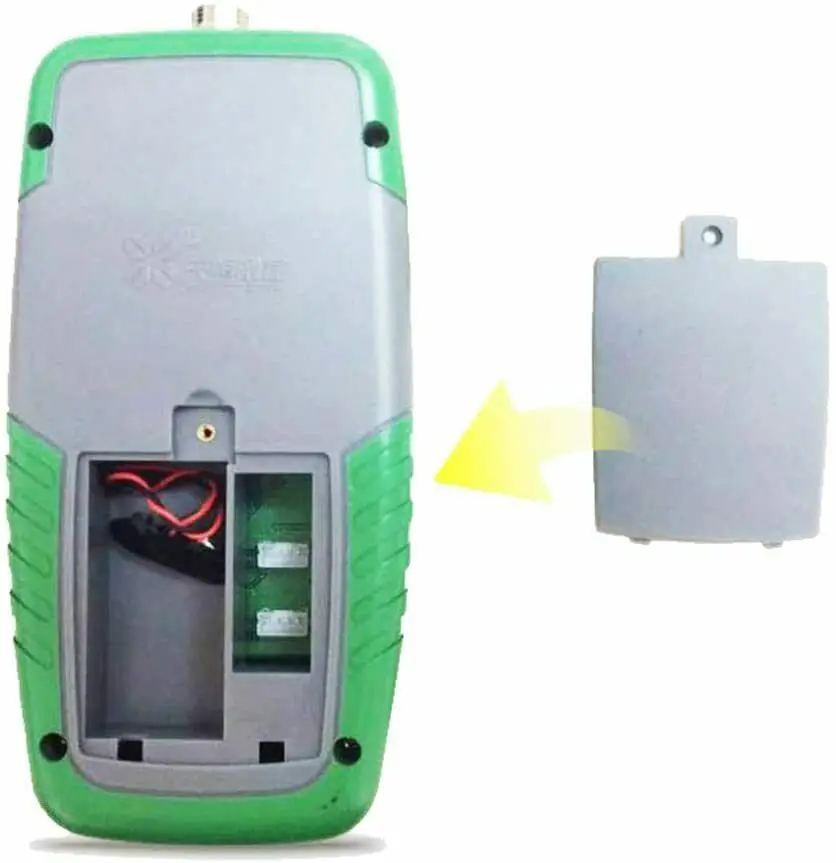

Power supply :one 9 V battery(battery is not included)
Working temperature :0℃ ~ 50℃
Storage temperature :-20℃ ~ 50℃

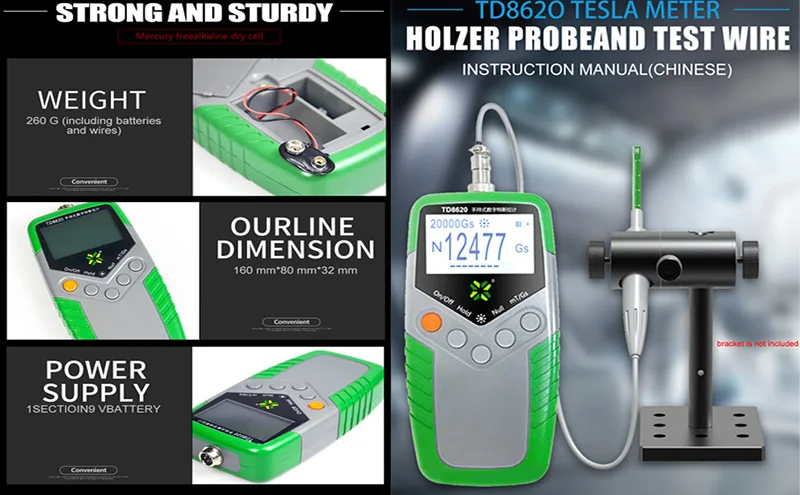

Shape size :160 mm × 80 mm × 32 mm
Device weight :260 g (including batteries and wires)
Hall probe Longitudinal Hall probe, wire length is about 2 meters
