Product Overview
Description
Products Description

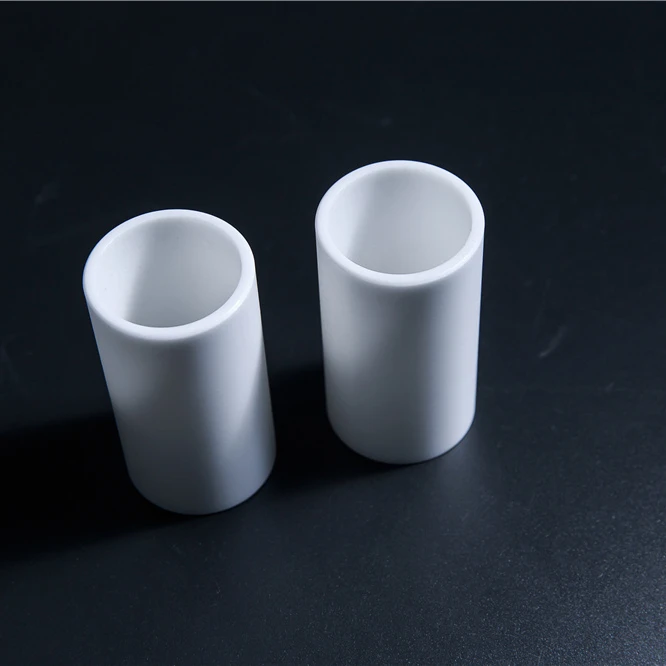

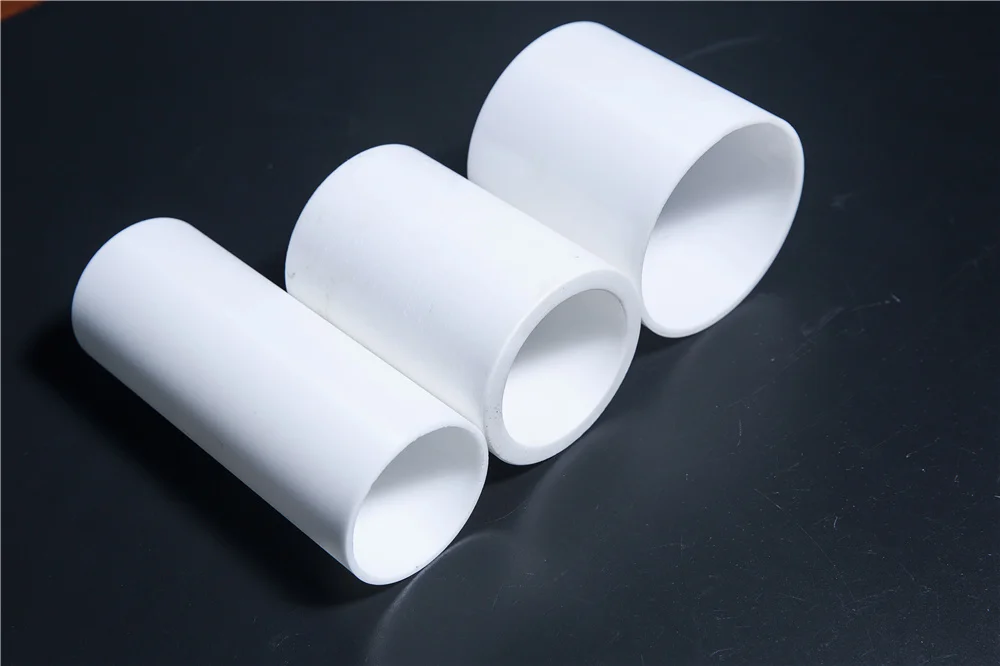

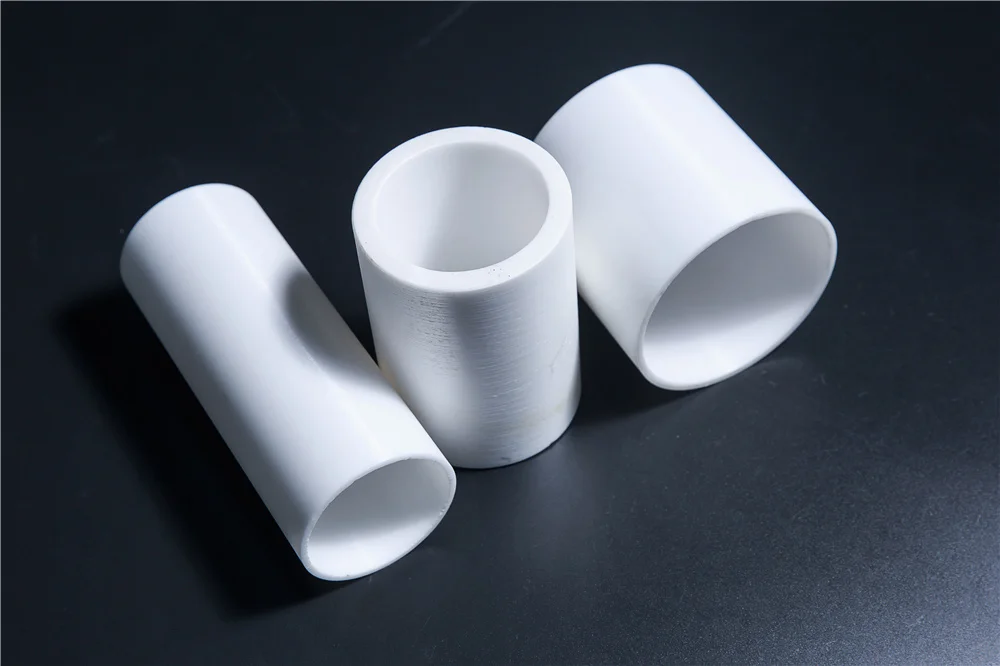

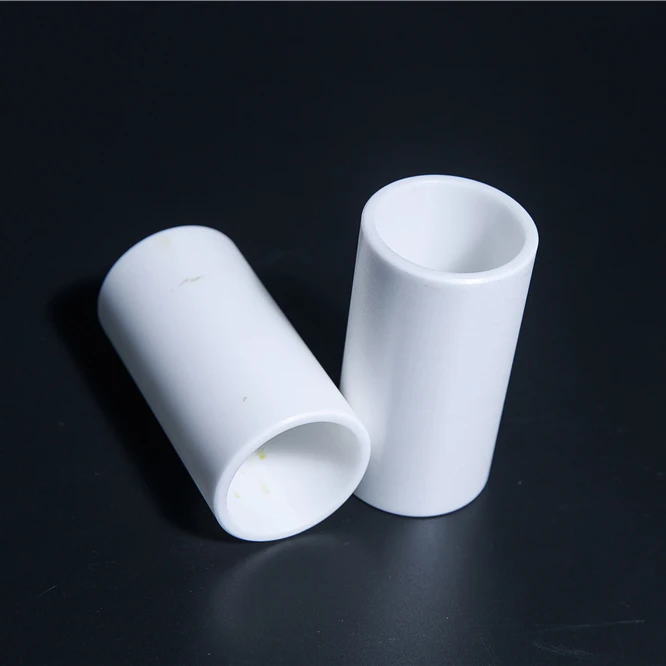

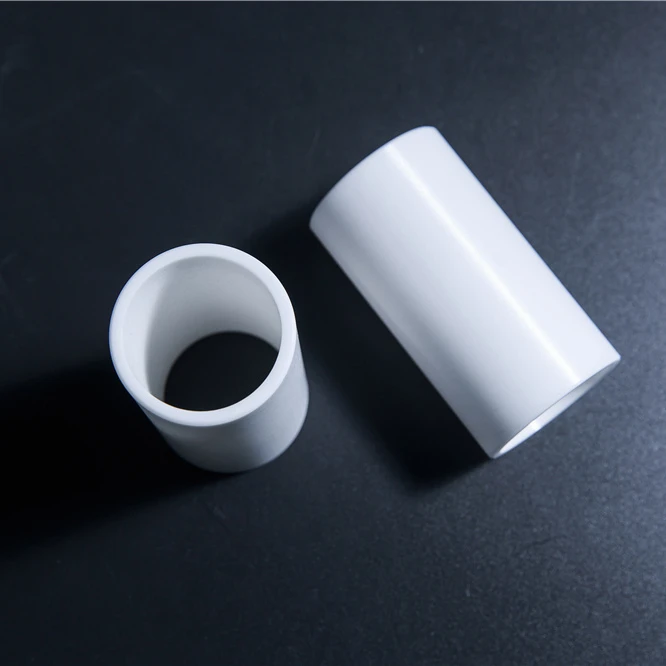

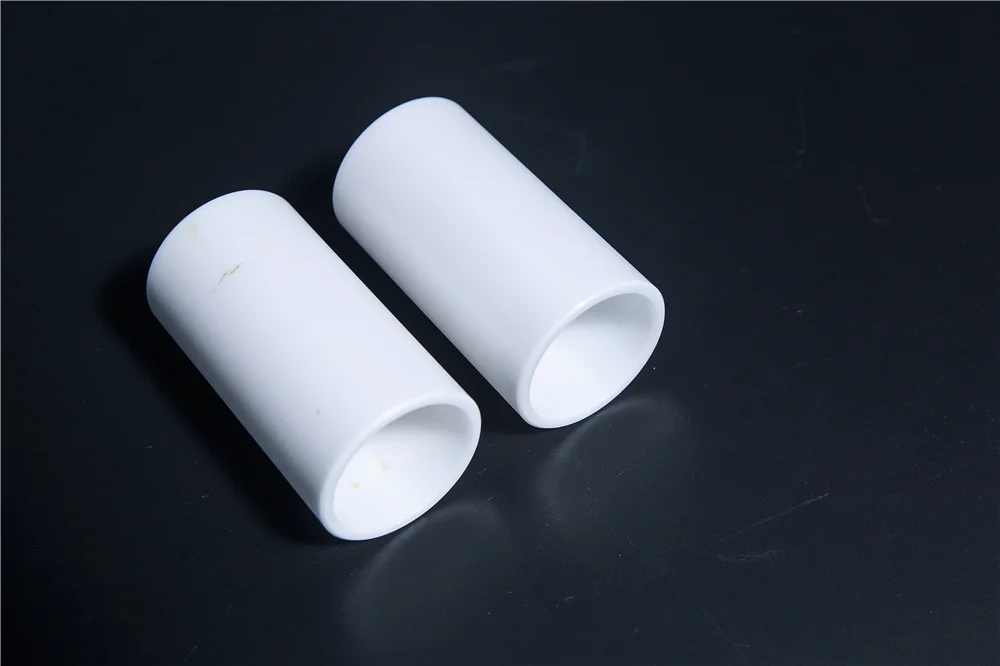

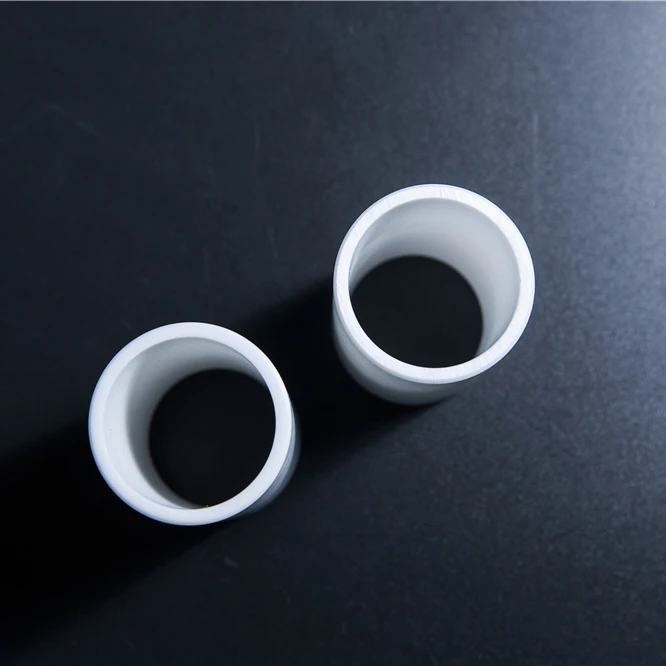

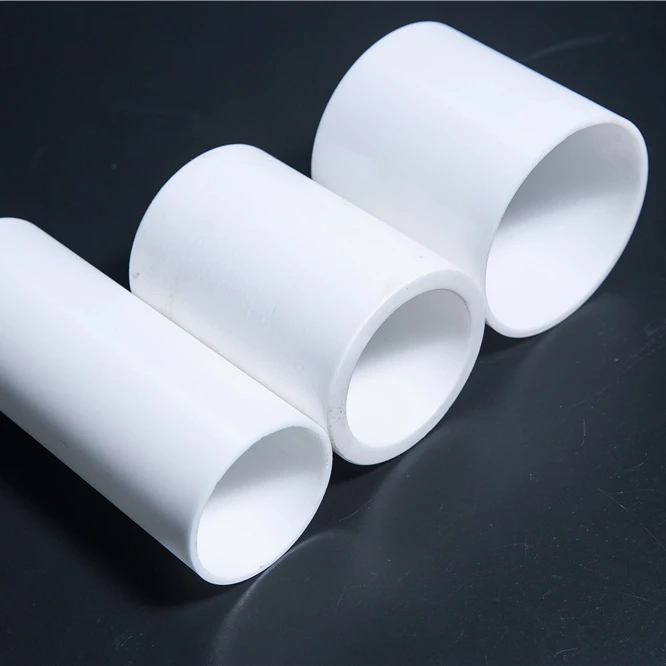

Zirconia Ceramic tube
Zirconia ceramic tubes are stabilized in the cubic crystal structure to avoid cracking and mechanical weakening during heating and cooling. It offers low thermal conductivity and are electrical conductors above 800 centigrade degrees, it has excellent chemical inertness and corrosion resistance at high temperature of 2200 centigrade degrees.
Advantage
1 High hardness
2 High toughness
1 High hardness
2 High toughness
3 good Corrosion resistance
4 Low friction coefficient
4 Low friction coefficient
5 good wear resistance
Technical Parameters
Properties | Units | Value |
Density | g/cm3 | 6.04 |
Color | - | white |
Water Absorption | % @R.T. | 0.0 |
Hardness | Moh's | 6.5 |
Hardness | knoop (kg/mm2) | 1600 |
Compressive Strength | MPa @ R.T. | 2500 |
Tensile Strength | MPa @ R.T. | 248 |
Modulus of Elasticity (Young's Mod.) | GPa | 207 |
Flexural Strength (MOR) | MPa @ R.T. | 900 |
Fracture Toughness, KIc | MPa x m1/2 | 13.0 |
Max. Use Temperature (* denotes inert atm.) | ºC | 2400 |
Thermal Shock Resistance | DT (ºC) | 280 - 360 |
Thermal Conductivity | W/m-K @ R.T. | 2.7 |
Coefficient of Linear Thermal Expansion, al | mm/m-ºC (~25ºC through ±1000ºC) | 11.0 |
Specific Heat, cp | cal/g-ºC @ R.T. | 0.10 |
Dielectric Constant | 1MHz @ R.T. | 26 @100kHz |
Dielectric Strength | kV/mm | 9.0 |
Electrical Resistivity | Wcm @ R.T. | >1013 |
