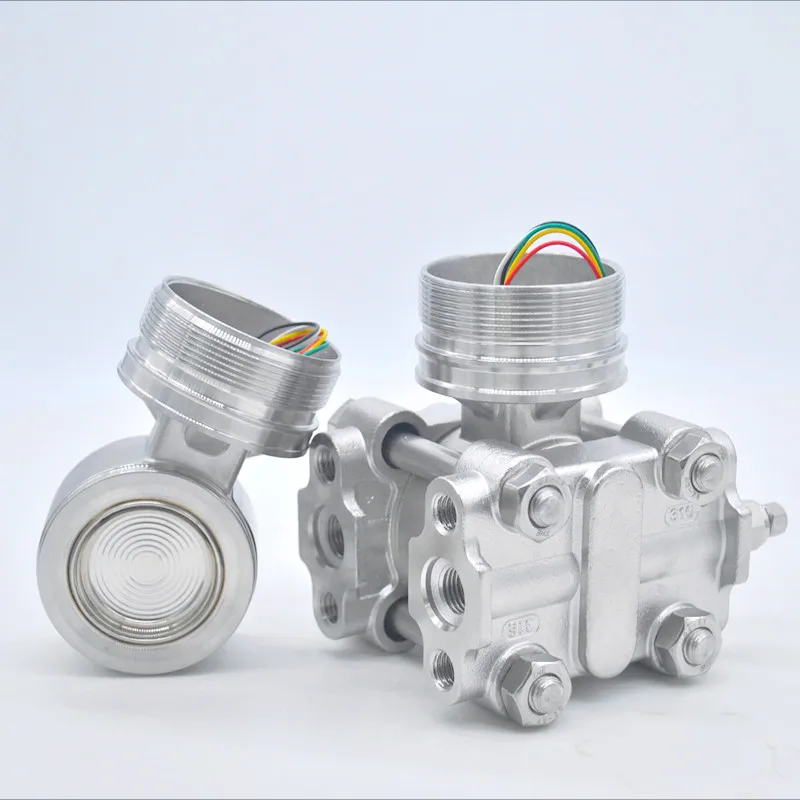

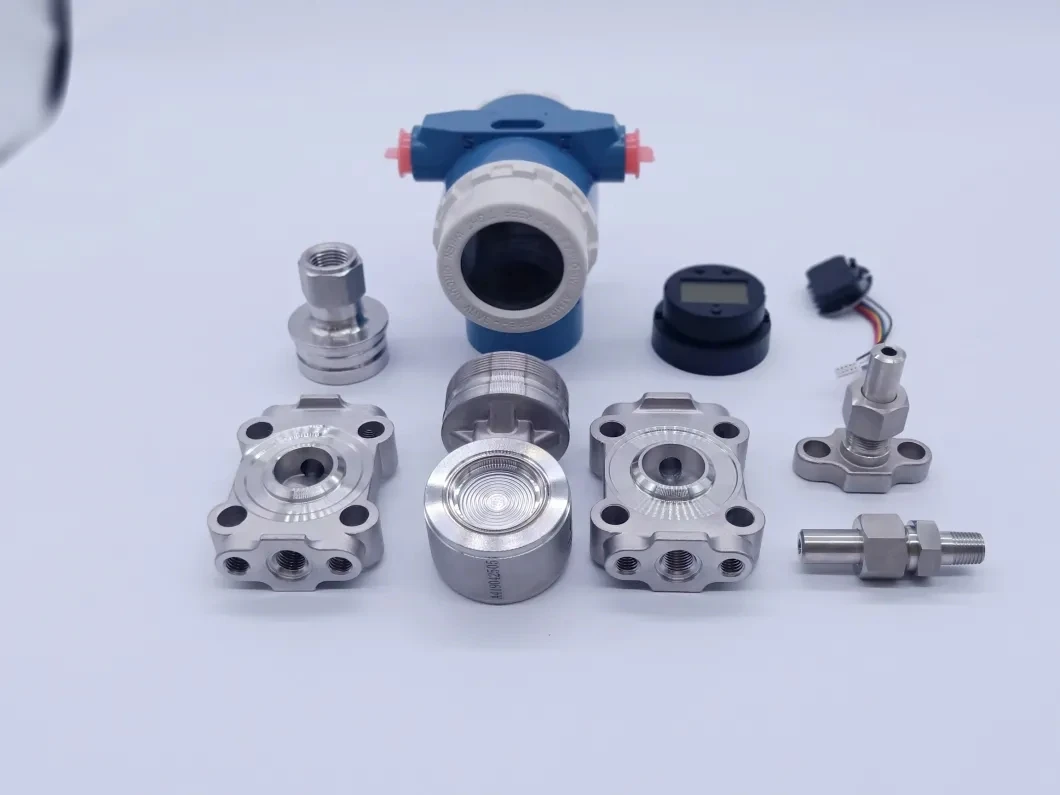

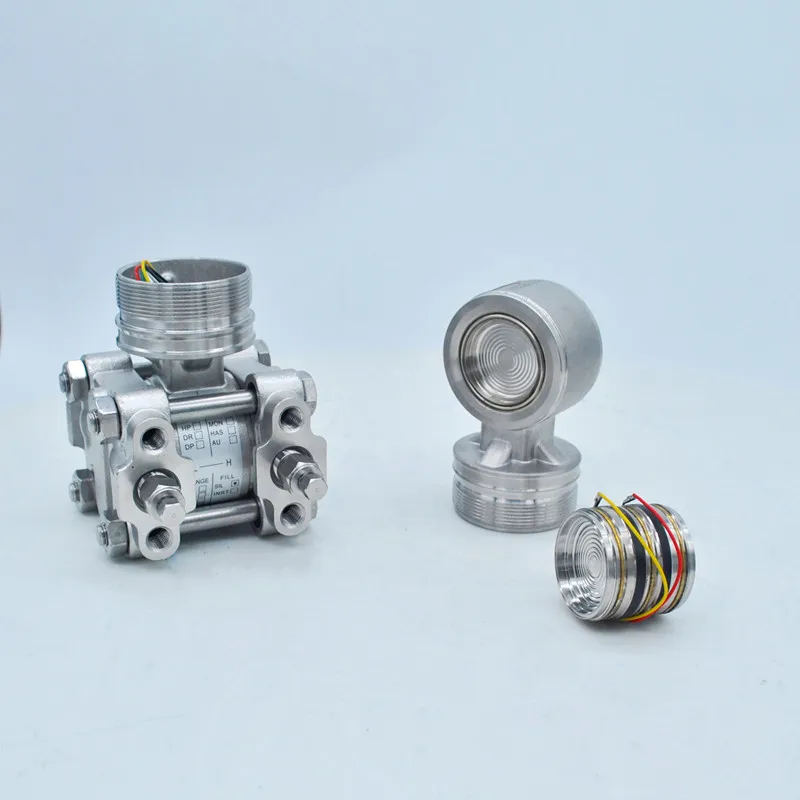

Differential Pressure Transmitter assemble parts pressure sensor with flange pressure device
- Category: Pressure Sensors >>>
- Supplier: Yantai,Auto,Instrument,Making,Co.,Ltd.
Share on:
Product Overview
Description

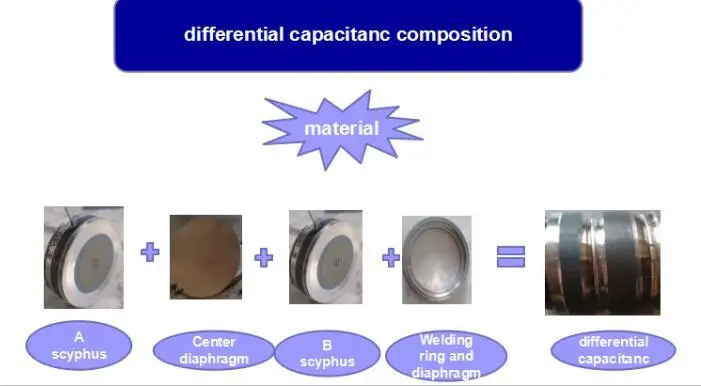

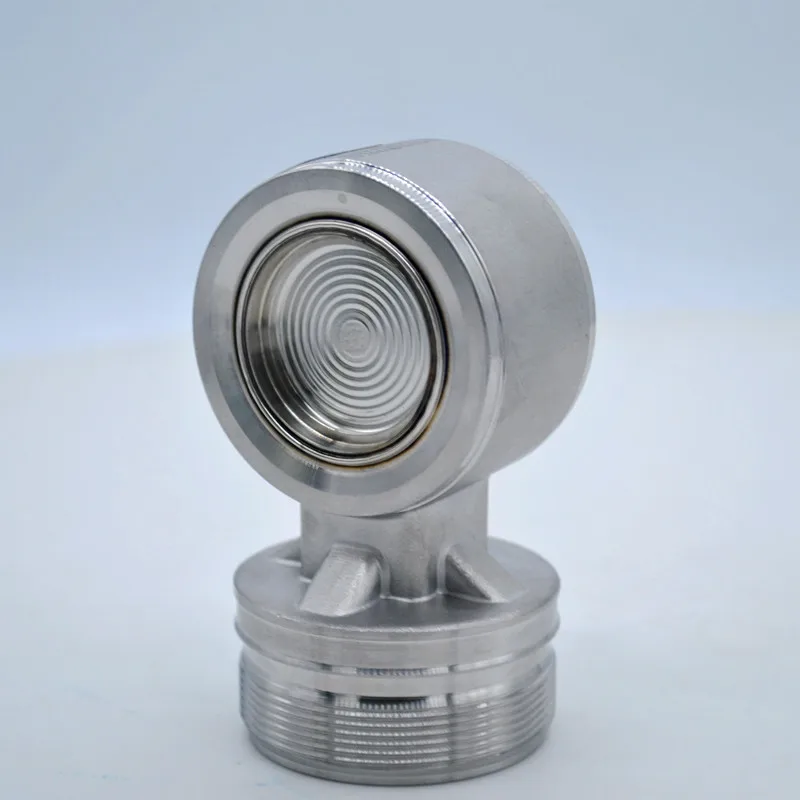

Capacitive Pressure Sensor
Introduction
The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and
pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor canalso measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor canalso measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Pressure sensor Features
Item | Para meters |
Accuracy | ±0 . 1 % / ±0 . 075 % |
Stability | ±0 . 2% （ 12 mo n th s） |
Temp range | -40℃ ~+ 14 0 ℃ |
Temp affect | zero erro r： ±0 . 25 %/ 55 ℃ |
range erro r： ±0. 5 %/ 55 ℃ | |
Static pressure | DP 13.8MPa HP 25MPa DR 6.9MPa |
Overpressure limit | AP GP 13.8MPa DR DP HP |
Diaphragm material | 316Lss HastelloyC Tant alum |
Pressure sensor Sheet
Item | Code | Specification | |
AT3051DP | Differential Pressure Sensor | ||
AT3051GP | Gauge Pressure Sensor | ||
Measurement Range | 2 | 0-0.1~1.5 Kpa | |
3 | 0~7.5 Kpa | ||
4 | 0~37.4 Kpa | ||
5 | 0~186.8 Kpa | ||
6 | 0~690 Kpa | ||
7 | 0~2068 Kpa | ||
8 | 0~6890 Kpa | ||
9 | 0~20680 Kpa | ||

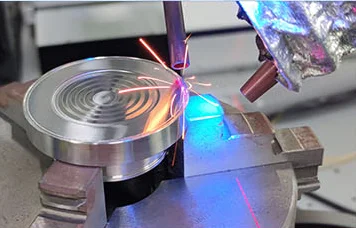

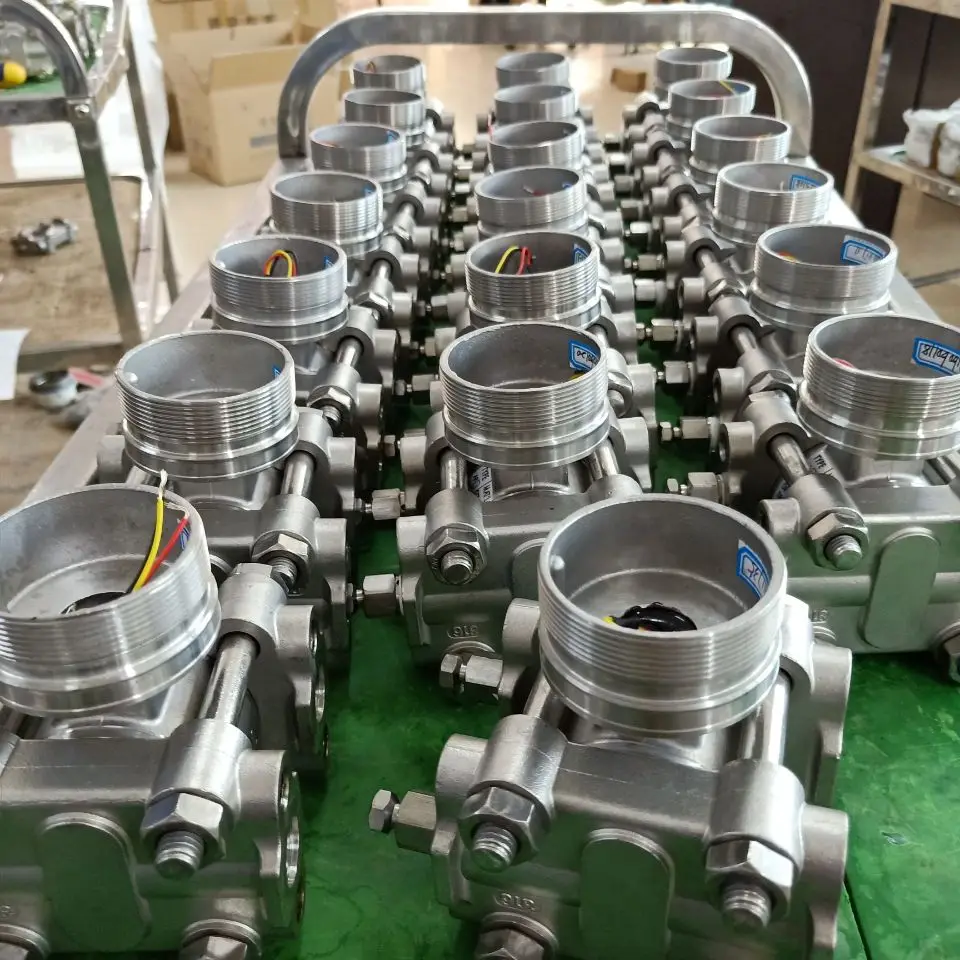

Production Line

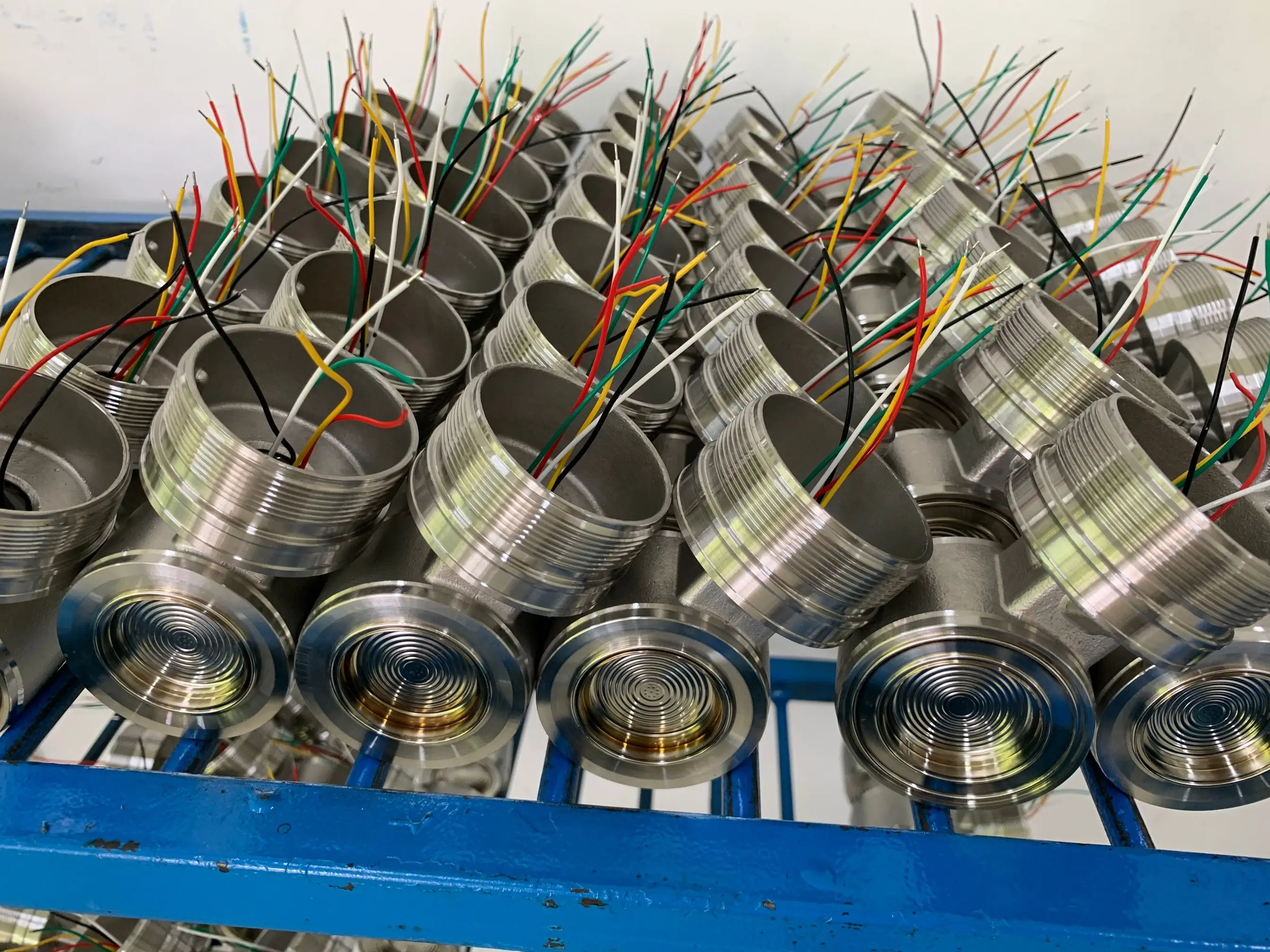

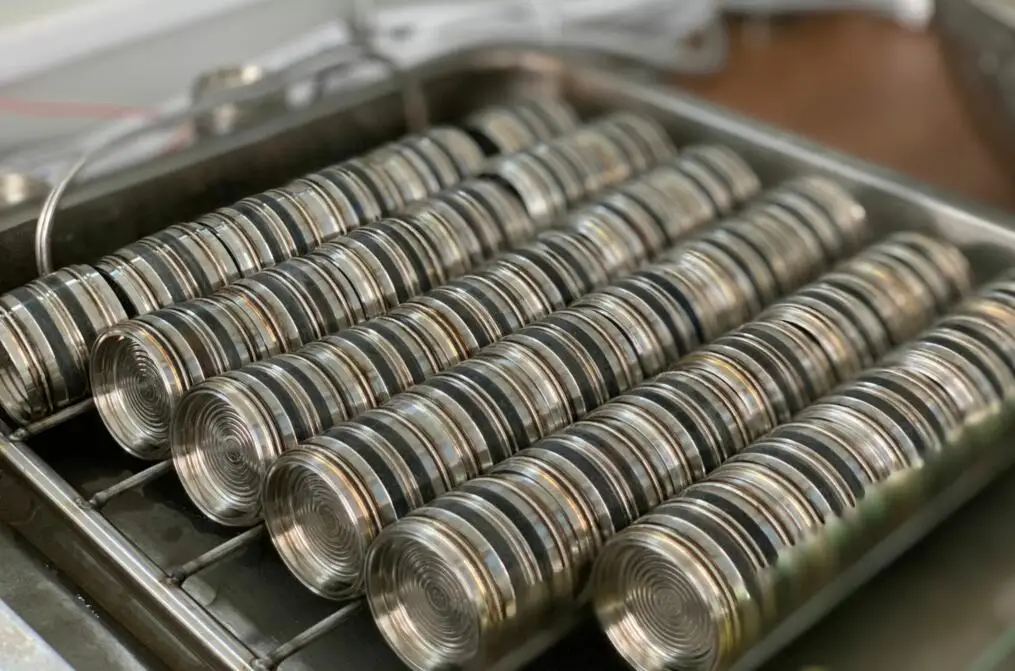

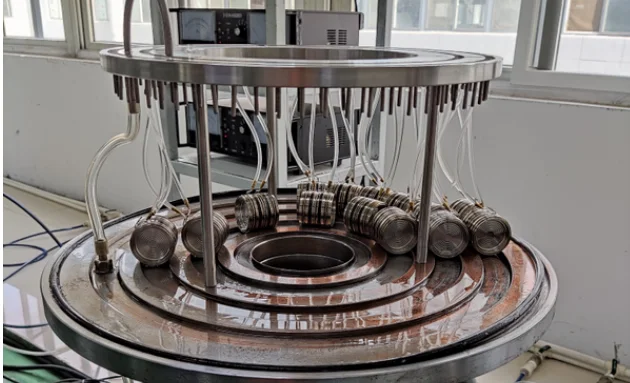

Pressure Sensors Production
Applications

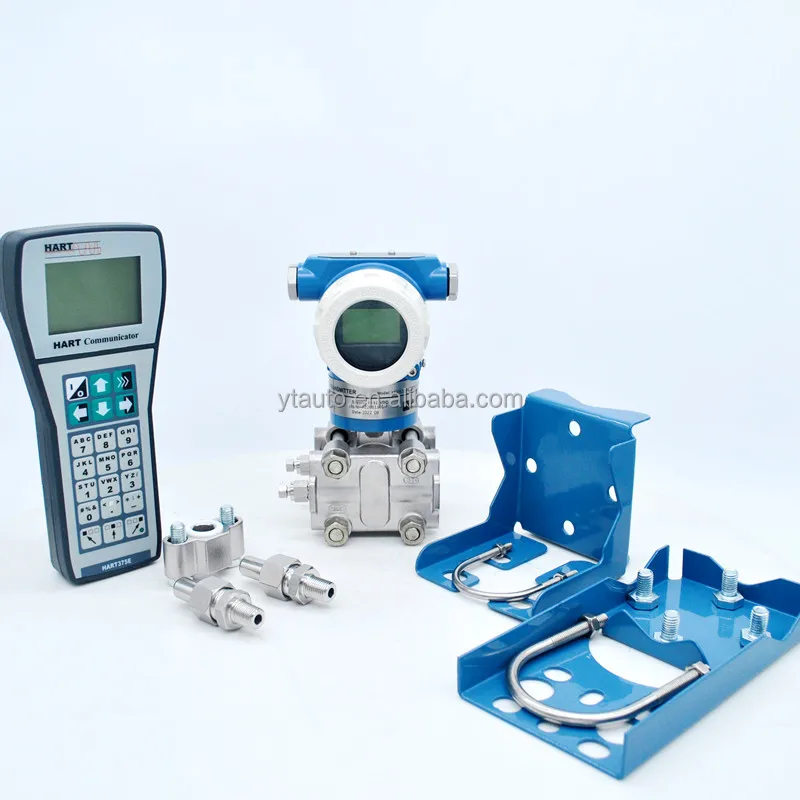

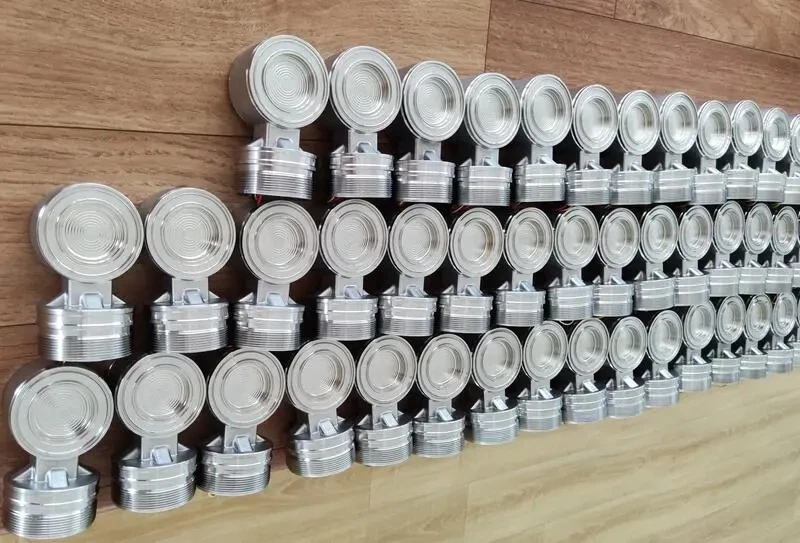

Pressure Sensors Ready for delivery
Company Profile
Yantai Auto Instrument Making Co., Ltd
Yantai Auto Instrument Making Co., Ltd has advanced production equipment and high-precision import calibration equipment , it is a high-tech enterprise integrating product design , research and development , production and sales .Widely used in enviroment protection,power,petrochemical,metallurgy , electric power,pharmaceutical ,food and other industries .Products are exported to more than 60 countries and regions such as the United states , Germany , Russia , India , Vietnam , South Korea and Pakistan etc.Undertake Rosemount , Yokogawa, Honeywell and other imported brands pressure , differential pressure , liquid level transmitter maintenance business .
