Manufacturer of Wood Panel Saw Machine with Sliding Table for Wood Cutting
- Category: >>>
- Supplier: Qingdao Hongshenghong Machinery Co. Ltd.
Share on (1600290161630):
Product Overview
Description

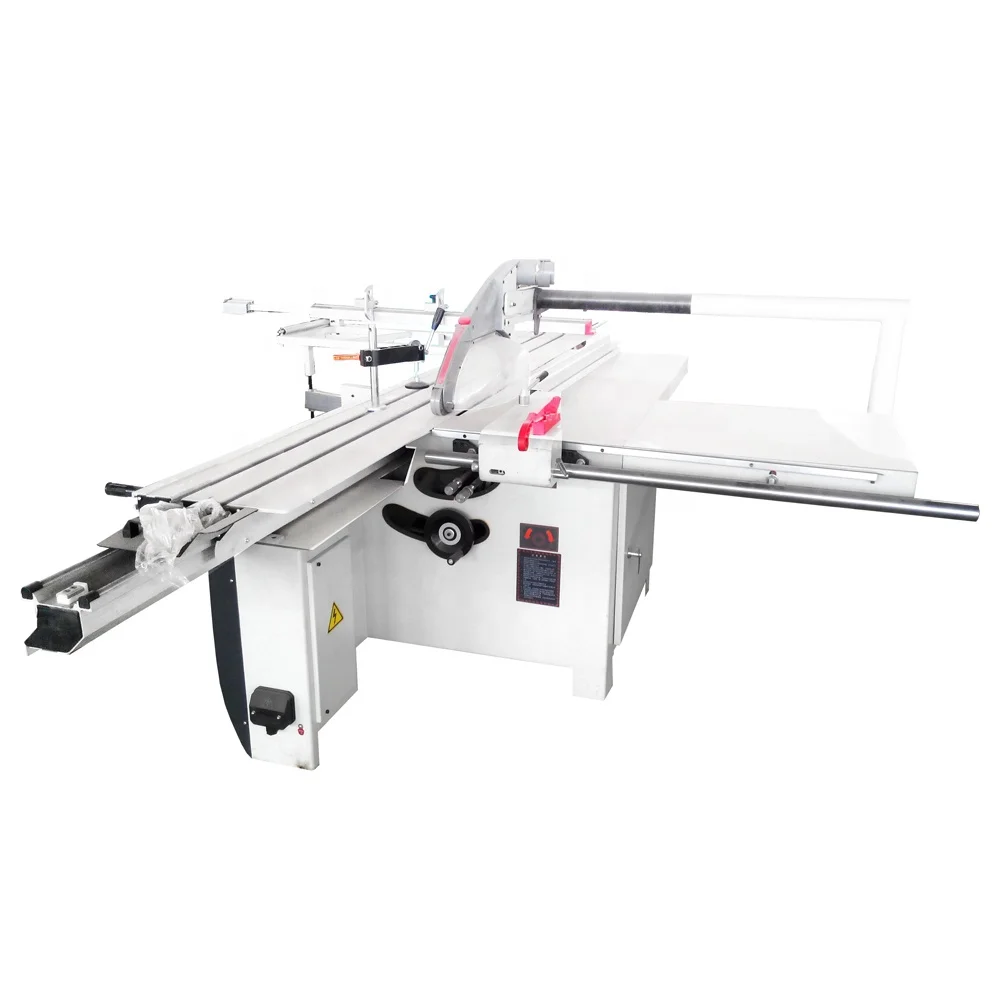

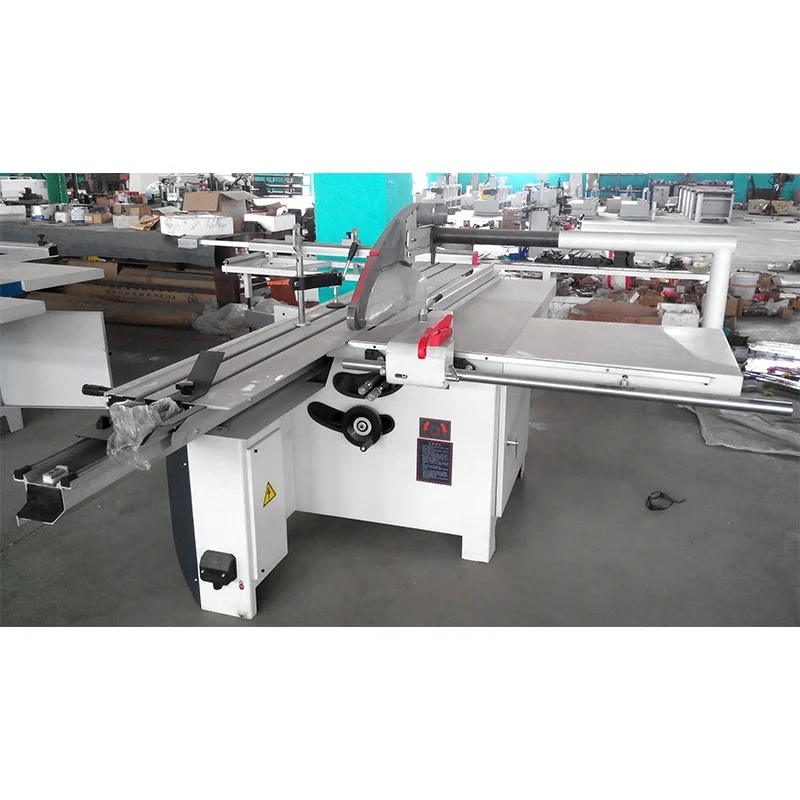

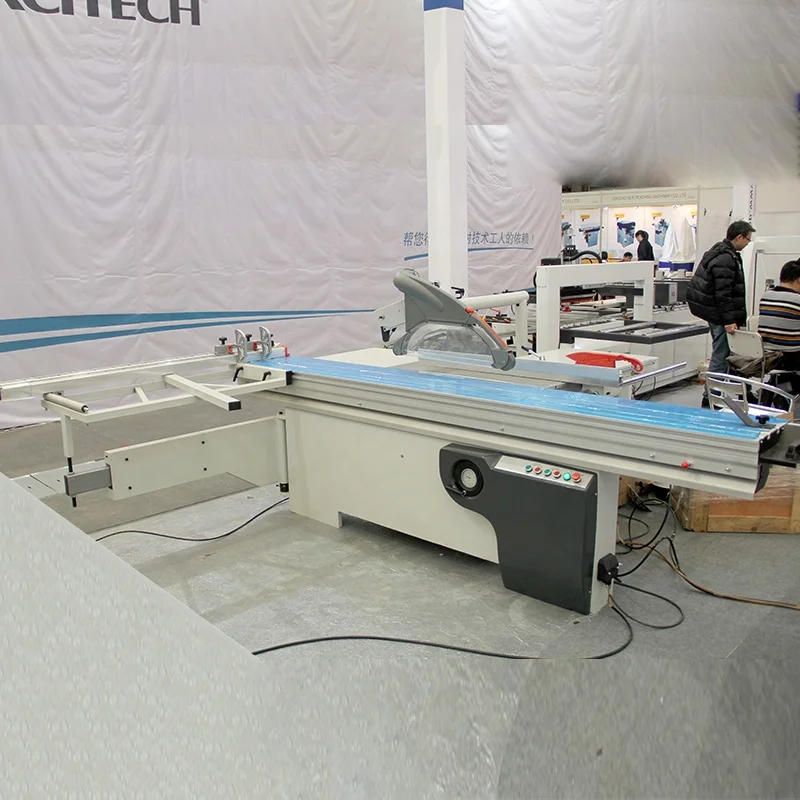

Panel Saw Machine
Features of Panel Saw Machine:
1.Adopted with 375mm width of sliding table, round stick guide rail, the boards on the table are more steady.
2.The motor is 5.5kW, high speed to make sure the edges of panels/boards straight and smooth.
3.Manual up & down and manual tilting angle of saw blade: 0-45 degree
4.The saw blade is supplied with customized , there are more holes and more teeth in the saw blade, the noise is lower than a whole surface and less teeth in it.
5.The scoring saw blade is a smaller blade to score a line before the main saw cuts the boards, more precise and straight.
2.The motor is 5.5kW, high speed to make sure the edges of panels/boards straight and smooth.
3.Manual up & down and manual tilting angle of saw blade: 0-45 degree
4.The saw blade is supplied with customized , there are more holes and more teeth in the saw blade, the noise is lower than a whole surface and less teeth in it.
5.The scoring saw blade is a smaller blade to score a line before the main saw cuts the boards, more precise and straight.
Product Paramenters
Model | MJ6128TA | MJ6130TA | MJ6132TA |
Dimensions sliding table | 2800*375mm | 3000*375mm | 3200*375mm |
Width if cut between saw blade and rip fence | 1250mm | 1250mm | 1250mm |
Saw blade Φ | 300mm (Φ250~Φ300) | 300mm (Φ250~Φ300) | 300mm (Φ250~Φ300) |
Height if cut Φ300mm | 70mm | 70mm | 70mm |
Speed of main saw blade | 4500/6000rpm | 4500/6000rpm | 4500/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Tiling saw blade | 0~45° | 0~45° | 0~45° |
Main motor | 5.5kW | 5.5kW | 5.5kW |
Scoring saw blade | 120mm | 120mm | 120mm |
Speed of scoring saw blade | 8000r/min | 8000r/min | 8000r/min |
Spindle of scoring saw blade | 20mm | 20mm | 20mm |
Motor | 1.1kW | 1.1kW | 1.1kW |
Net weight | 600kg | 600kg | 600kg |
Over dimensions | 2800*3150* 900mm | 3000*3150* 900mm | 3200*3150* 900mm |
Similar Products

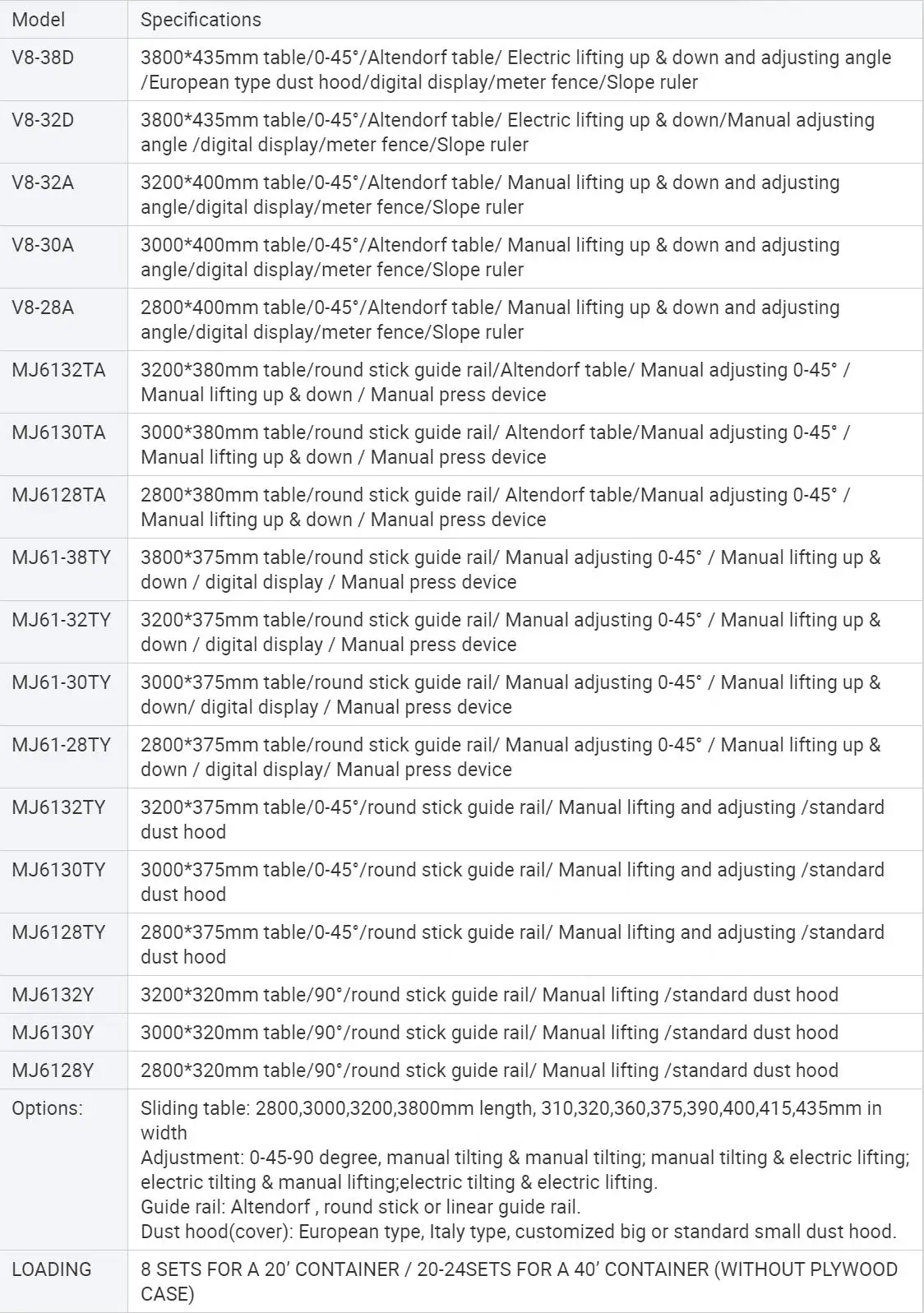

Options for More Panel Saw Machine

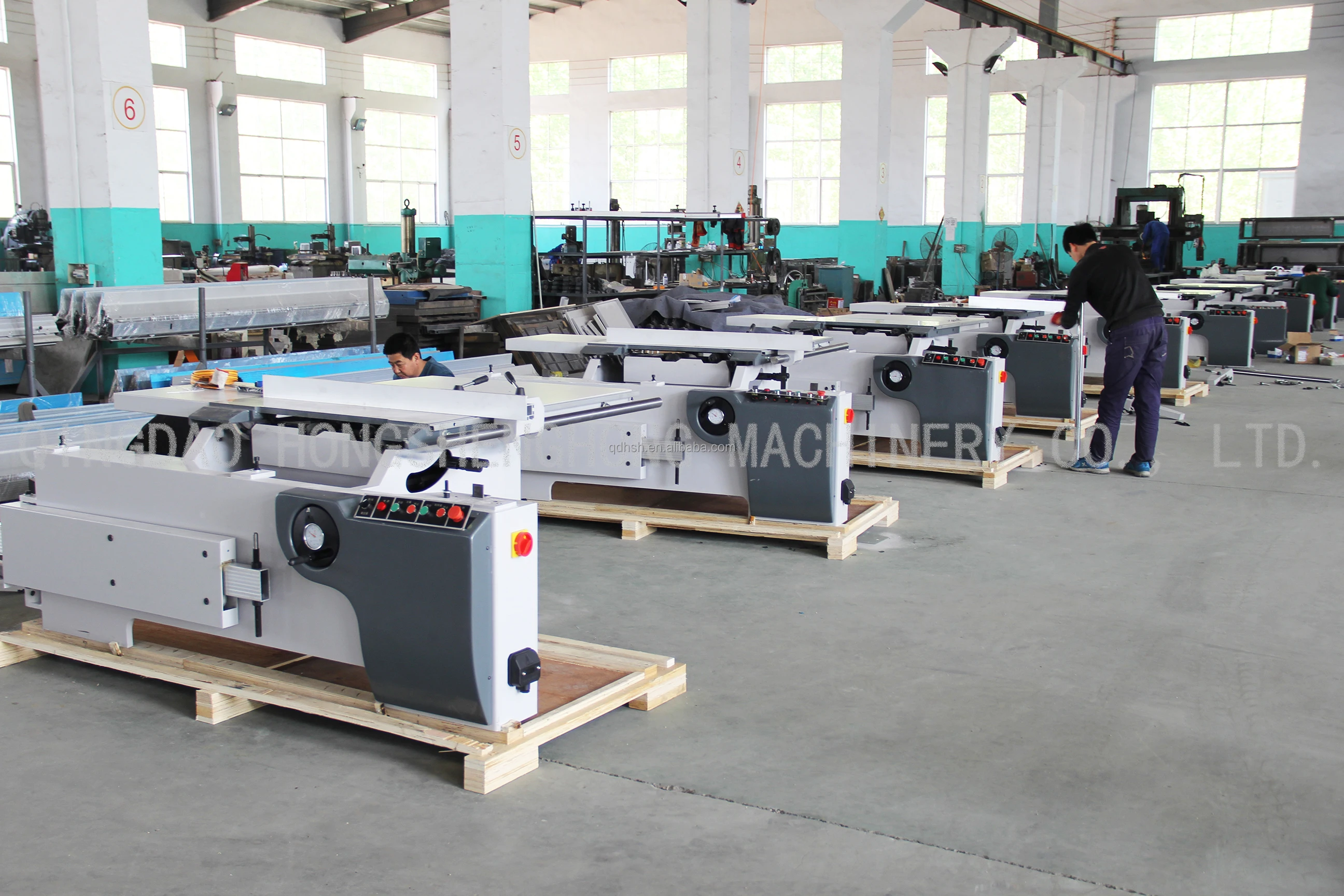

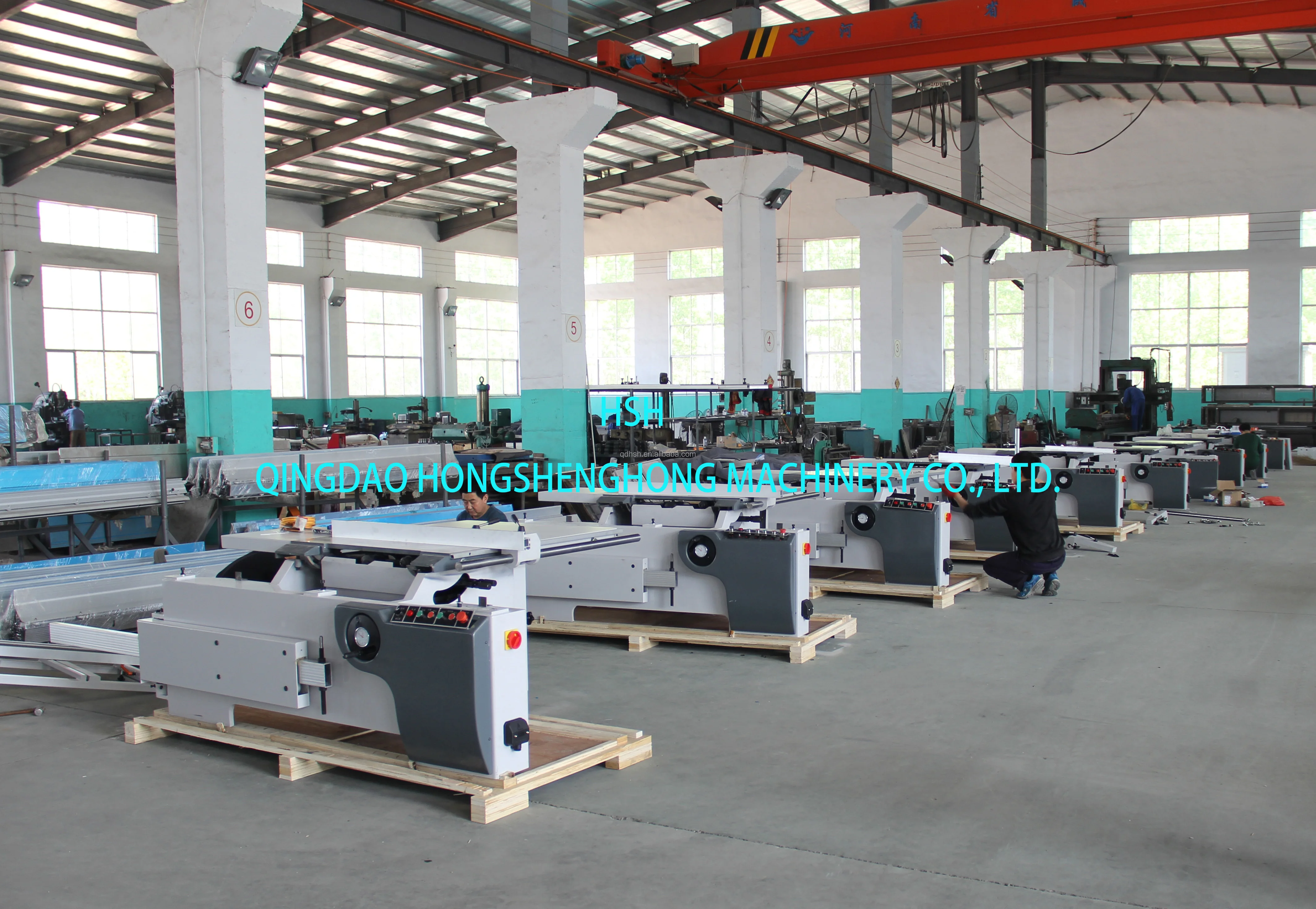

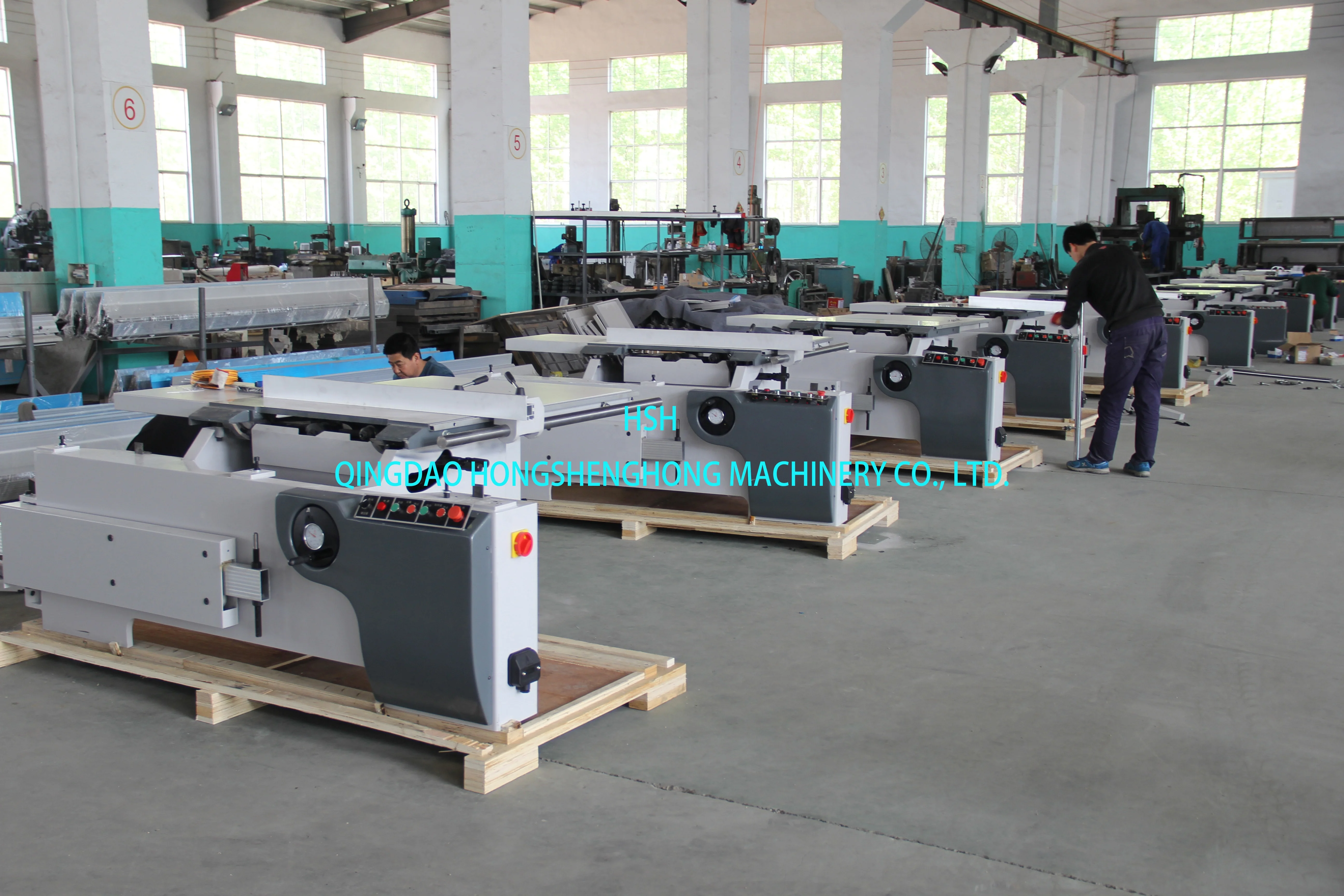

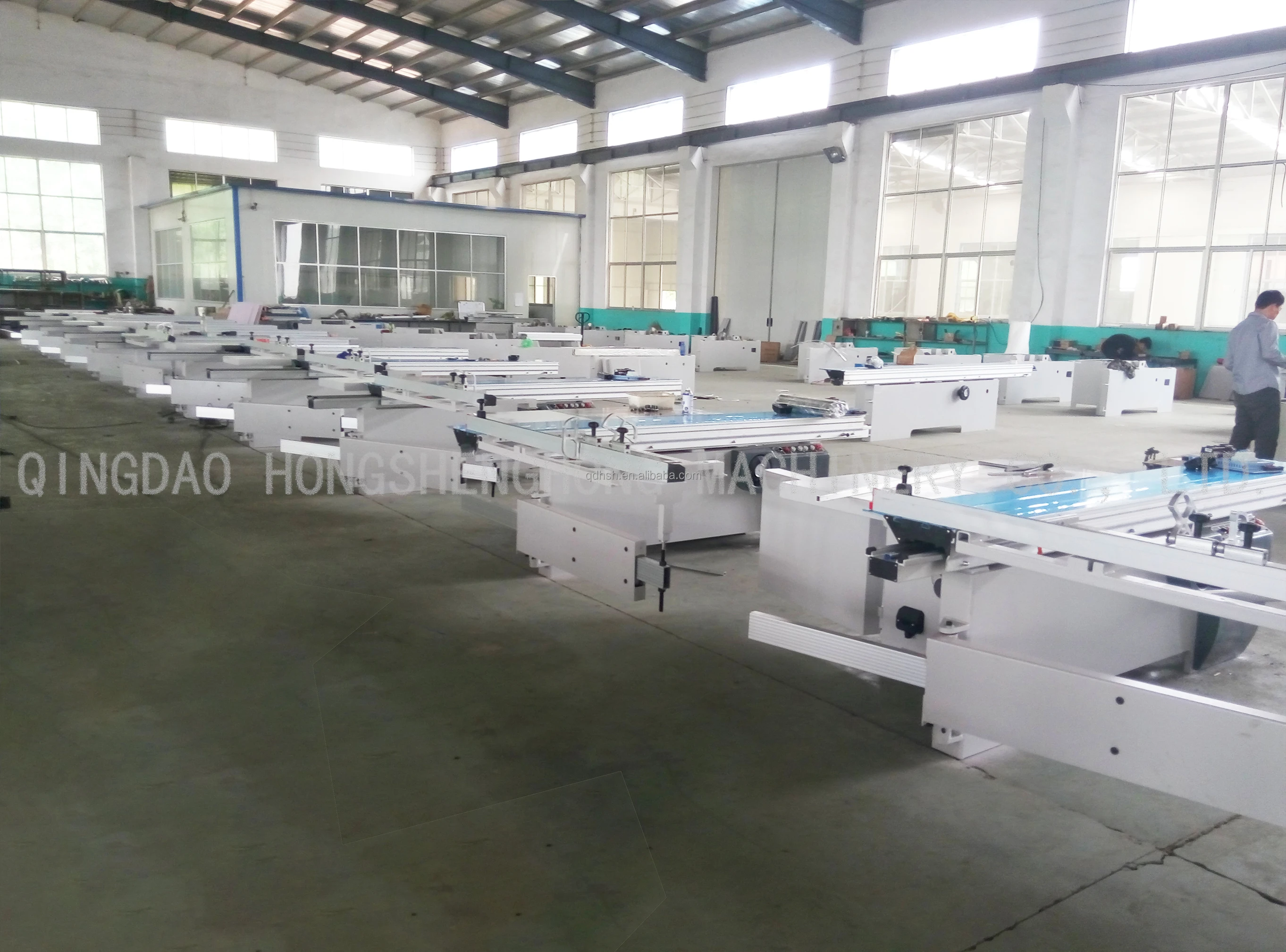

Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sale service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
