Product Overview
Description
Product Description
General
Voltage Controller Relays are designed to avoid the failures of network voltage for the devices which have sensitive working voltage.
Usage and Working Principle
Make the connections according to the diagram. Set the device according to the required electrical charge. When the power is on,if the voltages are same as adjusted, relay led switches on and relay pulls. In this cases contact out is(NO)3 pole. When the volage values are avnormal, relay releases and led is switched off after waiting till the setted time is up. In this case contact out is (NC)1.

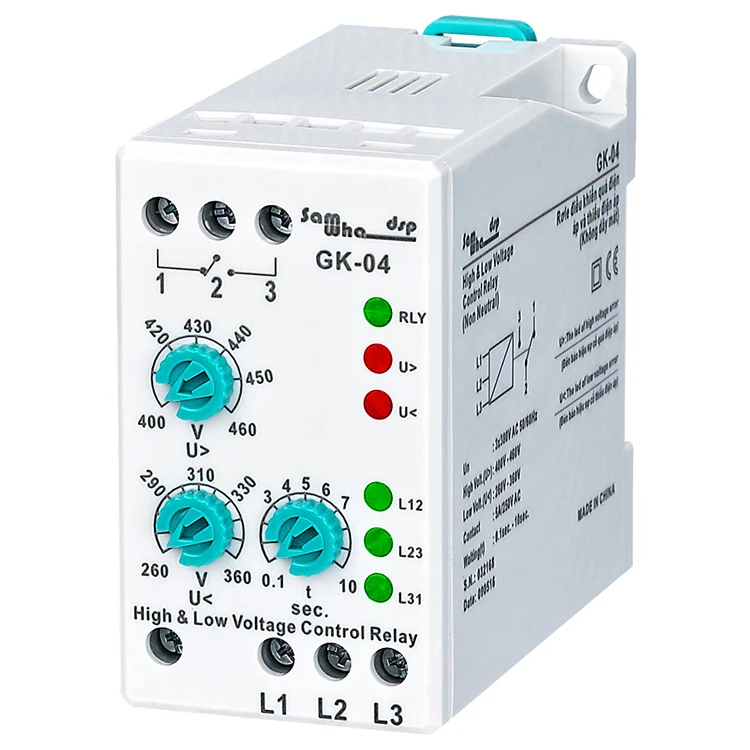

GK-04 type have related led for high and low voltage and Phase failure.
GK-04 type have related led for high and low voltage and Phase failure.
Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don't use any conductor or chemical might damage the device. Make sure device works after cleaning.
Warnings
Please use the device according to the manual.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.
Specifications | ||
Operating Voltage(Un) | 3 x 380V AC | |
Operating Frequency | 50/60 Hz. | |
Operating Power | <6VA | |
Operating Temperature | -20℃·····+55℃ | |
High Voltage (U>) | 400V - 460V | |
Low Voltage (U<) | 230V - 360V | |
Waiting (t) | 0,1sec - 10sec. | |
Display | Power led, Relay led, High volt led, Low volt led, Three leds of phase to phase. | |
Contact | 5A/250V AC (Resistive Load) | |
Cable Diameter | 2,5mm² | |
Weight | Max. 210gr | |

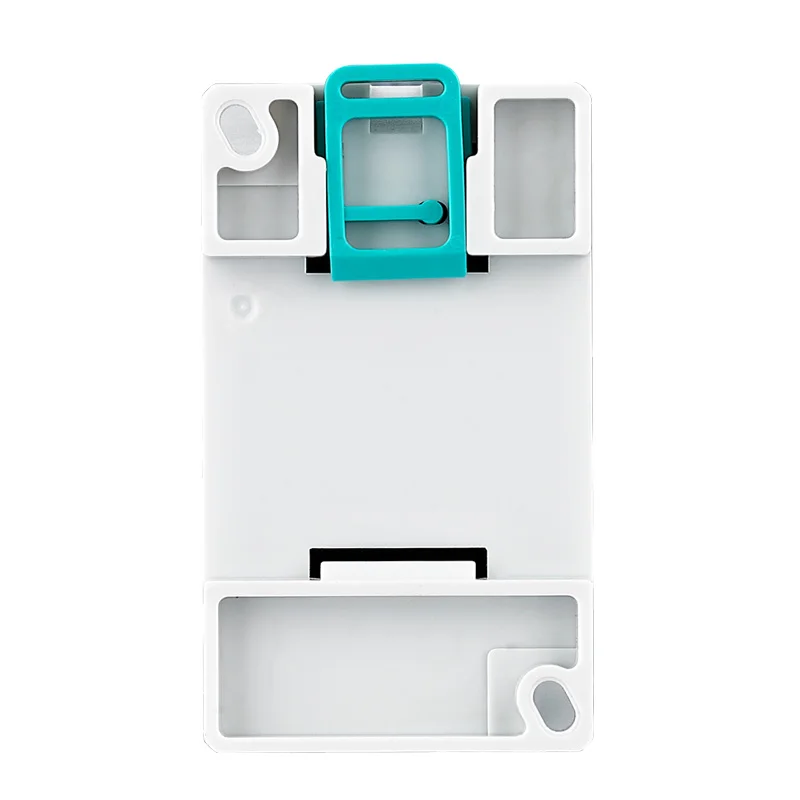

Mounting | Vertical assembled in the panel or assembled on the din rail | |
Operating Altitude | <2000meter | |
Connection Diagram
Dimensions
