led bulb tube light rigid PCB industrial lamp pick and place machine/soldering machine
- Category: >>>
- Supplier: Shenzhen Eton Automation Equipment Co. Limited
Share on (1600290208437):
Product Overview
Description
Product Description

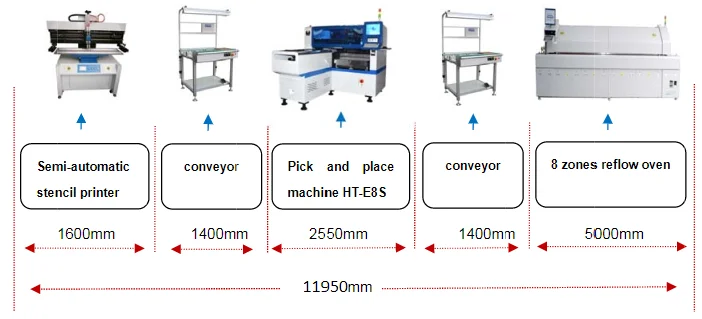

SMT Line
SMT Line is the short name of surface mounting technology, it is widely apply to all kinds of electrical board and led lighting industry, usually have Semiautomatic smt line and Automatic smt line. SMT Line mainly included Stencil printing machine, Pick and place machine, Reflow oven machine, PCB Conveyor machine, Loader, etc.

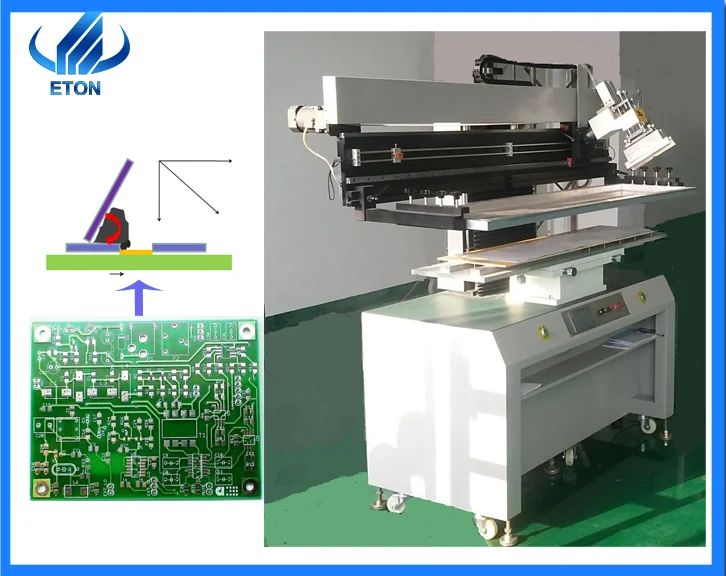

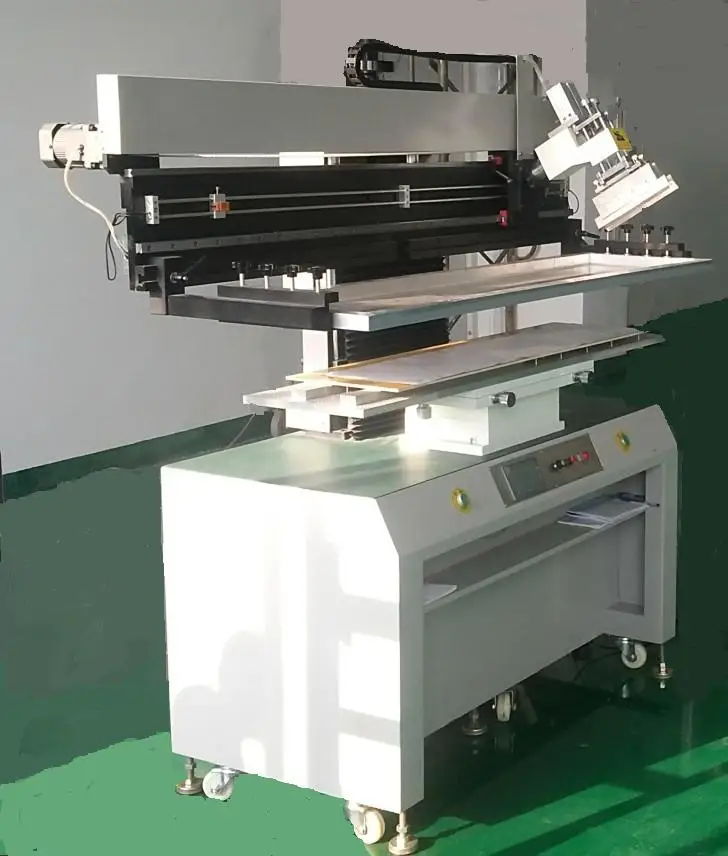

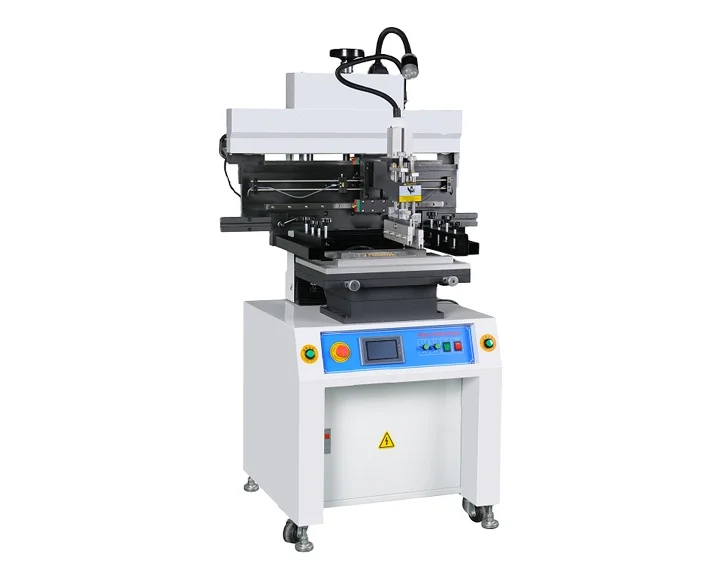

Semi-automatic Stencil Printer
Semiautomatic Stencil Printer Machine function is print solder paste on the PCB.
It is the first step on the SMT Line, semiautomatic printer is widely application and very easy to operate with different PCB Design.
ETON Stencil printer machine scrapers of different sizes are available.
Module name: | Semi auto stencil printer | Printing cycle: | 5-20 S | |
Dimension: | 1650*750*1650 mm(L*W*H) | Air Pressure: | 4-6 kgf/cm^2 | |
Platform Size: | 320*1250 mm | Weight: | 280 kg | |
PCB Size: | 300*1200 mm | Printing control method: | Touch screen+PLC |
Automatic Pick And Place Machine
Pick and place machine is the most important module in this line, it directly influenced the whole line capacity.

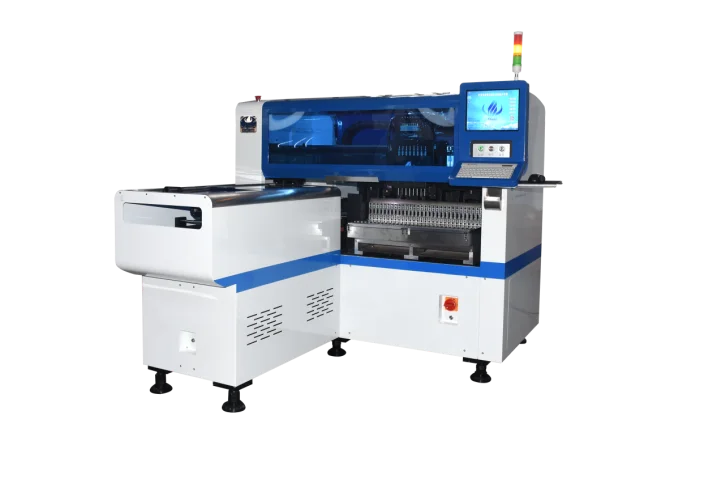

ETON pick and place machine HT-E8S-1200 is single module magnetic linear motor multifunctional pick and place machine, suitable for mounting led chip, capacitor, resistor, lens, IC, shaped components,etc
Max pcb sizes: 1200*500 (support customized)
Vision Camera
2 sets of imported camera
Vision for the flight identification, Mark correction.
Integrated structure
The highly integrated and modular design improves the performance of the machine and is also more conducive to later maintenance
High precision mounting head
There are 12 mountings head in HT-E8S-1200, Using a new head design, lighter, more, and faster mounting speed
Module name: | Pick and place machine | Software: | R&D Independently | |
Dimension: | 2550*1650*1550 mm | Display: | Touch screen monitor | |
Total Weight: | 1700 kg | No.of camera: | 2 sets | |
Max PCB size: | 1200*500 mm | Mounting speed: | 45000 cph |

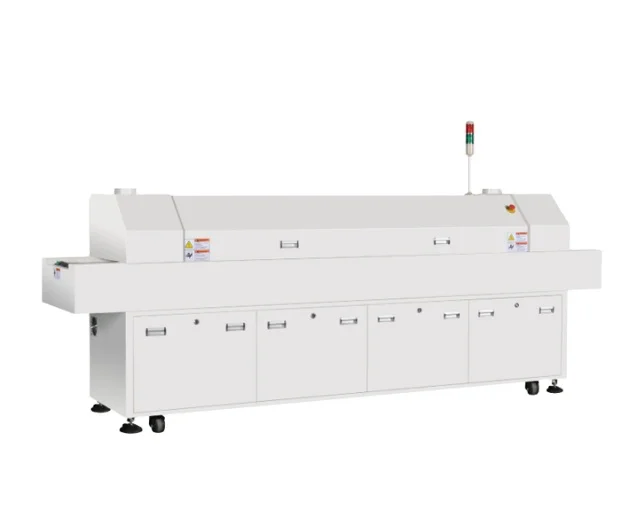

8 Zones Reflow Oven Machine
Heating system adopts high efficiency and energy saving nickel heat pipe, radiant power peak wavelength 4UM, with curved
reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCB
and components are heated evenly
reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCB
and components are heated evenly
Module name: | Eight zones reflow oven | PCB Limits height: | 25 mm | |
Dimension: | 4100*710*1500 mm | Transmission direction: | L-R(R.L) Optional | |
Length of heating zone: | 2800 mm | PCB transport speed: | 0-1.8 m/min | |
PCB Size: | 50-350 mm | Net weight: | 800 kg |

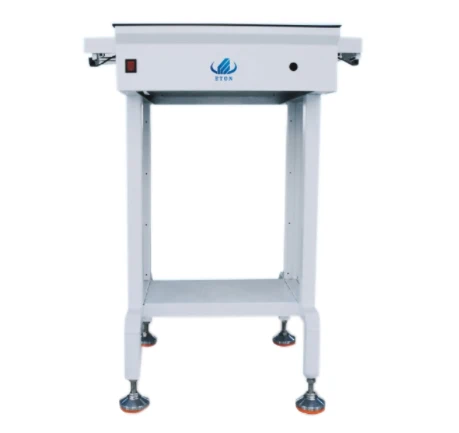

1.4 M PCB Conveyor Machine
Transfer PCB boards between two machines, play a role in buffering and testing
One section of control , two sensors.
One set of electric control box
Machine : | PCB Conveyor | Transmission Direction: | Single (Left-right or right to left) | |
Speed: | Adjustable from 0.5-9 m/min | Transmission Height: | 880-940 mm |
Product Usage
Multifunctional SMT Line
This smt line suitable for all kinds of led lighting and electrical board, such as：
LED Bulb
LED Tube
LED Panel
LED Strip
LED Lens
Driver Board
Display
etc....................
Not only for led chip !
It is total intelligent and widely suitable for mounting different components, such as :
LED Chip
Resistor
Capacitor
IC
Shaped Components
Various terminals
etc...................
Packing&Shipping
Sturdy packaging
For Machine, we using Vacuum wooden box packaging, inspection-free, avoid collision damage during transportation
Company Introduction
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Excellent service
Marketing Campaign
Exported more than 20 countries
ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000CPH, which save much labors and space of production, got large market share in USA,KOREA,INDIA,GERMANY,EYPT,TURKEY,VIENAM,TUNISIA,THAILAND more than 20 countries.
FAQ
1. How many machines sell in India ?
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3. I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible.
5 What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.
6 Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc ?
A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, itis 10 heads with 35000 cph, another is E8S with 45000 theoretical speed.
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3. I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible.
5 What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.
6 Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc ?
A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, itis 10 heads with 35000 cph, another is E8S with 45000 theoretical speed.
