10cbm LPG Cycle Filling Station Mobile LPG Gas Skid Plant 5MT LPG Filling Plant for Home Cooking Gas
- Category: Pressure Vessels >>>
- Supplier: Hubei,Runli,Special,Automobile,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
10cbm LPG Cycle Filling Station Mobile LPG Gas Skid Plant 5MT LPG Filling Plant for Home Cooking Gas Call Whatsapp/Ms.Pinky 0086 15897603919
1. Suction pipeline for liquid phase of Gas No 50
2. Pump with electrical engine in Ex Protection and engien with 380V or 220V and delivery pump
3. Propelling pipeline for liquid phase of Gas No.30
4. discharging device, safety valve, shut off valve and other valve.
5. LPG Dispensers and Filling Scale
6. Complete mobile filling station for LPG is mounted on stable steel base with carrying handles.
can filling gas to LPG Cylinder, LPG Storage Tanker for Home and Car, Taxi Bus.
With all accessories , outside door LPG Filling Gas Mobile Stations.
LPG Tank capacity: 5MT/10000Liters
With one set LPG Motor and LPG pump
With safe valve, pressure meter, temperature meter
1set LPG refilling Scales and LPG Hose reel
Specification
item | LPG tank parameters |
Products name | LPG Filling Plant |
Filling medium | LPG(propane) |
Overall dimentions | 6500*2200*2300mm |
Tank size(inner diameter*thickness*length) | DN2200*12*5500mm |
volume | 10m3 |
Net weight | 5400kg |
Designing pressure | 1.77Mpa |
Working pressure | ≤1.6Mpa |
Working temperature | ≤50℃ |
Hydraulic test pressure | 2.22Mpa |
Air test pressure | 1.77Mpa |
Material of tank and accessory | Q345R,16MnIII |
standard | GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures |
accessory | Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. |
LPG filling station | 12000Liters tank, one pump, one motor for pump, two lpg filling scale for two cylinders, one compressor, one generators, control box, pipes, cover etc |
Details Images

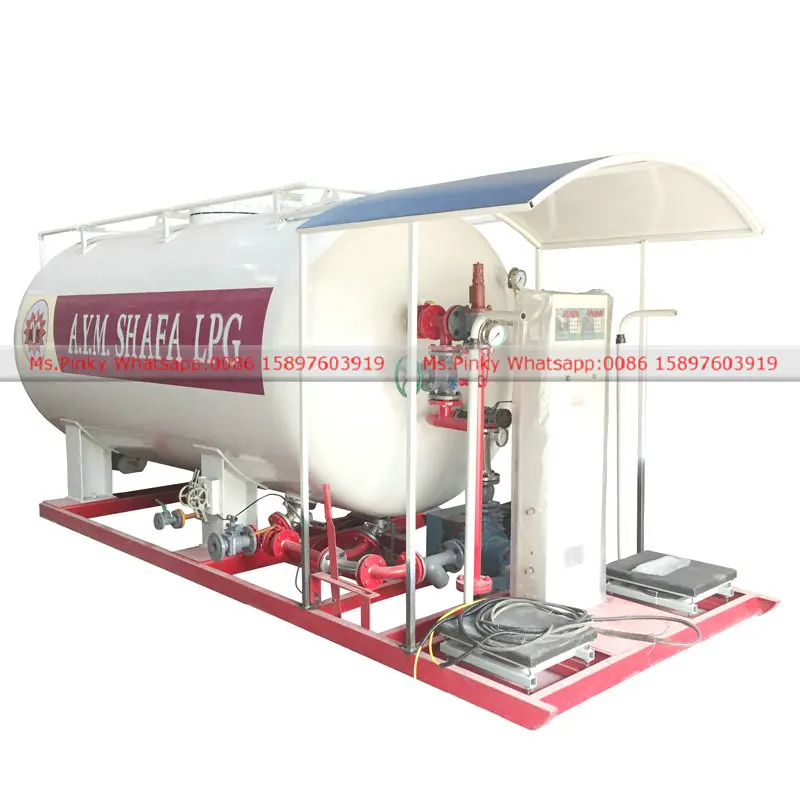

10000Liters LPG refilling Station
2 sets LPG pump and LPG motor

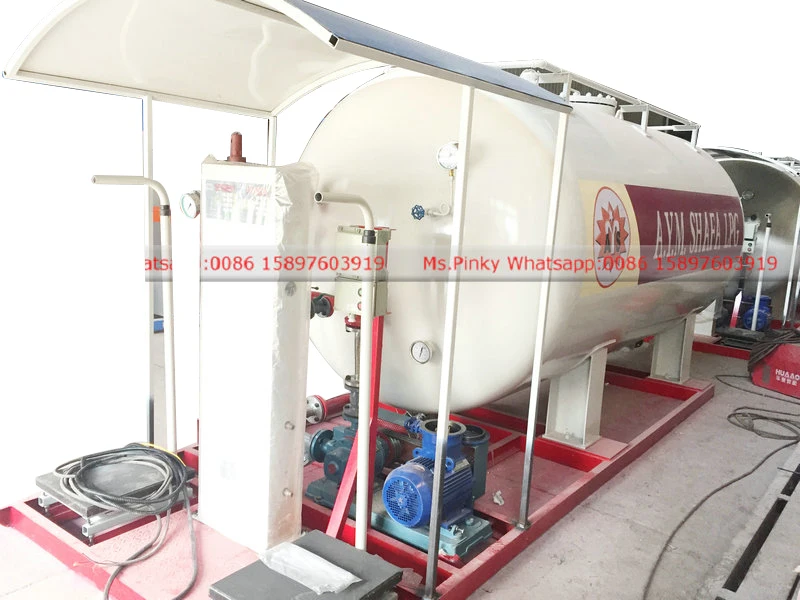

LPG Skid
liquid gas and gas outlet and inlet pipe

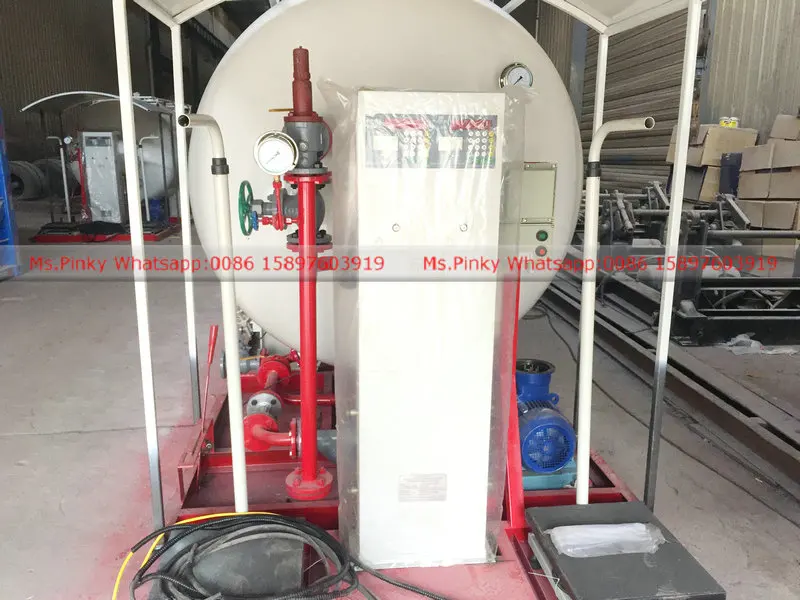

Safe valve

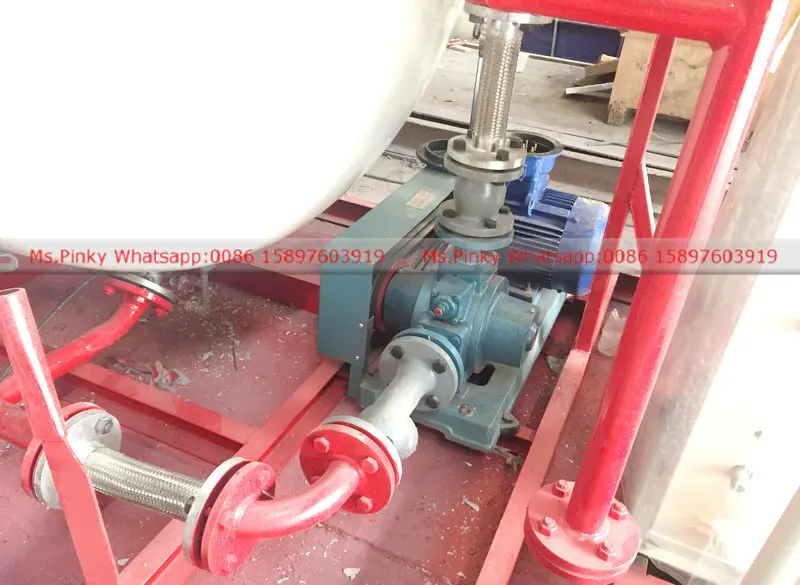

motor and LPG Pump
outlet and inlet
Standard Features:
5000Up to 100,000Liters
High Quality steel
completer valves and piping
complete installation of switchboard and wiring
cylinder filling /Autogas dispenser or both
sihi or viking
High Quality steel
completer valves and piping
complete installation of switchboard and wiring
cylinder filling /Autogas dispenser or both
sihi or viking
optional features:
220V or 380V motor
Automatic Mechanical filling scale
dual functionality autogas dispenser and filling scales
sunshield
Solar lighting
LPG Genset
Automatic Mechanical filling scale
dual functionality autogas dispenser and filling scales
sunshield
Solar lighting
LPG Genset
Mobile LPG Refilling Station can be design for :
Mobile LPG Refilling Station can be design for :
1. Cooking Gas LPG Cylinders ( Bottling)
2. Cars taxi
3. Forklifts
3. Dual Fuel Trucks
4. Buses
5. Marine Boats
6. other industrail and commercial Vehicles.
gasoline skid tank with automatic dispensing, For refilling of cooking gas
1. Cooking Gas LPG Cylinders ( Bottling)
2. Cars taxi
3. Forklifts
3. Dual Fuel Trucks
4. Buses
5. Marine Boats
6. other industrail and commercial Vehicles.
gasoline skid tank with automatic dispensing, For refilling of cooking gas
Optional different Refilling LPG Scales for LPG Skids:
Different Model LPG Scales and dispenser for you Choice.
Package and shipment
20Feet or 40HQ shipment for LPG Skid.
Characteristic of LPG Storage Tank
The Characteristic of LPG TANK from our Company:
1. The tank is one important part of the liquefied gas semi-trailer.
2. The tank consists of the cylinder shell and standard ellipsoidal head.
3. The tank’s material is high intension steel plate Q345R that is specially used in pressure vessel.
4. The double side auto-welding is adopted in tank’s main welding joints.
5. The 100% x-ray checking shall be done to A and B kinds welding joints and shall accord with Ⅱ grade requirements of JB4730 Non-destruction testing for Pressure vessels’.
6. The fully magnetism checking or penetrate checking shall be done to C and D kinds welding joints and shall accord with Ⅰ grade requirements of JB4730. PWHT shall be done after the welding of tank. The hydraulic test shall be done after the post weld heat treatment.
7. The manhole of the tank is used for cleaning and maintenance of the tank’s inside. The baffles are mounted on the tank’s inside to prevent wave. The seat is welded on the tank’s bottom.
8.After tanker assembly, have carried on the gas leak test to the complete vehicle according to the design pressure, authorize third party to have qualification supervise after examining by country qualified making available to the users.
2. The tank consists of the cylinder shell and standard ellipsoidal head.
3. The tank’s material is high intension steel plate Q345R that is specially used in pressure vessel.
4. The double side auto-welding is adopted in tank’s main welding joints.
5. The 100% x-ray checking shall be done to A and B kinds welding joints and shall accord with Ⅱ grade requirements of JB4730 Non-destruction testing for Pressure vessels’.
6. The fully magnetism checking or penetrate checking shall be done to C and D kinds welding joints and shall accord with Ⅰ grade requirements of JB4730. PWHT shall be done after the welding of tank. The hydraulic test shall be done after the post weld heat treatment.
7. The manhole of the tank is used for cleaning and maintenance of the tank’s inside. The baffles are mounted on the tank’s inside to prevent wave. The seat is welded on the tank’s bottom.
8.After tanker assembly, have carried on the gas leak test to the complete vehicle according to the design pressure, authorize third party to have qualification supervise after examining by country qualified making available to the users.
