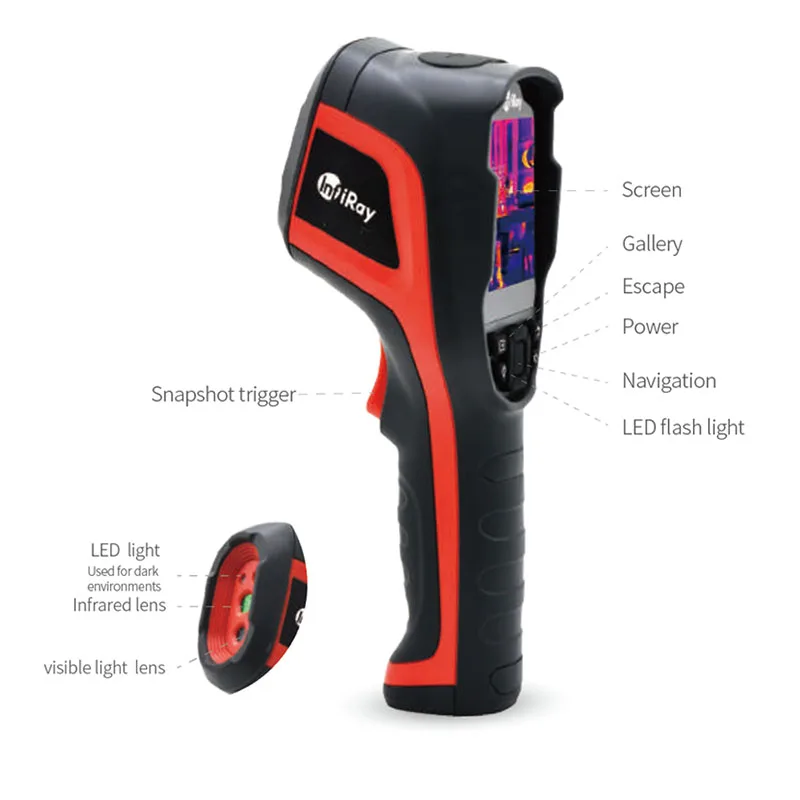

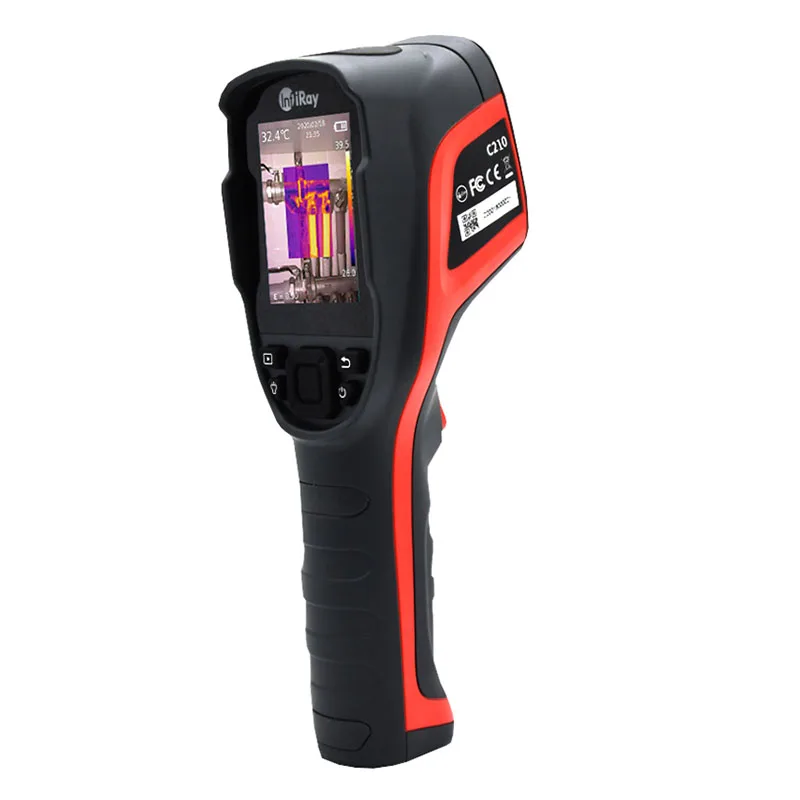

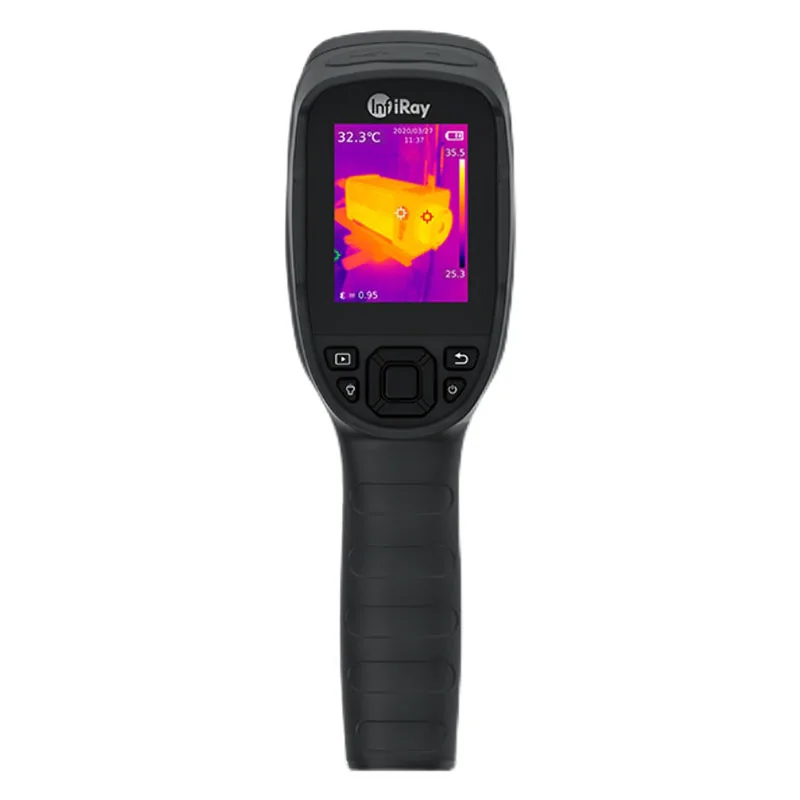

2021 Handheld Infrared Thermal Image Camera 256x192 C200
- Category: >>>
- Supplier: Xiamen Jason Weng Imp And Exp Co. Ltd.
Share on (1600290374256):
Product Overview
Description
Product Usage
Handheld Thermal Camera

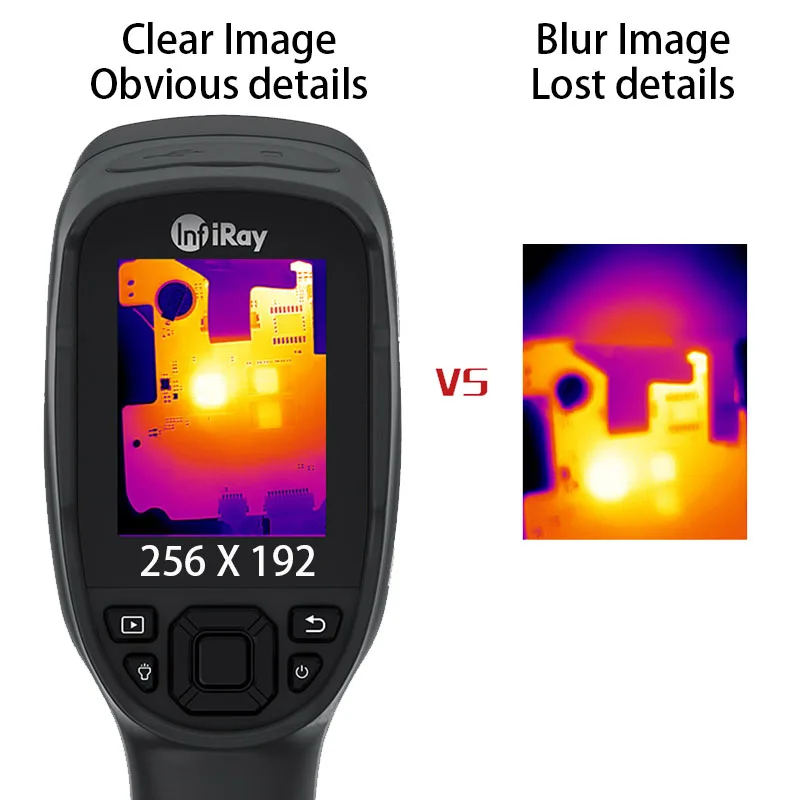

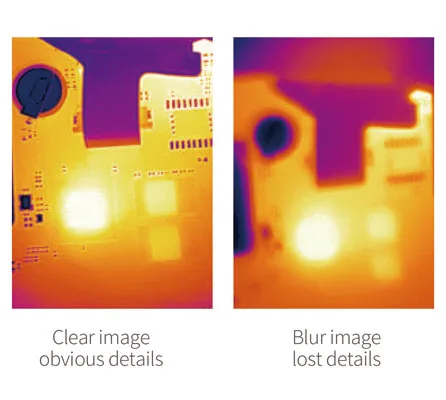

1.256×192 Resolution
2.11h Ultra-long Battery Life
3.Dual Vision
4.-20℃~+550℃ Wider Range, Meet More
Measurement Needs
Measurement Needs
5.56° FOV
6.Auto Tracking Of Highest/lowest-temperature Points
7.5 Buttons Easy Operation, Pick and Scan
8.Durable And Free To Work
9.Support PC offline temperature analysis.
Product Description
Model | C200 | C200 Pro | M300 | M600 |
Screen Size | 2.8LCD（320×240） | 2.8LCD（320×240） | 3.5” LCD (640×480) | 3.5” LCD (640×480) |
Weight | 520g | 520g | 670g | 670g |
Camera Dimension | 237×75×92（mm） | 237×75×92（mm） | 256.4×105.1×105.3mm | 256.4×105.1×105.3mm |
Measurement Range | -20 ℃～ +550 ℃ | -20 ℃～ +550 ℃ | -20 ℃～+550 ℃ | -20 ℃～+550 ℃ |
Accessory | USB cable, 16GB SD card, documentation | USB cable, 16GB SD card, documentation | USB cable, 16GB SD card, documentation | 5V 2A power adapter, USB cable, SD card, documentation, desktop charger |

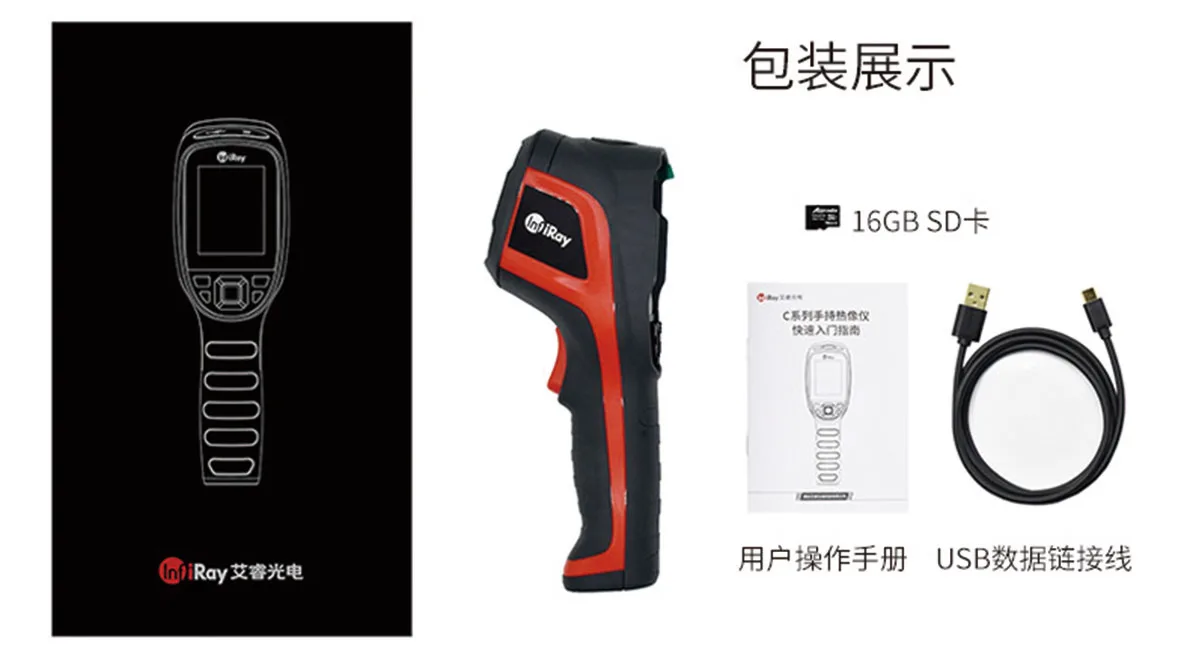

Packing&Shipping
PARAMETER | |
Model | C200 |
Detector Type | VOx uncooled infrared FPA detector |
Resolution | 256×192 |
Spectral Band | 8～14 μm |
Pixel Pitch | 12 μm |
NETD | <50mK |
Frame Rate | 25Hz |
FOV | 56°×42° |
IFOV | 3.8mrad |
Focusing Mode | Focus-free |
Measuring Range emperature | -20 ℃～ +550 ℃ |
Measurement Accuracy | ±2℃ or ±2% of the reading (the larger one shall prevail) |
Measurement Tools | Central Spot measurement/Hotspot and cold spot tracing |
Image Modes | Thermal imaging, fusion, PIP, visible imaging |
Palette | 7 |
Temperature Alarm | Full frame high/low temperature alarm |
Alarm Mode | Support image and LED alarm |
Photo Function | Support, with temperature data |
Secondary Analysis | Provide PC analysis software for secondary analysis of data |
Screen Size | 2.8LCD（320×240） |
Lighting | LED fill-in light |
Storage | Standard 16GB SD card, supporting expansion |
Tripod Support | Yes, at the bottom of the handle |
Operating Time | 11h, @25℃ indoor |
Charging Time | About 4h, @25℃ indoor |
Dimension | 237×75×92mm |
Weight | 520g |
Operating Temperature | -10°C~+50°C |
Storage Temperature | -20°C~+60°C |
Operating Humidity | Relative humidity 10%~95%, non-condensing |
Drop Protection | 2m |
IP Encapsulation | IP54 |
