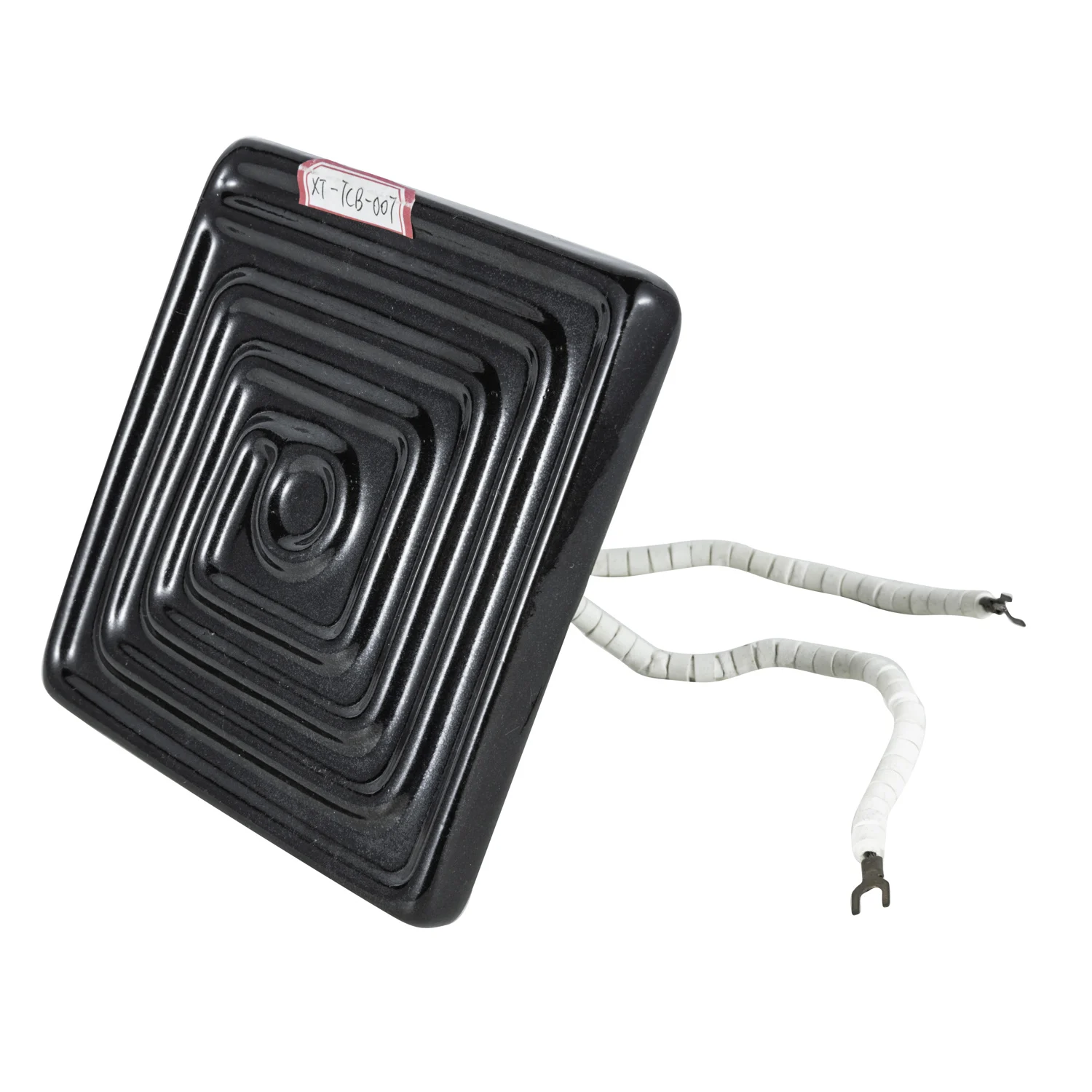

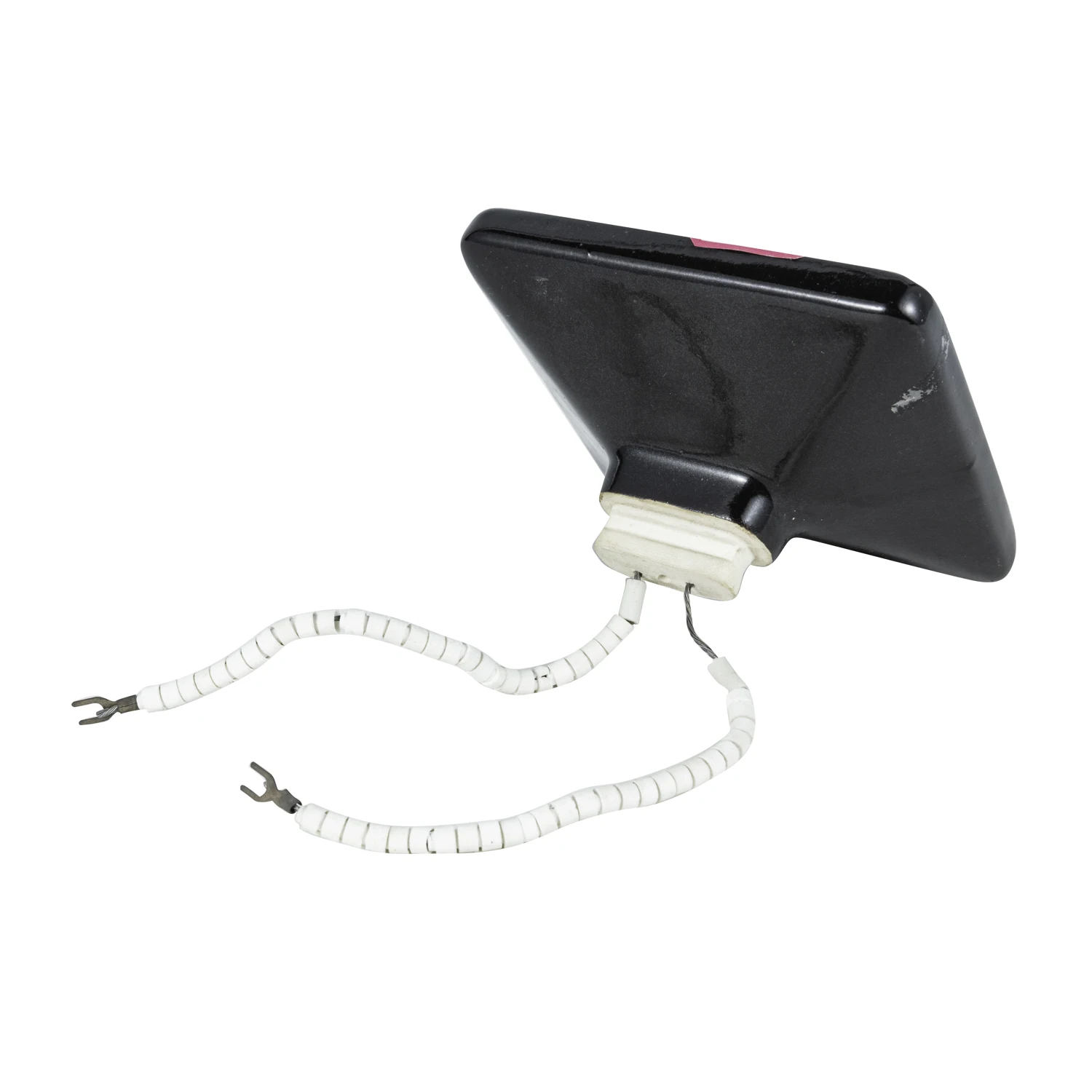

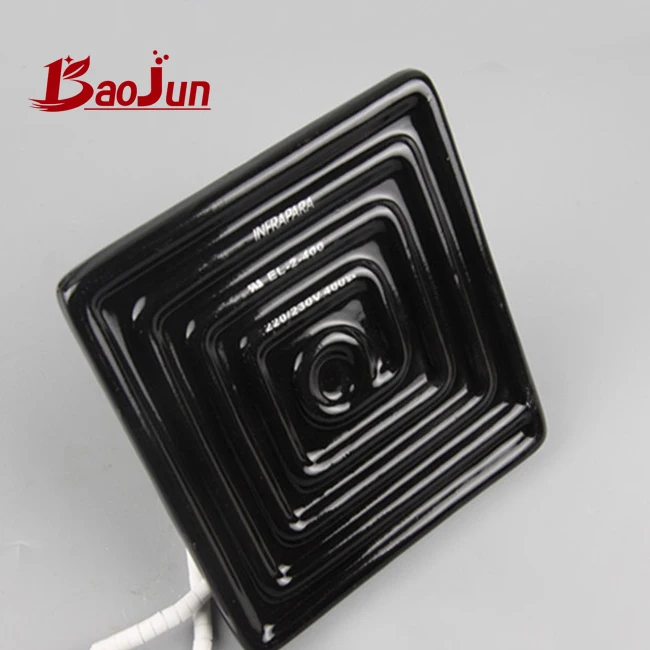

Ceramic Flat Infrared Heater 1000C Far Pad For Animals
- Category: >>>
- Supplier: Yancheng Baojun Stainless Steel Products Co. Ltd.
Share on (1600290607751):
Product Overview
Description
Product Description
High Quality Far Infrared Ceramic Heater
Application of Infrared(IR) Ceramic Heater:
1.Heating in PH environment (for example: Footwear processing, tape, plywood heating).
2.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).
3.Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
4.Heating in vertical or half round array (for example: Angle iron,Aluminum windows paint stove) .
Regular Size:
Size(mm) | Shape | Power(Kw) | Size(mm) | Shape | Power(Kw) |
245*65 | arc | 0.25-1.0 | 300×300×16 | flat | 0.8-1.5 |
240*60 | arc | 0.5-1.0 | 240×160×16 | flat | 0.6-1.0 |
125*65 | arc | 0.2-0.5 | Φ70 | disk | 0.1-0.2 |
120*60 | flat | 0.1-0.325 | Φ100 | disk | 0.2-0.3 |
120*60 | arc | 0.1-0.325 | Φ140 | disk | 0.3-0.4 |
120*120 | flat | 0.1-0.8 | Φ150×Φ100×Φ60 | haff | 0.25-0.3 |
120*120 | arc | 0.1-0.8 | 125×125 | flat | 0.4-0.8 |

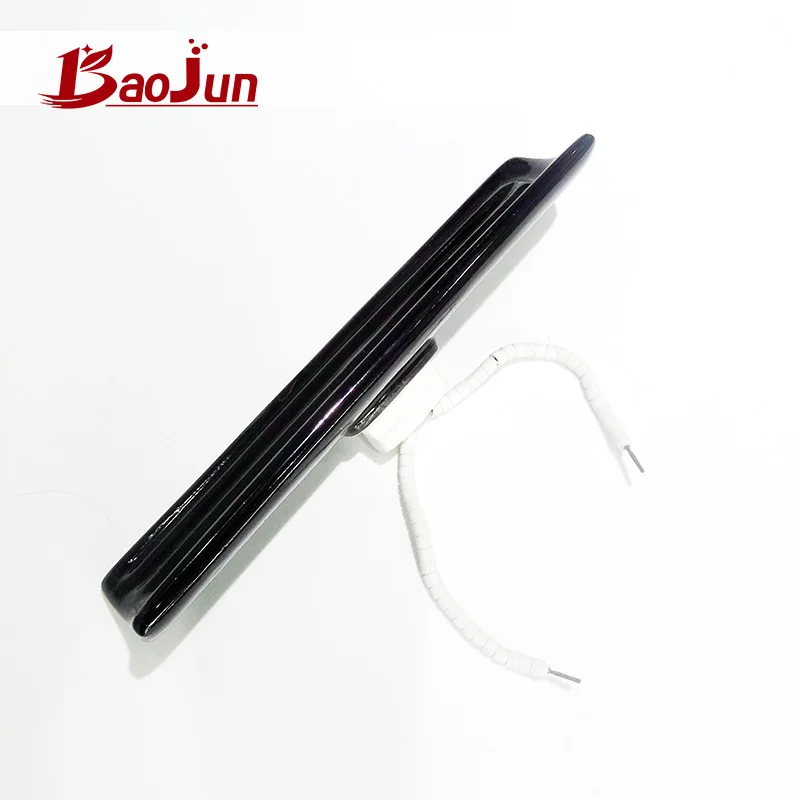

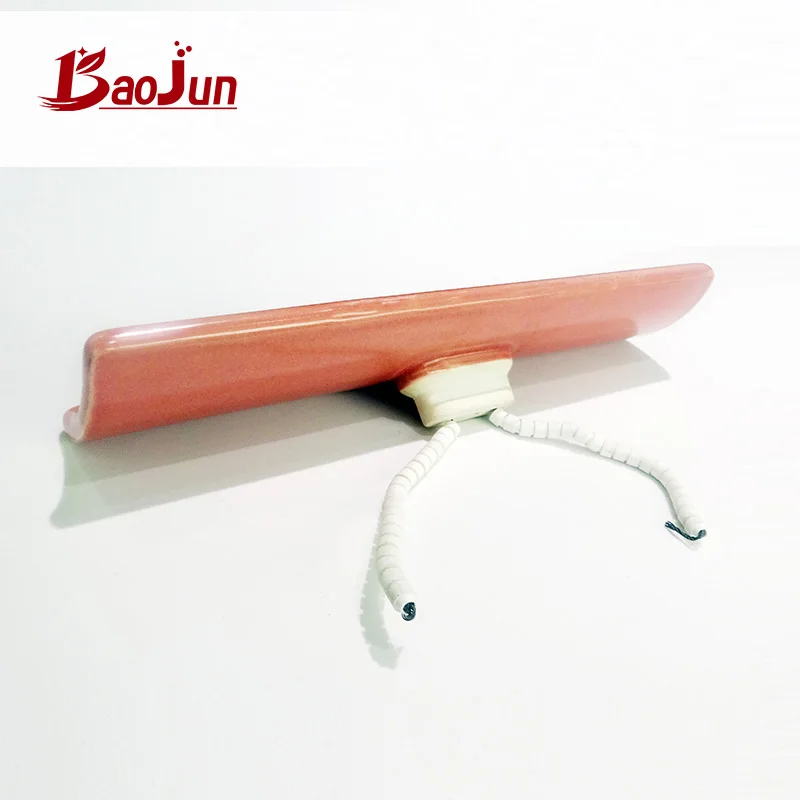

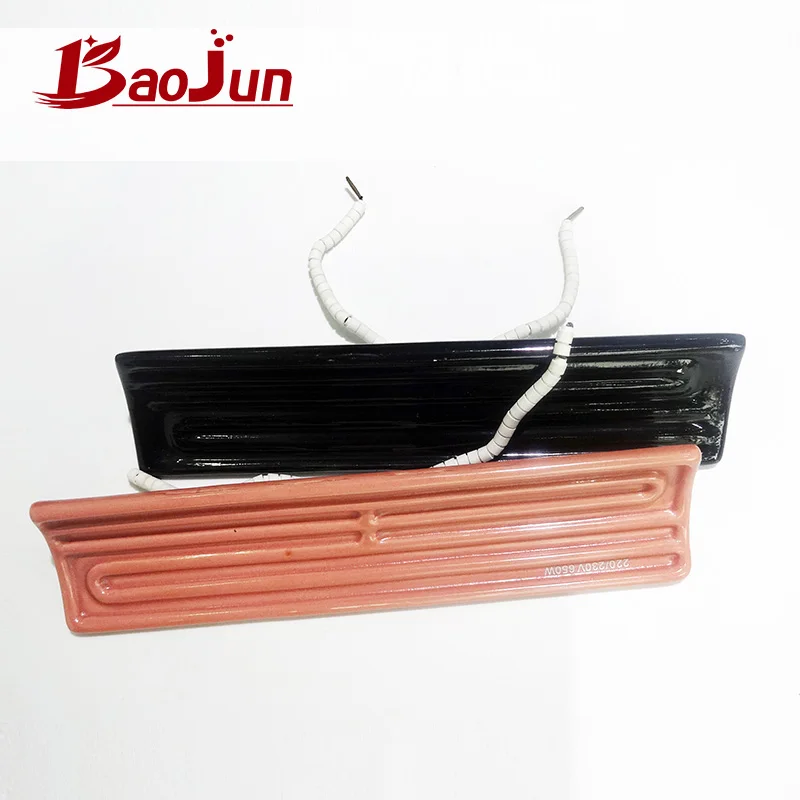

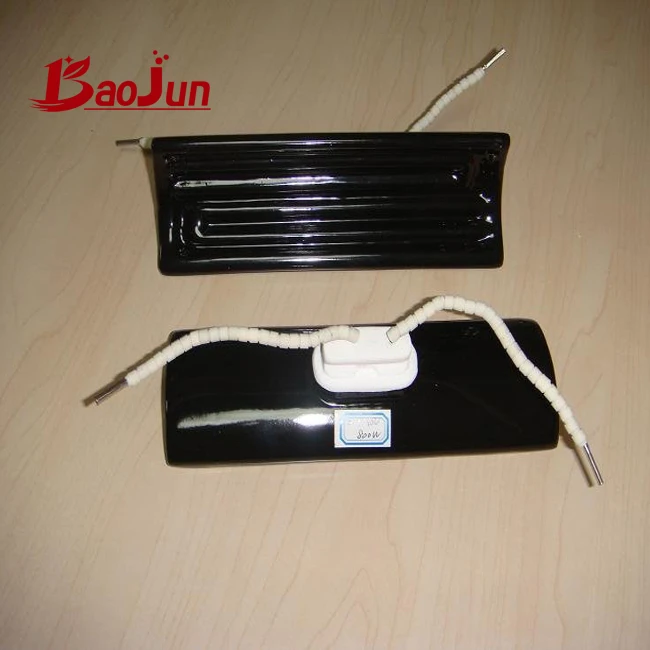

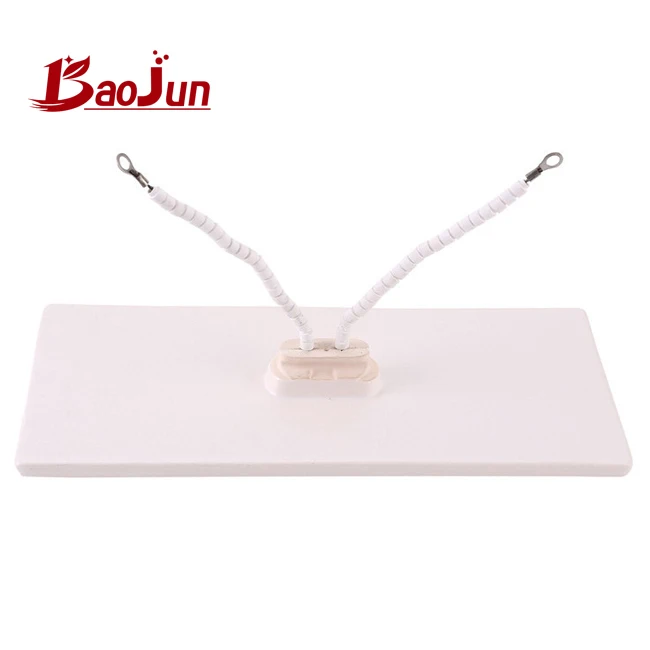

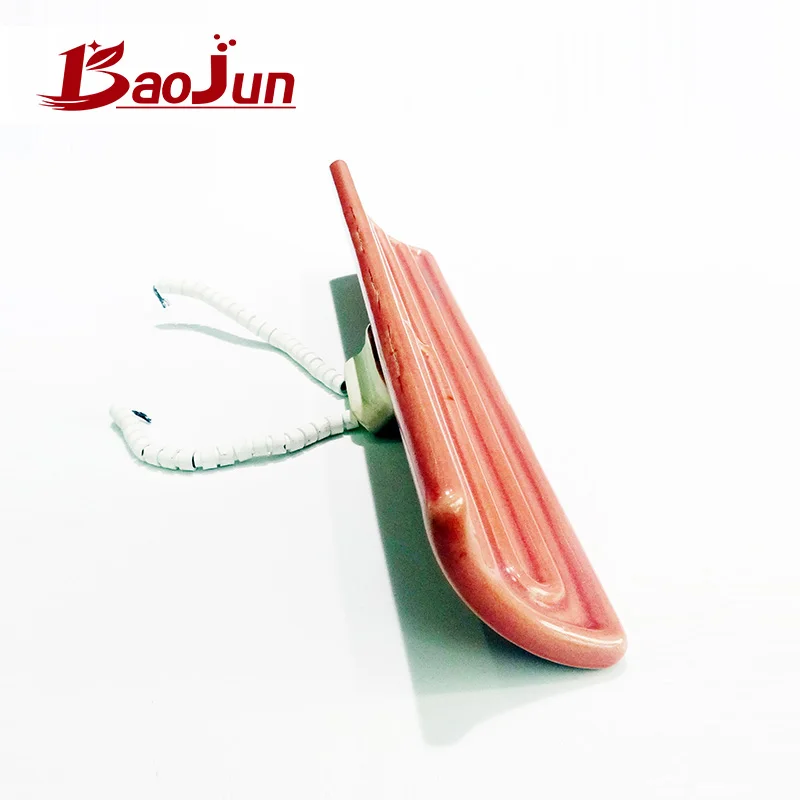

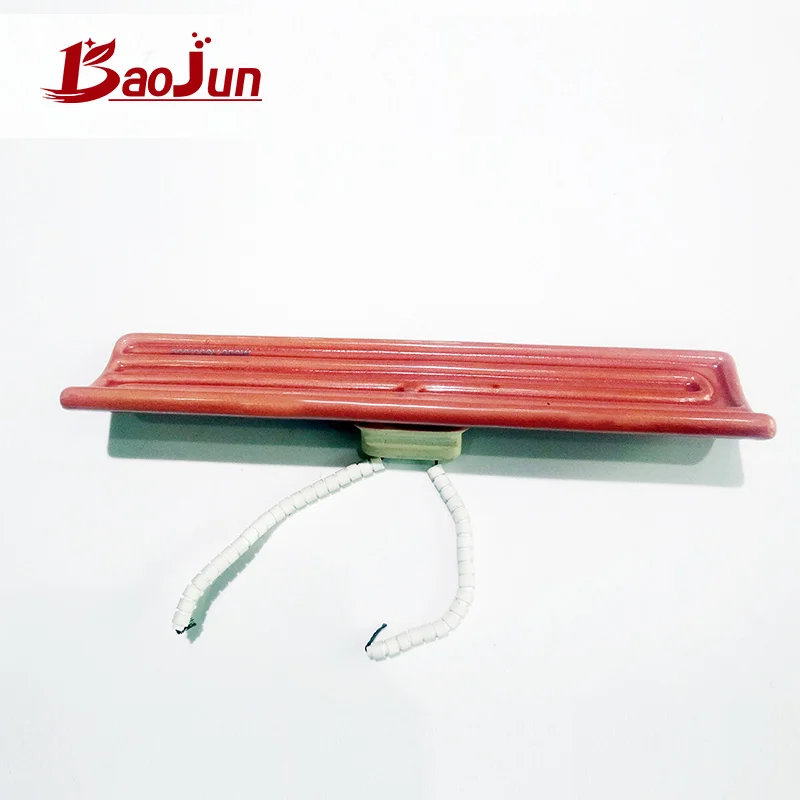

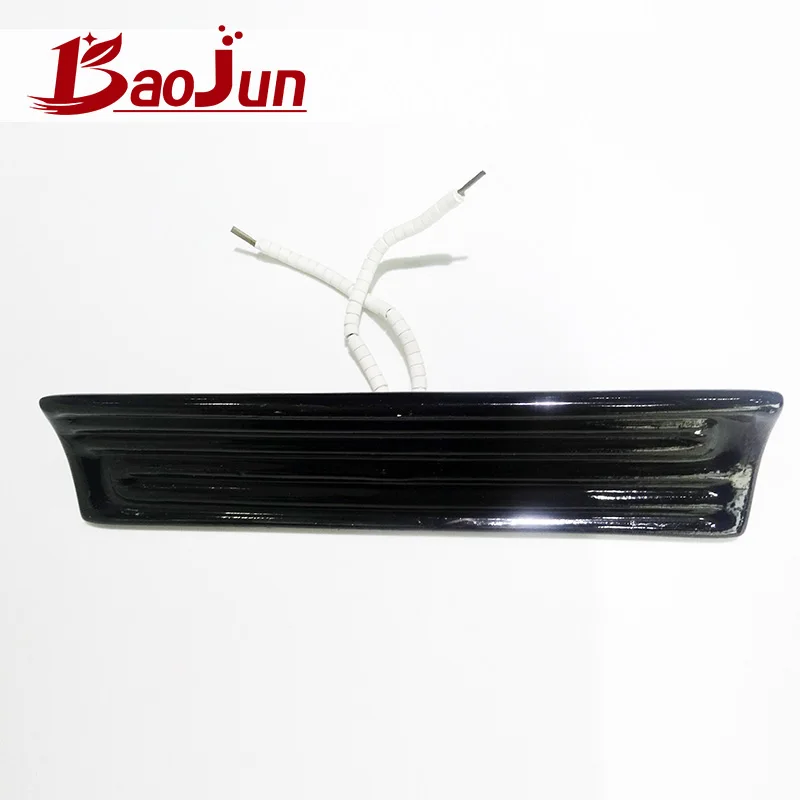

Detailed Images
1. Nickel chrome resistance wire(NiCr20/80)

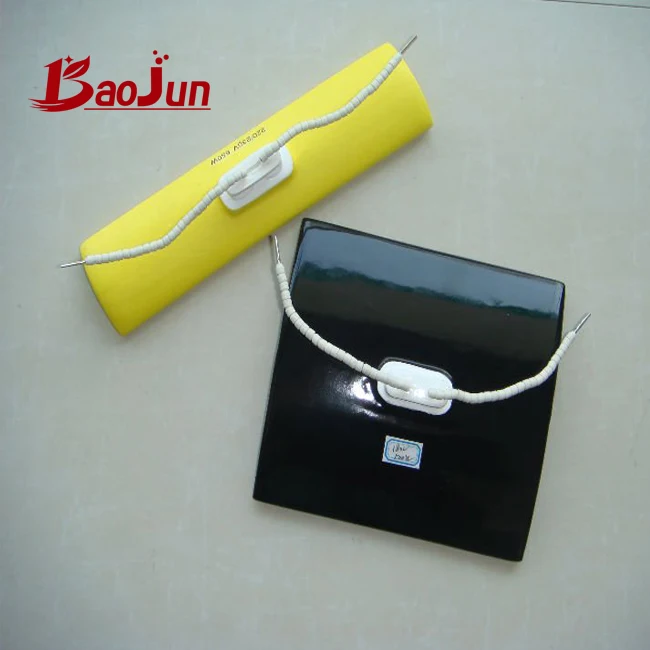

2. Color: White/Black/Yellow
3. Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
4. Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)
5. Useful wavelength range: 2-10 microns
6,Operating temperature is 300°C to 700°C (572°F - 1292°F)
7. Average Operating Life-Up to 20,000 hrs depending on conditions.
8. Recommended radiation distance from heater is 100 mm to 250 mm.
9. Supplied with 100mm ceramic beaded power leads
Certifications
Packing & Delivery
Packaging | ||
Name | 110V 230V Far Infrared Heating Panel Ceramic Flat Plate | |
Size | 150(L) * 150(W) *50(H) | |
Weight | 0.5kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
