Haiyong double head grinding three head CNC Knife grinder machine blade honing machine
- Category: >>>
- Supplier: Qingdao Haiyong Machinery Manufacturing Co. Ltd.
Share on (1600290700563):
Product Overview
Description
Product Description

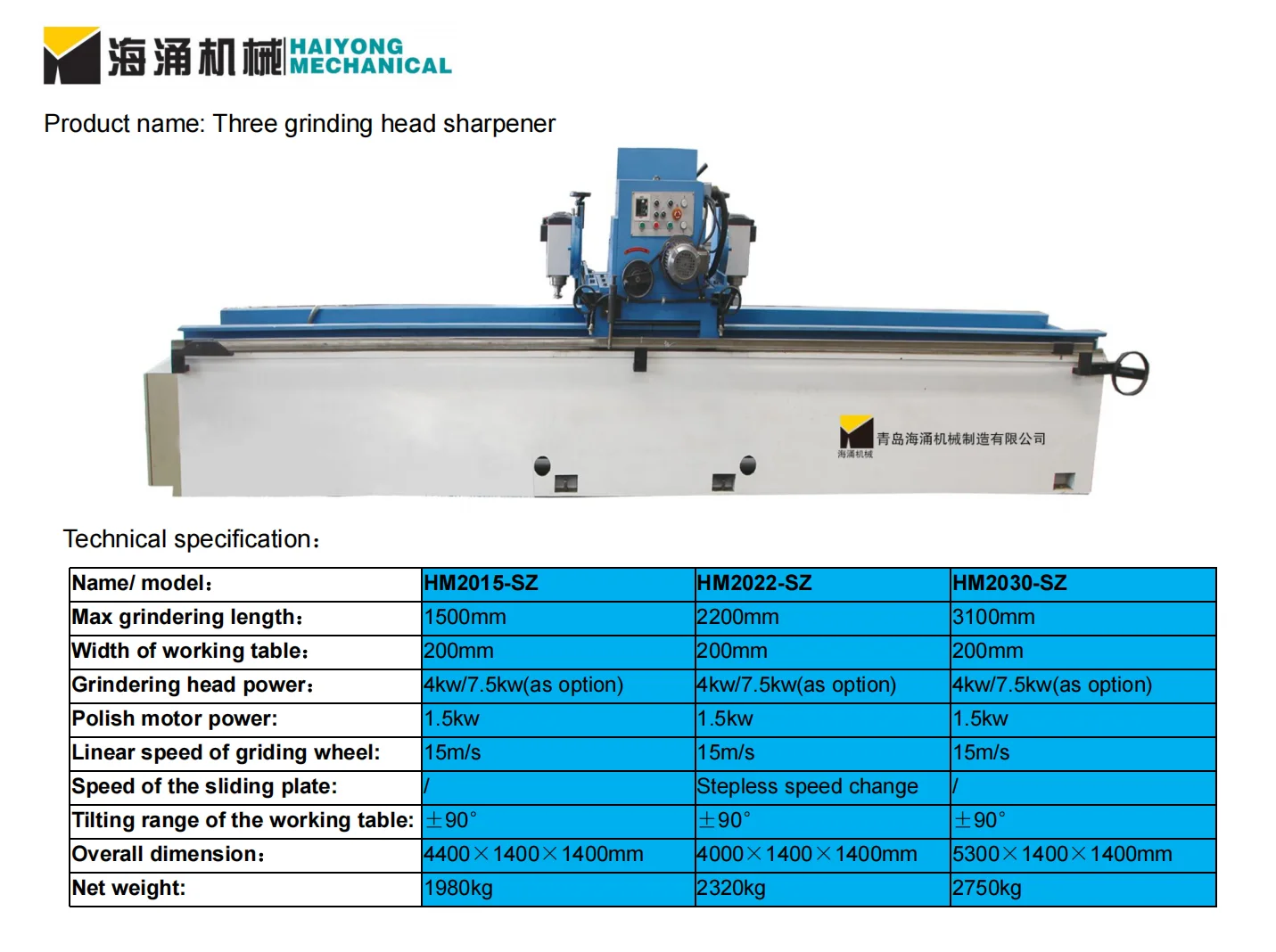

Specification
Model number: | HM2015-SZ |
Place of Origin | Shandong,China |
Brand Name | Haiyong |
Condition | New |
Machine Type | Knife grinding machine |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Core Components | PLC, Gearbox, Gear |
Warranty | 5 Year |
Max grinding length | 1500mm |
Width on the working table | 200mm |
Tilting range of the working table | ±90° |
Grinding head power | 4kw/7.5kw(as option) |
Linear speed of grinding wheel | 15m/s |
Speed of the sliding plate | |
Outer dimension | 4400×1400×1400mm |
Weight | 1980kg |
Application | For every kinds of straight knife sharpening |

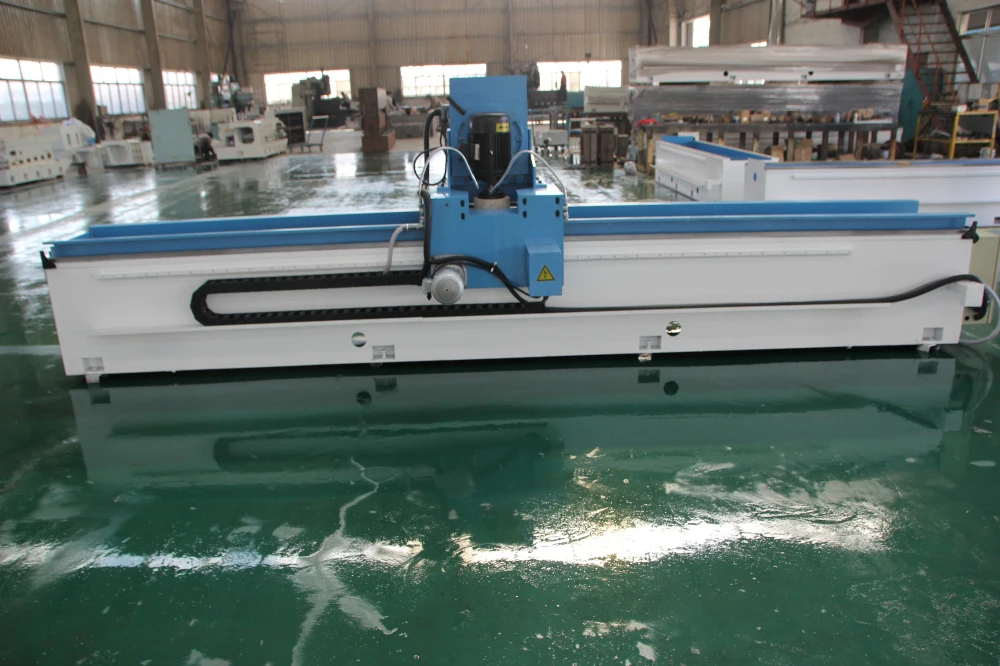

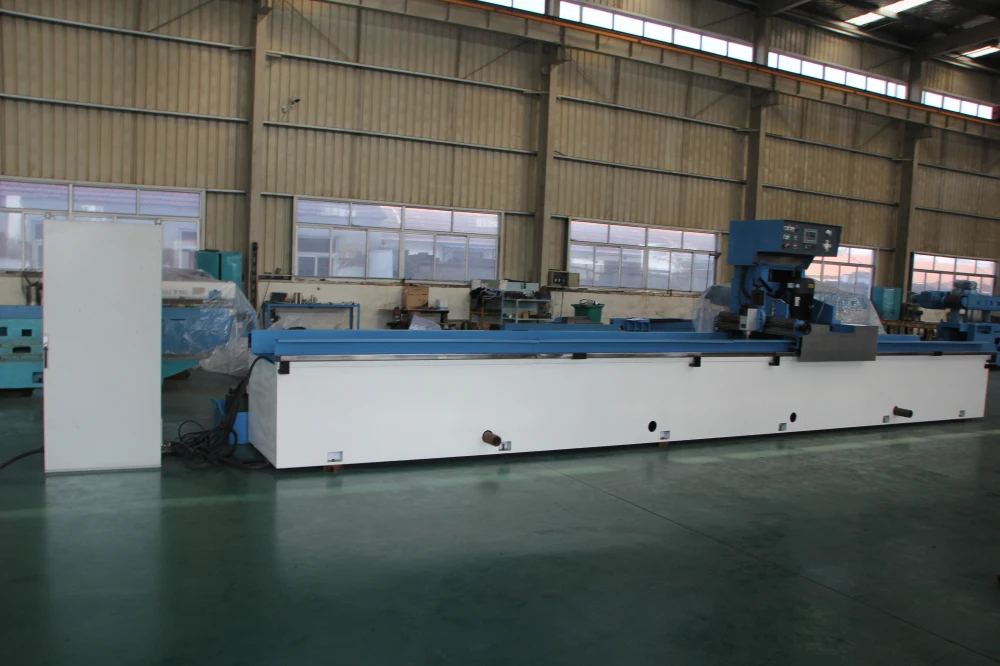

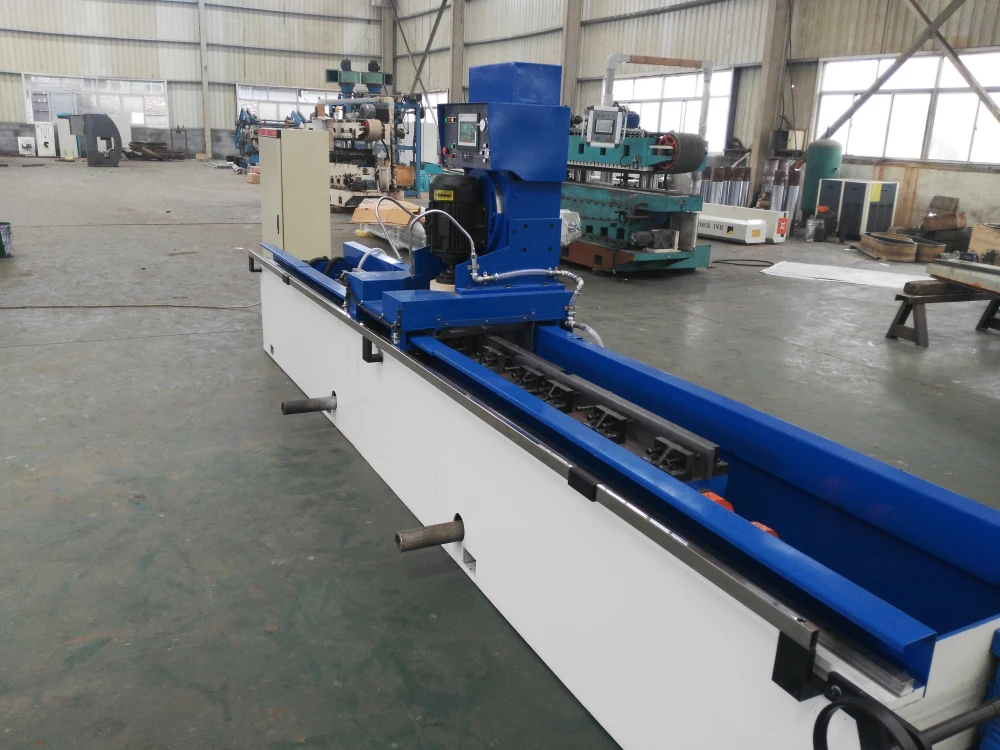

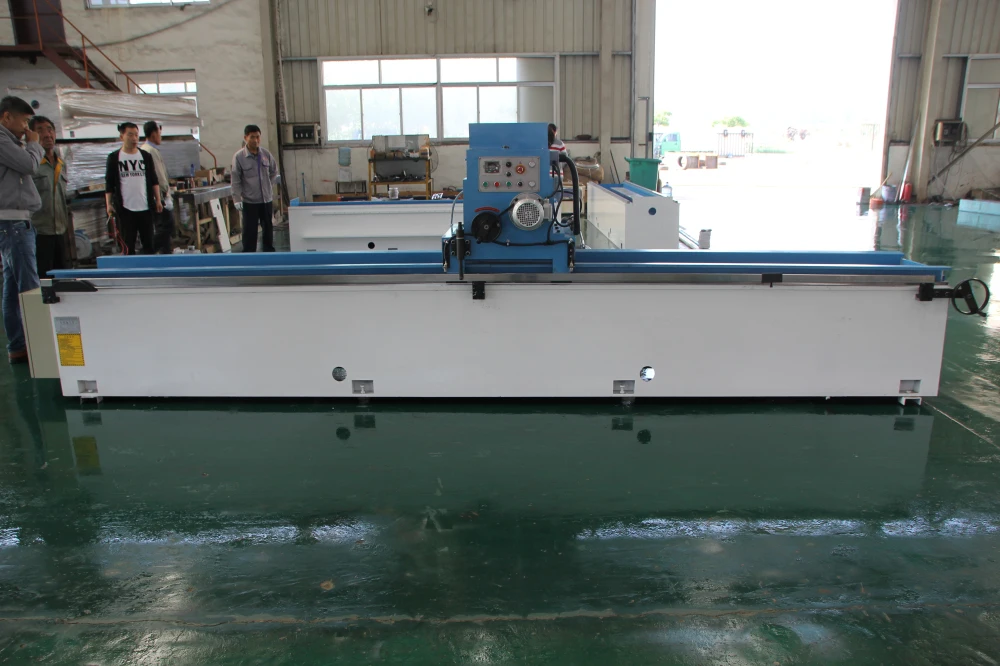

Knife grindering machine introduction:
This machine is a new type of knife sharpener with international leading level launched on the basis of fully absorbing similar types of machines at domestic and abroad. It is an indispensable equipment for sharpening various blades.
1. The working table adopts the electromagnetic chuck produced by Sino-Japanese joint venture, which has strong suction force and low heat.
2. The main motor is a special grinding head motor with high precision and simple maintenance.
3. Double tile seat design, lock the electromagnetic chuck, and sharpen the knife more stably.
4. The use of precision rack and pinion, gear transmission, the grinding head runs more smoothly.
5. German Siemens buttons are durable, simple to operate and reliable in performance.
6. The French Schneider contactor, a world-renowned electrical appliance brand, has no doubt about its quality and performance.
7. The upping and down of the grinding head motor is carried out by the ball screw, and there is no gap in the lifting, ensuring that the knife is not dropped.
8. The linear guide is selected from Taiwan HIWIN, with high precision and stable operation and long service life.
9. The rail of the grinding head is controlled by a frequency converter, which can realize rough grinding and fine grinding, as well as speed adjustment.
10. Precise special polishing motor to improve the gloss of the knife edge and prolong the service life of the knife
1. The working table adopts the electromagnetic chuck produced by Sino-Japanese joint venture, which has strong suction force and low heat.
2. The main motor is a special grinding head motor with high precision and simple maintenance.
3. Double tile seat design, lock the electromagnetic chuck, and sharpen the knife more stably.
4. The use of precision rack and pinion, gear transmission, the grinding head runs more smoothly.
5. German Siemens buttons are durable, simple to operate and reliable in performance.
6. The French Schneider contactor, a world-renowned electrical appliance brand, has no doubt about its quality and performance.
7. The upping and down of the grinding head motor is carried out by the ball screw, and there is no gap in the lifting, ensuring that the knife is not dropped.
8. The linear guide is selected from Taiwan HIWIN, with high precision and stable operation and long service life.
9. The rail of the grinding head is controlled by a frequency converter, which can realize rough grinding and fine grinding, as well as speed adjustment.
10. Precise special polishing motor to improve the gloss of the knife edge and prolong the service life of the knife
Packing & Delivery
BULK PACKAGING
Company Profile
Qingdao Haiyong Machinery Manufacturing Co.,Ltd is a woodworking machinery manufacturer with 15 years of experience in precision machining producing. By introducing advanced pentahedral machining centers, rail grinders, CNC boring , milling machines and other equipment, the company has made the main components of the production equipment process level up to international standards.
The company’s leading products are planing machines, sharpeners, sawtooth grinders, melt-blown fabric machine , etc.
In 2005, Haiyong developed a new generation of woodworking veneer longitudinal cutting machine, which overcomes the cracks on the back, rough surface and veneer pollution problems at that time. With the continuous development of numerical control technology, the company's products have been continuously upgraded, and the German Siemens touch screen and PLC microcomputer control program have been used successively, which greatly improved the product performance.
Haiyong company is member of Qingdao Wood-working Machinery Association,at 2015 we passed ISO9001 quality management system.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all world to contact us for future business relationships!
The company’s leading products are planing machines, sharpeners, sawtooth grinders, melt-blown fabric machine , etc.
In 2005, Haiyong developed a new generation of woodworking veneer longitudinal cutting machine, which overcomes the cracks on the back, rough surface and veneer pollution problems at that time. With the continuous development of numerical control technology, the company's products have been continuously upgraded, and the German Siemens touch screen and PLC microcomputer control program have been used successively, which greatly improved the product performance.
Haiyong company is member of Qingdao Wood-working Machinery Association,at 2015 we passed ISO9001 quality management system.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all world to contact us for future business relationships!
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(25.54%),Southeast Asia(23.36%),North America(19.71%),Northern Europe(10.22%),Mid East(8.76%),South America(5.11%),Central America(4.38%),Eastern Europe(2.92%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Panel-furniture Machinery
4. why should you buy from us not from other suppliers?
Our company is a manufacturer of wood machinery with well-equipped testing equipment and strong technical force.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2010,sell to Domestic Market(25.54%),Southeast Asia(23.36%),North America(19.71%),Northern Europe(10.22%),Mid East(8.76%),South America(5.11%),Central America(4.38%),Eastern Europe(2.92%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Panel-furniture Machinery
4. why should you buy from us not from other suppliers?
Our company is a manufacturer of wood machinery with well-equipped testing equipment and strong technical force.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
