Cheap Brushless DC Motor Driver for BLDC Motor JK86BLS84
- Category: Motor Drivers >>>
- Supplier: Changzhou,Jkongmotor,Co.,Ltd.
Share on:
Product Overview
Description
Main features
◆It can be connected with an external speed display board, showing the speed; it can also be connected with computers to set drive parameters
◆ It has double speed closed current design with low speed torque and smooth operation;
◆ It has high speed output with the maximum speed of 20000rpm / min;
◆Speed control mode : analog quantity 0-5V,（according to the users’ requirement we can set PWM within 10Hz-300Hz
◆ It has have EN, DIR signal control side;
◆ It can output tachometer pulse;
◆ It has over-current, overvoltage, under voltage , overheating, motor stalling and other protection functions;
◆ It has double speed closed current design with low speed torque and smooth operation;
◆ It has high speed output with the maximum speed of 20000rpm / min;
◆Speed control mode : analog quantity 0-5V,（according to the users’ requirement we can set PWM within 10Hz-300Hz
◆ It has have EN, DIR signal control side;
◆ It can output tachometer pulse;
◆ It has over-current, overvoltage, under voltage , overheating, motor stalling and other protection functions;
Product Overview
JKBLD480brushless DC motor driver is our company's latest high-tech product for the field of medium power motor drive. This product uses a large-scale integrated circuit to replace the original hardware. It has higher anti-jamming and fast response ability. It is suitable for all the three-phase brushless DC motors with low voltage DC18V-50V(boards show DC24V-48V) and peak current below 10A. Even if working with large current, it is still in low temperature. It is widely used in knitting equipment, medical equipment, food packaging machinery, power tools and a series of areas of electrical automation and control.

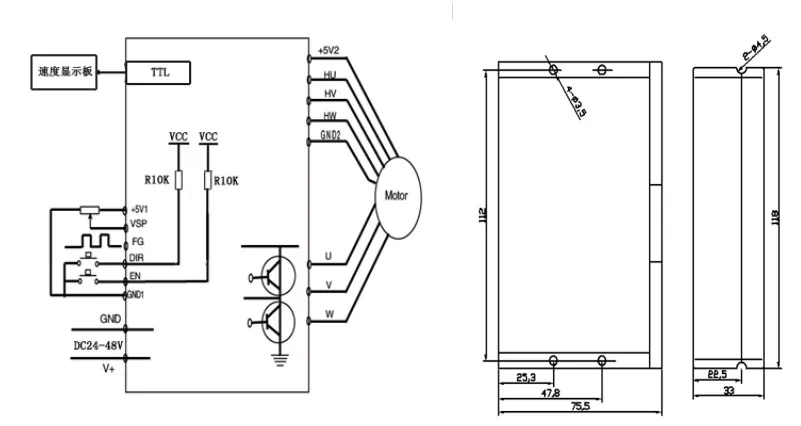

Functional View
JKBLD480brushless DC motor driver is our company's latest high-tech product for the field of medium power motor drive. This product uses a large-scale integrated circuit to replace the original hardware. It has higher anti-jamming and fast response ability. It is suitable for all the three-phase brushless DC motors with low voltage DC18V-50V(boards show DC24V-48V) and peak current below 10A. Even if working with large current, it is still in low temperature. It is widely used in knitting equipment, medical equipment, food packaging machinery, power tools and a series of areas of electrical automation and control.
Electrical Specification:
Power supply | DC18V～50V direct current (Capacity according to motor power selection) |
The maximum input current | Not greater than10A (according to motor and rated load) |
The maximum power | The maximum is 480W (over power motor is strictly prohibited) |
Insulation resistance | General temperature﹥500MΩ |
Insulation strength | General temperature and pressure 0.5KV，1minitute |

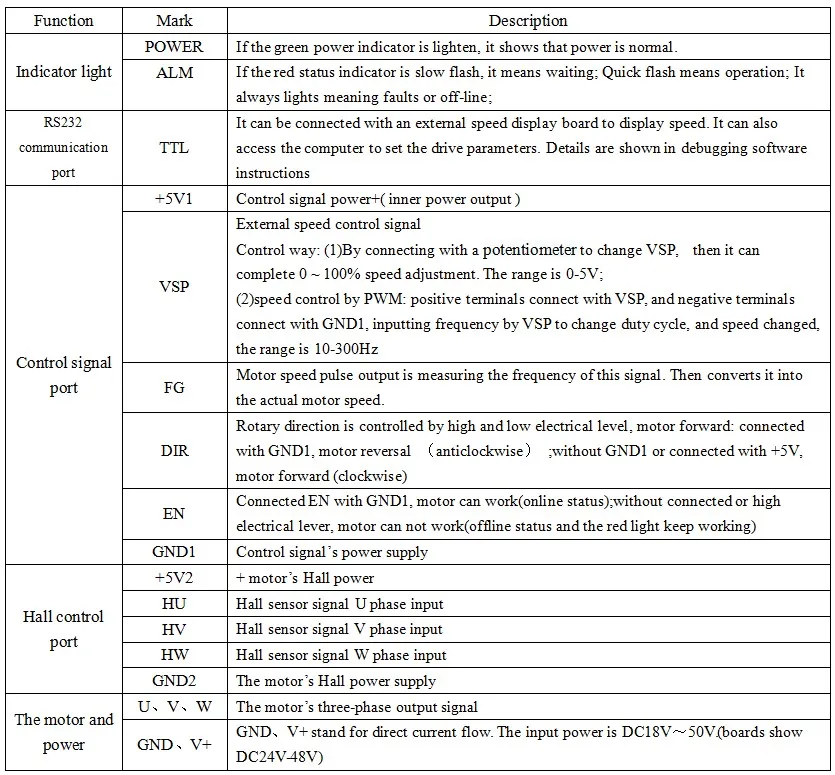

Terminal interface description
Company Profie
Packing & Delivery
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with 8 years of professional production experience.
Q2: Do you provide OEM or ODM service?
A2: Yes, JKONGMOTOR company warmly welcome OEM or ODM corporrations and other companies to establish long-term cooperation with
us.
Q3: What's the MOQ?
A3: 3 units.
Q4:Where is your loading port?
A5:Building A2,Hutan Industrial Zone,Wujin District, Chagnzhou,China.
Q5: Are your delivery dates on time?
A5: Yes of course.We have our own factory so can ensure timely delivery.
Q6: What about your warranty?
A6: We guarantee is 12 months, for sea order is 15 months.
A1: We are a manufacturer with 8 years of professional production experience.
Q2: Do you provide OEM or ODM service?
A2: Yes, JKONGMOTOR company warmly welcome OEM or ODM corporrations and other companies to establish long-term cooperation with
us.
Q3: What's the MOQ?
A3: 3 units.
Q4:Where is your loading port?
A5:Building A2,Hutan Industrial Zone,Wujin District, Chagnzhou,China.
Q5: Are your delivery dates on time?
A5: Yes of course.We have our own factory so can ensure timely delivery.
Q6: What about your warranty?
A6: We guarantee is 12 months, for sea order is 15 months.
