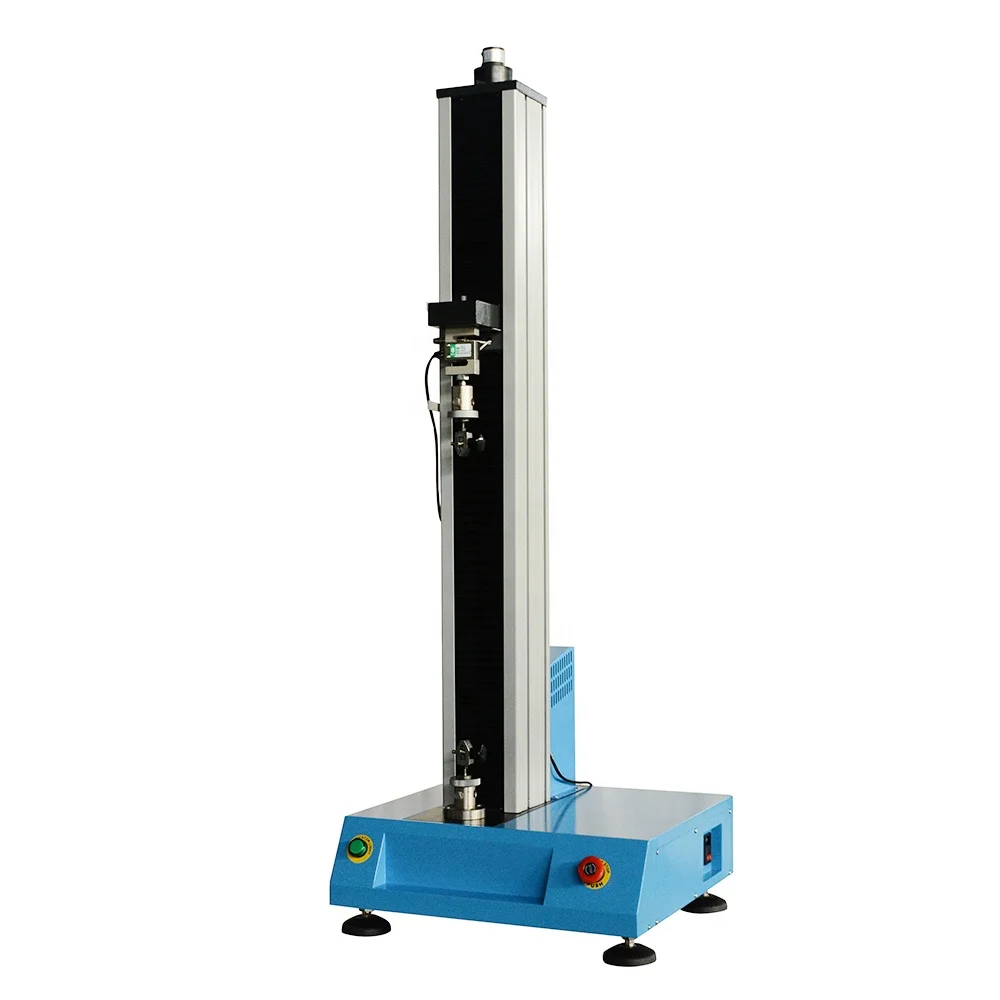

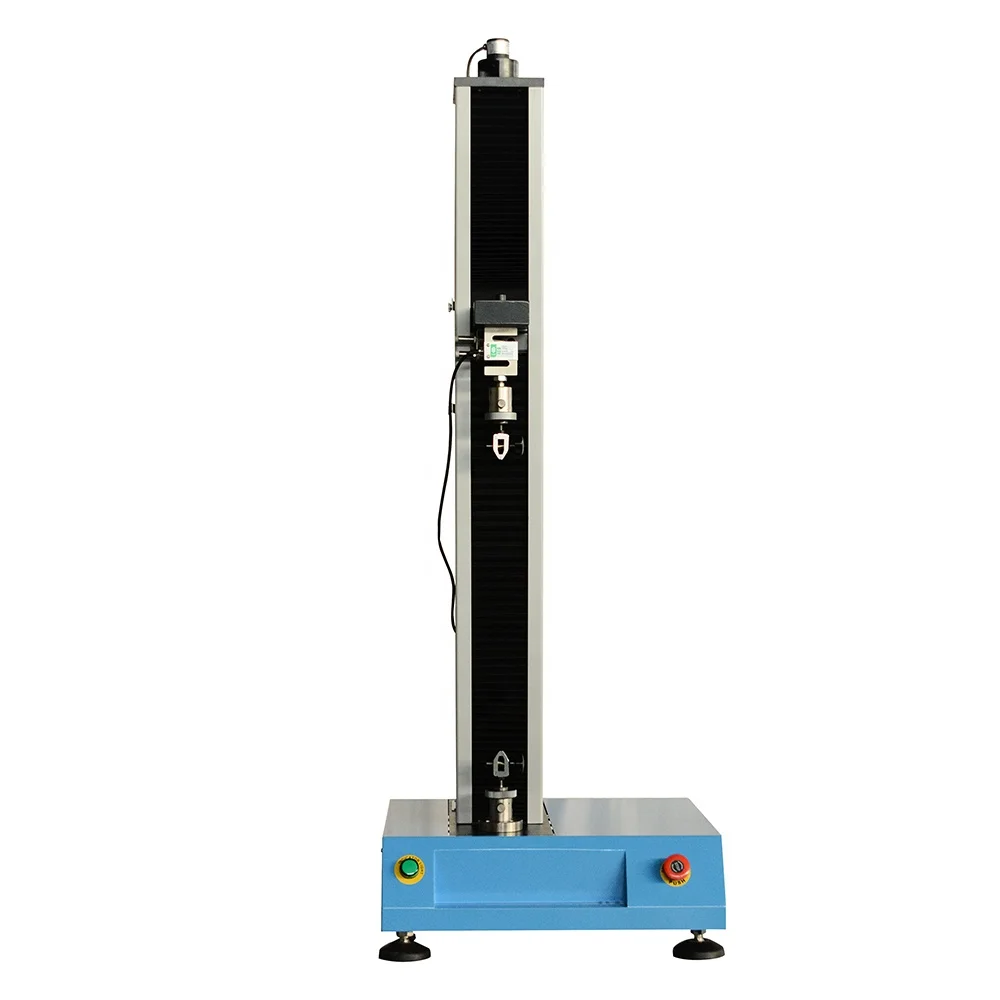

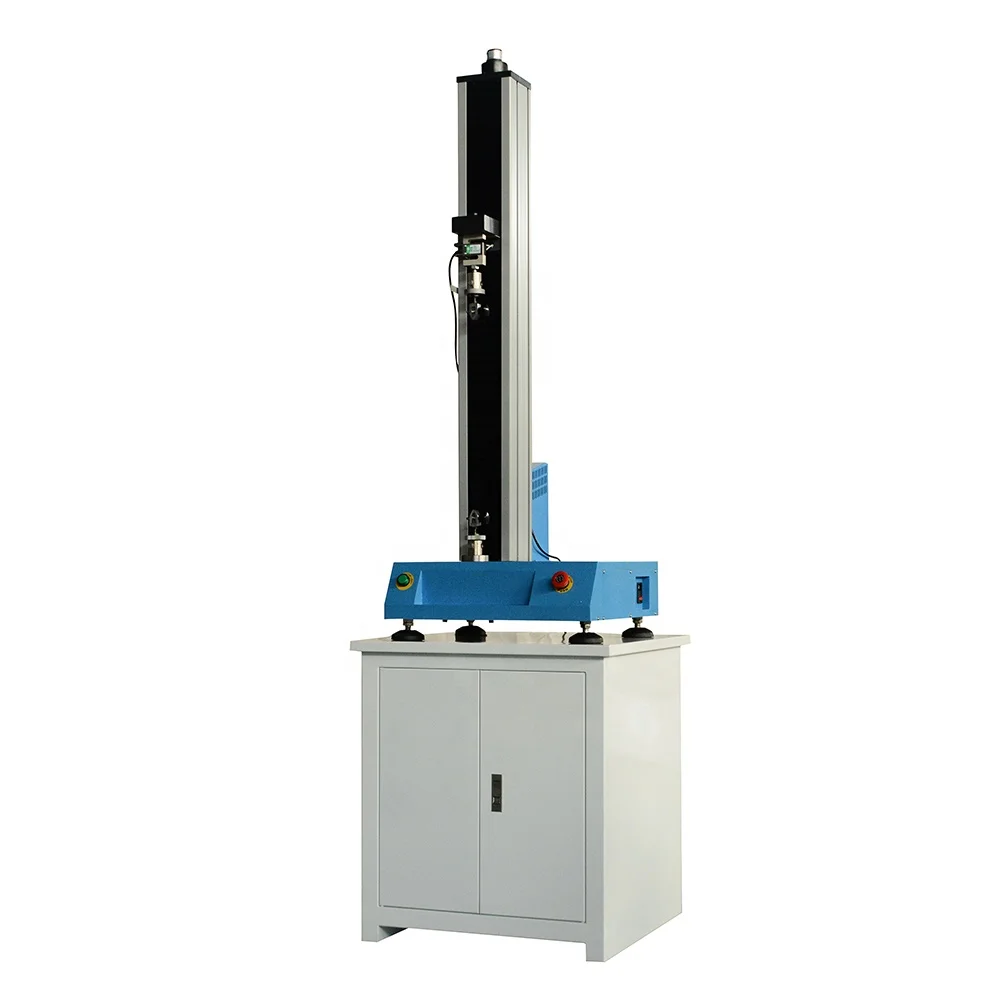

1KN Single Column Computer Control Electromechanical Test Equipment Laboratory Testing Machines With Manual Fixtures
1KN Single Column Computer Control Electromechanical Test Equipment Laboratory Testing Machines With Manual Fixtures
1KN Single Column Computer Control Electromechanical Test Equipment Laboratory Testing Machines With Manual Fixtures
1KN Single Column Computer Control Electromechanical Test Equipment Laboratory Testing Machines With Manual Fixtures
1KN Single Column Computer Control Electromechanical Test Equipment Laboratory Testing Machines With Manual Fixtures
1KN Single Column Computer Control Electromechanical Test Equipment Laboratory Testing Machines With Manual Fixtures

1KN Single Column Computer Control Electromechanical Test Equipment Laboratory Testing Machines With Manual Fixtures

Share on (1600290809485):


Price:$3,300.00 - $3,500.00

Quantity:


Product Overview

Description



Product Description

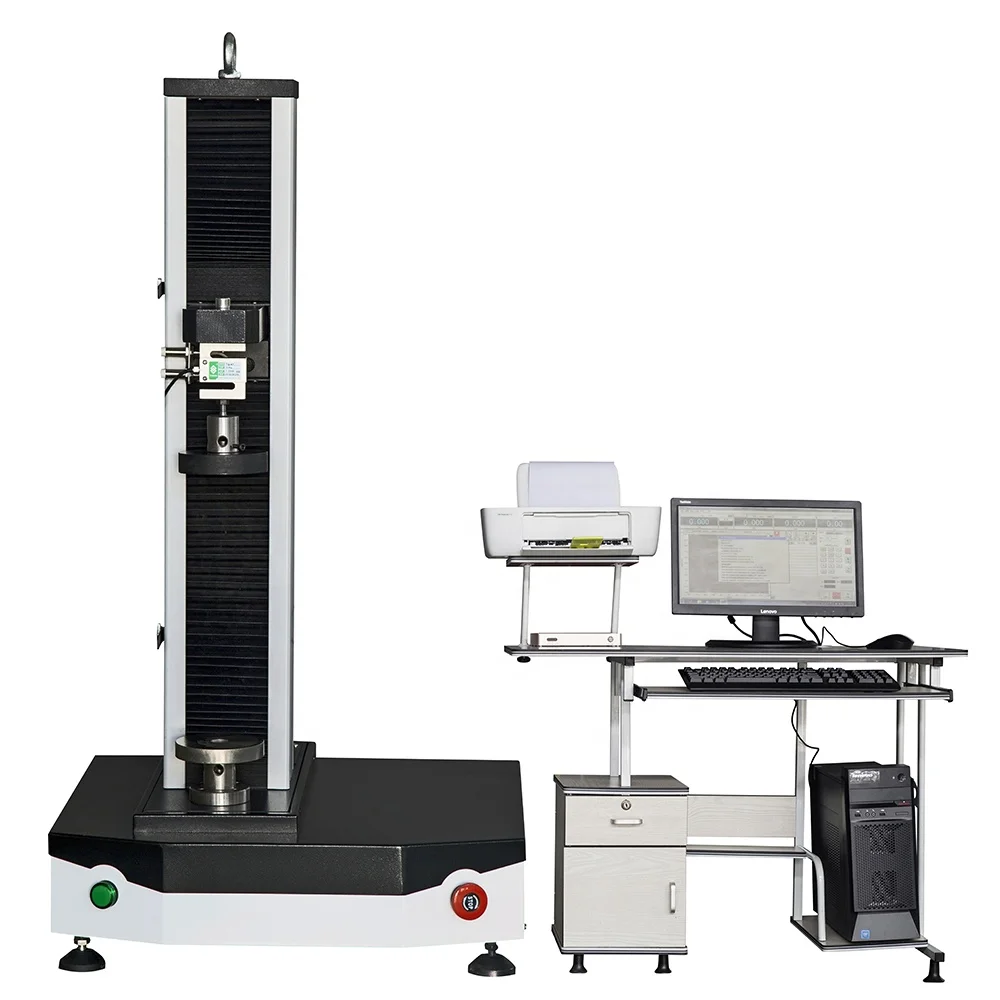

ETM-2 200kgf Mini Manual Fixtures One Column Universal Testing Machine China

1.Application
The single column series testing machine is designed and produced for the tensile, compression, peel,and bending tests of the rubbers, plastics, thin films or other materials.
And it is also used for the performance tests of the thin metal, wire, fiber, elastomer, foam materials.

 2.Technical Parameters


Model
ETM
Max. load
1KN  2KN  3KN 5KN
Structure
Single column
Control method
Computer control
Load accuracy
Class 1 （class 0.5 optional）
Load range
1%-100% FS (0.4%-100% FS optional)
Deformation measurement range
0.2%-100%
Displacement Resolution
0.01mm
Test speed
0.05-1000mm/min
Crosshead travel space(mm)
1100
Tensile space(mm)
900

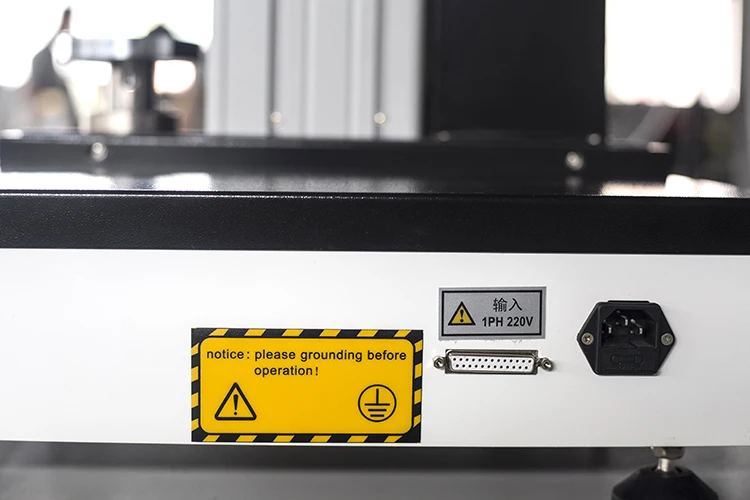

Power supply
AC220V±10%，50Hz

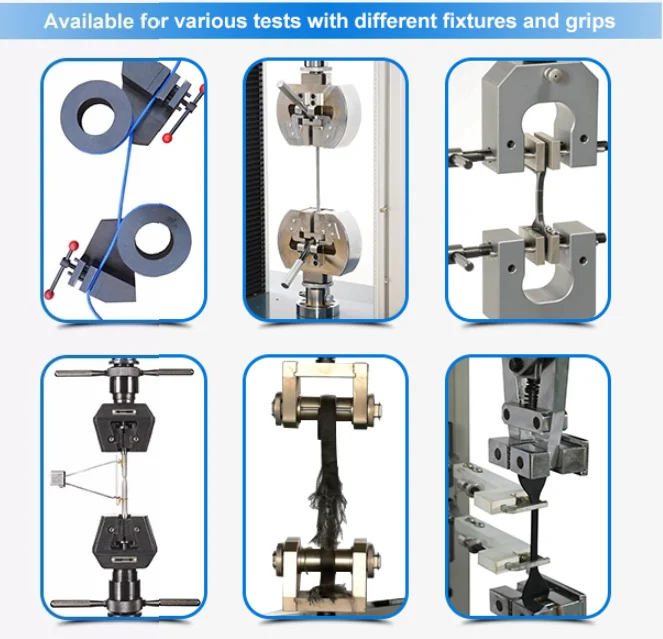

Grips
Corrugated grip
Dimension
450*400*1680mm
Extensometer
Electronic Extensometer optional
Weight
Around 110 kg

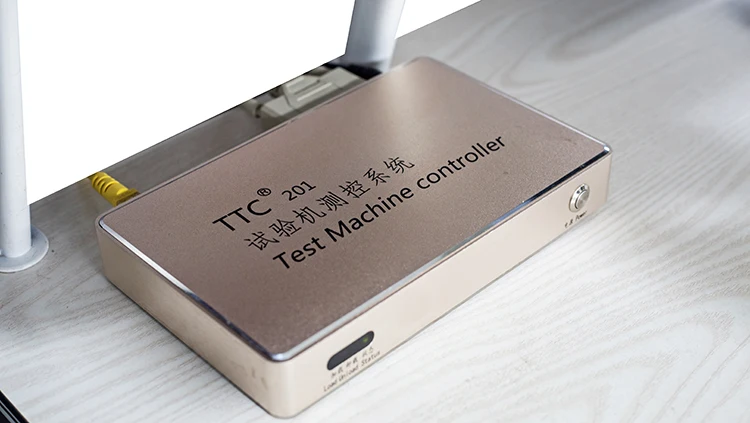

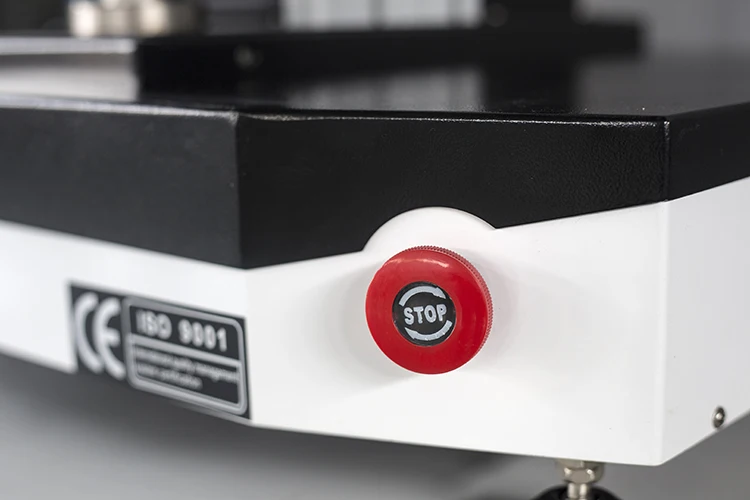

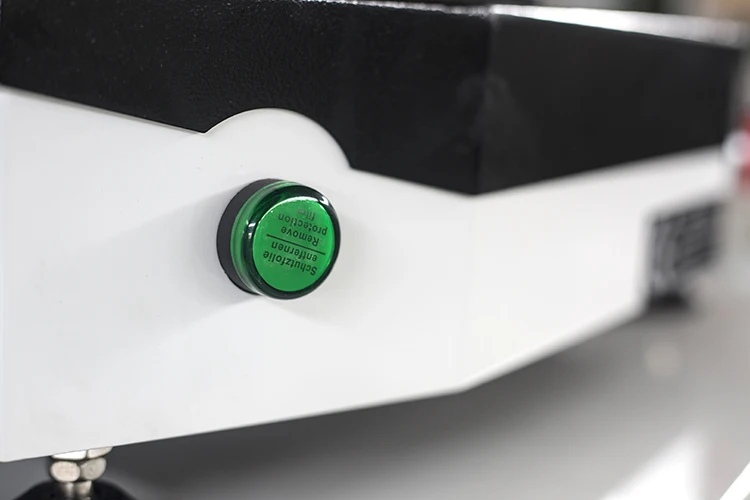

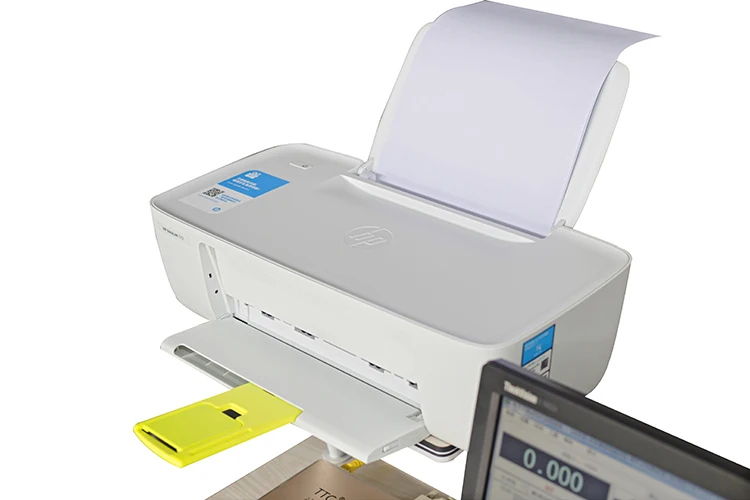

Details Images


























Why Choose Us

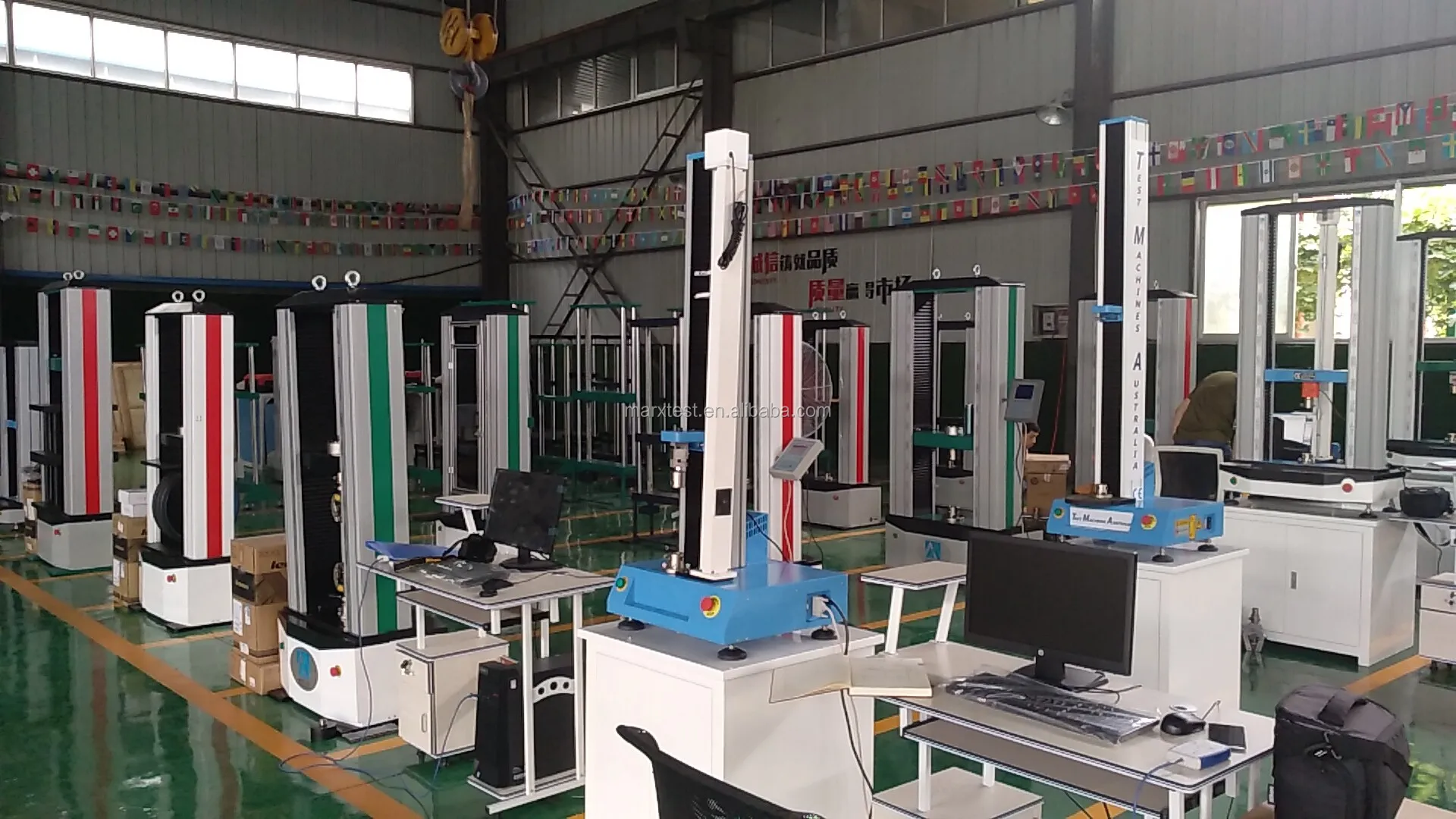

Company Profile




FAQ




Certifications




Packing & Shipping




Recommend Products

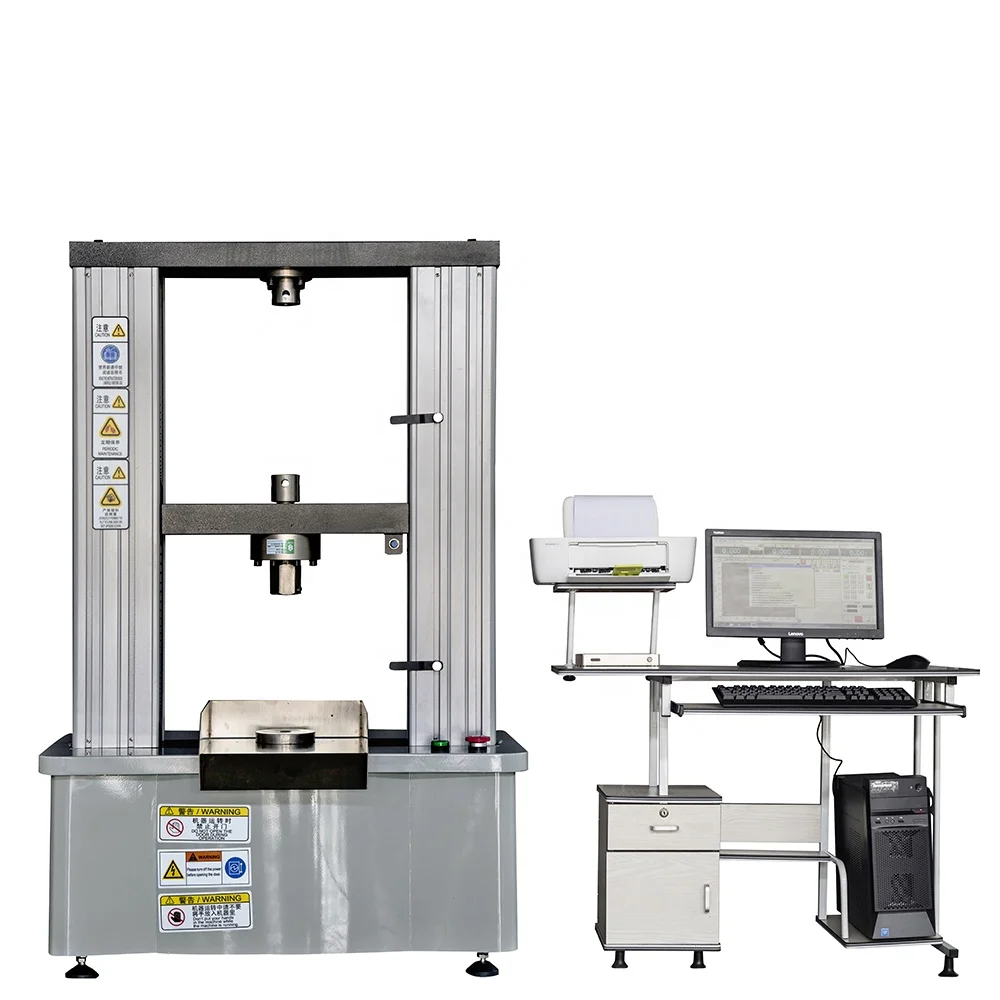

Circle Pressure Plate Small Space Computer Controlled Electronic Flexural Strength Testing Machine 1/2/3/5/KN

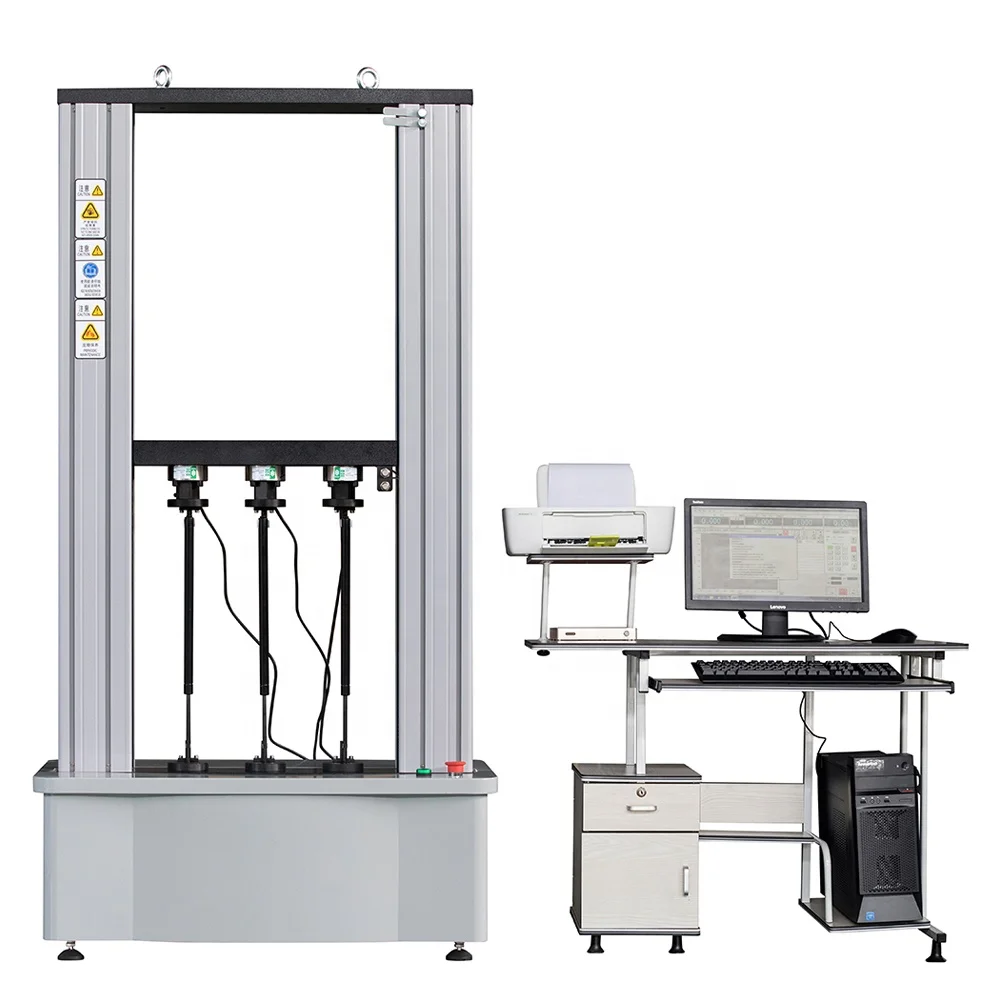

Computer Controlled WDW-30KN Gas Spring Three Stations Working Tension And Compression Testing Machine




Computer Control Electromechanical Iron Ore Pellets Foundry Sand Compression Strength Testing Systems

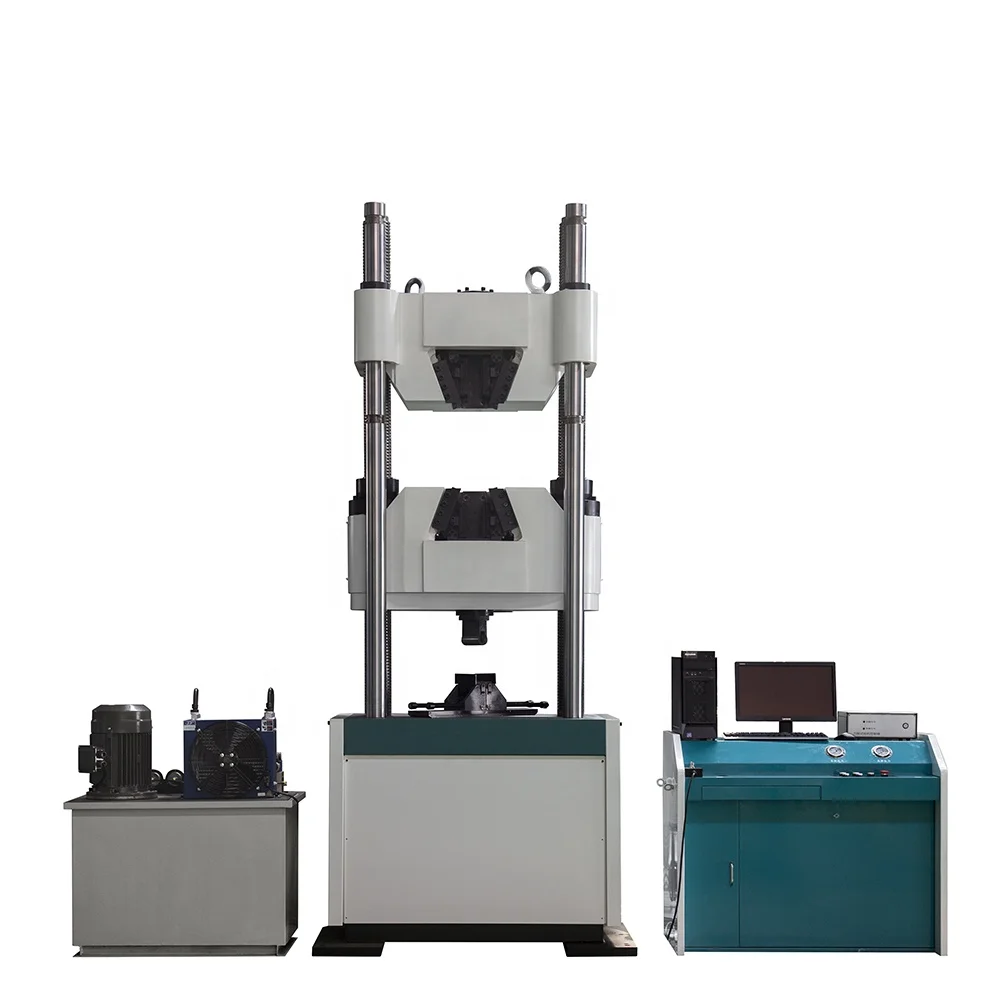

Hydraulic Motor Drive Computerised UTM Universal Testing Machine Manufacturer 2000KN 200TON
