PZ 7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete
PZ-7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete
PZ-7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete
PZ-7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete
PZ-7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete
PZ-7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete
PZ-7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete

PZ 7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete

Share on (1600290810705):


Price:$2,210.00 - $2,300.00

Quantity:


Product Overview

Description



PZ-7D rock support use concrete spraying machine mixer plastering machine for processing dry shotcrete

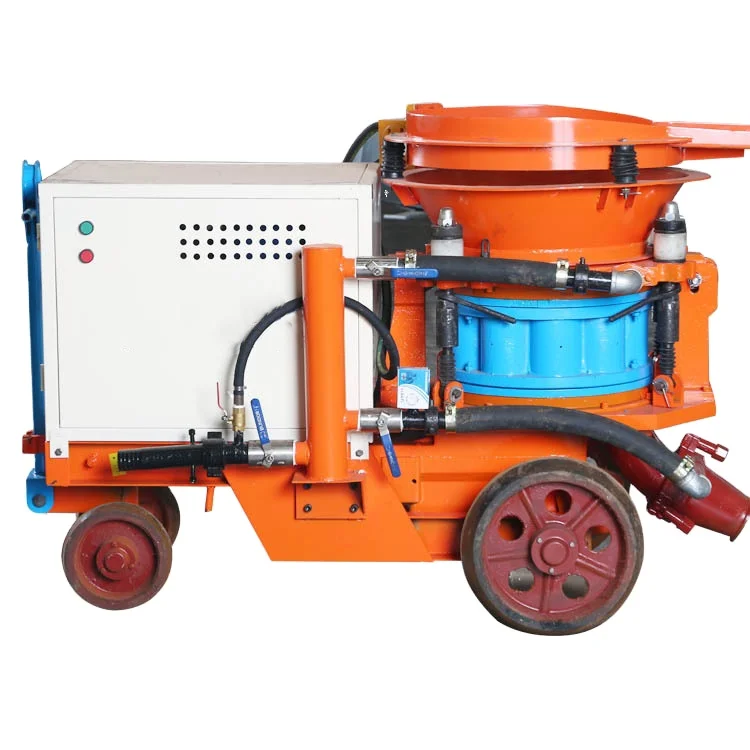

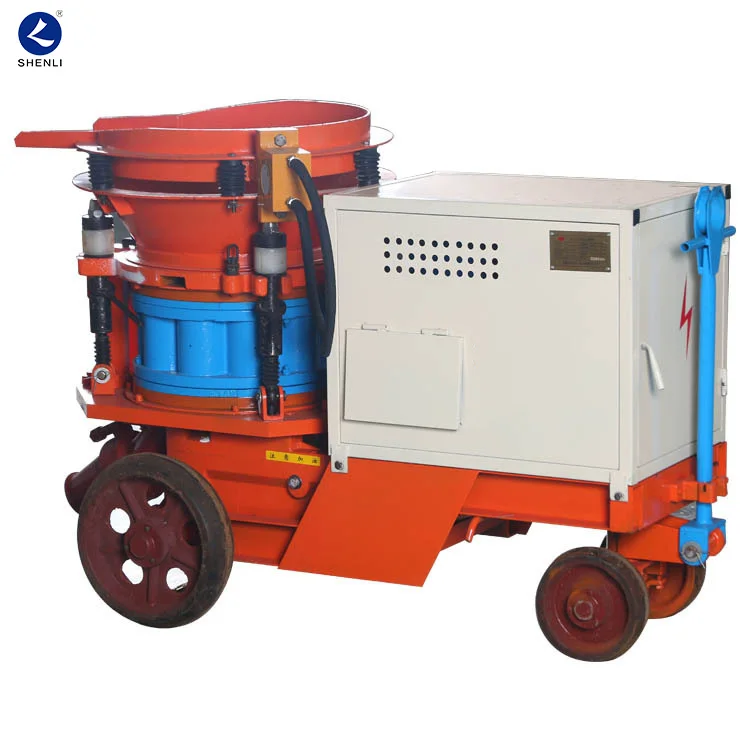

PZ-7D Dry Concrete Spraying Machine
PZ-7D dry-mix shotcrete machine is widely used in concrete spray construction operations of mining tunnels, culverts, subways,
hydro-power projects, underground works of concrete spray construction operations


Technical Parameter
≤65 L/S
Working capacity
6m³/H
Working air pressure
0.4-0.6Mpa
Inner diameter of conveying hose
51mm
Weight
780Kg
Dimension
1600*850*1150mm
Maximum delivery distance
200/20m（horizontal/vertical）
Maximum air consumption
8m³/min
Power of main motor
7.5KW
Voltage
380V
Maximum diameter of aggregate
20mm
Water：cement ratio
0.4-0.45
Model of main motor
Y160M-6
Feed height
1.1m




Performance characteristics
1. Advanced technology.
2. Reasonable structure.
3. Stable performance.
4. Easy operation and maintenance.
5. Long service life.

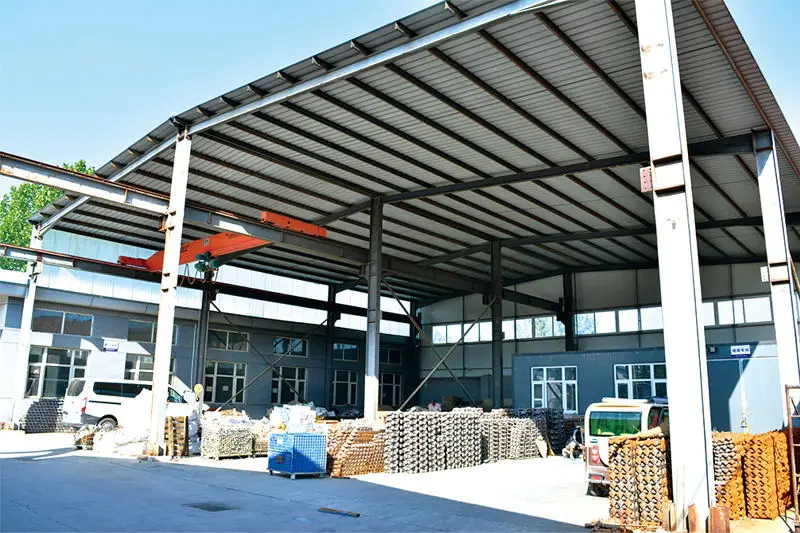

Company Profile


Tianjin Shenglida Machinery Equipment Co., Ltd. is a company engaged in mining industry for 16 years. Our factory mainly produces and sells concrete spraying machine, pneumatic rock drill, pneumatic crusher, pneumatic pick, drill bit, drill pipe, percussive, drill bit, pick axe and other mining equipment.
Our concept is to meet the needs and expectations of users with high-tech products, enhancing the enterprises competitiveness and brand awareness with high quality and the advanced management. Hoping to cooperate with you sincerely.




Certifications




International Cooperation




Exhibition
