HD 1080p mini camera IP68 video surveillance camera
- Category: >>>
- Supplier: Shaanxi Granfoo Intelligent Technology Co. Ltd.
Share on (1600290861806):
Product Overview
Description

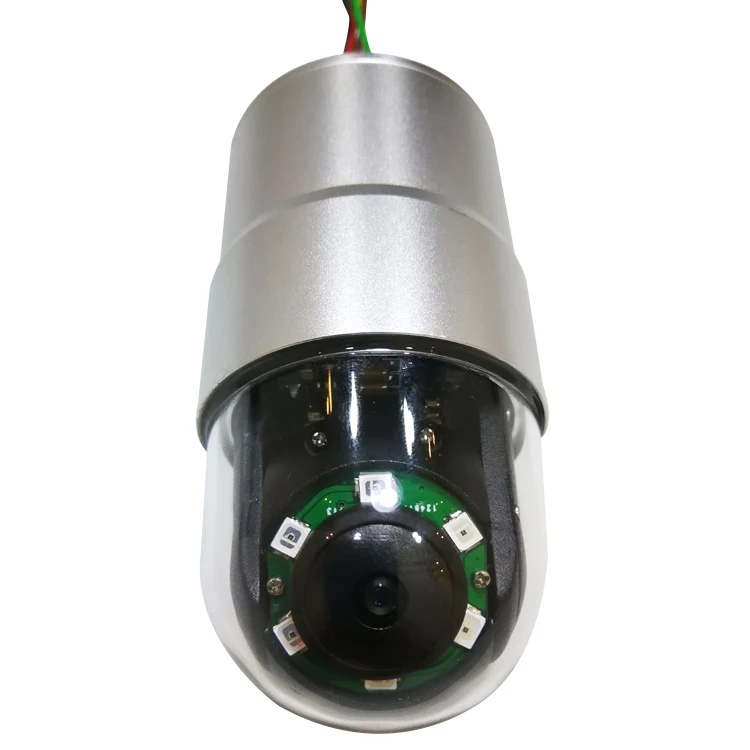

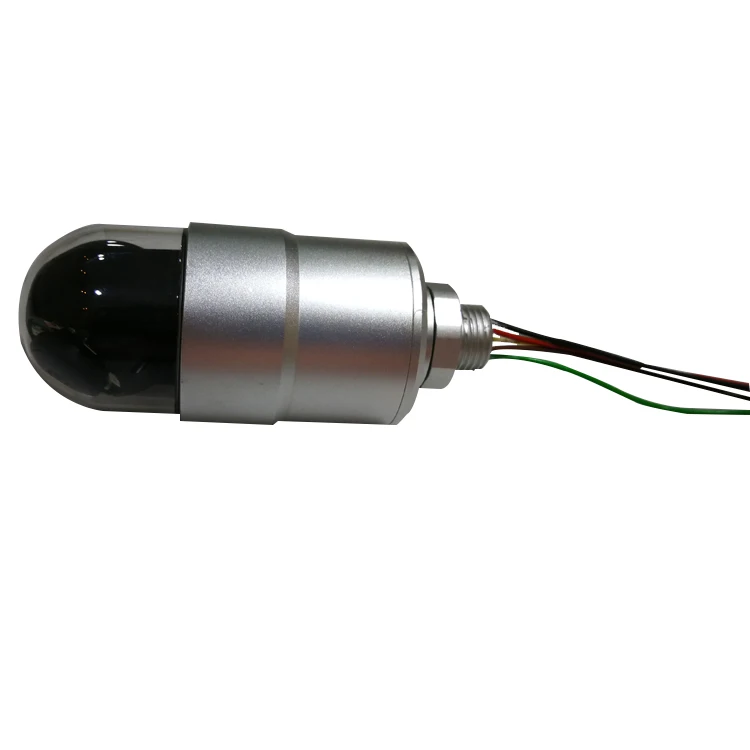

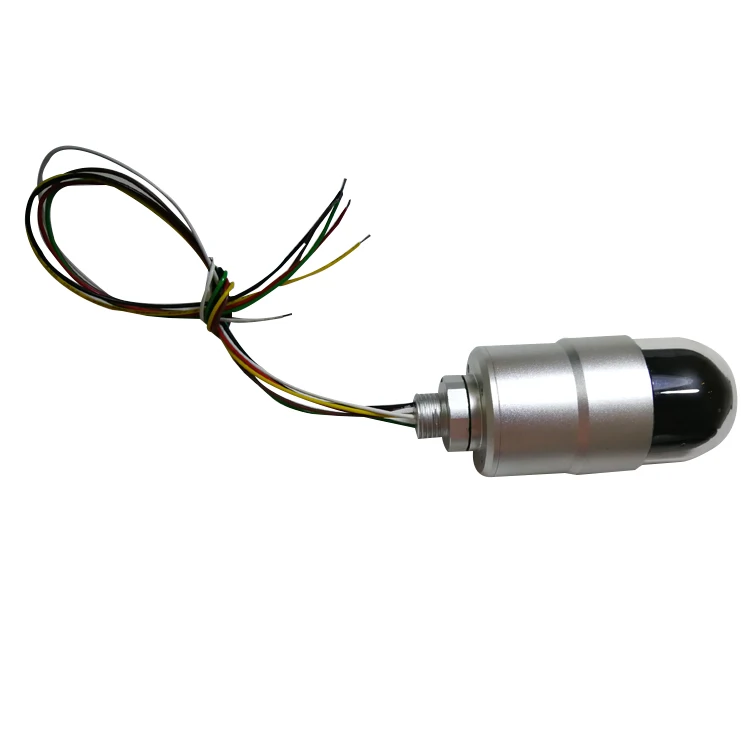

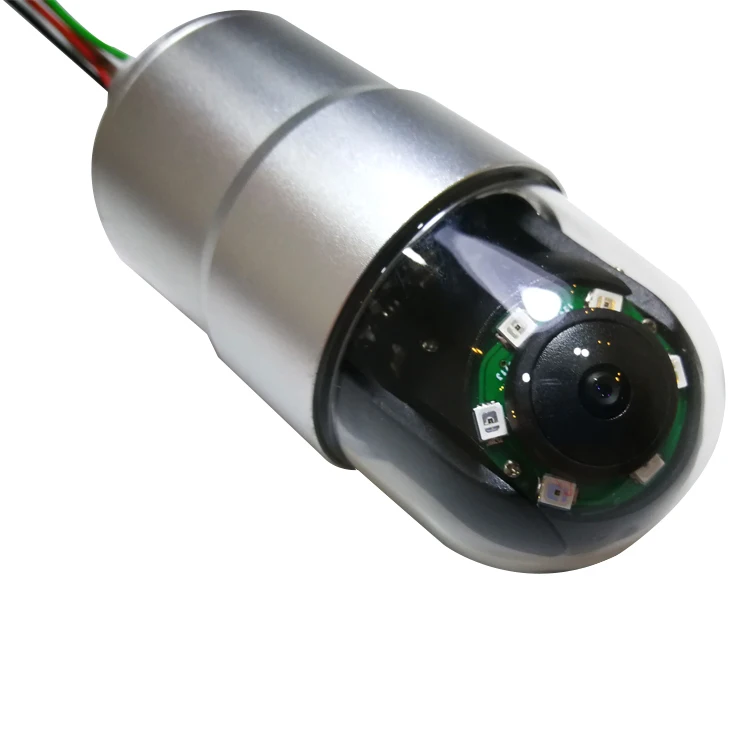

Micro HD Pan Til Dome camera
What’s including ?

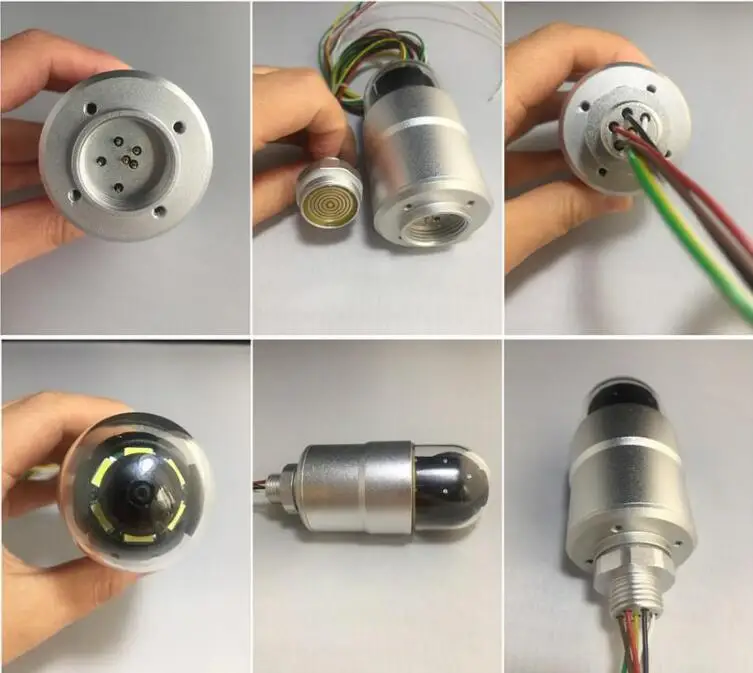

1.Underwater Pan& Tilt CCTV Inspection Camera GLF-UDC-MH360
2. Evaluation Control Board(GC01KK10default)

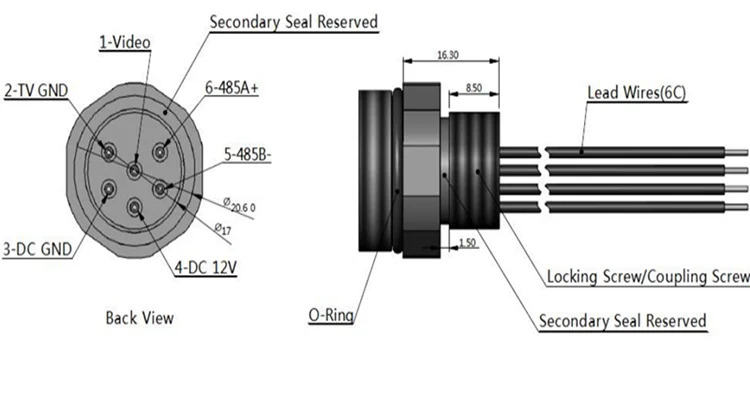

3. Dedicated Slip Connector with Lead Wires(PTFE UL1332-6 AWG Cable: Approx 300mm)
2. Evaluation Control Board(GC01KK10default)
3. Dedicated Slip Connector with Lead Wires(PTFE UL1332-6 AWG Cable: Approx 300mm)
Functions:
1.Pan Operation [Step(Short press) / Multistep(Long press)]/ Reversing
2.Tilt Operation [Step(Short press) / Multistep(Long press)]
3.One‐Push Autoscan Activated/ Off
4.Various Velocity Setting/ Dynamic Switching
5.Various Step Setting/ Dynamic Switching
6.Light Adjustment(Level 10)
7.Save mode
2.Tilt Operation [Step(Short press) / Multistep(Long press)]
3.One‐Push Autoscan Activated/ Off
4.Various Velocity Setting/ Dynamic Switching
5.Various Step Setting/ Dynamic Switching
6.Light Adjustment(Level 10)
7.Save mode
Specifications : | ||
Model | GLF-UDC-MH360 | |
Image sensor | 1/3“SONY EXview HAD COMS | |
Resolution | 1.3 megixel | |
Video format | PAL(Default)/ NTSC(Optional) | |
S/N ratio | >52dB(Min)/ (AGC Off) | |
Video output | 1.0Vp‐p composite video signal at 75 ohms | |
OPTICAL | |
Lens | 6.0mm Cone Lens(Default) / F2.0 |
Angles of view | Approx. 44°(D)& 34°(H) in Air |
Scanning radius(visibility) | Approx. 5000mm underwater (Light Max) Testing Condition: Underwater Visibility > 5m |
Operating radius(optimal) | Approx.40mm~8000mm(Recommended) underwater |
Minimum object distance | Approx.40mm(Underwater) |
NOTE | The viewing distance is mainly affected by the factor of underwater visibility, so the focal point may be change. |
Optical dome | 32X HD Optical Dome(glass) |
Focus | Electric focusing(by key) |
Shaanxi Granfoo Intelligent Technology is a High-tech intelligent enterprise, specialized in designing, R&D, manufacturing and exporting of underwater cameras, pipe inspection cameras, underwater inspection robot ROV, underwater connectors, underwater cables, water quality monitor muti-parameter sensor, etc.
Granfoo has already been recognized as a strategic partner of many OEM businesses for about 12 years. We have the highly experienced team to work on your OEM projects. Our experience and splendid service have won us good business relationships with many international buyers and suppliers. Our products are sold to many countries across the world including Europe, North America, Japan, Korea, Australia, etc.
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 15 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
A: Yes, we have been offering specialized products in this field for 15 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
