3mm 4mm 5mm SMC FRP Flat Sheet
- Category: >>>
- Supplier: Nantong Drayson Composite Material Co. Ltd.
Share on (1600290907166):
Product Overview
Description
Product Description

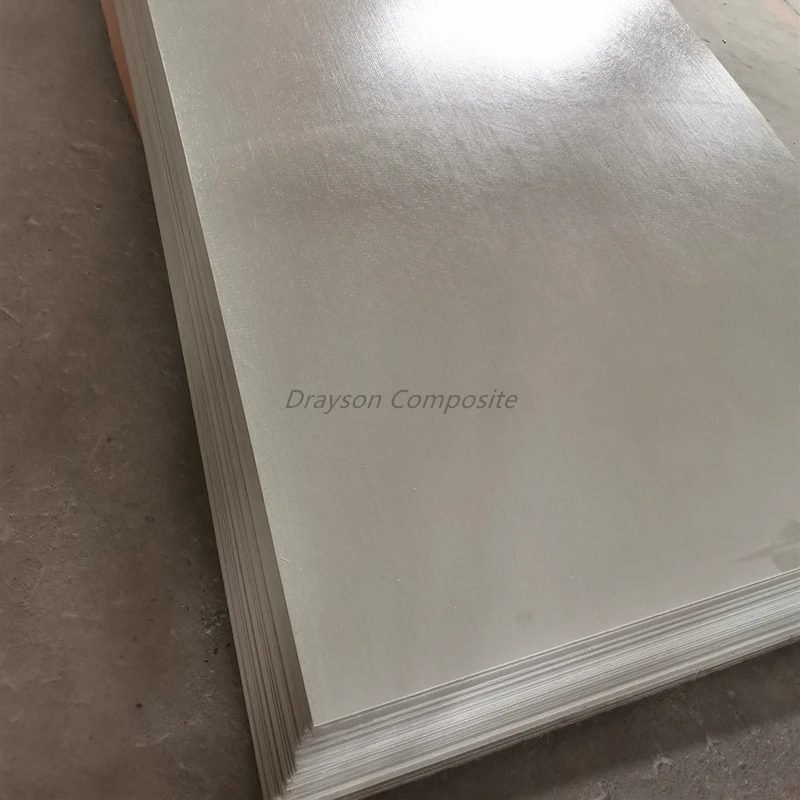

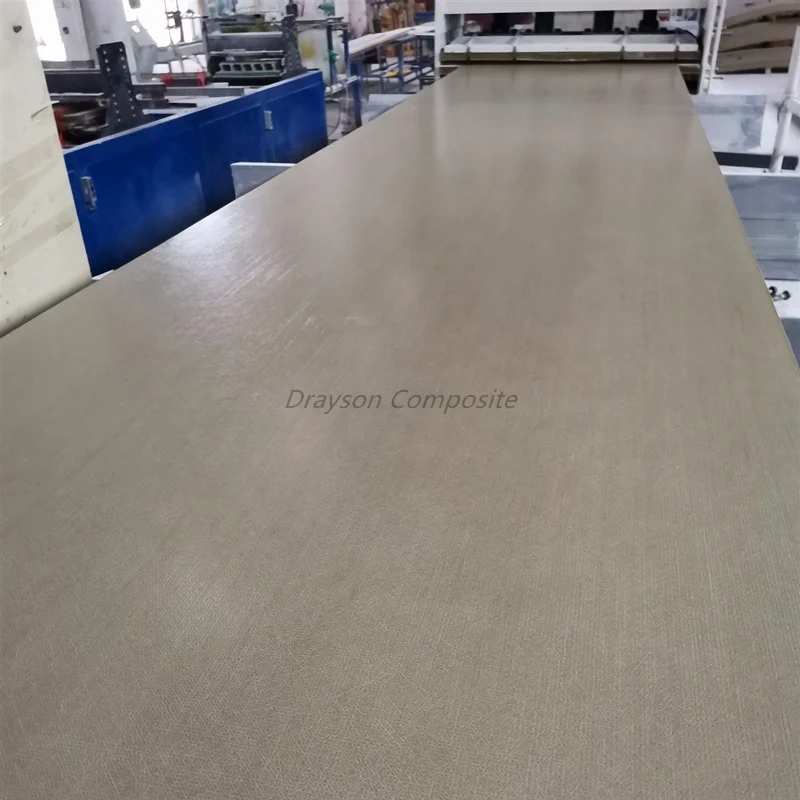

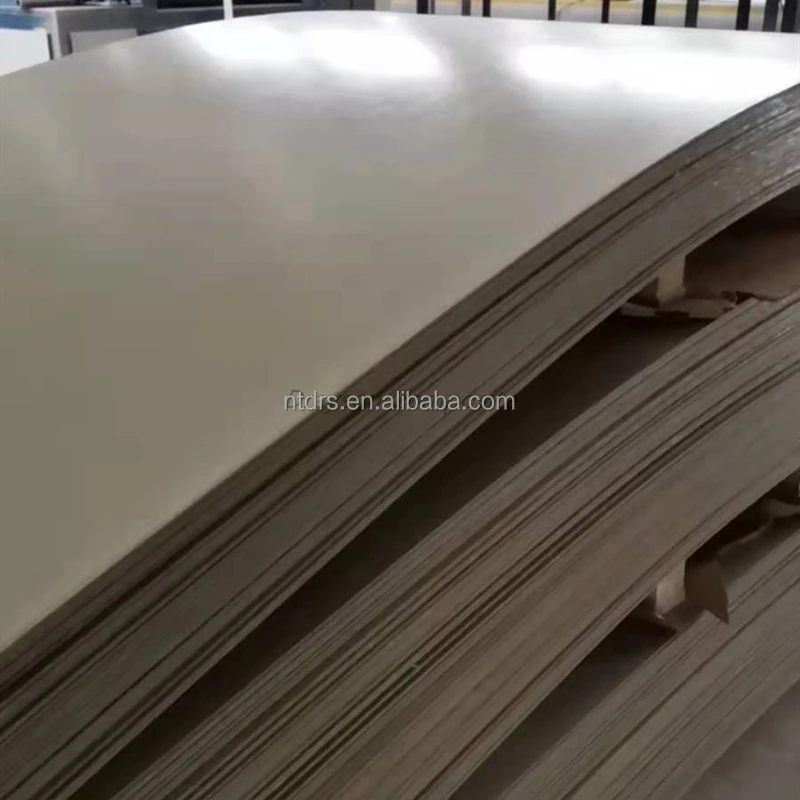

3mm 4mm 5mm SMC FRP Flat Sheet
Fiberglass Reinforced Plastic Flat Sheet is one kind of Pultruded Profiles, which is made by Glass Fibers and Resin, usually the standard width is 1220mm(4'), and we can cut into customized sizes.
Parameters | ||||||
Type | 3mm 4mm 5mm SMC FRP Flat Sheet | |||||
Material | ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH) | |||||
Size | can be customized (pls check detail as below form) | |||||
Color | According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized | |||||
Application | Fiberglass Reinforced Plastic (FRP/GRP) Sheet can be Used as Flooring, Outside Wall and so on. | |||||
Size-FRP Flat Sheet/Panel
hereby are our standard size for choice, include flat panel and flat strips, we can supply customized sizes as per your requirements
Type | Dimension(mm) |
Flat plate/panel | A*T |
FP32 | 3.2x1220 |
FP64 | 6.4x1220 |
FP95 | 9.5x1220 |
FP127 | 12.7x1220 |
FT152 | 15.2x1220 |
FT190 | 19x1220 |
Flat strip | A*T |
FS19 | 19x6.4 |
FS30A | 30x3.0 |
FS30B | 30x6.4 |
FS35 | 35x8.0 |
FS38 | 38x5.0 |
FS40 | 40x8.0 |
FS50B | 50x4.0 |
FS50C | 50x8.0 |
FS50D | 50x15 |
FS50E | 50x17 |
FS102 | 102x5.0 |
FS152 | 152x20 |
FS190 | 190x15 |
FS280 | 280x10 |
FS50A(bevel edge) | 50x3.2 |
FS60A(bevel edge) | 60x3.2 |
FS70(bevel edge) | 70x4.0 |
FS90A(bevel edge) | 90x3.2 |
FS100(bevel edge) | 100x3.2 |
FS120(bevel edge) | 120x3.0 |
Application-Profiles
Y & T Shape
Anti-Slip Stair Nosing
Kick Plate
Flat Sheet Flooring
Anti-Slip Flat Strip
FRP Channel
Tube & Hand Rail System
Tube Connector/Fittings
Angle Profile
Ladder System
H / I Beams
Charge System & Cable Tray
Advantages of Fiberglass Reinforced Plastic (FRP/GRP) Products | ||||||
Light Weight / High Strength | Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength | |||||
Anti-Fire / Safety | Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84. | |||||
Anti-Corrosion | No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture. | |||||
Anti-skid / slip | Different process mode on surface, concave, gritted, increase friction factor. | |||||
Anti-aging | Have more than 20 years effective service life under normal outdoor working condition. | |||||
Anti-fatigue | Moderate flexibility reduces the workers` pressure on legs and waist | |||||
Easy maintenance | have alternative and bright colors. Non-fading. Easily for clean. | |||||
Excellent economic benifits | Excellent comprehensive economic benefits | |||||
