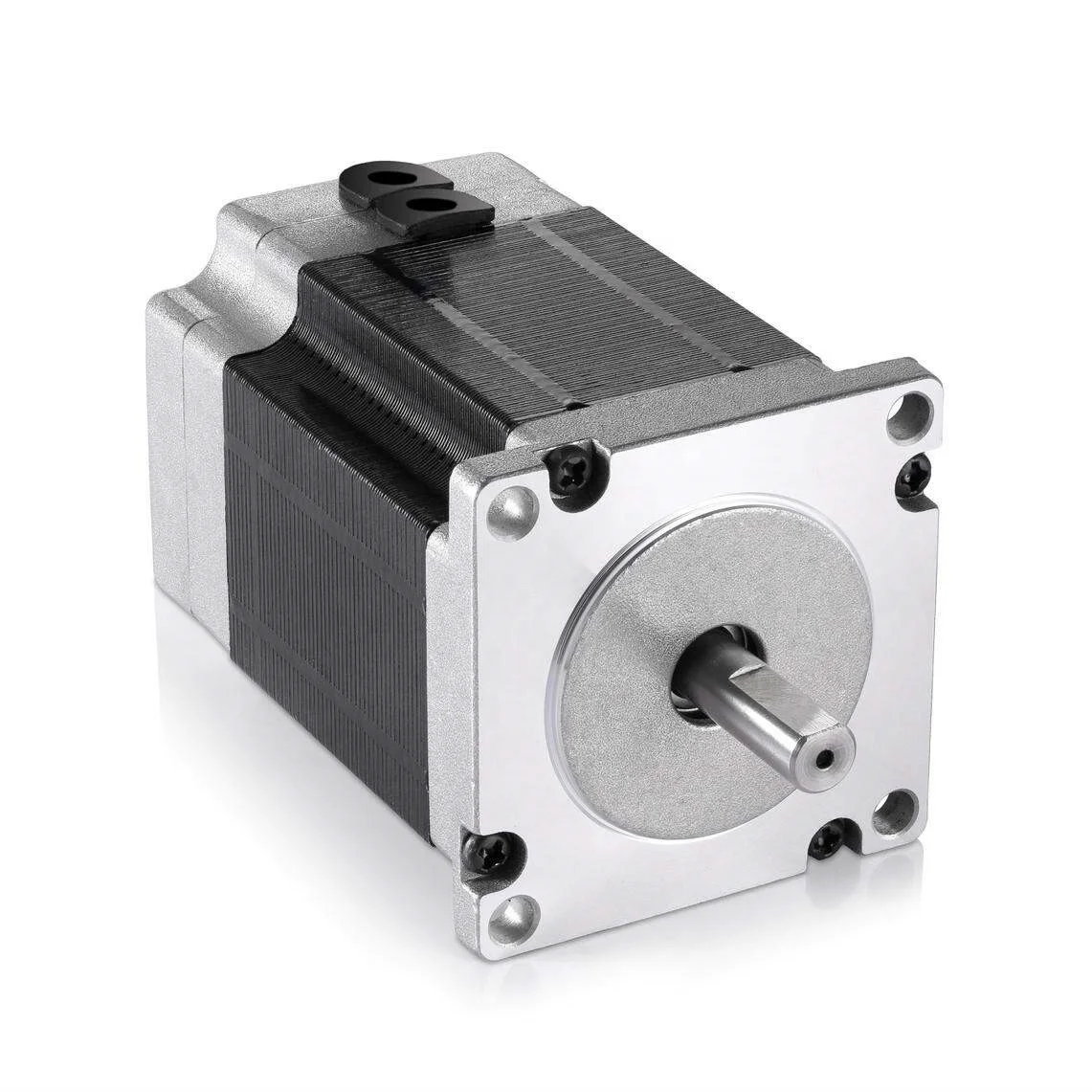

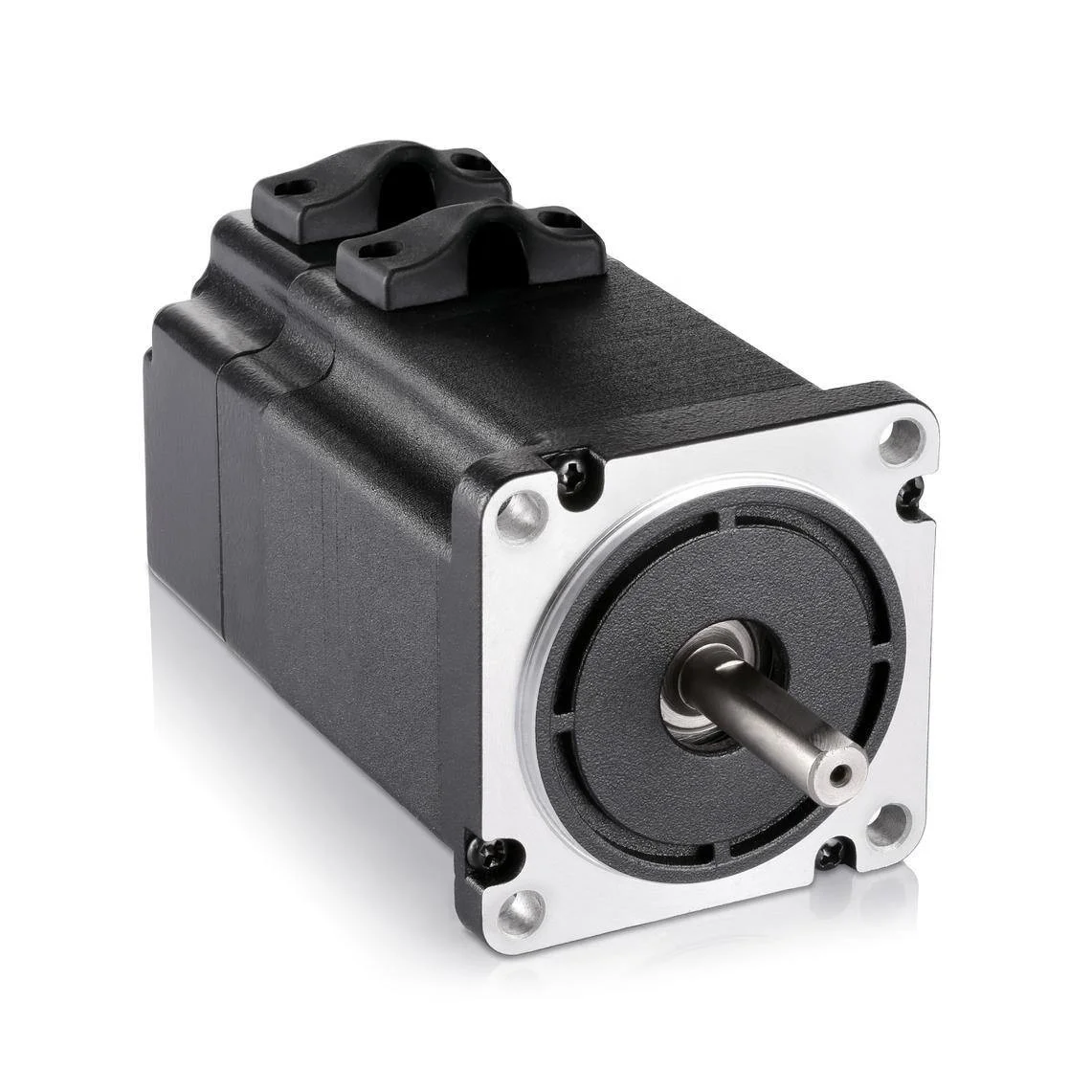

high torque brushless dc motor, 65W 1500RPM bldc motor 24v dc motor
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (1600290915929):
Product Overview
Description
high torque 24v brushless dc motor, 1500rpm 65w 0.4nm bldc motor
Related Products
24V BLDC
| Model | Output power(W) | Voltage (VDC) | Revolving speed (RPM) | Rated torque (Nm) | Motor Length (mm) | Matched driver |
| 30 | 24 | 3000 | 0.1 | 49 | BLD70 | |
| 42BLF-0630NBB | 62 | 24 | 3000 | 0.2 | 68 | BLD70 |
| 57BLF-0730NBB | 69 | 24 | 3000 | 0.2 | 62 | BLD70 |
| 57BLY-0730NBB | 69 | 24 | 3000 | 0.22 | 66.5 | BLD120A |

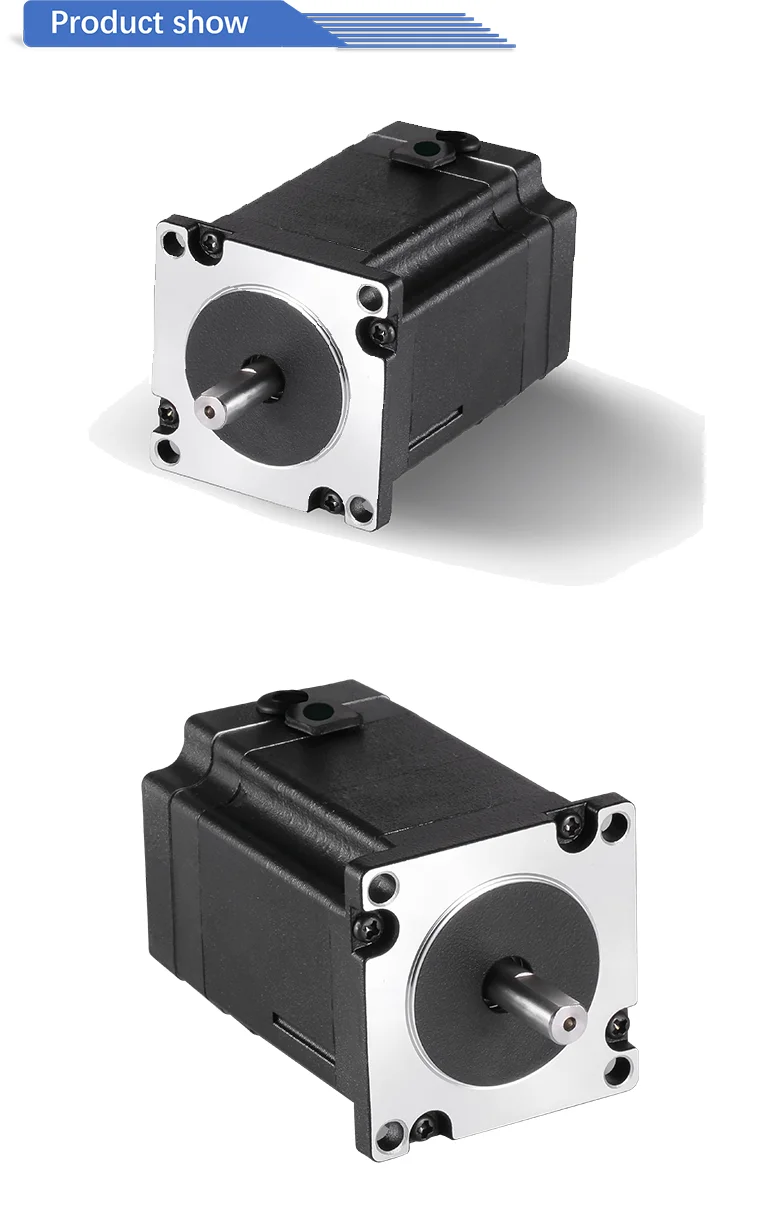

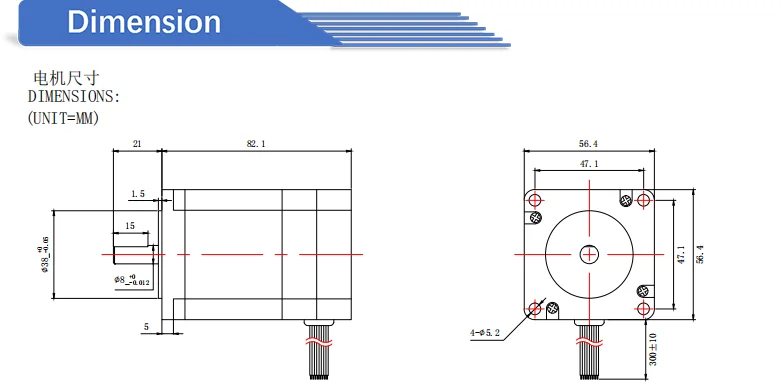

| 57BLF-0615NBB | 65 | 24 | 1500 | 0.4 | 82 | BLD120A |
| 57BLF-1030NBB | 103 | 24 | 3000 | 0.33 | 66.5 | BLD120A |
| 57BLF-1230NBB | 125 | 24 | 3000 | 0.4 | 80 | BLD120A |

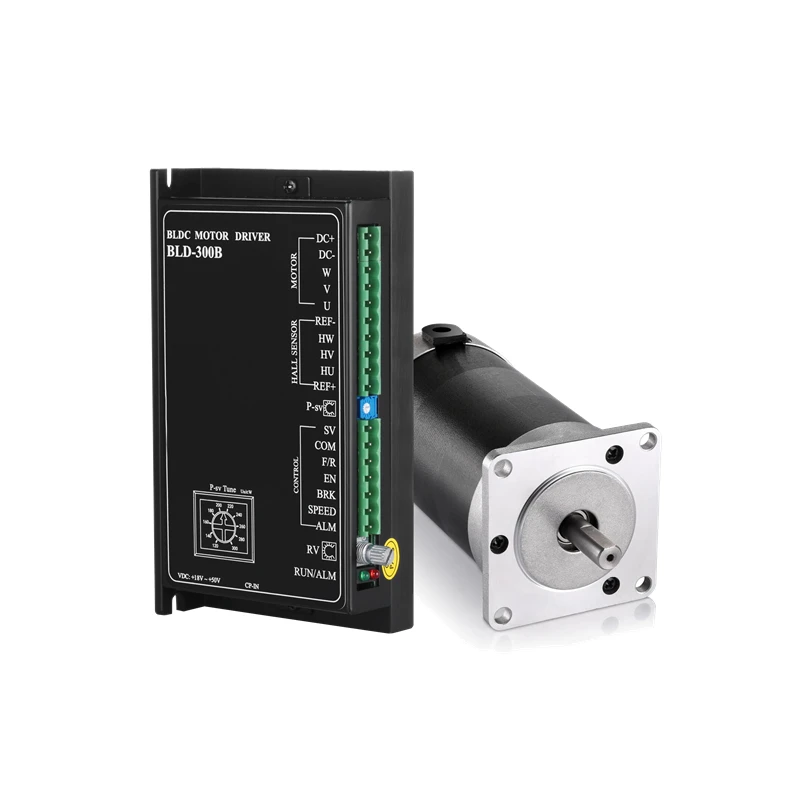

| 57BLY-1230NBB | 125 | 24 | 3000 | 0.44 | 106.5 | BLD300B |
| 57BLF-1830NBB | 188 | 24 | 3000 | 0.6 | 101 | BLD300B |
| 60BLF-0815NBB | 78 | 24 | 1500 | 0.5 | 100 | BLD300B |
| 60BLF-0830NBB | 78 | 24 | 3000 | 0.25 | 78 | BLD300B |
| 60BLF-1630NBB | 156 | 24 | 3000 | 0.5 | 100 | BLD300B |

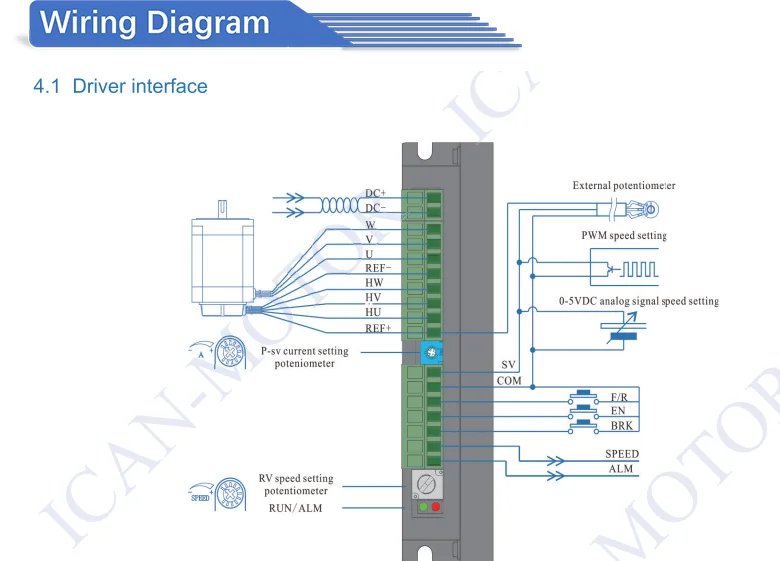

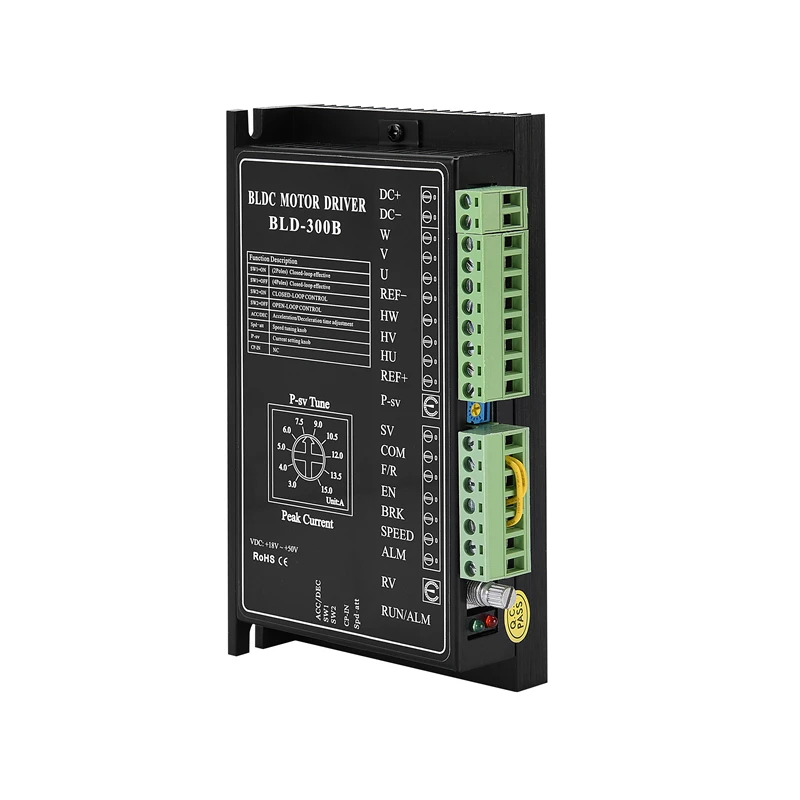

Matched Motor Driver
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
