1*7.5kw double inlet centrifugal fan, each air volume: 18000 m³/h




| The room body diameter |
7000×5350×3400mm(L×W×H) |
| Room inside diameter |
6900×3900×2650mm(L×W×H) |
| big door |
Three doors, 3000x2600 mm(W×H), sheet metal doors |
| Work gates |
650*2000mm(W*H), with pressure lock |
| room body |

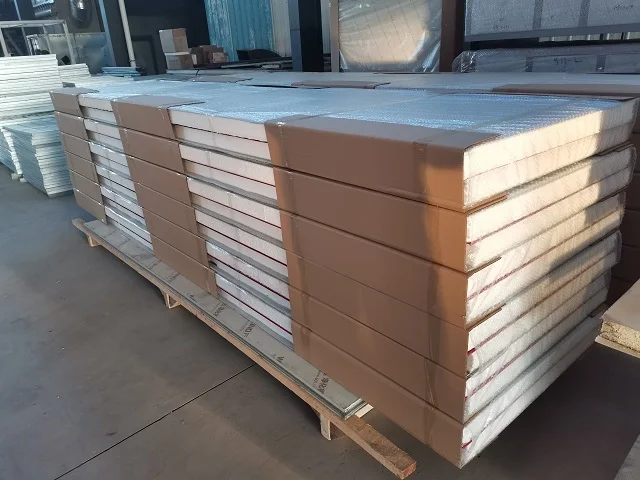

-50mm socket type EPS flame-retardant insulation board, 0.45mm color steel plate -High quality galvanized top plate |
| platform |

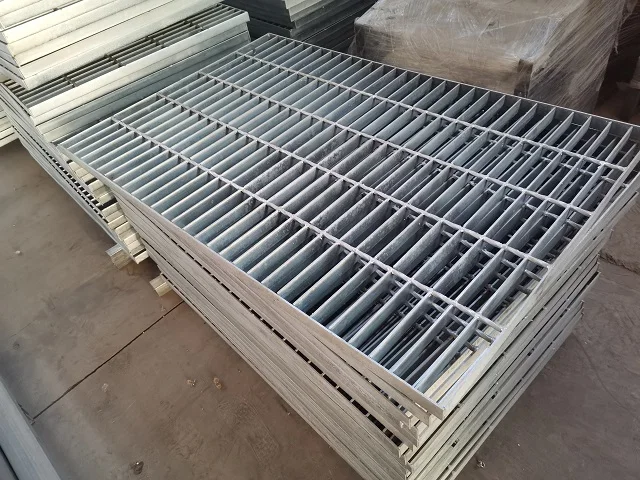

-Galvanized sheet bending platform, height 280mm, with steel structure bracket, 3 rows of 30x4 mm ground grid, 2 rows of checkered plates -2 Slope on the platform, 620*2000mm (W*L) |
| Fan |

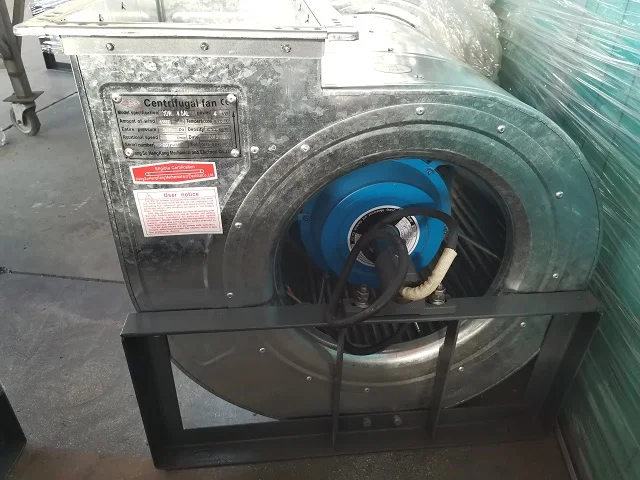

Inlet fan,2*4kw double inlet centrifugal fan, each air volume: 12500 m³/h Ventilator,1*7.5kw double inlet centrifugal fan, each air volume: 18000 m³/h |
| Ark device | Square tube welded frame, galvanized sheet sprayed skin, manual damper. |
| Heating system | It adopts RIELLO G20 oil burner, which produces 180,000Kcal/h of heat per hour, And equipped with pneumatic spraying and baking automatic switching air door. |
| Filtration system |
Primary filter:Grade G2 plate type,filtering rate>83% Ceiling filter:EU5 grade high efficient filter,filtering rate>98% Floor filter:Multi-layer fiberglass filter,filering rate>70% |
| Lighting system |
1. Dome light: 32 ×16W, LED lamp. 2. Illuminance ≥ 800Lux. |
| Electric control system |
Lighting, temperature and time setting, painting, constant temperature painting, baking, emergency stop, fault alarm, accumulated time, etc. |
| Temperature of the lacquer that bake |
80℃ |
| total power |
16KW |






1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Western Union are all accepted if you have other payment,please contact me.
