LTUB55 Medical Equipment 3D/4D Color Doppler Diagnostic Ultrasound System Manufacturers
- Category: >>>
- Supplier: Guangzhou Leyte Medical Equipment Co. Ltd.
Share on (1600290979874):
Product Overview
Description
Product Picture
Product Description
High-end 3D/4D Color Doppler Ultrasound Scanner
Summary of main specifications and system of cart type color Doppler ultrasound
* Portable type full digital color Doppler ultrasound main unit
* Ultrasonic host operating system: Windows operating system
* Applications：Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal
* Probes：Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volumeprobe
* Applications and report：Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc.
* carotid artery intima measurement thickness(IMT）
* Automatic spectral envelope measurement
* Full digital transmission and reception of beam synthesizer
* Color Doppler imaging（C）
* Pulse Doppler Imaging（PW）
* Continuous wave Doppler imaging（CW）
* B/C/D Real-time three synchronous imaging
* Power Doppler imaging（PDI）
* Direct power Doppler imaging（DPDI）
* M mode imaging
* Anatomic M mode imaging
* Color Doppler M mode imaging
* Tissue Doppler imaging（TDI）
* Strain rate imaging (SRI)
* Tissue harmonic imaging（THI）
* Fusion harmonic imaging（FHI）
* Speckle Reduce imaging（SRI）
* Deflection imaging
* Trapezoidal imaging
* Adaptive velocity optimization
* Free hand 3D
* Real time 3D imaging（3D/4D）
* Monitor：15 inch，high definition ultrasonic display
* Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.
* The system has the function of on-the-spot upgrade
* Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the
adjustment of the operation, and the commonly used external adjustment and combination regulation.
* Probe interface: 2 active
* 10 kinds of system language
* Depth：≥360mm；
* Extended imaging
Probes
* Convex probe
Fundamental Frequency:2.0MHz/2.3MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/4.6MHz/5.0MHz/5.4MHz,
Harmonic Frequency：4.0MHz/4.6MHz/5.0MHz，
* Linear probe
Fundamental Frequency : 4.0MHz/4.6MHz/5.0MHz/6.0MHz/7.0MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/13.3MHz，
Harmonic Frequency：8.0MHz/9.2MHz/10.0MHz,
* Trans-vaginal probe
Fundamental Frequency: 3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz/10.0MHz，
Harmonic Frequency：6.0MHz/7.0MHz/8.0MHz，
* Micro-convex probe
Fundamental Frequency：3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz，
Harmonic Frequency6.0MHz/7.0MHz/8.0MHz，
* Cardiac probe
Fundamental Frequency:1.7MHz/1.9MHz/2.1MHz/2.5MHz/3.0MHz/3.4MHz/3.8MHz/4.2MHz/5.0MHz，
Harmonic Frequency：3.4MHz/3.8MHz/4.2MHz，
* 4D Volume probe
Fundamental Frequency：2.0MHz/2.5MHz/3.0MHz/3.3MHz/3.7MHz/4.0MHz/5.0MHz/6.0MHz，
Harmonic Frequency：4.0MHz/5.0MHz/6.0MHz
* Portable type full digital color Doppler ultrasound main unit
* Ultrasonic host operating system: Windows operating system
* Applications：Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal
* Probes：Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volumeprobe
* Applications and report：Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc.
* carotid artery intima measurement thickness(IMT）
* Automatic spectral envelope measurement
* Full digital transmission and reception of beam synthesizer
* Color Doppler imaging（C）
* Pulse Doppler Imaging（PW）
* Continuous wave Doppler imaging（CW）
* B/C/D Real-time three synchronous imaging
* Power Doppler imaging（PDI）
* Direct power Doppler imaging（DPDI）
* M mode imaging
* Anatomic M mode imaging
* Color Doppler M mode imaging
* Tissue Doppler imaging（TDI）
* Strain rate imaging (SRI)
* Tissue harmonic imaging（THI）
* Fusion harmonic imaging（FHI）
* Speckle Reduce imaging（SRI）
* Deflection imaging
* Trapezoidal imaging
* Adaptive velocity optimization
* Free hand 3D
* Real time 3D imaging（3D/4D）
* Monitor：15 inch，high definition ultrasonic display
* Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.
* The system has the function of on-the-spot upgrade
* Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the
adjustment of the operation, and the commonly used external adjustment and combination regulation.
* Probe interface: 2 active
* 10 kinds of system language
* Depth：≥360mm；
* Extended imaging
Probes
* Convex probe
Fundamental Frequency:2.0MHz/2.3MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/4.6MHz/5.0MHz/5.4MHz,
Harmonic Frequency：4.0MHz/4.6MHz/5.0MHz，
* Linear probe
Fundamental Frequency : 4.0MHz/4.6MHz/5.0MHz/6.0MHz/7.0MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/13.3MHz，
Harmonic Frequency：8.0MHz/9.2MHz/10.0MHz,
* Trans-vaginal probe
Fundamental Frequency: 3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz/10.0MHz，
Harmonic Frequency：6.0MHz/7.0MHz/8.0MHz，
* Micro-convex probe
Fundamental Frequency：3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz，
Harmonic Frequency6.0MHz/7.0MHz/8.0MHz，
* Cardiac probe
Fundamental Frequency:1.7MHz/1.9MHz/2.1MHz/2.5MHz/3.0MHz/3.4MHz/3.8MHz/4.2MHz/5.0MHz，
Harmonic Frequency：3.4MHz/3.8MHz/4.2MHz，
* 4D Volume probe
Fundamental Frequency：2.0MHz/2.5MHz/3.0MHz/3.3MHz/3.7MHz/4.0MHz/5.0MHz/6.0MHz，
Harmonic Frequency：4.0MHz/5.0MHz/6.0MHz
2D imaging mode
* Gain：0－100，Step 2 adjustable
* TGC：8 segment adjustable
* Maximum focus point：≥7, which can be moved throughout the whole process.
* Speckle reduction：0-5，5 level
* Space Synthesis：0-2，2 level（Liner probe: 3 level， cardiac probe:0）
* Dynamic：30-180，35 level，step 5 adjustable
* Line density：low、middle、high，3 level
* Frame correlation：0-4,4 level
* Noise reduction：0-5，5 level
* Edge Enhancement：0-5，5 level
* Sound power：2-10, 9 level
* Grey scale：0-67, 67 level
* False color：0-67，67 level
* Image style：Soft-Comparison，2 levelThe screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11 parameters can be adjusted
Color Doppler imaging mode
* Blood gain：0-100，Step 2
* Parameter display：Velocity、Variance
* B-Restrain（B/W restrain）：0-7, 7 level
* Speed Through：0-8, 8 level
* Sampling number：6-24, 7 level
* Blood flow preferred：0-8, 8 level
* Filtering：1-6, 6 level
* Sound power：2-6, 4 level
* Noise reduction：0-4, 4 level
* Smooth treatment：0-4， 4 level
* Frame correlation：0-6， 6 level
* Chromatography（Blood flow graph）：0-37， 37 level
* Line density：Low-Middle-High， 3 level
* Frequency：4 level adjustable
* Velocity：Minimum 0.4K，Maximum 40.5K
Convex probe：0.4K-4.3K-38.5K
Linear probe：0.4K-14.7K-39.0K
Trans-vaginal probe：0.4K-7.8K-39.7K
Volume probe：0.4K-4.2K-34.8K
Micro-convex probe：0.4K-10.3K-40.5K
cardiac probe：0.4K-7.8K-39.7K
PS：The frequency of the probe changes and the frequency value changes
PS：Frame rate changes with speed
Pulse wave Doppler（PW）
* Gain：0-100，Step 2
* Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and other modes. The system
automatically analyses and displays various data such as PSV, EDV, RI, PI, S/D, ACC, HR and so on. Can wake up or close
* Sample volume：5mm~30mm
* Blood angel：-75—75 degree，Step 5
* False color：0-67， 67 level
* Dynamic range：20-40， 4 level
* Filter：0-9, 9 level
* Smooth treatment：1-4， 4 level
* Sound power：2-5， 4 level
* Volume：0-100, 10 level，Step 10
* Audio filtering：0-4， 4 level
* Base line：-1.0~1.0,
* Grey map：0-67， 67 level
* Scan velocity：100-500, 6 level
* PRF:Minimum 0.5K，Maximum 87.5K
Convex probe：0.5K-4.3K-63.3K
Linear probe：0.5K-14.5K-78.4K
Trans-vaginal probe：0.5K-8.1K-78.4K
Volume probe：0.5K-4.2K-53.8K
Micro-convex probe：0.5K-10.3K-81.1K
cardiac probe：0.5K-4.3K-87.5K
* Frequency：4 level
PS：The frequency of the probe changes and the PRF value changes
PS：The frequency of the probe changes and the frequency value changes
Continuous Wave Doppler（CW）
* Support probe：Cardiac probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* Sampling line position is adjustable
* PRF:0.9K~36.1K
* Baseline：-1.0~1.0
* Blood angel：-75~75 degree
* Grey map：0-67
* Scan velocity：100-300
* False color：0-67
* Dynamic range：20-40
* Filtering：0-9，9 level
* Smooth treatment：1-4
* Frequency：0MHz/2.3MHz/2.5MHz/3.0MHz，4 level adjustable
* Sound power：2-5
* Volume：0-100
* Audio Filtering：0-4
* Gain：0－100，Step 2 adjustable
* TGC：8 segment adjustable
* Maximum focus point：≥7, which can be moved throughout the whole process.
* Speckle reduction：0-5，5 level
* Space Synthesis：0-2，2 level（Liner probe: 3 level， cardiac probe:0）
* Dynamic：30-180，35 level，step 5 adjustable
* Line density：low、middle、high，3 level
* Frame correlation：0-4,4 level
* Noise reduction：0-5，5 level
* Edge Enhancement：0-5，5 level
* Sound power：2-10, 9 level
* Grey scale：0-67, 67 level
* False color：0-67，67 level
* Image style：Soft-Comparison，2 levelThe screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11 parameters can be adjusted
Color Doppler imaging mode
* Blood gain：0-100，Step 2
* Parameter display：Velocity、Variance
* B-Restrain（B/W restrain）：0-7, 7 level
* Speed Through：0-8, 8 level
* Sampling number：6-24, 7 level
* Blood flow preferred：0-8, 8 level
* Filtering：1-6, 6 level
* Sound power：2-6, 4 level
* Noise reduction：0-4, 4 level
* Smooth treatment：0-4， 4 level
* Frame correlation：0-6， 6 level
* Chromatography（Blood flow graph）：0-37， 37 level
* Line density：Low-Middle-High， 3 level
* Frequency：4 level adjustable
* Velocity：Minimum 0.4K，Maximum 40.5K
Convex probe：0.4K-4.3K-38.5K
Linear probe：0.4K-14.7K-39.0K
Trans-vaginal probe：0.4K-7.8K-39.7K
Volume probe：0.4K-4.2K-34.8K
Micro-convex probe：0.4K-10.3K-40.5K
cardiac probe：0.4K-7.8K-39.7K
PS：The frequency of the probe changes and the frequency value changes
PS：Frame rate changes with speed
Pulse wave Doppler（PW）
* Gain：0-100，Step 2
* Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and other modes. The system
automatically analyses and displays various data such as PSV, EDV, RI, PI, S/D, ACC, HR and so on. Can wake up or close
* Sample volume：5mm~30mm
* Blood angel：-75—75 degree，Step 5
* False color：0-67， 67 level
* Dynamic range：20-40， 4 level
* Filter：0-9, 9 level
* Smooth treatment：1-4， 4 level
* Sound power：2-5， 4 level
* Volume：0-100, 10 level，Step 10
* Audio filtering：0-4， 4 level
* Base line：-1.0~1.0,
* Grey map：0-67， 67 level
* Scan velocity：100-500, 6 level
* PRF:Minimum 0.5K，Maximum 87.5K
Convex probe：0.5K-4.3K-63.3K
Linear probe：0.5K-14.5K-78.4K
Trans-vaginal probe：0.5K-8.1K-78.4K
Volume probe：0.5K-4.2K-53.8K
Micro-convex probe：0.5K-10.3K-81.1K
cardiac probe：0.5K-4.3K-87.5K
* Frequency：4 level
PS：The frequency of the probe changes and the PRF value changes
PS：The frequency of the probe changes and the frequency value changes
Continuous Wave Doppler（CW）
* Support probe：Cardiac probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* Sampling line position is adjustable
* PRF:0.9K~36.1K
* Baseline：-1.0~1.0
* Blood angel：-75~75 degree
* Grey map：0-67
* Scan velocity：100-300
* False color：0-67
* Dynamic range：20-40
* Filtering：0-9，9 level
* Smooth treatment：1-4
* Frequency：0MHz/2.3MHz/2.5MHz/3.0MHz，4 level adjustable
* Sound power：2-5
* Volume：0-100
* Audio Filtering：0-4
Extended Imaging
* Gain：0－100，Step 2
* TGC：8 segment adjustable
* Maximum focus point：≥7, which can be moved throughout the whole process.
* Speckle reduction：0-5，5 level
* Space Compound：0-2，2 level（Linear probe: 3 level，don’t support cardiac probe）
* Dynamic range：30-180，35 level，Step 5
* Line density：Low、Middle、High，3 level
* Frame correlation：0-4,4 level
* Noise reduction：0-5，5 level
* Edge enhancement：0-5，5 level
* Sound power：2-10, 9 level
* Grey map：0-67, 67 level
* False color：0-67，67 level
* Image style：Soft-Comparison，2 level
* Extended level: Maximum 72 level
Convex probe：9 level
Trans-vaginal probe：72 level
Micro-convex probe：29 level
Cardiac probe：40 level
4D Volume probe：17 level
PS：The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11
parameters can be adjusted
PS: When the probe scan range reaches the maximum, the space synthesized is 0.
* Gain：0－100，Step 2
* TGC：8 segment adjustable
* Maximum focus point：≥7, which can be moved throughout the whole process.
* Speckle reduction：0-5，5 level
* Space Compound：0-2，2 level（Linear probe: 3 level，don’t support cardiac probe）
* Dynamic range：30-180，35 level，Step 5
* Line density：Low、Middle、High，3 level
* Frame correlation：0-4,4 level
* Noise reduction：0-5，5 level
* Edge enhancement：0-5，5 level
* Sound power：2-10, 9 level
* Grey map：0-67, 67 level
* False color：0-67，67 level
* Image style：Soft-Comparison，2 level
* Extended level: Maximum 72 level
Convex probe：9 level
Trans-vaginal probe：72 level
Micro-convex probe：29 level
Cardiac probe：40 level
4D Volume probe：17 level
PS：The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11
parameters can be adjusted
PS: When the probe scan range reaches the maximum, the space synthesized is 0.
Anatomical M imaging
* Support probe：Convex probe, Linear probe,Cardiac probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* M Sampling line angel is adjustable
* M Sampling line length is adjustable
* Sampling line：3，Can be displayed or hidden separately
Blood flow M model（MC）
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step2
* MC Sampling line angel is adjustable
* MC Sampling line length is adjustable
* Frequency：4 level
* Sampling number：6-24
* Speed through：0-8, 8 level
* Scan velocity：150-500
* Frame correlation：0-6, 6 level
* Filtering：1-6，6 level
* Blood flow preferred：0-8，8 level
* Smooth treatment：0-4,4 level
* Map：0-37, 37 level
Elastography
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* B/E，Double real-time display on the same screen
* Probe displacement curve display：Up/Down
* Pressure indicator bar display
* Frequency：8-9 level，Adjustable；According to the probe display
* Noise reduction：0-2, 2 level
* Frame correlation：0-3, 3 level
* Comparison：0-13, 13 level
* False color：0-3， 3 level
* Don’t support cardiac probe
Tissue Doppler imaging（TDI）
* Support probe: Cardiac probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，step 2
* ROI area adjustable
* Sampling number：6-24
* Velocity：4K-8.0K
* Frame correlation：0-6，6级
* Tissue preferred：0-7, 7 level
* Frequency：0MHz/2.3MHz/2.5MHz/3.0MHz
* Support color reversal
Strain rate imaging
* Support probe: Cardiac probe
* Adjustment of B mode parameters is switchable
* ROI area adjustable
* Gain：0-100，Step 2
* Sampling number：6-24，6 level
* Axial average：1-4， 4 level
* Velocity：4K-8K
* Frame correlation：0-6， 6 level
* Tissue optimization：0-7，7 level
Panoramic imaging
* Support probe：Linear probe
* Speckle Reduction：0-5, 5 level
Deflection imaging
* Support probe：Linear probe
* Adjustment of B mode parameters is switchable
* Deflection angel：8 level
* Speckle reduction：0-5, 5 level
* Dynamic rate：30-180，Step 5
* Line density：low-middle-high，3 level
* Frame Correlation：0-4， 4 level
* False color：0-67, 67 level
* Image style：Soft-Comparison，2 level
* Noise reduction：0-5, 5 level
* Edge Enhancement：0-5，5 level
* Sound power：2-10，8 level
* Grey map：0-67，67 level
* Support probe：Convex probe, Linear probe,Cardiac probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* M Sampling line angel is adjustable
* M Sampling line length is adjustable
* Sampling line：3，Can be displayed or hidden separately
Blood flow M model（MC）
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step2
* MC Sampling line angel is adjustable
* MC Sampling line length is adjustable
* Frequency：4 level
* Sampling number：6-24
* Speed through：0-8, 8 level
* Scan velocity：150-500
* Frame correlation：0-6, 6 level
* Filtering：1-6，6 level
* Blood flow preferred：0-8，8 level
* Smooth treatment：0-4,4 level
* Map：0-37, 37 level
Elastography
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* B/E，Double real-time display on the same screen
* Probe displacement curve display：Up/Down
* Pressure indicator bar display
* Frequency：8-9 level，Adjustable；According to the probe display
* Noise reduction：0-2, 2 level
* Frame correlation：0-3, 3 level
* Comparison：0-13, 13 level
* False color：0-3， 3 level
* Don’t support cardiac probe
Tissue Doppler imaging（TDI）
* Support probe: Cardiac probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，step 2
* ROI area adjustable
* Sampling number：6-24
* Velocity：4K-8.0K
* Frame correlation：0-6，6级
* Tissue preferred：0-7, 7 level
* Frequency：0MHz/2.3MHz/2.5MHz/3.0MHz
* Support color reversal
Strain rate imaging
* Support probe: Cardiac probe
* Adjustment of B mode parameters is switchable
* ROI area adjustable
* Gain：0-100，Step 2
* Sampling number：6-24，6 level
* Axial average：1-4， 4 level
* Velocity：4K-8K
* Frame correlation：0-6， 6 level
* Tissue optimization：0-7，7 level
Panoramic imaging
* Support probe：Linear probe
* Speckle Reduction：0-5, 5 level
Deflection imaging
* Support probe：Linear probe
* Adjustment of B mode parameters is switchable
* Deflection angel：8 level
* Speckle reduction：0-5, 5 level
* Dynamic rate：30-180，Step 5
* Line density：low-middle-high，3 level
* Frame Correlation：0-4， 4 level
* False color：0-67, 67 level
* Image style：Soft-Comparison，2 level
* Noise reduction：0-5, 5 level
* Edge Enhancement：0-5，5 level
* Sound power：2-10，8 level
* Grey map：0-67，67 level
Trapezoidal imaging
* Probe support：linear probe
* Adjustment of B mode parameters is switchable
* Deflection angel：8 level
* Speckle reduction：0-5, 5 level
* Dynamic rate：30-180，Step 5
* Line density：low-middle-high，3 level
* Frame Correlation：0-4， 4 level
* False color：0-67, 67 level
* Image style：Soft-Comparison，2 level
* Noise reduction：0-5, 5 level
* Edge Enhancement：0-5，5 level
* Sound power：2-10，8 level
* Grey map：0-67， 67 level
* Space Synthesis：0-2, 2 level
* Probe support：linear probe
* Adjustment of B mode parameters is switchable
* Deflection angel：8 level
* Speckle reduction：0-5, 5 level
* Dynamic rate：30-180，Step 5
* Line density：low-middle-high，3 level
* Frame Correlation：0-4， 4 level
* False color：0-67, 67 level
* Image style：Soft-Comparison，2 level
* Noise reduction：0-5, 5 level
* Edge Enhancement：0-5，5 level
* Sound power：2-10，8 level
* Grey map：0-67， 67 level
* Space Synthesis：0-2, 2 level
Freehand 3D imaging
* Support probe：convex probe, linear probe
* Display model: 4 pictures
* Image Rotation X/Y/Z Axis
* Multi-slice Visibility
Real-time 4D imaging
* Support probe: 4D volume probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* Display model：one image、two images、four images
* Image Rotation：X/Y/Z Axis
* Multi-slice Visibility
* Light&Shade inversion
* Smooth：0-4, 4 level
* Threshold level：0-129, Step 3
* Transparency：1-509，Step 10
* Render type：4 kinds，Surface、maximum、minimum、perspective
* Support probe：convex probe, linear probe
* Display model: 4 pictures
* Image Rotation X/Y/Z Axis
* Multi-slice Visibility
Real-time 4D imaging
* Support probe: 4D volume probe
* Adjustment of B mode parameters is switchable
* Gain：0-100，Step 2
* Display model：one image、two images、four images
* Image Rotation：X/Y/Z Axis
* Multi-slice Visibility
* Light&Shade inversion
* Smooth：0-4, 4 level
* Threshold level：0-129, Step 3
* Transparency：1-509，Step 10
* Render type：4 kinds，Surface、maximum、minimum、perspective
Graphic and text management system
* Host build in 2 hard disk（memory card 120+1T），Start fast and stable
* Movie playback：≥1200 frames
* Internal file information management system: can record patient number, name, check number, check date and so on, and can be
searched and managed by numbering, checking number, name and so on.
* Type of report is 16
* One key fast report graphic and text management
* Host build in 2 hard disk（memory card 120+1T），Start fast and stable
* Movie playback：≥1200 frames
* Internal file information management system: can record patient number, name, check number, check date and so on, and can be
searched and managed by numbering, checking number, name and so on.
* Type of report is 16
* One key fast report graphic and text management
Measurement and analysis function:
* General measurement: Distance, area, ellipse, cross line, angle, distance ratio, volume, Volume (ellipse), area ratio,
diameter, joint angle
* Cardiac：Automatic spectrum envelope、LV、Main Pulmonary artery diameter、RVEDd、RVEDs、LVM、LAV、HR、MVF、AO、AR、LVOT、TVF、Pulmonic valve、Pulmonary vein、RV、Doppler fetal heart sound、LVET、LVM、LVMI、AV
* Vascular: carotid intima (IMT), length stenosis ratio, area stenosis ratio, IMT (back wall), IMT (front wall)
* OB：Fetal routine、AFI、TW、GS、CRl、OFD、HL、ulna、NT、Fibula、Nbonel、Radial、Tibia
* GYN：uterus、cervix、corpus uteri/cervix uterus、left ovarian vein、right ovarian vein、dominant follicle、intima thickness
* Urology: prostate、residual urine、left kidney、right kidney、left suprarenal vein、right suprarenal、left testis、right testis、left seminal vesicle、right seminal vesicle
* Abdomen：liver、CHD、partal vein diameter、cholecyst、CBD、pancreas、spleen、Internal diameter of abdominal aorta、kidney
* Small parts：Thyroid
* Software package：Measurement package、Software package、Medical records management software package

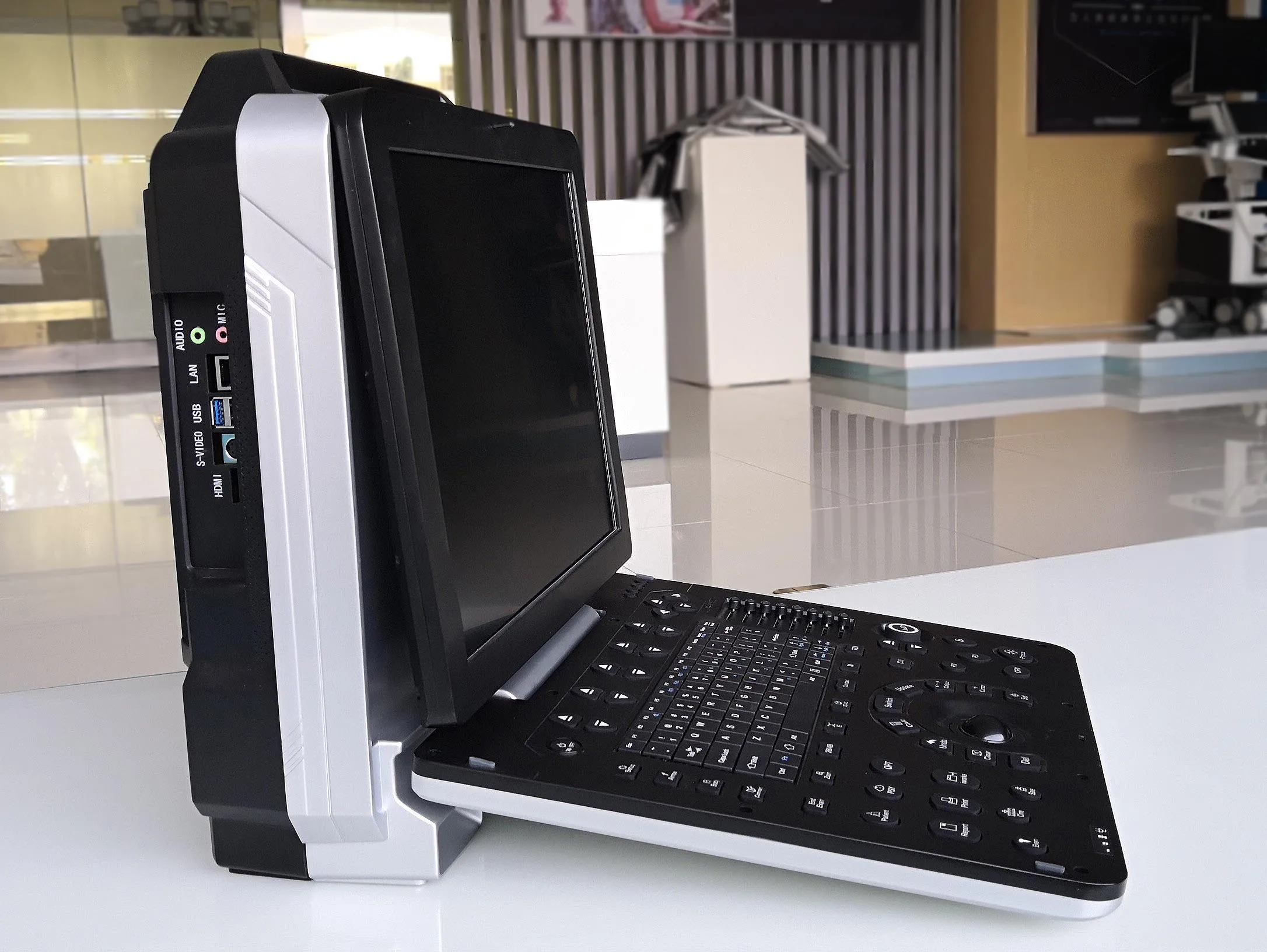

Interface
* USB interface： 2
* interface： 1
* VGA interface：1
* General measurement: Distance, area, ellipse, cross line, angle, distance ratio, volume, Volume (ellipse), area ratio,
diameter, joint angle
* Cardiac：Automatic spectrum envelope、LV、Main Pulmonary artery diameter、RVEDd、RVEDs、LVM、LAV、HR、MVF、AO、AR、LVOT、TVF、Pulmonic valve、Pulmonary vein、RV、Doppler fetal heart sound、LVET、LVM、LVMI、AV
* Vascular: carotid intima (IMT), length stenosis ratio, area stenosis ratio, IMT (back wall), IMT (front wall)
* OB：Fetal routine、AFI、TW、GS、CRl、OFD、HL、ulna、NT、Fibula、Nbonel、Radial、Tibia
* GYN：uterus、cervix、corpus uteri/cervix uterus、left ovarian vein、right ovarian vein、dominant follicle、intima thickness
* Urology: prostate、residual urine、left kidney、right kidney、left suprarenal vein、right suprarenal、left testis、right testis、left seminal vesicle、right seminal vesicle
* Abdomen：liver、CHD、partal vein diameter、cholecyst、CBD、pancreas、spleen、Internal diameter of abdominal aorta、kidney
* Small parts：Thyroid
* Software package：Measurement package、Software package、Medical records management software package
Interface
* USB interface： 2
* interface： 1
* VGA interface：1

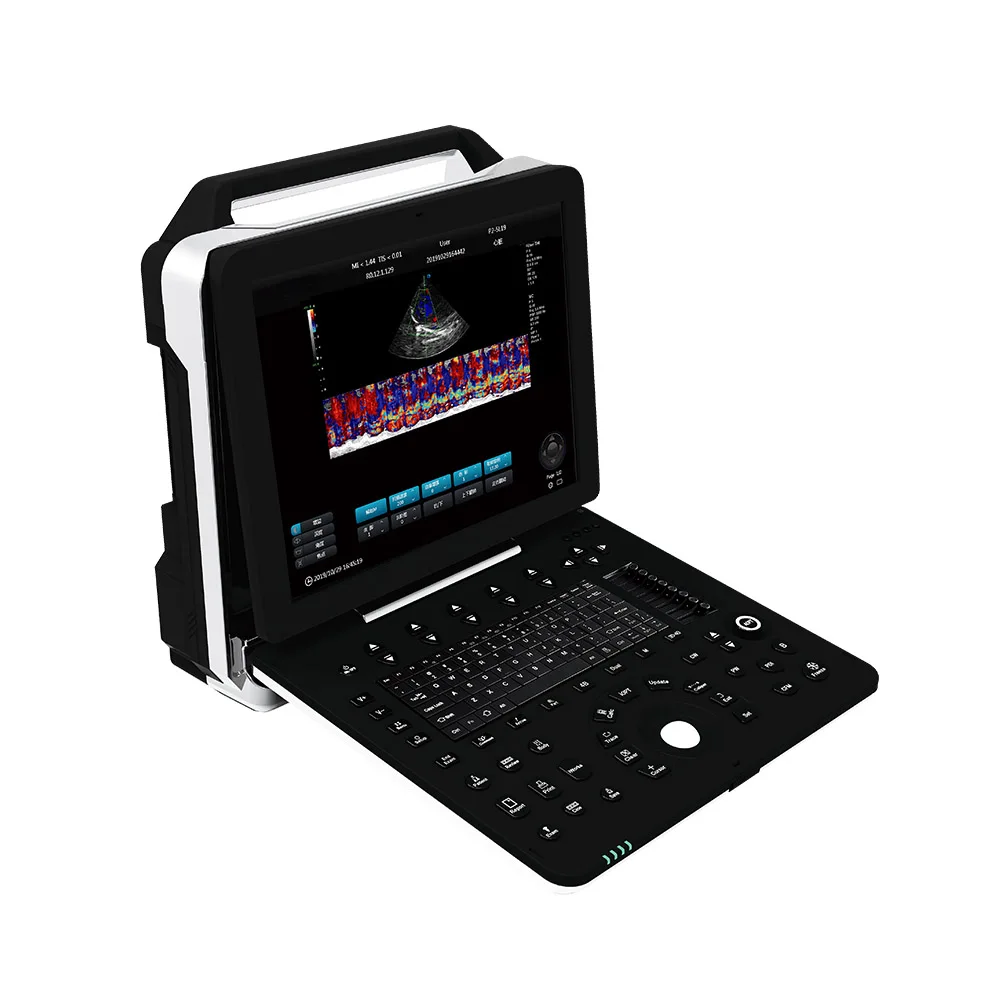

Configuration * Portable full digital color Doppler ultrasound diagnostic system * Probe: convex array probe (standard), linear probe (optional), Trans-vaginal probe (optional), cardiac probe (optional), 4D volume probe (optional) |
Related Products
Why Choose Us
Guangzhou Leyte Medical Equipment Co., Limited
Leytemed is located in Guangzhou, China .We are a global manufacturer and distributor of all kinds medical products with client-centered solutions, services and expertise across the continuum of production and sale.We have sold our products to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on. Your satisfaction is our duty! It will be our great honor to serve you.

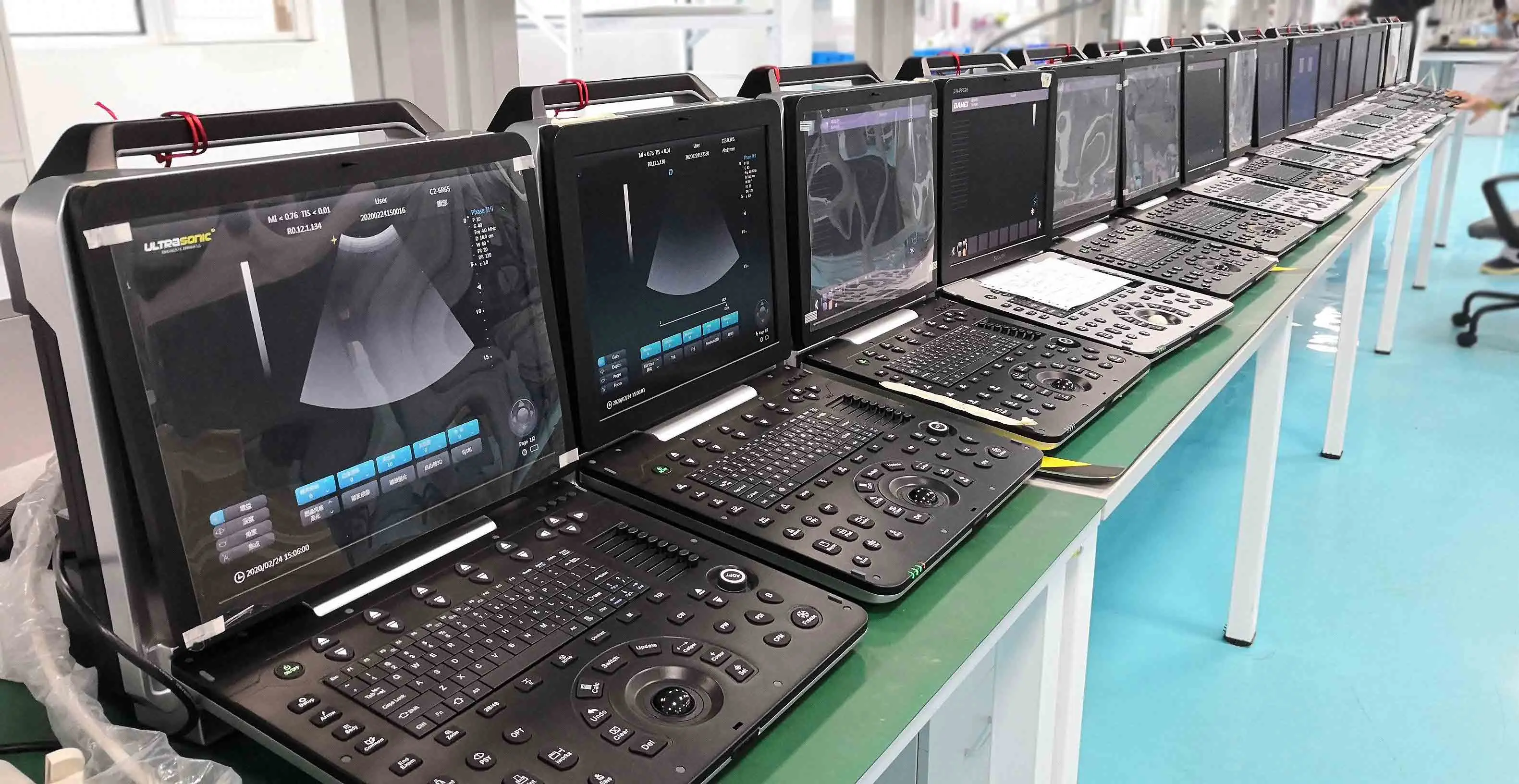

Factory
Pre-Sales Service
√ The professional team provides after-sales service online 24 hours a day.
√ We offer OEM services.
After-Sales Service
√ One year warranty.
√ More than 10 years of professional engineers help you solve problems
√ The professional team provides after-sales service online 24 hours a day.
√ We offer OEM services.
After-Sales Service
√ One year warranty.
√ More than 10 years of professional engineers help you solve problems
Exhibition
Product packaging
FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.
Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more. Please suggest your preferred payment method.
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.
Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more. Please suggest your preferred payment method.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
