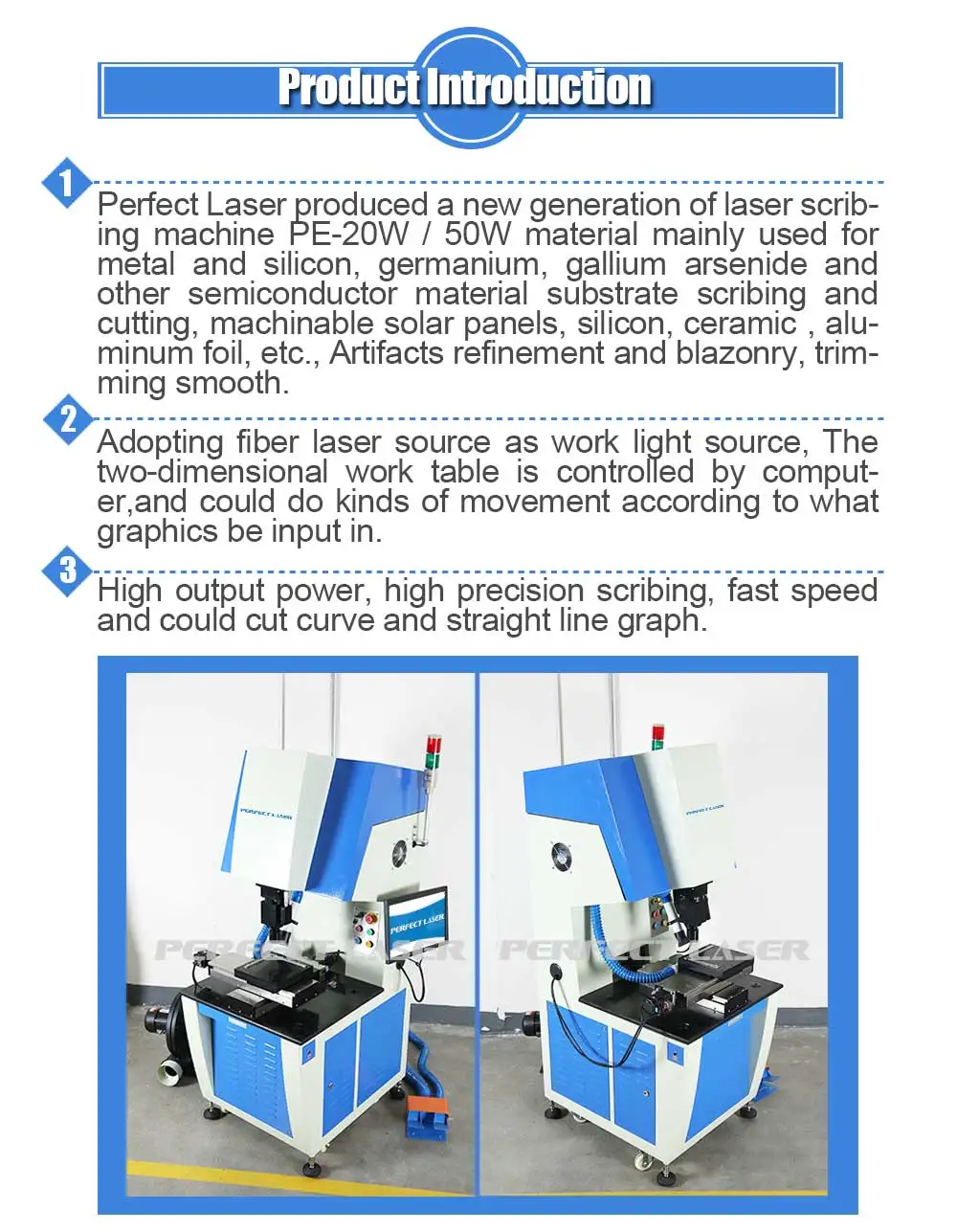

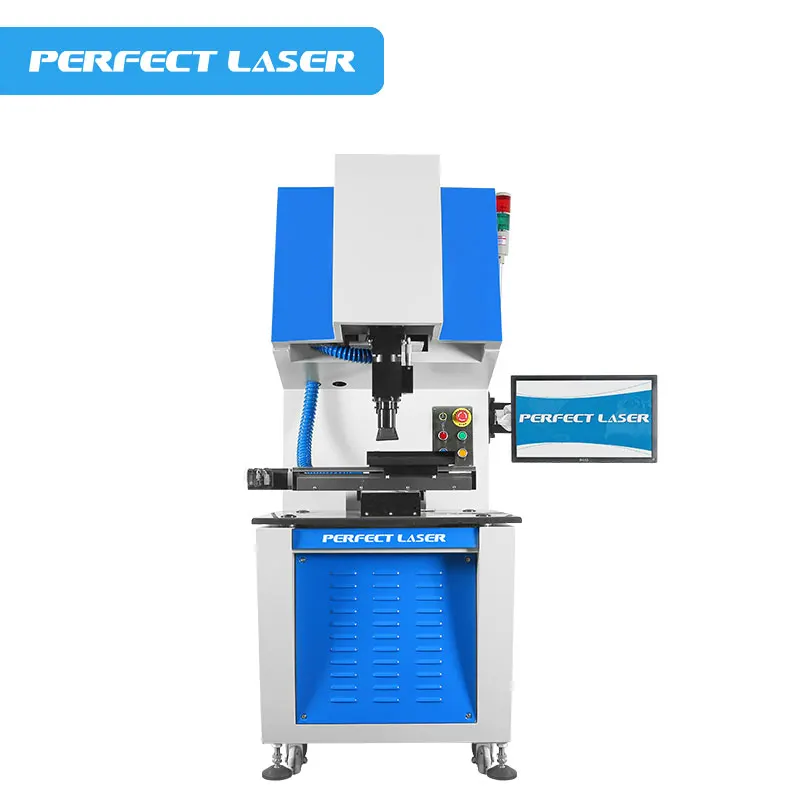

Perfect Laser produced a new generation of laser scribing machine PE-20W / 50W mainly used for scribing and cutting metal and silicon, germanium, gallium arsenide and other semiconductor material substrate , machinable solar panels, ceramic , aluminum foil, etc.
This solar cell scribing machine adopts fiber laser as work light source. The two-dimensional work table is controlled by computer, and could do kinds of movement according to what graphics be input in. It has high output power, high precision scribing, fast speed and could cut curve and straight line graph.

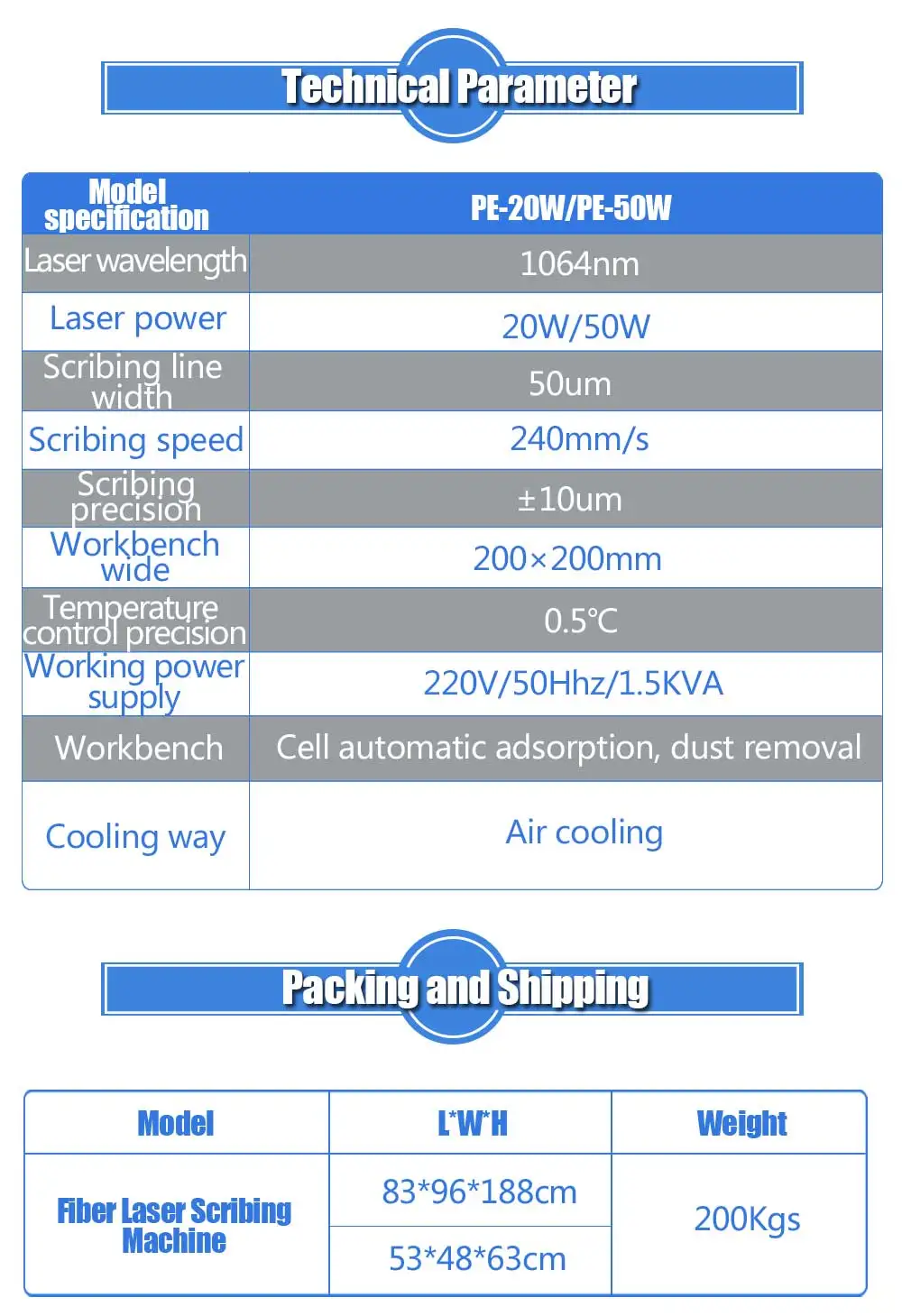

Specification
Model specification
PE-20W/50W Laser Scribing Machine
Laser wavelength
1064nm
Laser power
20W
Scribing line width
50um
Scribing speed
240mm/s
Scribing precision
±10um
Workbench wide
200×200mm
Temperature control precision
0.5℃
Working power supply
220V/50Hhz/1.5KVA
Workbench
Cell automatic adsorption, dust removal
Cooling way
High precision and constant temperature circulating water cooling professional integration
Air cooling

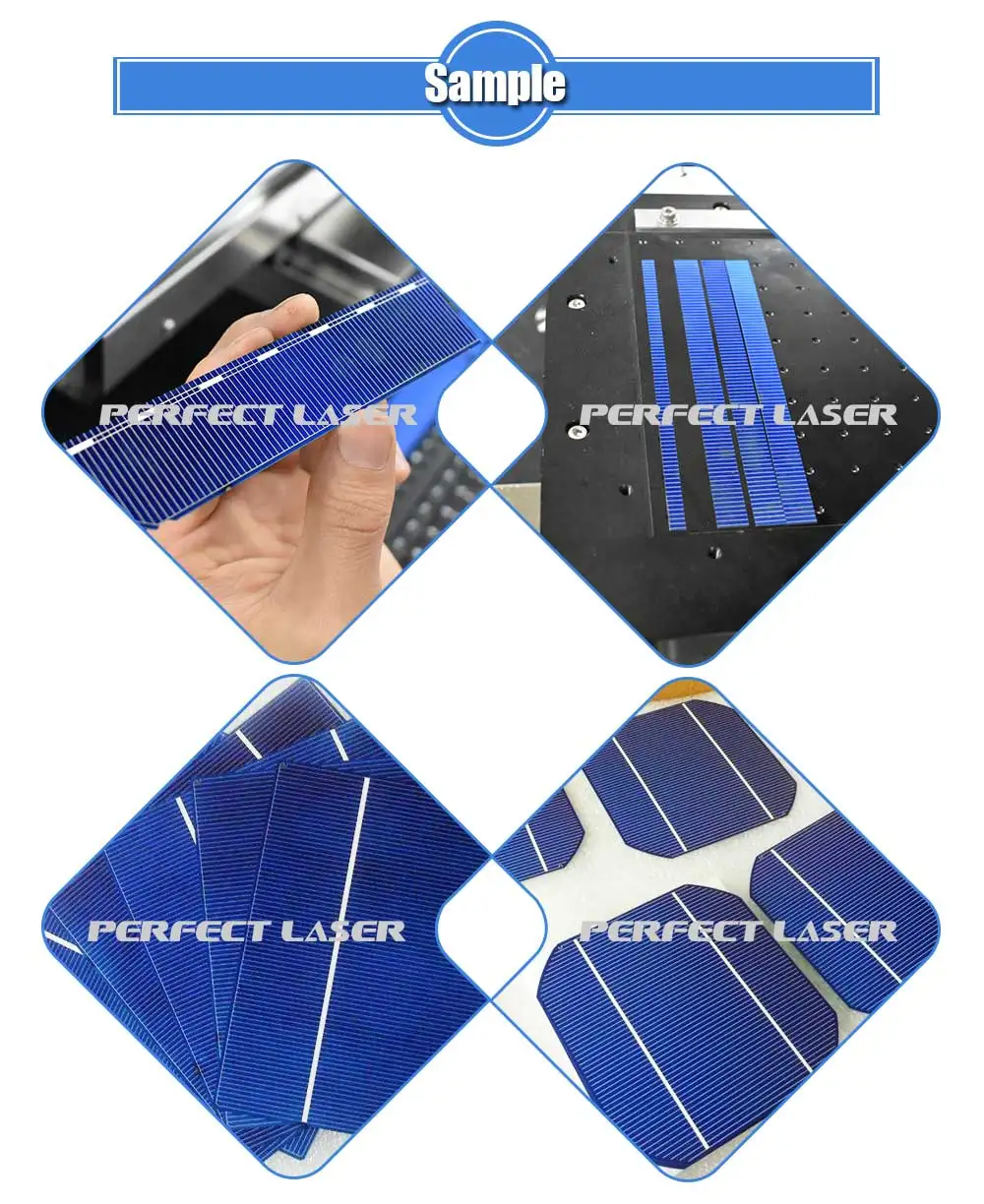

Sample & Application
This laser scribing machine is widely used in solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).

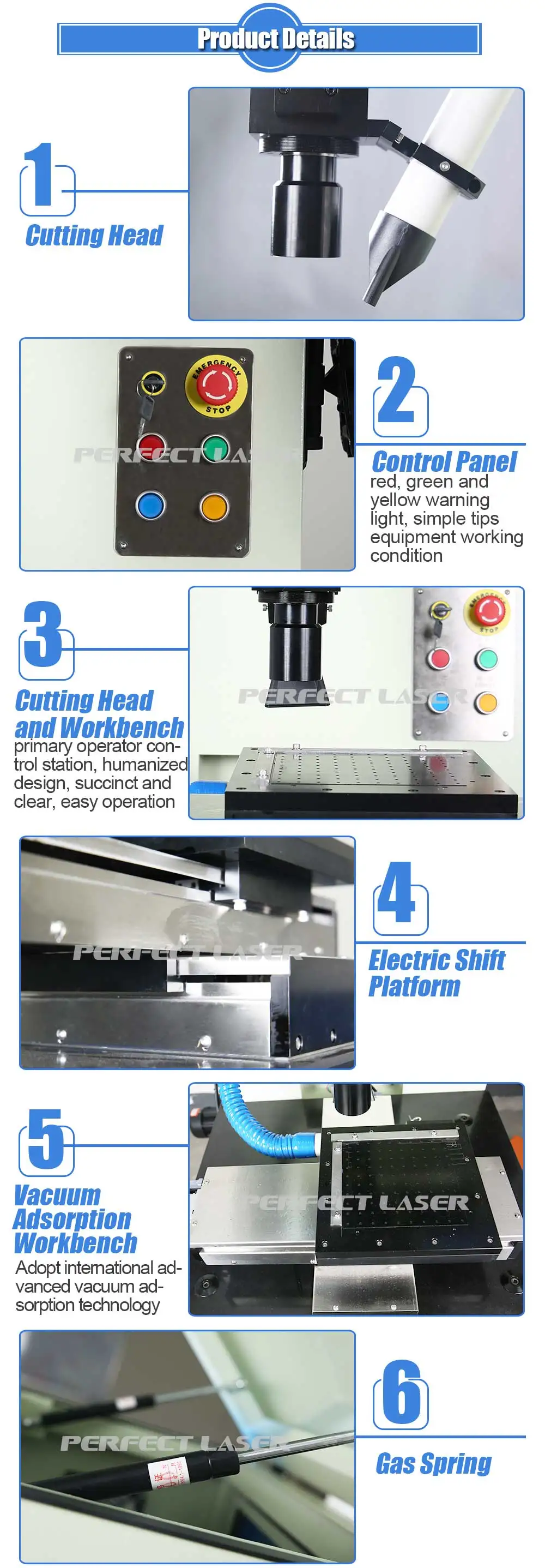

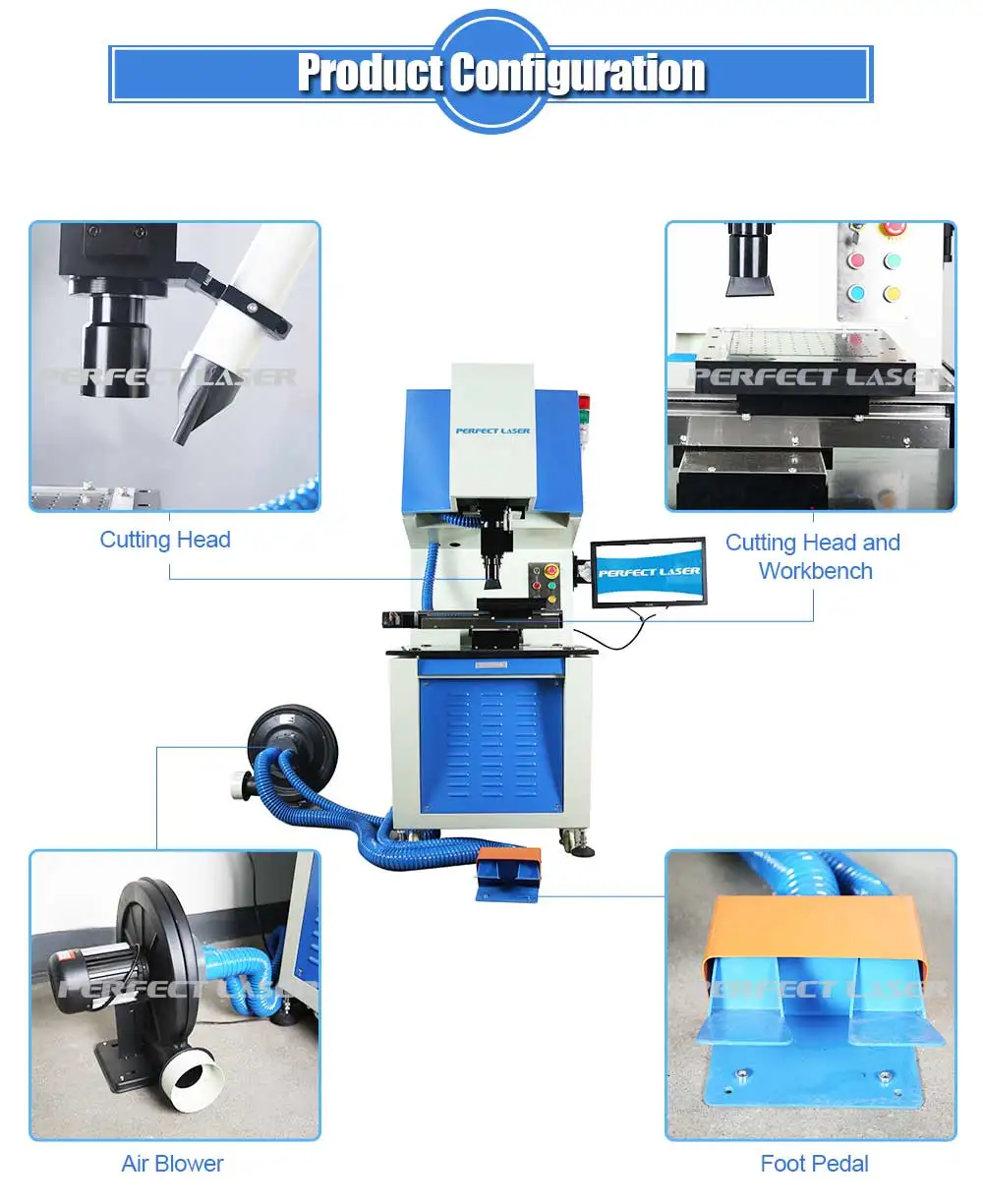

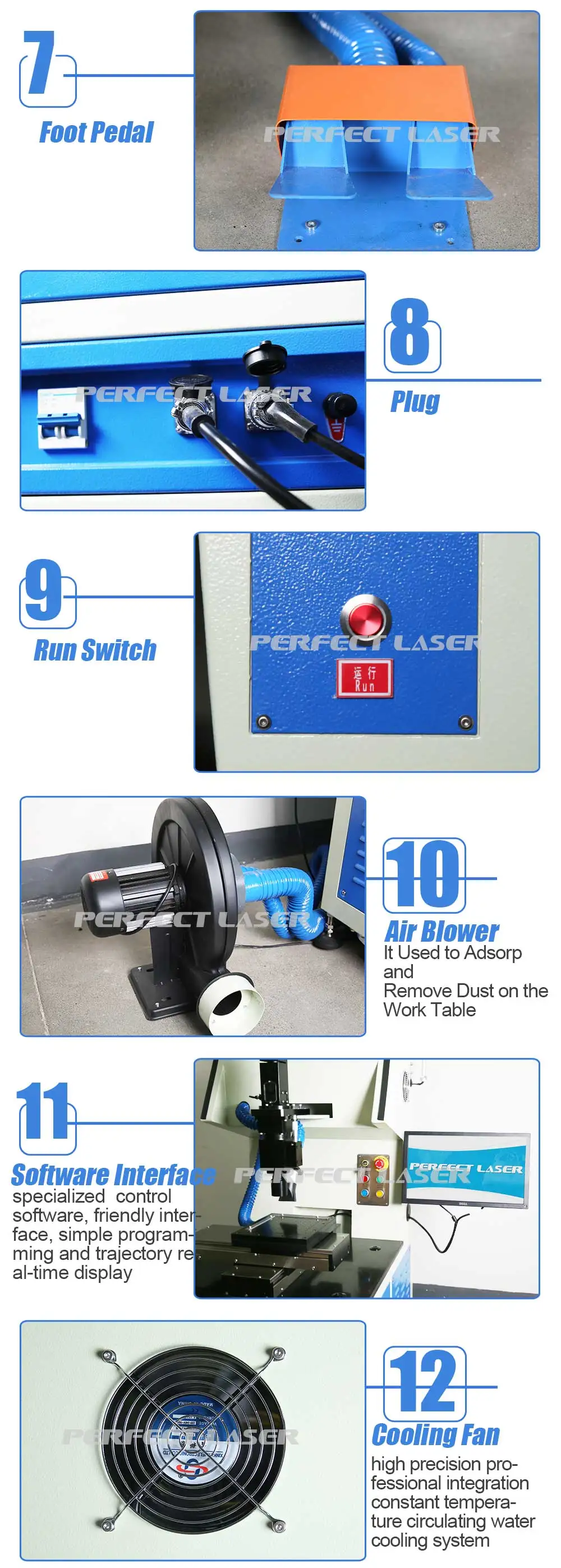

Machine Details
Packing and Delivery
Company Profile
We, Perfect Laser, as a 21 years history industrial UV flatbed printing machine manufacture, 14 year Golden Supplier in Alibaba, with CE certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
Contact Us
Perfect Laser Co.,Ltd. (China) Contact: Sara / Sales Department MP : 0086-13971657490 Tel: 0086-27-86791986 Fax: 0086-27-8677 5865 Email: sales021(@)perfectlaser.net Whatsapp: 0086-13971657490 Skype:perfectlaser021(@)hotmail.com WeChat: 13971657490 QQ: 3115689101 Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Hubei, China(430200).
