Product Overview
Description
Small E Ink Panle Partial Refresh 1.54 inch e-ink flexible paper
General Description

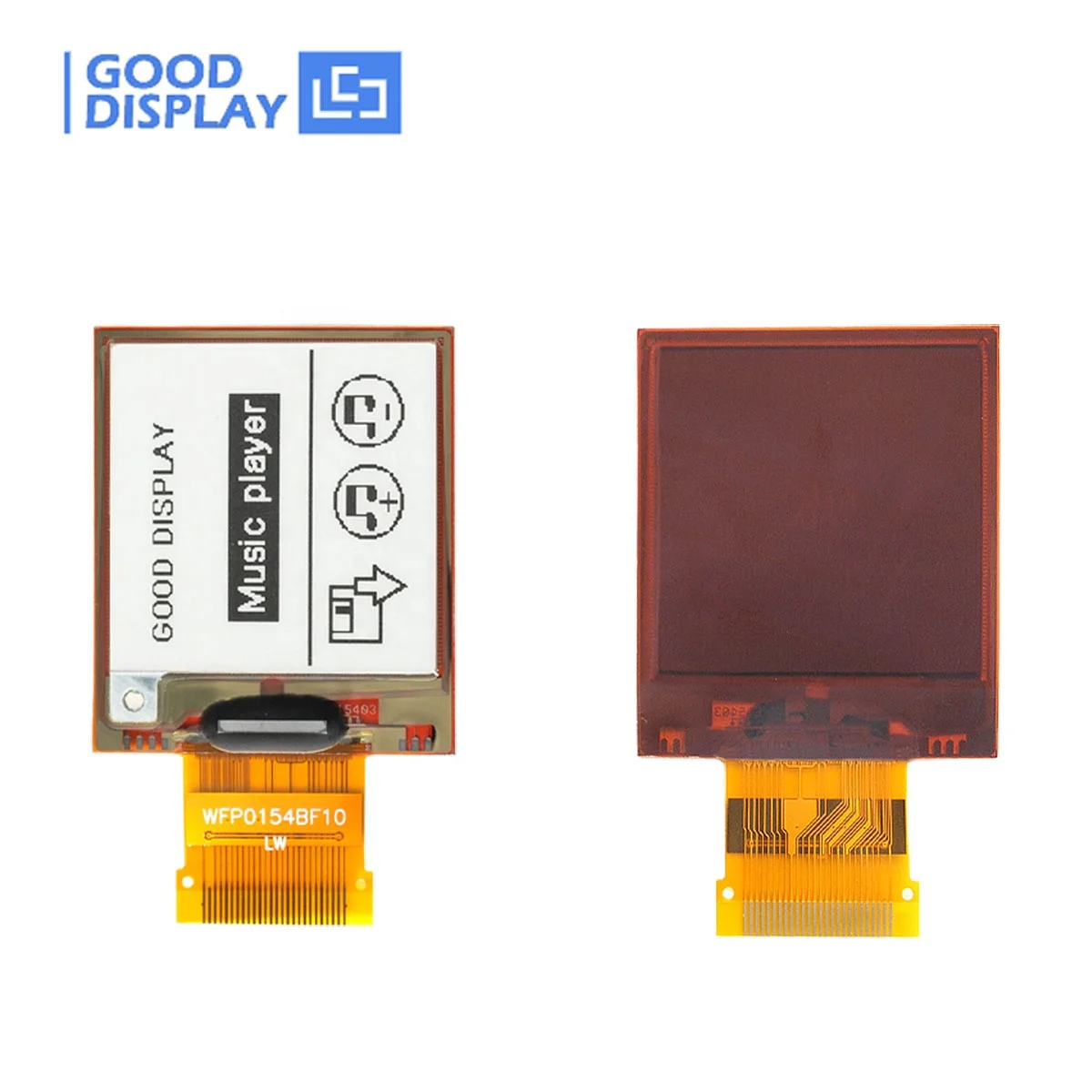

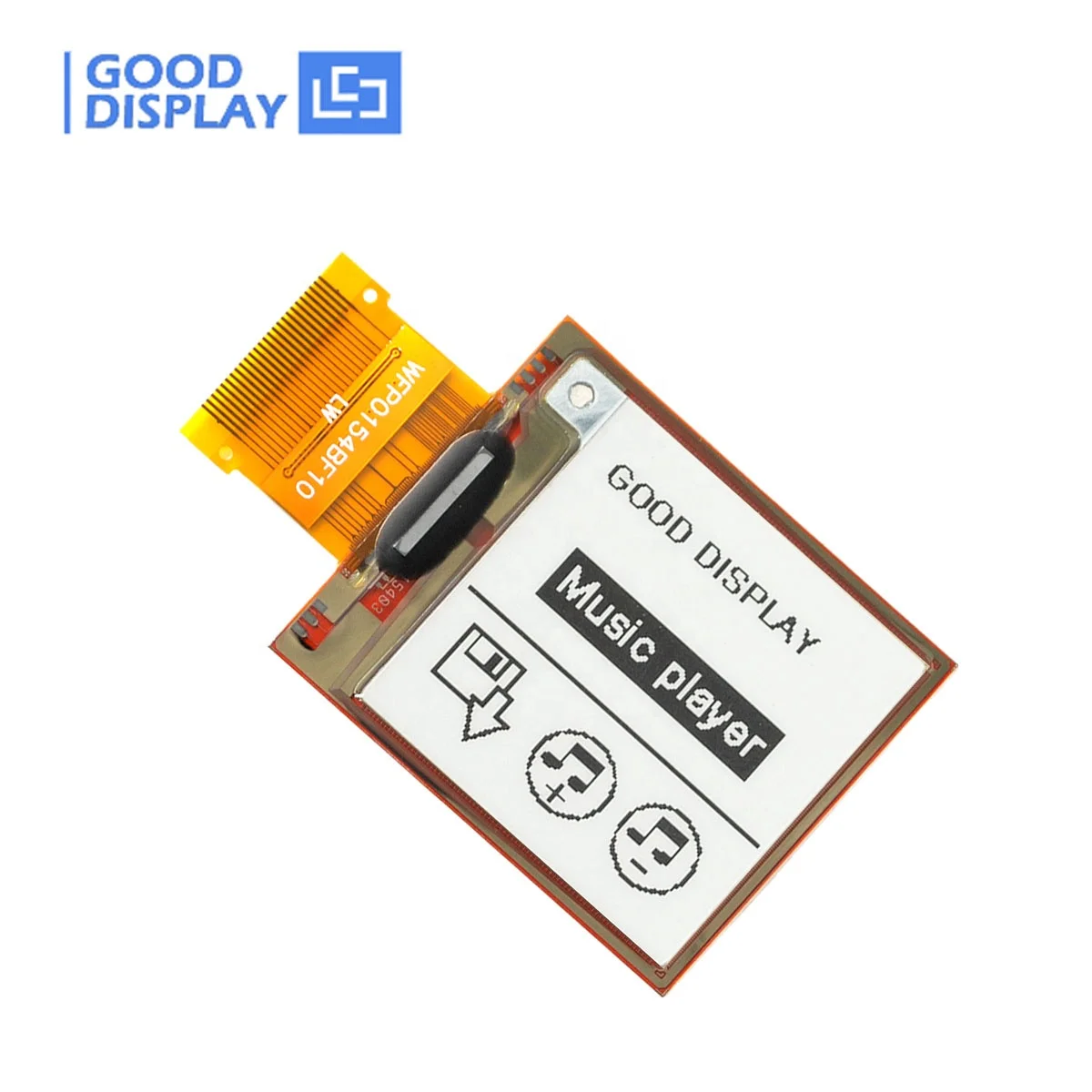

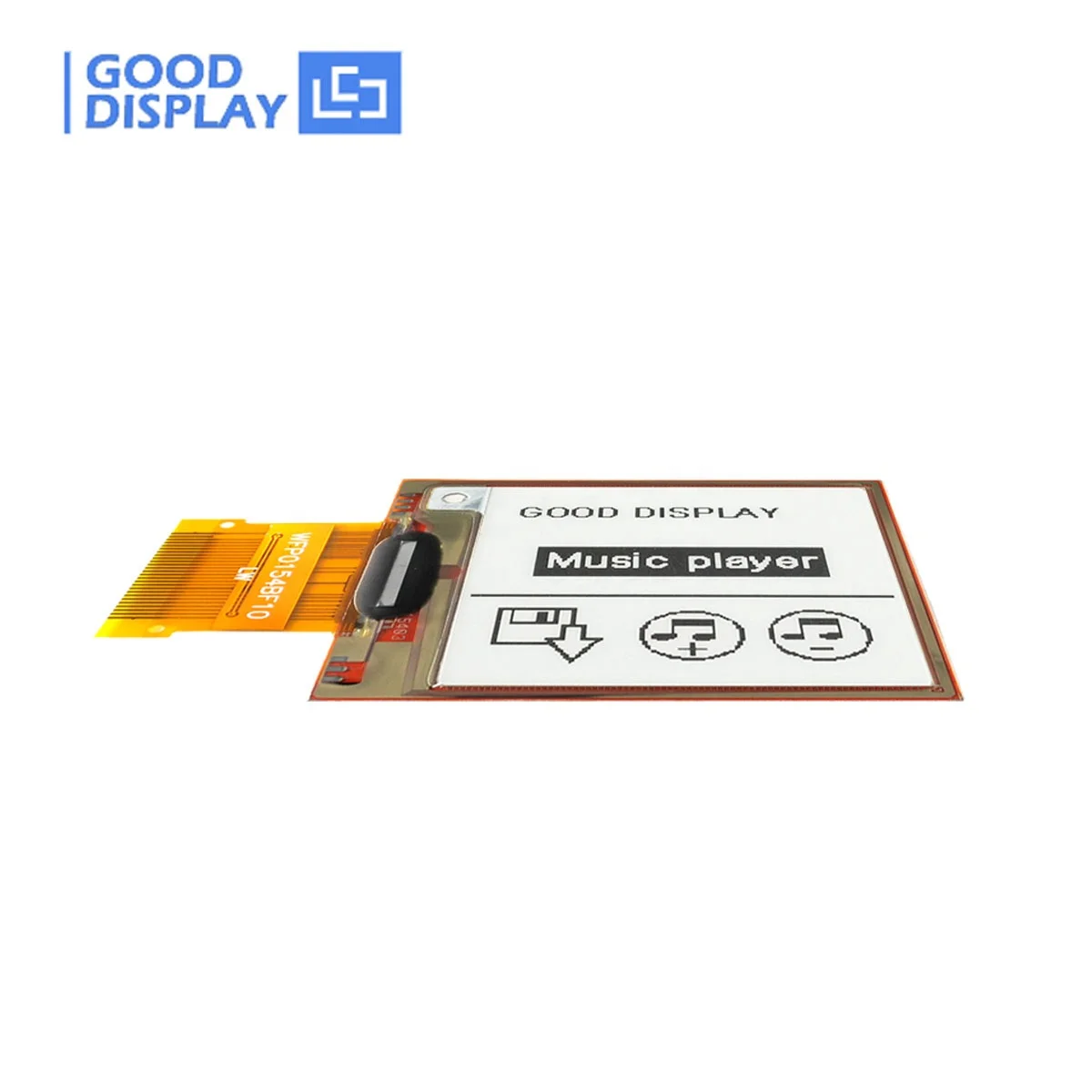

This is a 1.54 inch flexible eink display which use the flexible substrate as base plate, with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEW0154I9FC is perfect for low power devices powered by solar or batteries.

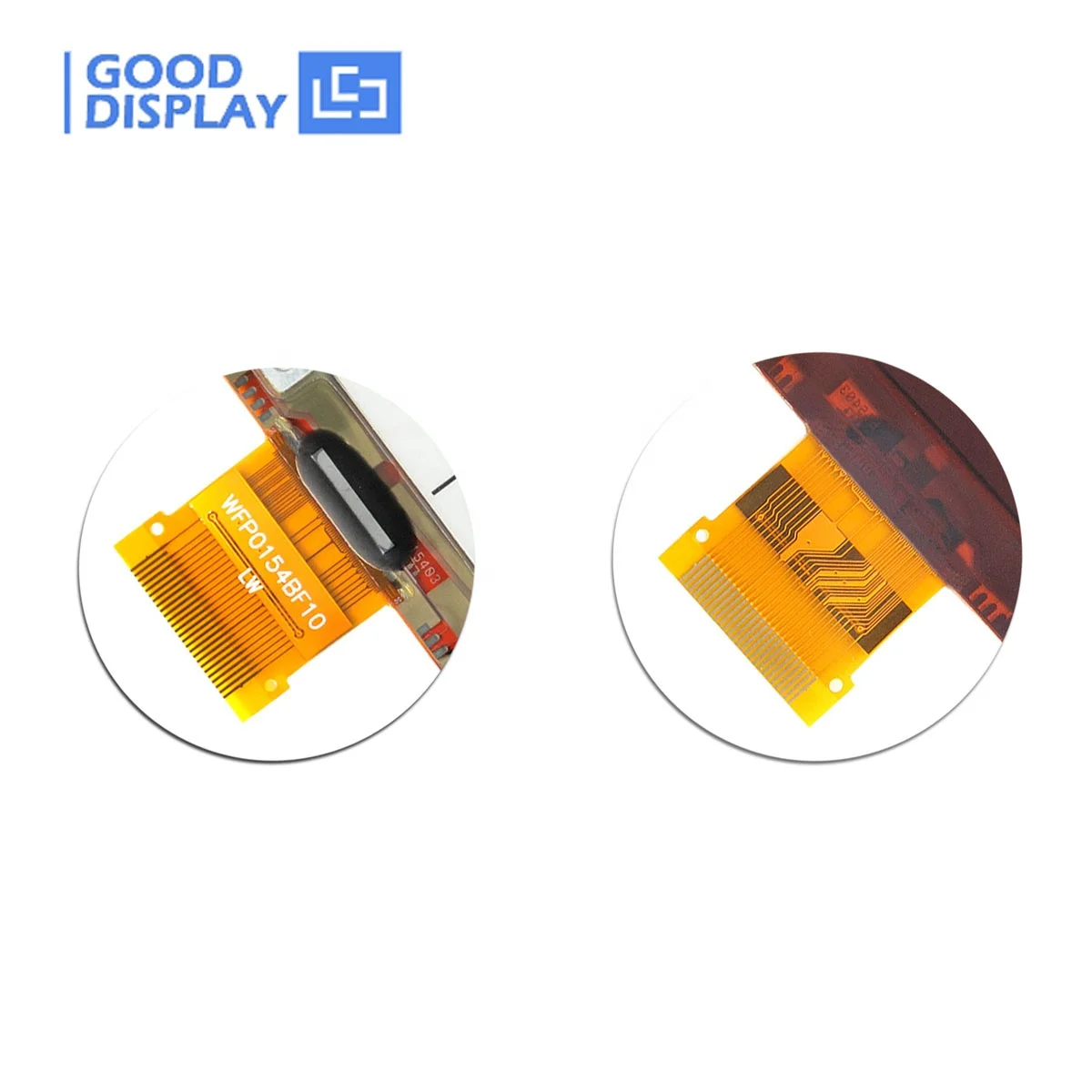

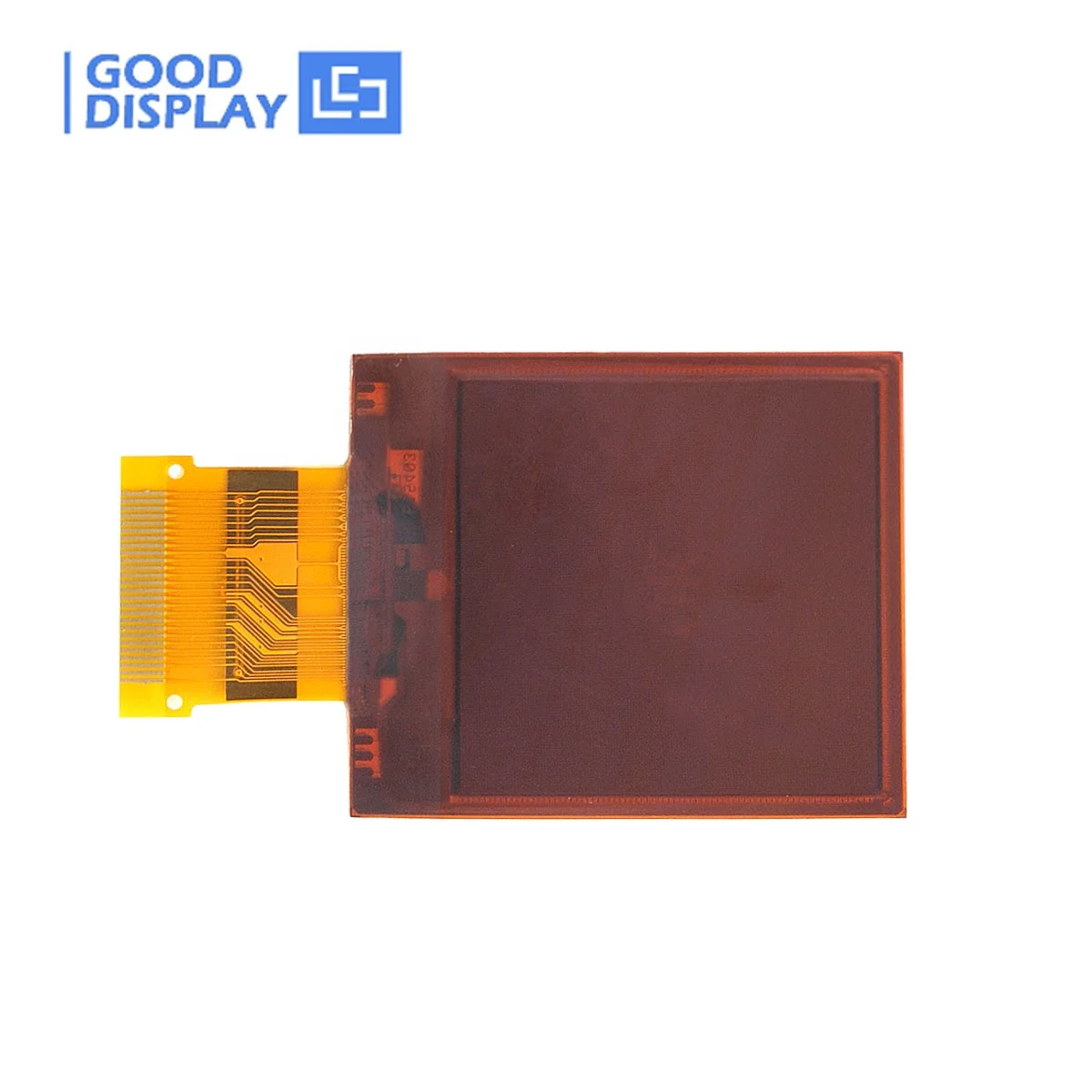

Usually, the e-paper display is mostly plugged into the FPC, but this 1.54 inch epd screen GDEW0154I9FC is a ACF Thermal Compression bonding method, and the gold finger of the FPC is facing down when the display side is facing up. We can offer the adapter board for test.
Use our free e-paper software to prepare your bitmap image for this display.
Usually, the e-paper display is mostly plugged into the FPC, but this 1.54 inch epd screen GDEW0154I9FC is a ACF Thermal Compression bonding method, and the gold finger of the FPC is facing down when the display side is facing up. We can offer the adapter board for test.
Use our free e-paper software to prepare your bitmap image for this display.
PART NUMBER | GDEW0154I9FC |
TYPE | Dot Matrix |
SIZE | 1.54 inch |
IC | UC8151D |
RESOLUTION | 152x152 |
OUTLINE SIZE(mm) | 31.8x37.32x0.3 |
ACTIVE SIZE(mm) | 27.51x27.51 |
PIXEL PITCH(mm) | 0.181x0.181 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 26 Pin FPC |
MAX GRAYSCALE | 4 |
COLOR | Black, White |
INTERFACE | SPI |
FULL REFRESH(s) | 3 |
PARTIAL REFRESH TIME(s) | 0.3 |
POWER CONSUMPTION OF THE REFRESH(mW) | 26.4 |
STANDBY POWER CONSUMPTION (mW) | 0.0165 |
Particulars
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● Ultra-thin. It is thinner than the normal electronic paper display
● I2C Signal Master Interface to read external temperature sensor.
Other Products
E-Paper Display Q&A
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
Q: Any solution to achieve lower power consumption of E-paper display?
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
