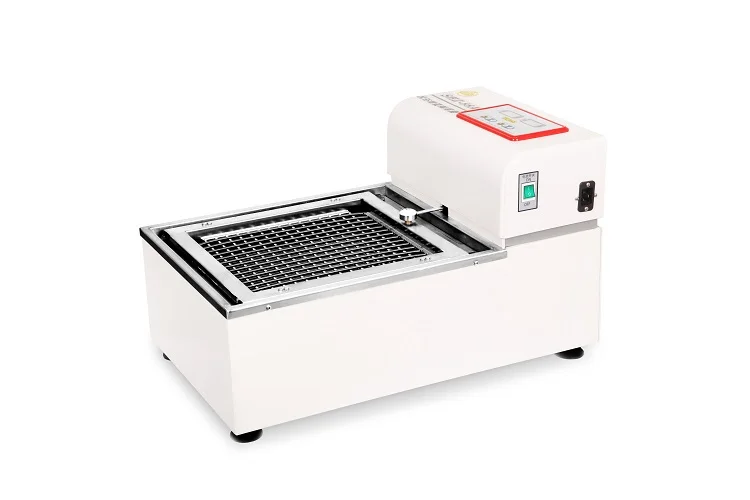

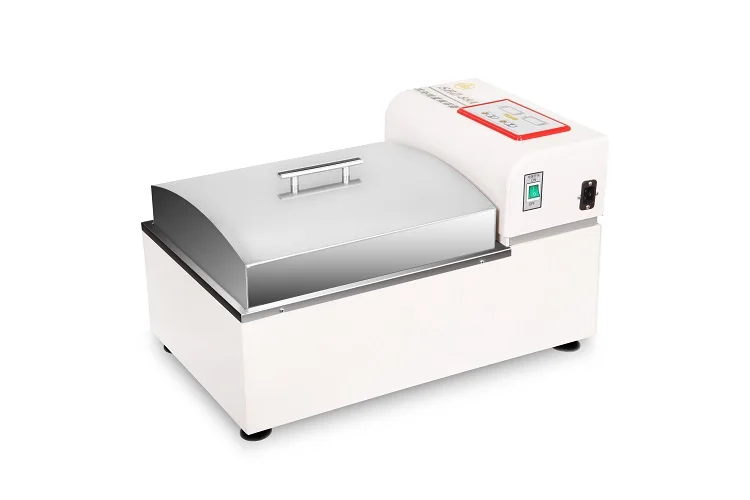

Yidi SHZ 88A Chemical Supplies Reciprocating Water Bath Constant Temperature Oscillator Shaker Lab Laboratory Oscillator
- Category: >>>
- Supplier: Jinhua Yidi Medical Appliance Co. Ltd.
Share on (1600291390267):
Product Overview
Description
Experimental oscillator SHZ-88A | ||
Oscillation frequency | 20~300rpm | |
Amplitude | 26mm | |
Maximum capacity(each layer) | 250ml×9(Fixing fixture) | |
Standard confuguration | Spring rack | |
Dimension of the tray (mm) | 340*310mm | |
Time range | 0~999/H | |
Control temperature | Water temperature 98‘c | |
Temperature increment | ±0.1℃ | |
Inner temperature error | ±0.2℃ | |
Input power | 1800w | |
Size ( mm ) | 680*420*410mm | |
Net weight | 30kg | |
Power supply | 220V 50Hz | |
The water bath thermostatic oscillator is specially designed for users who have higher requirements for temperature. Its constant temperature medium is water. Compared with air bath, it has higher constant temperature accuracy and 0.1 degree temperature control accuracy. According to the form of oscillation, our company provides two kinds of reciprocating and whirling to meet the requirements of different experiments. According to the temperature range can be divided into constant temperature and freezing constant temperature two. It can meet the requirements of specific users with constant temperature range. The shaker is equipped with PID temperature control system and brushless DC motor control system. It can meet the needs of users who have higher requirements for temperature and speed.
The products are widely used in bacterial culture, fermentation, hybridization and biochemical reaction, as well as enzyme and cell tissue research, which have high requirements for temperature and oscillation frequency. In medicine, biology, molecular science, pharmaceutical, food, environmental protection and other research and application has a wide range of important applications.
1. Intelligent sound and light fault alarm.
2. Ultra-bright LCD display the set parameters and measured parameters, read out the speed and temperature parameters.
3. Run parameter encryption lock to avoid human error.
4. Set the timer for 0~999 minutes (or hours).
5. Brushless DC motor control system, with speed regulation, constant torque, constant speed, no carbon brush, maintenance free, precise speed control, speed stability ≤1%.
6. Have slowly start function to protect the safety of samples during start up.
7. With power failure recovery function, the equipment can automatically resume operation according to the original set procedure after the power suddenly loses power and calls again.
Equipped with anti-evaporation cover, effectively prevent the evaporation of water.

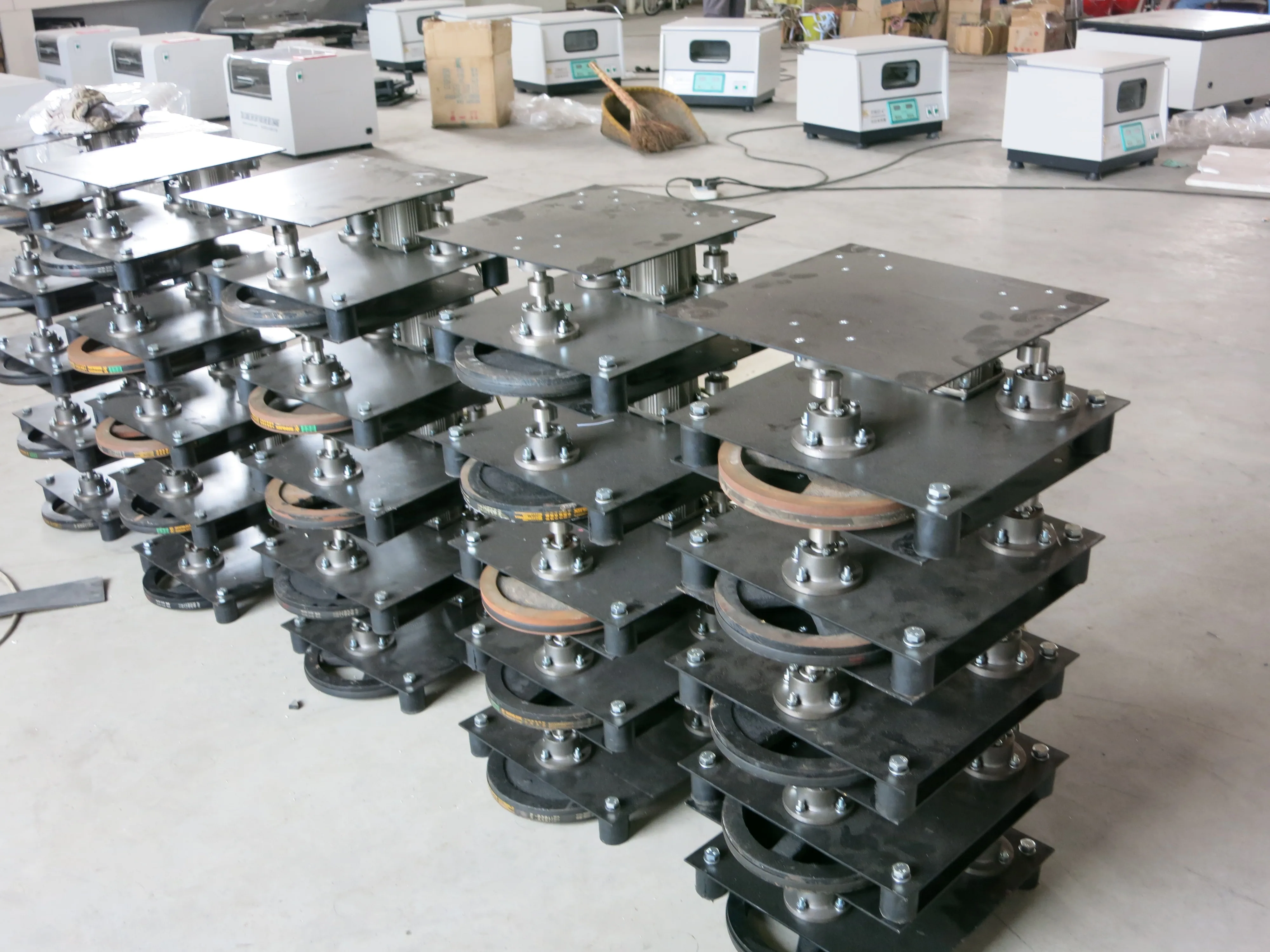

9. The transmission adopts three-dimensional integrated mechanism with stable operation and large bearing capacity.
12. The control part of the whole machine is powered by a separate power box, which is very convenient for maintenance.
The products are widely used in bacterial culture, fermentation, hybridization and biochemical reaction, as well as enzyme and cell tissue research, which have high requirements for temperature and oscillation frequency. In medicine, biology, molecular science, pharmaceutical, food, environmental protection and other research and application has a wide range of important applications.
1. Intelligent sound and light fault alarm.
2. Ultra-bright LCD display the set parameters and measured parameters, read out the speed and temperature parameters.
3. Run parameter encryption lock to avoid human error.
4. Set the timer for 0~999 minutes (or hours).
5. Brushless DC motor control system, with speed regulation, constant torque, constant speed, no carbon brush, maintenance free, precise speed control, speed stability ≤1%.
6. Have slowly start function to protect the safety of samples during start up.
7. With power failure recovery function, the equipment can automatically resume operation according to the original set procedure after the power suddenly loses power and calls again.
Equipped with anti-evaporation cover, effectively prevent the evaporation of water.
9. The transmission adopts three-dimensional integrated mechanism with stable operation and large bearing capacity.
12. The control part of the whole machine is powered by a separate power box, which is very convenient for maintenance.
