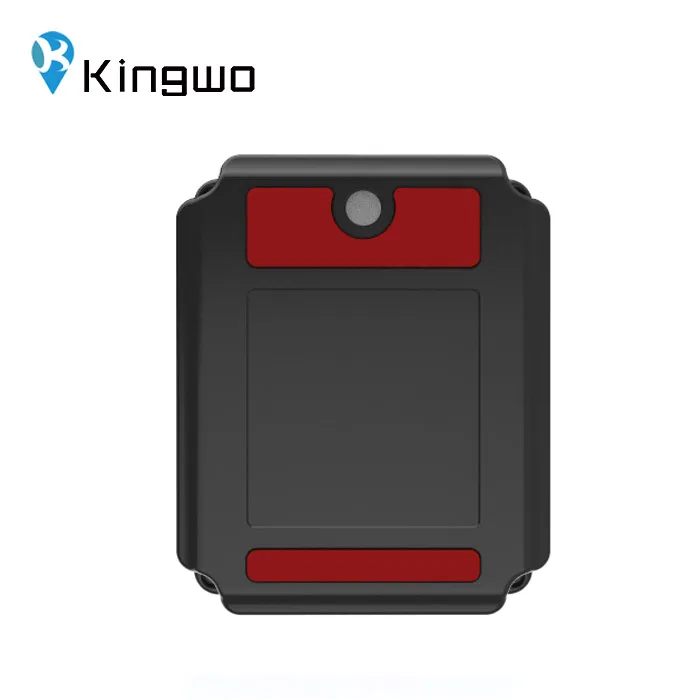

mini gps car tracking system vehicle gps tracker from Kingwo

Share on (1600291456089):


Price:$45.00 - $55.00

Quantity:


Product Overview

Description

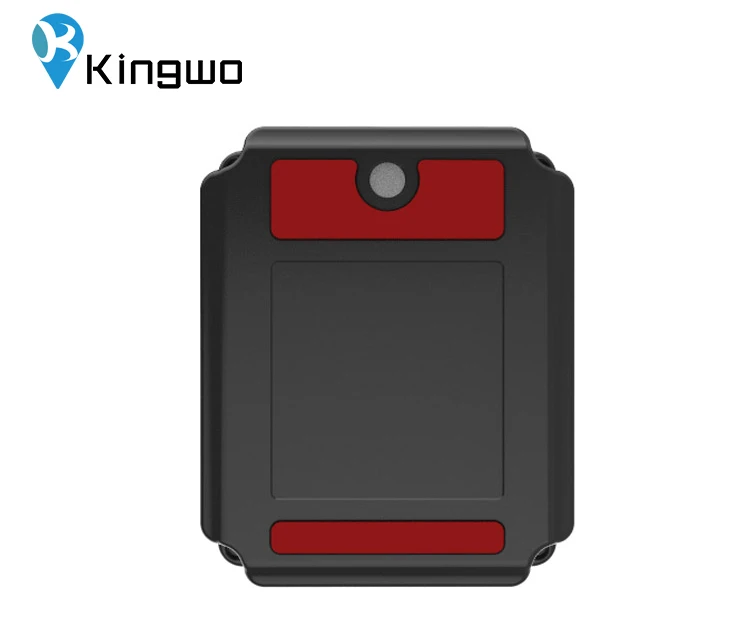

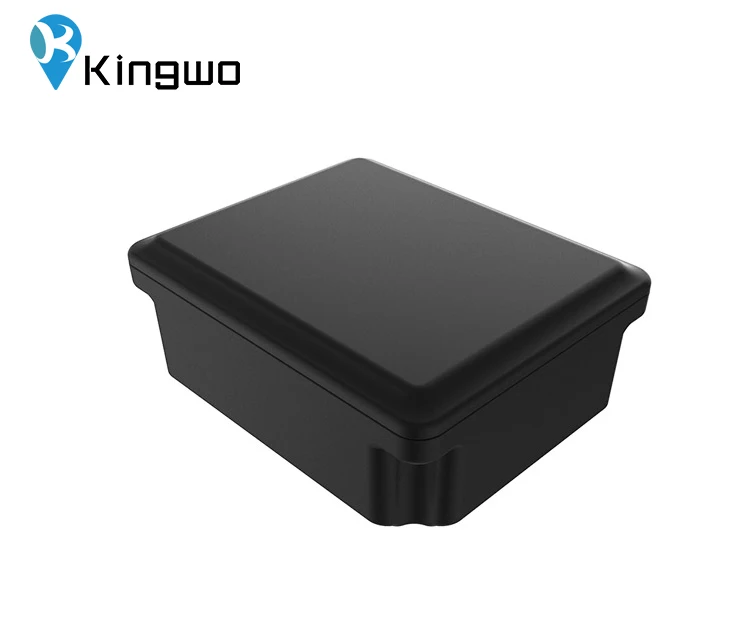

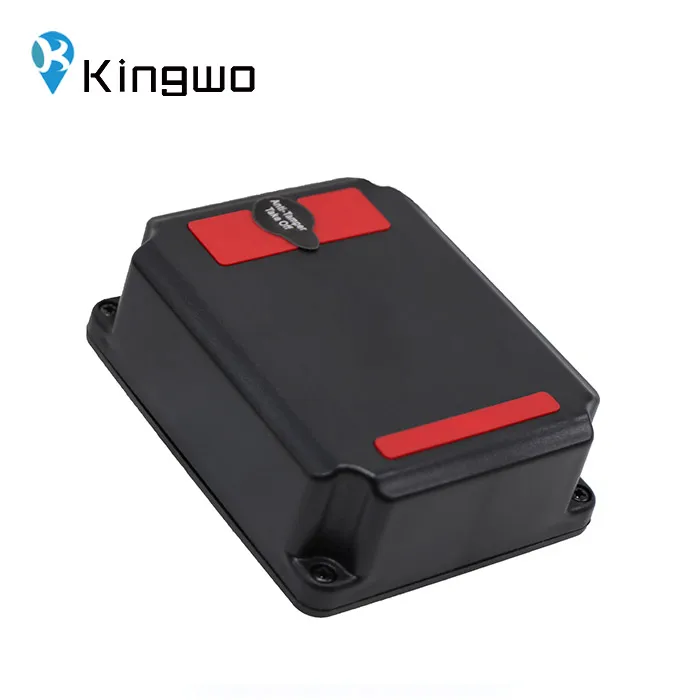

Newest arrival of Kingwo NT07E assest gps tracker support wifi location wireless asset location terminal



Product Description

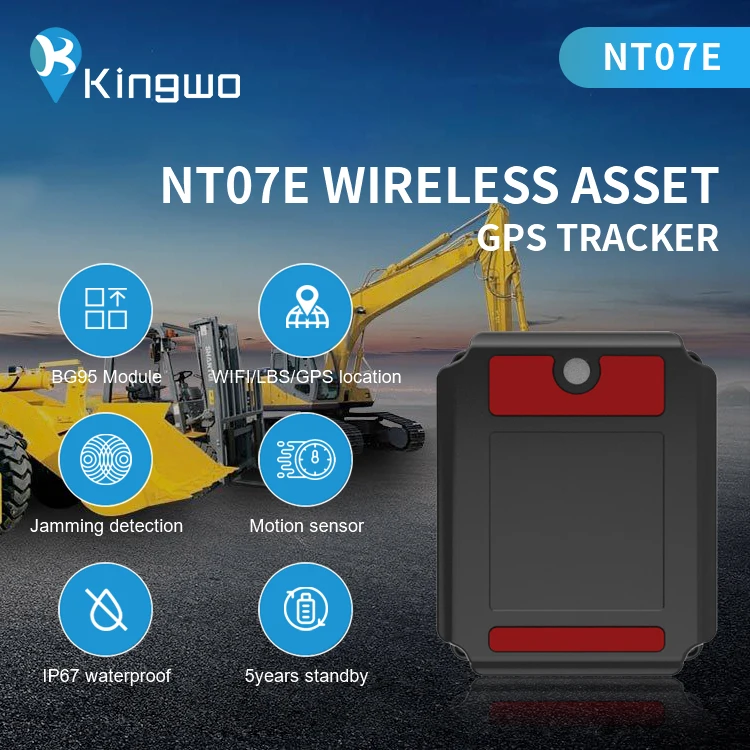

NT07E is an eMTC NB CatM1 Asset GPS Tracker with 8100Mah battery, it has built in G-sensor, motion sensor, light sensor. It’s ideally suitable for Asset tracking market.


 _01




Specification:


1.No wired needed, easy for installation

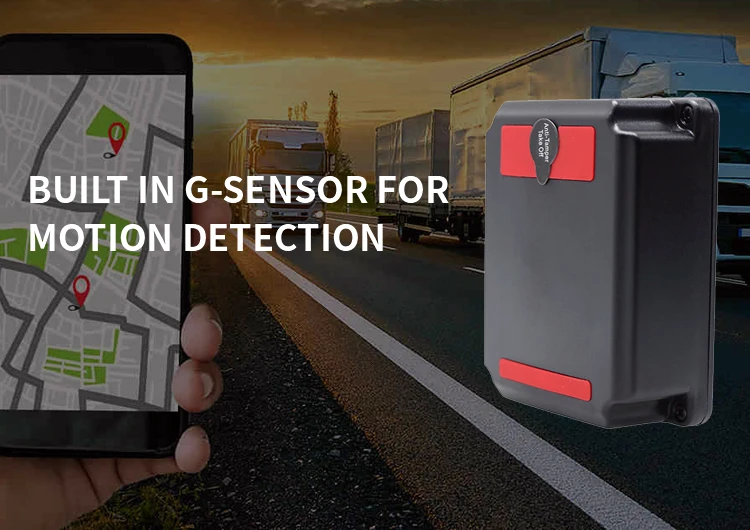

2.Built in G-sensor Temperature monitor


3.Built in light sensor


4.GPS+AGPS+LBS+WIFI position

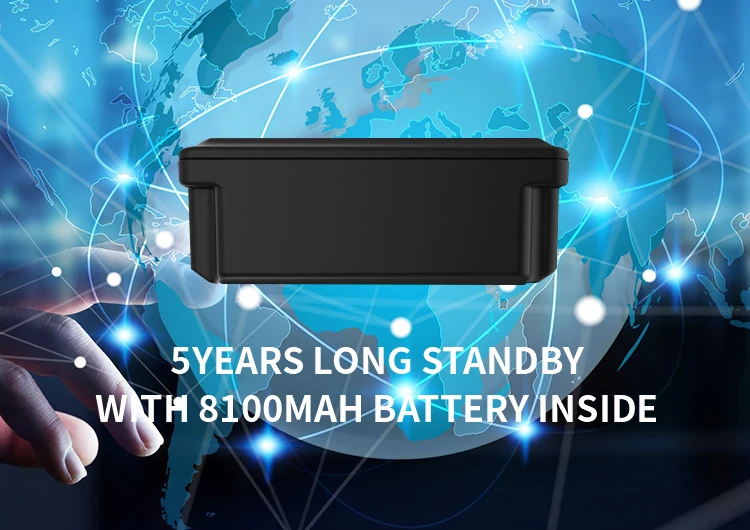

5.Battery can be last for 5 years based on reports one GPS position every day


6.Ultra low consumption


7.Strong magnetic for easy installation


8.Built in strong magnetic

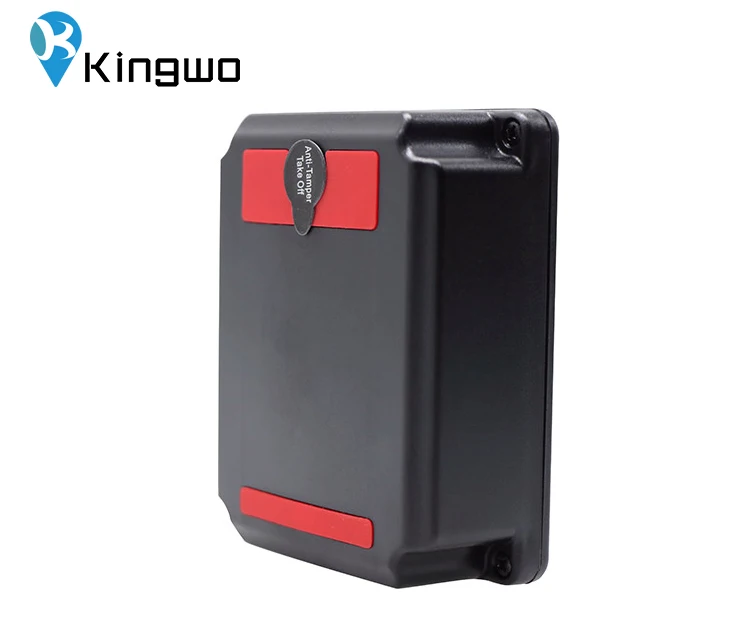

9.Support tamper proof alarm


10.Supports OTA upgrading, reduce maintenance on site





 _05_06


_07


_08_09











Parameters:
















































































Physical



Dimension



81mm*66mm*33mm(L*W*H)



Weight



193±5g



Cellular



Communication module



Quectel BG95



Frequency



Working frequency:


GPRS: 850/900/1800/1900MHz


FDD- Lte:B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/


B14/ B18/B19/ B20/ B25/ B26/B27/ B28/B31/B66/B71/B72/B73/B85


TDD- Lte:B39 (For CatM1 only)


protocol: Embedded TCP/IP stack


Sensitivity:    -107dBm@850/900MHz


-106dBm@1800/1900MHz


Output power:  Class 4 (2W)@850/900MHz


Class 1 (1W)@1800/1900MHz


GPRS data: GPRS Class 10, Mobile Station Class B



GPS



Channels: 50


Sensitivity: -147dBm


Position accuracy:5-10m


Accuracy: 5m CEP


Cold start: <27s


Hot start: <1s



Processor



STM32G070CB



Motion sensor



DA260



Wifi position



Wifi 4.0



Power



Battery



Disposable Lithium-ion battery and (3.6V,8100mAh)


and ultra-low discharge rate:less than 1%, store one year below 25



Power consumption



Average working current <100mA; Power save current <15uA;



GSM antenna



Internal High Gain



GPS antenna



Internal High Gain



SIM



Microsim



Indicator



2 status LEDs, Green: GPS,  Red: Celluar



Environmental Parameter



Working Temperature



-20 ~ +70



Humidity



5% ~ 95% (no fog)



Ingress Protection Rating



IP67













Popular features:




• WIFI position


The terminal is with built in WIFI Chip, when it starts, the WIFI Chip will automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the terminal will pack those hotspots info and saved into the pack that will be uploaded, after the backend receives information from the terminal, it will interpret the WIFI info and acquire the current location info according to the WIFI position server. The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position





•LBS


The default position mode is by GPS, however when device enters into the blind zone and GPS cannot be fixed, the device will switch to LBS position, LBS provides the reference location which is might not accurate •OTA commands from backend Since the wake up of the device is short, it is hardly to receive SMS , to ensure the command sending efficiently, we suggest an OTA commands to be sent from the platform, when the device is online, the backend will automatic send this command, to make sure the commands is properly received.





•Tracking


The default setting is upload once a day, the upload packet information includes: Position status, longitude and latitude, network signal Strength, satellite numbers, battery voltage etc, the upload interval can be configured either by SMS or through tracking platform software

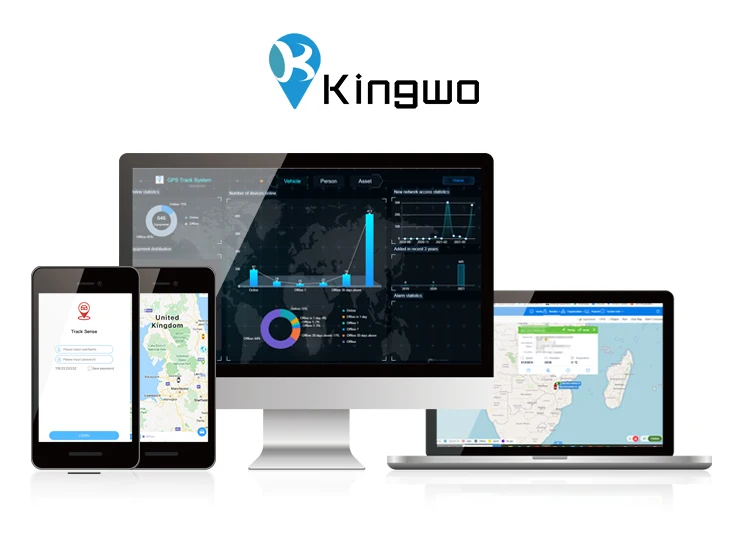

Software platform


PC Platform website Address:www.365qczx.net


Test account:vdftest


Password:demo





 APP which support IOS &Android, named "Track Sense".Customized and local server establish acceptable from us.


 _11








Packaging & Shipping


 delivery





Company Information

0 (6)

Oversea exhibition





FAQ


 Q1.Can you help for design?


A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.





Q2:Are you manufacturer?

A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience



Q3:What's your payment terms?

A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.



Q4: What is your delivery time?

A: Immediate shipment for sample order and 3-15days for bulk order.



Q5:Do your have your own platform?

A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
