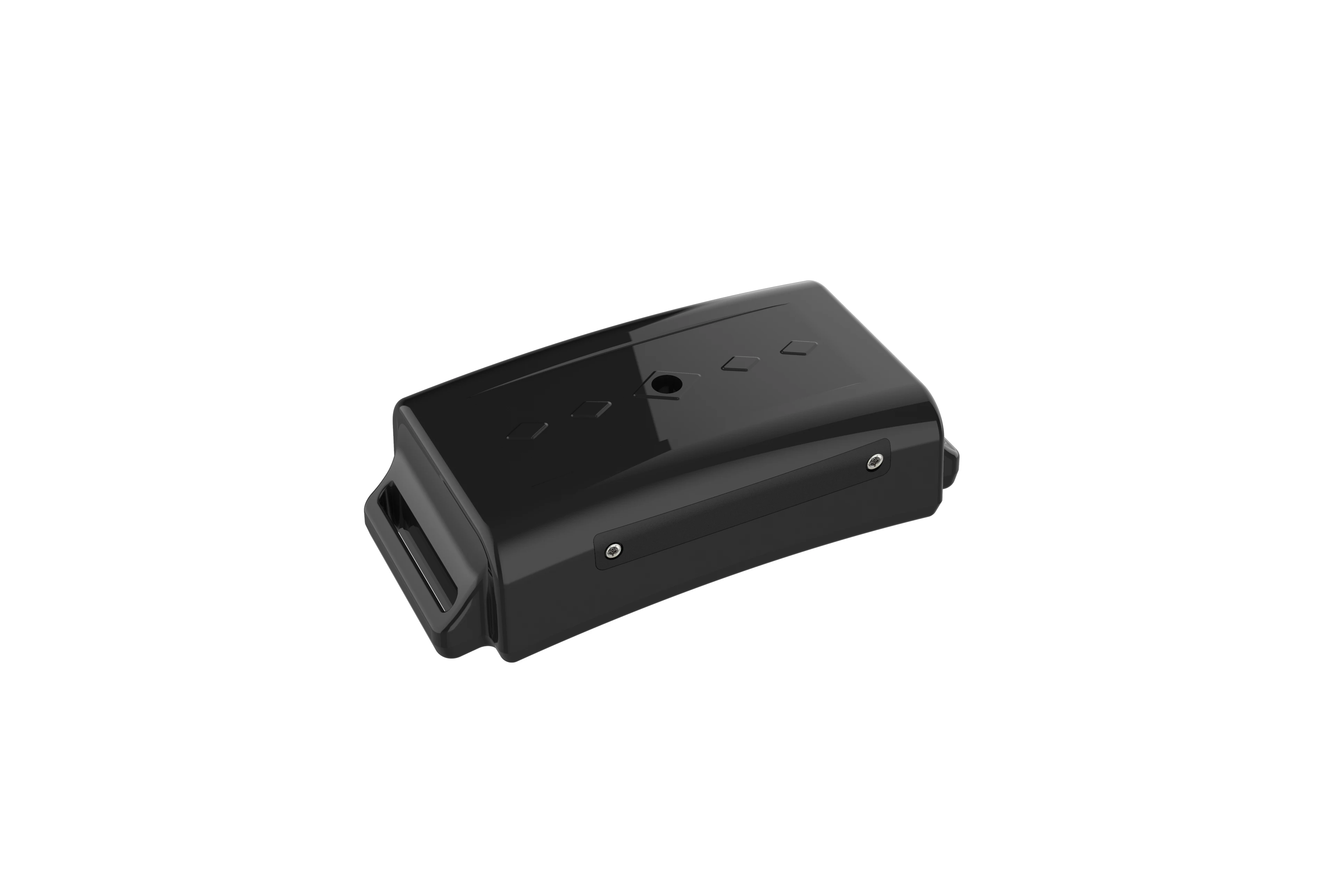

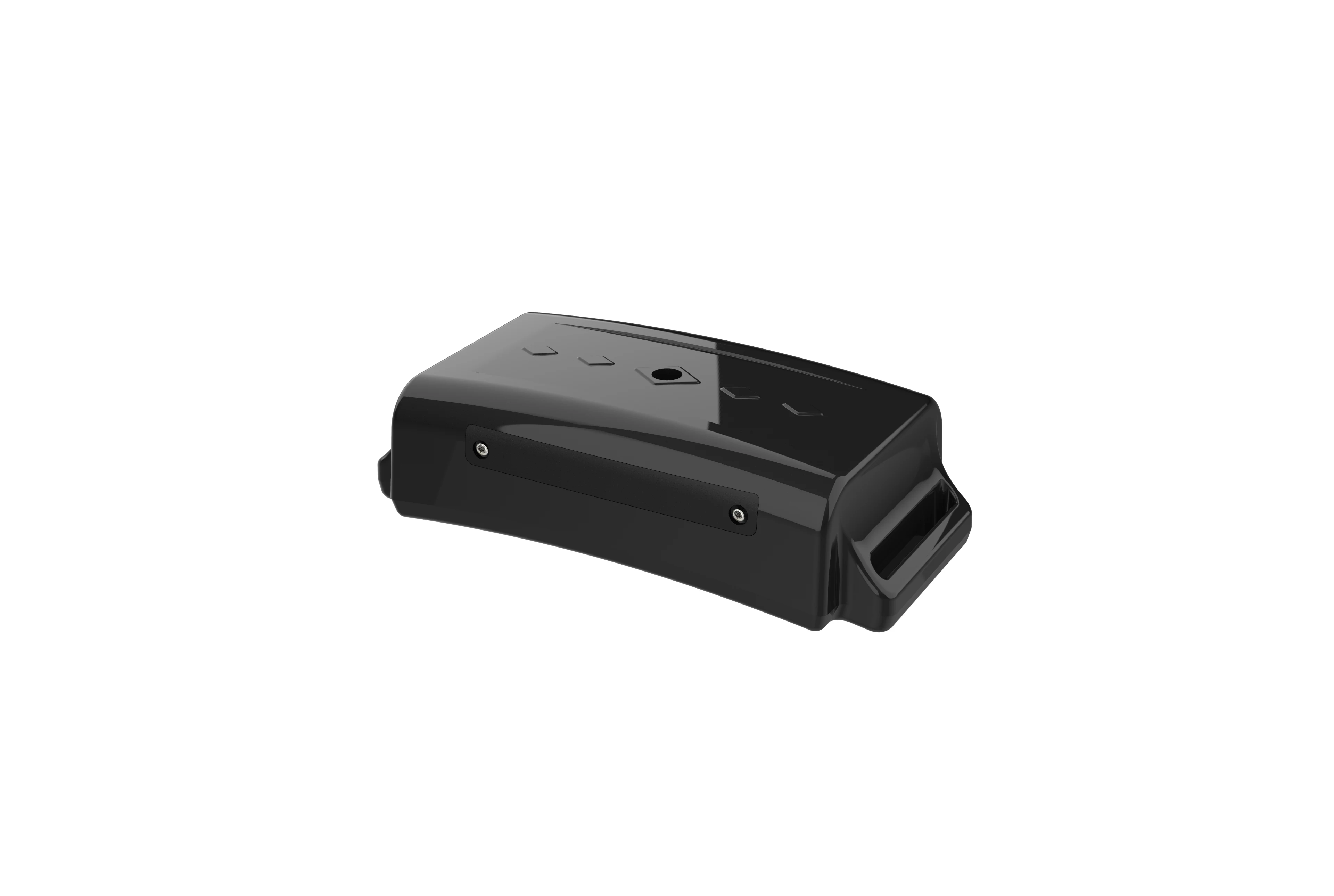

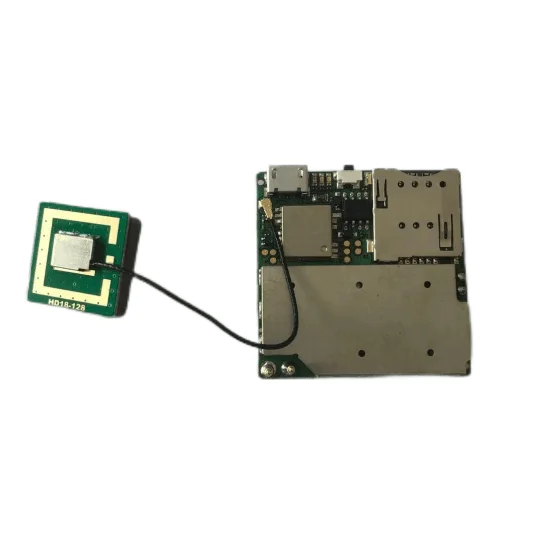

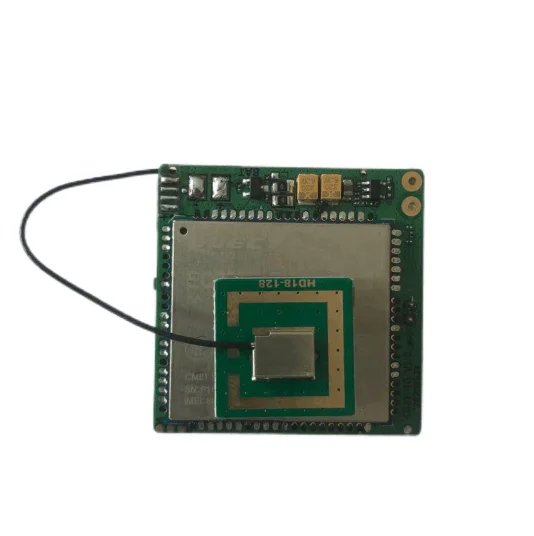

Chipset | MCU+QUECTEL EC25A |
Communication frequency band | LTE 4G:GSM/2G |
Targeting | GPS+ Beidou +LBS three mode positioning |
Power supply | Battery powered |
Precise positioning | The accuracy can reach 5 meters |
Functional features | Vibration alarm, overspeed alarm, electronic fence, low power alarm, super long standby, strong magnetic adsorption |
SIM card | Micro SIM card |
Operating voltage range | DC 3.4V - 4.5V |
Working current | 4V/average 67mA |
Standby current | 4V/average 16mA |
Sleep current | 4V/average 38mA |
Built-in battery capacity | 3000 mAh (3.7V polymer battery) |

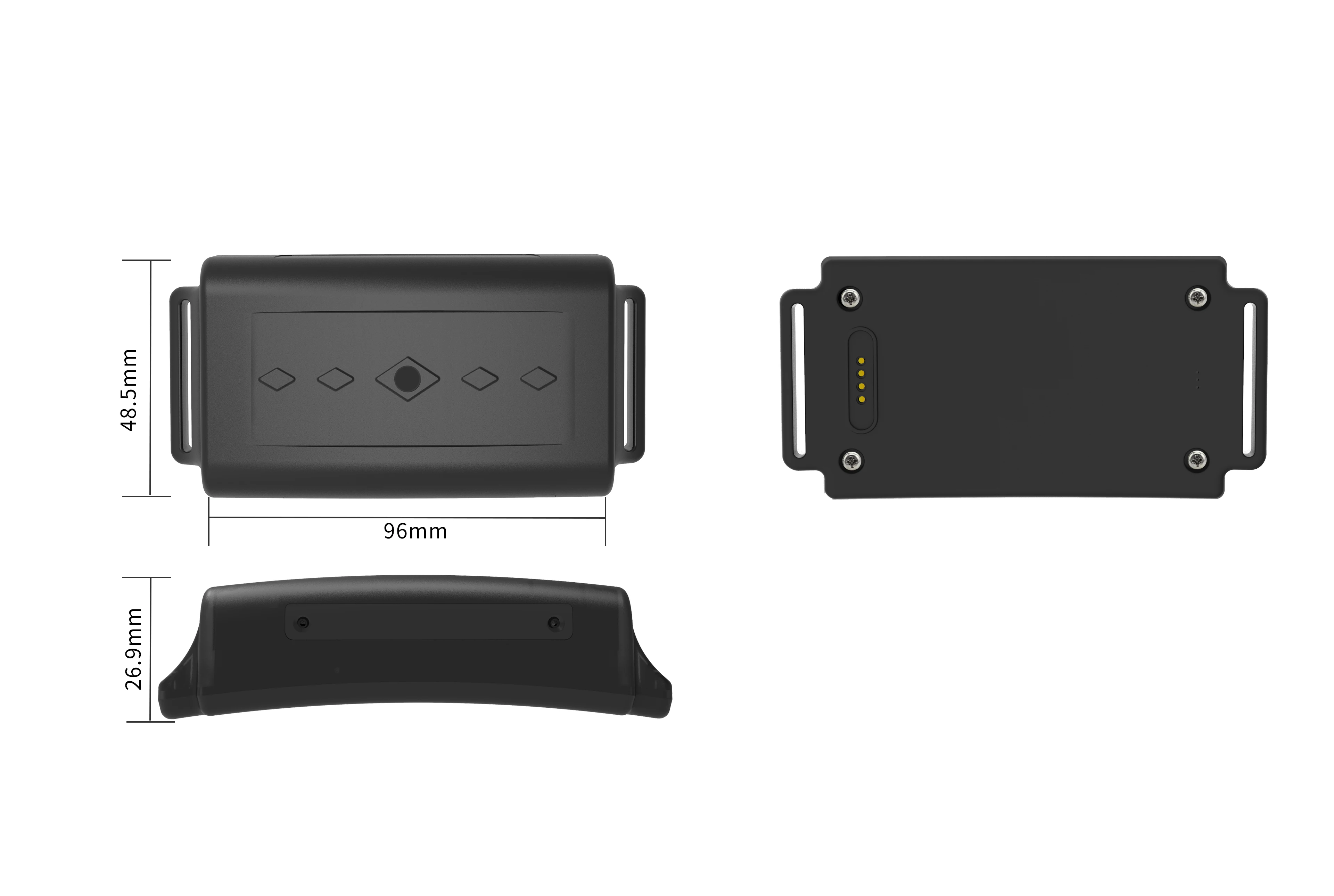

Appearance size | 96mm * 48.5mm * 26.9mm |
Main engine weight | 167g(3000mA) |
Operating temperature range | -20℃ - 75℃ |
Storage temperature range | -30℃ - 80℃ |
Working humidity range | 10%-85% RH non-condensing |
