Deers Mud Slurry Tanker rubber expansion joint Suction Hose for Dredging
- Category: >>>
- Supplier: Nanjing Deers Industrial Co. Ltd.
Share on (1600291747751):
Product Overview
Description

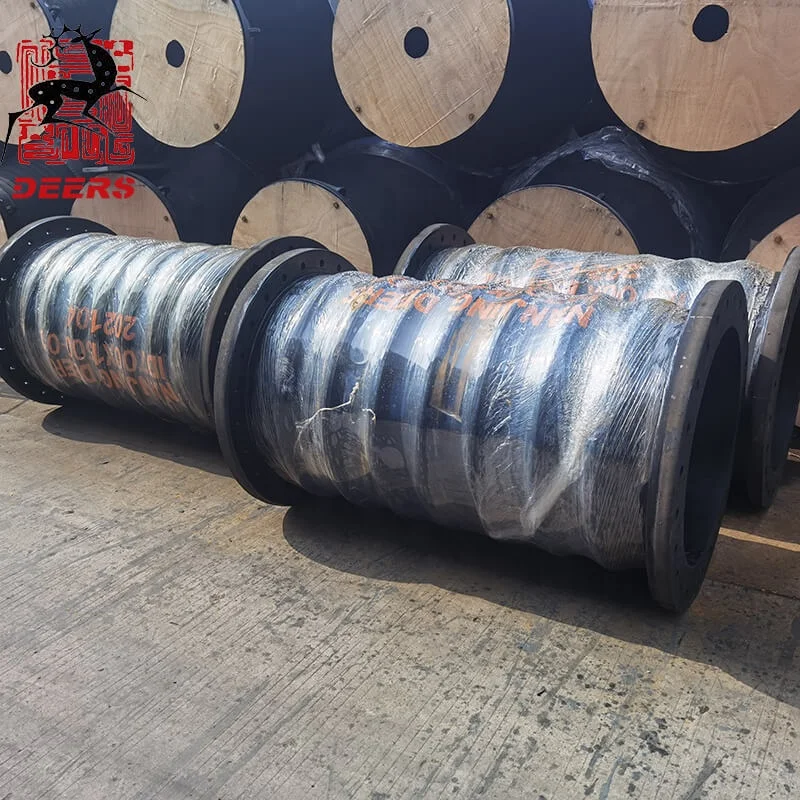

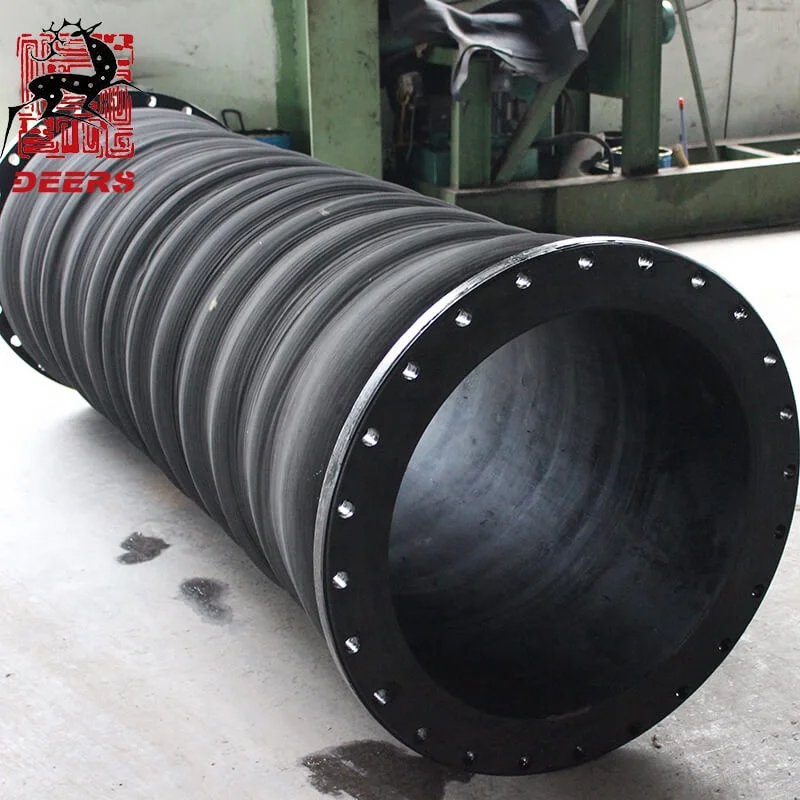

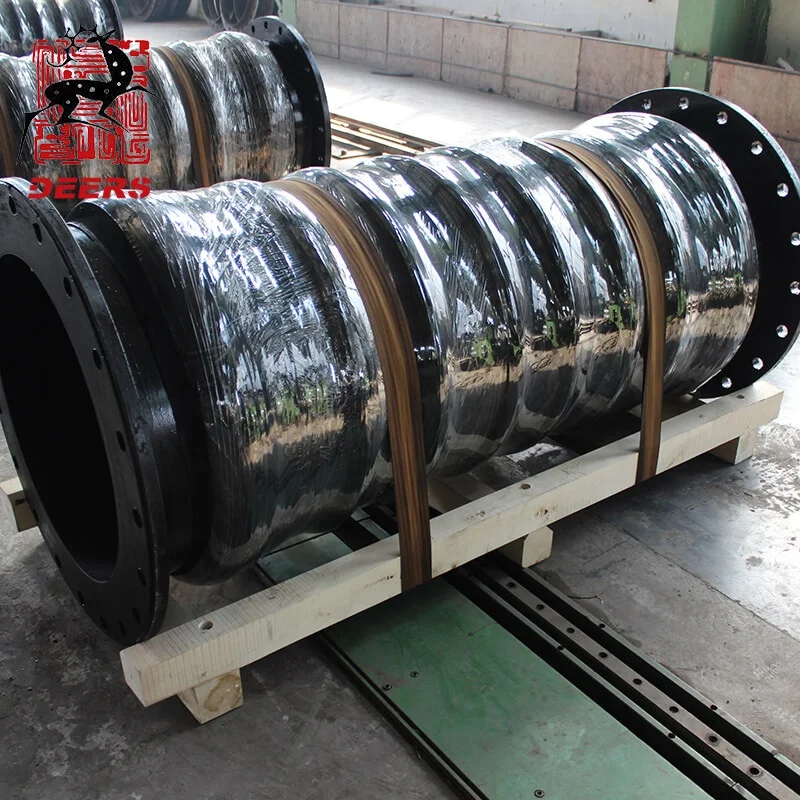

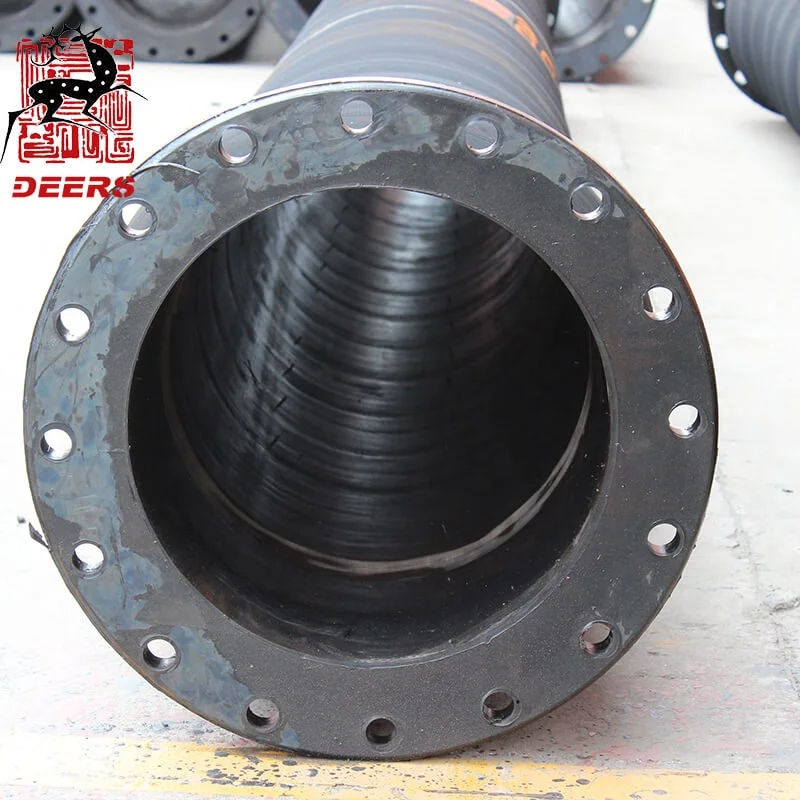

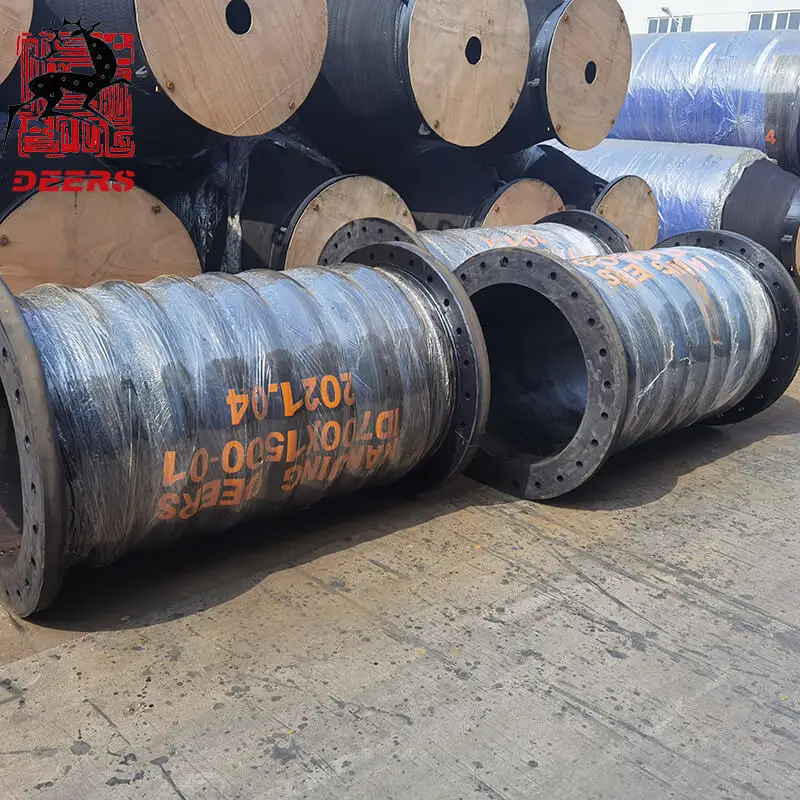

Suction Hose for Dredging
Dredge suction rubber hose is installed between the dredger and pump, and work under the negative pressure to absorb the mud. The inner diameter of suction dredging rubber hose can be manufactured from 100mm to 1300mm. Heavy-duty big-bore suction hoses come equipped with rigid steel rings. This allows for smooth bending of the hose. It can be equipped with fixed steel flanges, loose steel flanges, or rubber flanges. Dredge suction hose either has good performance in flexibility or has high-pressure resistance and abrasive resistance. The hose has the double properties of bearing both positive and negative pressure. It can also in place of steel pipe.
Product Description
Performance
1. Working temperature: -20℃ to +50℃.
2. Rubber dredging hose Good corrosion resistance.3. Its wear resistance is 4 times higher than steel pipes under normal conditions.
4. Good solderability; its interface strength is higher than the pipe body.
5. Good flexibility and anti-scratch ability.
6. Very high impact resistance.
7. The smooth inner wall, spiral rubber hose easy for pipeline transportation.
Specification
We can customize the hose size according to customer needs
ID | Working Pressure (Mpa) | Length (m) | Pipe Wall Thickness (mm) | ||
mm | T (mm) | ||||
250 | ±2 | 60mm mercury column Max vac 650mm high | 1-3 | 31-32 | |
300 | ±2 | 1-3 | 34-37 | ||
414 | ±2 | 1-3 | 35-37 | ||
560 | ±3 | 2-3 | 40-45 | ||
600 | ±3 | 2-3 | 40-45 | ||
700 | ±3 | 2-3 | 40-45 | ||
800 | ±4 | 2-3 | 50-52 | ||
900 | ±4 | 2-3 | 55-58 | ||
Test of Products
Company Profile
Certification
Exhibition
Our Service
Timely and effective communication
Timely return visits on product usage
1. We confidently give our customers the personalized service,technical expertise,and on-time delivery.
2. We welcome clients to visit our factory leading to better understanding of our production.
3.100% QC inspection before shipment.
4. Good service before and in order and after sale and installation instruction.
5.Your business relationship with us will be confidential to any third party.
3.100% QC inspection before shipment.
4. Good service before and in order and after sale and installation instruction.
5.Your business relationship with us will be confidential to any third party.
Packing & Delivery
Please consult the salesperson in advance for sample details and prices, if you need it.
