cold riveting machine rivet making Yuhai Foshan factory with 20 years experience

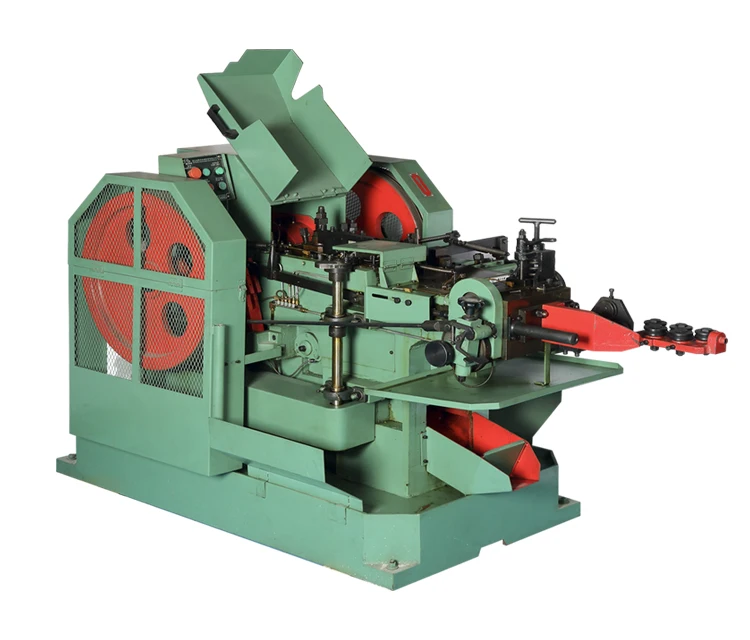

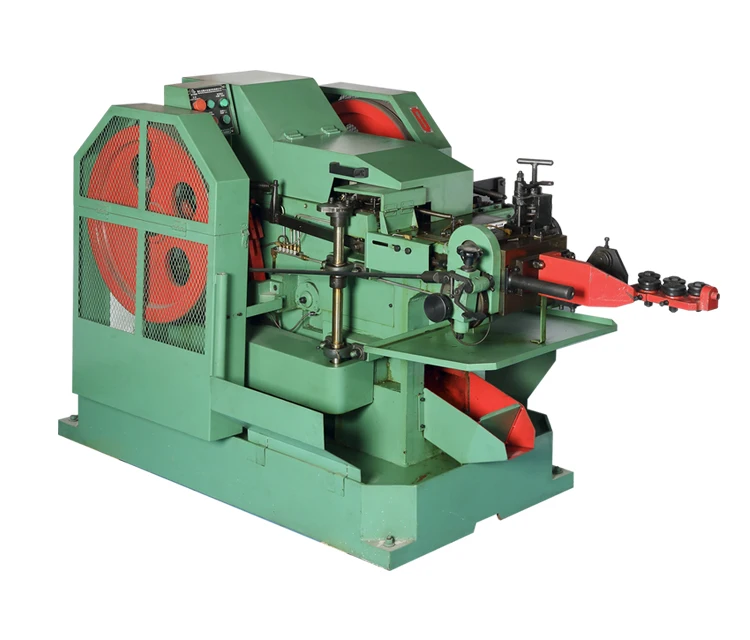

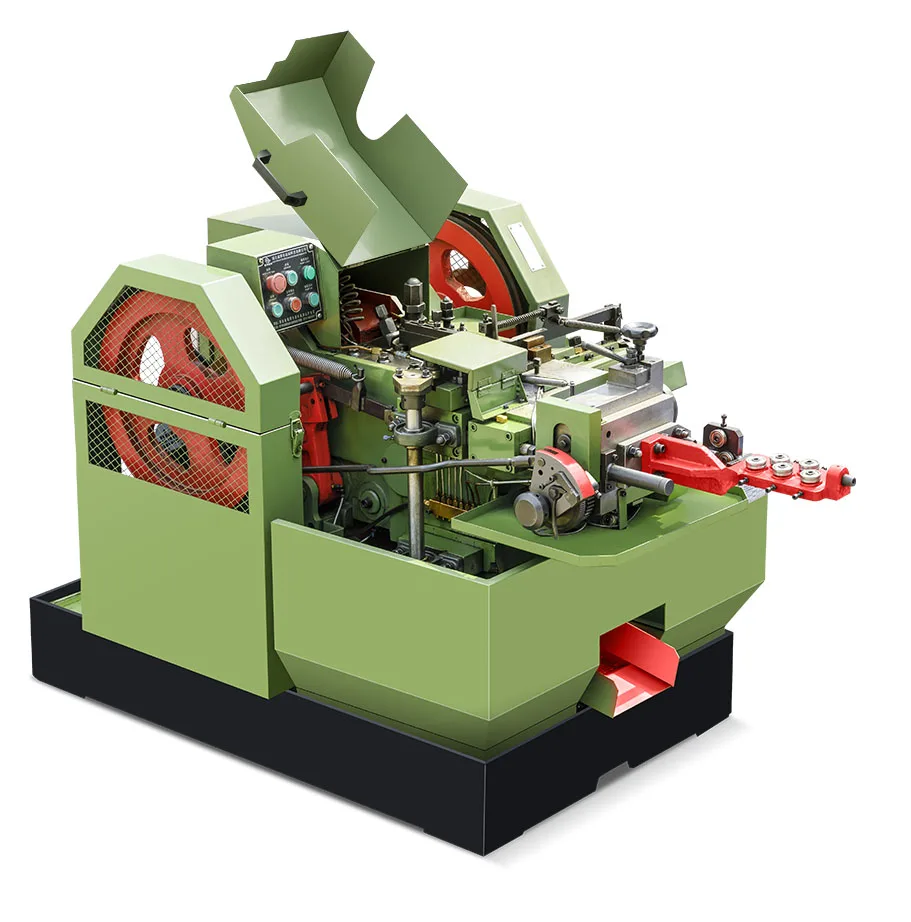

Detailed images
Technical parameters
Model
YHW03-20
YHD04-40
YHW05-60
YHW05-80
YHW06-90
YHW06-120
YHW08-120
YHW10-120
Max. Blank Diameter/mm
4.0
5.0
7.0
7.0
9.0
9.0
11.0
13.0
Max. Blank Length/mm
20
40
60
80
90
120
120
10
Capacity/pcs/min
100-120
90-100
70-90
70-90
60-80
60-80
50-70
50-60
Main Die Diameter/mm
20x36
32x58
34.5x95
34.5x98
45x120
45x150
55x160
70x160
Punch Die Diameter/mm
18x50
25x65
31x75
31x80
35x100
35x100
40x120
55x150
Cut-off Die Diameter/mm
13x20
15x30
19x35
19x35
24x40
24x40
28x45
35x50
Cutter size/mm
6x25x42
9x32x70
9x35x72
9x35x72
12x35x77
12x35x77
12x42x90
16x55x115
Main Motor Power/kw
1.1
1.5
2.2
2.2
4
4
5.5
11
Weight/kg
624
1105
2100
2340
3640
3900
4160
5980
Volume
1.40x0.75x0.9
2x0.85x1.15
2.4x1.1x1.25
2.4x1.1x1.25
2.70x1.40x1.60
3.10x1.40x1.60
3.70x1.60x1.80
4.80x1.80x1.32
Features
1. The machine specializes in the production of semi hollow rivets, which is the latest type of material.
2. The advantages of simple, traditional, fast production, small hole error, easy operation and low maintenance rate.

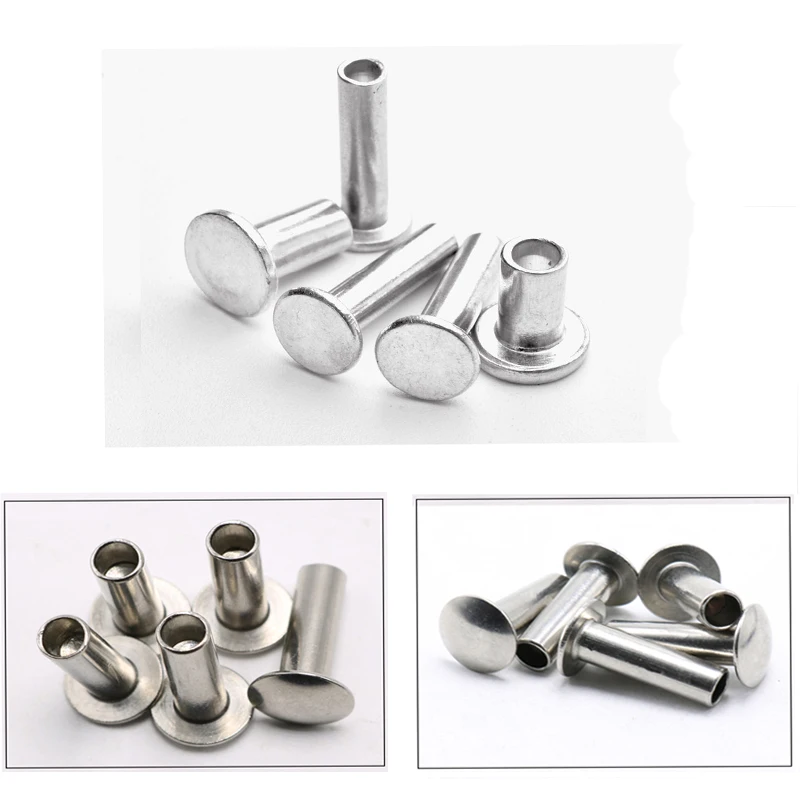

Finished products

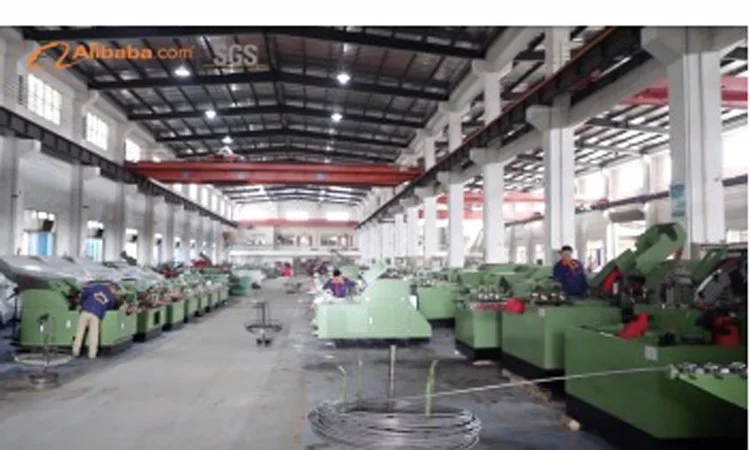

Company Information
Packaging & Shipping
FAQ
1.why do we choose Yuhai screw machines ?
We are professional manufacturer of various kinds of screw, nail,rivets making machines located in Foshan city of Guangdong province , Which has over 18 years experience for producing screw production line. Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Russia , Malaysia , Pakistan , India, Vietnam , Indonesia, , South Africa , etc.
3.Is there any quality warranty and after service ?
The warranty of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there any quality problem of your machine and spare parts , what should I do ?
within one years, if machine have any quality problem. we will repaire for free.But if damaged parts wil be replaced by offered of charge .we provide lifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
