digital chart recorder 4 20ma paperless recorder temperature pressure recorder
- Category: >>>
- Supplier: Hangzhou,Supmea,International,Trading,Co.,Ltd.
Share on:
Product Overview
Description

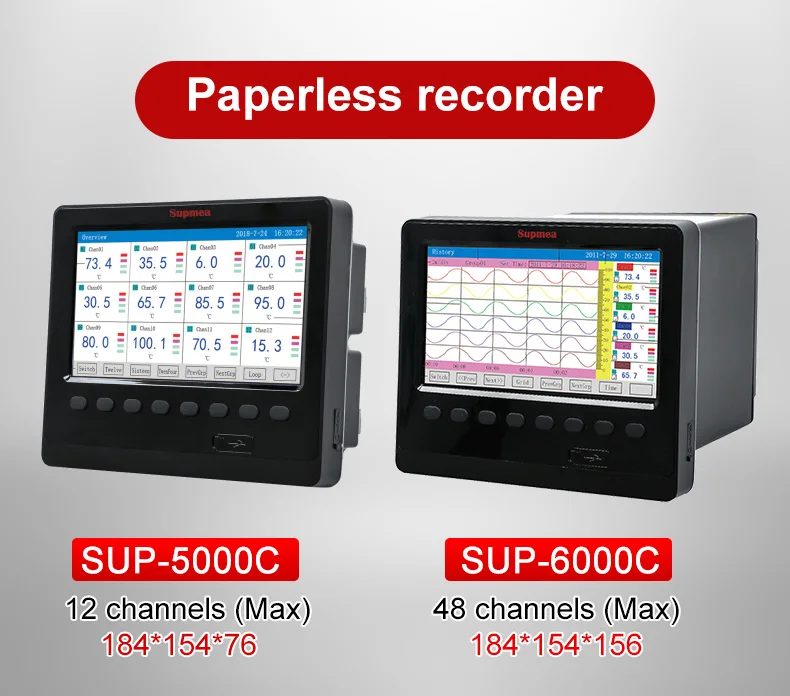

Model | SUP-6000C | SUP-5000C | |||||
Channels input | 48 channels (Max) | 12 channels (Max) | |||||
Channels output | |||||||
Dimension | 184*154*156 | 184*154*76 | |||||
Accuracy | ±0.2%FS | ||||||
Sampling period | 1 second | ||||||
Response time | ≤0.3S | ||||||
Storage capacity | The capacity of the internal Flash memory is 64 M Byte | ||||||
32G U disk/SD card storage | - | ||||||
Communication | 10M Ethernet standard RJ45 interface, | ||||||
RS485/RS232 | |||||||
Alarm output | 18 channels alarm output | 12 channels alarm output | |||||
Feed output | DC 24V ± 10% | ||||||
Load current ≤ 250 mA | Load current ≤ 200 mA | ||||||
Power supply | AC 85～264V | ||||||
DC12～36V | - | ||||||
Frequency | 50/60Hz | ||||||
Power consumption | ≤20W | ≤15W | |||||
Working temperature | -10～50℃ | ||||||
Humidity | 10～90% (No condensation) | ||||||
