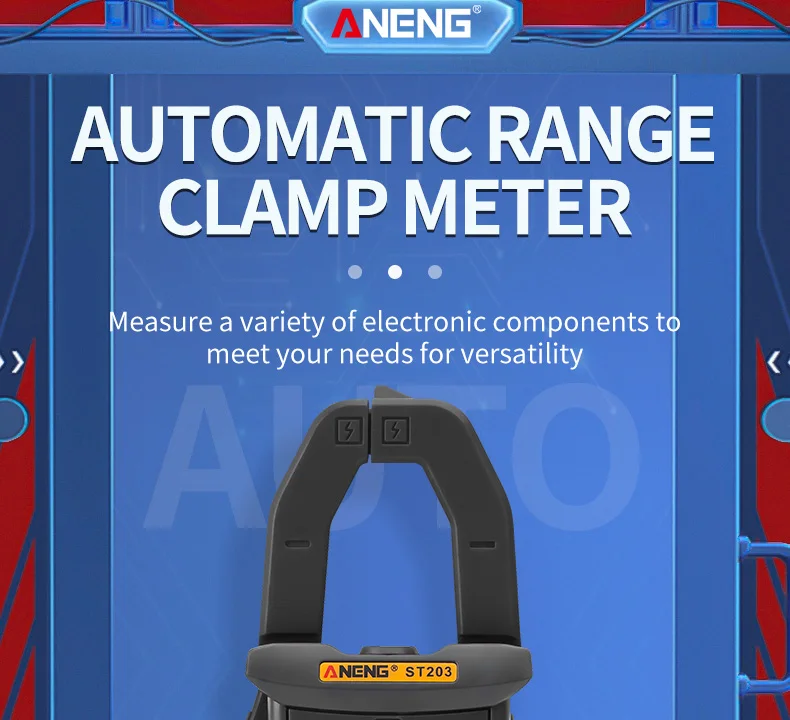

ANENG ST203 Electric Digital Clamp Meter DC/AC Professional Multimeter Current Clamp Intelligent Automatic Voltage Tester Tool
- Category: >>>
- Supplier: Guangdong Jinyuanquan Electronic Technology Co. Ltd.
Share on (1600292169741):
Product Overview
Description

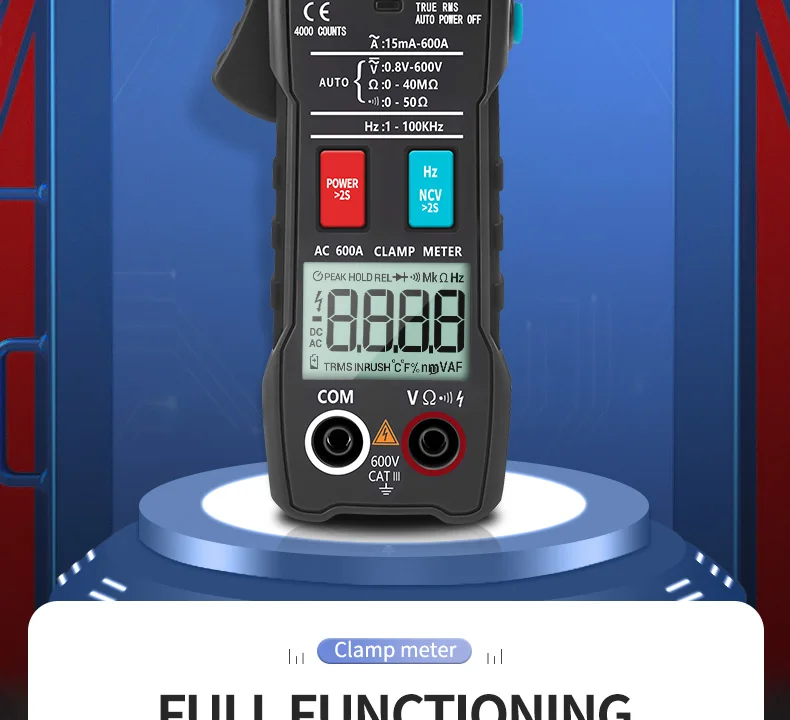

ANENG ST203
Electric Digital Clamp Meter
General Feature:
This product is a battery-powered,turn rms auto ranging digital clamp multimeter with a 4000 counts LCD display and a backlight.
This product is a battery-powered,turn rms auto ranging digital clamp multimeter with a 4000 counts LCD display and a backlight.
1. Display: liquid crystal display (LCD);
2. Maximum display: 4000 (3 3/4) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows "OL";
6. Low voltage display:symbol appears;
7. Working environment:(0~40)°,relative humidity<80%;
8. Power: AAA 1.5V battery(Batteries excluded)
Functional parameter
DC voltage DCV :yes

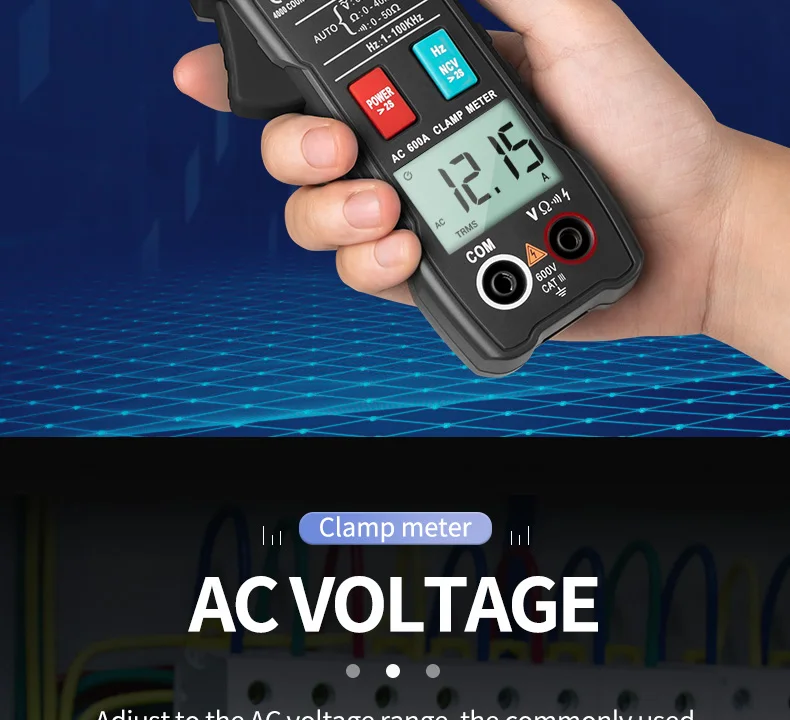

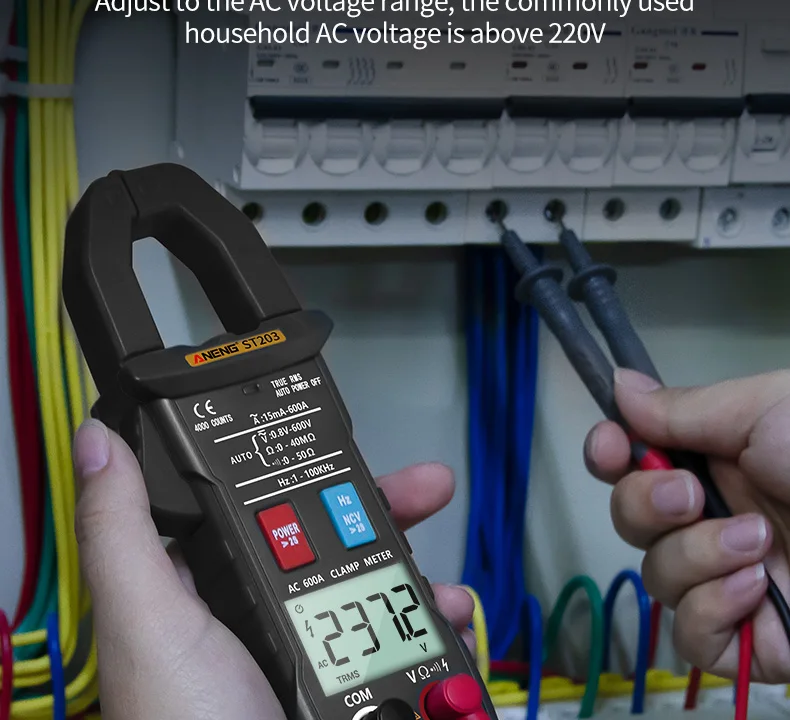

AC voltage ACV :yes

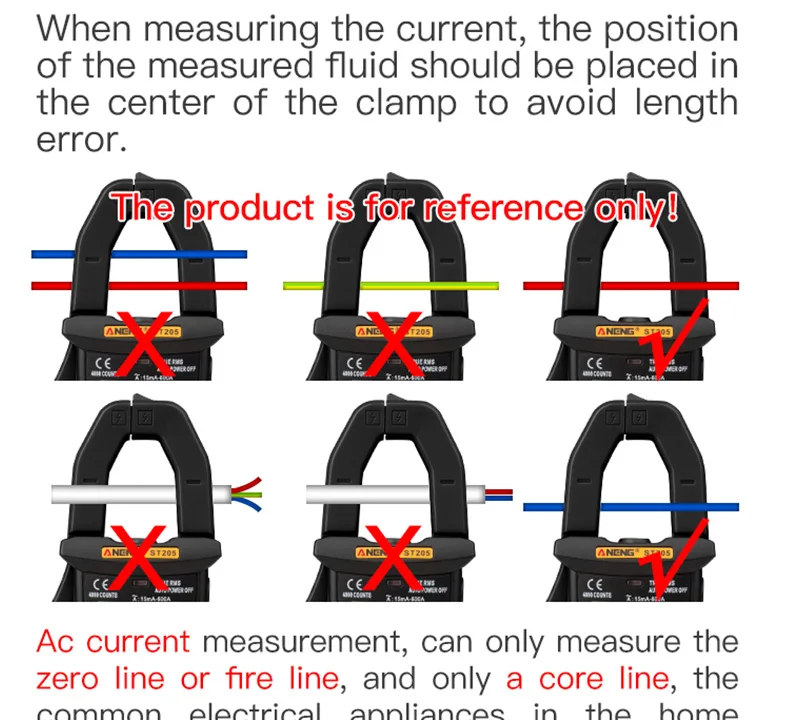

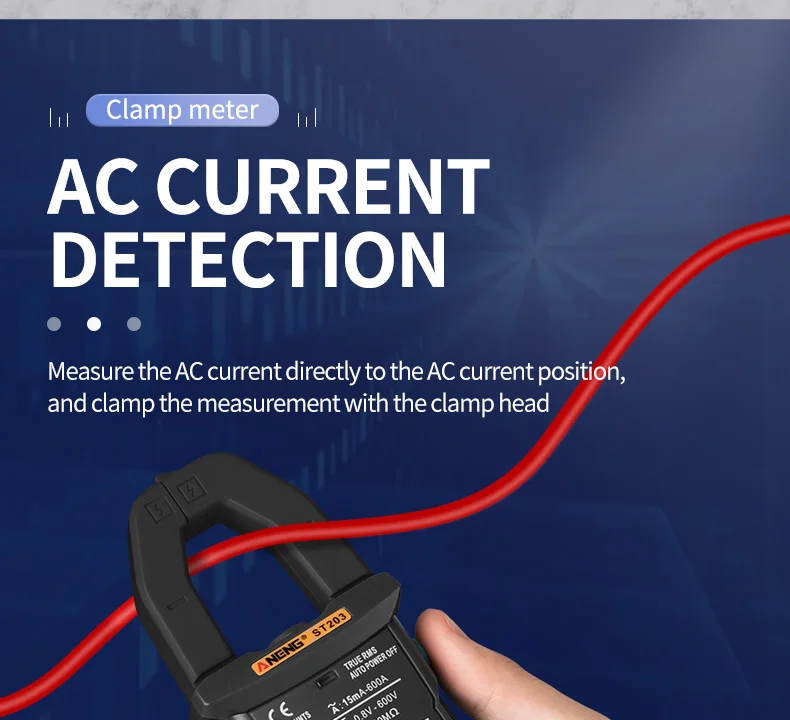

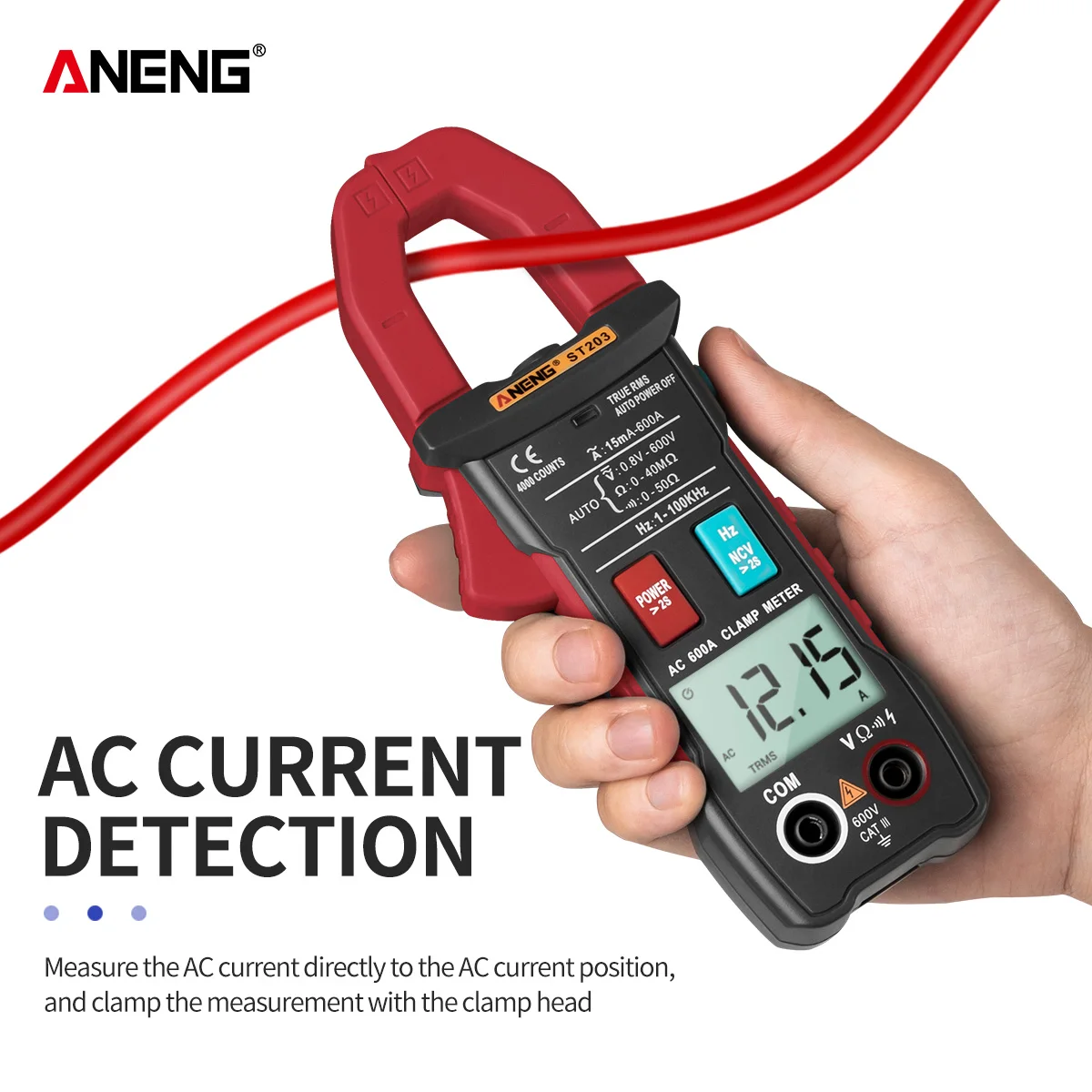

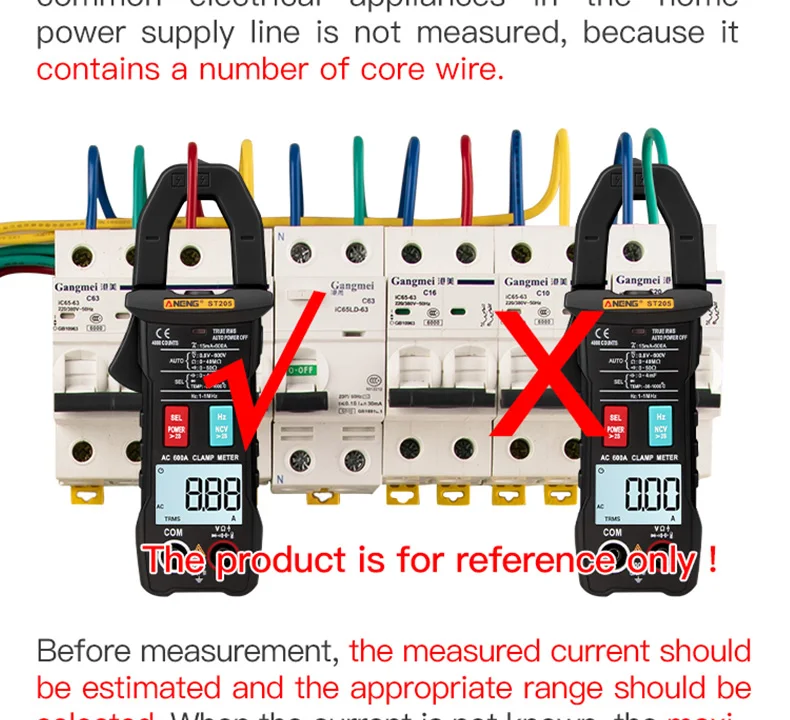

AC current ACA :yes

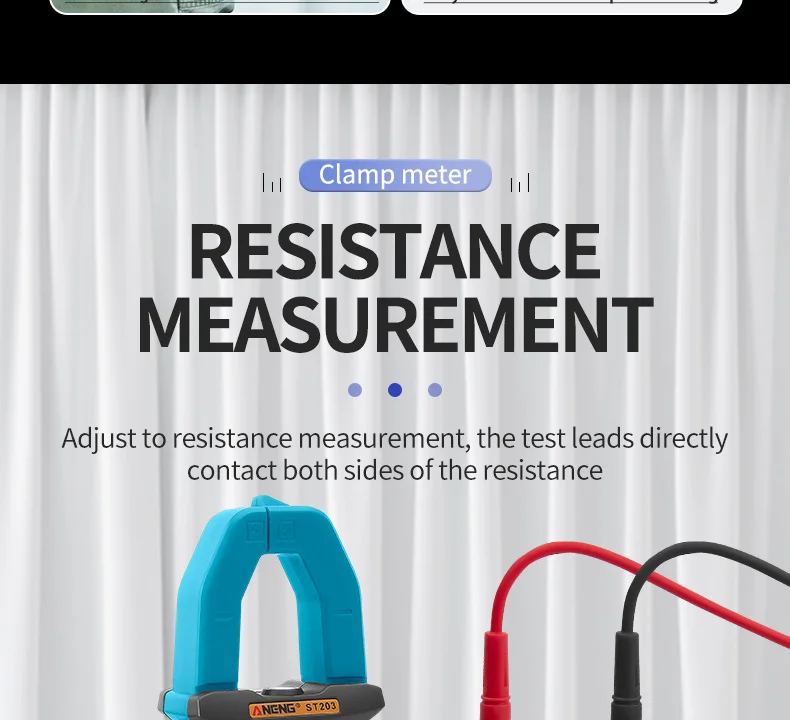

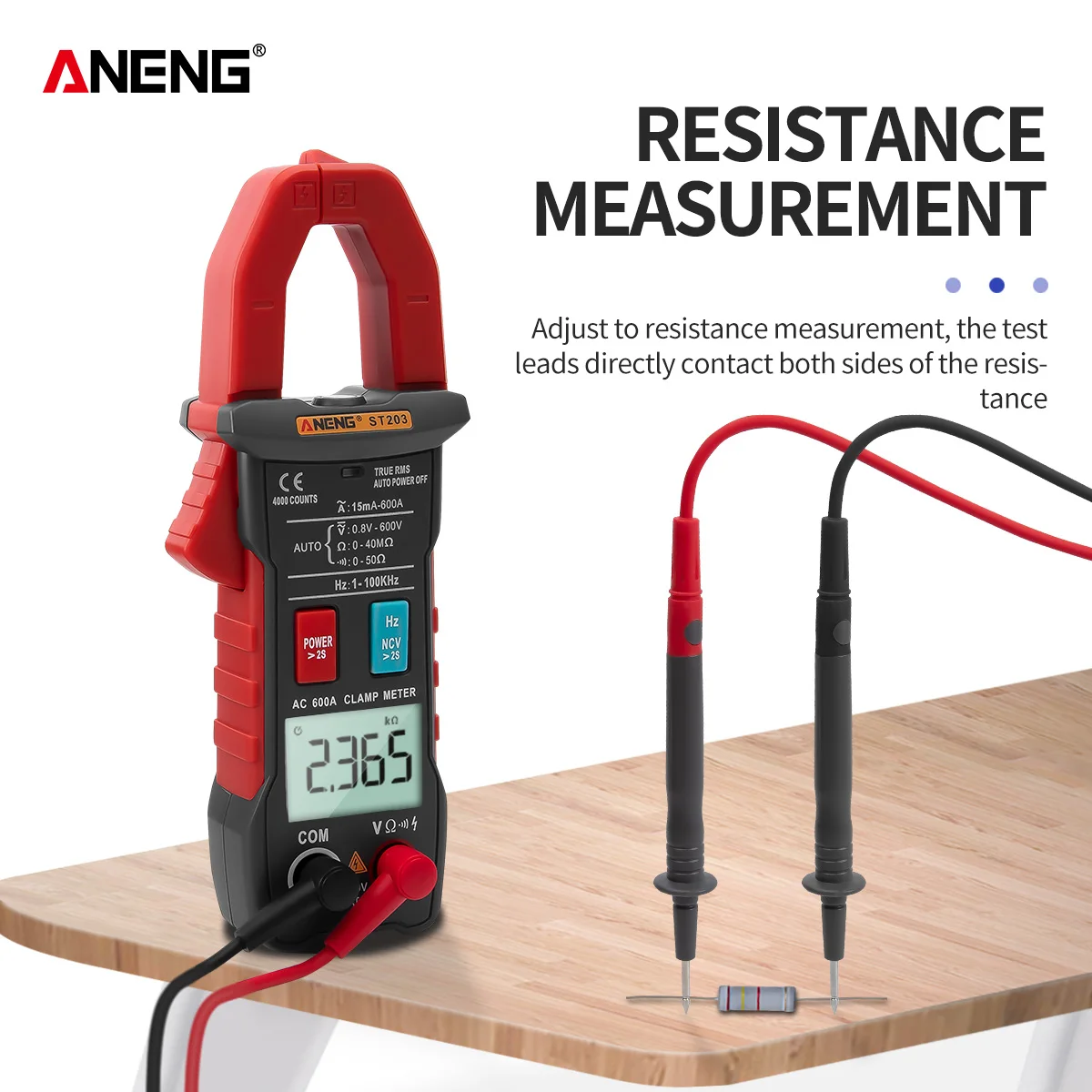

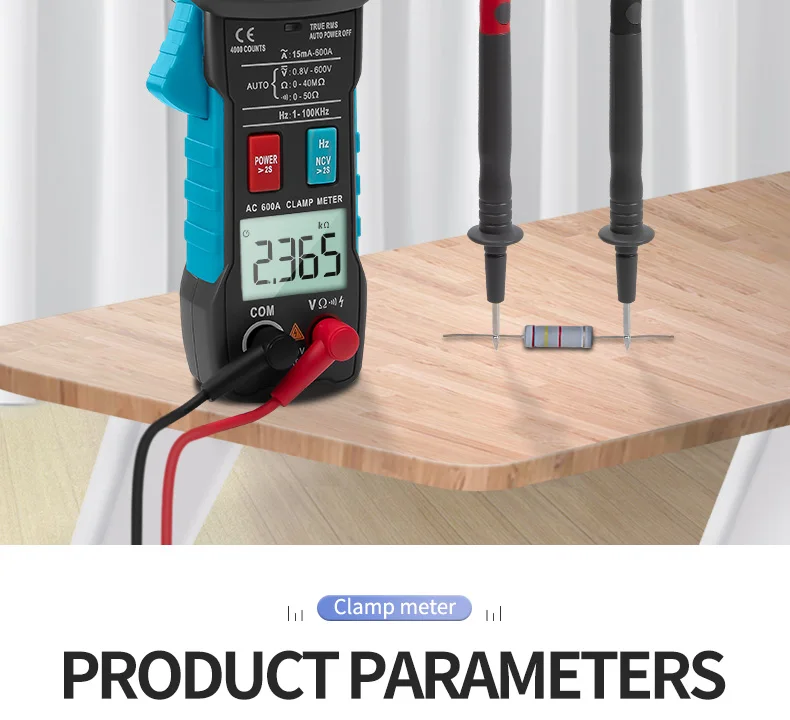

Resistor / On-Off Test :yes
Frequency F :yes

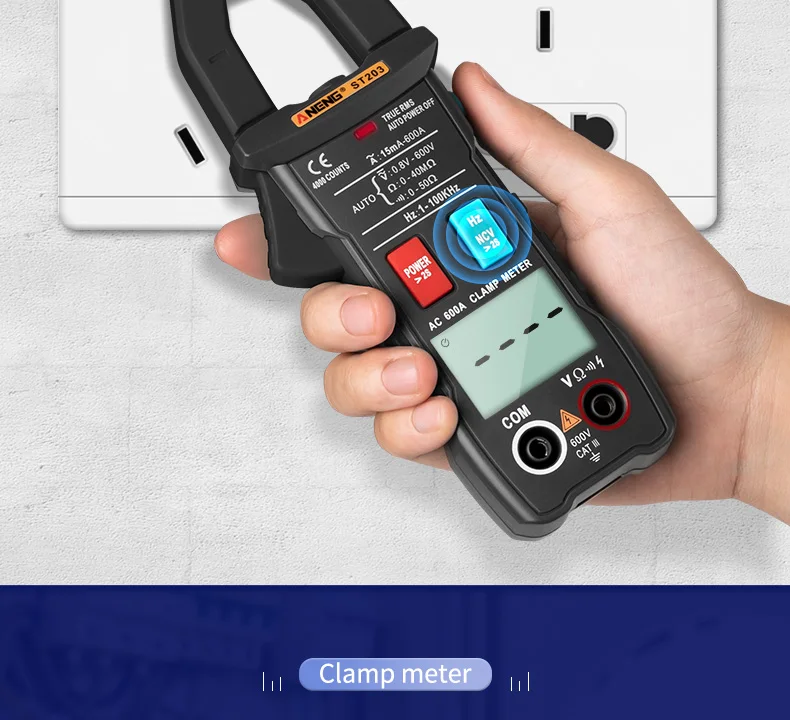

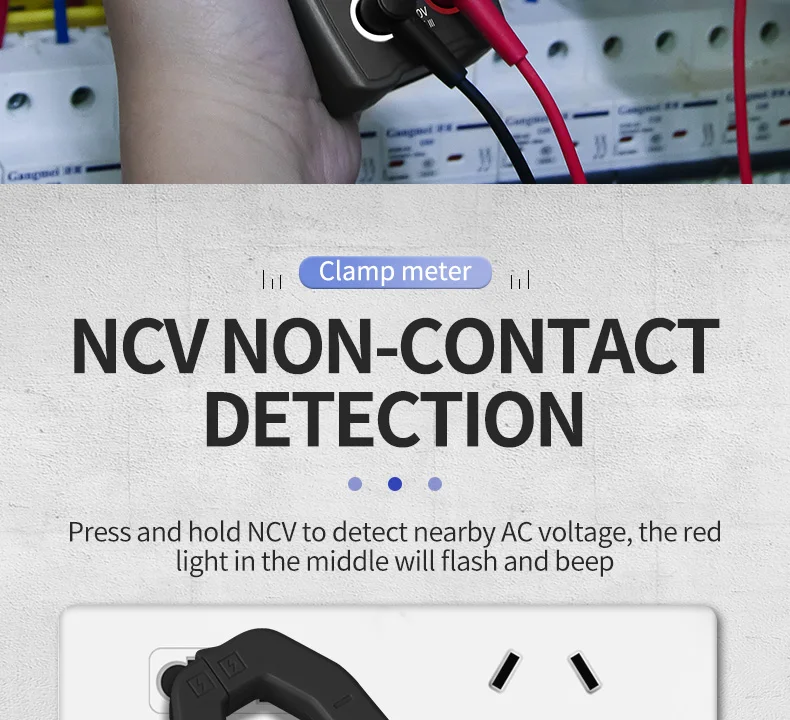

NCV :yes

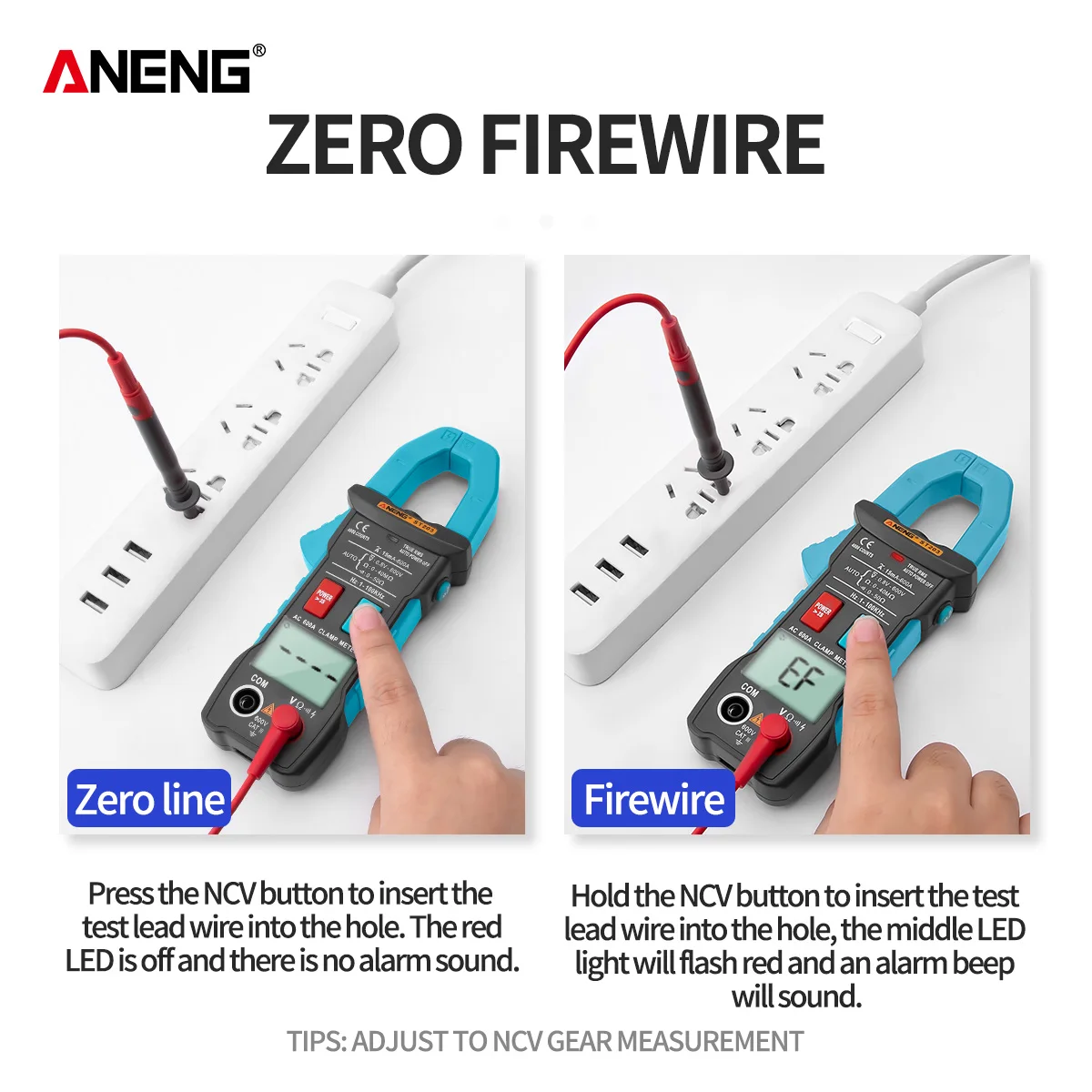

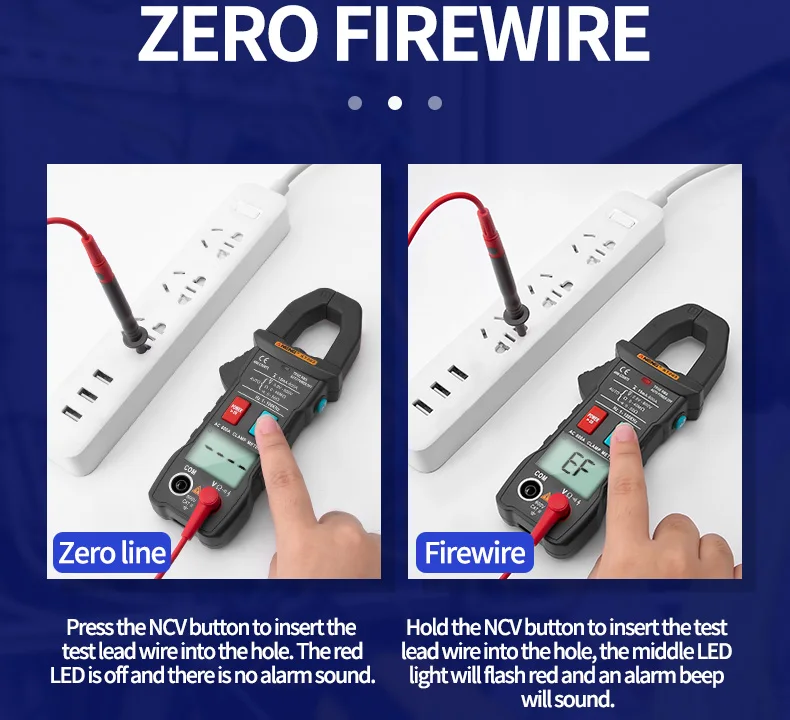

Zero line / Fire line test :yes
Full unit symbol :yes
Backlight manual/Auto off :yes
True RMS measurement :yes

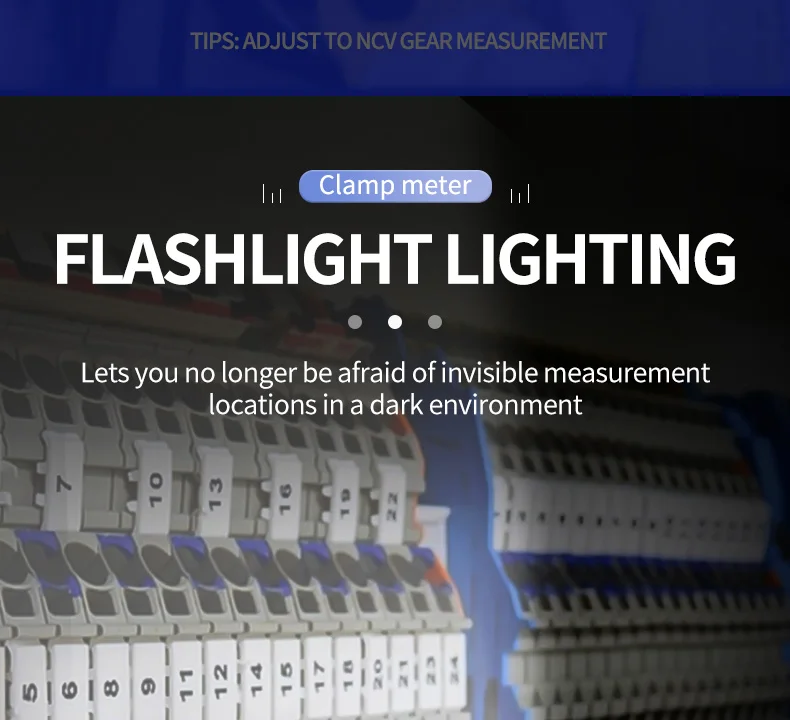

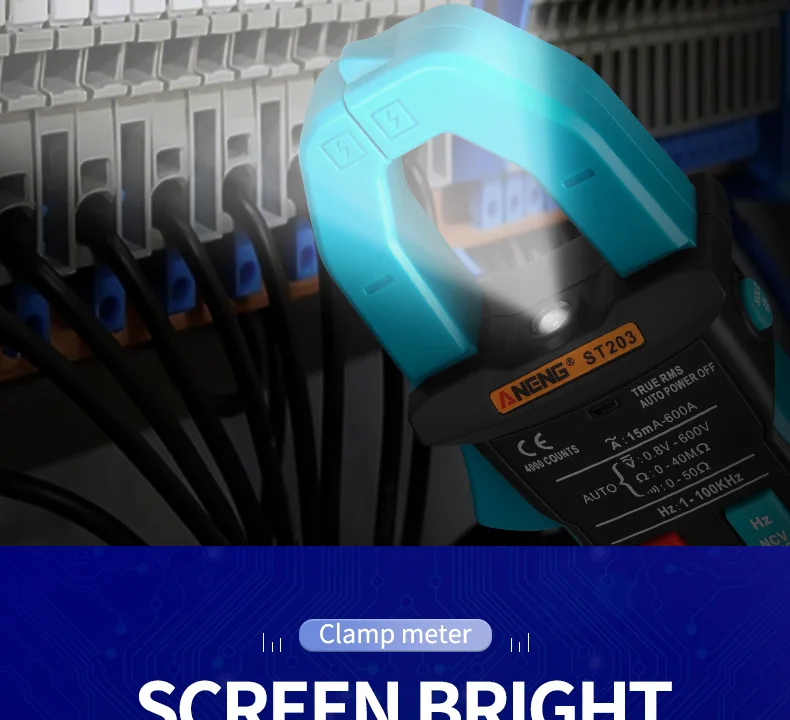

Flashlight lighting :yes

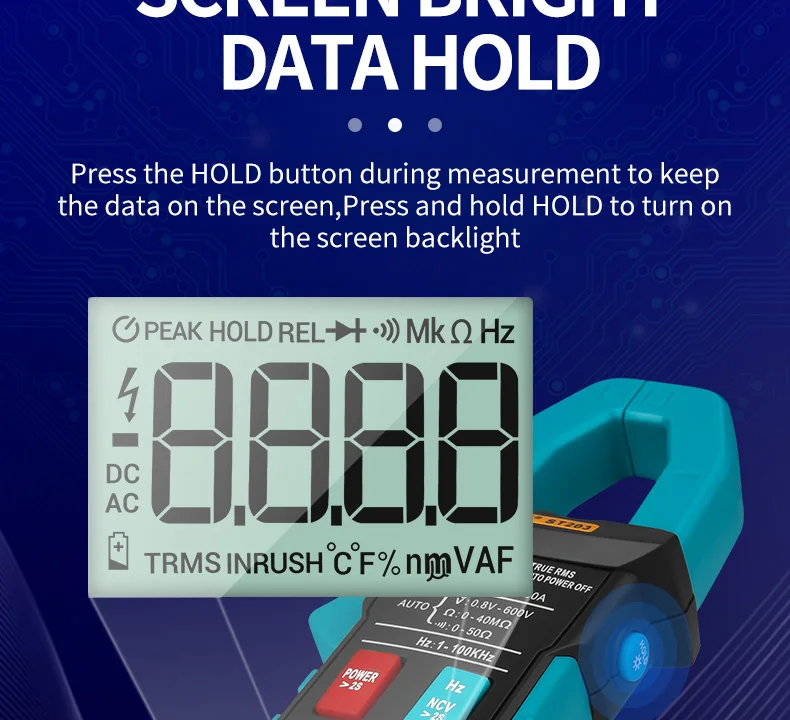

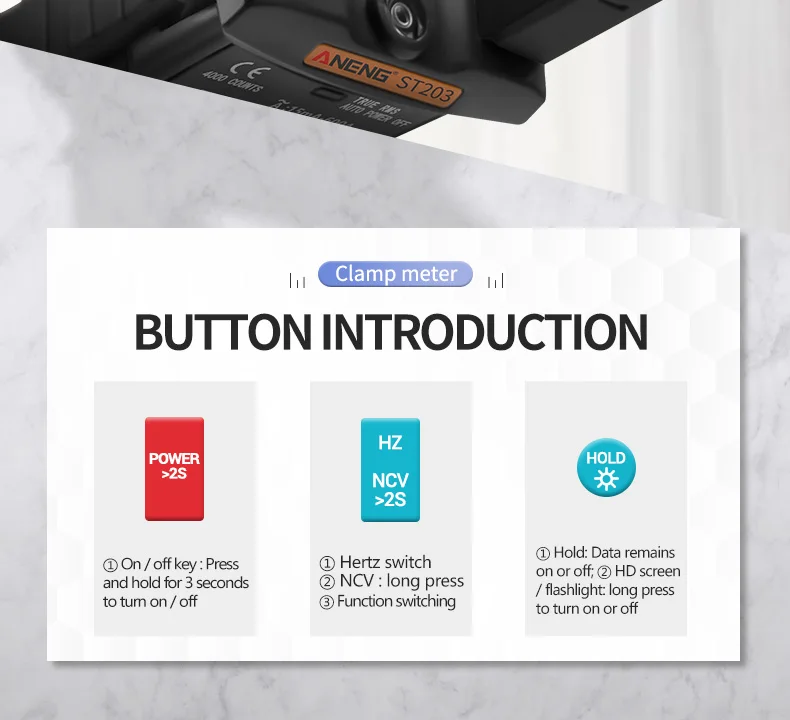

HOLD :yes
Technical Specification
Function | Range | Accuracy |
DC Voltage(V) | 4V/40V/400V/600V | ±(0.5%+3) |
AC Voltage(V) | 4V/40V/400V/600V | ±(1%+3) |
AC Current(A) | 4A | ±(5%+5) |
40A/400A/600A | ±(2.5%+8) | |
Resistance | 4KΩ | ±(1.5%+3) |
40KΩ/400KΩ/4MΩ | ±(0.5%+3) | |
40MΩ | ±(1.5%+3) | |
Frequency | 4Hz/40Hz/400Hz/4kHz/40kHz /400kHz/1MHz | ±(0.1%+2) |
Continuity test | YES | |
Peak hold/Flashlight | YES |

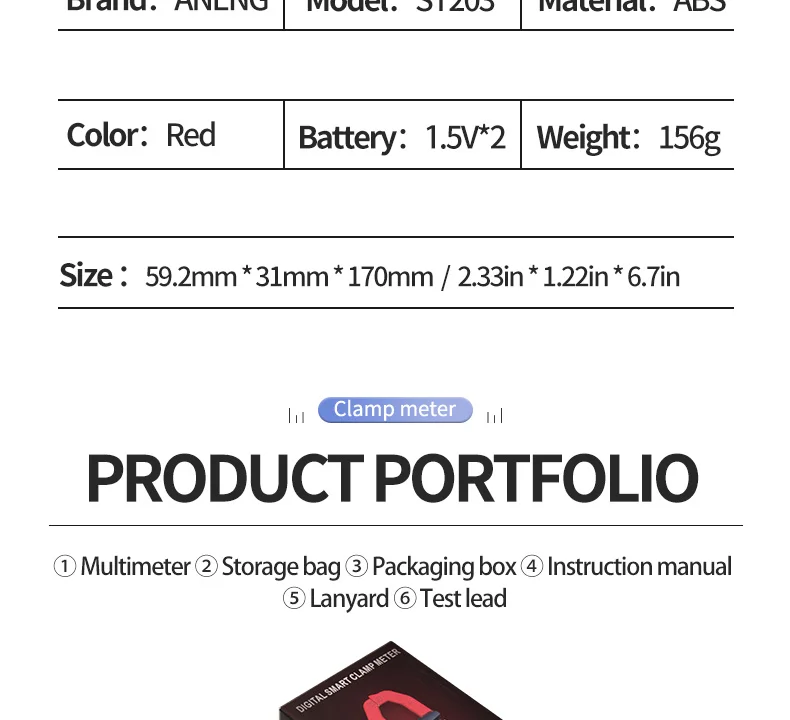

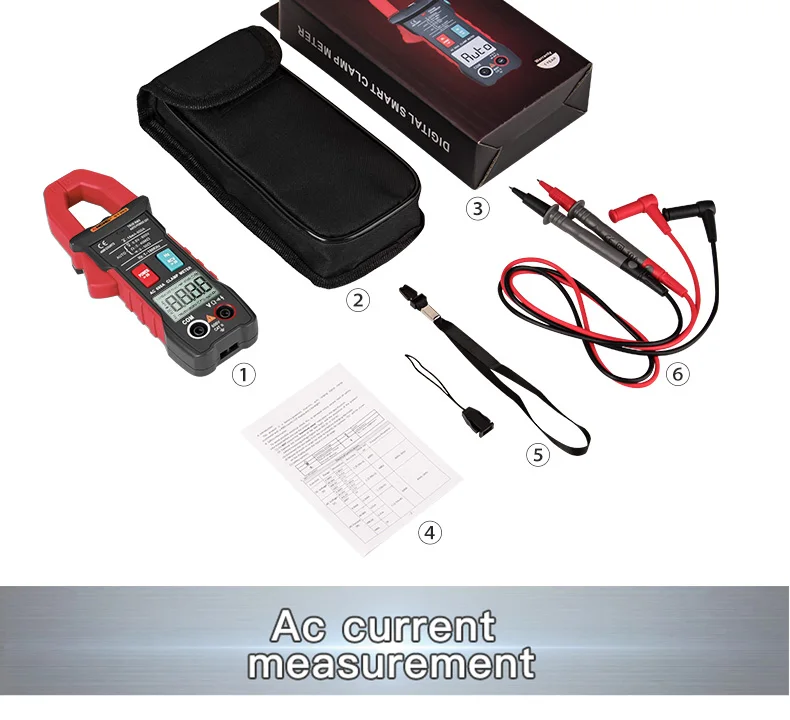

Package Include:
1*clamp meter
1*manual
1*pair of test leads
1*packaging box

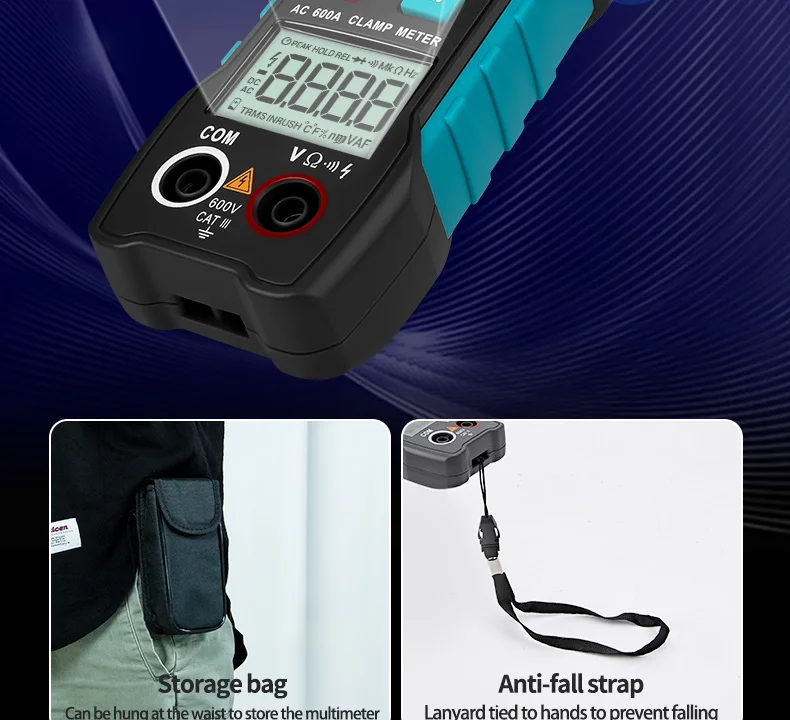

1*storage bag
