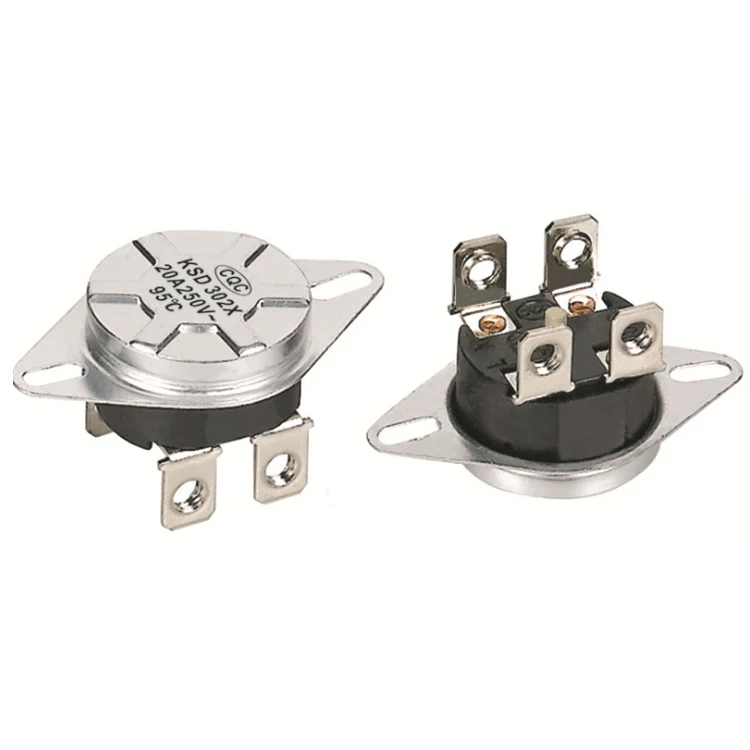

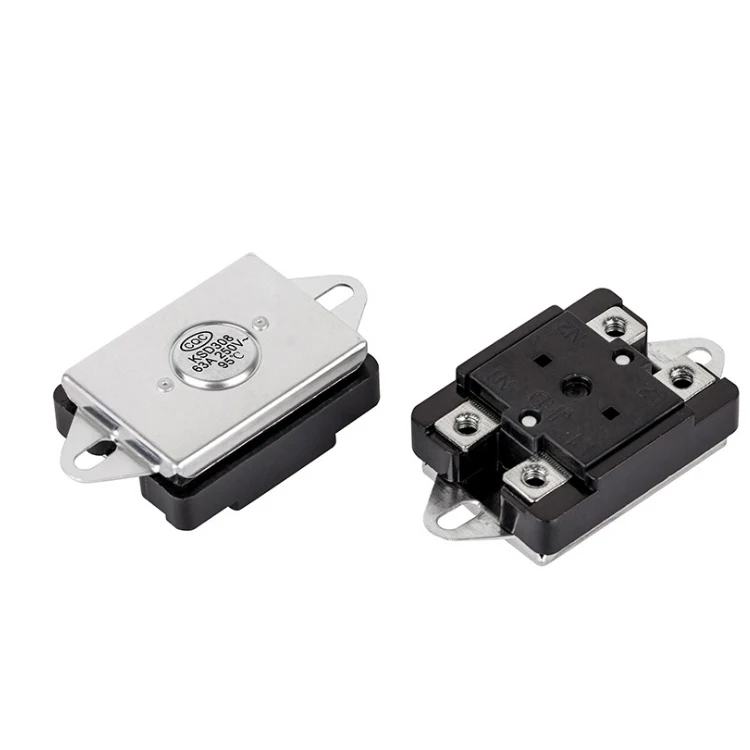

Factory Price China Supplier Ksd303 400V 60A Water Heater With Thermostat Bimetal Automatic Reset Switch
- Category: Home Appliance Parts >>>
- Supplier: Dongguan,City,Heng,Hao,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Voltage & Current | AC250V ~ 400 V / 15 A ~ 60 A |
Action Temperature | 50~200 degree |
Temperature deviation: | ±5 / ±10 degree or according to client's request |
Circuit resistance | ≤50mΩ (Initial value) |
Insulation resistanc | AC50Hz 1500V / min, no breakdown blinding (Normal State) |
Life cycle | ≥50000 times |
Contact type | Normally closed |
Two kinds of mounting bracket | movable or immovable |
Terminal type | 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional |
House | plastic |
Temperature sensor face | aluminum cap or copper head. |
Use for | It is used as temperature control for household electric appliances and widely applied in Electric welding machine, Electric equipment, Electric products,Steam heater, High power machinery equipment,Demand Water Heaters |
Certificate approved | UL TUV CQC KC ROHS |
