Small Manual Coin Cell Battery Disc Cutter Machine For Button Cells Electrode Cutting Separator Punching
- Category: >>>
- Supplier: Dongguan Zhik Energy Technology Co. Ltd.
Share on (1600292593097):
Product Overview
Description
Product Description

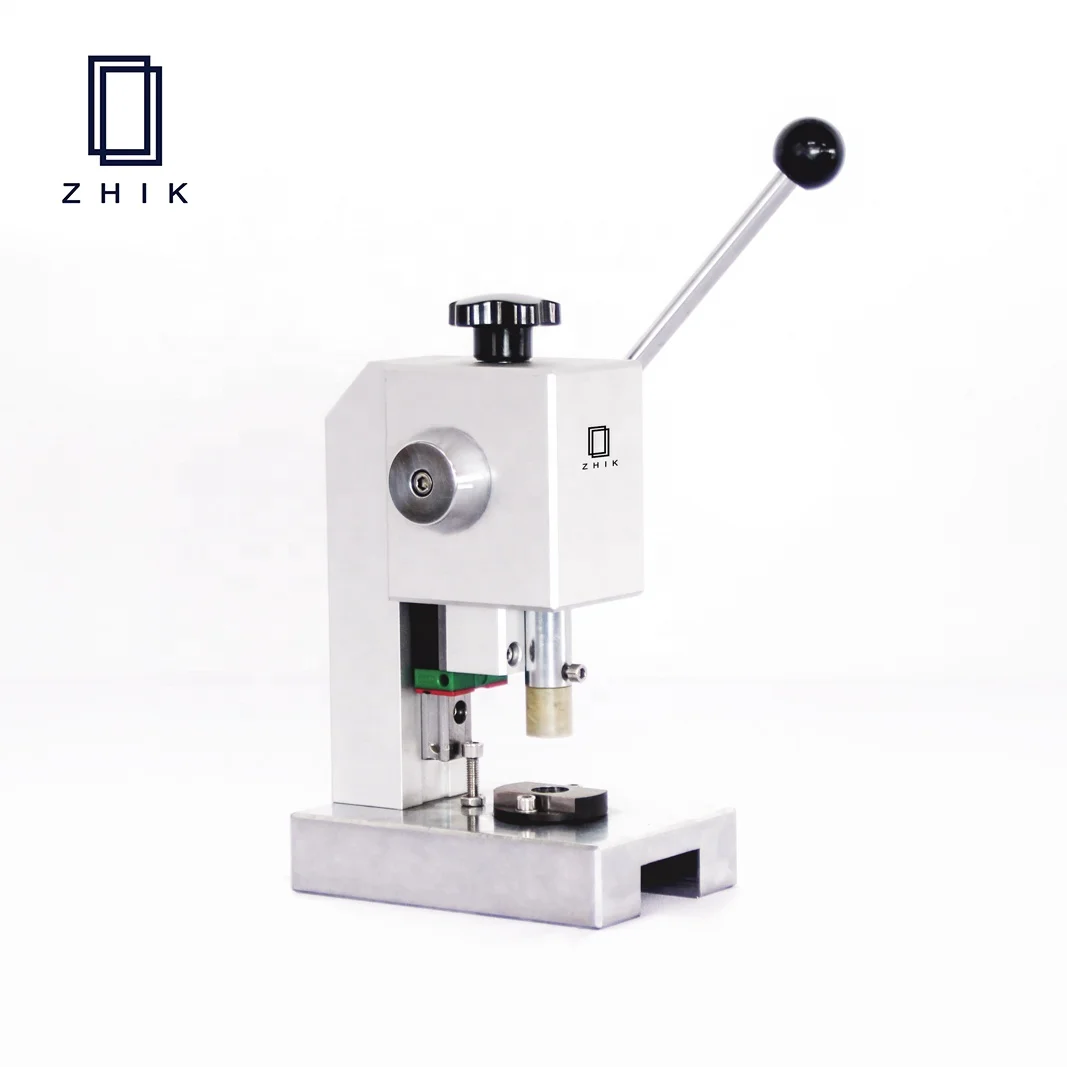

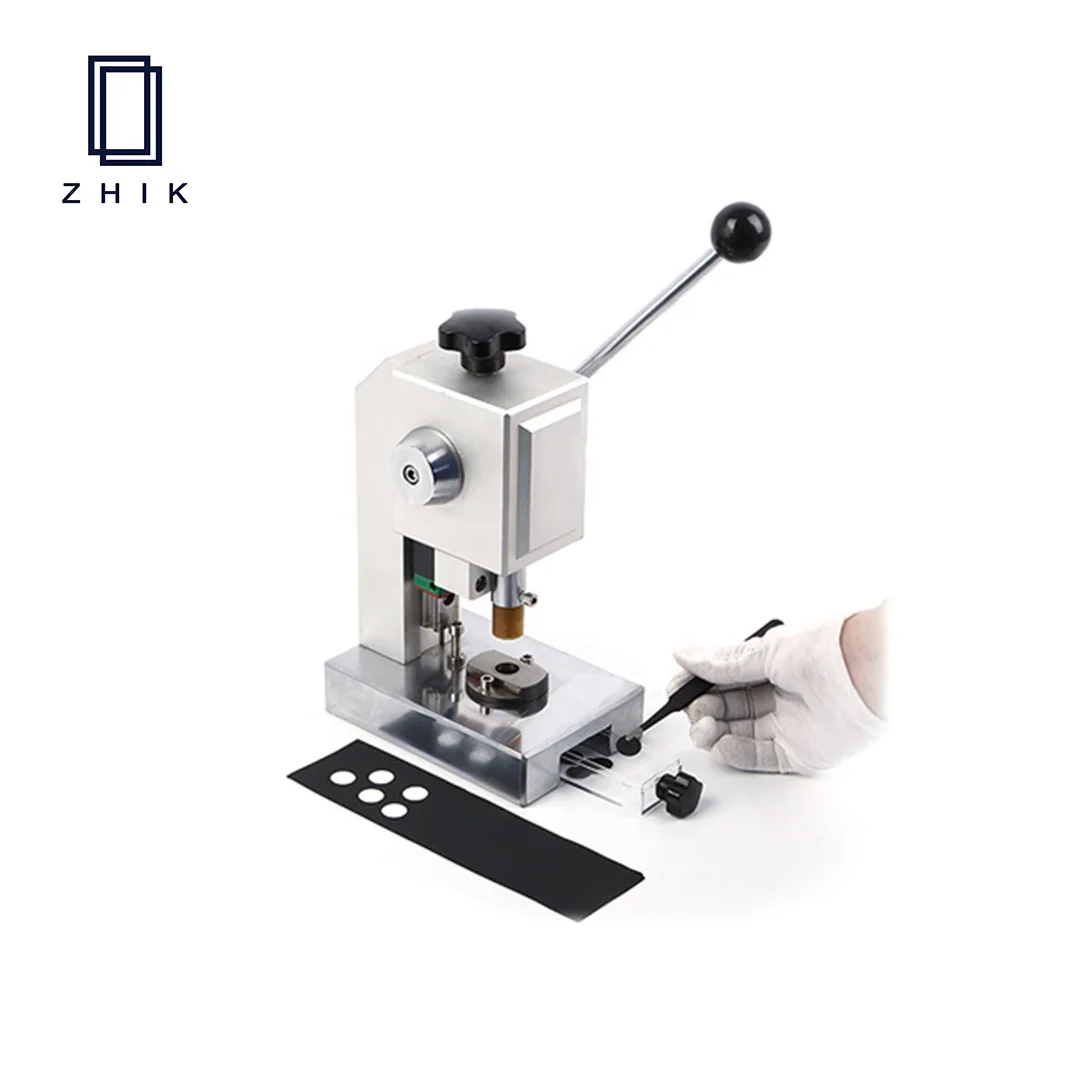

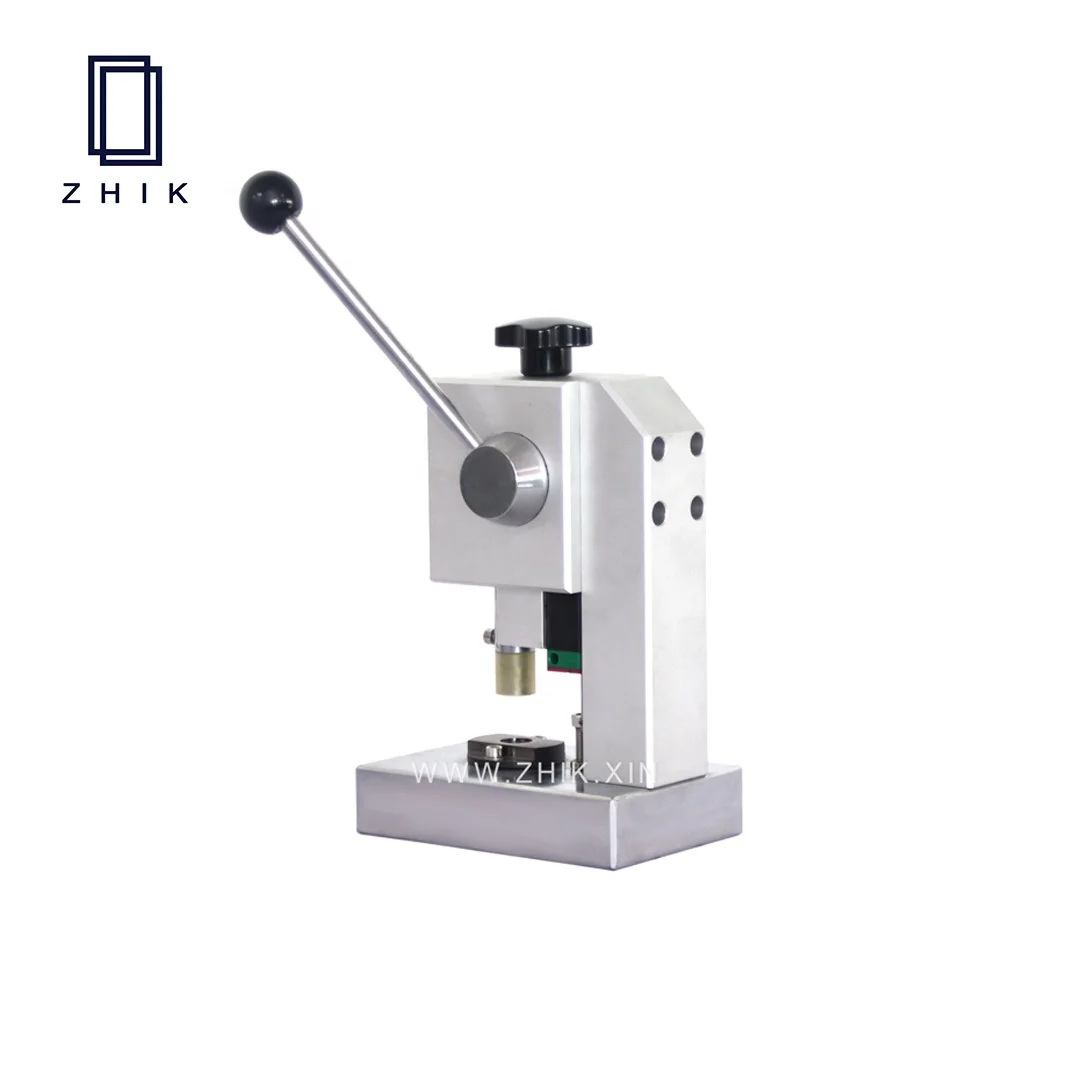

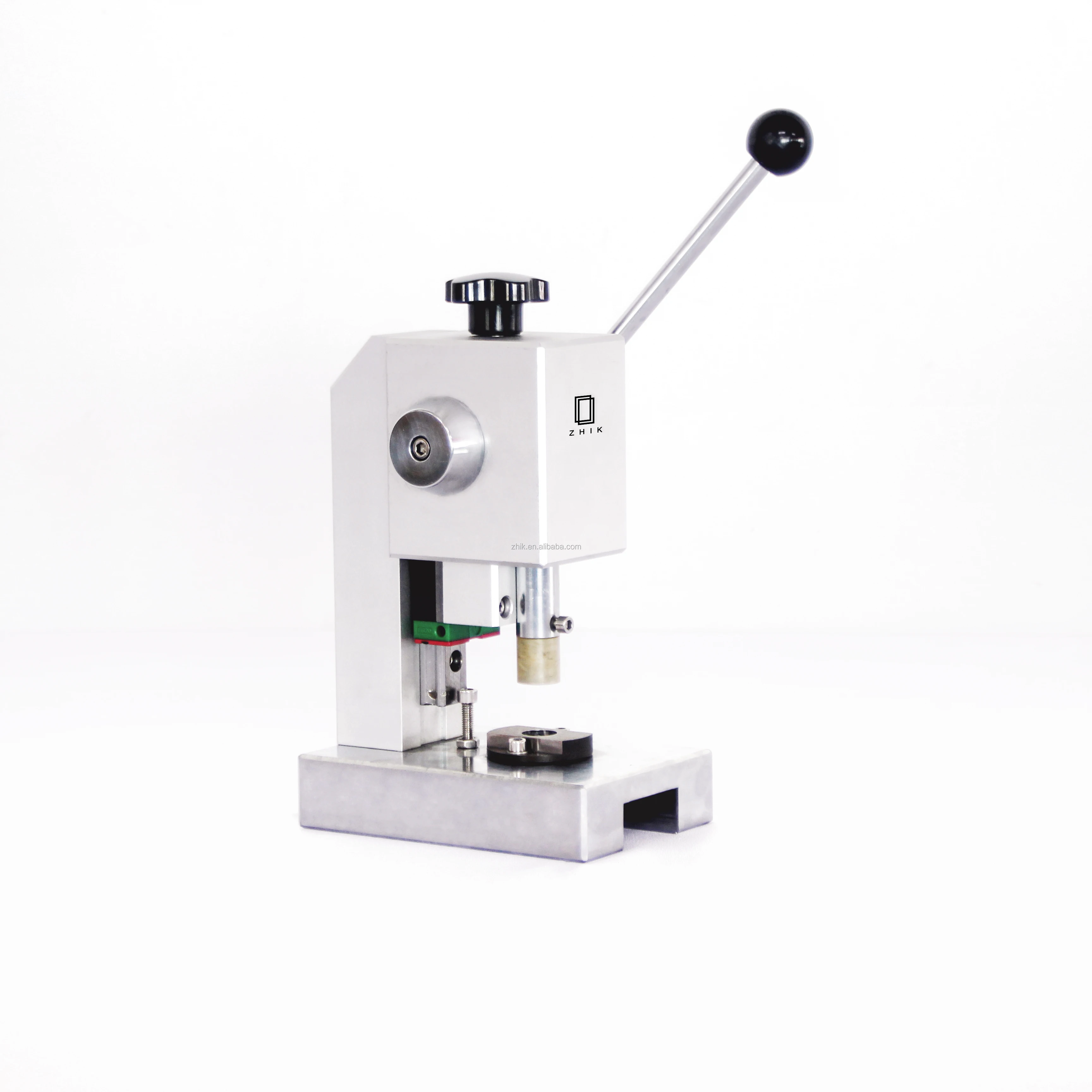

Coin cell punching machine
This machine is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed
into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting
round discs from a thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as
electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.
into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting
round discs from a thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as
electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.
technical parameter
Structure | Major structural material: Cr Plated Steel |
Cutting Die | Optional 3 - 24mm customized dies are available upon request |
Product Dimensions | L110×W150×H235mm Compact size which can be put into glovebox through air lock chamber |
Warranty | 1 years limited manufacturer warranty with lifetime support. |
1. If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies: 16mm (for negative side case, which is 16.5mm in diameter). 19mm (for positive side case, which is 20mm in diameter). 20 mm (for separator to fully separate the electrodes in both negative and positive cases). 2. For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as optional die). 3. Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells 4. Warning: You must pay great attention to install die or change die from one size to another. The tolerance of precision die is very little. Please contact us if you have any question. | |
Compliance | CE Certified |
Net Weight | 6 kg |
